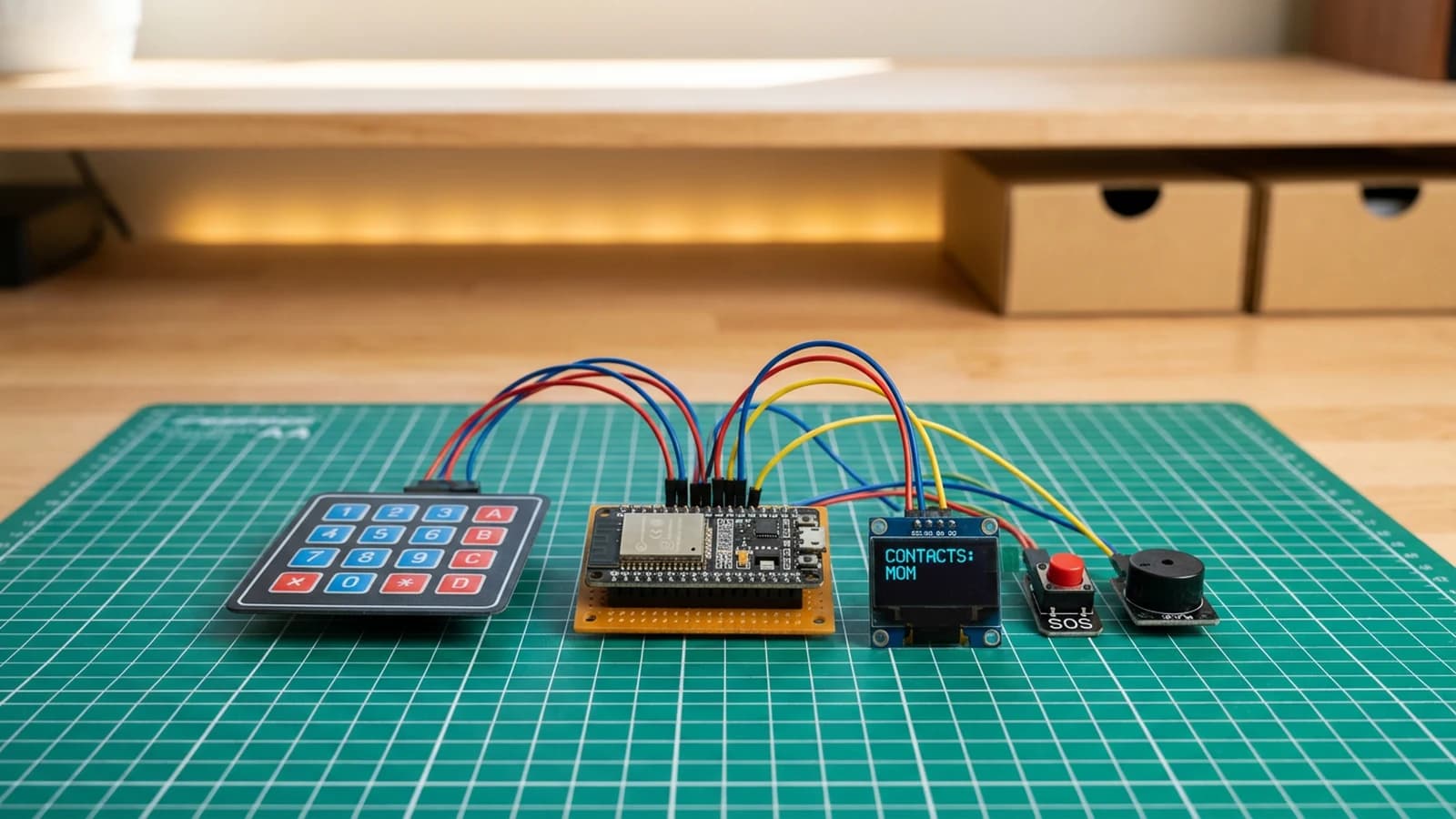

How to Build an ESP32 Kids Phone Prototype
A kid-safe mini phone with big buttons, approved contacts, and SOS mode
Updated

What you'll build
In this project you will prototype a kid-safe phone built around an ESP32, a 4x4 membrane keypad, a small TFT display, a speaker module, and a dedicated SOS button. The phone stores a short list of approved contacts, lets the child scroll through them with simple up-and-down key presses, and initiates a call with a single confirm press. Holding the red SOS button for two seconds triggers an emergency routine that auto-dials a preset guardian number and flashes the screen with a bright alert pattern. The entire interface is designed with large fonts, high-contrast colors, and minimal menus so even very young children can operate it confidently.
Building this prototype teaches you how to manage multiple peripherals on a single ESP32 simultaneously -- scanning a keypad matrix, driving a TFT over SPI, producing audio tones through a DAC-fed speaker, and monitoring a hardware interrupt on the SOS pin. You will learn how to structure a state-machine architecture that keeps the user interface responsive while background tasks handle audio playback and communication events. The project also introduces the concept of contact whitelisting and parental lock-out logic, giving you a taste of how product designers think about child safety in consumer electronics.
The finished prototype is a compelling proof-of-concept that demonstrates core embedded-systems skills: multiplexed input handling, SPI display rendering, interrupt-driven safety features, and non-volatile contact storage. From here you could extend the hardware with a SIM800L GSM module to make actual cellular calls, add GPS tracking for location sharing, or integrate Bluetooth for pairing with a parent's smartphone. It is an ideal project for makers who want to explore the intersection of hardware design and user-centered product thinking.
Wiring diagram
Wiring diagram
Components needed
Assembly
Build the kid-safe input panel
Wire the 4x4 keypad rows/columns and connect the dedicated SOS button to GPIO34.
- Label approved contacts directly on the enclosure for clarity.
Add display and audio feedback
Connect OLED via I2C (GPIO4/GPIO15) and piezo speaker on GPIO26.
- Use short I2C lines to keep screen updates stable.
Pin assignments
| Pin | Connection | Type |
|---|---|---|
| GPIO 14 | keypad-1 ROW0 | DIGITAL |
| GPIO 27 | keypad-1 ROW1 | DIGITAL |
| GPIO 12 | keypad-1 ROW2 | DIGITAL |
| GPIO 13 | keypad-1 ROW3 | DIGITAL |
| GPIO 23 | keypad-1 COL0 | DIGITAL |
| GPIO 22 | keypad-1 COL1 | DIGITAL |
| GPIO 21 | keypad-1 COL2 | DIGITAL |
| GPIO 19 | keypad-1 COL3 | DIGITAL |
| GPIO 4 | oled-phone-1 SDA | I2C |
| GPIO 15 | oled-phone-1 SCL | I2C |
| GPIO 34 | sos-btn-1 SIG | DIGITAL |
| GPIO 26 | speaker-1 SIG | PWM |
Code
#include <Wire.h>
#include <Keypad.h>
#include <Adafruit_SSD1306.h>
#define SDA_PIN 4
#define SCL_PIN 15
#define SOS_PIN 34
#define SPEAKER_PIN 26
const byte ROWS = 4, COLS = 4;
char keys[ROWS][COLS] = {{'1','2','3','A'},{'4','5','6','B'},{'7','8','9','C'},{'*','0','#','D'}};
byte rowPins[ROWS] = {14, 27, 12, 13};
byte colPins[COLS] = {23, 22, 21, 19};
Keypad keypad = Keypad(makeKeymap(keys), rowPins, colPins, ROWS, COLS);
Adafruit_SSD1306 display(128, 64, &Wire, -1);
String approvedContacts[3] = {"MOM", "DAD", "HOME"};
int selected = 0;
void setup() {
Wire.begin(SDA_PIN, SCL_PIN);
display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
pinMode(SOS_PIN, INPUT_PULLUP);
pinMode(SPEAKER_PIN, OUTPUT);
}
void loop() {
char key = keypad.getKey();
if (key == 'A') selected = (selected + 1) % 3;
if (key == 'B') tone(SPEAKER_PIN, 1400, 140);
if (digitalRead(SOS_PIN) == LOW) {
tone(SPEAKER_PIN, 2200, 220);
}
display.clearDisplay();
display.setCursor(0, 0);
display.println("Kids Phone");
display.print("Contact: ");
display.println(approvedContacts[selected]);
display.println("A=Next B=Call");
display.println("SOS button active");
display.display();
delay(40);
}
