DC Motor + Stepper FeatherWing Add-on For All Feather Boards

OverviewPinoutWiringRelated groups

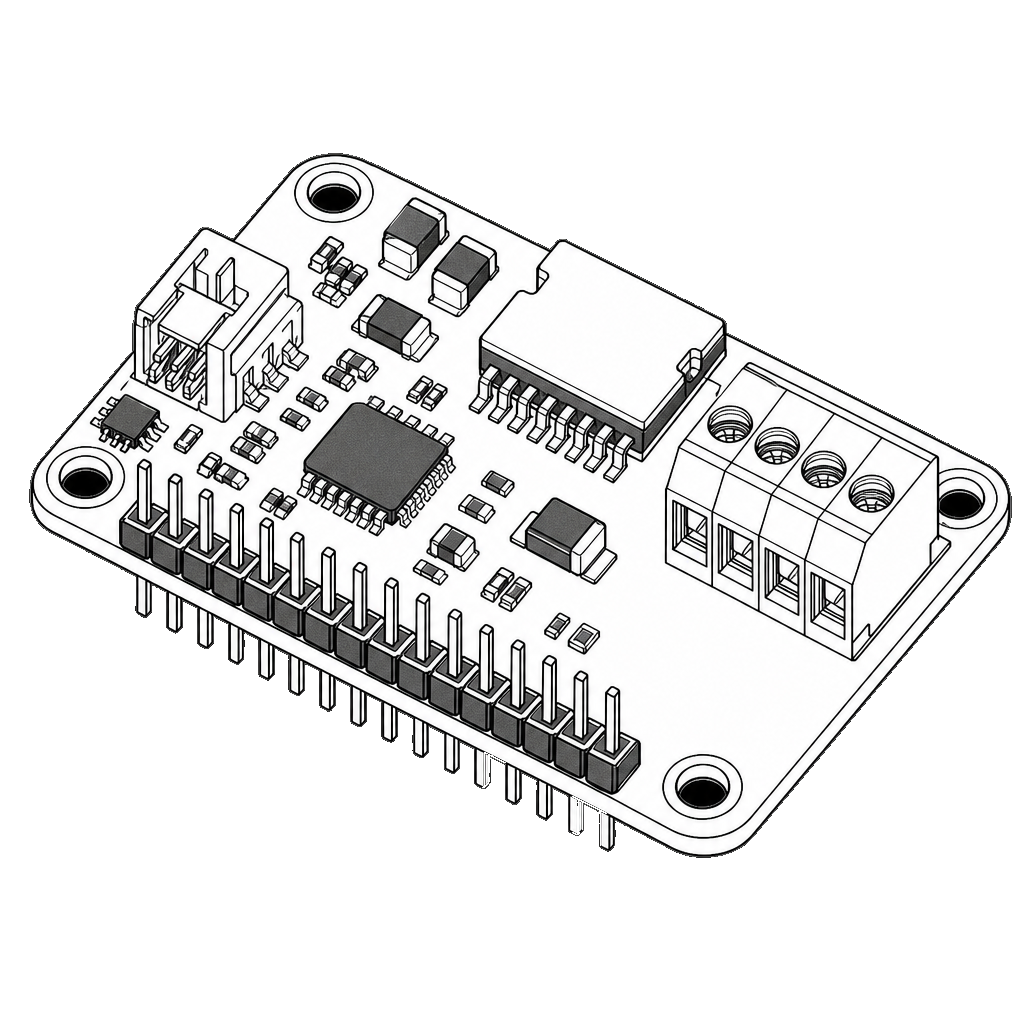

DC Motor + Stepper FeatherWing Add-on For All Feather Boards generated catalogue visual
Drag to rotate · pinch or scroll to zoom
STEP sourceSTL model
CAD model by Adafruit Industries, MIT

A Feather board without ambition is a Feather board without FeatherWings! This is the DC Motor + Stepper FeatherWing which will let you use 2 x bi-polar stepper motors or 4 x brushed DC motors (or 1 stepper and 2 DC motors).

Pinout

  • Motor power +

    External motor supply positive input. Adafruit Learn states to provide 5-12V DC power for driving the motors on the motor power pins.

    Type · powerVoltage · 5-12V DC motor supply, source-backed by Adafruit Learn pinouts page
  • Motor power GND

    External motor supply ground input for the motor power terminal block.

    Type · groundVoltage · 0V reference for external 5-12V motor supply
  • M1

    Motor output terminal in the left motor set, also used as part of Stepper 1 / M1 + M2.

    Type · outputVoltage · motor supply dependent
  • M2

    Motor output terminal in the left motor set, also used as part of Stepper 1 / M1 + M2.

    Type · outputVoltage · motor supply dependent
  • M3

    Motor output terminal in the right motor set, also used as part of Stepper 2 / M3 + M4.

Start wiring

I2C · SPI · 5-12V DC motor supply, source-backed by Adafruit Learn pinouts page · 0V reference for external 5-12V motor supply

Confirm the data interface matches your host board.

Module pins: Motor power +, 3.3V, Motor power GND, GND, SDA, SCL. Schematik maps them to your board in the app.

Related groups

4 groups
SparkFun Qwiic Pro Micro BoogieBoard visual preview
9V to Barrel Jack Adapter visual preview
SparkFun 16x2 SerLCD - RGB Backlight (Qwiic) visual preview
MicroUSB Plug to 5.5/2.1mm DC Barrel Jack Adapter | Kiwi Electronics visual preview

Connectors

Sort passive connector adapters from Qwiic boards, LCD modules and microSD card adapters before assuming anything with the right plug will substitute safely.

Connectors & cables · Connectors · 28 parts

RGB backlight positive LCD 16x2 visual preview
SparkFun 16x2 SerLCD - RGB Backlight (Qwiic) visual preview
I2C 20x4 Arduino LCD Display Module visual preview
Gravity: I2C 16x2 Arduino LCD with RGB Backlight Display V2.0 visual preview

Displays

Character LCDs, SPI TFTs, e-paper modules and larger capacitive-touch TFT panels solve different display jobs. Treat display class, interface, controller, resolution, touch, refresh behaviour, storage, voltage and mounting as separate swap checks.

Displays · TFT & LCD displays · 35 parts

MQ-2 Gas Sensor visual preview
MQ-3 Gas Sensor visual preview
MQ-135 Gas Sensor visual preview
Grove - Air quality sensor visual preview

Air quality

Choose between MQ gas sensors, VOC/eCO2 indoor-air sensors, true CO2 modules and particulate sensors without treating every air-quality breakout as the same detector.

Sensors · Gas & air-quality sensors · 31 parts

Arduino Uno visual preview
Raspberry Pi Pico visual preview
Adafruit Feather nRF52840 Express visual preview
Pan-Tilt HAT kit visual preview

MCUs and boards

ESP32, Arduino Uno, Raspberry Pi Pico, and compatible add-on boards for running builds.

Boards · Microcontroller boards · 24 parts

Parts tray full · 5 max · remove a part to add another

Offers

  • Adafruit

Offers

  • Adafruit
Type · output
Voltage · motor supply dependent
  • M4

    Motor output terminal in the right motor set, also used as part of Stepper 2 / M3 + M4.

    Type · outputVoltage · motor supply dependent
  • 3.3V

    Feather logic power for the I2C expander and motor control pins. Adafruit Learn says logic power comes from the Feather's 3.3V regulator and is required.

    Type · powerVoltage · 3.3V logic
  • GND

    Feather logic ground, required with 3.3V logic power.

    Type · groundVoltage · 0V logic reference
  • SDA

    I2C data line used for all control. Adafruit Learn states SDA is the right highlighted I2C pin near the mounting hole and has a 10K pullup to 3.3V.

    Type · signalVoltage · 3.3V I2C with 10K pullup
  • SCL

    I2C clock line used for all control. Adafruit Learn states SCL is to the left of SDA and has a 10K pullup to 3.3V.

    Type · signalVoltage · 3.3V I2C with 10K pullup
  • A0 address jumper

    I2C address offset jumper bit 0. Bridge with solder to add this binary address bit to the 0x60 base address.

    Type · configuration
  • A1 address jumper

    I2C address offset jumper bit 1. Bridge with solder to add this binary address bit to the 0x60 base address.

    Type · configuration
  • A2 address jumper

    I2C address offset jumper bit 2. Bridge with solder to add this binary address bit to the 0x60 base address.

    Type · configuration
  • A3 address jumper

    I2C address offset jumper bit 3. Bridge with solder to add this binary address bit to the 0x60 base address.

    Type · configuration
  • A4 address jumper

    I2C address offset jumper bit 4. Bridge with solder to add this binary address bit to the 0x60 base address.

    Type · configuration
  • PinPositionTypeFunctionVoltage
    Motor power +powerExternal motor supply positive input. Adafruit Learn states to provide 5-12V DC power for driving the motors on the motor power pins.5-12V DC motor supply, source-backed by Adafruit Learn pinouts page
    Motor power GNDgroundExternal motor supply ground input for the motor power terminal block.0V reference for external 5-12V motor supply
    M1outputMotor output terminal in the left motor set, also used as part of Stepper 1 / M1 + M2.motor supply dependent
    M2outputMotor output terminal in the left motor set, also used as part of Stepper 1 / M1 + M2.motor supply dependent
    M3outputMotor output terminal in the right motor set, also used as part of Stepper 2 / M3 + M4.motor supply dependent
    M4outputMotor output terminal in the right motor set, also used as part of Stepper 2 / M3 + M4.motor supply dependent
    3.3VpowerFeather logic power for the I2C expander and motor control pins. Adafruit Learn says logic power comes from the Feather's 3.3V regulator and is required.3.3V logic
    GNDgroundFeather logic ground, required with 3.3V logic power.0V logic reference
    SDAsignalI2C data line used for all control. Adafruit Learn states SDA is the right highlighted I2C pin near the mounting hole and has a 10K pullup to 3.3V.3.3V I2C with 10K pullup
    SCLsignalI2C clock line used for all control. Adafruit Learn states SCL is to the left of SDA and has a 10K pullup to 3.3V.3.3V I2C with 10K pullup
    A0 address jumperconfigurationI2C address offset jumper bit 0. Bridge with solder to add this binary address bit to the 0x60 base address.
    A1 address jumperconfigurationI2C address offset jumper bit 1. Bridge with solder to add this binary address bit to the 0x60 base address.
    A2 address jumperconfigurationI2C address offset jumper bit 2. Bridge with solder to add this binary address bit to the 0x60 base address.
    A3 address jumperconfigurationI2C address offset jumper bit 3. Bridge with solder to add this binary address bit to the 0x60 base address.
    A4 address jumperconfigurationI2C address offset jumper bit 4. Bridge with solder to add this binary address bit to the 0x60 base address.
