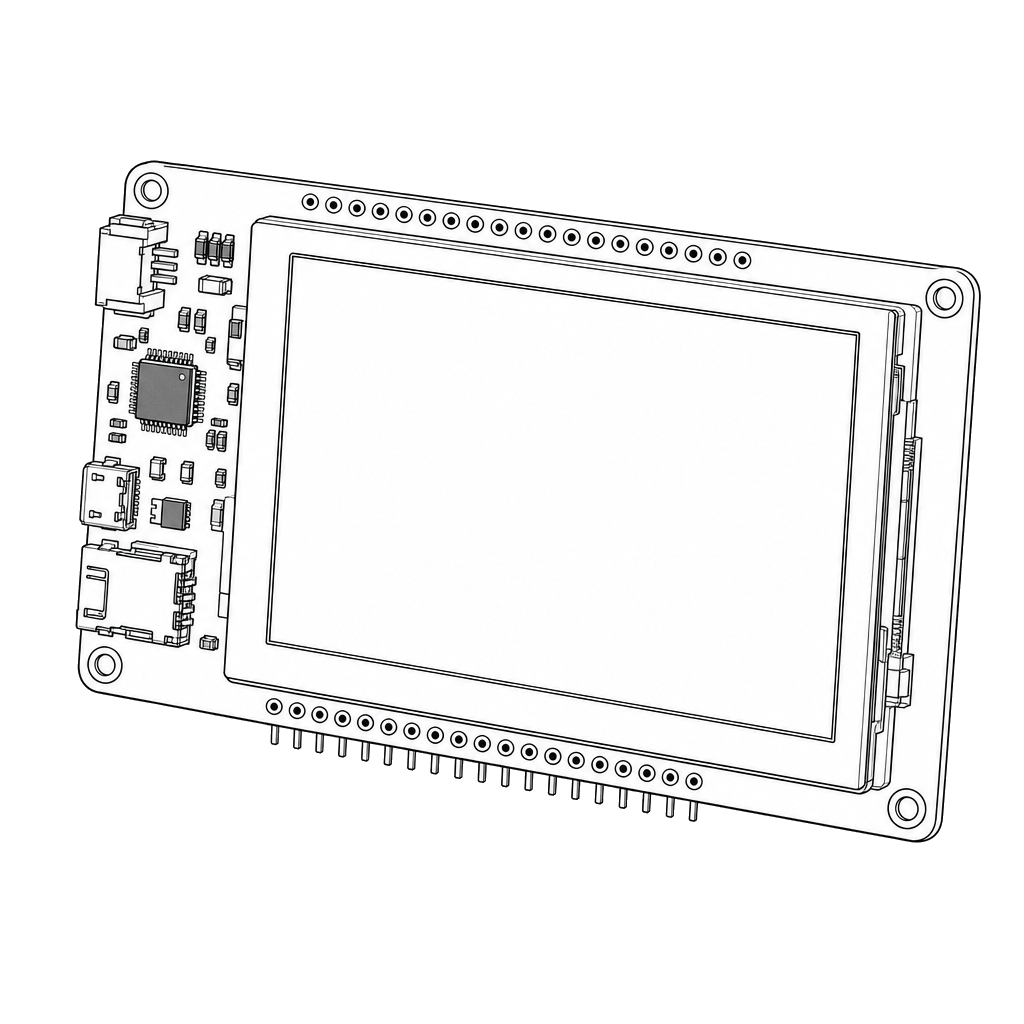

Adafruit PyPortal - CircuitPython Powered Internet Display

Adafruit, MIT

PyPortal, our easy-to-use IoT device that allows you to create all the things for the “Internet of Things” in minutes. Make custom touch screen interface GUIs, all open-source, and Python-powered using tinyJSON / APIs to get news, stock, weather, cat photos, and more – all over…

ATSAMD51J20
Main processor, ATSAMD51J20 Cortex M4, 120MHz with 3.3V logic/power per Adafruit Learn pinouts page.
Type · mcuVoltage · 3.3V logic/power
ESP_CS
ESP32 WiFi co-processor SPI chip-select, documented as board.ESP_CS / Arduino 8.
Type · digitalVoltage · 3.3V logic
ESP_BUSY
ESP32 WiFi co-processor ready/busy pin, documented as board.ESP_BUSY / Arduino 5.
Type · digitalVoltage · 3.3V logic
ESP_RESET
ESP32 WiFi co-processor reset pin, documented as board.ESP_RESET / Arduino 7.
Type · digitalVoltage · 3.3V logic
ESP_RX
UART connection to ESP32 WiFi co-processor, documented as board.ESP_RX.
Type · uartVoltage · 3.3V logic

Start wiring

SPI · UART · Analog · 3.3V logic/power · 3.3V logic

Confirm the data interface matches your host board.

Module pins: ESP_RX, ESP_TX, SD_CS, AUDIO_OUT, STEMMA I2C, LIGHT, TOUCH_YD, TOUCH_XL. Schematik maps them to your board in the app.

Related groups

4 groups

Displays

Character LCDs, SPI TFTs, e-paper modules and larger capacitive-touch TFT panels solve different display jobs. Treat display class, interface, controller, resolution, touch, refresh behaviour, storage, voltage and mounting as separate swap checks.

Displays · TFT & LCD displays · 35 parts

Connectors

Sort passive connector adapters from Qwiic boards, LCD modules and microSD card adapters before assuming anything with the right plug will substitute safely.

Connectors & cables · Connectors · 28 parts

Air quality

Choose between MQ gas sensors, VOC/eCO2 indoor-air sensors, true CO2 modules and particulate sensors without treating every air-quality breakout as the same detector.

Sensors · Gas & air-quality sensors · 31 parts

MCUs and boards

ESP32, Arduino Uno, Raspberry Pi Pico, and compatible add-on boards for running builds.

Boards · Microcontroller boards · 24 parts

Position

Type

Function

Voltage

ATSAMD51J20

mcu

Main processor, ATSAMD51J20 Cortex M4, 120MHz with 3.3V logic/power per Adafruit Learn pinouts page.

3.3V logic/power

ESP_CS

digital

ESP32 WiFi co-processor SPI chip-select, documented as board.ESP_CS / Arduino 8.

3.3V logic

ESP_BUSY

digital

ESP32 WiFi co-processor ready/busy pin, documented as board.ESP_BUSY / Arduino 5.

3.3V logic

ESP_RESET

digital

ESP32 WiFi co-processor reset pin, documented as board.ESP_RESET / Arduino 7.

3.3V logic

ESP_RX

uart

UART connection to ESP32 WiFi co-processor, documented as board.ESP_RX.

3.3V logic

ESP_TX

uart

UART connection to ESP32 WiFi co-processor, documented as board.ESP_TX.

3.3V logic

SD_CS

spi

microSD card SPI chip-select, documented as board.SD_CS / Arduino 32.

3.3V logic

SD_CARD_DETECT

digital

microSD card detect pin, documented as board.SD_CARD_DETECT / Arduino 33.

3.3V logic

AUDIO_OUT

analog

DAC0 analogue output feeding the onboard speaker amplifier, documented as board.AUDIO_OUT / Arduino A0.

analogue output from SAMD51 DAC0

SPEAKER_ENABLE

digital

Speaker amplifier shutdown/enable pin, documented as board.SPEAKER_ENABLE / Arduino 50.

3.3V logic

STEMMA I2C

i2c

4-pin JST I2C connector for external I2C sensors; Adafruit notes the 5V3 jumper must be set to 3V for SAMD51-safe pullups.

3.3V I2C when 5V3 jumper is changed to 3V

LIGHT

analog

Ambient light sensor analogue input, documented as board.LIGHT / Arduino A2.

analogue input

TOUCH_YD

analog

Resistive touchscreen YD connection, documented as board.TOUCH_YD / Arduino A4.

analogue touch input

TOUCH_XL

analog

Resistive touchscreen XL connection, documented as board.TOUCH_XL / Arduino A5.

analogue touch input

TOUCH_YU

analog

Resistive touchscreen YU connection, documented as board.TOUCH_YU / Arduino A6.

analogue touch input

TOUCH_XR

analog

Resistive touchscreen XR connection, documented as board.TOUCH_XR / Arduino A7.

analogue touch input

TFT_RESET

display

TFT reset control, documented as board.TFT_RESET / Arduino 24.

3.3V logic

TFT_WR / TFT_DC

display

TFT write control, also TFT data/command pin in SPI mode, documented as board.TFT_WR or board.TFT_DC / Arduino 25.

3.3V logic

TFT_RD

display

TFT read control, documented as board.TFT_RD / Arduino 9.

3.3V logic

TFT_RS

display

TFT register-select control, documented as board.TFT_RS / Arduino 10.

3.3V logic

TFT_CS

display

TFT chip-select control, documented as board.TFT_CS / Arduino 11.

3.3V logic

TFT_TE

display

TFT tearing-effect signal, documented as board.TFT_TE / Arduino 12.

3.3V logic

TFT_BACKLIGHT

display

PWM-controllable TFT backlight transistor connection, documented as board.TFT_BACKLIGHT / Arduino 25.

backlight control signal
