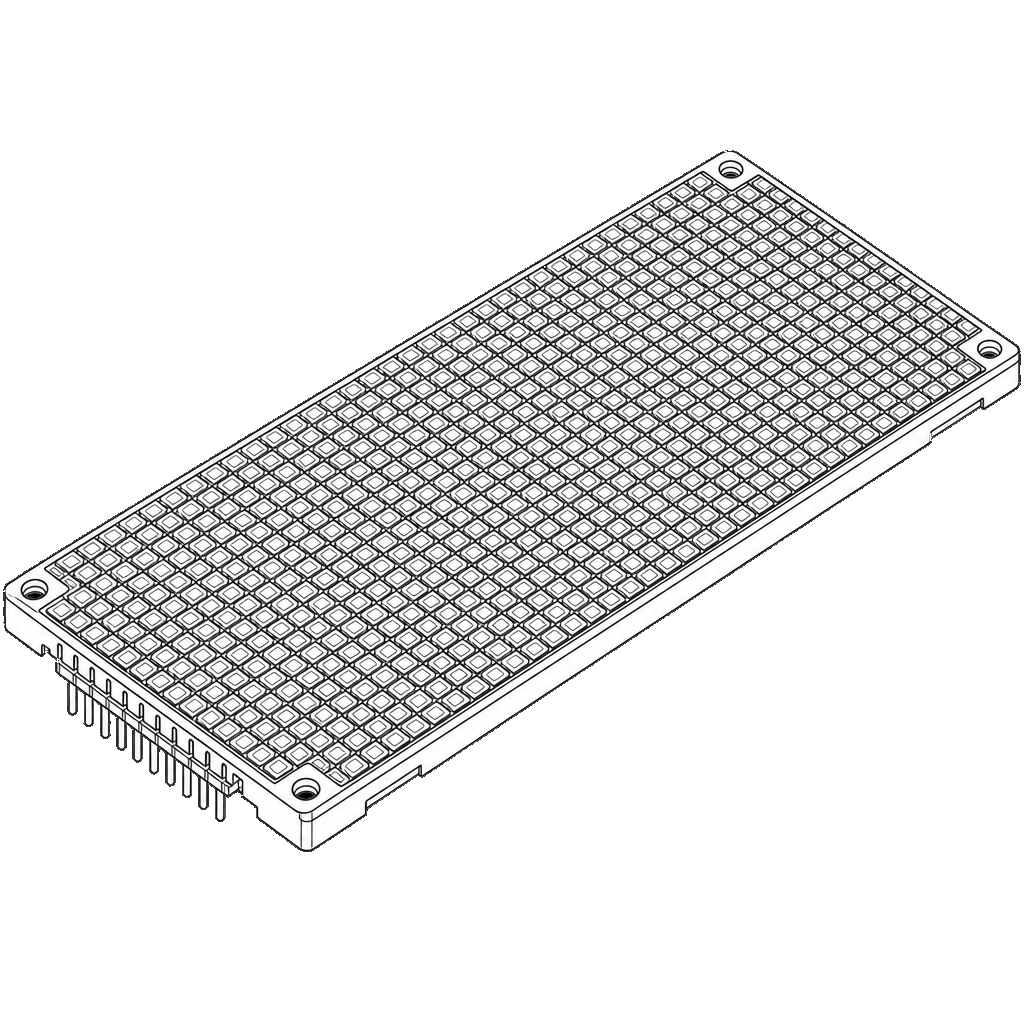

Bring a little bit of Times Square into your home with this sweet 64 x 32 square RGB LED matrix panel. These panels are normally used to make video walls, here in New York we see them on the sides of busses and bus stops, to display animations or short video clips.
Upper-half red data input on the RGB matrix input connector. Adafruit Learn describes R1/G1/B1 as the upper RGB data signals.
Upper-half green data input on the RGB matrix input connector. Adafruit Learn describes R1/G1/B1 as the upper RGB data signals.
Upper-half blue data input on the RGB matrix input connector. Adafruit Learn describes R1/G1/B1 as the upper RGB data signals.
Lower-half red data input on the RGB matrix input connector. Adafruit Learn describes R2/G2/B2 as the lower RGB data signals.
Lower-half green data input on the RGB matrix input connector. Adafruit Learn describes R2/G2/B2 as the lower RGB data signals.
SPI · 5 V panel power · 0 V
Verify supply voltage and logic levels before powering up.
Module pins: 5V, GND, R1, G1, B1, R2, G2, B2. Schematik maps them to your board in the app.
RGB backlight positive LCD 16x2 visual preview
SparkFun 16x2 SerLCD - RGB Backlight (Qwiic) visual preview
I2C 20x4 Arduino LCD Display Module visual preview
Gravity: I2C 16x2 Arduino LCD with RGB Backlight Display V2.0 visual previewCharacter LCDs, SPI TFTs, e-paper modules and larger capacitive-touch TFT panels solve different display jobs. Treat display class, interface, controller, resolution, touch, refresh behaviour, storage, voltage and mounting as separate swap checks.
Displays · TFT & LCD displays · 35 parts
SparkFun Qwiic Pro Micro BoogieBoard visual preview
9V to Barrel Jack Adapter visual preview
SparkFun 16x2 SerLCD - RGB Backlight (Qwiic) visual preview
MicroUSB Plug to 5.5/2.1mm DC Barrel Jack Adapter | Kiwi Electronics visual previewSort passive connector adapters from Qwiic boards, LCD modules and microSD card adapters before assuming anything with the right plug will substitute safely.
Connectors & cables · Connectors · 28 parts
MQ-2 Gas Sensor visual preview
MQ-3 Gas Sensor visual preview
MQ-135 Gas Sensor visual preview
Grove - Air quality sensor visual previewChoose between MQ gas sensors, VOC/eCO2 indoor-air sensors, true CO2 modules and particulate sensors without treating every air-quality breakout as the same detector.
Sensors · Gas & air-quality sensors · 31 parts
Raspberry Pi Pico visual preview
Adafruit Feather nRF52840 Express visual preview
Pan-Tilt HAT kit visual previewESP32, Arduino Uno, Raspberry Pi Pico, and compatible add-on boards for running builds.
Boards · Microcontroller boards · 24 parts
Lower-half blue data input on the RGB matrix input connector. Adafruit Learn describes R2/G2/B2 as the lower RGB data signals.
Row-address input. Adafruit Learn lists A/B/C/D as shared address signals for RGB matrix panels.
Row-address input. Adafruit Learn lists A/B/C/D as shared address signals for RGB matrix panels.
Row-address input. Adafruit Learn lists A/B/C/D as shared address signals for RGB matrix panels.
Row-address input used on larger panels. Adafruit Learn lists A/B/C/D as shared address signals for RGB matrix panels.
Pixel clock input for shifting RGB data into the panel. Adafruit Learn lists CLK as a shared matrix control signal.
Latch/strobe input. Adafruit Learn notes LAT may be labelled STB on some panels.
Output-enable control input. Adafruit Learn lists OE as a shared matrix control signal.
Panel power input for the 64x32 RGB LED matrix; the Adafruit product/listing is a 5 V RGB LED matrix panel.
Ground return for panel power and logic reference.
| Pin | Position | Type | Function | Voltage |
|---|---|---|---|---|
| R1 | signal | Upper-half red data input on the RGB matrix input connector. Adafruit Learn describes R1/G1/B1 as the upper RGB data signals. | ||
| G1 | signal | Upper-half green data input on the RGB matrix input connector. Adafruit Learn describes R1/G1/B1 as the upper RGB data signals. | ||
| B1 | signal | Upper-half blue data input on the RGB matrix input connector. Adafruit Learn describes R1/G1/B1 as the upper RGB data signals. | ||
| R2 | signal | Lower-half red data input on the RGB matrix input connector. Adafruit Learn describes R2/G2/B2 as the lower RGB data signals. | ||
| G2 | signal | Lower-half green data input on the RGB matrix input connector. Adafruit Learn describes R2/G2/B2 as the lower RGB data signals. | ||
| B2 | signal | Lower-half blue data input on the RGB matrix input connector. Adafruit Learn describes R2/G2/B2 as the lower RGB data signals. | ||
| A | signal | Row-address input. Adafruit Learn lists A/B/C/D as shared address signals for RGB matrix panels. | ||
| B | signal | Row-address input. Adafruit Learn lists A/B/C/D as shared address signals for RGB matrix panels. | ||
| C | signal | Row-address input. Adafruit Learn lists A/B/C/D as shared address signals for RGB matrix panels. | ||
| D | signal | Row-address input used on larger panels. Adafruit Learn lists A/B/C/D as shared address signals for RGB matrix panels. | ||
| CLK | signal | Pixel clock input for shifting RGB data into the panel. Adafruit Learn lists CLK as a shared matrix control signal. | ||
| LAT / STB | signal | Latch/strobe input. Adafruit Learn notes LAT may be labelled STB on some panels. | ||
| OE | signal | Output-enable control input. Adafruit Learn lists OE as a shared matrix control signal. | ||
| 5V | power | Panel power input for the 64x32 RGB LED matrix; the Adafruit product/listing is a 5 V RGB LED matrix panel. | 5 V panel power | |
| GND | power | Ground return for panel power and logic reference. | 0 V |
