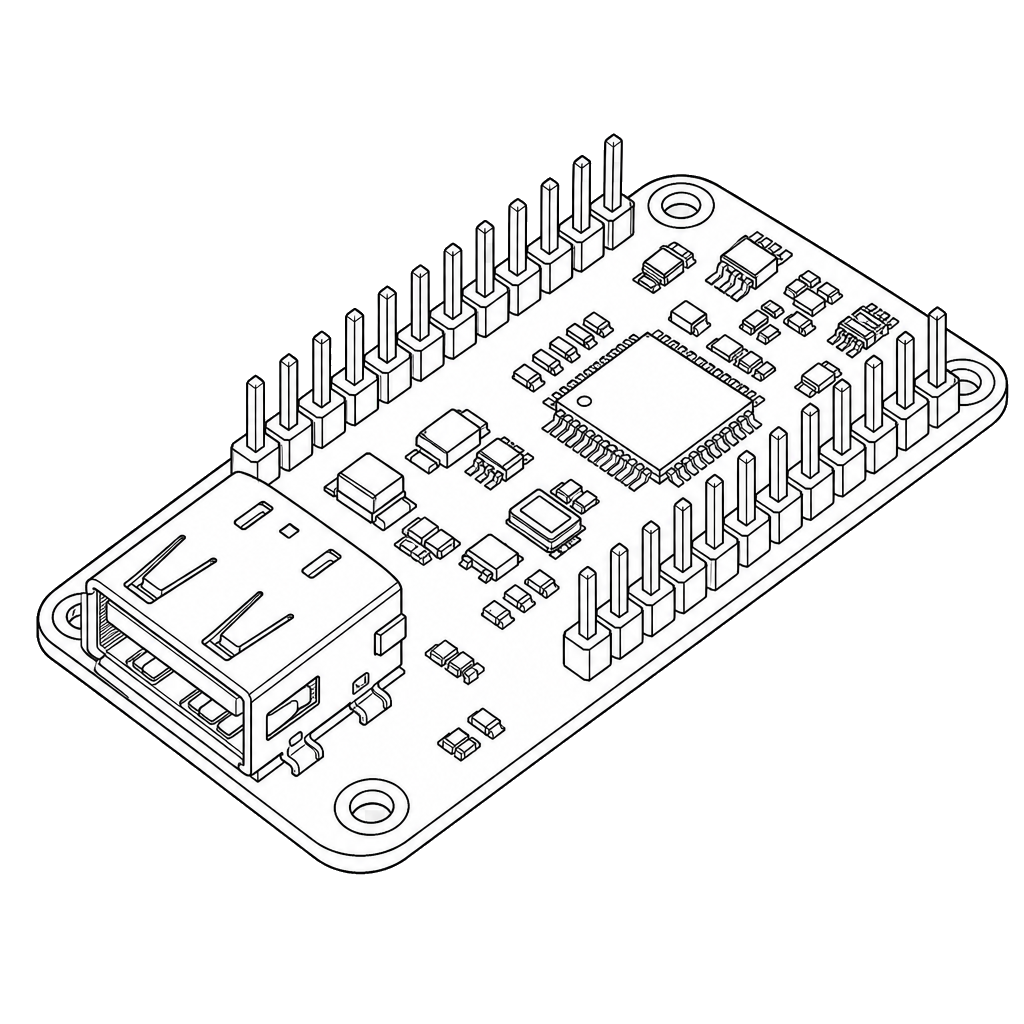

Adafruit USB Host FeatherWing with MAX3421E

Adafruit, MIT

Lots of microcontrollers these days have USB ports on them, to program or debug, act like a keyboard or disk drive, or simply send data between a computer and your firmware.

USB-Aleft-end
USB Type-A host port for sending or receiving data from an attached USB device with the MAX3421E, source: https://learn.adafruit.com/adafruit-usb-host-featherwing-with-max3421e/pinouts
Type · connectorVoltage · 5V bus power from onboard 5V 1A boost supply when enabled
MOSI
SPI MOSI signal between Feather host and MAX3421E USB host chip, source: https://learn.adafruit.com/adafruit-usb-host-featherwing-with-max3421e/pinouts
Type · spi
MISO
SPI MISO signal between Feather host and MAX3421E USB host chip, source: https://learn.adafruit.com/adafruit-usb-host-featherwing-with-max3421e/pinouts
Type · spi
SCK
SPI clock signal between Feather host and MAX3421E USB host chip, source: https://learn.adafruit.com/adafruit-usb-host-featherwing-with-max3421e/pinouts
Type · spi
CS
SPI chip-select for the MAX3421E on the FeatherWing, also broken out near the middle of the board, source: https://learn.adafruit.com/adafruit-usb-host-featherwing-with-max3421e/pinouts

Start wiring

I2S · SPI · 5V bus power from onboard 5V 1A boost supply when enabled · Controls 5V USB-A bus power; active behaviour is disable when tied to GND

Verify supply voltage and logic levels before powering up.

Module pins: MOSI, MISO, SCK. Schematik maps them to your board in the app.

Related groups

4 groups

Connectors

Sort passive connector adapters from Qwiic boards, LCD modules and microSD card adapters before assuming anything with the right plug will substitute safely.

Connectors & cables · Connectors · 28 parts

Displays

Character LCDs, SPI TFTs, e-paper modules and larger capacitive-touch TFT panels solve different display jobs. Treat display class, interface, controller, resolution, touch, refresh behaviour, storage, voltage and mounting as separate swap checks.

Displays · TFT & LCD displays · 35 parts

Air quality

Choose between MQ gas sensors, VOC/eCO2 indoor-air sensors, true CO2 modules and particulate sensors without treating every air-quality breakout as the same detector.

Sensors · Gas & air-quality sensors · 31 parts

MCUs and boards

ESP32, Arduino Uno, Raspberry Pi Pico, and compatible add-on boards for running builds.

Boards · Microcontroller boards · 24 parts

Pin	Position	Type	Function	Voltage
USB-A	left-end	connector	USB Type-A host port for sending or receiving data from an attached USB device with the MAX3421E, source: https://learn.adafruit.com/adafruit-usb-host-featherwing-with-max3421e/pinouts	5V bus power from onboard 5V 1A boost supply when enabled
MOSI		spi	SPI MOSI signal between Feather host and MAX3421E USB host chip, source: https://learn.adafruit.com/adafruit-usb-host-featherwing-with-max3421e/pinouts
MISO		spi	SPI MISO signal between Feather host and MAX3421E USB host chip, source: https://learn.adafruit.com/adafruit-usb-host-featherwing-with-max3421e/pinouts
SCK		spi	SPI clock signal between Feather host and MAX3421E USB host chip, source: https://learn.adafruit.com/adafruit-usb-host-featherwing-with-max3421e/pinouts
CS		digital input	SPI chip-select for the MAX3421E on the FeatherWing, also broken out near the middle of the board, source: https://learn.adafruit.com/adafruit-usb-host-featherwing-with-max3421e/pinouts
IRQ		digital output	Interrupt request output from the MAX3421E USB host chip to the Feather host, source: https://learn.adafruit.com/adafruit-usb-host-featherwing-with-max3421e/pinouts
GPX	towards-centre	digital io	MAX3421E general-purpose multiplexed push-pull output pin for advanced users, source: https://learn.adafruit.com/adafruit-usb-host-featherwing-with-max3421e/pinouts
5V Enable	towards-centre	control	Disable 5V power to the USB-A port by tying this pin to ground, source: https://learn.adafruit.com/adafruit-usb-host-featherwing-with-max3421e/pinouts	Controls 5V USB-A bus power; active behaviour is disable when tied to GND
5V Enable Jumper	back	jumper	Open rear jumper; soldering it connects 5V enable to MAX3421E GPOUT0 for software control over SPI, source: https://learn.adafruit.com/adafruit-usb-host-featherwing-with-max3421e/pinouts
RST	top-left-button	reset	Reset line connected to the FeatherWing reset button and reset pin, source: https://learn.adafruit.com/adafruit-usb-host-featherwing-with-max3421e/pinouts
