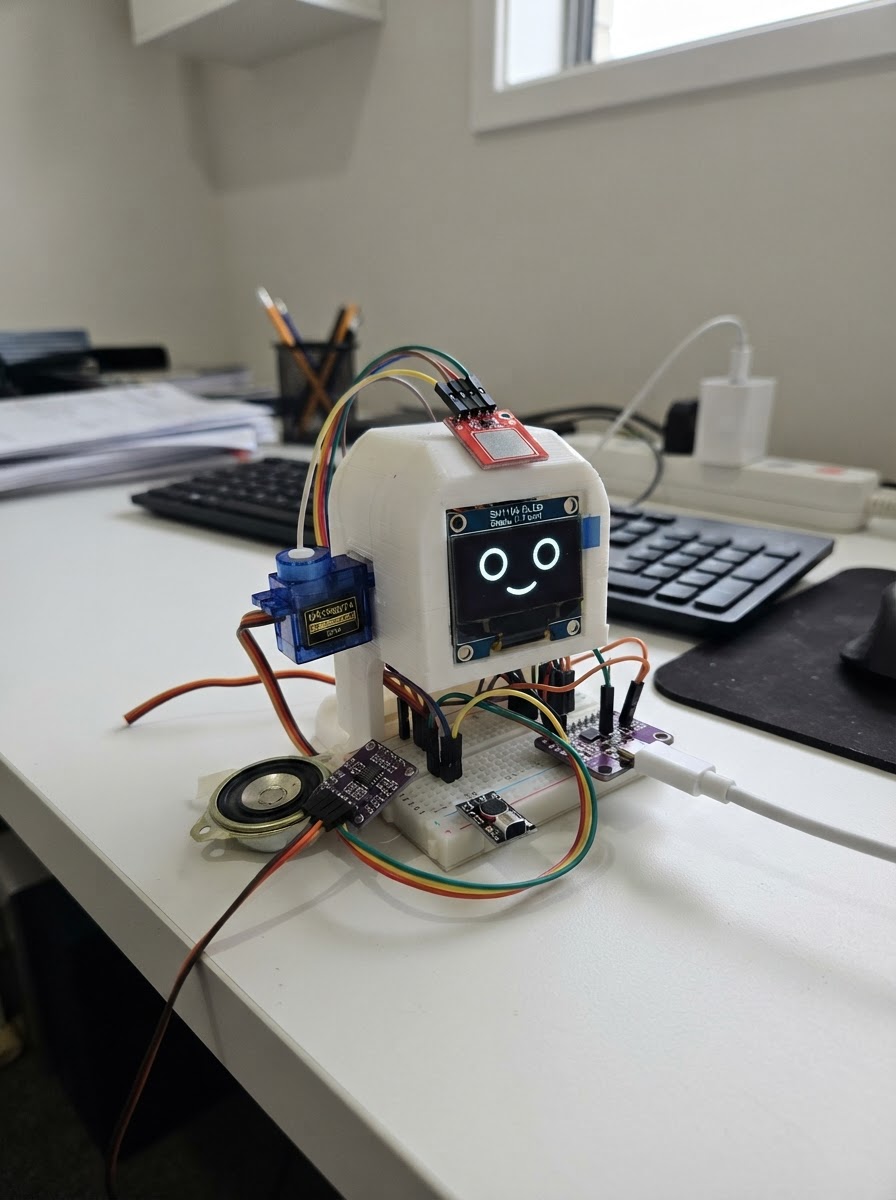

Interactive Desktop Robot Buddy

#include <Arduino.h>
#include <Wire.h>
#include <driver/i2s.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SH110X.h>
#include <ESP32Servo.h>

enum Reaction { IDLE, GREETING, SURPRISED, IDLE_POSE, LISTENING, REPEATING };
enum Mood { CALM, HAPPY, SHY, CURIOUS, SLEEPY };
enum EyeAnimation { EYE_NEUTRAL, EYE_LOOK_AROUND, EYE_SHY_GLANCE, EYE_WINK, EYE_HEARTS, EYE_DOUBLE_BLINK };


// Forward declarations

// Forward declarations
void drawHeart(int x, int y);

void setArms(int leftAngle, int rightAngle);
void drawLashes(int x, int y);
void drawFace();
void setupAudioAndMicrophone();
void writeTone(uint16_t frequency, uint16_t durationMs);
void playGreetingChirp();
void playSurprisedChirp();
void playHappyChirp();
void captureAndRepeatVoice();
void startGreeting(uint32_t now);
void startSoundReaction(uint32_t now);
void startIdlePose(uint32_t now);
void finishReaction(uint32_t now);
void updateReaction(uint32_t now);
void updateBlink(uint32_t now);
void updateEyeAnimation(uint32_t now);
bool heardLoudSound();

constexpr int OLED_SDA = 21, OLED_SCL = 22;
constexpr int LEFT_SERVO_PIN = 25, RIGHT_SERVO_PIN = 26, TOUCH_PIN = 27;
constexpr int I2S_BCLK_PIN = 18, I2S_LRC_PIN = 19, I2S_SPEAKER_DATA_PIN = 23, I2S_MIC_DATA_PIN = 32;
constexpr uint8_t OLED_ADDRESS = 0x3C;
constexpr uint32_t SAMPLE_RATE = 16000;
constexpr uint32_t VOICE_CAPTURE_MS = 1400;
constexpr size_t VOICE_SAMPLES = SAMPLE_RATE * VOICE_CAPTURE_MS / 1000;
constexpr int32_t CLAP_THRESHOLD = 180000;
constexpr int LEFT_REST = 82, RIGHT_REST = 98;

Adafruit_SH1106G display(128, 64, &Wire, -1);
Servo leftArm, rightArm;
static int32_t voiceBuffer[VOICE_SAMPLES];
Reaction reaction = IDLE;
Mood mood = CALM;
bool eyesClosed = false, previousTouch = false;
uint8_t waveStep = 0, idlePose = 0;
uint32_t lastBlinkMs = 0, nextBlinkDelayMs = 3000, blinkStartedMs = 0, lastTouchMs = 0;
uint32_t lastReactionStepMs = 0, lastSoundReactionMs = 0, nextIdleActionMs = 0;
EyeAnimation eyeAnimation = EYE_NEUTRAL;
uint32_t eyeAnimationStartedMs = 0, lastEyeFrameMs = 0, nextEyeAnimationMs = 0;
float pupilOffsetX = 0.0f, pupilOffsetY = 0.0f;

void setArms(int leftAngle, int rightAngle) {
  leftArm.write(constrain(leftAngle, 0, 180));
  rightArm.write(constrain(rightAngle, 0, 180));
}

void drawLashes(int x, int y) {
  display.drawLine(x - 11, y - 8, x - 14, y - 13, SH110X_WHITE);
  display.drawLine(x - 4, y - 10, x - 5, y - 15, SH110X_WHITE);
  display.drawLine(x + 5, y - 9, x + 8, y - 14, SH110X_WHITE);
}

void drawHeart(int x, int y) {
  display.fillCircle(x - 3, y - 2, 3, SH110X_BLACK);
  display.fillCircle(x + 3, y - 2, 3, SH110X_BLACK);
  display.fillTriangle(x - 6, y - 1, x + 6, y - 1, x, y + 7, SH110X_BLACK);
}

void drawFace() {
  display.clearDisplay();
  display.setTextColor(SH110X_WHITE);
  display.setTextSize(1);
  display.setCursor(52, 0);
  display.print("Abi");

  if (reaction == LISTENING) {
    display.drawCircle(36, 29, 12, SH110X_WHITE);
    display.drawCircle(93, 29, 12, SH110X_WHITE);
    display.fillCircle(36, 29, 4, SH110X_WHITE);
    display.fillCircle(93, 29, 4, SH110X_WHITE);
    drawLashes(36, 29); drawLashes(93, 29);
    display.setCursor(37, 49); display.print("Listening...");
  } else if (reaction == REPEATING) {
    display.fillRoundRect(22, 18, 27, 22, 10, SH110X_WHITE);
    display.fillRoundRect(79, 18, 27, 22, 10, SH110X_WHITE);
    display.fillCircle(36, 29, 6, SH110X_BLACK);
    display.fillCircle(93, 29, 6, SH110X_BLACK);
    drawLashes(36, 29); drawLashes(93, 29);
    display.setCursor(25, 49); display.print("Abi says hi!");
  } else if (eyesClosed || mood == SLEEPY) {
    display.drawLine(24, 28, 48, mood == SLEEPY ? 30 : 28, SH110X_WHITE);
    display.drawLine(80, mood == SLEEPY ? 30 : 28, 104, 28, SH110X_WHITE);
    drawLashes(36, 29); drawLashes(93, 29);
  } else if (reaction == SURPRISED) {
    display.drawCircle(36, 29, 12, SH110X_WHITE); display.drawCircle(93, 29, 12, SH110X_WHITE);
    display.fillCircle(36, 29, 5, SH110X_WHITE); display.fillCircle(93, 29, 5, SH110X_WHITE);
    drawLashes(36, 29); drawLashes(93, 29);
  } else {
    display.fillRoundRect(22, 18, 27, 22, 10, SH110X_WHITE);
    display.fillRoundRect(79, 18, 27, 22, 10, SH110X_WHITE);
    int lpX = 36 + static_cast<int>(pupilOffsetX);
    int rpX = 93 + static_cast<int>(pupilOffsetX);
    int lpY = 29 + static_cast<int>(pupilOffsetY);
    int rpY = 29 + static_cast<int>(pupilOffsetY);
    if (eyeAnimation == EYE_HEARTS) {
      drawHeart(lpX, lpY - 1); drawHeart(rpX, rpY - 1);
    } else {
      display.fillCircle(lpX, lpY, 6, SH110X_BLACK);
      if (eyeAnimation != EYE_WINK) display.fillCircle(rpX, rpY, 6, SH110X_BLACK);
      display.fillCircle(lpX - 2, lpY - 2, 2, SH110X_WHITE);
      if (eyeAnimation != EYE_WINK) display.fillCircle(rpX - 2, rpY - 2, 2, SH110X_WHITE);
    }
    if (eyeAnimation == EYE_WINK) {
      display.fillRect(79, 18, 27, 22, SH110X_BLACK);
      display.drawLine(80, 29, 104, 29, SH110X_WHITE);
    }
    drawLashes(36, 29); drawLashes(93, 29);
  }

  if (reaction != LISTENING && reaction != REPEATING) {
    if (mood == HAPPY || reaction == GREETING) {
      display.fillCircle(17, 42, 4, SH110X_WHITE); display.fillCircle(111, 42, 4, SH110X_WHITE);
    } else {
      display.drawCircle(17, 42, 4, SH110X_WHITE); display.drawCircle(111, 42, 4, SH110X_WHITE);
    }
    display.drawLine(14, 42, 20, 42, SH110X_WHITE); display.drawLine(108, 42, 114, 42, SH110X_WHITE);
    if (reaction == SURPRISED) display.drawCircle(64, 51, 5, SH110X_WHITE);
    else if (reaction == GREETING || mood == HAPPY) {
      display.drawRoundRect(43, 47, 42, 9, 5, SH110X_WHITE); display.drawLine(51, 50, 77, 50, SH110X_WHITE);
    } else if (mood == SLEEPY) {
      display.drawLine(57, 51, 71, 51, SH110X_WHITE); display.setCursor(105, 3); display.print("z");
    } else {
      display.drawLine(52, 50, 76, 50, SH110X_WHITE); display.drawPixel(51, 49, SH110X_WHITE); display.drawPixel(77, 49, SH110X_WHITE);
    }
  }
  display.display();
}

void setupAudioAndMicrophone() {
  i2s_config_t config = {};
  config.mode = static_cast<i2s_mode_t>(I2S_MODE_MASTER | I2S_MODE_TX | I2S_MODE_RX);
  config.sample_rate = SAMPLE_RATE;
  config.bits_per_sample = I2S_BITS_PER_SAMPLE_32BIT;
  config.channel_format = I2S_CHANNEL_FMT_ONLY_LEFT;
  config.communication_format = I2S_COMM_FORMAT_STAND_I2S;
  config.dma_buf_count = 6;
  config.dma_buf_len = 128;
  config.tx_desc_auto_clear = true;
  i2s_driver_install(I2S_NUM_0, &config, 0, nullptr);
  i2s_pin_config_t pins = {};
  pins.bck_io_num = I2S_BCLK_PIN; pins.ws_io_num = I2S_LRC_PIN;
  pins.data_out_num = I2S_SPEAKER_DATA_PIN; pins.data_in_num = I2S_MIC_DATA_PIN;
  i2s_set_pin(I2S_NUM_0, &pins);
  i2s_zero_dma_buffer(I2S_NUM_0);
}

void writeTone(uint16_t frequency, uint16_t durationMs) {
  uint32_t samples = (SAMPLE_RATE * durationMs) / 1000, phase = 0;
  int32_t buffer[128];
  uint32_t phaseStep = (static_cast<uint64_t>(frequency) << 32) / SAMPLE_RATE;
  for (uint32_t sent = 0; sent < samples;) {
    uint32_t count = min(static_cast<uint32_t>(128), samples - sent);
    for (uint32_t i = 0; i < count; ++i) {
      buffer[i] = (phase & 0x80000000UL) ? -360000000 : 360000000;
      phase += phaseStep;
    }
    size_t written = 0;
    i2s_write(I2S_NUM_0, buffer, count * sizeof(int32_t), &written, portMAX_DELAY);
    sent += count;
  }
}

void playGreetingChirp() { writeTone(880, 70); writeTone(1320, 100); i2s_zero_dma_buffer(I2S_NUM_0); }
void playSurprisedChirp() { writeTone(1560, 65); writeTone(1040, 90); i2s_zero_dma_buffer(I2S_NUM_0); }
void playHappyChirp() { writeTone(660, 50); writeTone(880, 50); writeTone(1320, 80); i2s_zero_dma_buffer(I2S_NUM_0); }

void captureAndRepeatVoice() {
  reaction = LISTENING;
  mood = CALM;
  setArms(70, 110);
  drawFace();
  delay(180);

  size_t captured = 0;
  while (captured < VOICE_SAMPLES) {
    size_t bytesRead = 0;
    size_t request = min(sizeof(int32_t) * static_cast<size_t>(128), (VOICE_SAMPLES - captured) * sizeof(int32_t));
    i2s_read(I2S_NUM_0, voiceBuffer + captured, request, &bytesRead, portMAX_DELAY);
    captured += bytesRead / sizeof(int32_t);
  }

  reaction = REPEATING;
  drawFace();
  const float pitchRatio = 1.28f;
  int32_t output[128];
  float sourceIndex = 0.0f;
  while (sourceIndex < captured - 1) {
    size_t count = 0;
    while (count < 128 && sourceIndex < captured - 1) {
      size_t base = static_cast<size_t>(sourceIndex);
      float fraction = sourceIndex - base;
      int64_t mixed = static_cast<int64_t>(voiceBuffer[base]) + static_cast<int64_t>((voiceBuffer[base + 1] - voiceBuffer[base]) * fraction);
      output[count++] = static_cast<int32_t>(mixed * 0.72f);
      sourceIndex += pitchRatio;
    }
    size_t written = 0;
    i2s_write(I2S_NUM_0, output, count * sizeof(int32_t), &written, portMAX_DELAY);
  }
  i2s_zero_dma_buffer(I2S_NUM_0);
}

void startGreeting(uint32_t now) {
  reaction = GREETING; mood = HAPPY; waveStep = 0; lastReactionStepMs = now;
  eyeAnimation = EYE_WINK; eyeAnimationStartedMs = now;
  setArms(55, 125); drawFace(); playGreetingChirp();
}
void startSoundReaction(uint32_t now) {
  reaction = SURPRISED; mood = CALM; lastReactionStepMs = now; lastSoundReactionMs = now;
  setArms(45, 135); drawFace(); playSurprisedChirp();
}
void startIdlePose(uint32_t now) {
  reaction = IDLE_POSE; idlePose = esp_random() % 3; lastReactionStepMs = now;
  eyeAnimationStartedMs = now;
  if (idlePose == 0) { mood = CURIOUS; eyeAnimation = EYE_LOOK_AROUND; setArms(70, 112); }
  else if (idlePose == 1) { mood = SHY; eyeAnimation = EYE_SHY_GLANCE; setArms(62, 118); }
  else { mood = HAPPY; eyeAnimation = EYE_HEARTS; setArms(62, 118); playHappyChirp(); }
  drawFace();
}
void finishReaction(uint32_t now) {
  reaction = IDLE; setArms(LEFT_REST, RIGHT_REST);
  eyeAnimation = EYE_NEUTRAL;
  mood = (esp_random() % 4 == 0) ? SLEEPY : CALM;
  nextIdleActionMs = now + 8000 + (esp_random() % 9000);
  drawFace();
}
void updateReaction(uint32_t now) {
  if (reaction == GREETING) {
    if (now - lastReactionStepMs < 260) return;
    lastReactionStepMs = now;
    if (waveStep < 6) { rightArm.write((waveStep % 2 == 0) ? 55 : 125); ++waveStep; return; }
    finishReaction(now);
  } else if (reaction == SURPRISED && now - lastReactionStepMs >= 700) {
    captureAndRepeatVoice();
    lastSoundReactionMs = millis();
    finishReaction(millis());
  } else if (reaction == IDLE_POSE && now - lastReactionStepMs >= 1400) {
    finishReaction(now);
  }
}
void updateBlink(uint32_t now) {
  if (reaction == SURPRISED || reaction == LISTENING || reaction == REPEATING || mood == SLEEPY || eyeAnimation == EYE_WINK) return;
  if (!eyesClosed && now - lastBlinkMs >= nextBlinkDelayMs) {
    eyesClosed = true; blinkStartedMs = now;
    if (esp_random() % 5 == 0) { eyeAnimation = EYE_DOUBLE_BLINK; eyeAnimationStartedMs = now; }
    drawFace();
  }
  if (eyesClosed && now - blinkStartedMs >= 115) {
    eyesClosed = false; lastBlinkMs = now; nextBlinkDelayMs = 2500 + (esp_random() % 2500); drawFace();
  }
}

void updateEyeAnimation(uint32_t now) {
  if (now - lastEyeFrameMs < 16) return; // 60 Hz animation scheduler.
  lastEyeFrameMs = now;
  uint32_t elapsed = now - eyeAnimationStartedMs;
  float targetX = 0.0f, targetY = 0.0f;
  bool redraw = false;
  if (eyeAnimation == EYE_LOOK_AROUND) {
    float phase = (elapsed % 1200) / 1200.0f;
    targetX = phase < 0.5f ? -4.0f + phase * 16.0f : 4.0f - (phase - 0.5f) * 16.0f;
    redraw = true;
  } else if (eyeAnimation == EYE_SHY_GLANCE) {
    targetX = -3.0f; targetY = 3.0f; redraw = true;
  } else if (eyeAnimation == EYE_WINK) {
    targetX = -1.0f; redraw = true;
    if (elapsed > 520) { eyeAnimation = EYE_HEARTS; eyeAnimationStartedMs = now; }
  } else if (eyeAnimation == EYE_HEARTS) {
    redraw = true;
    if (reaction != IDLE_POSE && elapsed > 420) { eyeAnimation = EYE_NEUTRAL; }
  } else if (eyeAnimation == EYE_DOUBLE_BLINK && elapsed > 230 && elapsed < 340) {
    eyesClosed = true; redraw = true;
  } else if (eyeAnimation == EYE_DOUBLE_BLINK && elapsed >= 340) {
    eyesClosed = false; eyeAnimation = EYE_NEUTRAL; redraw = true;
  }
  pupilOffsetX += (targetX - pupilOffsetX) * 0.28f;
  pupilOffsetY += (targetY - pupilOffsetY) * 0.28f;
  if (redraw) drawFace();
}
bool heardLoudSound() {
  int32_t samples[128]; size_t bytesRead = 0;
  i2s_read(I2S_NUM_0, samples, sizeof(samples), &bytesRead, 0);
  size_t count = bytesRead / sizeof(int32_t);
  if (count < 32) return false;
  int64_t totalMagnitude = 0;
  for (size_t i = 0; i < count; ++i) totalMagnitude += llabs(static_cast<int64_t>(samples[i] >> 8));
  return (totalMagnitude / static_cast<int64_t>(count)) > CLAP_THRESHOLD;
}

void setup() {
  pinMode(TOUCH_PIN, INPUT);
  Wire.begin(OLED_SDA, OLED_SCL);
  if (!display.begin(OLED_ADDRESS, true)) while (true) delay(1000);
  leftArm.setPeriodHertz(50); rightArm.setPeriodHertz(50);
  leftArm.attach(LEFT_SERVO_PIN, 500, 2400); rightArm.attach(RIGHT_SERVO_PIN, 500, 2400);
  setArms(LEFT_REST, RIGHT_REST);
  setupAudioAndMicrophone();
  lastBlinkMs = millis(); nextIdleActionMs = lastBlinkMs + 7000;
  nextEyeAnimationMs = lastBlinkMs + 5000;
  drawFace();
}

void loop() {
  uint32_t now = millis();
  bool touched = digitalRead(TOUCH_PIN) == HIGH;
  if (touched && !previousTouch && now - lastTouchMs > 250 && reaction == IDLE) {
    lastTouchMs = now; startGreeting(now);
  }
  previousTouch = touched;
  if (reaction == IDLE && now - lastSoundReactionMs > 1600 && heardLoudSound()) startSoundReaction(now);
  else if (reaction == IDLE && now >= nextIdleActionMs) startIdlePose(now);
  updateReaction(now);
  updateBlink(now);
  updateEyeAnimation(now);
}
