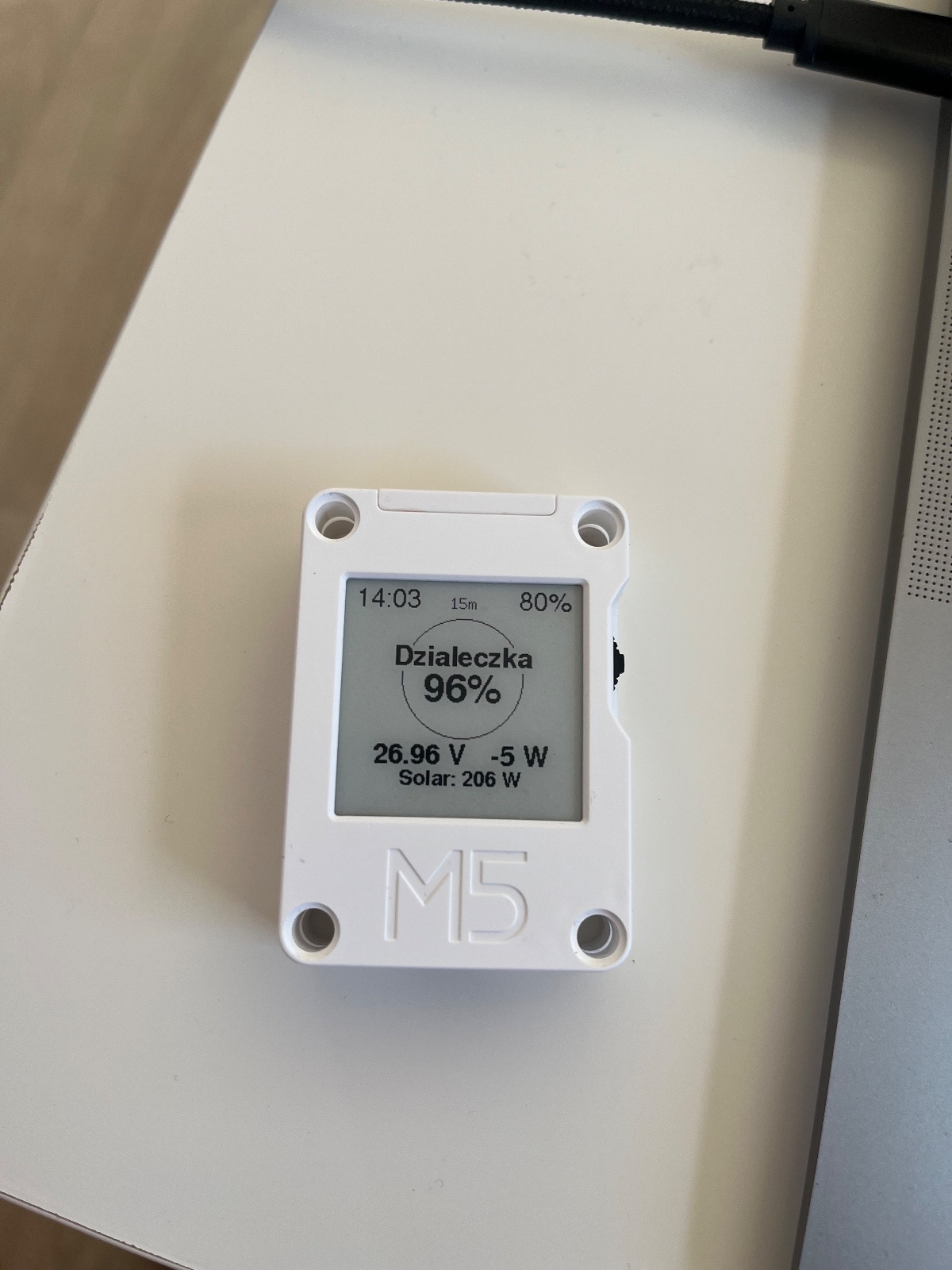

Victron Stats Display

#include <Arduino.h>
#include <WiFi.h>
#include <WiFiManager.h>
#include <PubSubClient.h>
#include <M5Unified.h>
#include <time.h>

// Victron Venus OS MQTT-on-LAN settings.

// Forward declarations
float readPayloadValue(const byte *payload, unsigned int length);
void mqttCallback(char *topic, byte *payload, unsigned int length);
int coreInkBatteryPercent();
void drawCentered(const char *text, int y, const lgfx::IFont *font);
void drawPage();
bool connectSavedWifi();
void collectVictronData();
uint32_t msToNextQuarter();

static const char *MQTT_HOST = "venus.local";
static const uint16_t MQTT_PORT = 1883;
static const char *VRM_PORTAL_ID = "88a29ee84b0a";

static const uint32_t WIFI_TIMEOUT_MS = 15000;
static const uint32_t MQTT_WINDOW_MS = 6000;

WiFiClient wifiClient;
PubSubClient mqtt(wifiClient);

float batterySoc = NAN;
float batteryVoltage = NAN;
float batteryWatts = NAN;
float solarWatts = NAN;

bool pageNeedsDrawing = true;
uint32_t nextUpdateAt = 0;

float readPayloadValue(const byte *payload, unsigned int length) {
  String message;
  message.reserve(length + 1);
  for (unsigned int i = 0; i < length; ++i) message += char(payload[i]);

  int key = message.indexOf("\"value\"");
  if (key >= 0) {
    int colon = message.indexOf(':', key);
    if (colon >= 0) return message.substring(colon + 1).toFloat();
  }
  return message.toFloat();
}

void mqttCallback(char *topic, byte *payload, unsigned int length) {
  const float value = readPayloadValue(payload, length);
  if (!isfinite(value)) return;

  const String path(topic);
  if (path.endsWith("/system/0/Dc/Battery/Soc")) {
    batterySoc = value;
  } else if (path.endsWith("/system/0/Dc/Battery/Voltage")) {
    batteryVoltage = value;
  } else if (path.endsWith("/system/0/Dc/Battery/Power")) {
    batteryWatts = value;
  } else if (path.indexOf("/solarcharger/") >= 0 &&
             (path.endsWith("/Yield/Power") || path.endsWith("/Pv/Power"))) {
    // Venus normally exposes the charger output as Yield/Power. Pv/Power is
    // also accepted for installations that publish that variant.
    solarWatts = value;
  }
}

int coreInkBatteryPercent() {
  // The library battery-percent reading is unreliable on this board, so use
  // measured cell voltage and clamp the result to a real 0-100 percent value.
  const float volts = M5.Power.getBatteryVoltage() / 1000.0f;
  int percent;
  if (volts >= 4.15f) percent = 100;
  else if (volts >= 4.00f) percent = 75 + int((volts - 4.00f) * 166.0f);
  else if (volts >= 3.85f) percent = 45 + int((volts - 3.85f) * 200.0f);
  else if (volts >= 3.70f) percent = 15 + int((volts - 3.70f) * 200.0f);
  else if (volts >= 3.45f) percent = int((volts - 3.45f) * 60.0f);
  else percent = 0;
  return constrain(percent, 0, 100);
}

void drawCentered(const char *text, int y, const lgfx::IFont *font) {
  M5.Display.setTextDatum(top_center);
  M5.Display.drawString(text, 100, y, font);
}

void drawPage() {
  // IMPORTANT: This function performs exactly one complete e-ink transfer.
  // It does not call waitDisplay(), partial refresh, or another display call.
  M5.Display.fillScreen(TFT_WHITE);
  M5.Display.setTextColor(TFT_BLACK, TFT_WHITE);

  struct tm timeInfo;
  char clockText[6] = "--:--";
  if (getLocalTime(&timeInfo, 10)) {
    strftime(clockText, sizeof(clockText), "%H:%M", &timeInfo);
  }
  M5.Display.setTextDatum(top_left);
  M5.Display.drawString(clockText, 4, 2, &fonts::FreeSans12pt7b);

  M5.Display.setTextDatum(top_center);
  M5.Display.drawString("15m", 100, 7, &fonts::Font2);

  const int deviceBattery = coreInkBatteryPercent();
  char deviceText[8];
  snprintf(deviceText, sizeof(deviceText), "%d%%", deviceBattery);
  M5.Display.setTextDatum(top_right);
  M5.Display.drawString(deviceText, 196, 2, &fonts::FreeSans12pt7b);

  M5.Display.drawCircle(100, 82, 53, TFT_BLACK);
  char socText[12];
  if (isnan(batterySoc)) snprintf(socText, sizeof(socText), "--%%");
  else snprintf(socText, sizeof(socText), "%.0f%%", constrain(batterySoc, 0.0f, 100.0f));
  drawCentered("Dzialeczka", 54, &fonts::FreeSansBold12pt7b);
  drawCentered(socText, 78, &fonts::FreeSansBold18pt7b);

  char batteryLine[32];
  if (isnan(batteryVoltage) || isnan(batteryWatts)) {
    snprintf(batteryLine, sizeof(batteryLine), "--.-- V   -- W");
  } else {
    snprintf(batteryLine, sizeof(batteryLine), "%.2f V   %.0f W", batteryVoltage, batteryWatts);
  }
  drawCentered(batteryLine, 140, &fonts::FreeSansBold12pt7b);

  char solarLine[24];
  if (isnan(solarWatts)) snprintf(solarLine, sizeof(solarLine), "Solar: -- W");
  else snprintf(solarLine, sizeof(solarLine), "Solar: %.0f W", solarWatts);
  drawCentered(solarLine, 162, &fonts::FreeSansBold9pt7b);

  if (deviceBattery <= 10) {
    drawCentered("NALADUJ", 176, &fonts::FreeSansBold9pt7b);
    drawCentered("MNIE", 188, &fonts::FreeSansBold9pt7b);
  }

  M5.Display.display();
}

bool connectSavedWifi() {
  WiFi.mode(WIFI_STA);
  WiFi.begin();
  const uint32_t started = millis();
  while (WiFi.status() != WL_CONNECTED && millis() - started < WIFI_TIMEOUT_MS) {
    delay(50);
  }
  return WiFi.status() == WL_CONNECTED;
}

void collectVictronData() {
  if (!connectSavedWifi()) return;

  configTzTime("UTC-2", "pool.ntp.org", "time.nist.gov");
  struct tm unused;
  const uint32_t timeStarted = millis();
  while (!getLocalTime(&unused, 10) && millis() - timeStarted < 4000) delay(100);

  mqtt.setServer(MQTT_HOST, MQTT_PORT);
  mqtt.setCallback(mqttCallback);
  const String clientId = "victron-ink-" + String((uint32_t)ESP.getEfuseMac(), HEX);
  if (mqtt.connect(clientId.c_str())) {
    const String root = String("N/") + VRM_PORTAL_ID;
    mqtt.subscribe((root + "/system/0/Dc/Battery/#").c_str());
    // Most Venus OS installations publish solar output on Yield/Power.
    // Subscribe to both known paths so the dashboard works with either form.
    mqtt.subscribe((root + "/solarcharger/+/Yield/Power").c_str());
    mqtt.subscribe((root + "/solarcharger/+/Pv/Power").c_str());
    const String keepalive = String("R/") + VRM_PORTAL_ID + "/keepalive";
    mqtt.publish(keepalive.c_str(), "{\"value\":null}");

    const uint32_t started = millis();
    while (millis() - started < MQTT_WINDOW_MS) {
      mqtt.loop();
      delay(10);
    }
    mqtt.disconnect();
  }
  WiFi.disconnect(false);
  WiFi.mode(WIFI_OFF);
}

uint32_t msToNextQuarter() {
  time_t now = time(nullptr);
  if (now > 1700000000) {
    uint32_t remaining = 900U - (uint32_t(now) % 900U);
    return remaining * 1000UL;
  }
  return 15UL * 60UL * 1000UL;
}

void setup() {
  auto config = M5.config();
  M5.begin(config);
  M5.Display.setRotation(0);
  M5.Display.setColorDepth(1);

  // Network work is deliberately completed before the ONLY initial display
  // transfer. A Wi-Fi or MQTT delay cannot overlap an e-ink refresh.
  collectVictronData();
  drawPage();
  pageNeedsDrawing = false;
  nextUpdateAt = millis() + msToNextQuarter();
}

void loop() {
  if (int32_t(millis() - nextUpdateAt) >= 0) {
    collectVictronData();
    pageNeedsDrawing = true;
    nextUpdateAt = millis() + msToNextQuarter();
  }

  if (pageNeedsDrawing) {
    drawPage();
    pageNeedsDrawing = false;
  }

  // No display access between quarter-hour updates.
  delay(250);
}
