Voice AI Assistant

Jacopo Felicione

Published August 19, 2026 · Updated August 19, 2026

ESP32

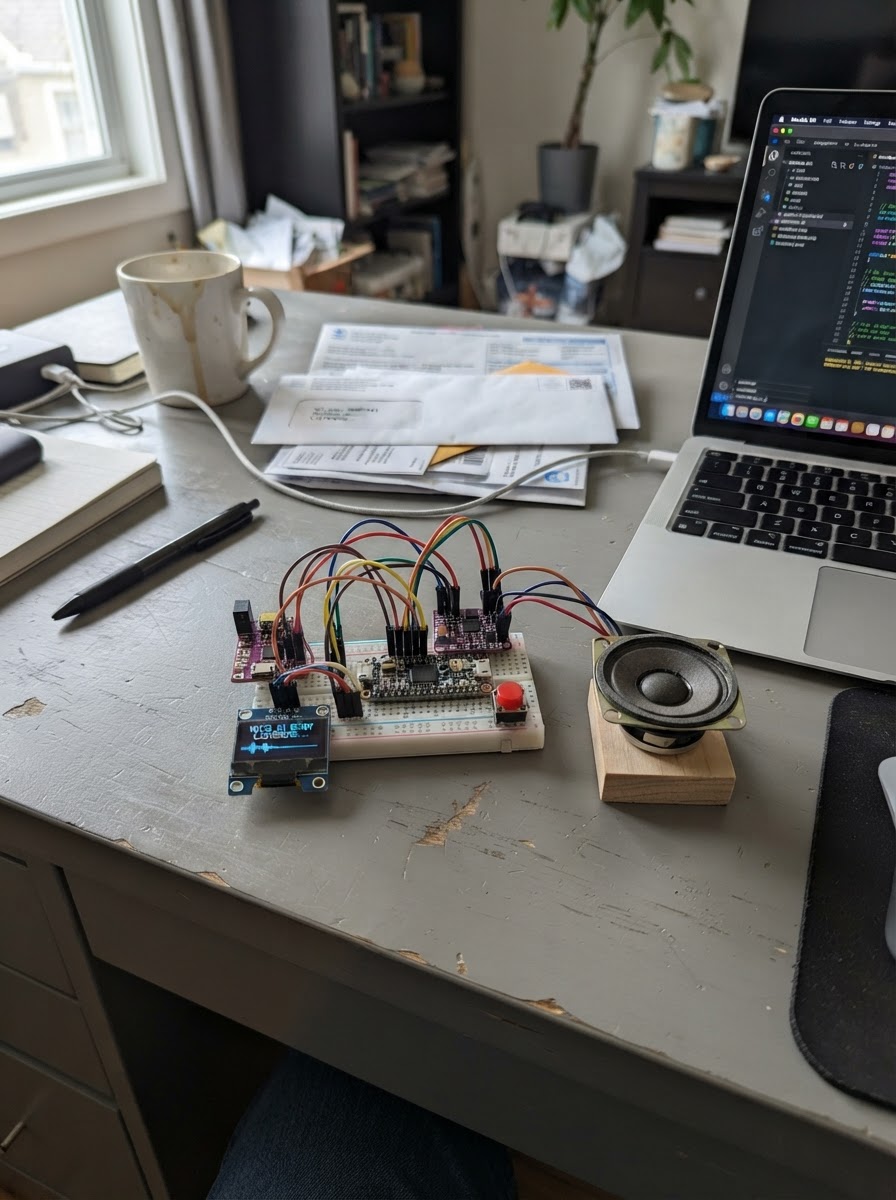

Photo of Voice AI AssistantGenerated with AI

Build a voice-controlled AI assistant powered by an ESP32 that listens to spoken commands, processes them through a secure Windows bridge connection, and responds with synthesized speech. This project combines audio input from an I²S microphone with real-time feedback on an OLED display, letting you interact with AI services while keeping sensitive API keys safely on your local Windows machine.

The guide provides a complete wiring diagram showing how to connect the INMP441 microphone, MAX98357A amplifier, speaker, push button, and SSD1306 display to your ESP32. You'll get a full parts list, step-by-step assembly instructions, and ready-to-use firmware that handles WiFi connectivity, audio recording and playback, display management, and secure communication with your bridge server.

Wiring diagram

Interactive · read-only
Wiring diagram for Voice AI Assistant

Pan and zoom to explore the wiring. Remix the project to edit it in your own workspace.

Parts list

Bill of materials
ComponentQtyNotes
SSD1306 OLED0.96 in, 128×6410.96 inch 128x64 OLED display with I2C interface
HiLetgo INMP441 I²S Microphone ModuleINMP4411Omnidirectional 24-bit I²S MEMS microphone module based on the TDK InvenSense INMP441 IC. Outputs digital audio over a 3-wire I²S bus (SCK/BCLK, WS/LRCLK, SD/DOUT). Supply 1.8–3.3 V; native 3.3 V operation with no level shifting required. L/R channel select pin: tie to GND for left-channel mono output or VDD for right-channel mono output. Use the ESP32 Arduino core or ESP-IDF I2S peripheral API; no separate PlatformIO library is required.
MAX98357A I2S Class-D Mono Amplifier BreakoutMAX98357A1I2S-input Class-D mono audio amplifier IC on a compact breakout board. Accepts I2S digital audio input (BCLK, LRC, DIN) and drives a small speaker or transducer directly. No I2C/SPI control bus is needed. The amplifier supply range is 2.5V-5.5V, and the I2S input pins are compatible with 3.3V logic. SD/MODE controls shutdown and channel selection; GAIN selects 3 dB, 6 dB, 9 dB, 12 dB, or 15 dB gain.
8Ω Speaker8 Ω, 1 W1Generic small 8Ω 0.5-3W loudspeaker (~28mm typical). Pair with an I2S amp (MAX98357A) or class-D amp (TPA3116D2) for usable volume; do not drive directly from a GPIO pin. Audio output for music/voice playback.
Push Buttonmomentary1Momentary push button switch

Assembly

6 steps
  1. Togli alimentazione e prepara la scheda

    Scollega l’ESP32-S3 dal cavo USB. Appoggialo sul tavolo con la presa USB rivolta verso di te e prepara una breadboard, cavetti maschio-femmina e i cinque moduli.

    • Tip: Non collegare ancora il cavo USB: così non puoi unire per errore due fili alimentati.
    • Non alimentare il microfono, lo schermo o l’amplificatore con 5 V: questi moduli in questo progetto usano 3,3 V e una tensione maggiore può danneggiarli.
  2. Collega lo schermino

    Collega OLED VCC → 3V3 (power), OLED GND → GND (ground), OLED SDA → GPIO8 (data) e OLED SCL → GPIO9 (clock). Sullo schermino i nomi sono stampati vicino ai quattro pin.

    • Tip: Se il display resta completamente nero, controlla prima che VCC e GND non siano invertiti.
    • VCC e GND scambiati possono danneggiare lo schermino.
  3. Collega il microfono

    Collega INMP441 VDD → 3V3 (power), INMP441 GND → GND (ground), INMP441 SCK → GPIO14 (audio timing), INMP441 WS → GPIO15 (audio timing), INMP441 SD → GPIO16 (voice signal) e INMP441 L/R → GND (left microphone channel).

    • Tip: Tieni i tre cavetti SCK, WS e SD corti e lontani dai fili dell’altoparlante: questo aiuta a non raccogliere disturbi.
    • Non usare il pin 5 V della scheda per VDD: il microfono è un modulo a 3,3 V.
  4. Collega amplificatore e altoparlante

    Collega MAX98357A VIN → 3V3 (power), MAX98357A GND → GND (ground), MAX98357A BCLK → GPIO14 (audio timing), MAX98357A LRC → GPIO15 (audio timing), MAX98357A DIN → GPIO17 (audio signal) e MAX98357A SD → 3V3 (enable). Poi collega MAX98357A SPK+ → altoparlante POS (sound output) e MAX98357A SPK− → altoparlante NEG (sound return).

    • Tip: GPIO14 e GPIO15 sono condivisi con il microfono: ogni filo va nello stesso punto elettrico dei rispettivi BCLK/SCK e LRC/WS.
    • Tip: I due fili SPK+ e SPK− vanno solo all’altoparlante, non a GND.
    • Non collegare nessuno dei fili dell’altoparlante a GND: l’uscita dell’amplificatore usa entrambi i fili e un collegamento a massa può danneggiarlo.
  5. Collega il pulsante di comando

    Metti il pulsante a cavallo della fessura centrale della breadboard. Collega un lato del pulsante → GPIO4 (signal) e il lato opposto → GND (ground). Premi una volta per parlare; se lo schermo chiede di confermare un’azione sul PC, premi di nuovo.

    • Tip: Un pulsante a quattro piedini ha spesso due piedini già uniti per lato: usa due piedini che si trovano su lati opposti del pulsante.
    • Se il pulsante sembra sempre premuto, probabilmente hai scelto due piedini dello stesso lato.
  6. Alimenta e configura il collegamento sicuro

    Ricontrolla tutti i fili, poi collega l’ESP32-S3 al PC con USB. Prima del Deploy inserisci nel firmware il nome e la password del tuo Wi‑Fi e l’indirizzo HTTPS del ponte Windows. La chiave OpenAI deve restare nel ponte Windows, mai nel dispositivo.

    • Tip: Il ponte deve accettare audio PCM mono a 16 kHz su /voice e restituire JSON con testo, URL opzionale dell’audio e, per azioni PC, un testo di azione con confirmation_required impostato a true.
    • Tip: Limita il ponte a una lista di azioni consentite e chiedi sempre conferma anche sul PC per azioni importanti.
    • Non inserire la chiave OpenAI nel firmware: chiunque possa leggere il dispositivo potrebbe copiarla.

Pin assignments

Board wiring reference
PinConnectionType
3V3oled_1 VCCpower
GNDoled_1 GNDground
GPIO 8oled_1 SDAi2c
GPIO 9oled_1 SCLi2c
3V3mic_1 VDDpower
GNDmic_1 GNDground
GPIO 16mic_1 SDdata
GNDmic_1 L/Rground
3V3amp_1 VINpower
GNDamp_1 GNDground
GPIO 14amp_1 BCLKdata
GPIO 15amp_1 LRCdata
GPIO 17amp_1 DINdata
3V3amp_1 SDpower
EXTamp_1 SPK+8Ω Speaker POSdata
EXTamp_1 SPK-8Ω Speaker NEGdata
GNDbutton_1 GNDground
GPIO 4button_1 SIGNALdigital
EXTmic_1 SCKMAX98357A I2S Class-D Mono Amplifier Breakout BCLKdigital
EXTmic_1 WSMAX98357A I2S Class-D Mono Amplifier Breakout LRCdigital

Firmware

ESP32
main.cppDeploy to device
#include <Arduino.h>
#include <WiFi.h>
#include <HTTPClient.h>
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#include <ArduinoJson.h>
#include "driver/i2s.h"

// Enter your network and the HTTPS address of your Windows bridge here.
// Keep the OpenAI API key ONLY in the Windows bridge, never in this sketch.

// Forward declarations
void showLines(const String &title, const String &body, bool confirm);
void initI2S();
bool connectWiFi();
void playPcm(HTTPClient &http);
void requestSpeech(const String &url);
void submitConfirmation();
void recordAndAsk();

const char *WIFI_SSID = "YOUR_WIFI_NAME";
const char *WIFI_PASSWORD = "YOUR_WIFI_PASSWORD";
const char *BRIDGE_URL = "https://YOUR-WINDOWS-BRIDGE/voice";

constexpr int OLED_SDA = 8;
constexpr int OLED_SCL = 9;
constexpr int I2S_BCLK = 14;
constexpr int I2S_LRCLK = 15;
constexpr int I2S_MIC_DIN = 16;
constexpr int I2S_AMP_DOUT = 17;
constexpr int BUTTON_PIN = 4;
constexpr int SCREEN_WIDTH = 128;
constexpr int SCREEN_HEIGHT = 64;
constexpr int SAMPLE_RATE = 16000;
constexpr uint32_t RECORD_MS = 4000;
constexpr i2s_port_t I2S_PORT = I2S_NUM_0;

Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);
String pendingAction;
bool awaitingConfirmation = false;

void showLines(const String &title, const String &body, bool confirm = false) {
  display.clearDisplay();
  display.setTextColor(SSD1306_WHITE);
  display.setTextSize(1);
  display.setCursor(0, 0);
  display.println(title);
  display.drawLine(0, 10, 127, 10, SSD1306_WHITE);
  display.setCursor(0, 15);
  String line;
  for (size_t i = 0; i < body.length(); ++i) {
    char c = body[i];
    line += c;
    if (line.length() >= 20 || c == '\n') {
      display.println(line);
      line = "";
    }
  }
  if (line.length()) display.println(line);
  if (confirm) {
    display.setCursor(0, 54);
    display.print("Premi per confermare");
  }
  display.display();
}

void initI2S() {
  i2s_config_t config = {};
  config.mode = (i2s_mode_t)(I2S_MODE_MASTER | I2S_MODE_RX | I2S_MODE_TX);
  config.sample_rate = SAMPLE_RATE;
  config.bits_per_sample = I2S_BITS_PER_SAMPLE_32BIT;
  config.channel_format = I2S_CHANNEL_FMT_ONLY_LEFT;
  config.communication_format = I2S_COMM_FORMAT_STAND_I2S;
  config.intr_alloc_flags = 0;
  config.dma_buf_count = 8;
  config.dma_buf_len = 256;
  config.use_apll = false;
  config.tx_desc_auto_clear = true;
  config.fixed_mclk = 0;
  i2s_driver_install(I2S_PORT, &config, 0, nullptr);

  i2s_pin_config_t pins = {};
  pins.bck_io_num = I2S_BCLK;
  pins.ws_io_num = I2S_LRCLK;
  pins.data_out_num = I2S_AMP_DOUT;
  pins.data_in_num = I2S_MIC_DIN;
  i2s_set_pin(I2S_PORT, &pins);
  i2s_zero_dma_buffer(I2S_PORT);
}

bool connectWiFi() {
  if (WiFi.status() == WL_CONNECTED) return true;
  showLines("Connessione Wi-Fi", "Attendi...");
  WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
  unsigned long start = millis();
  while (WiFi.status() != WL_CONNECTED && millis() - start < 15000) delay(100);
  return WiFi.status() == WL_CONNECTED;
}

void playPcm(HTTPClient &http) {
  WiFiClient *stream = http.getStreamPtr();
  uint8_t buffer[512];
  while (http.connected()) {
    int available = stream->available();
    if (available <= 0) {
      delay(1);
      continue;
    }
    int got = stream->readBytes(buffer, min(available, (int)sizeof(buffer)));
    size_t written = 0;
    i2s_write(I2S_PORT, buffer, got, &written, portMAX_DELAY);
  }
}

void requestSpeech(const String &url) {
  if (url.length() == 0) return;
  HTTPClient http;
  http.begin(url);
  int status = http.GET();
  if (status == HTTP_CODE_OK) playPcm(http);
  http.end();
}

void submitConfirmation() {
  if (!connectWiFi()) {
    showLines("Wi-Fi assente", "Controlla rete e password");
    return;
  }
  showLines("Conferma inviata", "Il PC puo eseguire: " + pendingAction);
  HTTPClient http;
  String endpoint = String(BRIDGE_URL);
  int slash = endpoint.lastIndexOf('/');
  if (slash >= 0) endpoint = endpoint.substring(0, slash) + "/confirm";
  http.begin(endpoint);
  http.addHeader("Content-Type", "application/json");
  StaticJsonDocument<384> doc;
  doc["action"] = pendingAction;
  doc["confirmed"] = true;
  String request;
  serializeJson(doc, request);
  int status = http.POST(request);
  awaitingConfirmation = false;
  pendingAction = "";
  if (status < 200 || status >= 300) showLines("Errore ponte", "Il PC non ha accettato la conferma");
  else showLines("Fatto", "Azione confermata sul PC");
  http.end();
}

void recordAndAsk() {
  if (!connectWiFi()) {
    showLines("Wi-Fi assente", "Inserisci rete e password nel codice");
    return;
  }
  showLines("Ascolto", "Parla ora per 4 secondi...");
  const size_t samples = (SAMPLE_RATE * RECORD_MS) / 1000;
  const size_t bytesNeeded = samples * sizeof(int16_t);
  uint8_t *pcm = (uint8_t *)malloc(bytesNeeded);
  if (!pcm) {
    showLines("Memoria insufficiente", "Riavvia il dispositivo");
    return;
  }

  size_t produced = 0;
  int32_t i2sBuffer[128];
  while (produced < bytesNeeded) {
    size_t received = 0;
    i2s_read(I2S_PORT, i2sBuffer, sizeof(i2sBuffer), &received, portMAX_DELAY);
    for (size_t i = 0; i < received / sizeof(int32_t) && produced < bytesNeeded; ++i) {
      int16_t sample = (int16_t)(i2sBuffer[i] >> 14);
      pcm[produced++] = sample & 0xFF;
      pcm[produced++] = (sample >> 8) & 0xFF;
    }
  }

  showLines("Sto chiedendo", "Invio la voce al ponte...");
  HTTPClient http;
  http.begin(BRIDGE_URL);
  http.addHeader("Content-Type", "application/octet-stream");
  http.addHeader("X-Audio-Format", "pcm_s16le");
  http.addHeader("X-Sample-Rate", "16000");
  int status = http.POST(pcm, bytesNeeded);
  free(pcm);
  if (status != HTTP_CODE_OK) {
    showLines("Errore ponte", "Controlla URL e ponte Windows");
    http.end();
    return;
  }

  DynamicJsonDocument reply(2048);
  DeserializationError error = deserializeJson(reply, http.getString());
  http.end();
  if (error) {
    showLines("Risposta non valida", "Il ponte deve restituire JSON");
    return;
  }
  String text = reply["text"] | "Nessuna risposta";
  String speechUrl = reply["audio_url"] | "";
  pendingAction = reply["action"] | "";
  awaitingConfirmation = reply["confirmation_required"] | false;
  showLines("Assistente", text, awaitingConfirmation);
  requestSpeech(speechUrl);
}

void setup() {
  pinMode(BUTTON_PIN, INPUT_PULLUP);
  Wire.begin(OLED_SDA, OLED_SCL);
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
  display.clearDisplay();
  display.display();
  initI2S();
  showLines("Assistente vocale", "Premi il pulsante per parlare");
}

void loop() {
  static bool previous = HIGH;
  bool now = digitalRead(BUTTON_PIN);
  if (previous == HIGH && now == LOW) {
    delay(25);
    if (digitalRead(BUTTON_PIN) == LOW) {
      if (awaitingConfirmation) submitConfirmation();
      else recordAndAsk();
      while (digitalRead(BUTTON_PIN) == LOW) delay(10);
    }
  }
  previous = now;
}
