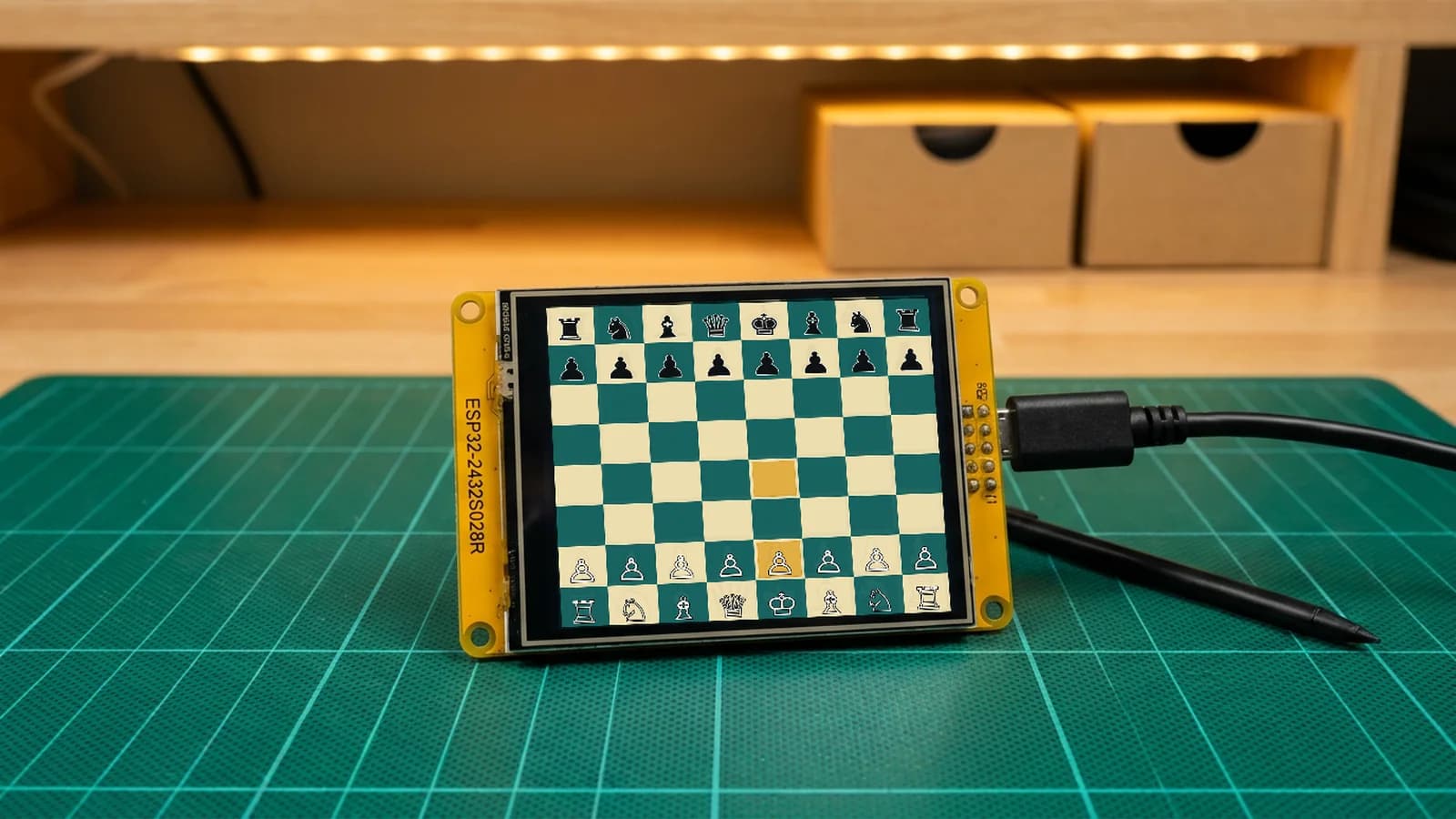

How to Build a Touchscreen Chess Game on a Cheap Yellow Display

// Chess game for ESP32-2432S028R with ILI9341 TFT display
// Player (White) vs AI (Black) using minimax with alpha-beta pruning
// Touch screen for piece selection and movement

#include <SPI.h>
#include <TFT_eSPI.h>
#include <XPT2046_Touchscreen.h>

// Override loopTask stack size to 64KB. arduino-esp32 v2.0.17 declares
// `size_t getArduinoLoopTaskStackSize(void);` with C++ linkage in Arduino.h
// (not extern "C"), so our override must match that linkage exactly.
size_t getArduinoLoopTaskStackSize() {
  return 64 * 1024;
}

// ─── Pin Definitions ───────────────────────────────────────────────────────
#define TFT_BL_PIN    21
#define TOUCH_CS_PIN  33
#define TOUCH_IRQ_PIN 36
#define TOUCH_MOSI    32
#define TOUCH_MISO    39
#define TOUCH_SCK     25

// ─── Display & Touch Objects ───────────────────────────────────────────────

// Hoisted type definitions
struct Move {
  int fromRow, fromCol, toRow, toCol;
  int capturedPiece, capturedColor;
  bool promotion;
  int promotedFrom;
  bool enPassant;
  bool castling;
  // castling rook info
  int rookFromCol, rookToCol;
};

struct GameState {
  int board[8][8];        // piece type
  int color[8][8];        // piece color
  bool whiteCastleK;      // white can castle kingside
  bool whiteCastleQ;      // white can castle queenside
  bool blackCastleK;
  bool blackCastleQ;
  int enPassantCol;       // column of en passant target (-1 if none)
  int enPassantRow;       // row of en passant target
  int currentPlayer;      // WHITE_PIECE or BLACK_PIECE
};


// Forward declarations
void initBoard(GameState &gs);
void drawStatus(const char *msg);
void drawGameOver(const char *msg);
void drawPiece(int row, int col, int piece, int pieceColor);
void drawSquare(int row, int col, bool highlight, bool moveDot, GameState &gs);
void drawBoard(GameState &gs);
bool inBounds(int r, int c);
bool squareAttacked(GameState &gs, int row, int col, int byPlayer);
bool isInCheck(GameState &gs, int player);
void addMove(Move *moves, int &count, int fr, int fc, int tr, int tc, GameState &gs, bool enPassant = false, bool castling = false, int rookFromCol = -1, int rookToCol = -1);
void generatePseudoMoves(GameState &gs, int player, Move *moves, int &count);
void applyMove(GameState &gs, Move &m);
void undoMove(GameState &gs, Move &m);
void generateMoves(GameState &gs, int player, Move *moves, int &count);
bool isCheckmate(GameState &gs, int player);
bool isStalemate(GameState &gs, int player);
int pieceValue(int piece);
int getPST(int piece, int row, int col, int color);
int evaluateBoard(GameState &gs);
int minimax(GameState &gs, int depth, int alpha, int beta, bool maximizing);
Move getBestMove(GameState &gs);
void getTouchSquare(int &row, int &col);

TFT_eSPI tft = TFT_eSPI();
SPIClass touchSPI(VSPI);
XPT2046_Touchscreen touch(TOUCH_CS_PIN, TOUCH_IRQ_PIN);

// ─── Chess Constants ───────────────────────────────────────────────────────
#define BOARD_SIZE    8
#define SQUARE_SIZE   30
#define BOARD_OFFSET_X 0
#define BOARD_OFFSET_Y 40

// Piece types
#define EMPTY  0
#define PAWN   1
#define KNIGHT 2
#define BISHOP 3
#define ROOK   4
#define QUEEN  5
#define KING   6

// Colors
#define WHITE_PIECE  1
#define BLACK_PIECE -1

// TFT Colors
#define COLOR_LIGHT_SQ  0xFFE0
#define COLOR_DARK_SQ   0x6B4D
#define COLOR_SELECTED  0x07E0
#define COLOR_MOVE_DOT  0x07FF
#define COLOR_BG        0x0000
#define COLOR_WHITE_P   0xFFFF
#define COLOR_BLACK_P   0x18C3
#define COLOR_TEXT      0xFFFF
#define COLOR_STATUS_BG 0x2104

// ─── Game State Structs ────────────────────────────────────────────────────




// ─── Forward Declarations ──────────────────────────────────────────────────
void initBoard(GameState &gs);
void drawBoard(GameState &gs);
void drawSquare(int row, int col, bool highlight, bool moveDot, GameState &gs);
void drawPiece(int row, int col, int piece, int pieceColor);
bool isValidMove(GameState &gs, Move &m);
void generateMoves(GameState &gs, int player, Move *moves, int &count);
void applyMove(GameState &gs, Move &m);
void undoMove(GameState &gs, Move &m);
bool isInCheck(GameState &gs, int player);
bool isCheckmate(GameState &gs, int player);
bool isStalemate(GameState &gs, int player);
int evaluateBoard(GameState &gs);
int minimax(GameState &gs, int depth, int alpha, int beta, bool maximizing);
Move getBestMove(GameState &gs);
void getTouchSquare(int &row, int &col);
void drawStatus(const char *msg);
void drawGameOver(const char *msg);
bool squareAttacked(GameState &gs, int row, int col, int byPlayer);
void handlePromotion(GameState &gs, int row, int col, int pieceColor);

// ─── Globals ───────────────────────────────────────────────────────────────
GameState gs;
int selectedRow = -1;
int selectedCol = -1;
bool pieceSelected = false;
Move legalMoves[256];
int legalMoveCount = 0;
bool gameOver = false;
char statusMsg[64] = "Your turn (White)";

// Touch calibration values (may need tuning)
#define TOUCH_X_MIN 200
#define TOUCH_X_MAX 3800
#define TOUCH_Y_MIN 300
#define TOUCH_Y_MAX 3700

// ─── Board Initialization ──────────────────────────────────────────────────
void initBoard(GameState &gs) {
  memset(gs.board, 0, sizeof(gs.board));
  memset(gs.color, 0, sizeof(gs.color));

  // Back rows
  int backRow[8] = {ROOK, KNIGHT, BISHOP, QUEEN, KING, BISHOP, KNIGHT, ROOK};

  for (int c = 0; c < 8; c++) {
    // Black back row (row 0)
    gs.board[0][c] = backRow[c];
    gs.color[0][c] = BLACK_PIECE;
    // Black pawns (row 1)
    gs.board[1][c] = PAWN;
    gs.color[1][c] = BLACK_PIECE;
    // White pawns (row 6)
    gs.board[6][c] = PAWN;
    gs.color[6][c] = WHITE_PIECE;
    // White back row (row 7)
    gs.board[7][c] = backRow[c];
    gs.color[7][c] = WHITE_PIECE;
  }

  gs.whiteCastleK = true;
  gs.whiteCastleQ = true;
  gs.blackCastleK = true;
  gs.blackCastleQ = true;
  gs.enPassantCol = -1;
  gs.enPassantRow = -1;
  gs.currentPlayer = WHITE_PIECE;
}

// ─── Drawing Functions ─────────────────────────────────────────────────────
void drawStatus(const char *msg) {
  tft.fillRect(0, 0, 240, 38, COLOR_STATUS_BG);
  tft.setTextColor(COLOR_TEXT, COLOR_STATUS_BG);
  tft.setTextSize(1);
  tft.setCursor(4, 4);
  tft.print(msg);
}

void drawGameOver(const char *msg) {
  tft.fillRect(20, 100, 200, 60, TFT_RED);
  tft.setTextColor(TFT_WHITE, TFT_RED);
  tft.setTextSize(2);
  tft.setCursor(30, 115);
  tft.print(msg);
  tft.setTextSize(1);
  tft.setCursor(50, 140);
  tft.print("Tap to restart");
}

void drawPiece(int row, int col, int piece, int pieceColor) {
  int x = BOARD_OFFSET_X + col * SQUARE_SIZE + SQUARE_SIZE / 2;
  int y = BOARD_OFFSET_Y + row * SQUARE_SIZE + SQUARE_SIZE / 2;

  uint16_t fg = (pieceColor == WHITE_PIECE) ? COLOR_WHITE_P : COLOR_BLACK_P;
  uint16_t outline = (pieceColor == WHITE_PIECE) ? TFT_BLACK : TFT_WHITE;
  int r = SQUARE_SIZE / 2 - 4;

  switch (piece) {
    case PAWN:
      tft.fillCircle(x, y + 3, r - 3, fg);
      tft.drawCircle(x, y + 3, r - 3, outline);
      tft.fillRect(x - 4, y + 7, 9, 3, fg);
      tft.drawRect(x - 4, y + 7, 9, 3, outline);
      break;
    case ROOK:
      tft.fillRect(x - r + 2, y - r + 4, (r - 2) * 2, (r) * 2 - 2, fg);
      tft.drawRect(x - r + 2, y - r + 4, (r - 2) * 2, (r) * 2 - 2, outline);
      tft.fillRect(x - r + 2, y - r, 3, 5, fg);
      tft.fillRect(x - 1, y - r, 3, 5, fg);
      tft.fillRect(x + r - 5, y - r, 3, 5, fg);
      tft.drawRect(x - r + 2, y - r, 3, 5, outline);
      tft.drawRect(x - 1, y - r, 3, 5, outline);
      tft.drawRect(x + r - 5, y - r, 3, 5, outline);
      break;
    case KNIGHT:
      tft.fillCircle(x + 2, y - 2, r - 2, fg);
      tft.drawCircle(x + 2, y - 2, r - 2, outline);
      tft.fillTriangle(x - r + 2, y + r - 2, x + r - 2, y + r - 2, x - 2, y, fg);
      tft.drawTriangle(x - r + 2, y + r - 2, x + r - 2, y + r - 2, x - 2, y, outline);
      break;
    case BISHOP:
      tft.fillTriangle(x, y - r + 1, x - r + 3, y + r - 2, x + r - 3, y + r - 2, fg);
      tft.drawTriangle(x, y - r + 1, x - r + 3, y + r - 2, x + r - 3, y + r - 2, outline);
      tft.fillCircle(x, y - r + 2, 3, fg);
      tft.drawCircle(x, y - r + 2, 3, outline);
      break;
    case QUEEN:
      tft.fillCircle(x, y, r - 1, fg);
      tft.drawCircle(x, y, r - 1, outline);
      // Crown points
      for (int i = -2; i <= 2; i++) {
        tft.fillCircle(x + i * 4, y - r + 1, 2, fg);
        tft.drawCircle(x + i * 4, y - r + 1, 2, outline);
      }
      tft.fillCircle(x, y, 3, outline);
      break;
    case KING:
      tft.fillCircle(x, y + 2, r - 2, fg);
      tft.drawCircle(x, y + 2, r - 2, outline);
      // Cross on top
      tft.fillRect(x - 1, y - r, 3, 8, fg);
      tft.fillRect(x - 4, y - r + 3, 9, 3, fg);
      tft.drawRect(x - 1, y - r, 3, 8, outline);
      tft.drawRect(x - 4, y - r + 3, 9, 3, outline);
      break;
    default:
      break;
  }
}

void drawSquare(int row, int col, bool highlight, bool moveDot, GameState &gs) {
  int x = BOARD_OFFSET_X + col * SQUARE_SIZE;
  int y = BOARD_OFFSET_Y + row * SQUARE_SIZE;
  uint16_t bg;

  if (highlight) {
    bg = COLOR_SELECTED;
  } else {
    bg = ((row + col) % 2 == 0) ? COLOR_LIGHT_SQ : COLOR_DARK_SQ;
  }

  tft.fillRect(x, y, SQUARE_SIZE, SQUARE_SIZE, bg);

  if (moveDot && gs.board[row][col] == EMPTY) {
    tft.fillCircle(x + SQUARE_SIZE / 2, y + SQUARE_SIZE / 2, 4, COLOR_MOVE_DOT);
  } else if (moveDot && gs.board[row][col] != EMPTY) {
    // Highlight capture
    tft.drawRect(x, y, SQUARE_SIZE, SQUARE_SIZE, COLOR_MOVE_DOT);
    tft.drawRect(x + 1, y + 1, SQUARE_SIZE - 2, SQUARE_SIZE - 2, COLOR_MOVE_DOT);
  }

  if (gs.board[row][col] != EMPTY) {
    drawPiece(row, col, gs.board[row][col], gs.color[row][col]);
  }
}

// New Game button — bottom of screen, below the chess board.
// 240×320 portrait: board occupies y=40..280; column labels at y=282..290;
// button gets the remaining strip y=294..318.
#define NEW_GAME_BTN_X      60
#define NEW_GAME_BTN_Y     294
#define NEW_GAME_BTN_W     120
#define NEW_GAME_BTN_H      24

void drawNewGameButton() {
  tft.fillRoundRect(NEW_GAME_BTN_X, NEW_GAME_BTN_Y, NEW_GAME_BTN_W, NEW_GAME_BTN_H, 4, TFT_DARKGREEN);
  tft.drawRoundRect(NEW_GAME_BTN_X, NEW_GAME_BTN_Y, NEW_GAME_BTN_W, NEW_GAME_BTN_H, 4, TFT_GREEN);
  tft.setTextSize(1);
  tft.setTextColor(TFT_WHITE, TFT_DARKGREEN);
  // Centred-ish text — TFT_eSPI default font is ~6 pixels per character.
  tft.setCursor(NEW_GAME_BTN_X + (NEW_GAME_BTN_W - 8 * 6) / 2, NEW_GAME_BTN_Y + (NEW_GAME_BTN_H - 8) / 2);
  tft.print("NEW GAME");
}

bool isTouchOnNewGameButton() {
  if (!touch.touched()) return false;
  TS_Point p = touch.getPoint();
  int tx = map(p.x, TOUCH_X_MIN, TOUCH_X_MAX, 0, 240);
  int ty = map(p.y, TOUCH_Y_MIN, TOUCH_Y_MAX, 0, 320);
  return (tx >= NEW_GAME_BTN_X && tx < NEW_GAME_BTN_X + NEW_GAME_BTN_W &&
          ty >= NEW_GAME_BTN_Y && ty < NEW_GAME_BTN_Y + NEW_GAME_BTN_H);
}

void resetGame() {
  initBoard(gs);
  pieceSelected = false;
  selectedRow = -1;
  selectedCol = -1;
  legalMoveCount = 0;
  gameOver = false;
  tft.fillScreen(COLOR_BG);
  drawBoard(gs);
  drawNewGameButton();
  drawStatus("Your turn (White)");
}

void drawBoard(GameState &gs) {
  tft.fillRect(BOARD_OFFSET_X, BOARD_OFFSET_Y, 8 * SQUARE_SIZE, 8 * SQUARE_SIZE, COLOR_LIGHT_SQ);

  // Determine if any square is selected and build move dots
  bool dotSquare[8][8];
  memset(dotSquare, false, sizeof(dotSquare));

  if (pieceSelected) {
    for (int i = 0; i < legalMoveCount; i++) {
      dotSquare[legalMoves[i].toRow][legalMoves[i].toCol] = true;
    }
  }

  for (int r = 0; r < 8; r++) {
    for (int c = 0; c < 8; c++) {
      bool highlight = (pieceSelected && r == selectedRow && c == selectedCol);
      drawSquare(r, c, highlight, dotSquare[r][c], gs);
    }
  }

  // Draw coordinates
  tft.setTextSize(1);
  tft.setTextColor(TFT_YELLOW, COLOR_BG);
  for (int c = 0; c < 8; c++) {
    tft.setCursor(BOARD_OFFSET_X + c * SQUARE_SIZE + 12, BOARD_OFFSET_Y + 8 * SQUARE_SIZE + 2);
    tft.print((char)('a' + c));
  }
  for (int r = 0; r < 8; r++) {
    tft.setCursor(BOARD_OFFSET_X + 8 * SQUARE_SIZE + 2, BOARD_OFFSET_Y + r * SQUARE_SIZE + 10);
    tft.print(8 - r);
  }
}

// ─── Move Validation Helpers ───────────────────────────────────────────────
bool inBounds(int r, int c) {
  return r >= 0 && r < 8 && c >= 0 && c < 8;
}

bool squareAttacked(GameState &gs, int row, int col, int byPlayer) {
  // Check if (row,col) is attacked by 'byPlayer'
  // Pawn attacks
  int pawnDir = (byPlayer == WHITE_PIECE) ? 1 : -1;
  int pawnRow = row + pawnDir;
  if (inBounds(pawnRow, col - 1) && gs.board[pawnRow][col - 1] == PAWN && gs.color[pawnRow][col - 1] == byPlayer) return true;
  if (inBounds(pawnRow, col + 1) && gs.board[pawnRow][col + 1] == PAWN && gs.color[pawnRow][col + 1] == byPlayer) return true;

  // Knight attacks
  int kd[8][2] = {{-2,-1},{-2,1},{-1,-2},{-1,2},{1,-2},{1,2},{2,-1},{2,1}};
  for (int i = 0; i < 8; i++) {
    int nr = row + kd[i][0], nc = col + kd[i][1];
    if (inBounds(nr, nc) && gs.board[nr][nc] == KNIGHT && gs.color[nr][nc] == byPlayer) return true;
  }

  // Sliding pieces (Bishop/Queen diagonals)
  int diagD[4][2] = {{1,1},{1,-1},{-1,1},{-1,-1}};
  for (int d = 0; d < 4; d++) {
    int nr = row + diagD[d][0], nc = col + diagD[d][1];
    while (inBounds(nr, nc)) {
      if (gs.board[nr][nc] != EMPTY) {
        if (gs.color[nr][nc] == byPlayer && (gs.board[nr][nc] == BISHOP || gs.board[nr][nc] == QUEEN)) return true;
        break;
      }
      nr += diagD[d][0]; nc += diagD[d][1];
    }
  }

  // Sliding pieces (Rook/Queen straight)
  int straightD[4][2] = {{1,0},{-1,0},{0,1},{0,-1}};
  for (int d = 0; d < 4; d++) {
    int nr = row + straightD[d][0], nc = col + straightD[d][1];
    while (inBounds(nr, nc)) {
      if (gs.board[nr][nc] != EMPTY) {
        if (gs.color[nr][nc] == byPlayer && (gs.board[nr][nc] == ROOK || gs.board[nr][nc] == QUEEN)) return true;
        break;
      }
      nr += straightD[d][0]; nc += straightD[d][1];
    }
  }

  // King
  for (int dr = -1; dr <= 1; dr++) {
    for (int dc = -1; dc <= 1; dc++) {
      if (dr == 0 && dc == 0) continue;
      int nr = row + dr, nc = col + dc;
      if (inBounds(nr, nc) && gs.board[nr][nc] == KING && gs.color[nr][nc] == byPlayer) return true;
    }
  }

  return false;
}

bool isInCheck(GameState &gs, int player) {
  int kingRow = -1, kingCol = -1;
  for (int r = 0; r < 8 && kingRow == -1; r++) {
    for (int c = 0; c < 8 && kingRow == -1; c++) {
      if (gs.board[r][c] == KING && gs.color[r][c] == player) {
        kingRow = r; kingCol = c;
      }
    }
  }
  if (kingRow == -1) return false;
  int opponent = -player;
  return squareAttacked(gs, kingRow, kingCol, opponent);
}

// ─── Move Generation ───────────────────────────────────────────────────────
void addMove(Move *moves,  int &count,  int fr,  int fc,  int tr,  int tc,  GameState &gs,
             bool enPassant,  bool castling,  int rookFromCol,  int rookToCol) {
  if (count >= 255) return;
  Move m;
  m.fromRow = fr; m.fromCol = fc;
  m.toRow = tr; m.toCol = tc;
  m.capturedPiece = gs.board[tr][tc];
  m.capturedColor = gs.color[tr][tc];
  m.promotion = false;
  m.promotedFrom = gs.board[fr][fc];
  m.enPassant = enPassant;
  m.castling = castling;
  m.rookFromCol = rookFromCol;
  m.rookToCol = rookToCol;

  // Pawn promotion
  if (gs.board[fr][fc] == PAWN) {
    if ((gs.color[fr][fc] == WHITE_PIECE && tr == 0) ||
        (gs.color[fr][fc] == BLACK_PIECE && tr == 7)) {
      m.promotion = true;
    }
  }
  moves[count++] = m;
}

void generatePseudoMoves(GameState &gs, int player, Move *moves, int &count) {
  int dir = (player == WHITE_PIECE) ? -1 : 1;

  for (int r = 0; r < 8; r++) {
    for (int c = 0; c < 8; c++) {
      if (gs.board[r][c] == EMPTY || gs.color[r][c] != player) continue;
      int piece = gs.board[r][c];

      if (piece == PAWN) {
        int nr = r + dir;
        // Forward
        if (inBounds(nr, c) && gs.board[nr][c] == EMPTY) {
          addMove(moves, count, r, c, nr, c, gs);
          // Double push from start
          int startRow = (player == WHITE_PIECE) ? 6 : 1;
          if (r == startRow && gs.board[nr + dir][c] == EMPTY) {
            addMove(moves, count, r, c, nr + dir, c, gs);
          }
        }
        // Captures
        for (int dc = -1; dc <= 1; dc += 2) {
          int nc = c + dc;
          if (!inBounds(nr, nc)) continue;
          if (gs.board[nr][nc] != EMPTY && gs.color[nr][nc] != player) {
            addMove(moves, count, r, c, nr, nc, gs);
          }
          // En passant
          if (gs.enPassantCol == nc && gs.enPassantRow == nr) {
            addMove(moves, count, r, c, nr, nc, gs, true);
          }
        }
      }

      else if (piece == KNIGHT) {
        int kd[8][2] = {{-2,-1},{-2,1},{-1,-2},{-1,2},{1,-2},{1,2},{2,-1},{2,1}};
        for (int i = 0; i < 8; i++) {
          int nr = r + kd[i][0], nc = c + kd[i][1];
          if (!inBounds(nr, nc)) continue;
          if (gs.board[nr][nc] == EMPTY || gs.color[nr][nc] != player) {
            addMove(moves, count, r, c, nr, nc, gs);
          }
        }
      }

      else if (piece == BISHOP || piece == QUEEN) {
        int diagD[4][2] = {{1,1},{1,-1},{-1,1},{-1,-1}};
        for (int d = 0; d < 4; d++) {
          int nr = r + diagD[d][0], nc = c + diagD[d][1];
          while (inBounds(nr, nc)) {
            if (gs.board[nr][nc] != EMPTY) {
              if (gs.color[nr][nc] != player) addMove(moves, count, r, c, nr, nc, gs);
              break;
            }
            addMove(moves, count, r, c, nr, nc, gs);
            nr += diagD[d][0]; nc += diagD[d][1];
          }
        }
      }

      if (piece == ROOK || piece == QUEEN) {
        int straightD[4][2] = {{1,0},{-1,0},{0,1},{0,-1}};
        for (int d = 0; d < 4; d++) {
          int nr = r + straightD[d][0], nc = c + straightD[d][1];
          while (inBounds(nr, nc)) {
            if (gs.board[nr][nc] != EMPTY) {
              if (gs.color[nr][nc] != player) addMove(moves, count, r, c, nr, nc, gs);
              break;
            }
            addMove(moves, count, r, c, nr, nc, gs);
            nr += straightD[d][0]; nc += straightD[d][1];
          }
        }
      }

      else if (piece == KING) {
        for (int dr = -1; dr <= 1; dr++) {
          for (int dc = -1; dc <= 1; dc++) {
            if (dr == 0 && dc == 0) continue;
            int nr = r + dr, nc = c + dc;
            if (!inBounds(nr, nc)) continue;
            if (gs.board[nr][nc] == EMPTY || gs.color[nr][nc] != player) {
              addMove(moves, count, r, c, nr, nc, gs);
            }
          }
        }
        // Castling
        int backRow = (player == WHITE_PIECE) ? 7 : 0;
        int opponent = -player;
        if (r == backRow && c == 4 && !isInCheck(gs, player)) {
          // Kingside
          bool canK = (player == WHITE_PIECE) ? gs.whiteCastleK : gs.blackCastleK;
          if (canK && gs.board[backRow][5] == EMPTY && gs.board[backRow][6] == EMPTY &&
              !squareAttacked(gs, backRow, 5, opponent) && !squareAttacked(gs, backRow, 6, opponent)) {
            addMove(moves, count, r, c, backRow, 6, gs, false, true, 7, 5);
          }
          // Queenside
          bool canQ = (player == WHITE_PIECE) ? gs.whiteCastleQ : gs.blackCastleQ;
          if (canQ && gs.board[backRow][3] == EMPTY && gs.board[backRow][2] == EMPTY && gs.board[backRow][1] == EMPTY &&
              !squareAttacked(gs, backRow, 3, opponent) && !squareAttacked(gs, backRow, 2, opponent)) {
            addMove(moves, count, r, c, backRow, 2, gs, false, true, 0, 3);
          }
        }
      }
    }
  }
}

void applyMove(GameState &gs, Move &m) {
  int piece = gs.board[m.fromRow][m.fromCol];
  int pieceColor = gs.color[m.fromRow][m.fromCol];

  // Handle en passant capture
  if (m.enPassant) {
    int captureRow = m.fromRow;
    gs.board[captureRow][m.toCol] = EMPTY;
    gs.color[captureRow][m.toCol] = 0;
  }

  // Set new en passant target
  gs.enPassantCol = -1;
  gs.enPassantRow = -1;
  if (piece == PAWN && abs(m.toRow - m.fromRow) == 2) {
    gs.enPassantRow = (m.fromRow + m.toRow) / 2;
    gs.enPassantCol = m.fromCol;
  }

  // Move piece
  gs.board[m.toRow][m.toCol] = piece;
  gs.color[m.toRow][m.toCol] = pieceColor;
  gs.board[m.fromRow][m.fromCol] = EMPTY;
  gs.color[m.fromRow][m.fromCol] = 0;

  // Promotion
  if (m.promotion) {
    gs.board[m.toRow][m.toCol] = QUEEN;
  }

  // Castling: move rook
  if (m.castling) {
    int backRow = m.fromRow;
    gs.board[backRow][m.rookToCol] = ROOK;
    gs.color[backRow][m.rookToCol] = pieceColor;
    gs.board[backRow][m.rookFromCol] = EMPTY;
    gs.color[backRow][m.rookFromCol] = 0;
  }

  // Update castling rights
  if (piece == KING) {
    if (pieceColor == WHITE_PIECE) { gs.whiteCastleK = false; gs.whiteCastleQ = false; }
    else { gs.blackCastleK = false; gs.blackCastleQ = false; }
  }
  if (piece == ROOK) {
    if (pieceColor == WHITE_PIECE) {
      if (m.fromCol == 7) gs.whiteCastleK = false;
      if (m.fromCol == 0) gs.whiteCastleQ = false;
    } else {
      if (m.fromCol == 7) gs.blackCastleK = false;
      if (m.fromCol == 0) gs.blackCastleQ = false;
    }
  }

  gs.currentPlayer = -gs.currentPlayer;
}

void undoMove(GameState &gs, Move &m) {
  int piece = gs.board[m.toRow][m.toCol];
  int pieceColor = gs.color[m.toRow][m.toCol];

  // Undo promotion
  if (m.promotion) {
    piece = PAWN;
  }

  gs.board[m.fromRow][m.fromCol] = piece;
  gs.color[m.fromRow][m.fromCol] = pieceColor;
  gs.board[m.toRow][m.toCol] = m.capturedPiece;
  gs.color[m.toRow][m.toCol] = m.capturedColor;

  // Undo en passant
  if (m.enPassant) {
    int captureRow = m.fromRow;
    int captureColor = -pieceColor;
    gs.board[captureRow][m.toCol] = PAWN;
    gs.color[captureRow][m.toCol] = captureColor;
  }

  // Undo castling: move rook back
  if (m.castling) {
    int backRow = m.fromRow;
    gs.board[backRow][m.rookFromCol] = ROOK;
    gs.color[backRow][m.rookFromCol] = pieceColor;
    gs.board[backRow][m.rookToCol] = EMPTY;
    gs.color[backRow][m.rookToCol] = 0;
  }

  gs.currentPlayer = -gs.currentPlayer;
}

void generateMoves(GameState &gs, int player, Move *moves, int &count) {
  count = 0;
  Move pseudoMoves[256];
  int pseudoCount = 0;
  generatePseudoMoves(gs, player, pseudoMoves, pseudoCount);

  // Snapshot/restore the full GameState rather than relying on undoMove —
  // undoMove only restores board[][] / color[][], leaving enPassant target,
  // castling rights, and currentPlayer corrupted. With those leaking across
  // pseudoMove iterations, the AI sees positions that can't actually arise
  // and emits illegal moves (e.g. rook capturing its own pawn). Full copy
  // costs ~520 bytes per iteration but eliminates the whole class of bugs.
  for (int i = 0; i < pseudoCount; i++) {
    GameState saved = gs;
    applyMove(gs, pseudoMoves[i]);
    if (!isInCheck(gs, player)) {
      moves[count++] = pseudoMoves[i];
    }
    gs = saved;
  }
}

bool isCheckmate(GameState &gs, int player) {
  Move moves[256];
  int count = 0;
  generateMoves(gs, player, moves, count);
  return (count == 0 && isInCheck(gs, player));
}

bool isStalemate(GameState &gs, int player) {
  Move moves[256];
  int count = 0;
  generateMoves(gs, player, moves, count);
  return (count == 0 && !isInCheck(gs, player));
}

// ─── Evaluation ───────────────────────────────────────────────────────────
int pieceValue(int piece) {
  switch (piece) {
    case PAWN:   return 100;
    case KNIGHT: return 320;
    case BISHOP: return 330;
    case ROOK:   return 500;
    case QUEEN:  return 900;
    case KING:   return 20000;
    default:     return 0;
  }
}

// Piece-square tables (from white's perspective)
const int pawnTable[8][8] = {
  { 0,  0,  0,  0,  0,  0,  0,  0},
  {50, 50, 50, 50, 50, 50, 50, 50},
  {10, 10, 20, 30, 30, 20, 10, 10},
  { 5,  5, 10, 25, 25, 10,  5,  5},
  { 0,  0,  0, 20, 20,  0,  0,  0},
  { 5, -5,-10,  0,  0,-10, -5,  5},
  { 5, 10, 10,-20,-20, 10, 10,  5},
  { 0,  0,  0,  0,  0,  0,  0,  0}
};

const int knightTable[8][8] = {
  {-50,-40,-30,-30,-30,-30,-40,-50},
  {-40,-20,  0,  0,  0,  0,-20,-40},
  {-30,  0, 10, 15, 15, 10,  0,-30},
  {-30,  5, 15, 20, 20, 15,  5,-30},
  {-30,  0, 15, 20, 20, 15,  0,-30},
  {-30,  5, 10, 15, 15, 10,  5,-30},
  {-40,-20,  0,  5,  5,  0,-20,-40},
  {-50,-40,-30,-30,-30,-30,-40,-50}
};

const int bishopTable[8][8] = {
  {-20,-10,-10,-10,-10,-10,-10,-20},
  {-10,  0,  0,  0,  0,  0,  0,-10},
  {-10,  0,  5, 10, 10,  5,  0,-10},
  {-10,  5,  5, 10, 10,  5,  5,-10},
  {-10,  0, 10, 10, 10, 10,  0,-10},
  {-10, 10, 10, 10, 10, 10, 10,-10},
  {-10,  5,  0,  0,  0,  0,  5,-10},
  {-20,-10,-10,-10,-10,-10,-10,-20}
};

int getPST(int piece, int row, int col, int color) {
  int r = (color == WHITE_PIECE) ? row : (7 - row);
  switch (piece) {
    case PAWN:   return pawnTable[r][col];
    case KNIGHT: return knightTable[r][col];
    case BISHOP: return bishopTable[r][col];
    default:     return 0;
  }
}

int evaluateBoard(GameState &gs) {
  int score = 0;
  for (int r = 0; r < 8; r++) {
    for (int c = 0; c < 8; c++) {
      if (gs.board[r][c] == EMPTY) continue;
      int v = pieceValue(gs.board[r][c]) + getPST(gs.board[r][c], r, c, gs.color[r][c]);
      if (gs.color[r][c] == BLACK_PIECE) score += v;
      else score -= v;
    }
  }
  return score;
}

// ─── Minimax with Alpha-Beta ───────────────────────────────────────────────
// Stack-overflow fix: a per-frame `Move moves[256]` (~10KB) × recursion depth
// blows past the loopTask stack (even at 32KB) when combined with the
// setup→loop→handleTouch→getBestMove call chain. Loop task is single-threaded
// so a per-depth global pool is safe — each recursion level reads/writes its
// own slot.
#define MINIMAX_MAX_DEPTH 6
static Move minimaxMoveBuf[MINIMAX_MAX_DEPTH + 1][256];

int minimax(GameState &gs, int depth, int alpha, int beta, bool maximizing) {
  if (depth == 0) return evaluateBoard(gs);

  int player = maximizing ? BLACK_PIECE : WHITE_PIECE;
  Move *moves = (depth >= 0 && depth <= MINIMAX_MAX_DEPTH) ? minimaxMoveBuf[depth] : minimaxMoveBuf[0];
  int count = 0;
  generateMoves(gs, player, moves, count);

  if (count == 0) {
    if (isInCheck(gs, player)) {
      return maximizing ? -30000 - depth : 30000 + depth;
    }
    return 0; // stalemate
  }

  // vTaskDelay(1) (= 1 tick) actually lets the IDLE task run, unlike yield()
  // which only schedules equal-or-higher priority. Calling every node would
  // be too slow (~1ms × thousands of nodes); call every 16th instead.
  static uint32_t s_minimaxNodeCounter = 0;

  if (maximizing) {
    int maxEval = -32767;
    for (int i = 0; i < count; i++) {
      GameState saved = gs;
      applyMove(gs, moves[i]);
      int eval = minimax(gs, depth - 1, alpha, beta, false);
      gs = saved;
      if ((++s_minimaxNodeCounter & 0x0F) == 0) vTaskDelay(1);
      if (eval > maxEval) maxEval = eval;
      if (eval > alpha) alpha = eval;
      if (beta <= alpha) break;
    }
    return maxEval;
  } else {
    int minEval = 32767;
    for (int i = 0; i < count; i++) {
      GameState saved = gs;
      applyMove(gs, moves[i]);
      int eval = minimax(gs, depth - 1, alpha, beta, true);
      gs = saved;
      if ((++s_minimaxNodeCounter & 0x0F) == 0) vTaskDelay(1);
      if (eval < minEval) minEval = eval;
      if (eval < beta) beta = eval;
      if (beta <= alpha) break;
    }
    return minEval;
  }
}

Move getBestMove(GameState &gs) {
  Move moves[256];
  int count = 0;
  generateMoves(gs, BLACK_PIECE, moves, count);

  Move bestMove = moves[0];
  int bestVal = -32767;
  int depth = 2; // Search depth — reduced from 3 to keep AI move time
                 // around 1s on ESP32 240MHz. Still a credible opponent.

  for (int i = 0; i < count; i++) {
    GameState saved = gs;
    applyMove(gs, moves[i]);
    int val = minimax(gs, depth - 1, -32767, 32767, false);
    gs = saved;
    if (val > bestVal) {
      bestVal = val;
      bestMove = moves[i];
    }
  }
  return bestMove;
}

// ─── Touch Input ───────────────────────────────────────────────────────────
void getTouchSquare(int &row, int &col) {
  row = -1; col = -1;
  if (!touch.touched()) return;

  TS_Point p = touch.getPoint();

  // Map raw touch to screen coordinates
  // The display is 240x320, touch is 240 wide x 320 tall
  // Raw values need mapping based on calibration
  int tx = map(p.x, TOUCH_X_MIN, TOUCH_X_MAX, 0, 240);
  int ty = map(p.y, TOUCH_Y_MIN, TOUCH_Y_MAX, 0, 320);

  tx = constrain(tx, 0, 239);
  ty = constrain(ty, 0, 319);

  // Convert to board square
  int bx = tx - BOARD_OFFSET_X;
  int by = ty - BOARD_OFFSET_Y;

  if (bx < 0 || bx >= 8 * SQUARE_SIZE) return;
  if (by < 0 || by >= 8 * SQUARE_SIZE) return;

  col = bx / SQUARE_SIZE;
  row = by / SQUARE_SIZE;
}

// ─── Setup & Loop ──────────────────────────────────────────────────────────
void setup() {
  Serial.begin(115200);

  // Backlight
  ledcSetup(0, 5000, 8);
  ledcAttachPin(TFT_BL_PIN, 0);
  ledcWrite(0, 200);

  // TFT
  tft.init();
  tft.setRotation(0); // Portrait
  tft.fillScreen(COLOR_BG);

  // Touch SPI
  touchSPI.begin(TOUCH_SCK, TOUCH_MISO, TOUCH_MOSI, TOUCH_CS_PIN);
  touch.begin(touchSPI);
  touch.setRotation(0);

  // Init game
  initBoard(gs);

  tft.fillScreen(COLOR_BG);
  drawBoard(gs);
  drawNewGameButton();
  drawStatus("Your turn (White)");

  // Diagnostic: how much loopTask stack is left at the end of setup()?
  // Reports the minimum free stack (high-water mark). If this is small,
  // setup() ate most of the stack and we need to bump getArduinoLoopTaskStackSize.
  Serial.printf("[diag] loopTask stack high-water mark: %u bytes free\n",
                (unsigned)uxTaskGetStackHighWaterMark(NULL));
  Serial.println("Chess game started");
}

void loop() {
  // ESP32 task watchdog feed: arduino-esp32 v2.x's loopTask doesn't yield
  // between iterations, so a busy-waiting `loop()` (no touch → return early)
  // starves Core 1 IDLE within ~5s and trips TG0WDT_SYS_RESET. delay(1)
  // sleeps the loopTask for 1 tick, which is enough for IDLE to run.
  // (yield() does NOT fix this — it only schedules equal-or-higher priority.)
  delay(1);

  // New Game button: works in any game state (mid-game, game over, AI's
  // turn). Check before all other touch handling so a tap on the button
  // always wins. Wait for finger release with the same 2s timeout used
  // elsewhere so a stuck touch sensor can't freeze the reset.
  if (isTouchOnNewGameButton()) {
    delay(50); // debounce
    if (isTouchOnNewGameButton()) {
      unsigned long _waitStart = millis();
      while (touch.touched() && millis() - _waitStart < 2000) { delay(10); }
      resetGame();
      return;
    }
  }

  if (gameOver) {
    // Wait for touch to restart
    if (touch.touched()) {
      delay(300);
      // Wait for release — bail after 2s in case the sensor glitches and
      // never reports !touched(). Without the timeout, a stuck touch event
      // would freeze the game (loop() would never return, so we'd stop
      // processing input even though the WDT stays fed by delay(10)).
      unsigned long _waitStart = millis();
      while (touch.touched() && millis() - _waitStart < 2000) { delay(10); }
      gameOver = false;
      pieceSelected = false;
      selectedRow = -1;
      selectedCol = -1;
      legalMoveCount = 0;
      initBoard(gs);
      tft.fillScreen(COLOR_BG);
      drawBoard(gs);
      drawStatus("Your turn (White)");
    }
    return;
  }

  if (gs.currentPlayer == WHITE_PIECE) {
    // Human's turn
    if (!touch.touched()) return;

    delay(50); // debounce
    if (!touch.touched()) return;

    int tRow, tCol;
    getTouchSquare(tRow, tCol);

    // Wait for release — same 2s timeout as the gameOver branch above.
    unsigned long _waitStart = millis();
    while (touch.touched() && millis() - _waitStart < 2000) { delay(10); }

    if (tRow < 0 || tRow >= 8 || tCol < 0 || tCol >= 8) return;

    if (!pieceSelected) {
      // Select a piece
      if (gs.board[tRow][tCol] != EMPTY && gs.color[tRow][tCol] == WHITE_PIECE) {
        selectedRow = tRow;
        selectedCol = tCol;
        pieceSelected = true;
        // Generate legal moves for this piece
        Move allMoves[256];
        int allCount = 0;
        generateMoves(gs, WHITE_PIECE, allMoves, allCount);
        legalMoveCount = 0;
        for (int i = 0; i < allCount; i++) {
          if (allMoves[i].fromRow == selectedRow && allMoves[i].fromCol == selectedCol) {
            legalMoves[legalMoveCount++] = allMoves[i];
          }
        }
        drawBoard(gs);
        drawStatus("Select destination");
      }
    } else {
      // Deselect if tapping same square
      if (tRow == selectedRow && tCol == selectedCol) {
        pieceSelected = false;
        selectedRow = -1;
        selectedCol = -1;
        legalMoveCount = 0;
        drawBoard(gs);
        drawStatus("Your turn (White)");
        return;
      }

      // Re-select another white piece
      if (gs.board[tRow][tCol] != EMPTY && gs.color[tRow][tCol] == WHITE_PIECE) {
        selectedRow = tRow;
        selectedCol = tCol;
        Move allMoves[256];
        int allCount = 0;
        generateMoves(gs, WHITE_PIECE, allMoves, allCount);
        legalMoveCount = 0;
        for (int i = 0; i < allCount; i++) {
          if (allMoves[i].fromRow == selectedRow && allMoves[i].fromCol == selectedCol) {
            legalMoves[legalMoveCount++] = allMoves[i];
          }
        }
        drawBoard(gs);
        drawStatus("Select destination");
        return;
      }

      // Try to make a move
      bool moveMade = false;
      for (int i = 0; i < legalMoveCount; i++) {
        if (legalMoves[i].toRow == tRow && legalMoves[i].toCol == tCol) {
          applyMove(gs, legalMoves[i]);
          moveMade = true;
          break;
        }
      }

      pieceSelected = false;
      selectedRow = -1;
      selectedCol = -1;
      legalMoveCount = 0;

      if (!moveMade) {
        drawBoard(gs);
        drawStatus("Invalid move!");
        delay(800);
        drawStatus("Your turn (White)");
        return;
      }

      // Check game end conditions after player move
      drawBoard(gs);

      if (isCheckmate(gs, BLACK_PIECE)) {
        drawStatus("Checkmate! You win!");
        drawGameOver("You Win!");
        gameOver = true;
        return;
      }
      if (isStalemate(gs, BLACK_PIECE)) {
        drawStatus("Stalemate!");
        drawGameOver("Stalemate!");
        gameOver = true;
        return;
      }
      if (isInCheck(gs, BLACK_PIECE)) {
        drawStatus("Check! AI thinking...");
      } else {
        drawStatus("AI thinking...");
      }

    }
  } else {
    // AI's turn (Black)
    delay(100);

    Move best = getBestMove(gs);
    applyMove(gs, best);

    drawBoard(gs);

    if (isCheckmate(gs, WHITE_PIECE)) {
      drawStatus("Checkmate! AI wins!");
      drawGameOver("AI Wins!");
      gameOver = true;
      return;
    }
    if (isStalemate(gs, WHITE_PIECE)) {
      drawStatus("Stalemate!");
      drawGameOver("Stalemate!");
      gameOver = true;
      return;
    }
    if (isInCheck(gs, WHITE_PIECE)) {
      drawStatus("You're in Check!");
    } else {
      drawStatus("Your turn (White)");
    }
  }
}

// Run this and build other cool things at schematik.io
