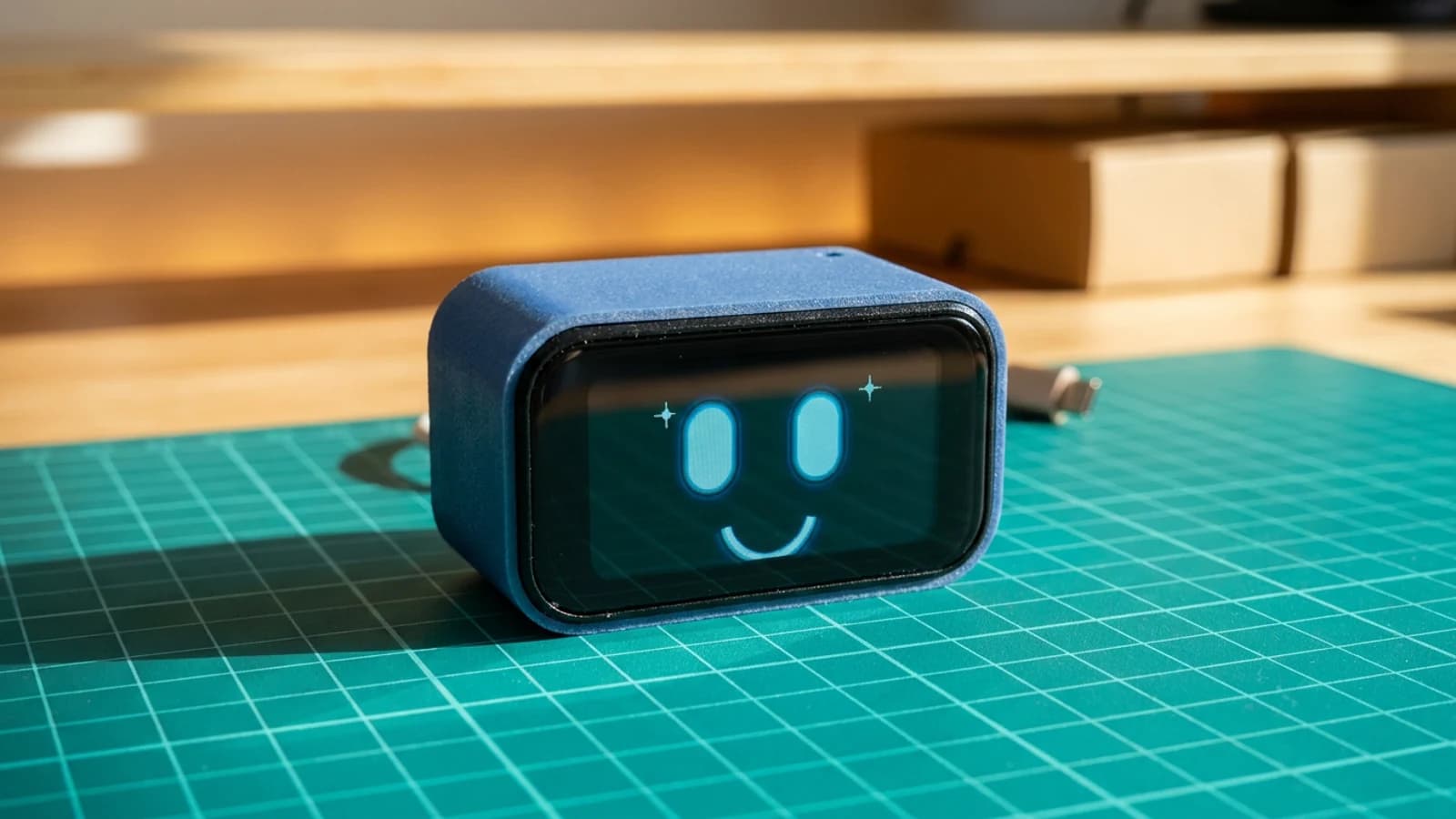

How to Build a Tiny ESP DeskBuddy with ESP32-C6

#include <Arduino.h>
#include <Arduino_GFX_Library.h>
#include <ArduinoJson.h>
#include <FastIMU.h>
#include <HTTPClient.h>
#include <WiFi.h>
#include <WiFiClientSecure.h>
#include <Wire.h>
#include <math.h>
#include <string.h>
#include "esp_lcd_touch_axs5106l.h"

#if __has_include("secrets.h")
#include "secrets.h"
#endif

#ifndef WIFI_SSID
#define WIFI_SSID ""
#endif

#ifndef WIFI_PASSWORD
#define WIFI_PASSWORD ""
#endif

#ifndef GITHUB_USER
#define GITHUB_USER "sparklabhqx"
#endif

#define LCD_BL 23
#define LCD_DC 15
#define LCD_CS 14
#define LCD_SCK 1
#define LCD_MOSI 2
#define LCD_RST 22

#define TOUCH_SDA 18
#define TOUCH_SCL 19
#define TOUCH_RST 20
#define TOUCH_INT 21

#define IMU_ADDRESS 0x6B
#define ROTATION 1

static const int SCREEN_W = 320;
static const int SCREEN_H = 172;
static const uint8_t APP_COUNT = 7;
static const uint8_t FACE_MOOD_COUNT = 5;
static const uint32_t PAGE_AUTO_INTERVAL_MS = 8000;
static const uint16_t FG = RGB565_WHITE;
static const uint16_t BG = RGB565_BLACK;

Arduino_DataBus *bus = new Arduino_HWSPI(LCD_DC, LCD_CS, LCD_SCK, LCD_MOSI);
Arduino_GFX *display = new Arduino_ST7789(bus, LCD_RST, 0, false, 172, 320, 34, 0, 34, 0);
Arduino_Canvas *gfx = new Arduino_Canvas(SCREEN_W, SCREEN_H, display);

QMI8658 imu;
calData calib = {0};
AccelData accel;
GyroData gyro;

bool imuReady = false;
bool touchReady = false;
bool touchWasDown = false;
bool wifiAttempted = false;
bool weatherValid = false;
bool stockValid = false;
bool githubValid = false;
uint8_t currentApp = 0;
uint8_t faceMood = 0;
uint16_t touchStartX = 0;
uint16_t touchStartY = 0;
uint32_t touchStartMs = 0;
uint32_t nextBlink = 1400;
uint32_t blinkUntil = 0;
uint32_t nextGlance = 900;
uint32_t nextAutoPage = PAGE_AUTO_INTERVAL_MS;
uint32_t lastSerialMs = 0;
uint32_t clockStartMillis = 0;
uint32_t clockStartSeconds = 0;
uint32_t weatherUpdatedAt = 0;
uint32_t stockUpdatedAt = 0;
uint32_t githubUpdatedAt = 0;
float restAx = 0.0f;
float restAy = 0.0f;
float filteredAx = 0.0f;
float filteredAy = 0.0f;
float filteredGz = 0.0f;
float faceGlanceX = 0.0f;
float faceGlanceY = 0.0f;
float faceTargetX = 0.0f;
float faceTargetY = 0.0f;
float pressPulse = 0.0f;
int weatherTempF = 0;
int weatherHumidity = 0;
int weatherWindMph = 0;
int weatherCode = -1;
bool weatherIsDay = true;
String weatherLabel = "WAITING";
float stockPrice = 0.0f;
float stockOpen = 0.0f;
float stockHigh = 0.0f;
float stockLow = 0.0f;
String stockTime = "";
int githubFollowers = 0;
int githubRepos = 0;

uint16_t rgb(uint8_t r, uint8_t g, uint8_t b) {
  return ((r & 0xF8) << 8) | ((g & 0xFC) << 3) | (b >> 3);
}

float clampFloat(float value, float minValue, float maxValue) {
  if (value < minValue) {
    return minValue;
  }
  if (value > maxValue) {
    return maxValue;
  }
  return value;
}

void lcdRegInit() {
  static const uint8_t init_operations[] = {
      BEGIN_WRITE,
      WRITE_COMMAND_8, 0x11,
      END_WRITE,
      DELAY, 120,
      BEGIN_WRITE,
      WRITE_C8_D16, 0xDF, 0x98, 0x53,
      WRITE_C8_D8, 0xB2, 0x23,
      WRITE_COMMAND_8, 0xB7,
      WRITE_BYTES, 4,
      0x00, 0x47, 0x00, 0x6F,
      WRITE_COMMAND_8, 0xBB,
      WRITE_BYTES, 6,
      0x1C, 0x1A, 0x55, 0x73, 0x63, 0xF0,
      WRITE_C8_D16, 0xC0, 0x44, 0xA4,
      WRITE_C8_D8, 0xC1, 0x16,
      WRITE_COMMAND_8, 0xC3,
      WRITE_BYTES, 8,
      0x7D, 0x07, 0x14, 0x06, 0xCF, 0x71, 0x72, 0x77,
      WRITE_COMMAND_8, 0xC4,
      WRITE_BYTES, 12,
      0x00, 0x00, 0xA0, 0x79, 0x0B, 0x0A, 0x16, 0x79, 0x0B, 0x0A, 0x16, 0x82,
      WRITE_COMMAND_8, 0xC8,
      WRITE_BYTES, 32,
      0x3F, 0x32, 0x29, 0x29, 0x27, 0x2B, 0x27, 0x28, 0x28, 0x26, 0x25, 0x17, 0x12, 0x0D, 0x04, 0x00,
      0x3F, 0x32, 0x29, 0x29, 0x27, 0x2B, 0x27, 0x28, 0x28, 0x26, 0x25, 0x17, 0x12, 0x0D, 0x04, 0x00,
      WRITE_COMMAND_8, 0xD0,
      WRITE_BYTES, 5,
      0x04, 0x06, 0x6B, 0x0F, 0x00,
      WRITE_C8_D16, 0xD7, 0x00, 0x30,
      WRITE_C8_D8, 0xE6, 0x14,
      WRITE_C8_D8, 0xDE, 0x01,
      WRITE_COMMAND_8, 0xB7,
      WRITE_BYTES, 5,
      0x03, 0x13, 0xEF, 0x35, 0x35,
      WRITE_COMMAND_8, 0xC1,
      WRITE_BYTES, 3,
      0x14, 0x15, 0xC0,
      WRITE_C8_D16, 0xC2, 0x06, 0x3A,
      WRITE_C8_D16, 0xC4, 0x72, 0x12,
      WRITE_C8_D8, 0xBE, 0x00,
      WRITE_C8_D8, 0xDE, 0x02,
      WRITE_COMMAND_8, 0xE5,
      WRITE_BYTES, 3,
      0x00, 0x02, 0x00,
      WRITE_COMMAND_8, 0xE5,
      WRITE_BYTES, 3,
      0x01, 0x02, 0x00,
      WRITE_C8_D8, 0xDE, 0x00,
      WRITE_C8_D8, 0x35, 0x00,
      WRITE_C8_D8, 0x3A, 0x05,
      WRITE_COMMAND_8, 0x2A,
      WRITE_BYTES, 4,
      0x00, 0x22, 0x00, 0xCD,
      WRITE_COMMAND_8, 0x2B,
      WRITE_BYTES, 4,
      0x00, 0x00, 0x01, 0x3F,
      WRITE_C8_D8, 0xDE, 0x02,
      WRITE_COMMAND_8, 0xE5,
      WRITE_BYTES, 3,
      0x00, 0x02, 0x00,
      WRITE_C8_D8, 0xDE, 0x00,
      WRITE_C8_D8, 0x36, 0x00,
      WRITE_COMMAND_8, 0x21,
      END_WRITE,
      DELAY, 10,
      BEGIN_WRITE,
      WRITE_COMMAND_8, 0x29,
      END_WRITE};
  bus->batchOperation(init_operations, sizeof(init_operations));
}

uint32_t compileTimeSeconds() {
  const char *t = __TIME__;
  uint8_t hh = (t[0] - '0') * 10 + (t[1] - '0');
  uint8_t mm = (t[3] - '0') * 10 + (t[4] - '0');
  uint8_t ss = (t[6] - '0') * 10 + (t[7] - '0');
  return (uint32_t)hh * 3600UL + (uint32_t)mm * 60UL + ss;
}

uint8_t compileMonthNumber() {
  const char *month = __DATE__;
  static const char names[] = "JanFebMarAprMayJunJulAugSepOctNovDec";
  for (uint8_t i = 0; i < 12; i++) {
    if (strncmp(month, names + i * 3, 3) == 0) {
      return i + 1;
    }
  }
  return 1;
}

int32_t daysFromCivil(int32_t year, uint8_t month, uint8_t day) {
  year -= month <= 2;
  const int32_t era = (year >= 0 ? year : year - 399) / 400;
  const uint32_t yoe = (uint32_t)(year - era * 400);
  const uint32_t doy = (153 * (month + (month > 2 ? -3 : 9)) + 2) / 5 + day - 1;
  const uint32_t doe = yoe * 365 + yoe / 4 - yoe / 100 + doy;
  return era * 146097 + (int32_t)doe - 719468;
}

void civilFromDays(int32_t z, int32_t *year, uint8_t *month, uint8_t *day) {
  z += 719468;
  const int32_t era = (z >= 0 ? z : z - 146096) / 146097;
  const uint32_t doe = (uint32_t)(z - era * 146097);
  const uint32_t yoe = (doe - doe / 1460 + doe / 36524 - doe / 146096) / 365;
  int32_t y = (int32_t)yoe + era * 400;
  const uint32_t doy = doe - (365 * yoe + yoe / 4 - yoe / 100);
  const uint32_t mp = (5 * doy + 2) / 153;
  const uint32_t d = doy - (153 * mp + 2) / 5 + 1;
  const uint32_t m = mp + (mp < 10 ? 3 : -9);
  y += m <= 2;
  *year = y;
  *month = (uint8_t)m;
  *day = (uint8_t)d;
}

int32_t compileDateDays() {
  const char *d = __DATE__;
  uint8_t day = (d[4] == ' ' ? 0 : d[4] - '0') * 10 + (d[5] - '0');
  int32_t year = (int32_t)(d[7] - '0') * 1000 + (int32_t)(d[8] - '0') * 100 +
                 (int32_t)(d[9] - '0') * 10 + (d[10] - '0');
  return daysFromCivil(year, compileMonthNumber(), day);
}

String csvField(const String &row, uint8_t index) {
  int start = 0;
  for (uint8_t i = 0; i < index; i++) {
    start = row.indexOf(',', start);
    if (start < 0) {
      return "";
    }
    start++;
  }
  int end = row.indexOf(',', start);
  if (end < 0) {
    end = row.length();
  }
  String value = row.substring(start, end);
  value.trim();
  return value;
}

void centeredText(const char *text, int y, uint8_t size) {
  gfx->setTextSize(size);
  gfx->setTextColor(FG);
  int width = (int)strlen(text) * 6 * size;
  gfx->setCursor((SCREEN_W - width) / 2, y);
  gfx->print(text);
}

void drawPageDots() {
  int startX = SCREEN_W / 2 - ((APP_COUNT - 1) * 16) / 2;
  for (uint8_t i = 0; i < APP_COUNT; i++) {
    if (i == currentApp) {
      gfx->fillCircle(startX + i * 16, SCREEN_H - 12, 3, FG);
    } else {
      gfx->drawCircle(startX + i * 16, SCREEN_H - 12, 2, rgb(90, 90, 90));
    }
  }
}

void drawHeader(const char *title) {
  gfx->fillScreen(BG);
  gfx->drawLine(0, 20, SCREEN_W, 20, FG);
  gfx->setTextSize(1);
  gfx->setTextColor(FG);
  gfx->setCursor(8, 7);
  gfx->print(title);
}

void switchApp(int8_t delta) {
  currentApp = (currentApp + APP_COUNT + delta) % APP_COUNT;
  pressPulse = 1.0f;
  nextAutoPage = millis() + PAGE_AUTO_INTERVAL_MS;
}

bool wifiConfigured() {
  return strlen(WIFI_SSID) > 0;
}

bool ensureWifi() {
  if (WiFi.status() == WL_CONNECTED) {
    return true;
  }
  if (!wifiConfigured()) {
    return false;
  }
  if (wifiAttempted) {
    return false;
  }

  wifiAttempted = true;
  WiFi.mode(WIFI_STA);
  WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
  uint32_t start = millis();
  while (WiFi.status() != WL_CONNECTED && millis() - start < 3500UL) {
    delay(120);
  }
  return WiFi.status() == WL_CONNECTED;
}

const char *weatherCodeText(int code) {
  if (code == 0) return "CLEAR";
  if (code == 1 || code == 2) return "PARTLY CLOUDY";
  if (code == 3) return "CLOUDY";
  if (code == 45 || code == 48) return "FOG";
  if ((code >= 51 && code <= 67) || (code >= 80 && code <= 82)) return "RAIN";
  if (code >= 71 && code <= 77) return "SNOW";
  if (code >= 95) return "STORM";
  return "WEATHER";
}

void drawWeatherIcon(int cx, int cy, int code, bool isDay) {
  if (code == 0) {
    gfx->drawCircle(cx, cy, 22, FG);
    for (uint8_t i = 0; i < 8; i++) {
      float a = i * 0.7854f;
      gfx->drawLine(cx + cos(a) * 30, cy + sin(a) * 30,
                    cx + cos(a) * 40, cy + sin(a) * 40, FG);
    }
    if (!isDay) {
      gfx->fillCircle(cx + 11, cy - 8, 18, BG);
    }
    return;
  }

  gfx->fillCircle(cx - 19, cy + 5, 19, FG);
  gfx->fillCircle(cx + 2, cy - 6, 25, FG);
  gfx->fillCircle(cx + 27, cy + 8, 17, FG);
  gfx->fillRoundRect(cx - 42, cy + 8, 87, 25, 12, FG);
  if ((code >= 51 && code <= 67) || (code >= 80 && code <= 82)) {
    for (int x = -25; x <= 25; x += 17) {
      gfx->drawLine(cx + x, cy + 45, cx + x - 8, cy + 62, FG);
      gfx->drawLine(cx + x + 1, cy + 45, cx + x - 7, cy + 62, FG);
    }
  } else if (code >= 71 && code <= 77) {
    for (int x = -24; x <= 24; x += 24) {
      gfx->drawLine(cx + x - 6, cy + 53, cx + x + 6, cy + 53, FG);
      gfx->drawLine(cx + x, cy + 47, cx + x, cy + 59, FG);
      gfx->drawLine(cx + x - 5, cy + 48, cx + x + 5, cy + 58, FG);
      gfx->drawLine(cx + x + 5, cy + 48, cx + x - 5, cy + 58, FG);
    }
  }
}

bool fetchWeather() {
  if (!ensureWifi()) {
    return false;
  }
  HTTPClient http;
  const char *url =
      "http://api.open-meteo.com/v1/forecast?"
      "latitude=40.7128&longitude=-74.0060"
      "&current=temperature_2m,relative_humidity_2m,weather_code,wind_speed_10m,is_day"
      "&temperature_unit=fahrenheit&wind_speed_unit=mph&timezone=America%2FNew_York";
  http.setTimeout(6000);
  if (!http.begin(url)) {
    return false;
  }
  int status = http.GET();
  if (status != HTTP_CODE_OK) {
    http.end();
    return false;
  }
  JsonDocument doc;
  DeserializationError err = deserializeJson(doc, http.getString());
  http.end();
  if (err) {
    return false;
  }

  weatherTempF = (int)round(doc["current"]["temperature_2m"].as<float>());
  weatherHumidity = doc["current"]["relative_humidity_2m"].as<int>();
  weatherWindMph = (int)round(doc["current"]["wind_speed_10m"].as<float>());
  weatherCode = doc["current"]["weather_code"].as<int>();
  weatherIsDay = doc["current"]["is_day"].as<int>() != 0;
  weatherLabel = weatherCodeText(weatherCode);
  weatherUpdatedAt = millis();
  weatherValid = true;
  return true;
}

bool fetchStock() {
  if (!ensureWifi()) {
    return false;
  }
  WiFiClientSecure client;
  client.setInsecure();
  HTTPClient http;
  const char *url = "https://stooq.com/q/l/?s=aapl.us&f=sd2t2ohlcv&h&e=csv";
  http.setTimeout(7000);
  if (!http.begin(client, url)) {
    return false;
  }
  int status = http.GET();
  if (status != HTTP_CODE_OK) {
    http.end();
    return false;
  }
  String csv = http.getString();
  http.end();
  int rowStart = csv.indexOf('\n');
  if (rowStart < 0) {
    return false;
  }
  String row = csv.substring(rowStart + 1);
  row.trim();
  String closeText = csvField(row, 6);
  if (closeText.length() == 0 || closeText == "N/D") {
    return false;
  }
  stockTime = csvField(row, 2);
  stockOpen = csvField(row, 3).toFloat();
  stockHigh = csvField(row, 4).toFloat();
  stockLow = csvField(row, 5).toFloat();
  stockPrice = closeText.toFloat();
  stockUpdatedAt = millis();
  stockValid = true;
  return true;
}

bool fetchGithub() {
  if (!ensureWifi()) {
    return false;
  }
  WiFiClientSecure client;
  client.setInsecure();
  HTTPClient http;
  String url = String("https://api.github.com/users/") + GITHUB_USER;
  http.setTimeout(7000);
  if (!http.begin(client, url)) {
    return false;
  }
  http.addHeader("User-Agent", "ESP32-C6-Touch-LCD");
  int status = http.GET();
  if (status != HTTP_CODE_OK) {
    http.end();
    return false;
  }
  JsonDocument doc;
  DeserializationError err = deserializeJson(doc, http.getString());
  http.end();
  if (err) {
    return false;
  }
  githubFollowers = doc["followers"].as<int>();
  githubRepos = doc["public_repos"].as<int>();
  githubUpdatedAt = millis();
  githubValid = true;
  return true;
}

void drawEye(int cx, int cy, int w, int h, bool closed, int px, int py) {
  if (closed) {
    gfx->fillRoundRect(cx - w / 2, cy - 3, w, 6, 3, FG);
    return;
  }
  gfx->fillRoundRect(cx - w / 2, cy - h / 2, w, h, h / 2, FG);
  gfx->fillRoundRect(cx - 7 + px, cy - 9 + py, 14, 18, 7, BG);
}

void drawMouth(int cx, int cy) {
  if (faceMood == 2) {
    gfx->fillEllipse(cx, cy + 2, 15, 21, FG);
    gfx->fillEllipse(cx, cy + 2, 7, 11, BG);
  } else if (faceMood == 3) {
    gfx->fillRoundRect(cx - 38, cy, 76, 6, 3, FG);
  } else if (faceMood == 4) {
    gfx->drawLine(cx - 28, cy + 8, cx + 28, cy - 8, FG);
    gfx->drawLine(cx - 28, cy + 9, cx + 28, cy - 7, FG);
  } else {
    int radius = faceMood == 1 ? 48 : 40;
    gfx->fillArc(cx, cy - 16, radius, radius - 5, 34.0f, 146.0f, FG);
  }
}

void drawFace(float tx, float ty) {
  uint32_t now = millis();
  drawHeader("FACE");
  float breathe = sin(now * 0.0021f) * 0.03f + pressPulse * 0.08f;
  int dx = (int)(tx * 14.0f + faceGlanceX);
  int dy = (int)(ty * 8.0f + faceGlanceY);
  int eyeW = 44 + (int)(breathe * 28.0f);
  int eyeH = faceMood == 2 ? 45 : (faceMood == 3 ? 16 : 62 + (int)(breathe * 18.0f));
  bool blink = now < blinkUntil;

  for (int x = 12; x < SCREEN_W - 12; x += 18) {
    gfx->drawLine(x, 31, x + 8, 31, FG);
    gfx->drawLine(x + 4, 144, x + 12, 144, FG);
  }
  drawEye(114 + dx, 75 + dy, eyeW, eyeH, blink || faceMood == 3, dx / 4, dy / 5);
  drawEye(206 + dx, 75 + dy, eyeW, eyeH, blink || faceMood == 3 || faceMood == 4, dx / 4, dy / 5);
  drawMouth(160 + dx / 4, 116 + dy / 4);
  drawPageDots();
}

void drawDigitSegment(int x, int y, int w, int h, int t, uint8_t segment) {
  int half = h / 2;
  int r = t / 2;
  switch (segment) {
  case 0: gfx->fillRoundRect(x + t, y, w - 2 * t, t, r, FG); break;
  case 1: gfx->fillRoundRect(x + w - t, y + t, t, half - t, r, FG); break;
  case 2: gfx->fillRoundRect(x + w - t, y + half, t, half - t, r, FG); break;
  case 3: gfx->fillRoundRect(x + t, y + h - t, w - 2 * t, t, r, FG); break;
  case 4: gfx->fillRoundRect(x, y + half, t, half - t, r, FG); break;
  case 5: gfx->fillRoundRect(x, y + t, t, half - t, r, FG); break;
  case 6: gfx->fillRoundRect(x + t, y + half - t / 2, w - 2 * t, t, r, FG); break;
  }
}

void drawDigit(int x, int y, uint8_t digit) {
  static const uint8_t masks[10] = {
      0b00111111, 0b00000110, 0b01011011, 0b01001111, 0b01100110,
      0b01101101, 0b01111101, 0b00000111, 0b01111111, 0b01101111};
  for (uint8_t segment = 0; segment < 7; segment++) {
    if (masks[digit % 10] & (1 << segment)) {
      drawDigitSegment(x, y, 42, 76, 8, segment);
    }
  }
}

void drawClock() {
  uint32_t elapsed = (millis() - clockStartMillis) / 1000UL;
  uint32_t secondsOfDay = (clockStartSeconds + elapsed) % 86400UL;
  uint8_t hh = secondsOfDay / 3600UL;
  uint8_t mm = (secondsOfDay / 60UL) % 60UL;
  uint8_t ss = secondsOfDay % 60UL;

  drawHeader("TIME");
  drawDigit(43, 46, hh / 10);
  drawDigit(93, 46, hh % 10);
  if ((ss % 2) == 0) {
    gfx->fillRoundRect(141, 68, 8, 8, 4, FG);
    gfx->fillRoundRect(141, 96, 8, 8, 4, FG);
  }
  drawDigit(159, 46, mm / 10);
  drawDigit(209, 46, mm % 10);
  gfx->setTextSize(2);
  gfx->setTextColor(FG);
  gfx->setCursor(268, 101);
  if (ss < 10) gfx->print("0");
  gfx->print(ss);
  drawPageDots();
}

void drawDatePage() {
  static const char *weekdays[] = {"SUNDAY", "MONDAY", "TUESDAY", "WEDNESDAY", "THURSDAY", "FRIDAY", "SATURDAY"};
  static const char *months[] = {"JAN", "FEB", "MAR", "APR", "MAY", "JUN", "JUL", "AUG", "SEP", "OCT", "NOV", "DEC"};
  uint32_t elapsedSeconds = (millis() - clockStartMillis) / 1000UL;
  int32_t days = compileDateDays() + (int32_t)((clockStartSeconds + elapsedSeconds) / 86400UL);
  int32_t year;
  uint8_t month;
  uint8_t day;
  civilFromDays(days, &year, &month, &day);
  uint8_t weekday = (uint8_t)((days + 4) % 7);

  drawHeader("DATE");
  centeredText(weekdays[weekday], 35, 3);
  char line[24];
  snprintf(line, sizeof(line), "%s %02u", months[month - 1], day);
  centeredText(line, 82, 5);
  snprintf(line, sizeof(line), "%ld", (long)year);
  centeredText(line, 130, 2);
  drawPageDots();
}

void drawWeather() {
  drawHeader("NEW YORK");
  if (!wifiConfigured()) {
    centeredText("NO WIFI CONFIG", 70, 2);
    centeredText("CREATE secrets.h", 102, 1);
    drawPageDots();
    return;
  }
  if (WiFi.status() != WL_CONNECTED) {
    centeredText("CONNECTING", 75, 2);
    drawWeatherIcon(250, 82, 3, true);
    drawPageDots();
    return;
  }
  if (!weatherValid) {
    centeredText("UPDATING", 76, 2);
    drawPageDots();
    return;
  }
  drawWeatherIcon(241, 70, weatherCode, weatherIsDay);
  gfx->setTextSize(7);
  gfx->setTextColor(FG);
  gfx->setCursor(20, 60);
  gfx->print(weatherTempF);
  gfx->setTextSize(3);
  gfx->print("F");
  gfx->setTextSize(1);
  gfx->setCursor(24, 136);
  gfx->print(weatherLabel);
  gfx->setCursor(146, 136);
  gfx->print("H ");
  gfx->print(weatherHumidity);
  gfx->print("%");
  gfx->setCursor(214, 136);
  gfx->print("W ");
  gfx->print(weatherWindMph);
  gfx->print("MPH");
  drawPageDots();
}

const char *moonPhaseLabel(float phase) {
  if (phase < 0.03f || phase > 0.97f) return "NEW MOON";
  if (phase < 0.22f) return "WAXING CRESCENT";
  if (phase < 0.28f) return "FIRST QUARTER";
  if (phase < 0.47f) return "WAXING GIBBOUS";
  if (phase < 0.53f) return "FULL MOON";
  if (phase < 0.72f) return "WANING GIBBOUS";
  if (phase < 0.78f) return "LAST QUARTER";
  return "WANING CRESCENT";
}

void drawMoonDisc(int cx, int cy, int radius, float phase) {
  phase = phase - floor(phase);
  gfx->drawCircle(cx, cy, radius + 3, rgb(72, 72, 72));
  gfx->fillCircle(cx, cy, radius, FG);
  if (phase < 0.03f || phase > 0.97f) {
    gfx->fillCircle(cx, cy, radius - 2, BG);
    gfx->drawCircle(cx, cy, radius, FG);
    return;
  }
  if (phase > 0.47f && phase < 0.53f) {
    return;
  }
  int shadowX = phase < 0.5f ? cx - (int)(4.0f * radius * phase)
                             : cx + (int)(2.0f * radius - 4.0f * radius * (phase - 0.5f));
  gfx->fillCircle(shadowX, cy, radius, BG);
  gfx->drawCircle(cx, cy, radius, FG);
}

void drawMoon() {
  const float synodicMonth = 29.53058867f;
  uint32_t elapsedSeconds = (millis() - clockStartMillis) / 1000UL;
  float days = (float)compileDateDays() + ((float)compileTimeSeconds() + (float)elapsedSeconds) / 86400.0f;
  float age = fmod(days - 10962.7597f, synodicMonth);
  if (age < 0.0f) age += synodicMonth;
  float phase = age / synodicMonth;
  int illumination = (int)round((1.0f - cos(phase * 6.2831853f)) * 50.0f);

  drawHeader("MOON");
  drawMoonDisc(232, 82, 45, phase);
  gfx->setTextSize(2);
  gfx->setTextColor(FG);
  gfx->setCursor(24, 58);
  gfx->print(moonPhaseLabel(phase));
  gfx->setTextSize(1);
  gfx->setCursor(26, 98);
  gfx->print("AGE ");
  gfx->print(age, 1);
  gfx->print(" DAYS");
  gfx->setCursor(26, 118);
  gfx->print("LIGHT ");
  gfx->print(illumination);
  gfx->print("%");
  drawPageDots();
}

void drawStock() {
  drawHeader("AAPL");
  if (!wifiConfigured()) {
    centeredText("NO WIFI CONFIG", 70, 2);
    centeredText("CREATE secrets.h", 102, 1);
    drawPageDots();
    return;
  }
  if (WiFi.status() != WL_CONNECTED) {
    centeredText("CONNECTING", 75, 2);
    drawPageDots();
    return;
  }
  if (!stockValid) {
    centeredText("UPDATING", 76, 2);
    drawPageDots();
    return;
  }
  gfx->setTextSize(6);
  gfx->setTextColor(FG);
  gfx->setCursor(18, 58);
  gfx->print("$");
  gfx->print(stockPrice, 2);
  gfx->setTextSize(1);
  gfx->setCursor(24, 132);
  gfx->print("O ");
  gfx->print(stockOpen, 2);
  gfx->setCursor(105, 132);
  gfx->print("H ");
  gfx->print(stockHigh, 2);
  gfx->setCursor(186, 132);
  gfx->print("L ");
  gfx->print(stockLow, 2);
  gfx->setCursor(256, 18);
  gfx->print(stockTime);
  drawPageDots();
}

void drawGithub() {
  drawHeader("GITHUB");
  if (!wifiConfigured()) {
    centeredText("NO WIFI CONFIG", 70, 2);
    centeredText("CREATE secrets.h", 102, 1);
    drawPageDots();
    return;
  }
  if (WiFi.status() != WL_CONNECTED) {
    centeredText("CONNECTING", 75, 2);
    drawPageDots();
    return;
  }
  if (!githubValid) {
    centeredText("UPDATING", 76, 2);
    drawPageDots();
    return;
  }
  gfx->setTextSize(6);
  gfx->setTextColor(FG);
  gfx->setCursor(22, 56);
  gfx->print(githubFollowers);
  gfx->setTextSize(2);
  gfx->setCursor(24, 118);
  gfx->print("FOLLOWERS");
  gfx->setTextSize(1);
  gfx->setCursor(218, 20);
  gfx->print("@");
  gfx->print(GITHUB_USER);
  gfx->setCursor(222, 132);
  gfx->print("REPOS ");
  gfx->print(githubRepos);
  drawPageDots();
}

void triggerFaceTap() {
  if (currentApp == 0) {
    faceMood = (faceMood + 1) % FACE_MOOD_COUNT;
    pressPulse = 1.0f;
  } else {
    switchApp(1);
  }
  nextAutoPage = millis() + PAGE_AUTO_INTERVAL_MS;
}

void readSensors() {
  if (!imuReady) {
    filteredAx = sin(millis() * 0.0012f) * 0.12f;
    filteredAy = cos(millis() * 0.0010f) * 0.12f;
    return;
  }
  imu.update();
  imu.getAccel(&accel);
  imu.getGyro(&gyro);
  filteredAx = filteredAx * 0.88f + accel.accelX * 0.12f;
  filteredAy = filteredAy * 0.88f + accel.accelY * 0.12f;
  filteredGz = filteredGz * 0.82f + gyro.gyroZ * 0.18f;
  if (fabs(filteredGz) > 130.0f) {
    faceMood = 2;
    pressPulse = 1.0f;
  }
}

void readTouch() {
  if (!touchReady) return;
  touch_data_t touchData;
  bsp_touch_read();
  if (bsp_touch_get_coordinates(&touchData)) {
    uint16_t x = touchData.coords[0].x;
    uint16_t y = touchData.coords[0].y;
    uint32_t now = millis();
    if (!touchWasDown || now - touchStartMs > 700) {
      touchStartX = x;
      touchStartY = y;
      touchStartMs = now;
      touchWasDown = true;
      return;
    }
    int16_t dx = (int16_t)x - (int16_t)touchStartX;
    int16_t dy = (int16_t)y - (int16_t)touchStartY;
    if (abs(dx) > 55 && abs(dx) > abs(dy) + 18) {
      switchApp(dx < 0 ? 1 : -1);
      touchWasDown = false;
    }
  } else if (touchWasDown && millis() - touchStartMs > 150) {
    triggerFaceTap();
    touchWasDown = false;
  }
}

void updateFaceTimers() {
  uint32_t now = millis();
  if (now > nextBlink) {
    blinkUntil = now + (random(0, 6) == 0 ? 220 : 105);
    nextBlink = now + 1000 + random(0, 2600);
  }
  if (now > nextGlance) {
    faceTargetX = (float)random(-8, 9);
    faceTargetY = (float)random(-4, 5);
    nextGlance = now + 650 + random(0, 1500);
  }
  faceGlanceX = faceGlanceX * 0.84f + faceTargetX * 0.16f;
  faceGlanceY = faceGlanceY * 0.84f + faceTargetY * 0.16f;
  pressPulse *= 0.86f;
}

void updateAutoPage() {
  if (millis() > nextAutoPage) {
    switchApp(1);
  }
}

void updateNetworkPages() {
  if (currentApp == 3 && (!weatherValid || millis() - weatherUpdatedAt > 15UL * 60UL * 1000UL)) {
    fetchWeather();
  } else if (currentApp == 5 && (!stockValid || millis() - stockUpdatedAt > 10UL * 60UL * 1000UL)) {
    fetchStock();
  } else if (currentApp == 6 && (!githubValid || millis() - githubUpdatedAt > 30UL * 60UL * 1000UL)) {
    fetchGithub();
  }
}

void calibrateNeutral() {
  gfx->fillScreen(BG);
  centeredText("HOLD STILL", 76, 2);
  gfx->flush();
  delay(900);
  for (uint8_t i = 0; i < 100; i++) {
    imu.update();
    delay(5);
  }
  float sumX = 0.0f;
  float sumY = 0.0f;
  for (uint8_t i = 0; i < 140; i++) {
    imu.update();
    imu.getAccel(&accel);
    sumX += accel.accelX;
    sumY += accel.accelY;
    delay(5);
  }
  restAx = sumX / 140.0f;
  restAy = sumY / 140.0f;
  filteredAx = restAx;
  filteredAy = restAy;
}

void setup() {
  Serial.begin(115200);
  delay(150);
  Serial.println("ESP32-C6 ambient face dashboard");

  if (!gfx->begin(40000000)) {
    Serial.println("Display init failed");
  }
  lcdRegInit();
  display->setRotation(ROTATION);
  pinMode(LCD_BL, OUTPUT);
  digitalWrite(LCD_BL, HIGH);
  gfx->fillScreen(BG);
  gfx->flush();

  Wire.begin(TOUCH_SDA, TOUCH_SCL);
  Wire.setClock(400000);
  bsp_touch_init(&Wire, TOUCH_RST, TOUCH_INT, ROTATION, gfx->width(), gfx->height());
  touchReady = true;

  int err = imu.init(calib, IMU_ADDRESS);
  if (err == 0) {
    imuReady = imu.setAccelRange(4) == 0 && imu.setGyroRange(512) == 0;
    if (imuReady) {
      calibrateNeutral();
    }
  }
  if (!imuReady) {
    Serial.println("IMU unavailable, using animated fallback motion");
  }

  randomSeed(micros());
  clockStartMillis = millis();
  clockStartSeconds = compileTimeSeconds();
  nextBlink = millis() + 1200;
  nextGlance = millis() + 600;
  nextAutoPage = millis() + PAGE_AUTO_INTERVAL_MS;
}

void loop() {
  readSensors();
  readTouch();
  updateAutoPage();
  updateFaceTimers();
  updateNetworkPages();

  float tx = 0.0f;
  float ty = 0.0f;
  if (imuReady) {
    tx = clampFloat(-(filteredAy - restAy) * 2.2f, -1.0f, 1.0f);
    ty = clampFloat((filteredAx - restAx) * 2.2f, -1.0f, 1.0f);
  } else {
    tx = sin(millis() * 0.0014f) * 0.25f;
    ty = cos(millis() * 0.0011f) * 0.16f;
  }

  if (currentApp == 0) {
    drawFace(tx, ty);
  } else if (currentApp == 1) {
    drawClock();
  } else if (currentApp == 2) {
    drawDatePage();
  } else if (currentApp == 3) {
    drawWeather();
  } else if (currentApp == 4) {
    drawMoon();
  } else if (currentApp == 5) {
    drawStock();
  } else {
    drawGithub();
  }
  gfx->flush();

  if (millis() - lastSerialMs > 1200) {
    lastSerialMs = millis();
    Serial.print("app=");
    Serial.print(currentApp);
    Serial.print(" mood=");
    Serial.println(faceMood);
  }
  delay(24);
}

// Run this and build other cool things at schematik.io
