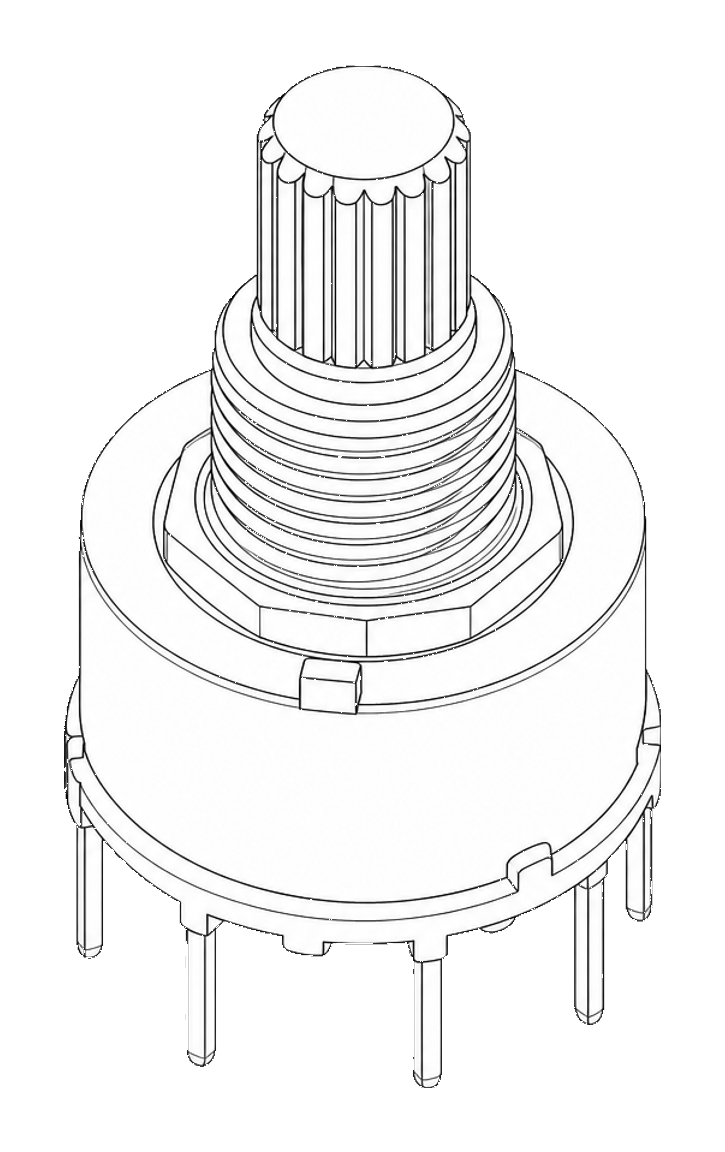

Mini 8-Way Rotary Selector Switch - SP8T

Single-pole 8-throw rotary selector switch with T18 shaft, panel-mount hardware included. Rotating the knob connects the common center pin to each of the 8 outer contacts in turn.

COMcentre terminal
single-pole common terminal; Adafruit says the middle pin makes contact with each outer pin as the knob rotates
Type · switch common
throw 1outer terminal 1
one of eight selectable outer throw terminals
Type · switch throw
throw 2outer terminal 2
one of eight selectable outer throw terminals
Type · switch throw
throw 3outer terminal 3
one of eight selectable outer throw terminals
Type · switch throw
throw 4outer terminal 4
one of eight selectable outer throw terminals

Start wiring

Analog · Single data line · Bare
