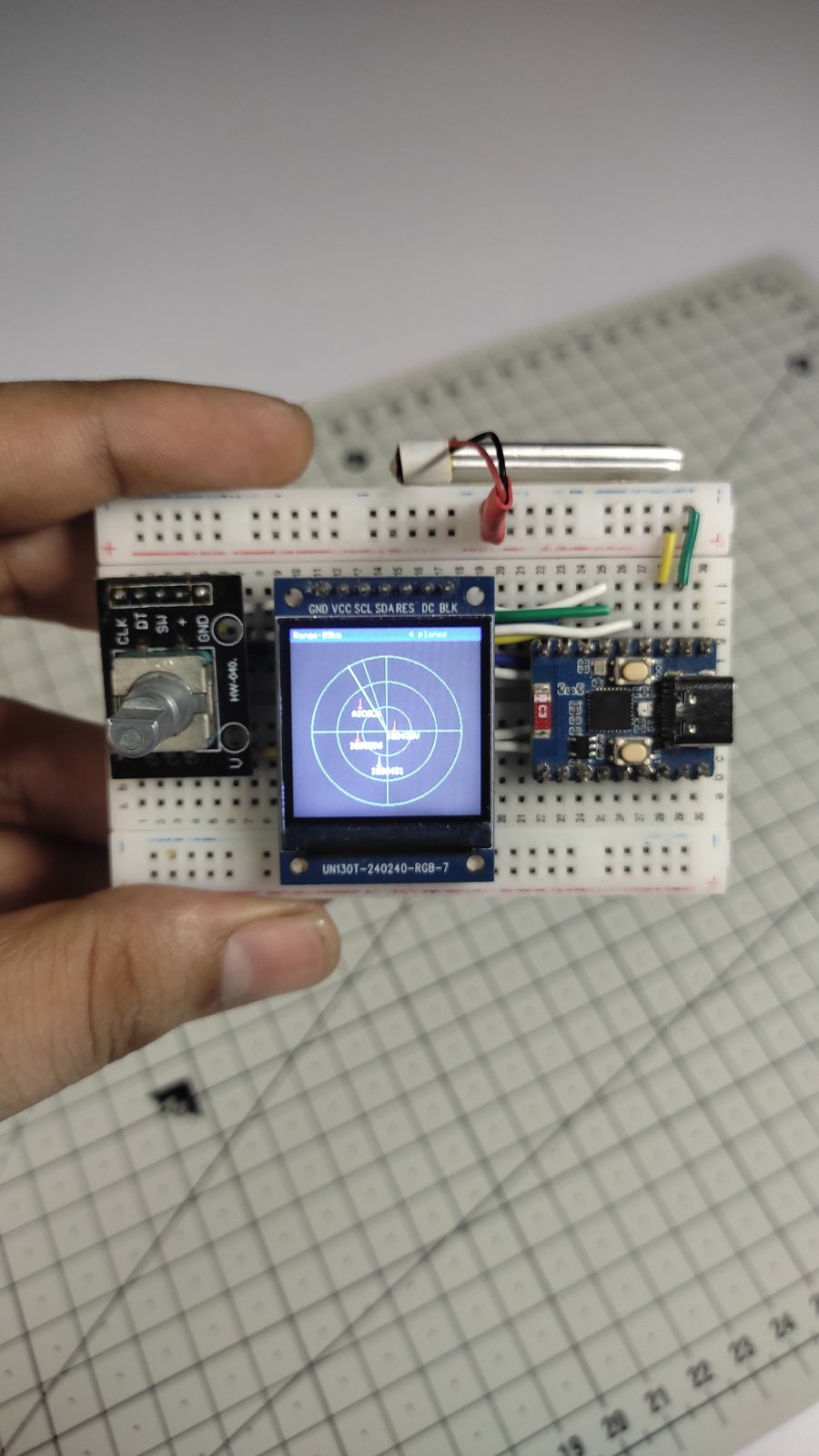

ESP32 Live Flight Radar

// ============================================================
//  FlightRadar – ESP32-C3-Zero  +  ST7789 240×240  +  KY-040
//  OpenSky Network REST API  (OAuth2 bearer token, no Basic-Auth)
// ============================================================
#include <Arduino.h>
#include <WiFi.h>
#include <HTTPClient.h>
#include <WiFiClientSecure.h>
#include <Arduino_GFX_Library.h>
#include <ArduinoJson.h>
#include <math.h>

// ── User config ───────────────────────────────────────────────
#define WIFI_SSID       ""
#define WIFI_PASSWORD   ""

// OpenSky OAuth2 credentials (create at opensky-network.org → Account → API Clients)
#define OPENSKY_CLIENT_ID      ""
#define OPENSKY_CLIENT_SECRET  ""

// Home position (WGS-84 decimal degrees)

struct Aircraft {
    char   icao24[8];
    char   callsign[10];
    float  lon;
    float  lat;
    float  altM;      // baro altitude metres
    float  trackDeg;  // true track degrees
    float  velMs;     // velocity m/s
    bool   onGround;
    bool   valid;
};


// Forward declarations
void wifiConnect();
bool fetchToken();
bool ensureToken();
bool fetchFlights();
inline uint16_t altColor(float altM, bool onGnd);
void drawPlane(int cx, int cy, float hdgDeg, uint16_t colour);
void latLonToXY(float lat, float lon, float range, int &px, int &py);
void render();
void encoderSetup();
void encoderPoll();
void backlightOn();

constexpr float HOME_LAT =  51.4779f;   // default: Greenwich, London
constexpr float HOME_LON =  -0.0015f;

// Search range presets (degrees)
constexpr float RANGE_STEPS[]   = {0.5f, 1.0f, 2.0f, 5.0f, 10.0f};
constexpr int   RANGE_STEP_CNT  = 5;

// Poll interval (ms)
constexpr uint32_t POLL_MS = 15000;

// ── Pin definitions ───────────────────────────────────────────
#define TFT_SCK   4
#define TFT_MOSI  6
#define TFT_DC    7
#define TFT_RST   5
#define TFT_BLK   3
#define ENC_CLK   0
#define ENC_DT    1
#define ENC_SW    2

// ── Display setup (Arduino_GFX, no-CS, SPI2) ─────────────────
Arduino_DataBus *bus = new Arduino_ESP32SPI(
    TFT_DC,           // DC
    GFX_NOT_DEFINED,  // CS – tied low on module
    TFT_SCK,          // SCK
    TFT_MOSI,         // MOSI
    GFX_NOT_DEFINED,  // MISO
    2                 // SPI host: HSPI=1, VSPI/SPI2=2 (SPI2 on C3)
);

Arduino_GFX *gfx = new Arduino_ST7789(
    bus,
    TFT_RST,   // RST
    0,         // rotation (0=portrait)
    true,      // IPS panel
    240, 240,  // width, height
    0, 0,      // col/row offset 1
    0, 80      // col/row offset 2 (240×240 crop of 320-row controller)
);

// ── Colour palette ────────────────────────────────────────────
#define C_BG        0x0000u  // black
#define C_GRID      0x1082u  // dark grey
#define C_HOME      0xFFE0u  // yellow
#define C_TEXT      0xFFFFu  // white
#define C_LOW       0x07E0u  // green  (< 3 000 m)
#define C_MID       0xFFE0u  // yellow (3 000–9 000 m)
#define C_HIGH      0xF800u  // red    (> 9 000 m)
#define C_GND       0x7BEFu  // light grey (on-ground)
#define C_RANGE_IND 0x001Fu  // blue (range ring)

// ── Aircraft state vector (OpenSky fields by index) ───────────


constexpr int MAX_AC = 40;
Aircraft acList[MAX_AC];
int      acCount = 0;

// ── Encoder state ─────────────────────────────────────────────
volatile int  encPos    = 2;    // start index → 2.0° range
volatile bool swPressed = false;
int           lastCLK;

// ── OAuth2 token ──────────────────────────────────────────────
String  accessToken;
uint32_t tokenExpiresAt = 0;   // millis()

// ── Misc ──────────────────────────────────────────────────────
uint32_t lastPoll     = 0;
bool     needRedraw   = true;
uint32_t lastEncCheck = 0;

// ─────────────────────────────────────────────────────────────
//  WIFI
// ─────────────────────────────────────────────────────────────
void wifiConnect() {
    Serial.printf("[WiFi] Connecting to %s", WIFI_SSID);
    WiFi.mode(WIFI_STA);
    WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
    uint32_t t = millis();
    while (WiFi.status() != WL_CONNECTED) {
        if (millis() - t > 20000) {
            Serial.println("\n[WiFi] Timeout – rebooting");
            ESP.restart();
        }
        delay(500);
        Serial.print('.');
    }
    Serial.printf("\n[WiFi] Connected, IP: %s\n", WiFi.localIP().toString().c_str());
}

// ─────────────────────────────────────────────────────────────
//  OAUTH2 TOKEN FETCH
// ─────────────────────────────────────────────────────────────
bool fetchToken() {
    const char *tokenUrl =
        "https://auth.opensky-network.org/auth/realms/opensky-network"
        "/protocol/openid-connect/token";

    WiFiClientSecure client;
    client.setInsecure();   // skip cert validation (saves ~60 KB of root-CA data)
    HTTPClient http;
    http.begin(client, tokenUrl);
    http.addHeader("Content-Type", "application/x-www-form-urlencoded");

    char body[256];
    snprintf(body, sizeof(body),
        "grant_type=client_credentials&client_id=%s&client_secret=%s",
        OPENSKY_CLIENT_ID, OPENSKY_CLIENT_SECRET);

    int code = http.POST(body);
    if (code != 200) {
        Serial.printf("[Token] HTTP %d\n", code);
        http.end();
        return false;
    }

    String payload = http.getString();
    http.end();

    StaticJsonDocument<512> doc;
    if (deserializeJson(doc, payload)) {
        Serial.println("[Token] JSON parse failed");
        return false;
    }

    accessToken   = doc["access_token"].as<String>();
    int expiresIn = doc["expires_in"] | 1800;
    tokenExpiresAt = millis() + (uint32_t)(expiresIn - 30) * 1000;

    Serial.printf("[Token] OK, expires in %d s\n", expiresIn);
    return true;
}

bool ensureToken() {
    if (accessToken.length() > 0 && millis() < tokenExpiresAt) return true;
    return fetchToken();
}

// ─────────────────────────────────────────────────────────────
//  API FETCH
// ─────────────────────────────────────────────────────────────
bool fetchFlights() {
    if (!ensureToken()) return false;

    float range = RANGE_STEPS[encPos];
    float lamin = HOME_LAT - range;
    float lamax = HOME_LAT + range;
    float lomin = HOME_LON - range;
    float lomax = HOME_LON + range;

    char url[256];
    snprintf(url, sizeof(url),
        "https://opensky-network.org/api/states/all"
        "?lamin=%.4f&lomin=%.4f&lamax=%.4f&lomax=%.4f",
        lamin, lomin, lamax, lomax);
    Serial.printf("[API] GET %s\n", url);

    WiFiClientSecure client;
    client.setInsecure();
    HTTPClient http;
    http.begin(client, url);
    http.setTimeout(10000);

    char auth[512];
    snprintf(auth, sizeof(auth), "Bearer %s", accessToken.c_str());
    http.addHeader("Authorization", auth);

    int code = http.GET();
    Serial.printf("[API] HTTP %d\n", code);
    if (code != 200) {
        http.end();
        return false;
    }

    // Stream-parse with ArduinoJson filter to save RAM
    StaticJsonDocument<256> filter;
    filter["states"] = true;

    // Response can be large; use dynamic allocation with a cap
    DynamicJsonDocument doc(24576);
    DeserializationError err = deserializeJson(doc, http.getStream(),
        DeserializationOption::Filter(filter));
    http.end();

    if (err) {
        Serial.printf("[API] JSON err: %s\n", err.c_str());
        return false;
    }

    acCount = 0;
    JsonArray states = doc["states"];
    Serial.printf("[API] %d state vectors\n", states.size());

    for (JsonArray sv : states) {
        if (acCount >= MAX_AC) break;

        Aircraft &a = acList[acCount];
        a.valid = false;

        // Field order per OpenSky docs:
        // [0]=icao24 [1]=callsign [2]=origin_country
        // [3]=time_position [4]=last_contact
        // [5]=longitude [6]=latitude [7]=baro_altitude
        // [8]=on_ground [9]=velocity [10]=true_track
        // [11]=vertical_rate [12]=sensors [13]=geo_altitude
        // ...
        if (sv[5].isNull() || sv[6].isNull()) continue; // no position

        strncpy(a.icao24,   sv[0] | "",  sizeof(a.icao24)-1);
        const char *cs = sv[1] | "";
        strncpy(a.callsign, cs,           sizeof(a.callsign)-1);
        // trim trailing spaces
        for (int i = strlen(a.callsign)-1; i >= 0 && a.callsign[i]==' '; i--)
            a.callsign[i] = '\0';

        a.lon      = sv[5] | 0.0f;
        a.lat      = sv[6] | 0.0f;
        a.altM     = sv[7].isNull() ? 0.0f : (float)(double)sv[7];
        a.onGround = sv[8] | false;
        a.velMs    = sv[9].isNull() ? 0.0f : (float)(double)sv[9];
        a.trackDeg = sv[10].isNull() ? 0.0f : (float)(double)sv[10];
        a.valid    = true;
        acCount++;
    }

    Serial.printf("[API] Parsed %d aircraft\n", acCount);
    return true;
}

// ─────────────────────────────────────────────────────────────
//  DRAWING HELPERS
// ─────────────────────────────────────────────────────────────
inline uint16_t altColor(float altM, bool onGnd) {
    if (onGnd)         return C_GND;
    if (altM < 3000)   return C_LOW;
    if (altM < 9000)   return C_MID;
    return C_HIGH;
}

// Draw a small plane icon (body + wings) centred at (cx,cy),
// rotated to heading hdg (0=north, CW positive).
void drawPlane(int cx, int cy, float hdgDeg, uint16_t colour) {
    float rad = hdgDeg * (M_PI / 180.0f);
    float s   = sinf(rad);
    float c   = cosf(rad);

    // Fuselage: 6-pixel half-length
    int x0 = cx + (int)roundf(-s * -6);
    int y0 = cy + (int)roundf(-c * -6);
    int x1 = cx + (int)roundf(-s *  6);
    int y1 = cy + (int)roundf(-c *  6);
    gfx->drawLine(x0, y0, x1, y1, colour);

    // Wings: 5-pixel half-span, perpendicular to fuselage at 30% back
    int wx = cx + (int)roundf(-s * 1);
    int wy = cy + (int)roundf(-c * 1);
    int lx = wx + (int)roundf( c * -5);
    int ly = wy + (int)roundf(-s * -5);
    int rx = wx + (int)roundf( c *  5);
    int ry = wy + (int)roundf(-s *  5);
    gfx->drawLine(lx, ly, rx, ry, colour);

    // Tail: 2-pixel half-span, near back
    int tx = cx + (int)roundf(-s * 5);
    int ty = cy + (int)roundf(-c * 5);
    int tlx = tx + (int)roundf( c * -2);
    int tly = ty + (int)roundf(-s * -2);
    int trx = tx + (int)roundf( c *  2);
    int try_ = ty + (int)roundf(-s *  2);
    gfx->drawLine(tlx, tly, trx, try_, colour);
}

// Map lat/lon offset from home to pixel (x,y) on 240×240 display
void latLonToXY(float lat, float lon, float range,
                int &px, int &py) {
    float dlat = lat - HOME_LAT;
    float dlon = (lon - HOME_LON) * cosf(HOME_LAT * M_PI / 180.0f);
    // +dlat = north = up → invert for screen y (y↓)
    px = 120 + (int)( (dlon / range) * 110.0f );
    py = 120 - (int)( (dlat / range) * 110.0f );
}

// ─────────────────────────────────────────────────────────────
//  RENDER
// ─────────────────────────────────────────────────────────────
void render() {
    float range = RANGE_STEPS[encPos];

    gfx->fillScreen(C_BG);

    // Compass rose / grid lines
    gfx->drawLine(120, 0,   120, 239, C_GRID);
    gfx->drawLine(0,   120, 239, 120, C_GRID);
    // Range ring (approximate)
    gfx->drawCircle(120, 120, 110, C_RANGE_IND);

    // Home dot
    gfx->fillCircle(120, 120, 3, C_HOME);

    // Status bar (top)
    gfx->setTextSize(1);
    gfx->setTextColor(C_TEXT);
    gfx->setCursor(2, 2);
    gfx->printf("%.1f deg | %d AC", range, acCount);

    // Draw aircraft
    for (int i = 0; i < acCount; i++) {
        Aircraft &a = acList[i];
        if (!a.valid) continue;
        int px, py;
        latLonToXY(a.lat, a.lon, range, px, py);
        if (px < 4 || px > 235 || py < 14 || py > 235) continue; // clip

        uint16_t col = altColor(a.altM, a.onGround);
        drawPlane(px, py, a.trackDeg, col);

        // Callsign
        gfx->setTextSize(1);
        gfx->setTextColor(col);
        int lx = px + 7;
        int ly = py - 4;
        if (lx > 200) lx = px - 36;
        if (ly < 12)  ly = py + 6;
        gfx->setCursor(lx, ly);
        gfx->print(a.callsign);
    }

    // Bottom: range guide
    gfx->setTextSize(1);
    gfx->setTextColor(C_RANGE_IND);
    gfx->setCursor(2, 229);
    gfx->print("SW: change range");
}

// ─────────────────────────────────────────────────────────────
//  ENCODER (polled, no ISR needed at 50 ms intervals)
// ─────────────────────────────────────────────────────────────
void encoderSetup() {
    pinMode(ENC_CLK, INPUT_PULLUP);
    pinMode(ENC_DT,  INPUT_PULLUP);
    pinMode(ENC_SW,  INPUT_PULLUP);
    lastCLK = digitalRead(ENC_CLK);
}

void encoderPoll() {
    int clk = digitalRead(ENC_CLK);
    if (clk != lastCLK) {
        int dt = digitalRead(ENC_DT);
        if (dt != clk) {
            encPos++;  // CW
        } else {
            encPos--;  // CCW
        }
        encPos = constrain(encPos, 0, RANGE_STEP_CNT - 1);
        needRedraw = true;
        Serial.printf("[Enc] pos=%d range=%.1f deg\n",
                      encPos, RANGE_STEPS[encPos]);
        lastCLK = clk;
    }

    if (digitalRead(ENC_SW) == LOW) {
        if (!swPressed) {
            swPressed = true;
            Serial.println("[Enc] SW pressed – forcing poll");
            lastPoll = 0;   // trigger immediate re-fetch
        }
    } else {
        swPressed = false;
    }
}

// ─────────────────────────────────────────────────────────────
//  BACKLIGHT (simple GPIO high)
// ─────────────────────────────────────────────────────────────
void backlightOn() {
    pinMode(TFT_BLK, OUTPUT);
    digitalWrite(TFT_BLK, HIGH);
}

// ─────────────────────────────────────────────────────────────
//  SETUP
// ─────────────────────────────────────────────────────────────
void setup() {
    Serial.begin(115200);
    delay(300);
    Serial.println("\n[Boot] FlightRadar starting");

    backlightOn();

    // Init display
    if (!gfx->begin(40000000)) {
        Serial.println("[TFT] Init failed!");
    } else {
        Serial.println("[TFT] OK");
    }
    gfx->fillScreen(C_BG);
    gfx->setTextSize(2);
    gfx->setTextColor(C_TEXT);
    gfx->setCursor(20, 100);
    gfx->print("FlightRadar");
    gfx->setTextSize(1);
    gfx->setCursor(30, 125);
    gfx->print("Connecting WiFi...");

    encoderSetup();
    wifiConnect();

    gfx->fillScreen(C_BG);
    gfx->setCursor(20, 110);
    gfx->setTextSize(1);
    gfx->setTextColor(C_TEXT);
    gfx->print("Fetching token...");

    if (!fetchToken()) {
        Serial.println("[Boot] Token fetch failed – check credentials");
        gfx->setCursor(20, 125);
        gfx->setTextColor(C_HIGH);
        gfx->print("Token FAILED");
    }

    lastPoll = millis() - POLL_MS;  // trigger first poll immediately
    Serial.println("[Boot] Setup complete");
}

// ─────────────────────────────────────────────────────────────
//  LOOP
// ─────────────────────────────────────────────────────────────
void loop() {
    uint32_t now = millis();

    // Encoder
    if (now - lastEncCheck >= 5) {
        lastEncCheck = now;
        encoderPoll();
    }

    // Periodic fetch
    if (now - lastPoll >= POLL_MS) {
        lastPoll = now;
        Serial.println("[Loop] Polling OpenSky...");

        if (WiFi.status() != WL_CONNECTED) {
            Serial.println("[Loop] WiFi lost, reconnecting...");
            wifiConnect();
        }

        if (fetchFlights()) {
            needRedraw = true;
        } else {
            Serial.println("[Loop] Fetch failed, keeping stale data");
        }
    }

    // Redraw when state changed
    if (needRedraw) {
        needRedraw = false;
        render();
    }

    delay(5);
}
