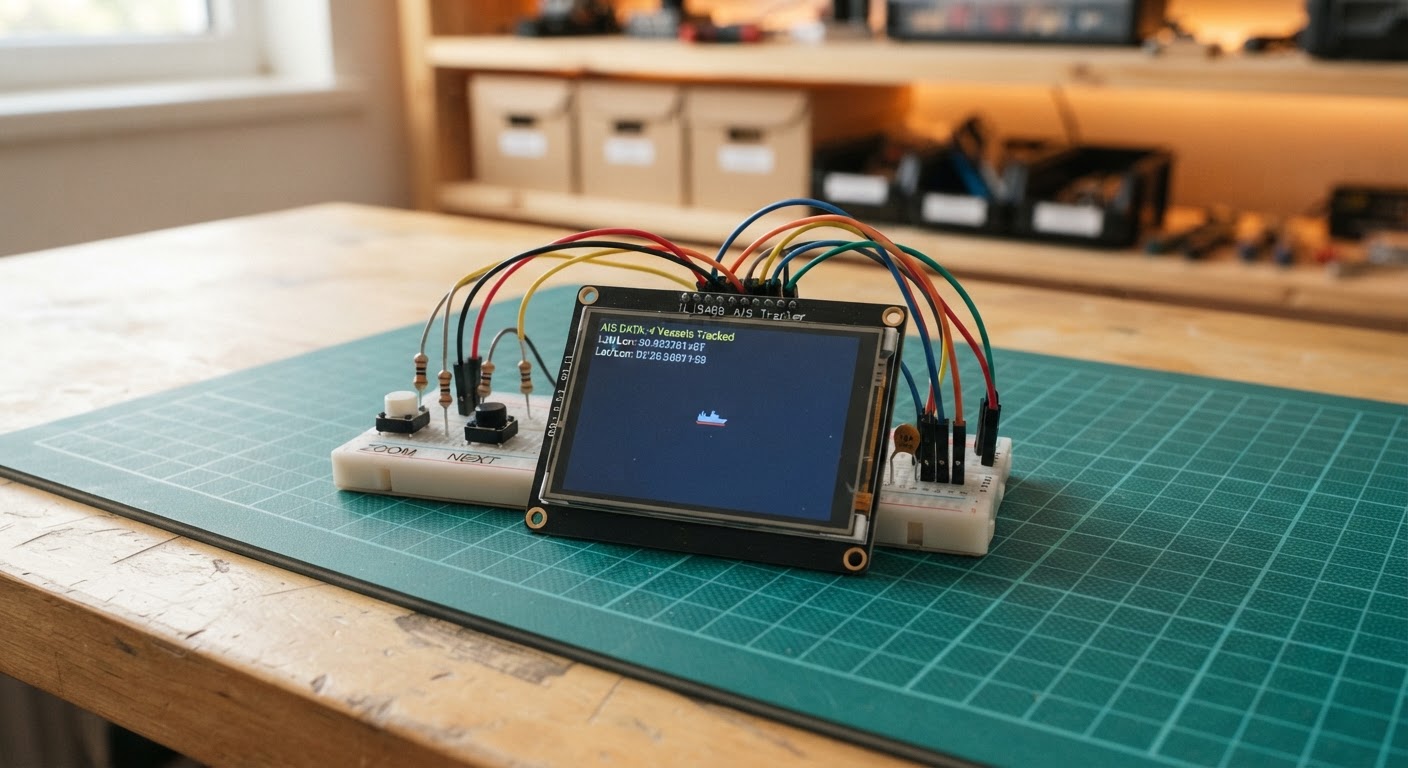

Maritime AIS Tracker Display

#include <Arduino.h>
#include <WiFi.h>
#include <WebSocketsClient.h>
#include <ArduinoJson.h>
#include <Arduino_GFX_Library.h>

// Enter credentials and the WebSocket endpoint supplied by your AIS provider.
// This sketch expects a text JSON message containing either one ship object, or
// {"ships":[...]} / {"data":[...]}; each ship needs mmsi, name, lat, lon,
// course, speed, country and type where available.

struct Ship {
  uint32_t mmsi;
  char name[25];
  char country[4];
  char type[15];
  float lat;
  float lon;
  float course;
  float speed;
  uint32_t lastSeen;
  bool valid;
};


// Forward declarations
uint16_t shipColor(const Ship &s);
void label(int16_t x, int16_t y, const char *text, uint16_t color, uint8_t size);
void drawFlag(int16_t x, int16_t y, const char *cc);
void drawHeader();
void drawMapBase();
bool projectShip(const Ship &s, int16_t &x, int16_t &y);
void drawShipMarker(const Ship &s, bool selected);
void drawDetails();
void redraw();
int findShip(uint32_t mmsi);
void updateShip(JsonObject obj);
void parseAIS(const uint8_t *payload, size_t length);
void webSocketEvent(WStype_t type, uint8_t *payload, size_t length);
void connectWebSocket();
void handleButtons();

constexpr char WIFI_SSID[] = "YOUR_WIFI_SSID";
constexpr char WIFI_PASSWORD[] = "YOUR_WIFI_PASSWORD";
constexpr char WS_HOST[] = "example.invalid";
constexpr uint16_t WS_PORT = 443;
constexpr char WS_PATH[] = "/ais";
constexpr bool WS_TLS = true;

constexpr int TFT_CS = 4;
constexpr int TFT_SCK = 18;
constexpr int TFT_MOSI = 23;
constexpr int TFT_DC = 26;
constexpr int TFT_RST = 25;
constexpr int TFT_BL = 33;
constexpr int BUTTON_ZOOM = 32;
constexpr int BUTTON_NEXT = 27;

constexpr uint8_t MAX_SHIPS = 24;
constexpr uint32_t BUTTON_DEBOUNCE_MS = 45;
constexpr uint32_t WIFI_RETRY_MS = 10000;

Arduino_DataBus *bus = new Arduino_ESP32SPI(TFT_DC, TFT_CS, TFT_SCK, TFT_MOSI, GFX_NOT_DEFINED);
Arduino_GFX *gfx = new Arduino_ILI9488_18bit(bus, TFT_RST, 1, false);
WebSocketsClient webSocket;



Ship ships[MAX_SHIPS] = {};
uint8_t selectedShip = 0;
uint8_t zoomIndex = 2;
const float zoomDegrees[] = {0.35f, 0.75f, 1.5f, 3.0f, 6.0f};
float mapLat = 0.0f;
float mapLon = 0.0f;
bool screenReady = false;
bool mapDirty = true;
bool detailsDirty = true;
bool socketConnected = false;
uint32_t lastWiFiAttempt = 0;
uint32_t lastZoomPress = 0;
uint32_t lastNextPress = 0;

constexpr uint16_t NAVY = 0x012B;
constexpr uint16_t OCEAN = 0x0416;
constexpr uint16_t GRID = 0x241F;
constexpr uint16_t PANEL = 0x18C3;
constexpr uint16_t TEXT = 0xFFFF;
constexpr uint16_t MUTED = 0xBDF7;
constexpr uint16_t VESSEL = 0xFFE0;
constexpr uint16_t CARGO = 0x07FF;
constexpr uint16_t TANKER = 0xF800;
constexpr uint16_t PASSENGER = 0xF81F;

uint16_t shipColor(const Ship &s) {
  if (strstr(s.type, "tanker") || strstr(s.type, "Tanker")) return TANKER;
  if (strstr(s.type, "pass") || strstr(s.type, "Pass")) return PASSENGER;
  if (strstr(s.type, "cargo") || strstr(s.type, "Cargo")) return CARGO;
  return VESSEL;
}

void label(int16_t x, int16_t y, const char *text, uint16_t color, uint8_t size = 1) {
  gfx->setTextColor(color);
  gfx->setTextSize(size);
  gfx->setCursor(x, y);
  gfx->print(text);
}

void drawFlag(int16_t x, int16_t y, const char *cc) {
  // Compact drawn flags for common AIS flag states; unknown codes retain their label.
  gfx->fillRect(x, y, 18, 12, 0xFFFF);
  if (!strcmp(cc, "US")) {
    gfx->fillRect(x, y, 18, 12, 0xF800); for (int i = 1; i < 6; i += 2) gfx->fillRect(x, y + i * 2, 18, 2, 0xFFFF);
    gfx->fillRect(x, y, 8, 6, 0x001F);
  } else if (!strcmp(cc, "NL")) {
    gfx->fillRect(x, y, 18, 4, 0xF800); gfx->fillRect(x, y + 4, 18, 4, 0xFFFF); gfx->fillRect(x, y + 8, 18, 4, 0x001F);
  } else if (!strcmp(cc, "DE")) {
    gfx->fillRect(x, y, 18, 4, 0x0000); gfx->fillRect(x, y + 4, 18, 4, 0xF800); gfx->fillRect(x, y + 8, 18, 4, 0xFFE0);
  } else if (!strcmp(cc, "NO")) {
    gfx->fillRect(x, y, 18, 12, 0xF800); gfx->fillRect(x + 5, y, 3, 12, 0xFFFF); gfx->fillRect(x, y + 5, 18, 3, 0xFFFF); gfx->fillRect(x + 6, y, 1, 12, 0x001F); gfx->fillRect(x, y + 6, 18, 1, 0x001F);
  } else if (!strcmp(cc, "JP")) {
    gfx->fillCircle(x + 9, y + 6, 4, 0xF800);
  } else if (!strcmp(cc, "CN")) {
    gfx->fillRect(x, y, 18, 12, 0xF800); gfx->fillCircle(x + 5, y + 4, 2, 0xFFE0);
  } else if (!strcmp(cc, "PA") || !strcmp(cc, "LR")) {
    gfx->fillRect(x, y, 9, 12, 0xF800); gfx->fillRect(x + 9, y, 9, 12, 0x001F);
  } else if (!strcmp(cc, "SG")) {
    gfx->fillRect(x, y, 18, 6, 0xF800); gfx->fillRect(x, y + 6, 18, 6, 0xFFFF);
  } else {
    gfx->drawRect(x, y, 18, 12, MUTED);
  }
}

void drawHeader() {
  gfx->fillRect(0, 0, 480, 28, NAVY);
  label(8, 8, "LIVE AIS", TEXT, 2);
  label(142, 10, socketConnected ? "STREAM CONNECTED" : "STREAM OFFLINE", socketConnected ? 0x07E0 : 0xFD20, 1);
  label(355, 10, "Zoom", MUTED, 1);
  char z[10]; snprintf(z, sizeof(z), "%.2f°", zoomDegrees[zoomIndex]);
  label(402, 10, z, TEXT, 1);
}

void drawMapBase() {
  gfx->fillRect(0, 28, 330, 292, OCEAN);
  for (int x = 0; x < 330; x += 55) gfx->drawFastVLine(x, 28, 292, GRID);
  for (int y = 28; y < 320; y += 48) gfx->drawFastHLine(0, y, 330, GRID);
  label(8, 36, "MAP / nearest vessels", MUTED, 1);
}

bool projectShip(const Ship &s, int16_t &x, int16_t &y) {
  const float span = zoomDegrees[zoomIndex];
  float dx = (s.lon - mapLon) / span;
  float dy = (s.lat - mapLat) / span;
  if (dx < -1.0f || dx > 1.0f || dy < -1.0f || dy > 1.0f) return false;
  x = 165 + (int16_t)(dx * 160.0f);
  y = 174 - (int16_t)(dy * 135.0f);
  return true;
}

void drawShipMarker(const Ship &s, bool selected) {
  int16_t x, y;
  if (!projectShip(s, x, y)) return;
  uint16_t c = shipColor(s);
  gfx->fillTriangle(x, y - 7, x - 5, y + 6, x + 5, y + 6, c);
  if (selected) gfx->drawCircle(x, y, 10, TEXT);
}

void drawDetails() {
  gfx->fillRect(330, 28, 150, 292, PANEL);
  label(342, 40, "VESSEL", MUTED, 1);
  if (!ships[selectedShip].valid) {
    label(342, 70, "Waiting for", TEXT, 1);
    label(342, 86, "AIS JSON...", TEXT, 1);
    label(342, 120, "NEXT: cycle", MUTED, 1);
    label(342, 136, "ZOOM: scale", MUTED, 1);
    return;
  }
  const Ship &s = ships[selectedShip];
  label(342, 62, s.name, TEXT, 1);
  drawFlag(342, 80, s.country);
  label(366, 82, s.country, TEXT, 1);
  char line[32];
  snprintf(line, sizeof(line), "MMSI %lu", (unsigned long)s.mmsi); label(342, 104, line, MUTED, 1);
  snprintf(line, sizeof(line), "%.1f kn", s.speed); label(342, 128, line, CARGO, 2);
  snprintf(line, sizeof(line), "COG %.0f°", s.course); label(342, 154, line, TEXT, 1);
  snprintf(line, sizeof(line), "%.4f", s.lat); label(342, 184, line, MUTED, 1);
  snprintf(line, sizeof(line), "%.4f", s.lon); label(342, 200, line, MUTED, 1);
  label(342, 240, s.type, shipColor(s), 1);
  label(342, 288, "NEXT: vessel", MUTED, 1);
  label(342, 304, "ZOOM: map", MUTED, 1);
}

void redraw() {
  drawHeader();
  drawMapBase();
  for (uint8_t i = 0; i < MAX_SHIPS; ++i) if (ships[i].valid) drawShipMarker(ships[i], i == selectedShip);
  drawDetails();
  mapDirty = detailsDirty = false;
}

int findShip(uint32_t mmsi) {
  for (uint8_t i = 0; i < MAX_SHIPS; ++i) if (ships[i].valid && ships[i].mmsi == mmsi) return i;
  for (uint8_t i = 0; i < MAX_SHIPS; ++i) if (!ships[i].valid) return i;
  return 0;
}

void updateShip(JsonObject obj) {
  uint32_t mmsi = obj["mmsi"] | obj["MMSI"] | 0UL;
  if (!mmsi) return;
  int index = findShip(mmsi);
  Ship &s = ships[index];
  s.mmsi = mmsi;
  strlcpy(s.name, obj["name"] | obj["shipName"] | "Unnamed", sizeof(s.name));
  strlcpy(s.country, obj["country"] | obj["flag"] | "--", sizeof(s.country));
  strlcpy(s.type, obj["type"] | obj["shipType"] | "Vessel", sizeof(s.type));
  s.lat = obj["lat"] | obj["latitude"] | s.lat;
  s.lon = obj["lon"] | obj["longitude"] | s.lon;
  s.course = obj["course"] | obj["cog"] | 0.0f;
  s.speed = obj["speed"] | obj["sog"] | 0.0f;
  s.lastSeen = millis();
  s.valid = true;
  if (index == 0 || !ships[selectedShip].valid) { mapLat = s.lat; mapLon = s.lon; selectedShip = index; }
  mapDirty = detailsDirty = true;
}

void parseAIS(const uint8_t *payload, size_t length) {
  JsonDocument doc;
  if (deserializeJson(doc, payload, length)) return;
  JsonArray entries = doc["ships"].as<JsonArray>();
  if (entries.isNull()) entries = doc["data"].as<JsonArray>();
  if (!entries.isNull()) {
    for (JsonObject entry : entries) updateShip(entry);
  } else if (doc.is<JsonObject>()) {
    updateShip(doc.as<JsonObject>());
  }
}

void webSocketEvent(WStype_t type, uint8_t *payload, size_t length) {
  if (type == WStype_CONNECTED) { socketConnected = true; mapDirty = true; }
  else if (type == WStype_DISCONNECTED) { socketConnected = false; mapDirty = true; }
  else if (type == WStype_TEXT) parseAIS(payload, length);
}

void connectWebSocket() {
  if (strcmp(WS_HOST, "example.invalid") == 0) return;
  if (WS_TLS) webSocket.beginSSL(WS_HOST, WS_PORT, WS_PATH);
  else webSocket.begin(WS_HOST, WS_PORT, WS_PATH);
  webSocket.onEvent(webSocketEvent);
  webSocket.setReconnectInterval(5000);
}

void handleButtons() {
  uint32_t now = millis();
  if (!digitalRead(BUTTON_ZOOM) && now - lastZoomPress > BUTTON_DEBOUNCE_MS) {
    lastZoomPress = now; zoomIndex = (zoomIndex + 1) % 5; mapDirty = detailsDirty = true;
  }
  if (!digitalRead(BUTTON_NEXT) && now - lastNextPress > BUTTON_DEBOUNCE_MS) {
    lastNextPress = now;
    for (uint8_t n = 1; n <= MAX_SHIPS; ++n) {
      uint8_t candidate = (selectedShip + n) % MAX_SHIPS;
      if (ships[candidate].valid) { selectedShip = candidate; mapLat = ships[candidate].lat; mapLon = ships[candidate].lon; mapDirty = detailsDirty = true; break; }
    }
  }
}

void setup() {
  pinMode(TFT_BL, OUTPUT); digitalWrite(TFT_BL, HIGH);
  pinMode(BUTTON_ZOOM, INPUT); // External 10 kΩ pull-up R1.
  pinMode(BUTTON_NEXT, INPUT); // External 10 kΩ pull-up R2.
  Serial.begin(115200);
  gfx->begin();
  gfx->fillScreen(OCEAN);
  WiFi.mode(WIFI_STA);
  if (strcmp(WIFI_SSID, "YOUR_WIFI_SSID") != 0) WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
  redraw();
}

void loop() {
  uint32_t now = millis();
  if (WiFi.status() == WL_CONNECTED) webSocket.loop();
  else if (strcmp(WIFI_SSID, "YOUR_WIFI_SSID") != 0 && now - lastWiFiAttempt > WIFI_RETRY_MS) {
    lastWiFiAttempt = now; WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
  }
  static bool wasConnected = false;
  bool connected = WiFi.status() == WL_CONNECTED;
  if (connected && !wasConnected) connectWebSocket();
  wasConnected = connected;
  handleButtons();
  // Only repaint when stream state, ship data, selection, or zoom changes.
  if (mapDirty || detailsDirty) redraw();
}
