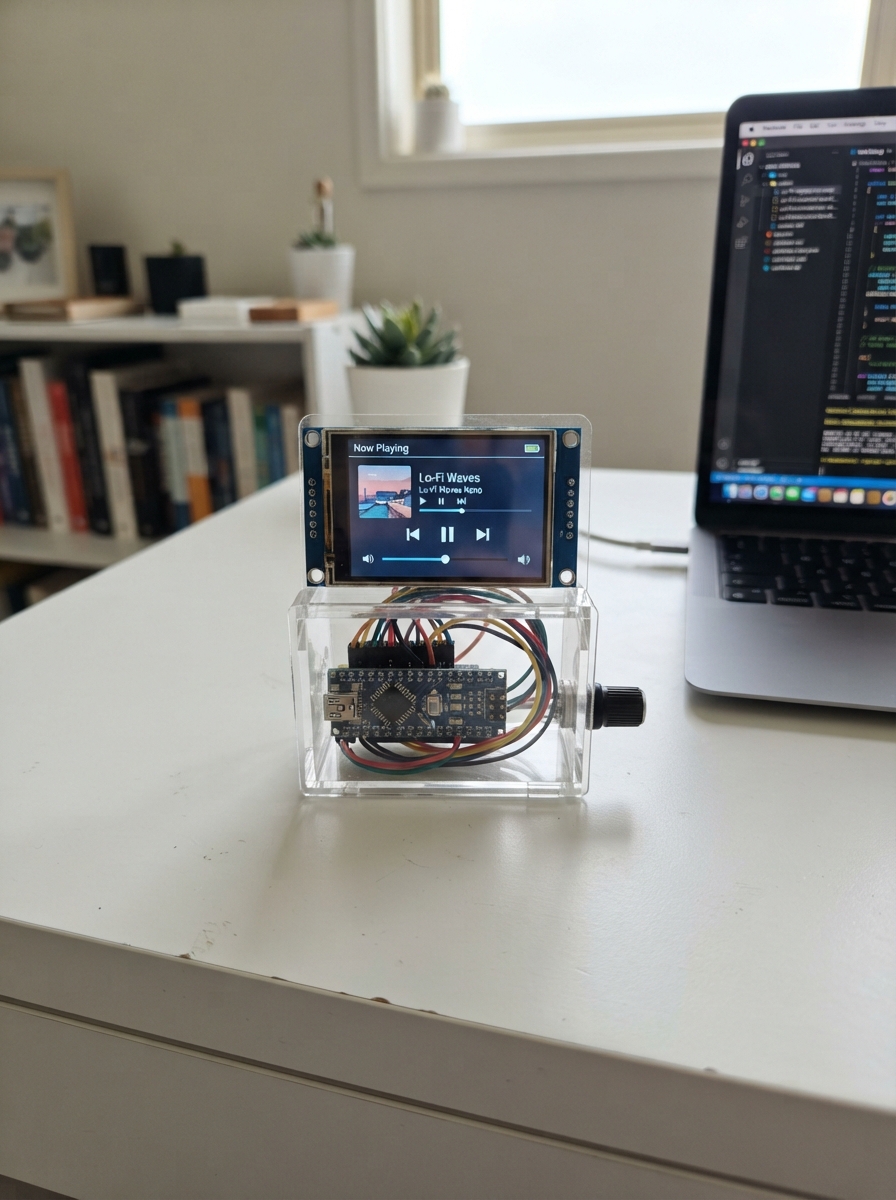

Touchscreen Speaker Controller

#include <Arduino.h>
#include <SPI.h>
#include <Adafruit_GFX.h>
#include <Adafruit_ILI9341.h>


enum Screen { CALIBRATION, WELCOME, HOME, PIANO, TUTORIAL_LIST, TUTORIAL_PLAY, SONG_LIST, SONG_PLAY };

struct Tune { const char *name; const uint8_t *notes; uint8_t length; };


// Forward declarations

// Forward declarations
void clearAutoHighlight();

void header(const char *title);
void button(int x, int y, int w, int h, uint16_t color, const char *text, uint8_t size);
bool inside(int x, int y, int rx, int ry, int rw, int rh);
uint16_t readAxis(uint8_t command);
bool readRawTouch(uint16_t &rawX, uint16_t &rawY);
bool readTouch(int16_t &x, int16_t &y);
void drawCalibration();
void saveCalibrationPoint(uint16_t rawX, uint16_t rawY);
void drawHome();
void drawWelcome();
void updateWelcome();
void drawPiano(const char *title);
void drawTutorialList();
void drawSongList();
void showTutorialKey();
void startAutoSong(int index);
void handleTap(int x, int y);

constexpr int DISPLAY_SCK_PIN = 14;
constexpr int DISPLAY_MISO_PIN = 12;
constexpr int DISPLAY_MOSI_PIN = 13;
constexpr int DISPLAY_CS_PIN = 15;
constexpr int DISPLAY_DC_PIN = 2;
constexpr int DISPLAY_BACKLIGHT_PIN = 21;
constexpr int TOUCH_SCK_PIN = 25;
constexpr int TOUCH_MISO_PIN = 39;
constexpr int TOUCH_MOSI_PIN = 32;
constexpr int TOUCH_CS_PIN = 33;
constexpr int TOUCH_IRQ_PIN = 36;
constexpr int SPEAKER_PIN = 26;
constexpr int SCREEN_W = 320;
constexpr int SCREEN_H = 240;

SPIClass displaySPI(HSPI);
SPIClass touchSPI(VSPI);
Adafruit_ILI9341 tft(&displaySPI, DISPLAY_DC_PIN, DISPLAY_CS_PIN, -1);


Screen screen = CALIBRATION;
// Safe starting values are replaced after the four corner taps.
uint16_t calibrationRawX[4] = {200, 200, 3700, 3700};
uint16_t calibrationRawY[4] = {3800, 240, 240, 3800};
uint8_t calibrationStep = 0;
bool calibrationWasPressed = false;
uint32_t calibrationSumX = 0;
uint32_t calibrationSumY = 0;
uint8_t calibrationSamples = 0;
bool calibrationCapturing = false;
unsigned long welcomeStartedAt = 0;
unsigned long nextWelcomeFrameAt = 0;
uint8_t welcomeFrame = 0;
uint8_t welcomeNotesPlayed = 0;
unsigned long nextWelcomeNoteAt = 0;

const uint16_t noteHz[7] = {262, 294, 330, 349, 392, 440, 494};
const char *noteName[7] = {"C", "D", "E", "F", "G", "A", "B"};
const uint16_t noteColor[7] = {ILI9341_RED, ILI9341_ORANGE, ILI9341_YELLOW, ILI9341_GREEN, ILI9341_CYAN, ILI9341_BLUE, ILI9341_MAGENTA};


const uint8_t tune0[] = {0,0,4,4,5,5,4,3,3,2,2,1,1,0};
const uint8_t tune1[] = {0,0,1,0,0,1,0,1,2,3,2,1,0};
const uint8_t tune2[] = {4,4,4,2,2,2,4,4,4,2,2,2,4,2,4,2,4};
const uint8_t tune3[] = {0,1,2,3,4,4,4,4,3,3,3,3,2,2,2,2,1,1,1,1,0};
const uint8_t tune4[] = {0,2,4,0,2,4,4,4,3,3,3,2,2,2,1,1,1,0};
const uint8_t tune5[] = {0,0,0,1,2,2,1,2,3,4,4,3,2,1,0};
const uint8_t tune6[] = {4,4,5,4,2,1,4,4,5,4,3,2,4,4,4,5,4,2,1};
const uint8_t tune7[] = {0,0,4,0,0,4,0,4,5,4,3,2,1,0};
const uint8_t tune8[] = {2,2,3,4,4,3,2,1,0,0,1,2,2,1,1};
const uint8_t tune9[] = {0,2,3,0,2,3,4,3,2,1,0,1,2,0};
const Tune tunes[] = {
  {"Twinkle Star", tune0, sizeof(tune0)}, {"Happy Walk", tune1, sizeof(tune1)},
  {"Little Train", tune2, sizeof(tune2)}, {"Up The Steps", tune3, sizeof(tune3)},
  {"Rainbow Song", tune4, sizeof(tune4)}, {"Morning Tune", tune5, sizeof(tune5)},
  {"Birthday Song", tune6, sizeof(tune6)}, {"Baa Baa Song", tune7, sizeof(tune7)},
  {"Ode To Joy", tune8, sizeof(tune8)}, {"Fun March", tune9, sizeof(tune9)}
};
constexpr int TUNE_COUNT = sizeof(tunes) / sizeof(tunes[0]);
int selectedTune = 0;
int tutorialStep = 0;
int playingStep = 0;
unsigned long nextNoteAt = 0;
bool wasPressed = false;
// The white outline is only a short visual cue for an automatically played note.
int autoHighlightKey = -1;
unsigned long autoHighlightUntil = 0;

void header(const char *title) {
  tft.fillScreen(ILI9341_NAVY);
  tft.fillRect(0, 0, SCREEN_W, 34, ILI9341_PURPLE);
  tft.setTextColor(ILI9341_WHITE); tft.setTextSize(2);
  tft.setCursor(10, 9); tft.print(title);
}
void button(int x, int y, int w, int h, uint16_t color, const char *text, uint8_t size = 2) {
  tft.fillRoundRect(x, y, w, h, 9, color);
  tft.drawRoundRect(x, y, w, h, 9, ILI9341_WHITE);
  tft.setTextColor(ILI9341_BLACK); tft.setTextSize(size);
  int16_t tx = x + (w - strlen(text) * 6 * size) / 2;
  tft.setCursor(tx, y + (h - 8 * size) / 2); tft.print(text);
}
bool inside(int x, int y, int rx, int ry, int rw, int rh) { return x >= rx && x < rx + rw && y >= ry && y < ry + rh; }

uint16_t readAxis(uint8_t command) {
  touchSPI.beginTransaction(SPISettings(2000000, MSBFIRST, SPI_MODE0));
  digitalWrite(TOUCH_CS_PIN, LOW); touchSPI.transfer(command);
  uint8_t hi = touchSPI.transfer(0); uint8_t lo = touchSPI.transfer(0);
  digitalWrite(TOUCH_CS_PIN, HIGH); touchSPI.endTransaction();
  return ((uint16_t(hi) << 8) | lo) >> 3;
}
bool readRawTouch(uint16_t &rawX, uint16_t &rawY) {
  if (digitalRead(TOUCH_IRQ_PIN) != LOW) return false;
  rawX = readAxis(0xD0);
  rawY = readAxis(0x90);
  return rawX >= 100 && rawY >= 100;
}
bool readTouch(int16_t &x, int16_t &y) {
  uint16_t rawX, rawY;
  if (!readRawTouch(rawX, rawY)) return false;
  uint16_t left = (calibrationRawY[0] + calibrationRawY[3]) / 2;
  uint16_t right = (calibrationRawY[1] + calibrationRawY[2]) / 2;
  uint16_t top = (calibrationRawX[0] + calibrationRawX[1]) / 2;
  uint16_t bottom = (calibrationRawX[2] + calibrationRawX[3]) / 2;
  // The calibration crosses are inset from the bezel, so map to their real
  // screen positions rather than incorrectly stretching them to the edges.
  x = constrain(map(rawY, left, right, 18, 301), 0, SCREEN_W - 1);
  y = constrain(map(rawX, top, bottom, 18, 222), 0, SCREEN_H - 1);
  return true;
}
void drawCalibration() {
  const int targetX[4] = {18, 301, 301, 18};
  const int targetY[4] = {18, 18, 222, 222};
  const char *cornerName[4] = {"TOP LEFT", "TOP RIGHT", "BOTTOM RIGHT", "BOTTOM LEFT"};
  tft.fillScreen(ILI9341_NAVY);
  tft.setTextColor(ILI9341_YELLOW); tft.setTextSize(2); tft.setCursor(31, 82); tft.print("Tap the glowing target");
  tft.setTextColor(ILI9341_WHITE); tft.setTextSize(2); tft.setCursor(82, 108); tft.print(cornerName[calibrationStep]);
  for (int i = 0; i < 4; i++) {
    uint16_t color = (i == calibrationStep) ? ILI9341_YELLOW : ILI9341_DARKGREY;
    tft.fillCircle(targetX[i], targetY[i], i == calibrationStep ? 13 : 7, color);
    tft.drawCircle(targetX[i], targetY[i], i == calibrationStep ? 17 : 10, ILI9341_WHITE);
  }
  tft.setTextColor(ILI9341_CYAN); tft.setTextSize(1); tft.setCursor(49, 140); tft.print("Touch each corner once. Keep your finger still.");
}
void saveCalibrationPoint(uint16_t rawX, uint16_t rawY) {
  calibrationRawX[calibrationStep] = rawX;
  calibrationRawY[calibrationStep] = rawY;
  calibrationStep++;
  if (calibrationStep < 4) {
    drawCalibration();
  } else {
    screen = WELCOME;
    welcomeStartedAt = millis();
    nextWelcomeFrameAt = welcomeStartedAt;
    nextWelcomeNoteAt = welcomeStartedAt + 250;
    welcomeNotesPlayed = 0;
    drawWelcome();
  }
}
void drawWelcome() {
  tft.fillScreen(ILI9341_NAVY);
  tft.fillRect(0, 0, SCREEN_W, 34, ILI9341_PURPLE);
  tft.setTextColor(ILI9341_WHITE); tft.setTextSize(3); tft.setCursor(49, 7); tft.print("Kids Piano!");
  tft.setTextColor(ILI9341_YELLOW); tft.setTextSize(2); tft.setCursor(47, 48); tft.print("Welcome, little musician!");
  // Cute cartoon piano body and its smiling face.
  tft.fillRoundRect(35, 103, 250, 92, 16, ILI9341_RED);
  tft.fillRoundRect(43, 111, 234, 38, 8, ILI9341_YELLOW);
  for (int i = 0; i < 7; i++) {
    int x = 47 + i * 32;
    tft.fillRoundRect(x, 115, 28, 30, 3, noteColor[i]);
    tft.drawRoundRect(x, 115, 28, 30, 3, ILI9341_WHITE);
  }
  tft.fillCircle(112, 168, 7, ILI9341_WHITE); tft.fillCircle(208, 168, 7, ILI9341_WHITE);
  tft.fillCircle(112, 168, 3, ILI9341_BLACK); tft.fillCircle(208, 168, 3, ILI9341_BLACK);
  tft.drawCircle(160, 171, 20, ILI9341_WHITE);
  tft.fillRect(139, 158, 42, 14, ILI9341_RED);
  tft.setTextColor(ILI9341_WHITE); tft.setTextSize(1); tft.setCursor(71, 217); tft.print("Get ready to make happy music!");
}
void updateWelcome() {
  // Only this small sky area changes on each animation frame.
  tft.fillRect(0, 70, SCREEN_W, 28, ILI9341_NAVY);
  const int noteX[4] = {56, 118, 202, 264};
  const uint16_t noteColors[4] = {ILI9341_YELLOW, ILI9341_CYAN, ILI9341_MAGENTA, ILI9341_GREEN};
  for (int i = 0; i < 4; i++) {
    int y = 78 + ((welcomeFrame + i * 3) % 5) * 3;
    tft.fillCircle(noteX[i], y, 4, noteColors[i]);
    tft.fillRect(noteX[i] + 4, y - 16, 3, 16, noteColors[i]);
    tft.fillRect(noteX[i] + 7, y - 16, 8, 3, noteColors[i]);
  }
  welcomeFrame++;
}
void drawHome() {
  header("Colorful Kids Piano");
  button(25, 52, 270, 46, ILI9341_YELLOW, "1  Free Style Piano");
  button(25, 108, 270, 46, ILI9341_GREEN, "2  Tutorial - 3 Songs");
  button(25, 164, 270, 46, ILI9341_CYAN, "3  Play Songs - 10", 2);
  tft.setTextColor(ILI9341_WHITE); tft.setTextSize(1); tft.setCursor(56, 220); tft.print("Tap a colorful choice to begin!");
}
void drawPiano(const char *title) {
  header(title); button(262, 4, 54, 26, ILI9341_ORANGE, "HOME", 1);
  for (int i = 0; i < 7; i++) {
    int x = 4 + i * 45;
    tft.fillRoundRect(x, 55, 41, 150, 6, noteColor[i]);
    tft.drawRoundRect(x, 55, 41, 150, 6, ILI9341_BLACK);
    tft.setTextColor(ILI9341_BLACK); tft.setTextSize(3); tft.setCursor(x + 11, 115); tft.print(noteName[i]);
  }
}
void drawTutorialList() {
  header("Tutorial: Pick a Song"); button(262, 4, 54, 26, ILI9341_ORANGE, "HOME", 1);
  for (int i = 0; i < 3; i++) button(25, 52 + i * 55, 270, 43, noteColor[i + 2], tunes[i].name);
  tft.setTextColor(ILI9341_WHITE); tft.setTextSize(1); tft.setCursor(36, 222); tft.print("Follow the glowing piano key!");
}
void drawSongList() {
  header("Play Songs: Pick One"); button(262, 4, 54, 26, ILI9341_ORANGE, "HOME", 1);
  for (int i = 0; i < TUNE_COUNT; i++) {
    int col = i % 2, row = i / 2;
    button(8 + col * 155, 42 + row * 38, 149, 32, noteColor[i % 7], tunes[i].name, 1);
  }
}
void showTutorialKey() {
  drawPiano(tunes[selectedTune].name);
  tft.fillRoundRect(6, 37, 250, 15, 3, ILI9341_DARKCYAN);
  tft.setTextColor(ILI9341_WHITE); tft.setTextSize(1); tft.setCursor(11, 40);
  tft.print("Play key: "); tft.print(noteName[tunes[selectedTune].notes[tutorialStep]]);
  int x = 4 + tunes[selectedTune].notes[tutorialStep] * 45;
  tft.drawRoundRect(x - 2, 53, 45, 154, 7, ILI9341_WHITE);
}
void clearAutoHighlight() {
  if (autoHighlightKey >= 0) {
    int x = 4 + autoHighlightKey * 45;
    tft.drawRoundRect(x, 55, 41, 150, 6, ILI9341_BLACK);
    autoHighlightKey = -1;
  }
}
void startAutoSong(int index) {
  clearAutoHighlight();
  selectedTune = index;
  playingStep = 0;
  nextNoteAt = 0;
  screen = SONG_PLAY;
  drawPiano(tunes[index].name);
}
void handleTap(int x, int y) {
  if (screen == HOME) {
    if (inside(x,y,25,52,270,46)) { screen = PIANO; drawPiano("Free Style Piano"); }
    else if (inside(x,y,25,108,270,46)) { screen = TUTORIAL_LIST; drawTutorialList(); }
    else if (inside(x,y,25,164,270,46)) { screen = SONG_LIST; drawSongList(); }
    return;
  }
  if (inside(x,y,262,4,54,26)) { noTone(SPEAKER_PIN); screen = HOME; drawHome(); return; }
  if (screen == TUTORIAL_LIST) { for (int i=0;i<3;i++) if (inside(x,y,25,52+i*55,270,43)) { selectedTune=i; tutorialStep=0; screen=TUTORIAL_PLAY; showTutorialKey(); } return; }
  if (screen == SONG_LIST) { for (int i=0;i<TUNE_COUNT;i++) { int col=i%2,row=i/2; if (inside(x,y,8+col*155,42+row*38,149,32)) startAutoSong(i); } return; }
  if (screen == PIANO || screen == TUTORIAL_PLAY) {
    for (int i=0;i<7;i++) if (inside(x,y,4+i*45,55,41,150)) {
      tone(SPEAKER_PIN, noteHz[i], 250);
      if (screen == PIANO) {
        clearAutoHighlight();
        int keyX = 4 + i * 45;
        tft.drawRoundRect(keyX, 55, 41, 150, 6, ILI9341_WHITE);
        autoHighlightKey = i;
        autoHighlightUntil = millis() + 250;
      }
      if (screen == TUTORIAL_PLAY && i == tunes[selectedTune].notes[tutorialStep]) {
        tutorialStep++;
        if (tutorialStep >= tunes[selectedTune].length) {
          // Remove the last lesson outline before showing the finished message.
          int keyX = 4 + i * 45;
          tft.drawRoundRect(keyX, 55, 41, 150, 6, ILI9341_BLACK);
          tft.fillRect(0, 210, 320, 30, ILI9341_GREEN);
          tft.setTextColor(ILI9341_BLACK); tft.setTextSize(2); tft.setCursor(38,218);
          tft.print("Great job! Song done!");
        } else showTutorialKey();
      }
    }
  }
}
void setup() {
  pinMode(DISPLAY_BACKLIGHT_PIN, OUTPUT); digitalWrite(DISPLAY_BACKLIGHT_PIN, HIGH);
  pinMode(TOUCH_CS_PIN, OUTPUT); digitalWrite(TOUCH_CS_PIN, HIGH); pinMode(TOUCH_IRQ_PIN, INPUT); pinMode(SPEAKER_PIN, OUTPUT);
  displaySPI.begin(DISPLAY_SCK_PIN, DISPLAY_MISO_PIN, DISPLAY_MOSI_PIN, DISPLAY_CS_PIN); tft.begin(); tft.setRotation(1);
  touchSPI.begin(TOUCH_SCK_PIN, TOUCH_MISO_PIN, TOUCH_MOSI_PIN, TOUCH_CS_PIN);
  drawCalibration();
}
void loop() {
  if (screen == CALIBRATION) {
    uint16_t rawX, rawY;
    bool pressed = readRawTouch(rawX, rawY);
    if (pressed) {
      if (!calibrationWasPressed) {
        // Wait for the finger to settle, then average several raw readings.
        calibrationSumX = 0;
        calibrationSumY = 0;
        calibrationSamples = 0;
        calibrationCapturing = true;
      } else if (calibrationCapturing) {
        calibrationSumX += rawX;
        calibrationSumY += rawY;
        calibrationSamples++;
        if (calibrationSamples >= 8) {
          calibrationCapturing = false;
          saveCalibrationPoint(calibrationSumX / calibrationSamples, calibrationSumY / calibrationSamples);
        }
      }
    }
    if (!pressed) calibrationCapturing = false;
    calibrationWasPressed = pressed;
    delay(20);
    return;
  }
  // A brief white outline confirms every Free Style key tap, then is redrawn black.
  if (autoHighlightKey >= 0 && millis() >= autoHighlightUntil) clearAutoHighlight();
  if (screen == WELCOME) {
    if (millis() >= nextWelcomeFrameAt) { updateWelcome(); nextWelcomeFrameAt = millis() + 100; }
    // Play eight short, randomly chosen piano notes while the cartoon appears.
    if (welcomeNotesPlayed < 8 && millis() >= nextWelcomeNoteAt) {
      tone(SPEAKER_PIN, noteHz[random(0, 7)], 170);
      welcomeNotesPlayed++;
      nextWelcomeNoteAt = millis() + 390;
    }
    if (millis() - welcomeStartedAt >= 3800) { noTone(SPEAKER_PIN); screen = HOME; drawHome(); }
    delay(12);
    return;
  }
  if (screen == SONG_PLAY) {
    if (millis() >= nextNoteAt) {
      if (playingStep < tunes[selectedTune].length) {
        clearAutoHighlight();
        int n = tunes[selectedTune].notes[playingStep++];
        tone(SPEAKER_PIN, noteHz[n], 250);
        int x = 4 + n * 45;
        tft.drawRoundRect(x, 55, 41, 150, 6, ILI9341_WHITE);
        autoHighlightKey = n;
        autoHighlightUntil = millis() + 250;
        nextNoteAt = millis() + 360;
      } else {
        clearAutoHighlight();
        noTone(SPEAKER_PIN);
        screen = SONG_LIST;
        drawSongList();
      }
    }
  }
  int16_t x,y; bool pressed=readTouch(x,y);
  if (pressed && !wasPressed) handleTap(x,y);
  wasPressed=pressed;
  delay(12);
}
