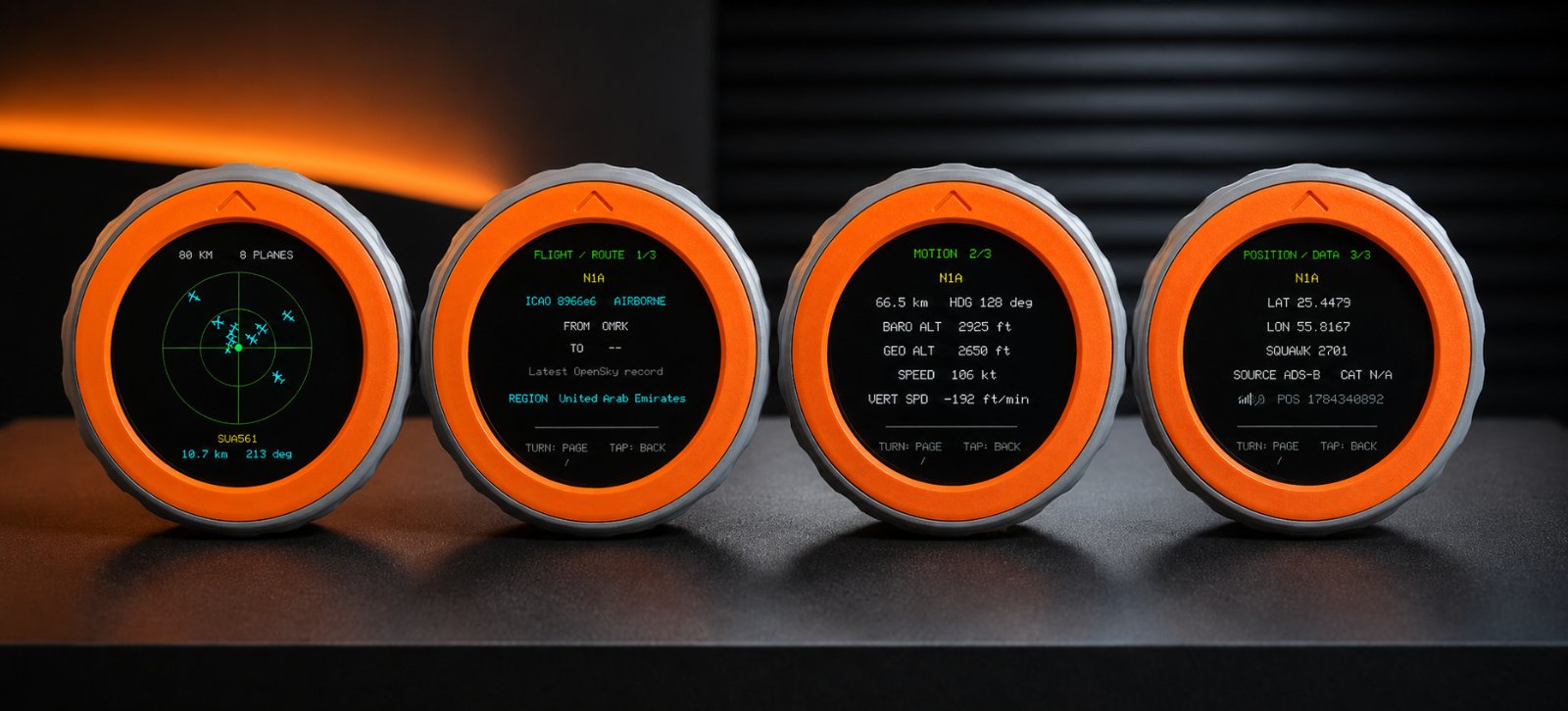

Live Flight Radar Scanner | MT5Stack

#include <Arduino.h>
#include <M5Dial.h>
#include <WiFi.h>
#include <HTTPClient.h>
#include <ArduinoJson.h>
#include <math.h>
#include "plane_icon.h"
#include "secrets.h"

struct AirportMarker {
  const char* icao;
  const char* iata;
  float latitude;
  float longitude;
};

struct Aircraft {
  String icao24;
  String callsign;
  String originCountry;
  String squawk;
  float latitude;
  float longitude;
  float altitudeM;
  float geoAltitudeM;
  float heading;
  float speedMS;
  float verticalRateMS;
  uint32_t positionTime;
  uint32_t lastContact;
  bool onGround;
  bool spi;
  int positionSource;
  int category;
  int receiverCount;
};

// Forward declarations
static void drawPlaneIcon(int centerX, int centerY, float headingDegrees, uint16_t color);
String airportName(JsonVariant value);
String airportWithIata(const String &icao);
bool fetchAircraftForSelected();

const char* WIFI_SSID = SECRET_WIFI_SSID;
const char* WIFI_PASSWORD = SECRET_WIFI_PASSWORD;
const char* OPENSKY_CLIENT_ID = SECRET_OPENSKY_CLIENT_ID;
const char* OPENSKY_CLIENT_SECRET = SECRET_OPENSKY_CLIENT_SECRET;

const float HOME_LATITUDE = SECRET_HOME_LATITUDE;
const float HOME_LONGITUDE = SECRET_HOME_LONGITUDE;

const unsigned long POLL_INTERVAL_MS = 15000UL;
const unsigned long WIFI_CONNECT_TIMEOUT_MS = 30000UL;
const unsigned long WIFI_RECONNECT_INTERVAL_MS = 30000UL;
const int ENCODER_COUNTS_PER_TICK = 4;
const unsigned long RANGE_REFRESH_DELAY_MS = 700UL;
const int MAX_AIRCRAFT = 24;

// Published aerodrome reference points (ARP) for airports around Dubai.
const AirportMarker AIRPORTS[] = {
  {"OMDB", "DXB", 25.252778f, 55.364444f},
  {"OMDW", "DWC", 24.918333f, 55.175556f},
  {"OMSJ", "SHJ", 25.329167f, 55.516111f},
  {"OMAA", "AUH", 24.433056f, 54.651111f},
  {"OMRK", "RKT", 25.613333f, 55.938889f},
  {"OMFJ", "FJR", 25.112222f, 56.324167f}
};
const int AIRPORT_COUNT = sizeof(AIRPORTS) / sizeof(AIRPORTS[0]);

Aircraft aircraft[MAX_AIRCRAFT];
int aircraftCount = 0;
int selectedAircraft = 0;
String selectedIcao24;
int radarRadiusKm = 60;
bool detailMode = false;
int detailPage = 0;
String statusLine = "Starting...";
String accessToken;
unsigned long tokenObtainedAt = 0;
unsigned long lastPollAt = 0;
int32_t lastEncoder = 0;
int32_t encoderAccumulator = 0;
unsigned long lastRangeChangeAt = 0;
bool rangeRefreshPending = false;
bool wifiStarted = false;
unsigned long wifiStartedAt = 0;
unsigned long lastReconnectAt = 0;

String routeLookupIcao;
String departureAirport = "--";
String arrivalAirport = "--";
String routeStatus = "Tap a plane to look up route";
bool routeLookupInProgress = false;

String airlineName = "Unavailable";
String airlineIcao = "Unavailable";
String airlineIata = "Unavailable";
String airlineCountry = "Unavailable";
String airlineCallsign = "Unavailable";

String aircraftRegistration = "Unavailable";
String aircraftType = "Unavailable";
String aircraftModel = "Unavailable";
String aircraftManufacturer = "Unavailable";
String aircraftOwner = "Unavailable";
String aircraftMetadataStatus = "Not checked";
bool aircraftLookupInProgress = false;

bool configured(const char* value);
String trimCallsign(const char* raw);
bool connectWiFi();
bool obtainToken();
bool pollOpenSky();
bool fetchRouteForSelected();
bool fetchAircraftForSelected();
float distanceKm(const Aircraft &plane);
void sortAircraftByDistance();
uint16_t altitudeColor(const Aircraft &plane);
String altitudeBand(const Aircraft &plane);
void drawAirportMarkers(int centerX, int centerY, int radius);
void drawAircraftSymbol(int x, int y, float heading, uint16_t color, bool selected);
void drawRadar();
void drawDetail();
void selectAircraftAt(int tapX, int tapY);

bool configured(const char* value) { return String(value).indexOf("YOUR_") == -1 && strlen(value) > 0; }
String trimCallsign(const char* raw) { if (!raw) return "UNKNOWN"; String value(raw); value.trim(); return value.length() ? value : "UNKNOWN"; }

String airportName(JsonVariant value) {
  if (value.isNull()) return "--";
  if (value.is<const char*>()) return String(value.as<const char*>());
  if (value["icao"].is<const char*>()) return String(value["icao"].as<const char*>());
  if (value["ident"].is<const char*>()) return String(value["ident"].as<const char*>());
  return "--";
}

// OpenSky returns ICAO airport identifiers. Add the known local IATA hint when available.
String airportWithIata(const String &icao) {
  if (icao == "--" || icao.length() == 0) return "--";
  for (int i = 0; i < AIRPORT_COUNT; ++i) {
    if (icao.equalsIgnoreCase(AIRPORTS[i].icao)) return icao + " (" + AIRPORTS[i].iata + ")";
  }
  return icao;
}

bool connectWiFi() {
  if (!configured(WIFI_SSID)) return false;
  if (WiFi.status() == WL_CONNECTED) return true;
  unsigned long now = millis();
  if (!wifiStarted) { WiFi.persistent(false); WiFi.mode(WIFI_STA); WiFi.begin(WIFI_SSID, WIFI_PASSWORD); wifiStarted = true; wifiStartedAt = now; lastReconnectAt = now; statusLine = "Connecting Wi-Fi"; return false; }
  if (now - wifiStartedAt < WIFI_CONNECT_TIMEOUT_MS) { statusLine = "Connecting Wi-Fi"; return false; }
  if (now - lastReconnectAt >= WIFI_RECONNECT_INTERVAL_MS) { WiFi.reconnect(); lastReconnectAt = now; statusLine = "Retrying Wi-Fi"; } else statusLine = "Wi-Fi unavailable";
  return false;
}

bool obtainToken() {
  if (!configured(OPENSKY_CLIENT_ID) || !configured(OPENSKY_CLIENT_SECRET)) { statusLine = "Add OpenSky keys"; return false; }
  if (accessToken.length() && millis() - tokenObtainedAt < 25UL * 60UL * 1000UL) return true;
  HTTPClient http; http.setTimeout(12000);
  http.begin("https://auth.opensky-network.org/auth/realms/opensky-network/protocol/openid-connect/token");
  http.addHeader("Content-Type", "application/x-www-form-urlencoded");
  String body = "grant_type=client_credentials&client_id=" + String(OPENSKY_CLIENT_ID) + "&client_secret=" + String(OPENSKY_CLIENT_SECRET);
  int code = http.POST(body); String payload = http.getString(); http.end();
  if (code != 200) { statusLine = "Token error " + String(code); return false; }
  JsonDocument doc;
  if (deserializeJson(doc, payload) || !doc["access_token"].is<const char*>()) { statusLine = "Bad token response"; return false; }
  accessToken = doc["access_token"].as<String>(); tokenObtainedAt = millis(); return true;
}

bool pollOpenSky() {
  if (!connectWiFi() || !obtainToken()) return false;
  float latSpan = radarRadiusKm / 111.32f;
  float lonSpan = radarRadiusKm / (111.32f * max(0.15f, cosf(HOME_LATITUDE * DEG_TO_RAD)));
  String url = "https://opensky-network.org/api/states/all?lamin=" + String(HOME_LATITUDE - latSpan, 4) + "&lamax=" + String(HOME_LATITUDE + latSpan, 4) + "&lomin=" + String(HOME_LONGITUDE - lonSpan, 4) + "&lomax=" + String(HOME_LONGITUDE + lonSpan, 4);
  HTTPClient http; http.setTimeout(12000); http.begin(url);
  http.addHeader("Authorization", "Bearer " + accessToken); http.addHeader("Accept", "application/json"); http.addHeader("User-Agent", "M5Dial-FlightRadar/2.0");
  int code = http.GET(); Serial.printf("OpenSky states HTTP: %d\n", code);
  if (code == 401) { accessToken = ""; http.end(); statusLine = "Token expired"; return false; }
  if (code != 200) { http.end(); statusLine = "OpenSky error " + String(code); return false; }
  int contentLength = http.getSize();
  if (contentLength > 180000) { http.end(); statusLine = "Area busy: reduce range"; return false; }
  String payload = http.getString(); http.end(); Serial.printf("OpenSky payload bytes: %u\n", (unsigned)payload.length());
  JsonDocument doc; DeserializationError error = deserializeJson(doc, payload);
  if (error) { Serial.println("OpenSky parse: " + String(error.c_str())); statusLine = "OpenSky reply invalid"; return false; }
  aircraftCount = 0;
  if (doc["states"].isNull()) { Serial.println("OpenSky states: valid empty result (states=null)"); statusLine = "No tracked aircraft"; return true; }
  if (!doc["states"].is<JsonArray>()) {
    String reason = doc["detail"].is<const char*>() ? String(doc["detail"].as<const char*>()) : doc["message"].is<const char*>() ? String(doc["message"].as<const char*>()) : "reply lacks states";
    Serial.println("OpenSky unexpected response: " + reason); statusLine = "API: " + reason.substring(0, 22); return false;
  }
  JsonArray states = doc["states"].as<JsonArray>(); Serial.printf("OpenSky states received: %u\n", (unsigned)states.size());
  for (JsonVariant item : states) {
    if (aircraftCount >= MAX_AIRCRAFT) break;
    JsonArray state = item.as<JsonArray>(); if (state.size() < 17 || state[5].isNull() || state[6].isNull()) continue;
    Aircraft &p = aircraft[aircraftCount++];
    p.icao24 = state[0].isNull() ? "UNKNOWN" : String(state[0].as<const char*>()); p.callsign = trimCallsign(state[1].as<const char*>()); p.originCountry = state[2].isNull() ? "Unknown" : String(state[2].as<const char*>());
    p.positionTime = state[3].isNull() ? 0 : state[3].as<uint32_t>(); p.lastContact = state[4].isNull() ? 0 : state[4].as<uint32_t>(); p.longitude = state[5].as<float>(); p.latitude = state[6].as<float>();
    p.altitudeM = state[7].isNull() ? -1.0f : state[7].as<float>(); p.onGround = !state[8].isNull() && state[8].as<bool>(); p.speedMS = state[9].isNull() ? 0.0f : state[9].as<float>(); p.heading = state[10].isNull() ? 0.0f : state[10].as<float>();
    p.verticalRateMS = state[11].isNull() ? 0.0f : state[11].as<float>(); p.receiverCount = state[12].is<JsonArray>() ? state[12].as<JsonArray>().size() : 0; p.geoAltitudeM = state[13].isNull() ? -1.0f : state[13].as<float>();
    p.squawk = state[14].isNull() ? "--" : String(state[14].as<const char*>()); p.spi = !state[15].isNull() && state[15].as<bool>(); p.positionSource = state[16].isNull() ? -1 : state[16].as<int>(); p.category = state.size() > 17 && !state[17].isNull() ? state[17].as<int>() : -1;
  }
  sortAircraftByDistance(); selectedAircraft = 0;
  for (int i = 0; i < aircraftCount; ++i) if (aircraft[i].icao24 == selectedIcao24) { selectedAircraft = i; break; }
  if (aircraftCount > 0) selectedIcao24 = aircraft[selectedAircraft].icao24;
  statusLine = aircraftCount ? String(aircraftCount) + " aircraft" : "No tracked aircraft"; Serial.printf("OpenSky usable aircraft: %d\n", aircraftCount); return true;
}

bool fetchRouteForSelected() {
  if (
    aircraftCount == 0 ||
    selectedAircraft < 0 ||
    selectedAircraft >= aircraftCount
  ) {
    return false;
  }

  const Aircraft &p = aircraft[selectedAircraft];

  String callsign = p.callsign;
  callsign.trim();
  callsign.toUpperCase();

  routeLookupIcao = p.icao24;
  departureAirport = "Unavailable";
  arrivalAirport = "Unavailable";
  routeStatus = "Route unavailable";
  routeLookupInProgress = false;
  airlineName = "Unavailable";
  airlineIcao = "Unavailable";
  airlineIata = "Unavailable";
  airlineCountry = "Unavailable";
  airlineCallsign = "Unavailable";

  if (
    callsign.length() < 3 ||
    callsign == "UNKNOWN"
  ) {
    routeStatus = "No usable callsign";
    return false;
  }

  if (WiFi.status() != WL_CONNECTED) {
    routeStatus = "Wi-Fi unavailable";
    return false;
  }

  routeLookupInProgress = true;
  routeStatus = "Looking up route...";
  drawDetail();

  String url =
      "https://api.adsbdb.com/v0/callsign/" +
      callsign;

  HTTPClient http;
  http.setTimeout(10000);
  http.begin(url);
  http.addHeader("Accept", "application/json");
  http.addHeader(
      "User-Agent",
      "M5Dial-FlightRadar/3.0"
  );

  int code = http.GET();
  String payload = http.getString();
  http.end();

  routeLookupInProgress = false;

  Serial.printf(
      "ADSBdb route HTTP: %d for %s\n",
      code,
      callsign.c_str()
  );

  if (code != 200) {
    routeStatus = "Route error " + String(code);
    return false;
  }

  JsonDocument doc;
  DeserializationError error =
      deserializeJson(doc, payload);

  if (error) {
    routeStatus = "Invalid route reply";
    return false;
  }

  JsonVariant route =
      doc["response"]["flightroute"];

  if (route.isNull()) {
    routeStatus = "No route record";
    return false;
  }

  String returnedCallsign =
      route["callsign_icao"] | "";

  if (returnedCallsign.length() == 0) {
    returnedCallsign =
        route["callsign"] | "";
  }

  returnedCallsign.trim();
  returnedCallsign.toUpperCase();

  if (returnedCallsign != callsign) {
    routeStatus = "Callsign mismatch";
    return false;
  }

  String fromIcao =
      route["origin"]["icao_code"] | "";

  String fromIata =
      route["origin"]["iata_code"] | "";

  String toIcao =
      route["destination"]["icao_code"] | "";

  String toIata =
      route["destination"]["iata_code"] | "";

  if (
    fromIcao.length() == 0 ||
    toIcao.length() == 0
  ) {
    routeStatus = "Airports unavailable";
    return false;
  }

  departureAirport = fromIcao;

  if (fromIata.length() > 0) {
    departureAirport += " (" + fromIata + ")";
  }

  arrivalAirport = toIcao;

  if (toIata.length() > 0) {
    arrivalAirport += " (" + toIata + ")";
  }

  airlineName = String((const char*)(route["airline"]["name"] | "Unavailable"));
  airlineIcao = String((const char*)(route["airline"]["icao"] | "Unavailable"));
  airlineIata = String((const char*)(route["airline"]["iata"] | "Unavailable"));
  airlineCountry = String((const char*)(route["airline"]["country"] | "Unavailable"));
  airlineCallsign = String((const char*)(route["airline"]["callsign"] | "Unavailable"));

  routeStatus = "SOURCE ADSBDB";
  return true;
}

bool fetchAircraftForSelected() {
  if (aircraftCount == 0 || selectedAircraft < 0 || selectedAircraft >= aircraftCount) return false;

  const Aircraft &p = aircraft[selectedAircraft];
  aircraftRegistration = "Unavailable";
  aircraftType = "Unavailable";
  aircraftModel = "Unavailable";
  aircraftManufacturer = "Unavailable";
  aircraftOwner = "Unavailable";
  aircraftMetadataStatus = "Aircraft unavailable";
  aircraftLookupInProgress = false;

  if (p.icao24.length() != 6 || p.icao24 == "UNKNOWN") {
    aircraftMetadataStatus = "Invalid ICAO24";
    return false;
  }

  if (WiFi.status() != WL_CONNECTED) {
    aircraftMetadataStatus = "Wi-Fi unavailable";
    return false;
  }

  aircraftLookupInProgress = true;
  aircraftMetadataStatus = "Looking up aircraft";
  drawDetail();

  HTTPClient http;
  http.setTimeout(10000);
  http.begin("https://api.adsbdb.com/v0/aircraft/" + p.icao24);
  http.addHeader("Accept", "application/json");
  http.addHeader("User-Agent", "M5Dial-FlightRadar/3.0");

  int code = http.GET();
  String payload = http.getString();
  http.end();
  aircraftLookupInProgress = false;

  Serial.printf("ADSBdb aircraft HTTP: %d for %s\n", code, p.icao24.c_str());

  if (code != 200) {
    aircraftMetadataStatus = "Aircraft error " + String(code);
    return false;
  }

  JsonDocument doc;
  if (deserializeJson(doc, payload)) {
    aircraftMetadataStatus = "Invalid aircraft reply";
    return false;
  }

  JsonVariant response = doc["response"];
  if (response.is<const char*>()) {
    aircraftMetadataStatus = "Aircraft unavailable";
    return false;
  }

  JsonVariant ac = response["aircraft"];
  if (ac.isNull()) ac = response;

  aircraftRegistration = String((const char*)(ac["registration"] | "Unavailable"));

  if (ac["icao_type"].is<const char*>()) aircraftType = String(ac["icao_type"].as<const char*>());
  else if (ac["type"].is<const char*>()) aircraftType = String(ac["type"].as<const char*>());

  if (ac["type"].is<const char*>()) aircraftModel = String(ac["type"].as<const char*>());
  else if (ac["model"].is<const char*>()) aircraftModel = String(ac["model"].as<const char*>());

  aircraftManufacturer = String((const char*)(ac["manufacturer"] | "Unavailable"));

  if (ac["registered_owner"].is<const char*>()) aircraftOwner = String(ac["registered_owner"].as<const char*>());
  else if (ac["owner"].is<const char*>()) aircraftOwner = String(ac["owner"].as<const char*>());

  bool any = aircraftRegistration != "Unavailable" || aircraftType != "Unavailable" ||
             aircraftModel != "Unavailable" || aircraftManufacturer != "Unavailable" ||
             aircraftOwner != "Unavailable";
  aircraftMetadataStatus = any ? "SOURCE ADSBDB" : "Aircraft unavailable";
  return any;
}

float distanceKm(const Aircraft &p) { float northKm = (p.latitude - HOME_LATITUDE) * 111.32f; float eastKm = (p.longitude - HOME_LONGITUDE) * 111.32f * cosf(HOME_LATITUDE * DEG_TO_RAD); return sqrtf(northKm * northKm + eastKm * eastKm); }
void sortAircraftByDistance() { for (int i = 0; i < aircraftCount - 1; ++i) for (int j = i + 1; j < aircraftCount; ++j) if (distanceKm(aircraft[j]) < distanceKm(aircraft[i])) { Aircraft temp = aircraft[i]; aircraft[i] = aircraft[j]; aircraft[j] = temp; } }
uint16_t altitudeColor(const Aircraft &plane) { float altitudeM = plane.altitudeM >= 0.0f ? plane.altitudeM : plane.geoAltitudeM; if (altitudeM < 0.0f) return TFT_LIGHTGREY; int altitudeFt = (int)(altitudeM * 3.28084f); if (altitudeFt < 10000) return TFT_CYAN; if (altitudeFt < 20000) return TFT_GREEN; if (altitudeFt < 30000) return TFT_YELLOW; if (altitudeFt < 34999) return TFT_ORANGE; return TFT_RED; }
String altitudeBand(const Aircraft &plane) { float altitudeM = plane.altitudeM >= 0.0f ? plane.altitudeM : plane.geoAltitudeM; if (altitudeM < 0.0f) return "ALT UNKNOWN / GREY"; int altitudeFt = (int)(altitudeM * 3.28084f); if (altitudeFt < 10000) return "0-9,999 FT / CYAN"; if (altitudeFt < 20000) return "10-19,999 FT / GREEN"; if (altitudeFt < 30000) return "20-29,999 FT / YELLOW"; if (altitudeFt < 34999) return "30-34,998 FT / ORANGE"; return "34,999+ FT / RED"; }

static void drawPlaneIcon(int centerX, int centerY, float headingDegrees, uint16_t color) {
  if (!isfinite(headingDegrees)) headingDegrees = 0.0f;
  float radians = fmodf(headingDegrees, 360.0f) * DEG_TO_RAD, c = cosf(radians), s = sinf(radians);
  const float sourceCenterX = (PLANE_ICON_WIDTH - 1) * 0.5f, sourceCenterY = (PLANE_ICON_HEIGHT - 1) * 0.5f;
  for (int row = 0; row < PLANE_ICON_HEIGHT; ++row) for (int col = 0; col < PLANE_ICON_WIDTH; ++col) {
    uint16_t pixel = pgm_read_word(&PLANE_ICON_DATA[row * PLANE_ICON_WIDTH + col]); if (pixel == 0x0000) continue;
    float sourceX = col - sourceCenterX, sourceY = row - sourceCenterY;
    M5Dial.Display.drawPixel(centerX + (int)lroundf(c * sourceX - s * sourceY), centerY + (int)lroundf(s * sourceX + c * sourceY), color);
  }
}
void drawAircraftSymbol(int x, int y, float heading, uint16_t color, bool selected) { if (selected) { M5Dial.Display.drawCircle(x, y, 15, TFT_DARKGREY); M5Dial.Display.drawCircle(x, y, 14, TFT_WHITE); } drawPlaneIcon(x, y, heading, color); }
void drawAirportMarkers(int centerX, int centerY, int radius) {
  M5Dial.Display.setTextDatum(middle_center); M5Dial.Display.setTextSize(1);
  for (int i = 0; i < AIRPORT_COUNT; ++i) {
    const AirportMarker &airport = AIRPORTS[i]; float northKm = (airport.latitude - HOME_LATITUDE) * 111.32f, eastKm = (airport.longitude - HOME_LONGITUDE) * 111.32f * cosf(HOME_LATITUDE * DEG_TO_RAD);
    int x = centerX + (int)(eastKm * radius / radarRadiusKm), y = centerY - (int)(northKm * radius / radarRadiusKm);
    if (sq(x - centerX) + sq(y - centerY) > sq(radius - 3)) continue;
    M5Dial.Display.drawCircle(x, y, 4, TFT_MAGENTA); M5Dial.Display.drawFastHLine(x - 6, y, 13, TFT_MAGENTA); M5Dial.Display.drawFastVLine(x, y - 6, 13, TFT_MAGENTA);
    int labelY = y + 10; if (sq(x - centerX) + sq(labelY - centerY) <= sq(radius - 5)) { M5Dial.Display.setTextColor(TFT_MAGENTA, TFT_BLACK); M5Dial.Display.drawString(airport.icao, x, labelY); }
  }
}
void drawRadar() {
  const int cx = 120, cy = 113, radius = 72; M5Dial.Display.fillScreen(TFT_BLACK); M5Dial.Display.drawCircle(cx, cy, radius, TFT_DARKGREEN); M5Dial.Display.drawCircle(cx, cy, radius / 2, TFT_DARKGREEN); M5Dial.Display.drawFastHLine(cx - radius, cy, radius * 2, TFT_DARKGREEN); M5Dial.Display.drawFastVLine(cx, cy - radius, radius * 2, TFT_DARKGREEN); M5Dial.Display.fillCircle(cx, cy, 3, TFT_GREEN); drawAirportMarkers(cx, cy, radius);
  for (int i = 0; i < aircraftCount; ++i) { const Aircraft &p = aircraft[i]; float north = (p.latitude - HOME_LATITUDE) * 111.32f, east = (p.longitude - HOME_LONGITUDE) * 111.32f * cosf(HOME_LATITUDE * DEG_TO_RAD); int x = cx + (int)(east * radius / radarRadiusKm), y = cy - (int)(north * radius / radarRadiusKm); if (sq(x - cx) + sq(y - cy) <= sq(radius)) drawAircraftSymbol(x, y, p.heading, altitudeColor(p), i == selectedAircraft); }
  M5Dial.Display.setTextDatum(middle_center); M5Dial.Display.setTextSize(1); M5Dial.Display.setTextColor(TFT_WHITE, TFT_BLACK); M5Dial.Display.drawString(String(radarRadiusKm) + " KM    " + String(aircraftCount) + " PLANES", cx, 23);
  if (aircraftCount > 0) { const Aircraft &p = aircraft[selectedAircraft]; M5Dial.Display.setTextColor(TFT_YELLOW, TFT_BLACK); M5Dial.Display.drawString(p.callsign, cx, 201); M5Dial.Display.setTextColor(TFT_CYAN, TFT_BLACK); M5Dial.Display.drawString(String(distanceKm(p), 1) + " km   " + String((int)p.heading) + " deg", cx, 216); } else { M5Dial.Display.setTextColor(TFT_WHITE, TFT_BLACK); M5Dial.Display.drawString(statusLine.substring(0, 25), cx, 205); }
}
void drawDetail() {
  M5Dial.Display.fillScreen(TFT_BLACK);
  if (aircraftCount == 0 || selectedAircraft >= aircraftCount) return;

  const Aircraft &p = aircraft[selectedAircraft];
  const int cx = 120;
  M5Dial.Display.setTextDatum(middle_center);
  M5Dial.Display.setTextSize(1);

  auto shortText = [](String value, int maxLen) {
    if ((int)value.length() > maxLen) value = value.substring(0, maxLen);
    return value;
  };

  auto row = [&](const String &text, int y, uint16_t color) {
    M5Dial.Display.setTextColor(color, TFT_BLACK);
    M5Dial.Display.drawString(text, cx, y);
  };

  if (detailPage == 0) {
    row("FLIGHT / ROUTE  1/5", 26, TFT_GREEN);
    row(p.callsign, 45, TFT_YELLOW);
    row("ICAO " + p.icao24 + "  " + (p.onGround ? "GROUND" : "AIRBORNE"), 63, TFT_CYAN);
    row(shortText("FROM  " + departureAirport, 25), 84, TFT_WHITE);
    row(shortText("TO    " + arrivalAirport, 25), 102, TFT_WHITE);
    row(shortText(routeLookupInProgress ? "Looking up route..." : routeStatus, 25), 122, TFT_DARKGREY);
    String country = shortText(p.originCountry, 22);
    row("REGION  " + country, 145, TFT_CYAN);
  } else if (detailPage == 1) {
    row("MOTION  2/5", 26, TFT_GREEN);
    row(p.callsign, 45, TFT_YELLOW);
    row(String(distanceKm(p), 1) + " km   HDG " + String((int)p.heading) + " deg", 67, TFT_WHITE);
    row(p.altitudeM < 0 ? "BARO ALT  N/A" : "BARO ALT  " + String((int)(p.altitudeM * 3.28084f)) + " ft", 88, TFT_WHITE);
    row(p.geoAltitudeM < 0 ? "GEO ALT   N/A" : "GEO ALT   " + String((int)(p.geoAltitudeM * 3.28084f)) + " ft", 108, TFT_WHITE);
    row("SPEED  " + String((int)(p.speedMS * 1.94384f)) + " kt", 128, TFT_WHITE);
    row("VERT SPD " + String((int)(p.verticalRateMS * 196.85f)) + " ft/min", 148, TFT_WHITE);
    row(altitudeBand(p), 165, altitudeColor(p));
  } else if (detailPage == 2) {
    row("POSITION / DATA  3/5", 26, TFT_GREEN);
    row(p.callsign, 45, TFT_YELLOW);
    row("LAT " + String(p.latitude, 4), 67, TFT_WHITE);
    row("LON " + String(p.longitude, 4), 87, TFT_WHITE);
    row("SQUAWK " + p.squawk + (p.spi ? "  SPI" : ""), 108, TFT_WHITE);
    String source = p.positionSource == 0 ? "ADS-B" : p.positionSource == 1 ? "ASTERIX" : p.positionSource == 2 ? "MLAT" : "N/A";
    row("SOURCE " + source + "   CAT " + (p.category < 0 ? String("N/A") : String(p.category)), 128, TFT_WHITE);
    row("RX " + String(p.receiverCount) + "  POS " + (p.positionTime ? String(p.positionTime) : String("N/A")), 148, TFT_DARKGREY);
  } else if (detailPage == 3) {
    row("AIRCRAFT  4/5", 26, TFT_GREEN);
    row(p.callsign, 45, TFT_YELLOW);
    row(shortText("REG    " + aircraftRegistration, 25), 68, TFT_WHITE);
    row(shortText("TYPE   " + aircraftType, 25), 88, TFT_WHITE);
    row(shortText("MODEL  " + aircraftModel, 25), 108, TFT_WHITE);
    row(shortText("MAKER  " + aircraftManufacturer, 25), 128, TFT_WHITE);
    row(shortText("OWNER  " + aircraftOwner, 25), 148, TFT_WHITE);
    row(shortText(aircraftLookupInProgress ? "Looking up aircraft..." : aircraftMetadataStatus, 25), 165, TFT_DARKGREY);
  } else {
    row("OPERATOR  5/5", 26, TFT_GREEN);
    row(p.callsign, 45, TFT_YELLOW);
    row(shortText(airlineName, 25), 68, TFT_WHITE);
    row(shortText("ICAO  " + airlineIcao, 25), 88, TFT_WHITE);
    row(shortText("IATA  " + airlineIata, 25), 108, TFT_WHITE);
    row(shortText("CALL  " + airlineCallsign, 25), 128, TFT_WHITE);
    row(shortText("COUNTRY  " + airlineCountry, 25), 148, TFT_CYAN);
    row(shortText(routeStatus, 25), 165, TFT_DARKGREY);
  }

  M5Dial.Display.drawFastHLine(65, 171, 110, TFT_DARKGREY);
  row("TURN: PAGE    TAP: BACK", 190, TFT_DARKGREY);
}
void selectAircraftAt(int tapX, int tapY) {
  const int cx = 120, cy = 113, radius = 72; int closest = -1, closestSq = 15 * 15;
  for (int i = 0; i < aircraftCount; ++i) { const Aircraft &p = aircraft[i]; float north = (p.latitude - HOME_LATITUDE) * 111.32f, east = (p.longitude - HOME_LONGITUDE) * 111.32f * cosf(HOME_LATITUDE * DEG_TO_RAD); int x = cx + (int)(east * radius / radarRadiusKm), y = cy - (int)(north * radius / radarRadiusKm), hit = sq(tapX - x) + sq(tapY - y); if (hit <= closestSq && sq(x - cx) + sq(y - cy) <= sq(radius)) { closest = i; closestSq = hit; } }
  if (closest >= 0) { selectedAircraft = closest; selectedIcao24 = aircraft[closest].icao24; detailMode = true; detailPage = 0; fetchRouteForSelected(); fetchAircraftForSelected(); drawDetail(); }
}
void setup() { Serial.begin(115200); delay(150); auto cfg = M5.config(); M5Dial.begin(cfg, true, false); M5Dial.Display.setRotation(0); M5Dial.Display.setTextFont(1); lastEncoder = M5Dial.Encoder.read(); drawRadar(); }
void loop() {
  M5Dial.update();

  const auto &touch = M5Dial.Touch.getDetail();
  if (touch.wasClicked()) {
    if (detailMode) {
      detailMode = false;
      encoderAccumulator = 0;
      drawRadar();
    } else {
      selectAircraftAt(touch.x, touch.y);
      encoderAccumulator = 0;
    }
  }

  int32_t encoder = M5Dial.Encoder.read();
  int32_t rawDelta = encoder - lastEncoder;

  if (rawDelta != 0) {
    lastEncoder = encoder;
    encoderAccumulator += rawDelta;

    int completedTicks = encoderAccumulator / ENCODER_COUNTS_PER_TICK;

    if (completedTicks != 0) {
      encoderAccumulator -= completedTicks * ENCODER_COUNTS_PER_TICK;

      if (detailMode) {
        detailPage = (detailPage + completedTicks) % 5;
        if (detailPage < 0) detailPage += 5;
        drawDetail();
      } else {
        int previousRange = radarRadiusKm;

        radarRadiusKm = constrain(
          radarRadiusKm + completedTicks * 5,
          10,
          150
        );

        if (radarRadiusKm != previousRange) {
          statusLine = "Range " + String(radarRadiusKm) + " km";
          lastRangeChangeAt = millis();
          rangeRefreshPending = true;
          drawRadar();
        }
      }
    }
  }

  if (
    rangeRefreshPending &&
    millis() - lastRangeChangeAt >= RANGE_REFRESH_DELAY_MS
  ) {
    rangeRefreshPending = false;
    lastPollAt = 0;
  }

  if (millis() - lastPollAt >= POLL_INTERVAL_MS || lastPollAt == 0) {
    lastPollAt = millis();
    pollOpenSky();
    if (detailMode) drawDetail();
    else drawRadar();
  }

  delay(20);
}
