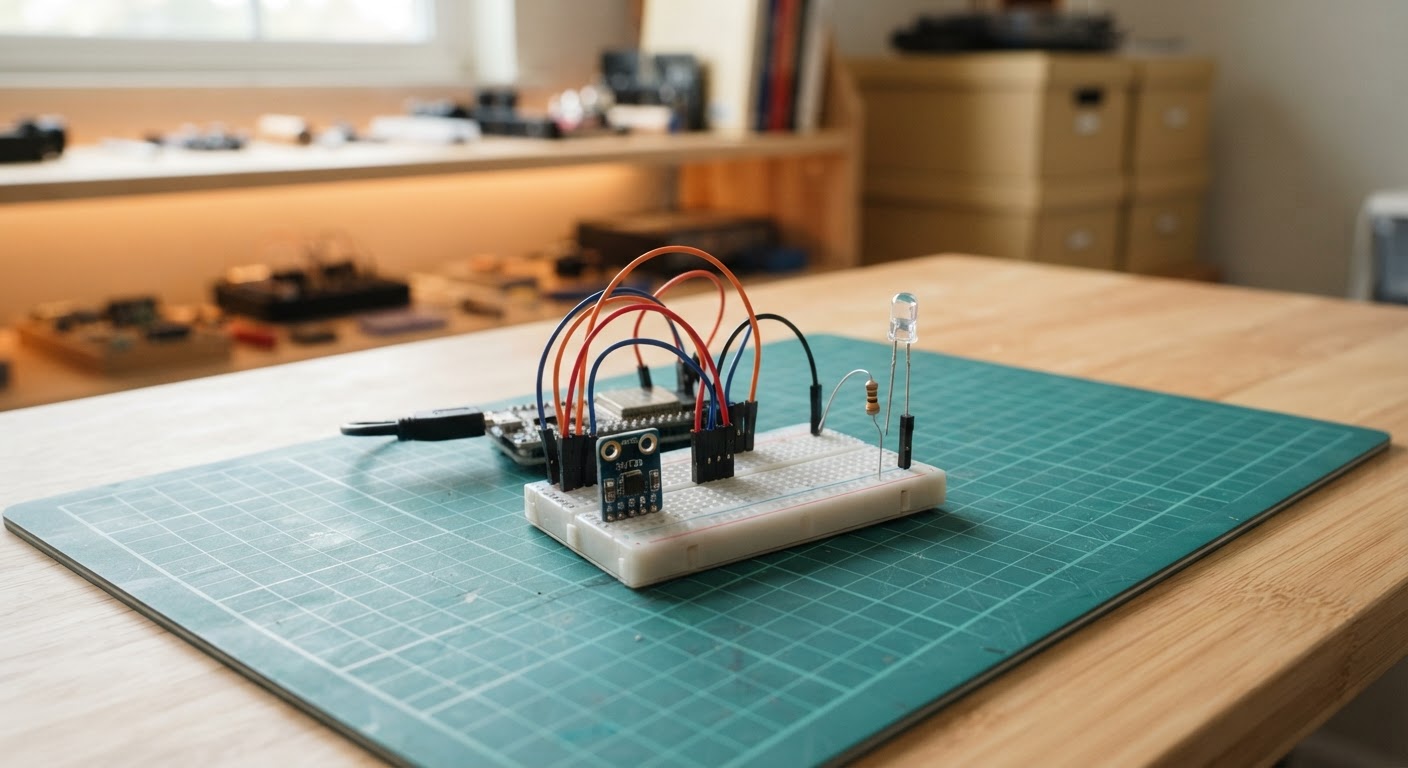

Smart Home IR Controller

// =============================================================
//  M5Dial - Painel de Casa Inteligente v1.7
//  Módulo 1 : Controlo AC Whirlpool por IR (via nó remoto ESP-NOW)
//  Módulo 2 : Divisões - temperatura/humidade de nós remotos
//  Módulo 3 : Presença - radares por divisão + portas separadas
//  Módulo 4 : Luzes - fita WS2812B por divisão via ESP-NOW
//  Screensaver: Relógio + Temperatura + Estado casa
//

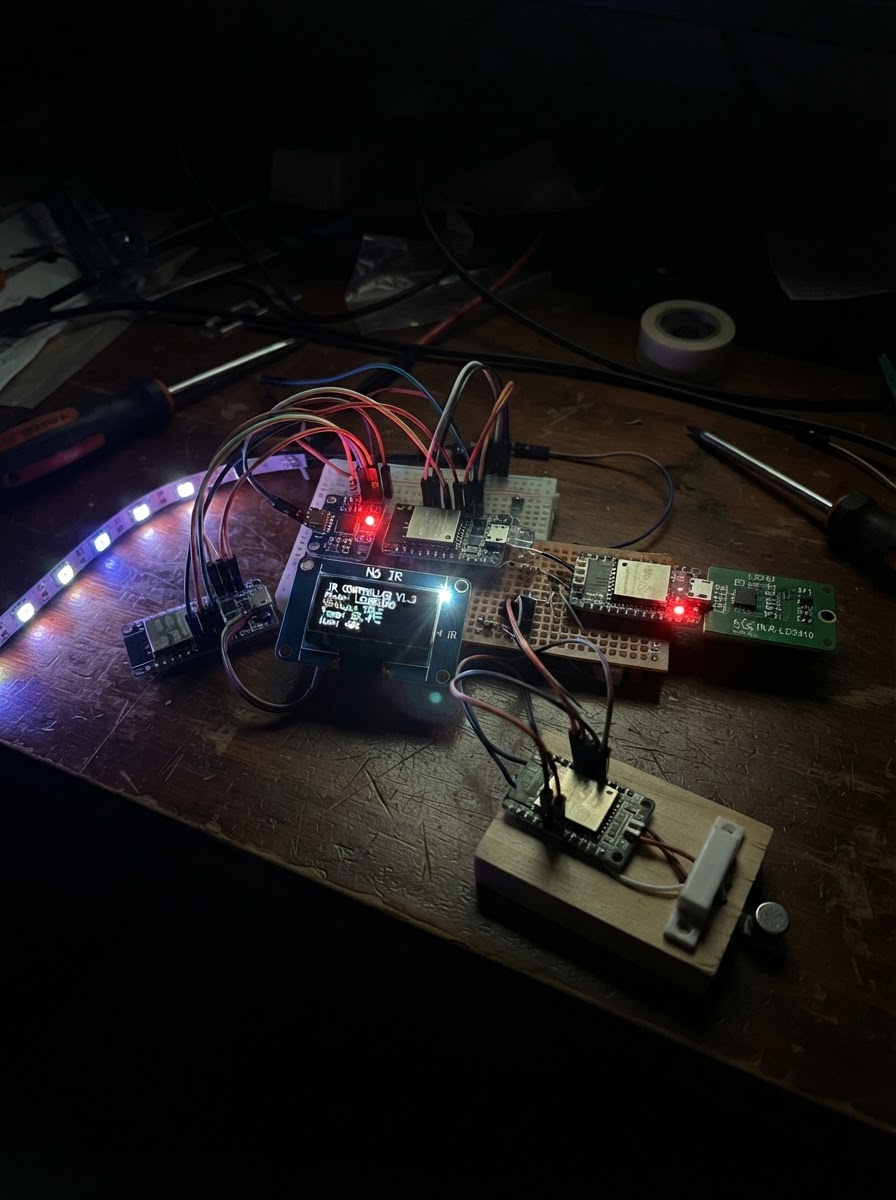

//  Nós remotos (ESP32-C3 Super Mini):
//    - Nó IR+Sensor+SCT : src/sensor_node/sensor_node.cpp  (junto ao AC)
//    - Nó Radar         : src/radar_node/radar_node.cpp    (teto de cada divisão)
//    - Nó Porta         : src/door_node/door_node.cpp      (em cada porta/entrada)
//    - Nó LED           : src/led_node/led_node.cpp        (por divisão com fita WS2812B)
// =============================================================

#include <Arduino.h>
#include <M5Dial.h>
#include <Wire.h>
#include <Adafruit_SHT31.h>
#include <WiFi.h>
#include <esp_now.h>
#include <IRremoteESP8266.h>
#include <ir_Whirlpool.h>
#include <time.h>
#include <LittleFS.h>

// ── Pins ─────────────────────────────────────────────────────
#define SHT30_SDA   13
#define SHT30_SCL   15

// ── Tempos ───────────────────────────────────────────────────
#define SCREENSAVER_MS      20000
#define SENSOR_READ_MS       5000
#define CLOCK_UPDATE_MS      1000
#define LOG_INTERVAL_MS  1800000UL   // 30 minutos

// ── LittleFS ─────────────────────────────────────────────────
#define LOG_FILE        "/datalog.csv"
#define LOG_MAX_BYTES   1400000UL    // ~1.4 MB — apaga o mais antigo acima disto

// ── Wi-Fi para NTP (opcional) ─────────────────────────────────
#define WIFI_SSID   ""
#define WIFI_PASS   ""
#define NTP_SERVER  "pool.ntp.org"
#define TZ_OFFSET   3600
#define TZ_DST      3600

// ── Divisões remotas ─────────────────────────────────────────
#define MAX_ROOMS     8
#define MAX_DOORS     8
#define MAX_LED_NODES 8

// ── Tipos de pacotes ESP-NOW ──────────────────────────────────
#define PACKET_TYPE_RADAR   0xBB
#define PACKET_TYPE_DOOR    0xCC
#define PACKET_TYPE_LED_CMD 0xDD
#define PACKET_TYPE_AC_STATUS 0xAE

// ── Modos de efeito LED ───────────────────────────────────────
#define EFFECT_SOLID       0
#define EFFECT_FADE        1
#define EFFECT_RAINBOW     2
#define EFFECT_PULSE       3
#define EFFECT_WARM_WHITE  4
#define EFFECT_OFF         5





struct SensorPacket {
  uint8_t  roomId;
  float    temperature;
  float    humidity;
  uint32_t timestamp;
  bool     valid;
};

struct AcCommandPacket {
  uint8_t  type;
  bool     power;
  uint8_t  temp;
  uint8_t  mode;
  uint8_t  fan;
};

struct LedCommandPacket {
  uint8_t  type;        // 0xDD
  uint8_t  nodeId;      // ID do nó (255 = todos)
  uint8_t  effect;
  uint8_t  brightness;
  uint8_t  r, g, b;
  uint8_t  speed;
};

struct RadarPacket {
  uint8_t  type;           // 0xBB
  uint8_t  roomId;
  bool     occupied;
  bool     radarActive;
  uint32_t lastDetectedMs;
  char     label[16];      // label da divisao (do no)
};

struct DoorPacket {
  uint8_t  type;           // 0xCC
  uint8_t  doorId;
  char     label[16];
  bool     isOpen;
  uint32_t openCount;
};

struct RoomData {
  float    temperature;
  float    humidity;
  uint32_t lastReceived;
  bool     hasData;
  char     label[16]      = "Sensor";
};

struct RadarRoomState {
  bool     occupied       = false;
  bool     radarActive    = false;
  bool     hasData        = false;
  unsigned long lastReceived = 0;
  char     label[16]      = "Divisao";
};

struct DoorState {
  char     label[16]      = "Porta";
  bool     isOpen         = false;
  uint32_t openCount      = 0;
  bool     hasData        = false;
  unsigned long lastReceived = 0;
};

struct LedNodeState {
  bool    active     = false;
  uint8_t effect     = EFFECT_WARM_WHITE;
  uint8_t brightness = 128;
  uint8_t r = 255, g = 180, b = 80;
  uint8_t speed      = 5;
  char    label[16]  = "Luzes";
  uint8_t mac[6]     = {0xFF,0xFF,0xFF,0xFF,0xFF,0xFF};
  bool    macSet     = false;
};

enum AppState {
  STATE_MENU = 0,
  STATE_AC,
  STATE_ROOMS,
  STATE_PRESENCE,
  STATE_LIGHTS,
  STATE_HISTORY,
  STATE_SYSTEM,
  STATE_SCREENSAVER
};

struct AcState {
  bool    power   = false;
  uint8_t temp    = 24;
  uint8_t mode    = kWhirlpoolAcAuto;
  uint8_t fan     = kWhirlpoolAcFanAuto;
  int8_t  submenu = 0;
  bool    editing = false;
};

struct MenuItem {
  const char* label;
  const char* icon;
  uint16_t    color;
};

struct AcStatusPacket {
  uint8_t type;        // 0xAE
  bool    acOn;        // true = AC a consumir corrente (ligado)
  float   currentRms;  // corrente RMS medida (Amperes)
};

struct HeartbeatPacket {
  uint8_t  type;           // 0xFE
  uint8_t  nodeType;       // NODE_TYPE_*
  uint8_t  nodeId;         // roomId / doorId / nodeId conforme tipo
  char     label[16];      // nome do nó (ex: "Sala", "Principal")
  uint8_t  powerSource;    // POWER_USB ou POWER_BATTERY
  uint8_t  batteryPct;     // 0-100 (0 se USB)
  uint8_t  rssi;           // potência do sinal (0-100, estimado)
};

struct NodeRegistryEntry {
  bool     active        = false;
  uint8_t  mac[6]        = {};
  uint8_t  nodeType      = NODE_TYPE_SENSOR;
  uint8_t  nodeId        = 0;
  char     label[16]     = {};
  uint8_t  powerSource   = POWER_USB;
  uint8_t  batteryPct    = 0;
  uint8_t  rssi          = 0;
  unsigned long lastSeen = 0;
};

struct HistEntry {
  char      timeStr[10];   // "HH:MM"
  char      dateStr[7];    // "DD/MM"
  float     temp;
  float     hum;
  bool      acOn;
  float     acAmps;
};

// ── Registo de nós ───────────────────────────────────────────
#define PACKET_TYPE_HEARTBEAT  0xHB  // redefinido abaixo
#undef  PACKET_TYPE_HEARTBEAT
#define PACKET_TYPE_HEARTBEAT  0xFE

#define NODE_TYPE_SENSOR   0   // IR + SHT30 + SCT
#define NODE_TYPE_RADAR    1   // LD2410
#define NODE_TYPE_DOOR     2   // Reed switch
#define NODE_TYPE_LED      3   // WS2812B

#define POWER_USB          0
#define POWER_BATTERY      1

#define MAX_NODES_REG      20  // máx. nós registados








// Forward declarations

// Forward declarations
void updateNodeRegistry(const uint8_t *mac, const HeartbeatPacket& hb);

static void dropOldestLine();

static const char* EFFECT_NAMES[] = {
  "Solido", "Fade", "Arco-iris", "Pulso", "Br.Quente", "Desligar"
};

// ── Estruturas de pacotes ESP-NOW ─────────────────────────────




// ── MACs dos nós ─────────────────────────────────────────────
// Substitui com os MACs reais dos teus ESP32-C3!
uint8_t IR_NODE_MAC[6]  = { 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF };
bool    irPeerAdded     = false;

// Nós LED - configura um por divisão com fita WS2812B
// Exemplo: ledNodes[0].mac = {0xAA,0xBB,0xCC,0xDD,0xEE,0xFF};
//          ledNodes[0].macSet = true;
//          strncpy(ledNodes[0].label, "Sala", 15);

// ── Paleta de cores ──────────────────────────────────────────
#define COL_BG       0x0820
#define COL_CARD     0x1082
#define COL_ACCENT   0x07FF
#define COL_TEXT     0xFFFF
#define COL_DIM      0x8410
#define COL_RED      0xF800
#define COL_GREEN    0x07E0
#define COL_ORANGE   0xFD20
#define COL_YELLOW   0xFFE0
#define COL_LBLUE    0x3D9F
#define COL_PURPLE   0xD81F

// ── Menu ─────────────────────────────────────────────────────
static const MenuItem MENU_ITEMS[] = {
  { "Ar Cond.", "AC",  COL_ACCENT },
  { "Temp/Hum", "TMP", COL_ACCENT },
  { "Presenca", "PRE", COL_GREEN  },
  { "Luzes",    "LUZ", COL_YELLOW },
  { "Historico","LOG", COL_ORANGE },
  { "Sistema",  "SYS", COL_DIM    },
  // Adicionar novos módulos aqui
};
static const int NUM_ITEMS = sizeof(MENU_ITEMS) / sizeof(MenuItem);

// ── Globais ──────────────────────────────────────────────────
AppState       appState        = STATE_MENU;
AcState        acState;
RoomData       rooms[MAX_ROOMS]      = {};
RadarRoomState radarRooms[MAX_ROOMS];
DoorState      doors[MAX_DOORS];
LedNodeState   ledNodes[MAX_LED_NODES];
int            menuSel         = 0;
int            roomViewSel     = 0;
int            lightsSelNode   = 0;
int            lightsSubmenu   = 0;
bool           lightsEditing   = false;
long           lastEnc         = 0;
bool           needRedraw      = true;
unsigned long  lastActivity    = 0;
unsigned long  lastSensorRead  = 0;

float          sensorTemp  = NAN;
float          sensorHum   = NAN;
bool           sensorOk    = false;

int            espNowRxCount   = 0;
NodeRegistryEntry nodeRegistry[MAX_NODES_REG];
unsigned long  lastClockUpdate = 0;
bool           ntpSynced       = false;
unsigned long  lastLogWrite    = 0;
bool           fsOk            = false;
uint32_t       logEntryCount   = 0;

// ── Histórico — buffer das últimas leituras para o ecrã ──────
#define HIST_DISPLAY  5

HistEntry histBuf[HIST_DISPLAY];
int       histBufCount  = 0;
int       histViewSel   = 0;

// ── Estado real do AC (via SCT-013) ──────────────────────────
bool           acRealOn        = false;   // estado lido pelo SCT-013
float          acCurrentRms    = 0.0f;    // corrente RMS medida
bool           acStatusReceived = false;  // já recebemos dados do SCT?

// ── Dias da semana e meses ────────────────────────────────────
static const char* WEEK_DAYS[] = {
  "Domingo", "Segunda", "Terca", "Quarta",
  "Quinta",  "Sexta",   "Sabado"
};
static const char* MONTHS[] = {
  "Jan","Fev","Mar","Abr","Mai","Jun",
  "Jul","Ago","Set","Out","Nov","Dez"
};

// ── Objetos ──────────────────────────────────────────────────
Adafruit_SHT31 sht31;

// ── Forward declarations ──────────────────────────────────────
const char* acModeName(uint8_t m);
const char* acFanName(uint8_t f);
void sendAcCommand();
void sendLedCommand(int nodeIdx);
void readSensor();
void syncNTP();
bool anyoneHome();
void writeLogEntry();
void loadLastEntries();
void drawMenu();
void drawAc();
void drawRooms();
void drawPresence();
void drawLights();
void drawHistory();
void drawSystem();
void drawScreensaver();
void handleMenuEncoder(int delta, bool pressed);
void handleAcEncoder(int delta, bool pressed);
void handleRoomsEncoder(int delta, bool pressed);
void handlePresenceEncoder(int delta, bool pressed);
void handleLightsEncoder(int delta, bool pressed);
void handleHistoryEncoder(int delta, bool pressed);
void handleSystemEncoder(int delta, bool pressed);
void wakeFromScreensaver();
void onEspNowReceive(const uint8_t *mac, const uint8_t *data, int len);

// ── Helpers AC ───────────────────────────────────────────────
const char* acModeName(uint8_t m) {
  switch (m) {
    case kWhirlpoolAcAuto: return "Auto";
    case kWhirlpoolAcCool: return "Frio";
    case kWhirlpoolAcHeat: return "Calor";
    case kWhirlpoolAcFan:  return "Vent.";
    case kWhirlpoolAcDry:  return "Seco";
    default: return "?";
  }
}

const char* acFanName(uint8_t f) {
  switch (f) {
    case kWhirlpoolAcFanAuto:   return "Auto";
    case kWhirlpoolAcFanLow:    return "Baixa";
    case kWhirlpoolAcFanMedium: return "Media";
    case kWhirlpoolAcFanHigh:   return "Alta";
    default: return "?";
  }
}

void sendAcCommand() {
  if (!irPeerAdded) {
    Serial.println("[AC] No IR nao configurado - define IR_NODE_MAC!");
    M5Dial.Speaker.tone(400, 120);
    return;
  }
  AcCommandPacket cmd;
  cmd.type  = 0xAC;
  cmd.power = acState.power;
  cmd.temp  = acState.temp;
  cmd.mode  = acState.mode;
  cmd.fan   = acState.fan;
  esp_err_t result = esp_now_send(IR_NODE_MAC, (uint8_t*)&cmd, sizeof(cmd));
  if (result == ESP_OK) {
    Serial.printf("[AC] Enviado: power=%s temp=%d\n",
                  cmd.power ? "ON" : "OFF", cmd.temp);
    M5Dial.Speaker.tone(1000, 80);
  } else {
    Serial.println("[AC] Falha ao enviar!");
    M5Dial.Speaker.tone(400, 120);
  }
}

// ── Enviar comando LED ────────────────────────────────────────
void sendLedCommand(int nodeIdx) {
  if (nodeIdx < 0 || nodeIdx >= MAX_LED_NODES) return;
  LedNodeState& n = ledNodes[nodeIdx];
  if (!n.macSet) {
    Serial.printf("[LED] Nó %d sem MAC configurado!\n", nodeIdx);
    M5Dial.Speaker.tone(400, 120);
    return;
  }
  if (!esp_now_is_peer_exist(n.mac)) {
    esp_now_peer_info_t peer = {};
    memcpy(peer.peer_addr, n.mac, 6);
    peer.channel = 0;
    peer.encrypt = false;
    esp_now_add_peer(&peer);
  }
  LedCommandPacket cmd;
  cmd.type       = PACKET_TYPE_LED_CMD;
  cmd.nodeId     = (uint8_t)nodeIdx;
  cmd.effect     = n.effect;
  cmd.brightness = n.brightness;
  cmd.r          = n.r;
  cmd.g          = n.g;
  cmd.b          = n.b;
  cmd.speed      = n.speed;
  esp_err_t res = esp_now_send(n.mac, (uint8_t*)&cmd, sizeof(cmd));
  if (res == ESP_OK) {
    Serial.printf("[LED] Enviado para nó %d: efeito=%d brilho=%d\n",
      nodeIdx, n.effect, n.brightness);
    M5Dial.Speaker.tone(1000, 60);
  } else {
    Serial.printf("[LED] Falha envio nó %d\n", nodeIdx);
    M5Dial.Speaker.tone(400, 120);
  }
}

// ── NTP ──────────────────────────────────────────────────────
void syncNTP() {
  if (strlen(WIFI_SSID) == 0) return;
  Serial.print("[NTP] A ligar a ");
  Serial.println(WIFI_SSID);
  WiFi.begin(WIFI_SSID, WIFI_PASS);
  int tries = 0;
  while (WiFi.status() != WL_CONNECTED && tries < 20) {
    delay(500); tries++;
  }
  if (WiFi.status() == WL_CONNECTED) {
    configTime(TZ_OFFSET, TZ_DST, NTP_SERVER);
    delay(1500);
    struct tm timeinfo;
    if (getLocalTime(&timeinfo)) {
      M5Dial.Rtc.setDateTime({
        { (uint16_t)(timeinfo.tm_year + 1900),
          (uint8_t)(timeinfo.tm_mon + 1),
          (uint8_t)timeinfo.tm_mday },
        { (uint8_t)timeinfo.tm_hour,
          (uint8_t)timeinfo.tm_min,
          (uint8_t)timeinfo.tm_sec }
      });
      ntpSynced = true;
      Serial.println("[NTP] RTC atualizado!");
    }
    WiFi.disconnect();
    WiFi.mode(WIFI_STA);
  } else {
    Serial.println("[NTP] Falha - a usar RTC interno");
  }
}

// ── LittleFS: apaga a primeira linha do ficheiro (registo mais antigo) ──────
static void dropOldestLine() {
  File src = LittleFS.open(LOG_FILE, "r");
  if (!src) return;

  // Salta a primeira linha (mais antiga)
  src.readStringUntil('\n');

  // Copia o resto para um ficheiro temporário
  File tmp = LittleFS.open("/datalog.tmp", "w");
  if (!tmp) { src.close(); return; }
  while (src.available()) {
    String ln = src.readStringUntil('\n');
    ln.trim();
    if (ln.length() > 0) { tmp.println(ln); }
  }
  src.close();
  tmp.close();

  // Substitui o ficheiro original pelo temporário
  LittleFS.remove(LOG_FILE);
  LittleFS.rename("/datalog.tmp", LOG_FILE);
  if (logEntryCount > 0) logEntryCount--;
  Serial.println("[LOG] Registo mais antigo removido (fila circular)");
}

// ── LittleFS: gravar entrada ─────────────────────────────────
void writeLogEntry() {
  if (!fsOk) return;

  // Verifica tamanho — remove só o registo mais antigo se ultrapassar limite
  {
    File f = LittleFS.open(LOG_FILE, "r");
    if (f) {
      size_t sz = f.size();
      f.close();
      if (sz > LOG_MAX_BYTES) {
        dropOldestLine();
        Serial.println("[LOG] Fila circular: removido registo mais antigo");
      }
    }
  }

  auto dt = M5Dial.Rtc.getDateTime();
  char line[80];
  snprintf(line, sizeof(line),
    "%04d-%02d-%02d %02d:%02d,%.1f,%.0f,%s,%.2f\n",
    dt.date.year, dt.date.month, dt.date.date,
    dt.time.hours, dt.time.minutes,
    sensorOk ? sensorTemp : -99.0f,
    sensorOk ? sensorHum  :   0.0f,
    (acStatusReceived ? (acRealOn ? "ON" : "OFF") : "?"),
    acCurrentRms
  );

  File f = LittleFS.open(LOG_FILE, "a");
  if (f) {
    f.print(line);
    f.close();
    logEntryCount++;
    Serial.printf("[LOG] #%lu: %s", logEntryCount, line);
  } else {
    Serial.println("[LOG] Erro ao abrir ficheiro!");
  }

  // Atualiza buffer de ecrã
  if (histBufCount < HIST_DISPLAY) {
    int idx = histBufCount++;
    snprintf(histBuf[idx].timeStr, 10, "%02d:%02d",
             dt.time.hours, dt.time.minutes);
    snprintf(histBuf[idx].dateStr, 7, "%02d/%02d",
             dt.date.date, dt.date.month);
    histBuf[idx].temp   = sensorOk ? sensorTemp : -99.0f;
    histBuf[idx].hum    = sensorOk ? sensorHum  :   0.0f;
    histBuf[idx].acOn   = acStatusReceived ? acRealOn : false;
    histBuf[idx].acAmps = acCurrentRms;
  } else {
    // Desloca buffer — o mais recente fica no índice 0
    for (int i = HIST_DISPLAY - 1; i > 0; i--)
      histBuf[i] = histBuf[i-1];
    snprintf(histBuf[0].timeStr, 10, "%02d:%02d",
             dt.time.hours, dt.time.minutes);
    snprintf(histBuf[0].dateStr, 7, "%02d/%02d",
             dt.date.date, dt.date.month);
    histBuf[0].temp   = sensorOk ? sensorTemp : -99.0f;
    histBuf[0].hum    = sensorOk ? sensorHum  :   0.0f;
    histBuf[0].acOn   = acStatusReceived ? acRealOn : false;
    histBuf[0].acAmps = acCurrentRms;
  }
}

// ── LittleFS: carregar últimas N entradas do ficheiro ─────────
void loadLastEntries() {
  if (!fsOk) return;
  File f = LittleFS.open(LOG_FILE, "r");
  if (!f) return;

  // Conta linhas e recolhe as últimas HIST_DISPLAY
  String lines[HIST_DISPLAY];
  int count = 0;
  while (f.available()) {
    String ln = f.readStringUntil('\n');
    ln.trim();
    if (ln.length() < 10) continue;
    lines[count % HIST_DISPLAY] = ln;
    count++;
  }
  f.close();

  int total = min(count, HIST_DISPLAY);
  histBufCount = 0;
  // Reconstrói buffer do mais recente para o mais antigo
  for (int i = 0; i < total; i++) {
    int lineIdx = ((count - 1 - i) % HIST_DISPLAY + HIST_DISPLAY) % HIST_DISPLAY;
    String& ln = lines[lineIdx];
    // Formato: YYYY-MM-DD HH:MM,temp,hum,acState,amps
    int c1 = ln.indexOf(',');
    int c2 = ln.indexOf(',', c1 + 1);
    int c3 = ln.indexOf(',', c2 + 1);
    int c4 = ln.indexOf(',', c3 + 1);
    if (c1 < 0 || c2 < 0 || c3 < 0 || c4 < 0) continue;
    String dt  = ln.substring(0, c1);  // "YYYY-MM-DD HH:MM"
    String tmp = ln.substring(c1 + 1, c2);
    String hm  = ln.substring(c2 + 1, c3);
    String ac  = ln.substring(c3 + 1, c4);
    String amp = ln.substring(c4 + 1);
    // Extrai hora e data
    int spIdx = dt.indexOf(' ');
    String datePart = dt.substring(0, spIdx);  // YYYY-MM-DD
    String timePart = dt.substring(spIdx + 1); // HH:MM
    snprintf(histBuf[i].timeStr, 10, "%s", timePart.c_str());
    // DD/MM
    snprintf(histBuf[i].dateStr, 7, "%s/%s",
      datePart.substring(8, 10).c_str(),
      datePart.substring(5, 7).c_str());
    histBuf[i].temp   = tmp.toFloat();
    histBuf[i].hum    = hm.toFloat();
    histBuf[i].acOn   = (ac == "ON");
    histBuf[i].acAmps = amp.toFloat();
    histBufCount++;
  }
  logEntryCount = (uint32_t)count;
  Serial.printf("[LOG] Carregadas %d entradas do ficheiro\n", histBufCount);
}

// ── Sensor local ─────────────────────────────────────────────
void readSensor() {
  float t = sht31.readTemperature();
  float h = sht31.readHumidity();
  if (!isnan(t) && !isnan(h)) {
    sensorTemp = t; sensorHum = h; sensorOk = true;
  } else {
    sensorOk = false;
  }
}

// ── Helper: alguém em casa? ───────────────────────────────────
bool anyoneHome() {
  for (int i = 0; i < MAX_ROOMS; i++)
    if (radarRooms[i].hasData && radarRooms[i].occupied) return true;
  return false;
}

// ── ESP-NOW callback ─────────────────────────────────────────
// ── Helper: actualiza registo de nós ───────────────────────────
void updateNodeRegistry(const uint8_t *mac, const HeartbeatPacket& hb) {
  // Procura nó existente pelo MAC
  int freeSlot = -1;
  for (int i = 0; i < MAX_NODES_REG; i++) {
    if (nodeRegistry[i].active && memcmp(nodeRegistry[i].mac, mac, 6) == 0) {
      // Atualiza entrada existente
      nodeRegistry[i].nodeType    = hb.nodeType;
      nodeRegistry[i].nodeId      = hb.nodeId;
      nodeRegistry[i].powerSource = hb.powerSource;
      nodeRegistry[i].batteryPct  = hb.batteryPct;
      nodeRegistry[i].rssi        = hb.rssi;
      nodeRegistry[i].lastSeen    = millis();
      strncpy(nodeRegistry[i].label, hb.label, 15);
      nodeRegistry[i].label[15]   = '\0';
      return;
    }
    if (!nodeRegistry[i].active && freeSlot < 0) freeSlot = i;
  }
  // Nó novo
  if (freeSlot >= 0) {
    nodeRegistry[freeSlot].active      = true;
    memcpy(nodeRegistry[freeSlot].mac, mac, 6);
    nodeRegistry[freeSlot].nodeType    = hb.nodeType;
    nodeRegistry[freeSlot].nodeId      = hb.nodeId;
    nodeRegistry[freeSlot].powerSource = hb.powerSource;
    nodeRegistry[freeSlot].batteryPct  = hb.batteryPct;
    nodeRegistry[freeSlot].rssi        = hb.rssi;
    nodeRegistry[freeSlot].lastSeen    = millis();
    strncpy(nodeRegistry[freeSlot].label, hb.label, 15);
    nodeRegistry[freeSlot].label[15]   = '\0';
    Serial.printf("[REG] Novo nó registado: %s (tipo %d, id %d)\n",
      hb.label, hb.nodeType, hb.nodeId);
    if (appState == STATE_SYSTEM) needRedraw = true;
  }
}

void onEspNowReceive(const uint8_t *mac, const uint8_t *data, int len) {
  espNowRxCount++;

  // Pacote heartbeat de nó remoto
  if (len == (int)sizeof(HeartbeatPacket)) {
    HeartbeatPacket hb;
    memcpy(&hb, data, sizeof(hb));
    if (hb.type == PACKET_TYPE_HEARTBEAT) {
      updateNodeRegistry(mac, hb);
      return;
    }
  }

  // Pacote estado AC (SCT-013)
  if (len == (int)sizeof(AcStatusPacket)) {
    AcStatusPacket asp;
    memcpy(&asp, data, sizeof(asp));
    if (asp.type == PACKET_TYPE_AC_STATUS) {
      acRealOn         = asp.acOn;
      acCurrentRms     = asp.currentRms;
      acStatusReceived = true;
      if (appState == STATE_AC || appState == STATE_MENU) needRedraw = true;
      return;
    }
  }

  if (len == (int)sizeof(RadarPacket)) {
    RadarPacket rp;
    memcpy(&rp, data, sizeof(rp));
    if (rp.type == PACKET_TYPE_RADAR && rp.roomId < MAX_ROOMS) {
      radarRooms[rp.roomId].occupied     = rp.occupied;
      radarRooms[rp.roomId].radarActive  = rp.radarActive;
      radarRooms[rp.roomId].hasData      = true;
      radarRooms[rp.roomId].lastReceived = millis();
      if (rp.label[0] != '\0') {
        strncpy(radarRooms[rp.roomId].label, rp.label, 15);
        radarRooms[rp.roomId].label[15] = '\0';
      }
      if (appState == STATE_PRESENCE || appState == STATE_SCREENSAVER ||
          appState == STATE_MENU) needRedraw = true;
      return;
    }
  }

  if (len == (int)sizeof(DoorPacket)) {
    DoorPacket dp;
    memcpy(&dp, data, sizeof(dp));
    if (dp.type == PACKET_TYPE_DOOR && dp.doorId < MAX_DOORS) {
      doors[dp.doorId].isOpen       = dp.isOpen;
      doors[dp.doorId].openCount    = dp.openCount;
      doors[dp.doorId].hasData      = true;
      doors[dp.doorId].lastReceived = millis();
      strncpy(doors[dp.doorId].label, dp.label, 15);
      doors[dp.doorId].label[15] = '\0';
      if (appState == STATE_PRESENCE || appState == STATE_SCREENSAVER ||
          appState == STATE_MENU) needRedraw = true;
      return;
    }
  }

  if (len != (int)sizeof(SensorPacket)) return;
  SensorPacket pkt;
  memcpy(&pkt, data, sizeof(pkt));
  if (pkt.roomId >= MAX_ROOMS) return;
  if (pkt.valid) {
    rooms[pkt.roomId].temperature = pkt.temperature;
    rooms[pkt.roomId].humidity    = pkt.humidity;
    rooms[pkt.roomId].hasData     = true;
  }
  rooms[pkt.roomId].lastReceived = millis();
  // Usa label do nodeRegistry se disponivel
  for (int i = 0; i < MAX_NODES_REG; i++) {
    if (nodeRegistry[i].active &&
        nodeRegistry[i].nodeType == NODE_TYPE_SENSOR &&
        nodeRegistry[i].nodeId == pkt.roomId) {
      strncpy(rooms[pkt.roomId].label, nodeRegistry[i].label, 15);
      rooms[pkt.roomId].label[15] = '\0';
      break;
    }
  }
  if (appState == STATE_ROOMS || appState == STATE_SCREENSAVER) needRedraw = true;
}

// ── Screensaver ──────────────────────────────────────────────
void drawScreensaver() {
  M5.Display.fillScreen(COL_BG);
  M5.Display.setTextDatum(MC_DATUM);

  auto dt = M5Dial.Rtc.getDateTime();
  char timeBuf[9];
  snprintf(timeBuf, sizeof(timeBuf), "%02d:%02d",
           dt.time.hours, dt.time.minutes);
  M5.Display.setTextColor(COL_TEXT);
  M5.Display.setTextSize(3.2f);
  M5.Display.drawString(timeBuf, 120, 42);

  int y = dt.date.year, mo = dt.date.month, d = dt.date.date;
  int yy = y; int mm = mo;
  if (mm < 3) { mm += 12; yy--; }
  int wday = (d + (13*(mm+1)/5) + yy + yy/4 - yy/100 + yy/400) % 7;
  static const int wmap[] = {6,0,1,2,3,4,5};
  int wd = wmap[wday % 7];

  char dateBuf[24];
  snprintf(dateBuf, sizeof(dateBuf), "%s, %02d %s %04d",
           WEEK_DAYS[wd], dt.date.date,
           MONTHS[dt.date.month - 1], dt.date.year);
  M5.Display.setTextColor(COL_DIM);
  M5.Display.setTextSize(0.82f);
  M5.Display.drawString(dateBuf, 120, 74);

  M5.Display.drawFastHLine(40, 85, 160, COL_CARD);

  if (sensorOk) {
    char tBuf[14];
    snprintf(tBuf, sizeof(tBuf), "%.1f C", sensorTemp);
    M5.Display.setTextColor(COL_ACCENT);
    M5.Display.setTextSize(2.0f);
    M5.Display.drawString(tBuf, 120, 110);
    char hBuf[10];
    snprintf(hBuf, sizeof(hBuf), "%.0f%% HR", sensorHum);
    M5.Display.setTextColor(COL_LBLUE);
    M5.Display.setTextSize(1.2f);
    M5.Display.drawString(hBuf, 120, 134);
  } else {
    M5.Display.setTextColor(COL_DIM);
    M5.Display.setTextSize(1.0f);
    M5.Display.drawString("Sensor...", 120, 115);
  }

  M5.Display.drawFastHLine(40, 150, 160, COL_CARD);

  int shown = 0;
  for (int i = 0; i < MAX_ROOMS && shown < 2; i++) {
    if (!rooms[i].hasData) continue;
    bool fresh = (millis() - rooms[i].lastReceived) < 300000UL;
    char rBuf[28];
    snprintf(rBuf, sizeof(rBuf), "%s: %.1fC %.0f%%",
             rooms[i].label, rooms[i].temperature, rooms[i].humidity);
    M5.Display.setTextColor(fresh ? COL_DIM : 0x4208);
    M5.Display.setTextSize(0.78f);
    M5.Display.drawString(rBuf, 120, 160 + shown * 14);
    shown++;
  }

  bool hasPresData = false;
  for (int i = 0; i < MAX_ROOMS; i++) if (radarRooms[i].hasData) { hasPresData = true; break; }
  if (hasPresData) {
    bool home = anyoneHome();
    M5.Display.setTextColor(home ? COL_GREEN : COL_ORANGE);
    M5.Display.setTextSize(0.88f);
    M5.Display.drawString(home ? "Casa OCUPADA" : "Casa VAZIA", 120, 196);
  }

  M5.Display.setTextColor(ntpSynced ? COL_GREEN : COL_DIM);
  M5.Display.setTextSize(0.68f);
  M5.Display.drawString(ntpSynced ? "NTP" : "RTC", 207, 28);

  M5.Display.setTextColor(COL_DIM);
  M5.Display.setTextSize(0.75f);
  M5.Display.drawString("Toque ou gire para ativar", 120, 222);
}

void wakeFromScreensaver() {
  appState     = STATE_MENU;
  needRedraw   = true;
  lastActivity = millis();
}

// ── Draw: Histórico ──────────────────────────────────────────
void drawHistory() {
  M5.Display.fillScreen(COL_BG);
  M5.Display.setTextDatum(MC_DATUM);

  M5.Display.setTextColor(COL_ORANGE);
  M5.Display.setTextSize(1.3f);
  M5.Display.drawString("Historico", 120, 22);

  // Info de armazenamento
  if (fsOk) {
    size_t used  = LittleFS.usedBytes();
    size_t total = LittleFS.totalBytes();
    char fsBuf[28];
    snprintf(fsBuf, sizeof(fsBuf), "%lu reg  |  %u/%u KB",
             logEntryCount, (unsigned)(used/1024), (unsigned)(total/1024));
    M5.Display.setTextColor(COL_DIM);
    M5.Display.setTextSize(0.72f);
    M5.Display.drawString(fsBuf, 120, 40);
  } else {
    M5.Display.setTextColor(COL_RED);
    M5.Display.setTextSize(0.75f);
    M5.Display.drawString("LittleFS nao disponivel", 120, 40);
  }

  M5.Display.drawFastHLine(20, 52, 200, COL_CARD);

  if (histBufCount == 0) {
    M5.Display.setTextColor(COL_DIM);
    M5.Display.setTextSize(0.88f);
    M5.Display.drawString("Sem registos ainda", 120, 110);
    M5.Display.setTextSize(0.78f);
    M5.Display.drawString("Registo a cada 30 min", 120, 130);
  } else {
    // Cabeçalho
    M5.Display.setTextColor(COL_DIM);
    M5.Display.setTextSize(0.72f);
    M5.Display.setTextDatum(ML_DATUM);
    M5.Display.drawString("Data  Hora   Temp  Hum  AC", 14, 60);
    M5.Display.drawFastHLine(10, 68, 220, COL_CARD);

    int startY = 76;
    int visible = min(histBufCount, HIST_DISPLAY);
    for (int i = 0; i < visible; i++) {
      bool sel = (i == histViewSel);
      if (sel) M5.Display.fillRoundRect(8, startY + i*28 - 4, 224, 24, 6, COL_CARD);

      HistEntry& e = histBuf[i];
      M5.Display.setTextColor(sel ? COL_ORANGE : COL_DIM);
      M5.Display.setTextSize(0.70f);
      M5.Display.setTextDatum(ML_DATUM);
      char dateLine[8];
      snprintf(dateLine, sizeof(dateLine), "%s", e.dateStr);
      M5.Display.drawString(dateLine, 12, startY + i*28 + 4);

      M5.Display.setTextColor(sel ? COL_TEXT : COL_DIM);
      M5.Display.setTextSize(0.72f);
      M5.Display.drawString(e.timeStr, 52, startY + i*28 + 4);

      char tmpStr[8];
      snprintf(tmpStr, sizeof(tmpStr), "%.1fC", e.temp);
      M5.Display.setTextColor(sel ? COL_ACCENT : COL_TEXT);
      M5.Display.drawString(tmpStr, 96, startY + i*28 + 4);

      char humStr[7];
      snprintf(humStr, sizeof(humStr), "%.0f%%", e.hum);
      M5.Display.setTextColor(sel ? COL_LBLUE : COL_DIM);
      M5.Display.drawString(humStr, 144, startY + i*28 + 4);

      M5.Display.setTextColor(e.acOn ? COL_GREEN : COL_DIM);
      M5.Display.drawString(e.acOn ? "ON" : "OFF", 186, startY + i*28 + 4);

      if (e.acOn) {
        char ampStr[8];
        snprintf(ampStr, sizeof(ampStr), "%.1fA", e.acAmps);
        M5.Display.setTextColor(COL_DIM);
        M5.Display.setTextSize(0.65f);
        M5.Display.drawString(ampStr, 210, startY + i*28 + 4);
      }
    }
    M5.Display.setTextDatum(MC_DATUM);
  }

  M5.Display.setTextColor(COL_DIM);
  M5.Display.setTextSize(0.78f);
  M5.Display.setTextDatum(MC_DATUM);
  M5.Display.drawString("Toque=voltar", 120, 226);
}

// ── Draw: Menu ───────────────────────────────────────────────
void drawMenu() {
  M5.Display.fillScreen(COL_BG);
  M5.Display.setTextDatum(MC_DATUM);

  M5.Display.setTextColor(COL_ACCENT);
  M5.Display.setTextSize(1.4f);
  M5.Display.drawString("Casa Inteligente", 120, 22);

  auto dt = M5Dial.Rtc.getDateTime();
  char clockMini[9];
  snprintf(clockMini, sizeof(clockMini), "%02d:%02d",
           dt.time.hours, dt.time.minutes);
  M5.Display.setTextColor(COL_TEXT);
  M5.Display.setTextSize(1.0f);
  M5.Display.drawString(clockMini, 120, 40);

  if (sensorOk) {
    char mini[24];
    snprintf(mini, sizeof(mini), "%.1fC  %.0f%%", sensorTemp, sensorHum);
    M5.Display.setTextColor(COL_DIM);
    M5.Display.setTextSize(0.82f);
    M5.Display.drawString(mini, 120, 55);
  }

  M5.Display.setTextColor(irPeerAdded ? COL_GREEN : COL_ORANGE);
  M5.Display.setTextSize(0.72f);
  M5.Display.drawString(irPeerAdded ? "No IR: OK" : "No IR: config MAC!", 120, 67);

  if (acStatusReceived) {
    M5.Display.setTextColor(acRealOn ? COL_GREEN : COL_DIM);
    M5.Display.setTextSize(0.68f);
    char acBuf[20];
    snprintf(acBuf, sizeof(acBuf), "AC: %s %.1fA",
             acRealOn ? "ON" : "OFF", acCurrentRms);
    M5.Display.drawString(acBuf, 120, 78);
  }

  {
    bool hasPresData = false;
    for (int i = 0; i < MAX_ROOMS; i++) if (radarRooms[i].hasData) { hasPresData = true; break; }
    if (hasPresData) {
      bool home = anyoneHome();
      M5.Display.setTextColor(home ? COL_GREEN : COL_ORANGE);
      M5.Display.setTextSize(0.72f);
      M5.Display.drawString(home ? "Casa: OCUPADA" : "Casa: VAZIA", 120, 78);
    }
  }

  int cx = 120, cy = 148, r = 60;
  for (int i = 0; i < NUM_ITEMS && i < 6; i++) {
    float angle = (2.0f * PI * i / NUM_ITEMS) - PI/2.0f;
    int ix = cx + (int)(r * cosf(angle));
    int iy = cy + (int)(r * sinf(angle));
    bool sel = (i == menuSel);
    uint16_t cardCol = sel ? MENU_ITEMS[i].color : COL_CARD;
    M5.Display.fillRoundRect(ix-34, iy-26, 68, 52, 10, cardCol);
    M5.Display.setTextColor(COL_TEXT);
    M5.Display.setTextSize(sel ? 1.8f : 1.4f);
    M5.Display.drawString(MENU_ITEMS[i].icon, ix, iy-8);
    M5.Display.setTextSize(0.82f);
    M5.Display.drawString(MENU_ITEMS[i].label, ix, iy+18);
  }

  M5.Display.setTextColor(COL_DIM);
  M5.Display.setTextSize(0.80f);
  M5.Display.drawString("Girar=nav  Carregar=entrar", 120, 218);
}

// ── Draw: AC ─────────────────────────────────────────────────
void drawAc() {
  M5.Display.fillScreen(COL_BG);
  M5.Display.setTextDatum(MC_DATUM);

  M5.Display.setTextColor(COL_ACCENT);
  M5.Display.setTextSize(1.4f);
  M5.Display.drawString("Ar Condicionado", 120, 22);

  M5.Display.setTextColor(irPeerAdded ? COL_GREEN : COL_ORANGE);
  M5.Display.setTextSize(0.75f);
  M5.Display.drawString(irPeerAdded ? "No IR: OK" : "No IR: configura MAC", 120, 38);

  // Estado real do AC via SCT-013
  if (acStatusReceived) {
    uint16_t sctCol = acRealOn ? COL_GREEN : COL_DIM;
    M5.Display.setTextColor(sctCol);
    M5.Display.setTextSize(0.72f);
    char sctBuf[28];
    snprintf(sctBuf, sizeof(sctBuf), "AC real: %s  (%.2fA)",
             acRealOn ? "LIGADO" : "DESLIGADO", acCurrentRms);
    M5.Display.drawString(sctBuf, 120, 50);

    // Alerta de dessincronização
    if (acState.power != acRealOn) {
      M5.Display.setTextColor(COL_ORANGE);
      M5.Display.setTextSize(0.68f);
      M5.Display.drawString("! Estado dessincronizado !", 120, 62);
    }
  }

  uint16_t stateCol = acState.power ? COL_GREEN : COL_RED;
  // Se temos dado real, usa o estado real para a cor do círculo
  if (acStatusReceived) stateCol = acRealOn ? COL_GREEN : COL_RED;
  M5.Display.fillCircle(120, 80, 22, stateCol);
  M5.Display.setTextColor(COL_TEXT);
  M5.Display.setTextSize(1.3f);
  M5.Display.drawString(acRealOn && acStatusReceived ? "ON" :
                        (!acRealOn && acStatusReceived ? "OFF" :
                        (acState.power ? "ON" : "OFF")), 120, 80);

  char buf[16];
  snprintf(buf, sizeof(buf), "%d C", acState.temp);
  bool selTemp = (acState.submenu == 1);
  M5.Display.setTextColor(selTemp ? COL_ACCENT : COL_TEXT);
  M5.Display.setTextSize(selTemp ? 2.8f : 2.2f);
  M5.Display.drawString(buf, 120, 118);

  M5.Display.drawFastHLine(60, 143, 120, COL_CARD);

  bool selMode = (acState.submenu == 2);
  M5.Display.setTextColor(selMode ? COL_ACCENT : COL_DIM);
  M5.Display.setTextSize(1.1f);
  M5.Display.drawString("Modo:", 80, 158);
  M5.Display.setTextColor(selMode ? COL_ACCENT : COL_TEXT);
  M5.Display.drawString(acModeName(acState.mode), 165, 158);

  bool selFan = (acState.submenu == 3);
  M5.Display.setTextColor(selFan ? COL_ACCENT : COL_DIM);
  M5.Display.setTextSize(1.1f);
  M5.Display.drawString("Vent.:", 80, 178);
  M5.Display.setTextColor(selFan ? COL_ACCENT : COL_TEXT);
  M5.Display.drawString(acFanName(acState.fan), 165, 178);

  if (acState.submenu == 0) {
    M5.Display.setTextColor(COL_ACCENT);
    M5.Display.setTextSize(0.9f);
    M5.Display.drawString("Carregar=ON/OFF", 120, 200);
  } else if (acState.editing) {
    M5.Display.setTextColor(COL_ORANGE);
    M5.Display.setTextSize(0.9f);
    M5.Display.drawString("Girar=alterar  Carrag.=OK", 120, 200);
  } else {
    M5.Display.setTextColor(COL_DIM);
    M5.Display.setTextSize(0.9f);
    M5.Display.drawString("Girar=nav  Carregar=editar", 120, 200);
  }
  M5.Display.setTextColor(COL_DIM);
  M5.Display.setTextSize(0.82f);
  M5.Display.drawString("Toque=voltar", 120, 218);
}

// ── Draw: Temperatura / Humidade (todos os sensores por divisão) ──
void drawRooms() {
  M5.Display.fillScreen(COL_BG);
  M5.Display.setTextDatum(MC_DATUM);

  M5.Display.setTextColor(COL_ACCENT);
  M5.Display.setTextSize(1.3f);
  M5.Display.drawString("Temperatura / Hum.", 120, 18);
  M5.Display.drawFastHLine(10, 30, 220, COL_CARD);

  // Cabeçalho de colunas
  M5.Display.setTextColor(COL_DIM);
  M5.Display.setTextSize(0.68f);
  M5.Display.setTextDatum(ML_DATUM);
  M5.Display.drawString("Divisao", 14, 38);
  M5.Display.setTextDatum(MR_DATUM);
  M5.Display.drawString("Temp.    Hum.", 226, 38);
  M5.Display.drawFastHLine(10, 46, 220, COL_CARD);

  int y = 58;
  bool hasAny = false;

  // Sensor local do Dial
  if (sensorOk) {
    hasAny = true;
    // Fundo de destaque na linha selecionada
    M5.Display.setTextColor(COL_TEXT);
    M5.Display.setTextSize(0.85f);
    M5.Display.setTextDatum(ML_DATUM);
    M5.Display.drawString("Local (Dial)", 14, y);
    char tBuf[10], hBuf[8];
    snprintf(tBuf, sizeof(tBuf), "%.1f C", sensorTemp);
    snprintf(hBuf, sizeof(hBuf), "%.0f%%", sensorHum);
    M5.Display.setTextColor(COL_ACCENT);
    M5.Display.setTextDatum(MR_DATUM);
    // Temp à direita, hum antes
    M5.Display.drawString(hBuf, 175, y);
    M5.Display.setTextColor(COL_TEXT);
    M5.Display.drawString(tBuf, 226, y);
    y += 20;
    M5.Display.drawFastHLine(10, y - 4, 220, COL_CARD);
  }

  // Sensores remotos
  for (int i = 0; i < MAX_ROOMS && y < 210; i++) {
    if (!rooms[i].hasData) continue;
    hasAny = true;
    bool fresh = (millis() - rooms[i].lastReceived) < 300000UL; // 5 min
    bool veryOld = (millis() - rooms[i].lastReceived) > 600000UL; // 10 min

    uint16_t labelCol = veryOld ? 0x4208 : (fresh ? COL_TEXT : COL_DIM);
    uint16_t tempCol  = veryOld ? 0x4208 : COL_ACCENT;
    uint16_t humCol   = veryOld ? 0x4208 : COL_LBLUE;

    M5.Display.setTextColor(labelCol);
    M5.Display.setTextSize(0.85f);
    M5.Display.setTextDatum(ML_DATUM);
    M5.Display.drawString(rooms[i].label, 14, y);

    char tBuf[10], hBuf[8];
    snprintf(tBuf, sizeof(tBuf), "%.1f C", rooms[i].temperature);
    snprintf(hBuf, sizeof(hBuf), "%.0f%%", rooms[i].humidity);
    M5.Display.setTextColor(humCol);
    M5.Display.setTextDatum(MR_DATUM);
    M5.Display.drawString(hBuf, 175, y);
    M5.Display.setTextColor(tempCol);
    M5.Display.drawString(tBuf, 226, y);

    // Indicador de dados antigos
    if (!fresh) {
      M5.Display.setTextColor(COL_ORANGE);
      M5.Display.setTextSize(0.60f);
      M5.Display.setTextDatum(ML_DATUM);
      M5.Display.drawString("old", 14, y + 10);
    }

    y += 22;
    M5.Display.drawFastHLine(10, y - 4, 220, COL_CARD);
  }

  if (!hasAny) {
    M5.Display.setTextColor(COL_DIM);
    M5.Display.setTextSize(0.95f);
    M5.Display.setTextDatum(MC_DATUM);
    M5.Display.drawString("Sem sensores", 120, 110);
    M5.Display.setTextSize(0.80f);
    M5.Display.drawString("Liga os nos ESP32-C3", 120, 132);
  }

  M5.Display.setTextColor(COL_DIM);
  M5.Display.setTextSize(0.72f);
  M5.Display.setTextDatum(MC_DATUM);
  M5.Display.drawString("Toque=voltar", 120, 228);
}

// ── Draw: Luzes ──────────────────────────────────────────────
void drawLights() {
  M5.Display.fillScreen(COL_BG);
  M5.Display.setTextDatum(MC_DATUM);

  M5.Display.setTextColor(COL_YELLOW);
  M5.Display.setTextSize(1.3f);
  M5.Display.drawString("Luzes", 120, 22);

  int activeNodes = 0;
  int nodeIds[MAX_LED_NODES];
  for (int i = 0; i < MAX_LED_NODES; i++)
    if (ledNodes[i].macSet) nodeIds[activeNodes++] = i;

  if (activeNodes == 0) {
    M5.Display.setTextColor(COL_DIM);
    M5.Display.setTextSize(0.9f);
    M5.Display.drawString("Sem nos LED", 120, 90);
    M5.Display.setTextSize(0.78f);
    M5.Display.drawString("Configura LED_NODE_MAC", 120, 112);
    M5.Display.drawString("em led_node.cpp", 120, 128);
    M5.Display.setTextColor(COL_ORANGE);
    M5.Display.setTextSize(0.72f);
    M5.Display.drawString("Ver: src/led_node/led_node.cpp", 120, 154);
    M5.Display.setTextColor(COL_DIM);
    M5.Display.drawString("Toque=voltar", 120, 218);
    return;
  }

  LedNodeState& node = ledNodes[nodeIds[lightsSelNode % activeNodes]];
  int nIdx = nodeIds[lightsSelNode % activeNodes];

  if (activeNodes > 1) {
    char nodeLabel[24];
    snprintf(nodeLabel, sizeof(nodeLabel), "< %s >", node.label);
    M5.Display.setTextColor(COL_TEXT);
    M5.Display.setTextSize(0.9f);
    M5.Display.drawString(nodeLabel, 120, 40);
  } else {
    M5.Display.setTextColor(COL_TEXT);
    M5.Display.setTextSize(0.9f);
    M5.Display.drawString(node.label, 120, 40);
  }

  // Preview cor
  uint16_t previewCol = M5.Display.color888(node.r, node.g, node.b);
  if (node.effect == EFFECT_OFF) {
    M5.Display.fillCircle(120, 72, 16, COL_CARD);
    M5.Display.setTextColor(COL_DIM);
    M5.Display.setTextSize(0.8f);
    M5.Display.drawString("OFF", 120, 72);
  } else {
    M5.Display.fillCircle(120, 72, 16, previewCol);
  }

  M5.Display.drawFastHLine(40, 96, 160, COL_CARD);

  // Parâmetros
  const char* paramLabels[4] = { "Efeito:", "Brilho:", "Speed:", "Cor:" };
  char paramValues[4][20];
  snprintf(paramValues[0], 20, "%s", EFFECT_NAMES[node.effect]);
  snprintf(paramValues[1], 20, "%d%%", (int)map(node.brightness, 0, 255, 0, 100));
  snprintf(paramValues[2], 20, "%d", node.speed);
  snprintf(paramValues[3], 20, "R%d G%d B%d", node.r, node.g, node.b);

  for (int i = 0; i < 4; i++) {
    bool sel  = (lightsSubmenu == i) && !lightsEditing;
    bool edit = (lightsSubmenu == i) && lightsEditing;
    uint16_t lc = edit ? COL_ORANGE : (sel ? COL_YELLOW : COL_DIM);
    uint16_t vc = edit ? COL_ORANGE : (sel ? COL_YELLOW : COL_TEXT);
    M5.Display.setTextColor(lc);
    M5.Display.setTextSize(0.88f);
    M5.Display.setTextDatum(ML_DATUM);
    M5.Display.drawString(paramLabels[i], 32, 108 + i * 22);
    M5.Display.setTextColor(vc);
    M5.Display.setTextDatum(MR_DATUM);
    M5.Display.drawString(paramValues[i], 210, 108 + i * 22);
  }

  M5.Display.setTextDatum(MC_DATUM);
  if (lightsEditing) {
    M5.Display.setTextColor(COL_ORANGE);
    M5.Display.setTextSize(0.82f);
    M5.Display.drawString("Girar=alterar  Carregar=OK", 120, 202);
  } else {
    M5.Display.setTextColor(COL_DIM);
    M5.Display.setTextSize(0.82f);
    M5.Display.drawString("Girar=nav  Carregar=editar", 120, 202);
  }
  M5.Display.setTextColor(COL_DIM);
  M5.Display.setTextSize(0.78f);
  M5.Display.drawString("Toque=voltar", 120, 218);
}

// ── Draw: Presença ───────────────────────────────────────────
void drawPresence() {
  M5.Display.fillScreen(COL_BG);
  M5.Display.setTextDatum(MC_DATUM);

  M5.Display.setTextColor(COL_GREEN);
  M5.Display.setTextSize(1.3f);
  M5.Display.drawString("Presenca em Casa", 120, 22);

  bool home = anyoneHome();
  bool hasRadar = false;
  bool hasDoor  = false;
  for (int i = 0; i < MAX_ROOMS; i++) if (radarRooms[i].hasData) { hasRadar = true; break; }
  for (int i = 0; i < MAX_DOORS;  i++) if (doors[i].hasData)      { hasDoor  = true; break; }

  uint16_t stateCol = (hasRadar || hasDoor)
    ? (home ? COL_GREEN : COL_ORANGE) : COL_CARD;
  M5.Display.fillRoundRect(30, 36, 180, 38, 10, stateCol);
  M5.Display.setTextColor(COL_TEXT);
  M5.Display.setTextSize(1.6f);
  M5.Display.drawString(
    !hasRadar && !hasDoor ? "SEM NOS" :
    home ? "OCUPADA" : "VAZIA", 120, 55);

  M5.Display.drawFastHLine(20, 82, 200, COL_CARD);

  int yp = 92;
  M5.Display.setTextColor(COL_DIM);
  M5.Display.setTextSize(0.80f);
  M5.Display.setTextDatum(ML_DATUM);
  M5.Display.drawString("RADAR (divisoes):", 20, yp);
  yp += 14;
  bool anyRadar = false;
  for (int i = 0; i < MAX_ROOMS; i++) {
    if (!radarRooms[i].hasData) continue;
    anyRadar = true;
    bool fresh = (millis() - radarRooms[i].lastReceived) < 30000UL;
    M5.Display.setTextColor(fresh ? (radarRooms[i].occupied ? COL_GREEN : COL_DIM) : COL_ORANGE);
    M5.Display.setTextSize(0.82f);
    M5.Display.setTextDatum(ML_DATUM);
    M5.Display.drawString(radarRooms[i].label, 24, yp);
    M5.Display.setTextDatum(MR_DATUM);
    M5.Display.drawString(radarRooms[i].occupied ? "OCUP." : "VAZIA", 218, yp);
    yp += 14;
    if (yp > 148) break;
  }
  if (!anyRadar) {
    M5.Display.setTextColor(COL_DIM);
    M5.Display.setTextSize(0.78f);
    M5.Display.setTextDatum(MC_DATUM);
    M5.Display.drawString("Sem nos radar", 120, yp);
    yp += 14;
  }

  M5.Display.drawFastHLine(20, yp + 2, 200, COL_CARD);
  yp += 10;

  M5.Display.setTextColor(COL_DIM);
  M5.Display.setTextSize(0.80f);
  M5.Display.setTextDatum(ML_DATUM);
  M5.Display.drawString("PORTAS:", 20, yp);
  yp += 14;
  bool anyDoor = false;
  for (int i = 0; i < MAX_DOORS; i++) {
    if (!doors[i].hasData) continue;
    anyDoor = true;
    bool fresh = (millis() - doors[i].lastReceived) < 60000UL;
    M5.Display.setTextColor(fresh ? (doors[i].isOpen ? COL_ORANGE : COL_GREEN) : COL_DIM);
    M5.Display.setTextSize(0.82f);
    M5.Display.setTextDatum(ML_DATUM);
    M5.Display.drawString(doors[i].label, 24, yp);
    M5.Display.setTextDatum(MR_DATUM);
    M5.Display.drawString(doors[i].isOpen ? "ABERTA" : "FECHADA", 218, yp);
    yp += 14;
    if (yp > 200) break;
  }
  if (!anyDoor) {
    M5.Display.setTextColor(COL_DIM);
    M5.Display.setTextSize(0.78f);
    M5.Display.setTextDatum(MC_DATUM);
    M5.Display.drawString("Sem nos porta", 120, yp);
  }

  M5.Display.setTextColor(COL_DIM);
  M5.Display.setTextSize(0.80f);
  M5.Display.setTextDatum(MC_DATUM);
  M5.Display.drawString("Toque=voltar", 120, 226);
}

// ── Encoder handlers ─────────────────────────────────────────
void handleMenuEncoder(int delta, bool pressed) {
  if (delta != 0) {
    menuSel = (menuSel + delta + NUM_ITEMS) % NUM_ITEMS;
    needRedraw = true;
  }
  if (pressed) {
    if (menuSel == 0) { appState = STATE_AC; acState.submenu = 0; acState.editing = false; }
    else if (menuSel == 1) { appState = STATE_ROOMS; roomViewSel = 0; roomViewSel = 0; }
    else if (menuSel == 2) { appState = STATE_PRESENCE; }
    else if (menuSel == 3) { appState = STATE_LIGHTS; lightsSubmenu = 0; lightsEditing = false; }
    else if (menuSel == 4) { appState = STATE_HISTORY; histViewSel = 0; }
    else if (menuSel == 5) { appState = STATE_SYSTEM; }
    needRedraw = true;
  }
}

void handleAcEncoder(int delta, bool pressed) {
  if (!acState.editing) {
    if (delta != 0) { acState.submenu = (acState.submenu + delta + 4) % 4; needRedraw = true; }
    if (pressed) {
      if (acState.submenu == 0) { acState.power = !acState.power; sendAcCommand(); needRedraw = true; }
      else { acState.editing = true; needRedraw = true; }
    }
  } else {
    if (delta != 0) {
      if (acState.submenu == 1) {
        acState.temp = constrain(acState.temp + delta, 16, 30);
      } else if (acState.submenu == 2) {
        uint8_t modes[] = { kWhirlpoolAcAuto, kWhirlpoolAcCool,
                            kWhirlpoolAcHeat, kWhirlpoolAcFan, kWhirlpoolAcDry };
        int idx = 0;
        for (int i = 0; i < 5; i++) if (modes[i] == acState.mode) idx = i;
        idx = (idx + delta + 5) % 5;
        acState.mode = modes[idx];
      } else if (acState.submenu == 3) {
        uint8_t fans[] = { kWhirlpoolAcFanAuto, kWhirlpoolAcFanLow,
                           kWhirlpoolAcFanMedium, kWhirlpoolAcFanHigh };
        int idx = 0;
        for (int i = 0; i < 4; i++) if (fans[i] == acState.fan) idx = i;
        idx = (idx + delta + 4) % 4;
        acState.fan = fans[idx];
      }
      needRedraw = true;
    }
    if (pressed) { acState.editing = false; sendAcCommand(); needRedraw = true; }
  }
}

void handleRoomsEncoder(int delta, bool pressed) {
  if (delta != 0) {
    int activeRooms = 0;
    for (int i = 0; i < MAX_ROOMS; i++) if (rooms[i].hasData) activeRooms++;
    if (activeRooms > 0)
      roomViewSel = (roomViewSel + delta + activeRooms) % activeRooms;
    needRedraw = true;
  }
}

void handlePresenceEncoder(int delta, bool pressed) {
  (void)delta; (void)pressed;
}

void handleHistoryEncoder(int delta, bool pressed) {
  if (delta != 0) {
    histViewSel = constrain(histViewSel + delta, 0, max(0, histBufCount - 1));
    needRedraw = true;
  }
  (void)pressed;
}

static int sysPage = 0;  // 0=info geral, 1=nos registados

void handleSystemEncoder(int delta, bool pressed) {
  if (delta != 0) {
    sysPage = (sysPage + (delta > 0 ? 1 : -1) + 2) % 2;
    needRedraw = true;
  }
  (void)pressed;
}

// ── Draw: Sistema ────────────────────────────────────────────
void drawSystem() {
  M5.Display.fillScreen(COL_BG);
  M5.Display.setTextDatum(MC_DATUM);

  M5.Display.setTextColor(COL_DIM);
  M5.Display.setTextSize(1.3f);
  M5.Display.drawString("Sistema", 120, 22);

  // Indicador de pagina
  M5.Display.setTextColor(COL_DIM);
  M5.Display.setTextSize(0.72f);
  M5.Display.drawString(sysPage == 0 ? "[INFO]  nos" : "info  [NOS]", 120, 35);
  M5.Display.drawFastHLine(30, 42, 180, COL_CARD);

  if (sysPage == 0) {
    // ─────────────── PAGINA 0: INFORMACOES GERAIS ───────────────
    // MAC Address
    M5.Display.setTextColor(COL_DIM);
    M5.Display.setTextSize(0.78f);
    M5.Display.drawString("MAC Address (ESP-NOW)", 120, 54);
    String mac = WiFi.macAddress();
    M5.Display.setTextColor(COL_ACCENT);
    M5.Display.setTextSize(1.05f);
    M5.Display.drawString(mac, 120, 70);
    M5.Display.drawFastHLine(30, 83, 180, COL_CARD);

    // ESP-NOW
    M5.Display.setTextColor(COL_DIM);
    M5.Display.setTextSize(0.75f);
    M5.Display.drawString("ESP-NOW", 120, 93);
    char espBuf[28];
    snprintf(espBuf, sizeof(espBuf), "Pacotes recebidos: %d", espNowRxCount);
    M5.Display.setTextColor(COL_TEXT);
    M5.Display.setTextSize(0.80f);
    M5.Display.drawString(espBuf, 120, 105);
    M5.Display.setTextColor(irPeerAdded ? COL_GREEN : COL_ORANGE);
    M5.Display.setTextSize(0.78f);
    M5.Display.drawString(irPeerAdded ? "No IR: configurado" : "No IR: sem MAC", 120, 118);
    M5.Display.drawFastHLine(30, 128, 180, COL_CARD);

    // LittleFS
    M5.Display.setTextColor(COL_DIM);
    M5.Display.setTextSize(0.75f);
    M5.Display.drawString("Armazenamento", 120, 138);
    if (fsOk) {
      size_t used  = LittleFS.usedBytes();
      size_t total = LittleFS.totalBytes();
      char fsBuf[32];
      snprintf(fsBuf, sizeof(fsBuf), "%u KB / %u KB",
               (unsigned)(used/1024), (unsigned)(total/1024));
      M5.Display.setTextColor(COL_GREEN);
      M5.Display.setTextSize(0.80f);
      M5.Display.drawString(fsBuf, 120, 150);
      char regBuf[24];
      snprintf(regBuf, sizeof(regBuf), "%lu registos gravados", logEntryCount);
      M5.Display.setTextColor(COL_TEXT);
      M5.Display.setTextSize(0.75f);
      M5.Display.drawString(regBuf, 120, 163);
    } else {
      M5.Display.setTextColor(COL_RED);
      M5.Display.setTextSize(0.80f);
      M5.Display.drawString("LittleFS: ERRO", 120, 150);
    }
    M5.Display.drawFastHLine(30, 175, 180, COL_CARD);

    // Versao + hora
    M5.Display.setTextColor(COL_DIM);
    M5.Display.setTextSize(0.72f);
    M5.Display.drawString("Casa Inteligente v1.12  M5Dial", 120, 185);
    M5.Display.setTextColor(ntpSynced ? COL_GREEN : COL_DIM);
    M5.Display.drawString(ntpSynced ? "Hora: NTP sincronizada" : "Hora: RTC interno", 120, 197);

  } else {
    // ─────────────── PAGINA 1: NOS REGISTADOS ───────────────────
    static const char* NODE_TYPE_ICONS[] = { "IR+T", "RDR", "PRT", "LED" };
    static const uint16_t NODE_TYPE_COLS[] = {
      COL_ACCENT, COL_GREEN, COL_ORANGE, COL_YELLOW
    };

    int total = 0;
    for (int i = 0; i < MAX_NODES_REG; i++) if (nodeRegistry[i].active) total++;

    if (total == 0) {
      M5.Display.setTextColor(COL_DIM);
      M5.Display.setTextSize(0.88f);
      M5.Display.drawString("Nenhum no registado", 120, 110);
      M5.Display.setTextSize(0.78f);
      M5.Display.drawString("Os nos registam-se", 120, 132);
      M5.Display.drawString("automaticamente ao ligar.", 120, 146);
    } else {
      char totalBuf[24];
      snprintf(totalBuf, sizeof(totalBuf), "%d nos ativos", total);
      M5.Display.setTextColor(COL_DIM);
      M5.Display.setTextSize(0.72f);
      M5.Display.drawString(totalBuf, 120, 50);

      // Cabecalho
      M5.Display.setTextColor(COL_DIM);
      M5.Display.setTextSize(0.68f);
      M5.Display.setTextDatum(ML_DATUM);
      M5.Display.drawString("Tipo  Local          Alim.", 10, 60);
      M5.Display.drawFastHLine(8, 68, 224, COL_CARD);

      int row = 0;
      int startY = 76;
      for (int i = 0; i < MAX_NODES_REG && row < 6; i++) {
        if (!nodeRegistry[i].active) continue;
        NodeRegistryEntry& n = nodeRegistry[i];
        bool fresh = (millis() - n.lastSeen) < 120000UL;
        int y = startY + row * 24;
        uint8_t nt = min((uint8_t)3, n.nodeType);

        // Tipo (icone colorido)
        M5.Display.setTextColor(fresh ? NODE_TYPE_COLS[nt] : COL_DIM);
        M5.Display.setTextSize(0.72f);
        M5.Display.setTextDatum(ML_DATUM);
        M5.Display.drawString(NODE_TYPE_ICONS[nt], 10, y);

        // Label (localizacao)
        M5.Display.setTextColor(fresh ? COL_TEXT : COL_DIM);
        M5.Display.setTextSize(0.72f);
        M5.Display.drawString(n.label, 48, y);

        // Alimentacao
        if (n.powerSource == POWER_BATTERY) {
          uint16_t batCol = (n.batteryPct >= 60) ? COL_GREEN
                          : (n.batteryPct >= 30) ? COL_ORANGE : COL_RED;
          char batBuf[10];
          snprintf(batBuf, sizeof(batBuf), "BAT %d%%", n.batteryPct);
          M5.Display.setTextColor(batCol);
          M5.Display.setTextDatum(MR_DATUM);
          M5.Display.setTextSize(0.70f);
          M5.Display.drawString(batBuf, 230, y);
        } else {
          M5.Display.setTextColor(fresh ? COL_GREEN : COL_DIM);
          M5.Display.setTextDatum(MR_DATUM);
          M5.Display.setTextSize(0.70f);
          M5.Display.drawString("USB", 230, y);
        }

        // Indicador offline
        if (!fresh) {
          M5.Display.setTextColor(COL_RED);
          M5.Display.setTextSize(0.62f);
          M5.Display.setTextDatum(ML_DATUM);
          M5.Display.drawString("OFF", 10, y + 11);
        }
        row++;
      }
      M5.Display.setTextDatum(MC_DATUM);
    }
  }

  M5.Display.setTextColor(COL_DIM);
  M5.Display.setTextSize(0.75f);
  M5.Display.setTextDatum(MC_DATUM);
  M5.Display.drawString("Girar=pagina  Toque=voltar", 120, 226);
}

void handleLightsEncoder(int delta, bool pressed) {
  int activeNodes = 0;
  int nodeIds[MAX_LED_NODES];
  for (int i = 0; i < MAX_LED_NODES; i++)
    if (ledNodes[i].macSet) nodeIds[activeNodes++] = i;
  if (activeNodes == 0) return;

  int nIdx = nodeIds[lightsSelNode % activeNodes];
  LedNodeState& node = ledNodes[nIdx];

  if (!lightsEditing) {
    if (delta != 0) {
      lightsSubmenu = (lightsSubmenu + delta + 4) % 4;
      needRedraw = true;
    }
    if (pressed) {
      lightsEditing = true;
      needRedraw = true;
    }
  } else {
    if (delta != 0) {
      if (lightsSubmenu == 0) {
        int e = (int)node.effect + delta;
        node.effect = (uint8_t)((e + 6) % 6);
      } else if (lightsSubmenu == 1) {
        int b = (int)node.brightness + delta * 13;
        node.brightness = (uint8_t)constrain(b, 0, 255);
      } else if (lightsSubmenu == 2) {
        int s = (int)node.speed + delta;
        node.speed = (uint8_t)constrain(s, 1, 10);
      } else if (lightsSubmenu == 3) {
        static const uint8_t COLOR_PRESETS[][3] = {
          {255,180,80},  // Branco quente
          {255,255,200}, // Branco frio
          {255,0,0},     // Vermelho
          {0,255,0},     // Verde
          {0,0,255},     // Azul
          {255,100,0},   // Laranja
          {128,0,255},   // Roxo
          {0,255,200},   // Ciano
        };
        static int colorIdx = 0;
        colorIdx = (colorIdx + delta + 8) % 8;
        node.r = COLOR_PRESETS[colorIdx][0];
        node.g = COLOR_PRESETS[colorIdx][1];
        node.b = COLOR_PRESETS[colorIdx][2];
      }
      needRedraw = true;
    }
    if (pressed) {
      lightsEditing = false;
      sendLedCommand(nIdx);
      needRedraw = true;
    }
  }
}

// ── Setup ────────────────────────────────────────────────────
void setup() {
  auto cfg = M5.config();
  M5Dial.begin(cfg, true, false);

  M5.Display.setBrightness(128);
  M5.Display.setTextDatum(MC_DATUM);
  M5.Display.setColorDepth(16);

  Wire.begin(SHT30_SDA, SHT30_SCL);
  if (sht31.begin(0x44, &Wire)) {
    sensorOk = true;
    readSensor();
  }

  Serial.begin(115200);
  syncNTP();

  WiFi.mode(WIFI_STA);
  WiFi.disconnect();
  Serial.print("[M5Dial] MAC para ESP-NOW: ");
  Serial.println(WiFi.macAddress());

  // ── LittleFS ───────────────────────────────────────────────
  if (LittleFS.begin(true)) {
    fsOk = true;
    Serial.printf("[LittleFS] OK — %u KB livres\n",
      (unsigned)((LittleFS.totalBytes() - LittleFS.usedBytes()) / 1024));
    // Cria cabeçalho se ficheiro novo
    if (!LittleFS.exists(LOG_FILE)) {
      File f = LittleFS.open(LOG_FILE, "w");
      if (f) { f.println("timestamp,temp_c,hum_pct,ac_state,ac_amps"); f.close(); }
    }
    loadLastEntries();
  } else {
    Serial.println("[LittleFS] Falha na montagem!");
  }

  if (esp_now_init() == ESP_OK) {
    esp_now_register_recv_cb(onEspNowReceive);
    Serial.println("[ESP-NOW] Pronto");

    bool macIsSet = false;
    for (int i = 0; i < 6; i++) if (IR_NODE_MAC[i] != 0xFF) { macIsSet = true; break; }
    if (macIsSet) {
      esp_now_peer_info_t peer = {};
      memcpy(peer.peer_addr, IR_NODE_MAC, 6);
      peer.channel = 0;
      peer.encrypt = false;
      if (esp_now_add_peer(&peer) == ESP_OK) {
        irPeerAdded = true;
        Serial.println("[ESP-NOW] Nó IR adicionado");
      }
    } else {
      Serial.println("[ESP-NOW] MAC do nó IR nao configurado!");
    }
  } else {
    Serial.println("[ESP-NOW] Falha na inicializacao");
  }

  lastEnc         = M5Dial.Encoder.read();
  lastActivity    = millis();
  lastClockUpdate = millis();
  lastLogWrite    = millis();

  // Splash
  M5.Display.fillScreen(COL_BG);
  M5.Display.setTextColor(COL_ACCENT);
  M5.Display.setTextSize(1.5f);
  M5.Display.drawString("Casa Inteligente", 120, 60);
  M5.Display.setTextColor(COL_DIM);
  M5.Display.setTextSize(0.85f);
  M5.Display.drawString("M5Dial v1.10", 120, 90);
  M5.Display.setTextColor(fsOk ? COL_GREEN : COL_RED);
  M5.Display.setTextSize(0.78f);
  M5.Display.drawString(fsOk ? "LittleFS: OK" : "LittleFS: ERRO", 120, 200);
  auto splashDt = M5Dial.Rtc.getDateTime();
  char splashTime[9];
  snprintf(splashTime, sizeof(splashTime), "%02d:%02d",
           splashDt.time.hours, splashDt.time.minutes);
  M5.Display.setTextColor(COL_TEXT);
  M5.Display.setTextSize(1.2f);
  M5.Display.drawString(splashTime, 120, 110);
  M5.Display.setTextColor(irPeerAdded ? COL_GREEN : COL_ORANGE);
  M5.Display.setTextSize(0.82f);
  M5.Display.drawString(irPeerAdded ? "Nó IR: OK" : "Nó IR: define MAC", 120, 128);
  M5.Display.setTextColor(COL_GREEN);
  M5.Display.drawString("ESP-NOW ativo", 120, 144);
  M5.Display.setTextColor(COL_PURPLE);
  M5.Display.drawString("Radar+Porta: nos separados", 120, 158);
  M5.Display.setTextColor(COL_YELLOW);
  M5.Display.drawString("Luzes WS2812B: no LED", 120, 172);
  if (sensorOk) {
    char sBuf[24];
    snprintf(sBuf, sizeof(sBuf), "%.1fC  %.0f%% HR", sensorTemp, sensorHum);
    M5.Display.setTextColor(COL_LBLUE);
    M5.Display.setTextSize(1.0f);
    M5.Display.drawString(sBuf, 120, 188);
  }
  delay(1800);
  needRedraw = true;
}

// ── Loop ─────────────────────────────────────────────────────
void loop() {
  M5Dial.update();
  unsigned long now = millis();

  if (now - lastClockUpdate >= CLOCK_UPDATE_MS) {
    lastClockUpdate = now;
    if (appState == STATE_SCREENSAVER) needRedraw = true;
    if (appState == STATE_MENU) {
      auto rtcNow = M5Dial.Rtc.getDateTime();
      if (rtcNow.time.seconds == 0) needRedraw = true;
    }
  }

  if (now - lastSensorRead >= SENSOR_READ_MS) {
    lastSensorRead = now;
    readSensor();
    if (appState == STATE_SCREENSAVER || appState == STATE_MENU ||
        appState == STATE_ROOMS) needRedraw = true;
  }

  // Registo LittleFS a cada 30 minutos
  if (fsOk && (now - lastLogWrite >= LOG_INTERVAL_MS)) {
    lastLogWrite = now;
    writeLogEntry();
    if (appState == STATE_HISTORY) needRedraw = true;
  }

  long enc = M5Dial.Encoder.read();
  int delta = 0;
  if (enc != lastEnc) {
    delta = (enc - lastEnc) > 0 ? 1 : -1;
    lastEnc = enc;
    lastActivity = now;
  }
  bool pressed = M5Dial.BtnA.wasPressed();
  if (pressed) lastActivity = now;

  auto touch = M5Dial.Touch.getDetail();
  bool touched = touch.wasPressed();
  if (touched) lastActivity = now;

  // Screensaver
  if (appState != STATE_SCREENSAVER && (now - lastActivity) >= SCREENSAVER_MS) {
    appState = STATE_SCREENSAVER;
    needRedraw = true;
  }
  if (appState == STATE_SCREENSAVER) {
    if (touched || delta != 0 || pressed) wakeFromScreensaver();
  }

  // Lógica por estado
  if (appState == STATE_MENU) {
    handleMenuEncoder(delta, pressed);
  } else if (appState == STATE_AC) {
    handleAcEncoder(delta, pressed);
    if (touched) { appState = STATE_MENU; acState.editing = false; needRedraw = true; }
  } else if (appState == STATE_ROOMS) {
    handleRoomsEncoder(delta, pressed);
    if (touched || pressed) { appState = STATE_MENU; needRedraw = true; }
  } else if (appState == STATE_PRESENCE) {
    handlePresenceEncoder(delta, pressed);
    if (touched || pressed) { appState = STATE_MENU; needRedraw = true; }
  } else if (appState == STATE_LIGHTS) {
    handleLightsEncoder(delta, pressed);
    if (touched) { appState = STATE_MENU; lightsEditing = false; needRedraw = true; }
  } else if (appState == STATE_HISTORY) {
    handleHistoryEncoder(delta, pressed);
    if (touched || pressed) { appState = STATE_MENU; needRedraw = true; }
  } else if (appState == STATE_SYSTEM) {
    handleSystemEncoder(delta, pressed);
    if (touched || pressed) { appState = STATE_MENU; needRedraw = true; }
  }

  if (needRedraw) {
    needRedraw = false;
    if      (appState == STATE_MENU)        drawMenu();
    else if (appState == STATE_AC)          drawAc();
    else if (appState == STATE_ROOMS)       drawRooms();
    else if (appState == STATE_PRESENCE)    drawPresence();
    else if (appState == STATE_LIGHTS)      drawLights();
    else if (appState == STATE_HISTORY)     drawHistory();
    else if (appState == STATE_SYSTEM)      drawSystem();
    else if (appState == STATE_SCREENSAVER) drawScreensaver();
  }

  delay(10);
}
