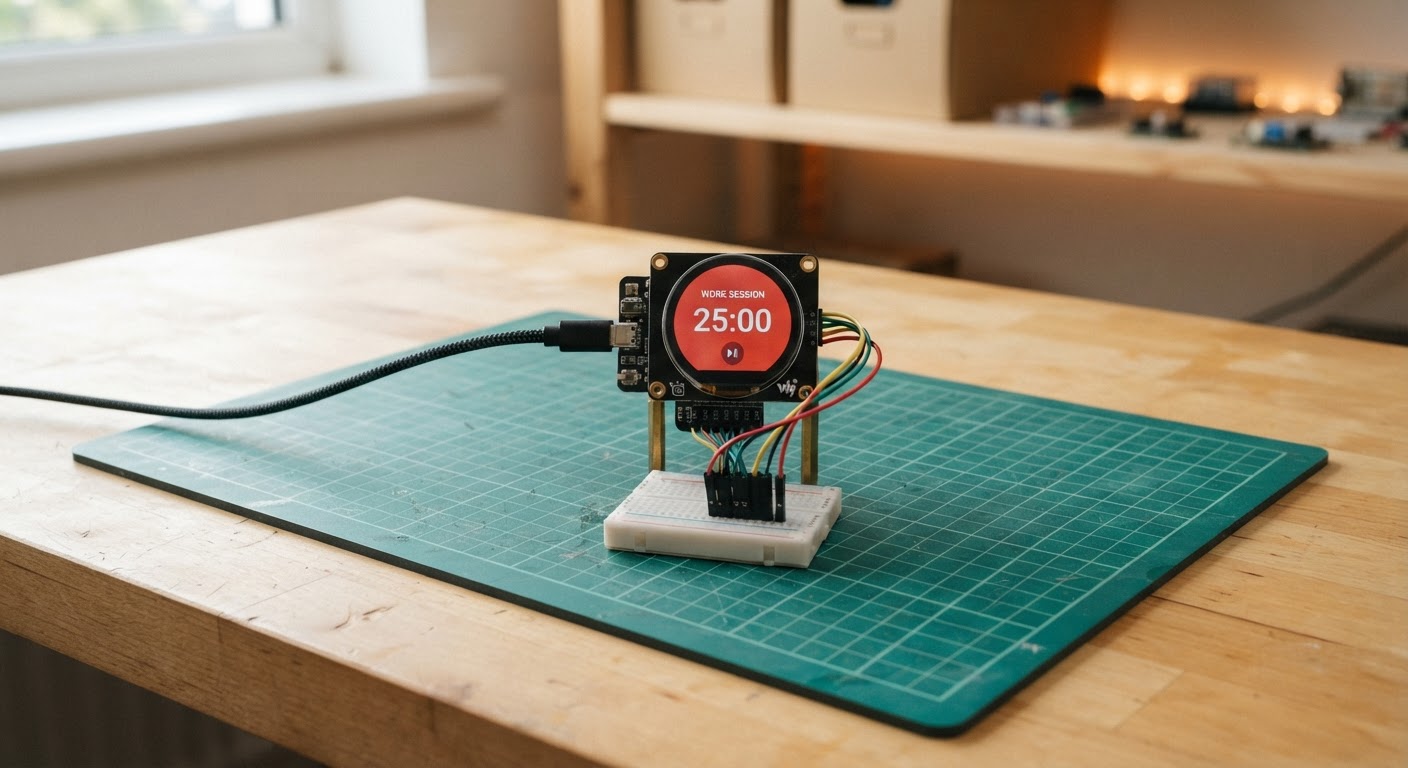

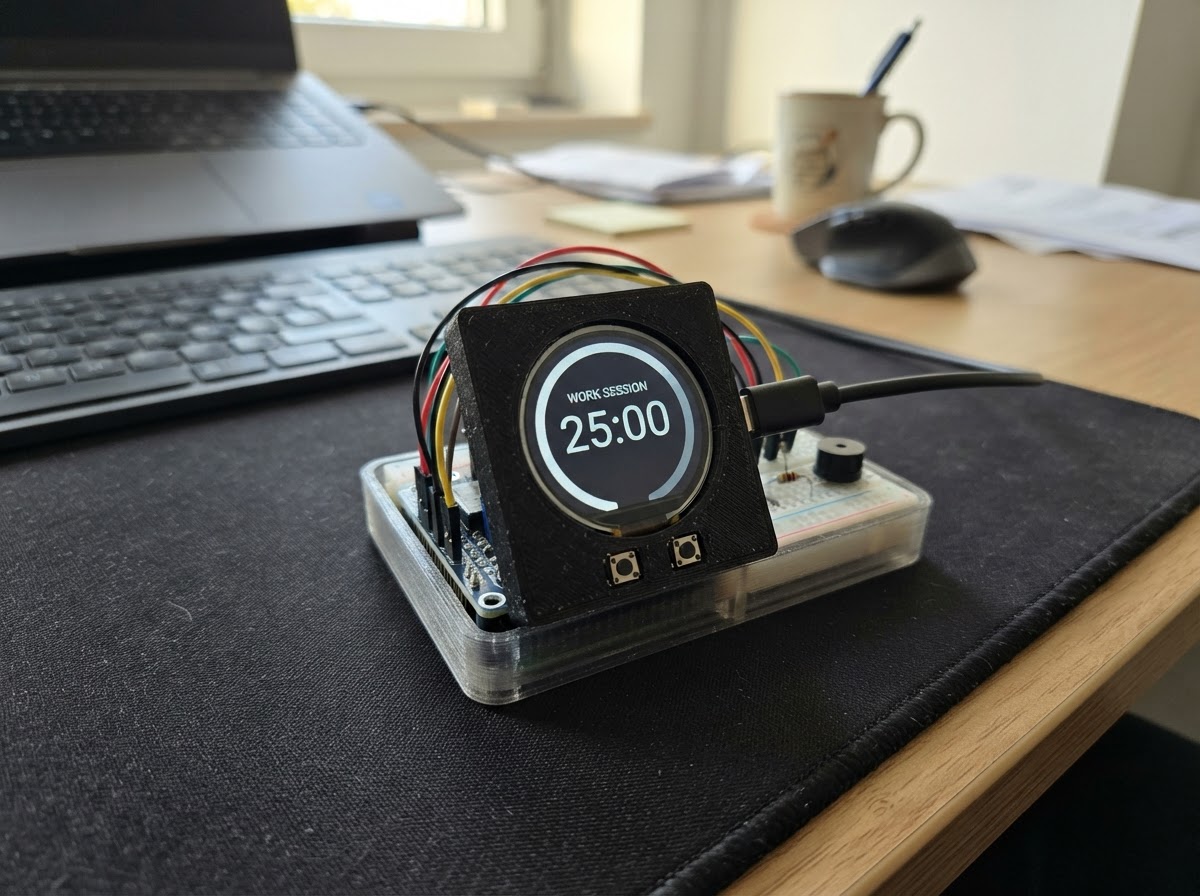

Touchscreen Pomodoro Timer

// ============================================================
// Pomodoro Focus Timer — Waveshare ESP32-S3-Touch-LCD-1.28
// 240×240 round GC9A01 display · CST816S capacitive touch
//
// Controls (touch screen):
//   Single tap      → pause / resume timer
//   Swipe LEFT      → decrease current session by 1 min (min 1)
//   Swipe RIGHT     → increase current session by 1 min (max 60)
//   Long-press (>600ms) → reset / restart session
//   When timer just finished → tap to start next session
//
// States: SETTINGS → FOCUS → BREAK → (loop)
// Confetti fires when focus session completes.
// ============================================================

#include <Arduino.h>
#include <SPI.h>
#include <Wire.h>
#include <TFT_eSPI.h>

// ---- Pin constants ----------------------------------------
#define TFT_BL_PIN        2
#define TOUCH_SDA_PIN     6
#define TOUCH_SCL_PIN     7
#define TOUCH_RST_PIN    13
#define TOUCH_INT_PIN     5

// ---- CST816S registers (I2C addr 0x15) --------------------
#define CST816S_ADDR     0x15
#define REG_GESTURE      0x01
#define REG_FINGER_NUM   0x02
#define REG_XPOS_H       0x03
#define REG_XPOS_L       0x04
#define REG_YPOS_H       0x05
#define REG_YPOS_L       0x06
// Gesture codes
#define GEST_NONE        0x00
#define GEST_SWIPE_UP    0x01
#define GEST_SWIPE_DOWN  0x02
#define GEST_SWIPE_LEFT  0x03
#define GEST_SWIPE_RIGHT 0x04
#define GEST_SINGLE_TAP  0x05
#define GEST_LONG_PRESS  0x0C

// ---- Display ----------------------------------------------

// Hoisted type definitions
enum Phase { FOCUS, BREAK };

enum RunState { RUNNING, PAUSED, DONE };

struct Particle {
  float x, y, vx, vy;
  uint16_t col;
  uint8_t  size;
  bool     alive;
};

struct TouchData { uint8_t gesture; bool touched; int x; int y; };


// Forward declarations
TouchData readTouch();
void initTouch();
void swapPhase();

TFT_eSPI tft = TFT_eSPI();
TFT_eSprite spr = TFT_eSprite(&tft);

// ---- Colours (RGB565) -------------------------------------
#define COL_BG           0x0841   // very dark navy
#define COL_RING_BG      0x2124   // dim grey ring
#define COL_FOCUS        0xF800   // red-orange
#define COL_BREAK        0x07E0   // green
#define COL_PAUSED       0xFFE0   // yellow
#define COL_TEXT         0xFFFF   // white
#define COL_SUB          0xC618   // light grey

// ---- Timer state ------------------------------------------



Phase      phase       = FOCUS;
RunState   runState    = RUNNING;

int focusMinutes  = 25;
int breakMinutes  =  5;

uint32_t sessionSecs = 0;   // total seconds in current session
uint32_t remainSecs  = 0;   // seconds remaining
uint32_t lastTick    = 0;   // millis of last second decrement

// ---- Touch tracking ---------------------------------------
bool     touchWasDown   = false;
uint32_t touchDownAt    = 0;
bool     gestureHandled = false;

// ---- Confetti ---------------------------------------------
#define MAX_CONFETTI 60

Particle particles[MAX_CONFETTI];
bool confettiActive = false;
uint32_t confettiStart = 0;
#define CONFETTI_DURATION_MS 3000

// ---- Forward declarations ---------------------------------
void resetSession();
void drawFace();
void drawArc(float progress, uint16_t colour);
void drawConfettiFrame();
void spawnConfetti();
uint16_t randomCol();

// ---- CST816S helpers --------------------------------------


TouchData readTouch() {
    TouchData td = {GEST_NONE, false, 0, 0};
    Wire.beginTransmission(CST816S_ADDR);
    Wire.write(REG_GESTURE);
    if (Wire.endTransmission(false) != 0) return td;
    Wire.requestFrom((uint8_t)CST816S_ADDR, (uint8_t)6);
    if (Wire.available() < 6) return td;
    uint8_t gest     = Wire.read();
    uint8_t fingers  = Wire.read() & 0x0F;
    uint8_t xh       = Wire.read() & 0x0F;
    uint8_t xl       = Wire.read();
    uint8_t yh       = Wire.read() & 0x0F;
    uint8_t yl       = Wire.read();
    td.gesture = gest;
    td.touched = (fingers > 0);
    td.x = (xh << 8) | xl;
    td.y = (yh << 8) | yl;
    return td;
}

void initTouch() {
    pinMode(TOUCH_RST_PIN, OUTPUT);
    digitalWrite(TOUCH_RST_PIN, LOW);  delay(20);
    digitalWrite(TOUCH_RST_PIN, HIGH); delay(50);
    Wire.begin(TOUCH_SDA_PIN, TOUCH_SCL_PIN, 400000UL);
}

// ---- Helpers ----------------------------------------------
void resetSession() {
    sessionSecs = (uint32_t)(phase == FOCUS ? focusMinutes : breakMinutes) * 60;
    remainSecs  = sessionSecs;
    runState    = RUNNING;
    lastTick    = millis();
    confettiActive = false;
}

void swapPhase() {
    phase = (phase == FOCUS) ? BREAK : FOCUS;
    resetSession();
}

// ---- Arc drawing ------------------------------------------
#define ARC_R    105   // outer radius of arc
#define ARC_W    10    // arc width in pixels
#define CX       120
#define CY       120

void drawArc(float progress, uint16_t colour) {
    // Draw background arc (dim)
    for (int deg = 0; deg < 360; deg++) {
        float rad = deg * 0.01745329f;
        int x0 = CX + (int)((ARC_R - ARC_W) * sinf(rad));
        int y0 = CY - (int)((ARC_R - ARC_W) * cosf(rad));
        int x1 = CX + (int)(ARC_R * sinf(rad));
        int y1 = CY - (int)(ARC_R * cosf(rad));
        spr.drawLine(x0, y0, x1, y1, COL_RING_BG);
    }
    // Draw foreground arc (progress)
    int endDeg = (int)(progress * 360.0f);
    for (int deg = 0; deg < endDeg; deg++) {
        float rad = deg * 0.01745329f;
        int x0 = CX + (int)((ARC_R - ARC_W) * sinf(rad));
        int y0 = CY - (int)((ARC_R - ARC_W) * cosf(rad));
        int x1 = CX + (int)(ARC_R * sinf(rad));
        int y1 = CY - (int)(ARC_R * cosf(rad));
        spr.drawLine(x0, y0, x1, y1, colour);
    }
}

// ---- Confetti helpers -------------------------------------
uint16_t randomCol() {
    static const uint16_t cols[] = {0xF800, 0x07E0, 0x001F, 0xFFE0, 0xF81F, 0x07FF, 0xFD20};
    return cols[random(0, 7)];
}

void spawnConfetti() {
    for (int i = 0; i < MAX_CONFETTI; i++) {
        particles[i].x    = random(30, 210);
        particles[i].y    = random(30, 100);
        particles[i].vx   = ((float)random(-30, 30)) / 10.0f;
        particles[i].vy   = ((float)random(5, 20))   / 10.0f;
        particles[i].col  = randomCol();
        particles[i].size = random(2, 5);
        particles[i].alive = true;
    }
    confettiActive = true;
    confettiStart  = millis();
}

void drawConfettiFrame() {
    for (int i = 0; i < MAX_CONFETTI; i++) {
        if (!particles[i].alive) continue;
        particles[i].x += particles[i].vx;
        particles[i].y += particles[i].vy;
        particles[i].vy += 0.15f;  // gravity
        if (particles[i].y > 240 || particles[i].x < 0 || particles[i].x > 240)
            particles[i].alive = false;
        else
            spr.fillRect((int)particles[i].x, (int)particles[i].y,
                         particles[i].size, particles[i].size, particles[i].col);
    }
}

// ---- Main face drawing ------------------------------------
void drawFace() {
    spr.fillSprite(COL_BG);

    uint16_t arcCol = (runState == PAUSED) ? COL_PAUSED :
                      (phase == FOCUS)      ? COL_FOCUS  : COL_BREAK;

    float progress = (sessionSecs > 0) ?
        1.0f - ((float)remainSecs / (float)sessionSecs) : 1.0f;

    if (runState != DONE) {
        drawArc(progress, arcCol);
    }

    if (confettiActive) {
        drawConfettiFrame();
    }

    // ---- Centre text ----
    spr.setTextDatum(MC_DATUM);

    if (runState == DONE) {
        // "DONE!" splash with confetti still going
        spr.setTextColor(COL_FOCUS, COL_BG);
        spr.setTextSize(1);
        spr.loadFont(""); // default
        spr.drawString(phase == BREAK ? "BREAK!" : "DONE!", CX, CY - 16, 4);
        spr.setTextColor(COL_SUB, COL_BG);
        spr.drawString("tap to continue", CX, CY + 20, 2);
        if (confettiActive) drawConfettiFrame();
    } else {
        // Countdown mm:ss
        uint32_t mins = remainSecs / 60;
        uint32_t secs = remainSecs % 60;
        char timeBuf[8];
        snprintf(timeBuf, sizeof(timeBuf), "%02u:%02u", mins, secs);
        spr.setTextColor(COL_TEXT, COL_BG);
        spr.drawString(timeBuf, CX, CY - 10, 6);

        // Phase label
        const char* label = (phase == FOCUS) ? "FOCUS" : "BREAK";
        uint16_t labelCol = (phase == FOCUS) ? COL_FOCUS : COL_BREAK;
        spr.setTextColor(labelCol, COL_BG);
        spr.drawString(label, CX, CY + 34, 2);

        // Paused indicator
        if (runState == PAUSED) {
            spr.setTextColor(COL_PAUSED, COL_BG);
            spr.drawString("paused", CX, CY + 54, 2);
        }

        // Adjustment hint (bottom)
        spr.setTextColor(COL_SUB, COL_BG);
        spr.drawString("< swipe > to adjust", CX, 200, 1);
        spr.drawString("tap: pause/resume", CX, 212, 1);
        spr.drawString("hold: reset", CX, 224, 1);
    }

    spr.pushSprite(0, 0);
}

// ---- setup() ----------------------------------------------
void setup() {
    Serial.begin(115200);

    // Backlight on
    pinMode(TFT_BL_PIN, OUTPUT);
    digitalWrite(TFT_BL_PIN, HIGH);

    // Display init
    tft.init();
    tft.setRotation(0);
    tft.fillScreen(TFT_BLACK);

    // Sprite (full-screen double buffer)
    spr.createSprite(240, 240);
    spr.setSwapBytes(true);

    // Touch
    initTouch();

    // Seed RNG
    randomSeed(esp_random());

    // Start first session
    resetSession();

    Serial.println("Pomodoro timer ready.");
}

// ---- loop() -----------------------------------------------
void loop() {
    uint32_t now = millis();

    // ---- Tick timer ----
    if (runState == RUNNING && (now - lastTick >= 1000)) {
        lastTick += 1000;
        if (remainSecs > 0) {
            remainSecs--;
        }
        if (remainSecs == 0 && runState == RUNNING) {
            runState = DONE;
            if (phase == FOCUS) spawnConfetti();
        }
    }

    // ---- Advance confetti timeout ----
    if (confettiActive && (now - confettiStart > CONFETTI_DURATION_MS)) {
        confettiActive = false;
    }

    // ---- Touch handling ----
    TouchData td = readTouch();

    if (td.touched && !touchWasDown) {
        // touch just pressed
        touchWasDown   = true;
        touchDownAt    = now;
        gestureHandled = false;
    }

    if (td.touched && touchWasDown && !gestureHandled) {
        uint32_t held = now - touchDownAt;

        // Long-press → reset
        if (held > 600) {
            gestureHandled = true;
            resetSession();
        }
        // Swipe detected
        else if (td.gesture == GEST_SWIPE_LEFT && !gestureHandled) {
            gestureHandled = true;
            if (runState == DONE) {
                // ignore swipe on done screen, treat as tap
            } else {
                if (phase == FOCUS) focusMinutes  = max(1, focusMinutes  - 1);
                else                breakMinutes  = max(1, breakMinutes  - 1);
                // Adjust remaining proportionally
                sessionSecs = (uint32_t)(phase == FOCUS ? focusMinutes : breakMinutes) * 60;
                remainSecs  = sessionSecs; // restart with new duration
            }
        }
        else if (td.gesture == GEST_SWIPE_RIGHT && !gestureHandled) {
            gestureHandled = true;
            if (runState != DONE) {
                if (phase == FOCUS) focusMinutes  = min(60, focusMinutes  + 1);
                else                breakMinutes  = min(60, breakMinutes  + 1);
                sessionSecs = (uint32_t)(phase == FOCUS ? focusMinutes : breakMinutes) * 60;
                remainSecs  = sessionSecs;
            }
        }
    }

    if (!td.touched && touchWasDown) {
        // finger lifted
        uint32_t held = now - touchDownAt;
        if (!gestureHandled && held < 600) {
            // Short tap
            if (runState == DONE) {
                // Move to next phase
                swapPhase();
            } else if (runState == RUNNING) {
                runState = PAUSED;
            } else if (runState == PAUSED) {
                runState  = RUNNING;
                lastTick  = now;   // avoid large tick jump
            }
        }
        touchWasDown   = false;
        gestureHandled = false;
    }

    // ---- Draw ----
    drawFace();

    // Small delay to keep ~30 fps without hogging the CPU
    delay(33);
}
