Ultrasonic Parking Sensor

ESP32

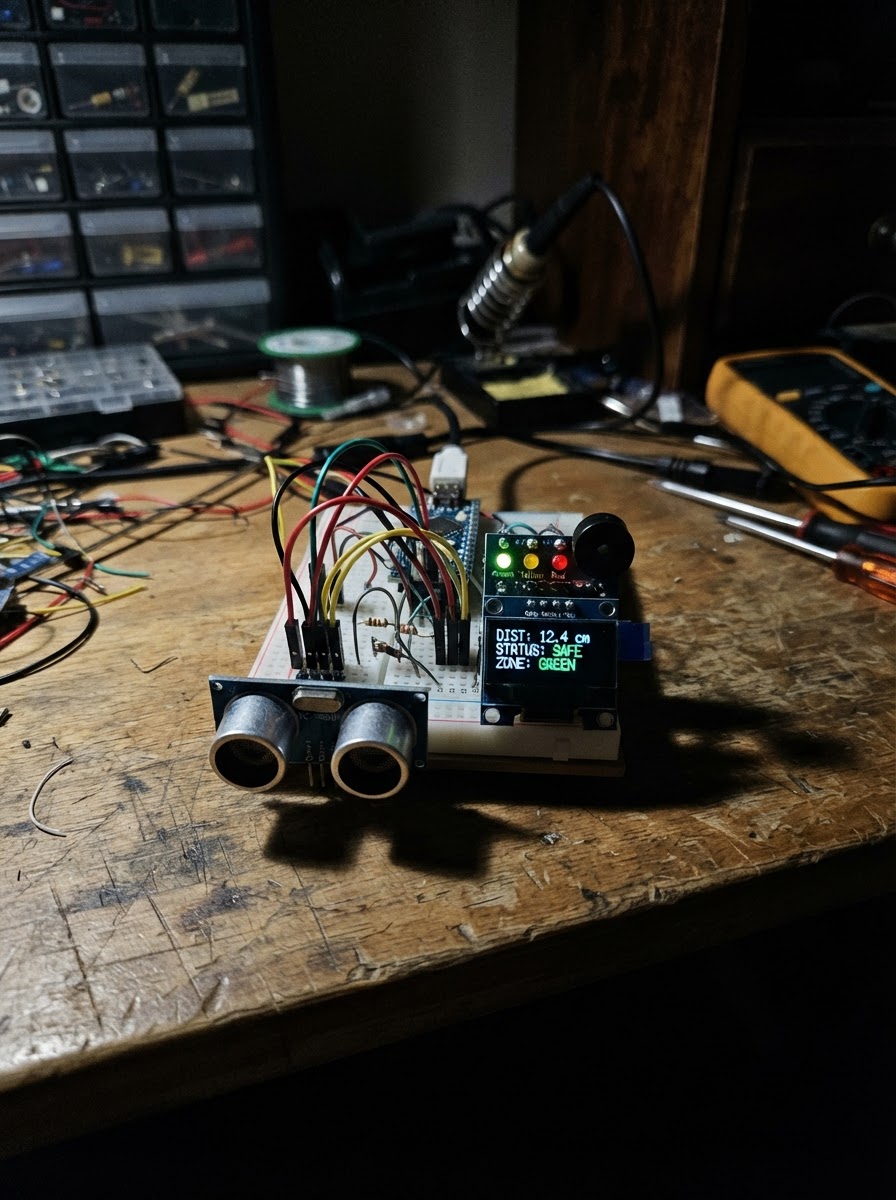

Photo of Ultrasonic Parking Sensor
Generated with AI

Greg Castaldi

Published August 28, 2026

This ultrasonic parking sensor uses an HC-SR04P distance sensor to detect obstacles and provide real-time feedback as an object approaches. The ESP32 processes distance measurements and drives a three-color LED indicator (green, yellow, red) along with a piezo buzzer that accelerates its beeping as the distance decreases, displaying the current distance on a small OLED screen.

The guide includes a complete wiring diagram, parts list with recommended resistor values, and step-by-step assembly instructions. After uploading the firmware, the sensor can be tested against a wall to verify that the LED states and buzzer timing respond correctly at different distances, making it suitable for vehicle backup applications or obstacle detection in tight spaces.

Wiring diagram

Wiring diagram for Ultrasonic Parking Sensor

Gather all the parts

QtyComponent
1

HC-SR04P Ultrasonic Distance Sensor

3.3V-compatible ultrasonic distance sensor for measuring the gap to an object.

1

0.96 inch SSD1306 OLED Display

Small I2C display for the live distance reading and warning state.

1

Green LED

Clear-zone indicator. Use a current-limiting resistor in series.

1

Yellow LED

Caution-zone indicator. Use a current-limiting resistor in series.

1

Red LED

Stop-zone indicator. Use a current-limiting resistor in series.

1

Passive Piezo Buzzer

Audible warning that beeps faster in the stop zone.

1

220 Ω resistor

Current limiting or transistor-base resistor required by the wiring.

Assemble it in 4 steps

1. Wire the distance sensor

Connect the HC-SR04P VCC and GND to the ESP32 3V3 and GND rails, then connect TRIG to GPIO27 and ECHO to GPIO26.

  • Use the HC-SR04P 3.3V-compatible module, not a 5V-only HC-SR04, unless you add proper level shifting.
  • Do not connect a 5V echo signal directly to an ESP32 GPIO.

2. Add the display

Connect the SSD1306 OLED to the same 3V3 and GND rails, with SDA on GPIO21 and SCL on GPIO22.

  • If the OLED stays blank, check whether your module uses address 0x3C or 0x3D.

3. Add the warning outputs

Connect the green LED to GPIO14, yellow LED to GPIO12, red LED to GPIO13, and the passive buzzer signal pin to GPIO25. Each LED should use a current-limiting resistor.

  • Place the LEDs left to right as green, yellow, red so the warning pattern reads naturally.
  • Do not drive bare LEDs directly from GPIO without resistors.

4. Upload and test against a wall

Upload the sketch, aim the sensor at a flat surface, and move it from about one metre away to the stop zone. The OLED, LEDs, and buzzer should change together.

  • Cardboard, foam board, or a book makes a better test target than a thin chair leg.
  • This is a learning aid, not a safety-rated vehicle parking system.

Review all connections

1. Connections between "hc-sr04p-ultrasonic-sensor_0" and "ESP32"

Functionhc-sr04p-ultrasonic-sensor_0ESP32
powerVCC3V3
groundGNDGND
digitalTRIGGPIO 27
digitalECHOGPIO 26

2. Connections between "ssd1306-oled_0" and "ESP32"

Functionssd1306-oled_0ESP32
powerVCC3V3
groundGNDGND
i2cSDAGPIO 21
i2cSCLGPIO 22

3. Connections between "green-led_0" and "ESP32"

Functiongreen-led_0ESP32
digitalANODEGPIO 14
groundCATHODEGND

4. Connections between "yellow-led_0" and "ESP32"

Functionyellow-led_0ESP32
digitalANODEGPIO 12
groundCATHODEGND

5. Connections between "red-led_0" and "ESP32"

Functionred-led_0ESP32
digitalANODEGPIO 13
groundCATHODEGND

6. Connections between "passive-buzzer_0" and "ESP32"

Functionpassive-buzzer_0ESP32
digitalSIGGPIO 25
groundGNDGND

7. Connections between "esp32-ultrasonic-parking-sensor-220-ohm-resistor-1" and "ESP32"

Functionesp32-ultrasonic-parking-sensor-220-ohm-resistor-1ESP32
current-limitgreen-led:ANODEGPIO 14
current-limitgreen-led:ANODEEXT
current-limityellow-led:ANODEGPIO 12
current-limityellow-led:ANODEEXT
current-limitred-led:ANODEGPIO 13
current-limitred-led:ANODEEXT

Deploy the firmware

schematik_esp32.inoOpen in Schematik
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

#define TRIG_PIN 27
#define ECHO_PIN 26
#define GREEN_LED_PIN 14
#define YELLOW_LED_PIN 12
#define RED_LED_PIN 13
#define BUZZER_PIN 25
#define SDA_PIN 21
#define SCL_PIN 22
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64

const int SAFE_DISTANCE_CM = 70;
const int CAUTION_DISTANCE_CM = 35;
const int STOP_DISTANCE_CM = 18;

Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);
float smoothedDistance = 100;
unsigned long lastBeepMs = 0;
bool buzzerOn = false;

float readDistanceCm() {
  digitalWrite(TRIG_PIN, LOW);
  delayMicroseconds(2);
  digitalWrite(TRIG_PIN, HIGH);
  delayMicroseconds(10);
  digitalWrite(TRIG_PIN, LOW);

  unsigned long duration = pulseIn(ECHO_PIN, HIGH, 30000);
  if (duration == 0) return smoothedDistance;
  return duration / 58.0;
}

void setOutputs(float distanceCm) {
  bool safe = distanceCm > SAFE_DISTANCE_CM;
  bool caution = distanceCm <= SAFE_DISTANCE_CM && distanceCm > CAUTION_DISTANCE_CM;
  bool warning = distanceCm <= CAUTION_DISTANCE_CM;

  digitalWrite(GREEN_LED_PIN, safe ? HIGH : LOW);
  digitalWrite(YELLOW_LED_PIN, caution ? HIGH : LOW);
  digitalWrite(RED_LED_PIN, warning ? HIGH : LOW);

  if (!warning) {
    noTone(BUZZER_PIN);
    buzzerOn = false;
    return;
  }

  int interval = distanceCm <= STOP_DISTANCE_CM ? 120 : 320;
  if (millis() - lastBeepMs > interval) {
    lastBeepMs = millis();
    buzzerOn = !buzzerOn;
    if (buzzerOn) tone(BUZZER_PIN, distanceCm <= STOP_DISTANCE_CM ? 1800 : 1200);
    else noTone(BUZZER_PIN);
  }
}

void drawDisplay(float distanceCm) {
  display.clearDisplay();
  display.setTextColor(SSD1306_WHITE);
  display.setTextSize(1);
  display.setCursor(0, 0);
  display.println("Parking sensor");
  display.setTextSize(2);
  display.setCursor(0, 18);
  display.print(distanceCm, 0);
  display.println(" cm");
  display.setTextSize(1);
  display.setCursor(0, 48);
  if (distanceCm <= STOP_DISTANCE_CM) display.println("STOP");
  else if (distanceCm <= CAUTION_DISTANCE_CM) display.println("Slow down");
  else if (distanceCm <= SAFE_DISTANCE_CM) display.println("Getting close");
  else display.println("Clear");
  display.display();
}

void setup() {
  pinMode(TRIG_PIN, OUTPUT);
  pinMode(ECHO_PIN, INPUT);
  pinMode(GREEN_LED_PIN, OUTPUT);
  pinMode(YELLOW_LED_PIN, OUTPUT);
  pinMode(RED_LED_PIN, OUTPUT);
  pinMode(BUZZER_PIN, OUTPUT);

  Wire.begin(SDA_PIN, SCL_PIN);
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
  display.clearDisplay();
  display.display();
}

void loop() {
  float reading = readDistanceCm();
  smoothedDistance = (smoothedDistance * 0.75) + (reading * 0.25);
  setOutputs(smoothedDistance);
  drawDisplay(smoothedDistance);
  delay(80);
}
