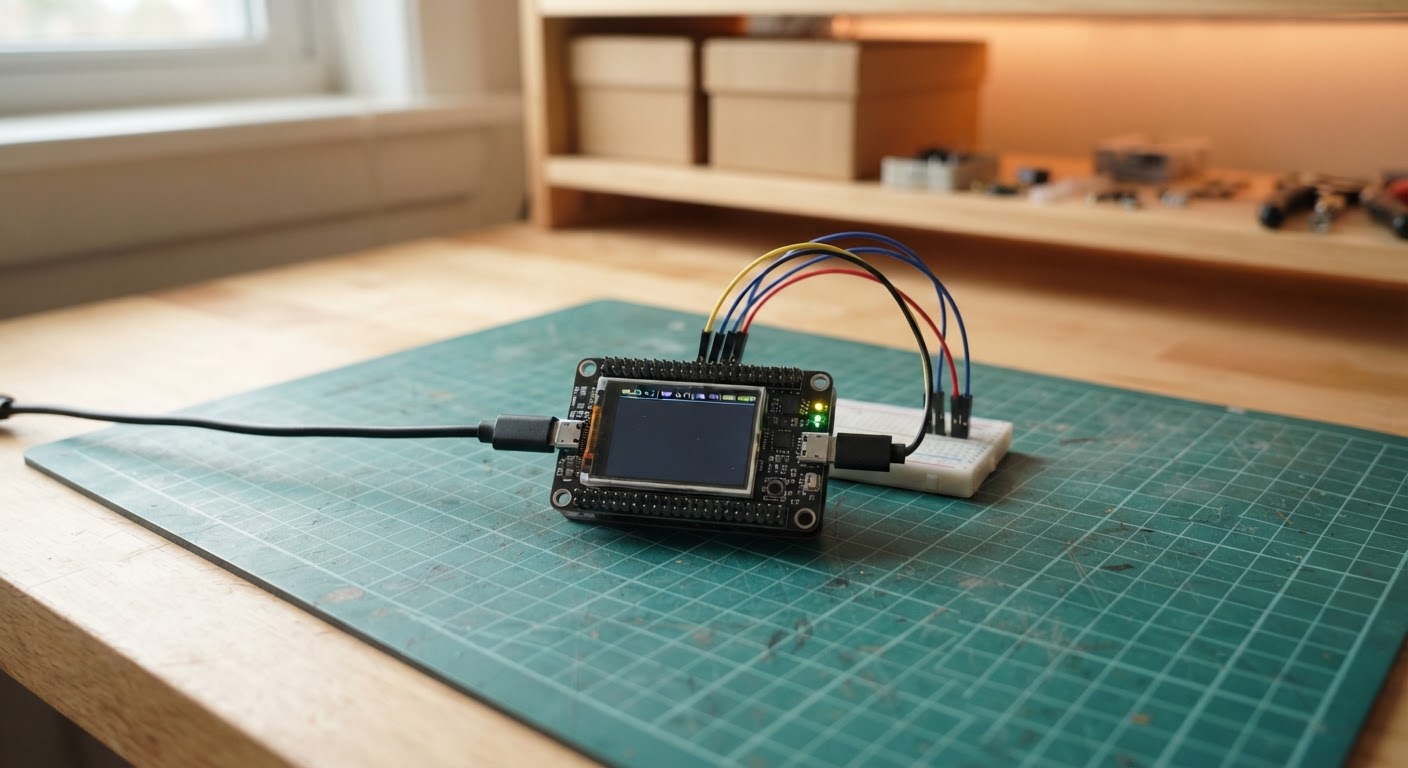

Unihiker K10 K10

#include <Arduino.h>
#include <math.h>
#include "unihiker_k10.h"



struct Spark {
  int startX;
  int startY;
  float vx;
  float vy;
  uint16_t lifeMs;
  uint16_t ageMs;
  int lastX;
  int lastY;
  int lastRadius;
  bool wasDrawn;
};

// Forward declarations
uint32_t nextRandom();
int randomRange(int low, int high);
void dot(int x, int y, int radius, uint16_t color);
void pointedPetal(int baseX, int baseY, int tipX, int tipY, int width, uint16_t edge, uint16_t fill);
void drawPad(int x, int y, int radius);
void drawPond();
void drawStemAndRipples();
void drawLotusStage(uint8_t stage);
void coverLotusForNextBloom();
void startIronSparks();
void updateIronSparks(uint32_t now);
void coverSparkPixel(int x, int y, int radius);
void sampleShake(uint32_t now);

UNIHIKER_K10 k10;

// The K10 canvas is 240 x 320 in this orientation.
const uint16_t SKY = 0x75DE;
const uint16_t WATER = 0x1C9F;
const uint16_t WATER_SHADOW = 0x0B56;
const uint16_t RIPPLE = 0x7EFF;
const uint16_t PAD_DARK = 0x05A0;
const uint16_t PAD_LIGHT = 0x07E0;
const uint16_t STEM = 0x04A0;
// Lavender-pink lotus palette. PETAL_MID is RGB565 for approximately
// RGB(221,182,251); shadow and highlight colours make overlapping pointed
// petals read as layered, while each circular drawing unit remains outline=fill.
const uint16_t PETAL_OUTER = 0xBC7C;  // approx. RGB(189,143,226), rear-petal shadow
const uint16_t PETAL_MID = 0xDDBF;    // approx. RGB(221,182,251), main petal colour
const uint16_t PETAL_LIGHT = 0xEE9F;  // approx. RGB(238,214,255), front-petal highlight
const uint16_t PETAL_VEIN = 0xCCFD;
const uint16_t GOLD = 0xFE40;
const uint16_t SPARK_ORANGE = 0xFC40;
const uint16_t SPARK_GOLD = 0xFFE0;
const uint16_t WHITE = 0xFFFF;

const uint32_t FLOWER_STEP_MS = 125;
const uint32_t SENSOR_SAMPLE_MS = 20;
// Keep the complete iron-flower performance visible before restoring the lotus.
const uint32_t SPARK_TIME_MS = 2200;
const uint32_t SPARK_FRAME_MS = 50;
const uint32_t RETRIGGER_LOCKOUT_MS = 700;
const uint8_t SPARK_COUNT = 96;

uint32_t lastFlowerStep = 0;
uint32_t lastSensorSample = 0;
uint32_t sparkStartedAt = 0;
uint32_t lastTriggerAt = 0;
uint32_t lastSparkFrame = 0;
uint8_t bloomStep = 0;
bool sparksVisible = false;
float gravityBaseline = 0.0f;
bool baselineReady = false;
uint8_t quietSamples = 0;

// Each spark keeps its own flight and brightness. They are drawn as small local
// overlays and erased with pond colours before their next position is drawn.

Spark sparks[SPARK_COUNT];

uint32_t rngState = 0x9E3779B9UL;

uint32_t nextRandom() {
  rngState = rngState * 1664525UL + 1013904223UL;
  return rngState;
}

int randomRange(int low, int high) {
  return low + (int)(nextRandom() % (uint32_t)(high - low));
}

void dot(int x, int y, int radius, uint16_t color) {
  k10.canvas->canvasCircle(x, y, radius, color, color, true);
}

// A pointed petal is built from overlapping, progressively smaller circles.
// It has a wide base and a narrow pointed tip instead of the old round flower blobs.
void pointedPetal(int baseX, int baseY, int tipX, int tipY, int width, uint16_t edge, uint16_t fill) {
  const int layers = 9;
  for (int i = 0; i < layers; ++i) {
    float t = (float)i / (float)(layers - 1);
    int x = baseX + (int)((tipX - baseX) * t);
    int y = baseY + (int)((tipY - baseY) * t);
    int r = 2 + (int)((1.0f - t) * width);
    // Every circle uses one identical outline/fill colour. The taper comes from
    // the overlap geometry, not from a contrasting circular border.
    dot(x, y, r + 1, fill);
    dot(x, y, r, fill);
  }
  // The final small dot creates a visibly sharp tip.
  dot(tipX, tipY, 2, fill);
  dot(tipX, tipY, 1, fill);
}

void drawPad(int x, int y, int radius) {
  dot(x, y, radius, PAD_DARK);
  dot(x - 3, y - 3, radius - 5, PAD_LIGHT);
  // Notch and centre highlight suggest a real floating lotus leaf.
  dot(x + radius / 2, y - radius / 2, 7, WATER);
  dot(x - 4, y - 4, 3, 0x9EEC);
}

void drawPond() {
  k10.setScreenBackground(SKY);
  k10.canvas->canvasClear();

  // Still water is a static base; it is never cleared during animation.
  dot(25, 77, 60, WATER);
  dot(102, 85, 62, WATER);
  dot(192, 79, 64, WATER);
  dot(30, 174, 74, WATER);
  dot(115, 175, 72, WATER);
  dot(205, 176, 77, WATER);
  dot(40, 280, 86, WATER_SHADOW);
  dot(130, 282, 90, WATER_SHADOW);
  dot(220, 280, 83, WATER_SHADOW);

  drawPad(32, 225, 30);
  drawPad(205, 228, 34);
  drawPad(39, 293, 36);
  drawPad(205, 290, 39);

  for (int i = 0; i < 14; ++i) {
    dot(randomRange(8, 232), randomRange(75, 309), 2, RIPPLE);
  }
}

void drawStemAndRipples() {
  for (int y = 220; y < 291; y += 6) {
    dot(120, y, 4, STEM);
  }
  // Concentric dotted ripples at the flower base.
  for (int r = 18; r <= 36; r += 9) {
    for (int a = 0; a < 12; ++a) {
      float angle = 6.2831853f * a / 12.0f;
      dot(120 + (int)(cosf(angle) * r), 235 + (int)(sinf(angle) * r / 3), 1, RIPPLE);
    }
  }
}

// Restore only the flower's local area with water and ripple motifs before a new bloom.
// This intentionally uses patterned coverage rather than clearing or refreshing the screen.
void coverLotusForNextBloom() {
  dot(120, 185, 58, WATER);
  dot(120, 214, 54, WATER);
  dot(120, 236, 42, WATER);
  for (int r = 16; r <= 43; r += 9) {
    for (int a = 0; a < 12; ++a) {
      float angle = 6.2831853f * a / 12.0f;
      dot(120 + (int)(cosf(angle) * r), 225 + (int)(sinf(angle) * r / 3), 1, RIPPLE);
    }
  }
}

void drawLotusStage(uint8_t stage) {
  // Each stage only adds new petal shapes. No screen clear and no background redraw.
  const int cx = 120;
  const int cy = 191;
  int spread = 13 + stage * 4;
  int rise = 12 + stage * 3;

  drawStemAndRipples();

  // Rear ring: cool pink shadow petals.
  pointedPetal(cx - 8, cy + 16, cx - spread - 22, cy + 9, 10 + stage, PETAL_OUTER, PETAL_MID);
  pointedPetal(cx + 8, cy + 16, cx + spread + 22, cy + 9, 10 + stage, PETAL_OUTER, PETAL_MID);
  pointedPetal(cx - 5, cy + 14, cx - spread, cy - rise - 17, 10 + stage, PETAL_OUTER, PETAL_MID);
  pointedPetal(cx + 5, cy + 14, cx + spread, cy - rise - 17, 10 + stage, PETAL_OUTER, PETAL_MID);

  // Front ring: lighter petals with narrow, tapered tips.
  pointedPetal(cx - 14, cy + 15, cx - spread - 9, cy - 10, 9 + stage, PETAL_MID, PETAL_LIGHT);
  pointedPetal(cx + 14, cy + 15, cx + spread + 9, cy - 10, 9 + stage, PETAL_MID, PETAL_LIGHT);
  pointedPetal(cx, cy + 16, cx, cy - rise - 30, 9 + stage, PETAL_MID, PETAL_LIGHT);

  // The seedpod is visible only once the flower is sufficiently open.
  if (stage >= 4) {
    dot(cx, cy + 5, 11, GOLD);
    for (int i = 0; i < 6; ++i) {
      float a = 6.2831853f * i / 6.0f;
      dot(cx + (int)(cosf(a) * 5), cy + 5 + (int)(sinf(a) * 4), 1, 0xA540);
    }
  }
}

// Cover only the previous spark's small footprint. There is deliberately no
// black erase colour: every fading point is replaced by a water/sky highlight.
void coverSparkPixel(int x, int y, int radius) {
  uint16_t base = (y < 72) ? SKY : ((y > 250) ? WATER_SHADOW : WATER);
  dot(x, y, radius + 1, base);
  if (y >= 72 && (x + y) % 3 == 0) {
    dot(x + 1, y, 1, RIPPLE);
  }
}

void startIronSparks() {
  for (uint8_t i = 0; i < SPARK_COUNT; ++i) {
    Spark &s = sparks[i];
    // Sources span the lower pond, then spread into every part of the 240x320 view.
    s.startX = randomRange(70, 171);
    s.startY = randomRange(190, 246);
    s.vx = (float)randomRange(-165, 166) / 100.0f;
    s.vy = -(float)randomRange(145, 310) / 100.0f;
    // Each particle remains visible for a substantial part of the performance,
    // so the shower cannot disappear immediately after a valid shake.
    s.lifeMs = randomRange(1050, SPARK_TIME_MS + 1);
    s.ageMs = 0;
    s.lastX = s.startX;
    s.lastY = s.startY;
    s.lastRadius = 0;
    s.wasDrawn = false;
  }
  sparkStartedAt = millis();
  lastSparkFrame = 0;
  sparksVisible = true;
}

void updateIronSparks(uint32_t now) {
  if (!sparksVisible || now - lastSparkFrame < SPARK_FRAME_MS) return;
  uint32_t elapsed = now - sparkStartedAt;
  lastSparkFrame = now;

  for (uint8_t i = 0; i < SPARK_COUNT; ++i) {
    Spark &s = sparks[i];
    if (s.wasDrawn) coverSparkPixel(s.lastX, s.lastY, s.lastRadius);
    if (elapsed >= s.lifeMs) {
      s.wasDrawn = false;
      continue;
    }

    float t = (float)elapsed / 1000.0f;
    float fade = 1.0f - (float)elapsed / (float)s.lifeMs;
    // Ballistic arcs reach the whole canvas: bright molten iron rises, spreads,
    // then falls and fades naturally in the air.
    int x = s.startX + (int)(s.vx * 100.0f * t);
    int y = s.startY + (int)(s.vy * 100.0f * t + 92.0f * t * t);
    if (x < 2 || x > 237 || y < 2 || y > 317) {
      s.wasDrawn = false;
      continue;
    }
    int radius = (fade > 0.72f) ? 3 : ((fade > 0.32f) ? 2 : 1);
    uint16_t color = (fade > 0.72f) ? WHITE : ((fade > 0.38f) ? SPARK_GOLD : SPARK_ORANGE);
    dot(x, y, radius, color);
    // A small tail makes the hot metal read as moving, not as bubbles.
    if (fade > 0.25f) dot(x - (int)(s.vx * 2.0f), y + 2, 1, SPARK_ORANGE);
    s.lastX = x;
    s.lastY = y;
    s.lastRadius = radius;
    s.wasDrawn = true;
  }

  if (elapsed >= SPARK_TIME_MS) {
    // A full visual reset is intentional here: sparks can cross every part of
    // the pond, including lotus leaves and sky. Rebuilding the initial pond
    // removes every fading-star trace instead of trying to patch it with dots.
    drawPond();
    bloomStep = 0;
    lastFlowerStep = now;
    drawLotusStage(bloomStep);
    sparksVisible = false;
  }
  k10.canvas->updateCanvas();
}

void sampleShake(uint32_t now) {
  if (now - lastSensorSample < SENSOR_SAMPLE_MS) return;
  lastSensorSample = now;

  float ax = k10.getAccelerometerX();
  float ay = k10.getAccelerometerY();
  float az = k10.getAccelerometerZ();
  float magnitude = sqrtf(ax * ax + ay * ay + az * az);
  if (!isfinite(magnitude) || magnitude <= 0.001f) return;

  // Works whether this driver reports g or milli-g: the threshold scales from its
  // own measured resting gravity rather than assuming a particular unit.
  if (!baselineReady) {
    gravityBaseline = magnitude;
    baselineReady = true;
    return;
  }
  float deviation = fabsf(magnitude - gravityBaseline);
  // A firm hand swing is detected from a change relative to the measured
  // resting gravity. The lower relative threshold restores reliable triggering
  // across K10 sensor orientations and output units.
  float triggerLevel = fmaxf(gravityBaseline * 0.12f, 0.10f);

  if (deviation < gravityBaseline * 0.07f) {
    gravityBaseline = gravityBaseline * 0.985f + magnitude * 0.015f;
    if (quietSamples < 255) ++quietSamples;
  } else {
    quietSamples = 0;
  }

  if (deviation > triggerLevel && now - lastTriggerAt > RETRIGGER_LOCKOUT_MS) {
    lastTriggerAt = now;
    if (!sparksVisible) startIronSparks();
  }
}

void setup() {
  k10.begin();
  k10.initScreen(2);
  k10.creatCanvas();
  drawPond();
  drawLotusStage(0);
  k10.canvas->updateCanvas();
}

void loop() {
  const uint32_t now = millis();
  sampleShake(now);

  updateIronSparks(now);

  // A slow, event-like bloom: one new overlay every 125 ms, then it remains still.
  if (!sparksVisible && bloomStep < 6 && now - lastFlowerStep >= FLOWER_STEP_MS) {
    lastFlowerStep = now;
    ++bloomStep;
    drawLotusStage(bloomStep);
    k10.canvas->updateCanvas();
  }
}
