Main power input. Adafruit Learn says to power it with the same logic level as the microcontroller, for example 5 V on a 5 V Arduino.
3.3 V regulator output. Learn states up to 100 mA may be drawn from this output.
Common ground for power and logic.
I2C clock line. Learn states it has a 10K pullup and is level shifted for 3-5 VDC use.
I2C data line. Learn states it has a 10K pullup and is level shifted for 3-5 VDC use.
Interrupt output. Learn states it is 3 V logic and can indicate a new reading or threshold event.
STEMMA QT connector for I2C connection to STEMMA QT boards or accessories.
| Pin | Position | Type | Function | Voltage |
|---|---|---|---|---|
| VIN | power | Main power input. Adafruit Learn says to power it with the same logic level as the microcontroller, for example 5 V on a 5 V Arduino. | 3-5V logic/power context from Learn page | |
| 3Vo | power | 3.3 V regulator output. Learn states up to 100 mA may be drawn from this output. | 3.3V output, up to 100mA | |
| GND | ground | Common ground for power and logic. | ||
| SCL | signal | I2C clock line. Learn states it has a 10K pullup and is level shifted for 3-5 VDC use. | 3-5VDC level-shifted logic |

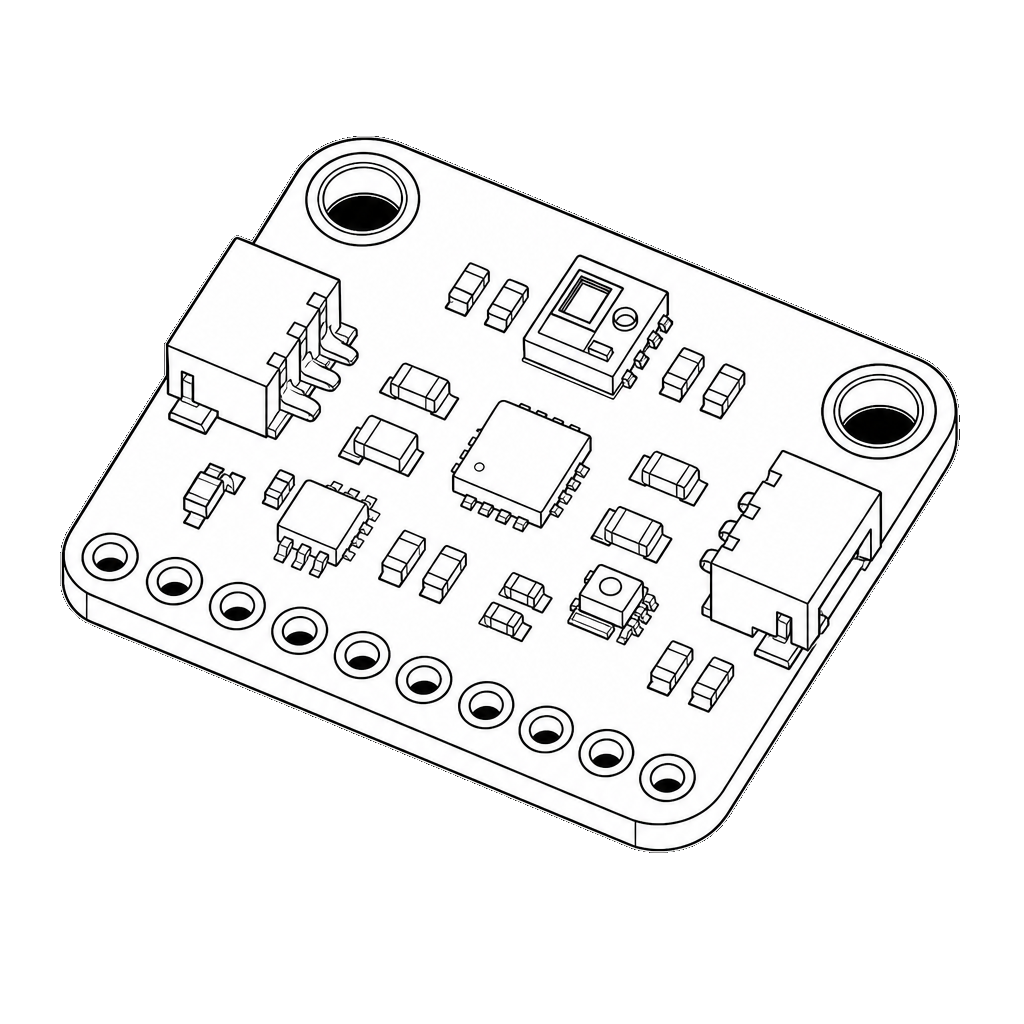

I2C · Analog · 3.3 – 5 V · Breakout
Adafruit describes the CdS photoresistor as a light sensor whose resistance falls as light increases, and its product page gives an examp…
Module pins: VIN, 3Vo, GND, SCL, SDA, INT. Schematik maps them to your board in the app.
