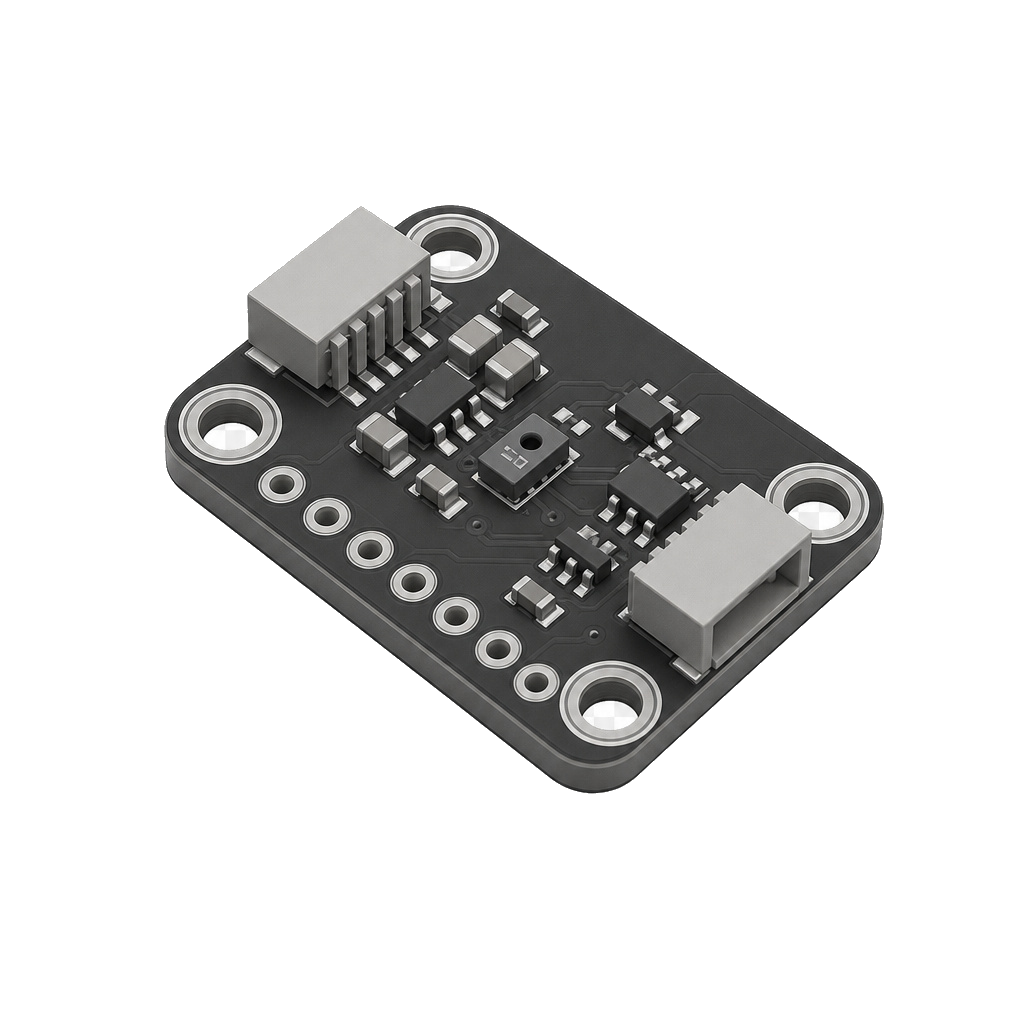

Adafruit AS7341 10-Channel Light / Color Sensor Breakout
Adafruit · 4698
4698Compact I2C multi-channel light and colour sensor breakout with STEMMA QT/Qwiic connectors, level shifting, VIN/GND/SCL/SDA header pads, INT and GPIO pins.
Pinout
| Pin | Position | Type | Function | Voltage |
|---|---|---|---|---|
| VIN | header pad | power | Board power input, regulated down for the AS7341 sensor | 3-5 VDC |
| GND | header pad | ground | Common ground for power and logic | |
| SCL | header pad / STEMMA QT connector | I2C | I2C clock line with onboard pullup | 3-5 V logic, level shifted |
| SDA | header pad / STEMMA QT connector | I2C | I2C data line with onboard pullup | 3-5 V logic, level shifted |
| STEMMA QT | two JST-SH 4-pin connectors | connector | STEMMA QT/Qwiic I2C connector carrying power, ground, SDA and SCL | |
| INT | header pad | digital interrupt | Interrupt output, can pull low when configured measurement conditions are met | |
| GPIO | header pad | digital I/O | AS7341 general-purpose I/O pin, usable for triggering measurements |
Light and colour
4 other optionsPhotoresistors and color sensors both respond to light, but they expose very different signals and are not sensible drop-in substitutes.
Photo cell (CdS photoresistor) visual previewPhoto cell (CdS photoresistor)
Loose CdS light-dependent resistor for simple analog light sensing. Useful for light/dark thresholds and approximate brightness, not color detection.
$0.95
TCS3200 Color Sensor visual previewTCS3200 Color Sensor
TCS3200-based color sensor module with onboard illumination. Use when the design needs color-channel detection and can handle a digital frequency output.
$9.99
Adafruit APDS9999 Proximity, Lux Light & Color Sensor visual previewAdafruit APDS9999 Proximity, Lux Light & Color Sensor
$7.50
DFRobot Ambient Light Sensor 0-200klx visual previewDFRobot Ambient Light Sensor 0-200klx
$8.90
