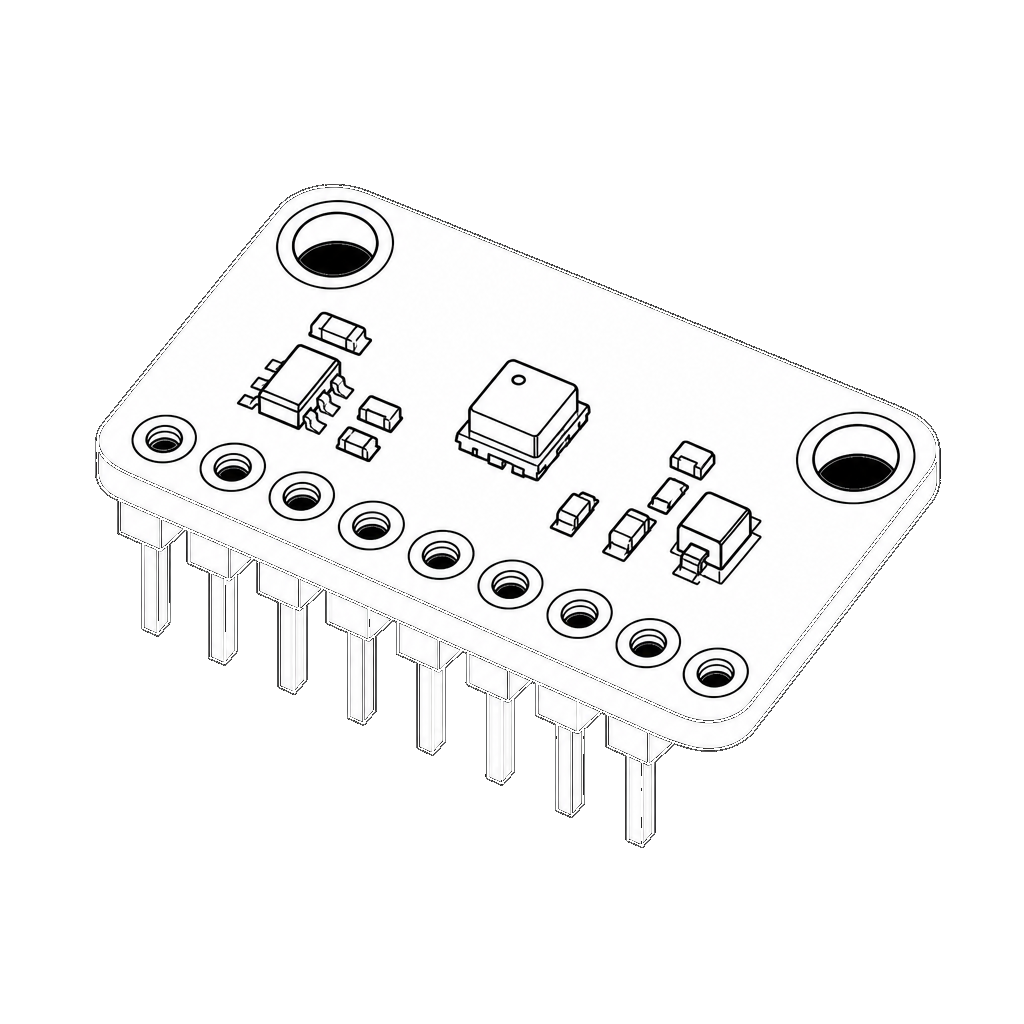

Adafruit BMP388 - Precision Barometric Pressure and Altimeter

Bosch has been a leader in barometric pressure sensors, from the BMP085. BMP180, and BMP280... now we've got the next generation, the Adafruit BMP388 Precision Barometric Pressure sensor. As you would expect, this sensor is similar to its earlier versions but even better.

VIN
Board power input. Adafruit states the onboard regulator takes 3-5VDC and converts it down for the BMP3xx sensor.
Type · powerVoltage · 3-5V DC input
3Vo
3.3V output from the onboard voltage regulator, available for small external loads.
Type · powerVoltage · 3.3V output, up to 100mA per Adafruit guide
GND
Common ground for power and logic.
Type · groundVoltage · 0V
SCK / SCL
SPI clock input, also I2C clock when using I2C mode. Adafruit states breakout inputs are 3-5V logic-level safe.
Type · signalVoltage · 3-5V logic input
SDO
SPI serial data out / MISO from the BMP3xx to the controller.
Type · signalVoltage · 3.3V logic output, readable by 5V microcontrollers

Start wiring

I2C · SPI · 3-5V DC input · 3.3V output, up to 100mA per Adafruit guide

Confirm the data interface matches your host board.

Module pins: VIN, 3Vo, GND, SCK / SCL, SDO, SDA / SDI, CS, INT. Schematik maps them to your board in the app.
