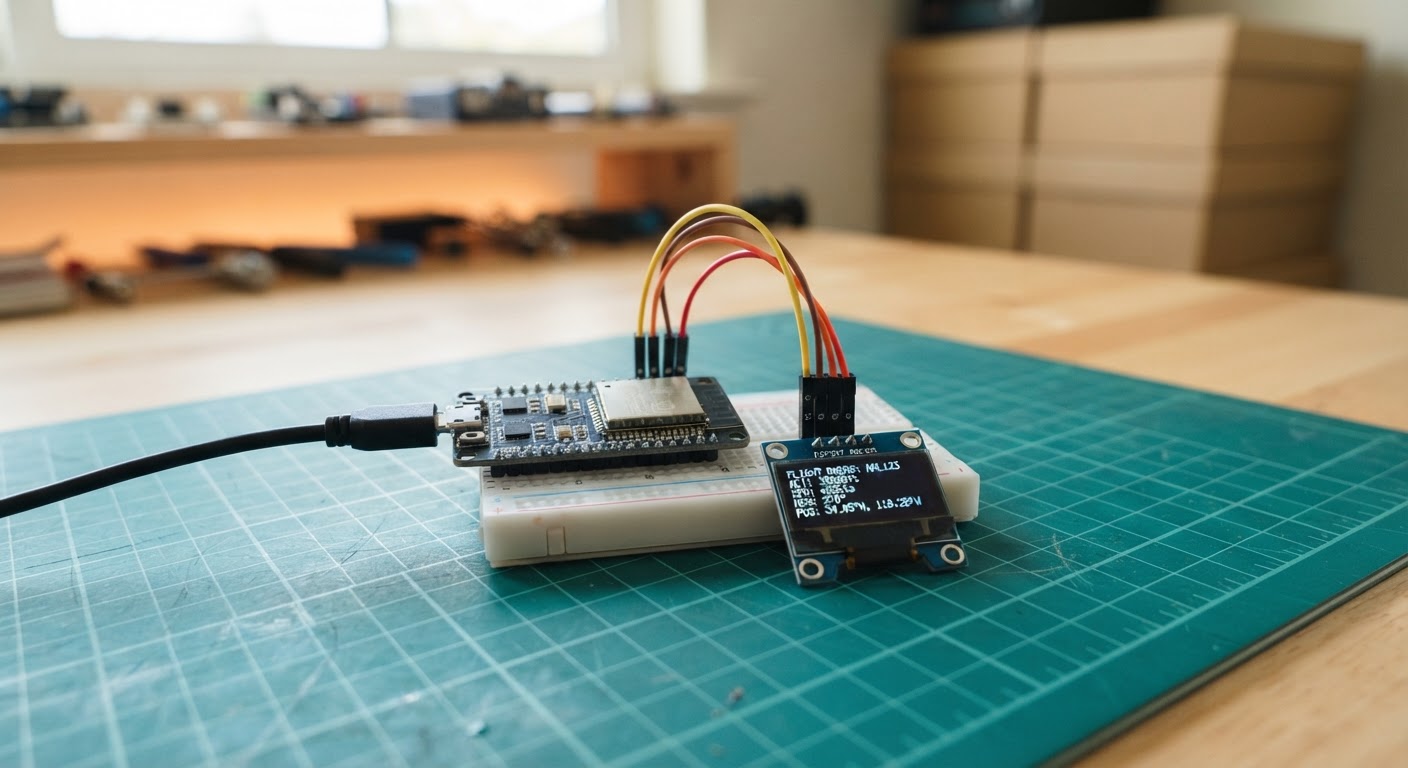

ESP32 Flight Radar Tracker

#include <Arduino.h>
#include <WiFi.h>
#include <HTTPClient.h>
#include <WiFiClientSecure.h>
#include <ArduinoJson.h>
#include <Arduino_GFX_Library.h>
#include <math.h>
#include <ctype.h>
#include <string.h>

struct Aircraft {
  float distanceKm;
  float bearingDeg;
  float trackDeg;
  int altitudeFt;
  int groundSpeedKt;
  char label[10];
  char operatorCode[16];
};

float greatCircleKm(double lat1, double lon1, double lat2, double lon2);
float initialBearing(double lat1, double lon1, double lat2, double lon2);
void drawAircraft(int x, int y, float track);
void drawAircraftPlots();
void drawSweepLine(float angleDeg, uint16_t color);
void drawRadar();
bool fetchAircraft();
void connectWiFi();
void setRearLed(bool redOn, bool greenOn, bool blueOn);

const char *WIFI_SSID = "Your_wifi";
const char *WIFI_PASSWORD = "Your_wifi_password";

constexpr double HOME_LAT = 40.174;
constexpr double HOME_LON = -75.107;
constexpr float RANGE_MILES = 15.0f;
constexpr float RANGE_KM = RANGE_MILES * 1.609344f;
constexpr uint32_t POLL_INTERVAL_MS = 10000;
constexpr uint32_t SWEEP_INTERVAL_MS = 50;  // 20 frames per second.
constexpr float SWEEP_DEGREES_PER_FRAME = 3.0f;
constexpr uint8_t MAX_PLOTS = 24;

// These pins are fixed internally on the ESP32-2432S028R board.
// Renamed to avoid conflicts with macros defined in the board/library headers.
constexpr int PIN_TFT_DC = 2;
constexpr int PIN_TFT_CS = 15;
constexpr int PIN_TFT_SCK = 14;
constexpr int PIN_TFT_MOSI = 13;
constexpr int PIN_TFT_MISO = 12;
constexpr int PIN_TFT_BACKLIGHT = 21;
// Built-in rear RGB LED: common-anode, therefore each channel is active-low.
constexpr int PIN_LED_RED = 4;
constexpr int PIN_LED_GREEN = 16;
constexpr int PIN_LED_BLUE = 17;

constexpr uint16_t C_BLACK = 0x0000;
constexpr uint16_t C_WHITE = 0xFFFF;
constexpr uint16_t C_YELLOW = 0xFFE0;
constexpr uint16_t C_RED = 0xF800;
constexpr uint16_t C_CYAN = 0x07FF;
constexpr uint16_t C_GREEN = 0x07E0;
constexpr uint16_t C_DARK_GREEN = 0x0320;
constexpr uint16_t C_GREY = 0x7BEF;

Arduino_DataBus *bus = new Arduino_ESP32SPI(PIN_TFT_DC, PIN_TFT_CS, PIN_TFT_SCK, PIN_TFT_MOSI, PIN_TFT_MISO, HSPI);
Arduino_GFX *gfx = new Arduino_ILI9341(bus, GFX_NOT_DEFINED, 1, false);

Aircraft aircraft[MAX_PLOTS];
uint8_t aircraftCount = 0;
uint32_t lastPoll = 0;
uint32_t lastSweep = 0;
float sweepAngleDeg = 0.0f;
String statusLine = "Starting...";

void setRearLed(bool redOn, bool greenOn, bool blueOn) {
  digitalWrite(PIN_LED_RED, redOn ? LOW : HIGH);
  digitalWrite(PIN_LED_GREEN, greenOn ? LOW : HIGH);
  digitalWrite(PIN_LED_BLUE, blueOn ? LOW : HIGH);
}

float greatCircleKm(double lat1, double lon1, double lat2, double lon2) {
  const double dLat = radians(lat2 - lat1);
  const double dLon = radians(lon2 - lon1);
  const double a = sin(dLat / 2.0) * sin(dLat / 2.0) +
                   cos(radians(lat1)) * cos(radians(lat2)) * sin(dLon / 2.0) * sin(dLon / 2.0);
  return (float)(6371.0 * 2.0 * atan2(sqrt(a), sqrt(1.0 - a)));
}

float initialBearing(double lat1, double lon1, double lat2, double lon2) {
  const double dLon = radians(lon2 - lon1);
  const double y = sin(dLon) * cos(radians(lat2));
  const double x = cos(radians(lat1)) * sin(radians(lat2)) -
                   sin(radians(lat1)) * cos(radians(lat2)) * cos(dLon);
  float bearing = degrees(atan2(y, x));
  return bearing < 0 ? bearing + 360.0f : bearing;
}

void drawAircraft(int x, int y, float track) {
  const float a = radians(track - 90.0f);
  const int tx = x + (int)(7 * cos(a));
  const int ty = y + (int)(7 * sin(a));
  const int lx = x + (int)(4 * cos(a + 2.45f));
  const int ly = y + (int)(4 * sin(a + 2.45f));
  const int rx = x + (int)(4 * cos(a - 2.45f));
  const int ry = y + (int)(4 * sin(a - 2.45f));
  gfx->drawLine(lx, ly, tx, ty, C_WHITE);
  gfx->drawLine(tx, ty, rx, ry, C_WHITE);
  gfx->drawLine(rx, ry, lx, ly, C_WHITE);
}

void drawSweepLine(float angleDeg, uint16_t color) {
  const int cx = 160;
  const int cy = 132;
  const int radius = 104;
  const float angle = radians(angleDeg - 90.0f);
  const int x = cx + (int)(radius * cos(angle));
  const int y = cy + (int)(radius * sin(angle));
  gfx->drawLine(cx, cy, x, y, color);
}

void drawAircraftPlots() {
  const int cx = 160;
  const int cy = 132;
  const int radius = 104;
  for (uint8_t i = 0; i < aircraftCount; i++) {
    const Aircraft &a = aircraft[i];
    const float r = min(a.distanceKm / RANGE_KM, 1.0f) * radius;
    const float angle = radians(a.bearingDeg - 90.0f);
    const int x = cx + (int)(r * cos(angle));
    const int y = cy + (int)(r * sin(angle));
    drawAircraft(x, y, a.trackDeg);
    gfx->setTextColor(C_YELLOW);
    gfx->setCursor(x + 8, y - 8);
    gfx->print(a.label);
    gfx->setTextColor(C_CYAN);
    gfx->setCursor(x + 8, y + 2);
    gfx->print("OP:");
    gfx->print(a.operatorCode);
    gfx->setCursor(x + 8, y + 12);
    if (a.altitudeFt > -9000) {
      gfx->print(a.altitudeFt / 100);
      gfx->print("00 ft");
    } else {
      gfx->print("alt n/a");
    }
    gfx->setCursor(x + 8, y + 22);
    if (a.groundSpeedKt >= 0) {
      gfx->print(a.groundSpeedKt);
      gfx->print(" kt");
    } else {
      gfx->print("spd n/a");
    }
  }
}

void drawRadar() {
  const int cx = 160;
  const int cy = 132;
  const int radius = 104;
  gfx->fillScreen(C_BLACK);
  gfx->setTextSize(1);
  gfx->setTextColor(C_CYAN);
  gfx->setCursor(5, 5);
  gfx->print("FLIGHT RADAR | 15 MILES");
  gfx->setTextColor(C_GREY);
  gfx->setCursor(250, 5);
  gfx->print(aircraftCount);

  gfx->drawCircle(cx, cy, radius, C_DARK_GREEN);
  gfx->drawCircle(cx, cy, radius / 2, C_DARK_GREEN);
  gfx->drawCircle(cx, cy, radius / 4, C_DARK_GREEN);
  gfx->drawFastHLine(cx - radius, cy, radius * 2, C_DARK_GREEN);
  gfx->drawFastVLine(cx, cy - radius, radius * 2, C_DARK_GREEN);
  gfx->setTextColor(C_GREEN);
  gfx->setCursor(cx - 3, cy - radius - 10); gfx->print("N");
  gfx->setCursor(cx + radius + 4, cy - 3); gfx->print("E");
  gfx->setCursor(cx - 3, cy + radius + 4); gfx->print("S");
  gfx->setCursor(cx - radius - 10, cy - 3); gfx->print("W");
  gfx->fillCircle(cx, cy, 3, C_RED);

  drawAircraftPlots();
  drawSweepLine(sweepAngleDeg, C_GREEN);

  gfx->drawFastHLine(0, 241, 320, C_GREY);
  gfx->setTextColor(C_WHITE);
  gfx->setCursor(5, 250);
  gfx->print(statusLine);
  gfx->setTextColor(C_GREY);
  gfx->setCursor(5, 268);
  gfx->print("Centre: 40.174, -75.107");
  gfx->setCursor(5, 284);
  gfx->print("ADS-B receiver data may be incomplete");
}

bool fetchAircraft() {
  setRearLed(false, false, true);  // Blue: downloading aircraft data.
  const char *url = "https://api.adsb.lol/v2/lat/40.174/lon/-75.107/dist/24.140";
  WiFiClientSecure client;
  client.setInsecure();
  HTTPClient http;
  http.setTimeout(12000);
  if (!http.begin(client, url)) {
    statusLine = "Could not begin aircraft request";
    setRearLed(true, false, false);
    return false;
  }
  const int response = http.GET();
  if (response != HTTP_CODE_OK) {
    statusLine = "Aircraft request HTTP " + String(response);
    http.end();
    setRearLed(true, false, false);
    return false;
  }

  JsonDocument doc;
  const DeserializationError err = deserializeJson(doc, http.getStream());
  http.end();
  if (err) {
    statusLine = "Could not read aircraft response";
    setRearLed(true, false, false);
    return false;
  }

  aircraftCount = 0;
  for (JsonObject item : doc["ac"].as<JsonArray>()) {
    if (aircraftCount >= MAX_PLOTS) break;
    if (item["lat"].isNull() || item["lon"].isNull()) continue;
    const double lat = item["lat"].as<double>();
    const double lon = item["lon"].as<double>();
    const float distance = greatCircleKm(HOME_LAT, HOME_LON, lat, lon);
    if (distance > RANGE_KM) continue;
    Aircraft &a = aircraft[aircraftCount++];
    a.distanceKm = distance;
    a.bearingDeg = initialBearing(HOME_LAT, HOME_LON, lat, lon);
    a.trackDeg = item["track"].isNull() ? a.bearingDeg : item["track"].as<float>();
    a.altitudeFt = item["alt_baro"].is<int>() ? item["alt_baro"].as<int>() : -9999;
    a.groundSpeedKt = item["gs"].isNull() ? -1 : (int)roundf(item["gs"].as<float>());
    const char *flight = item["flight"] | "";
    const char *hex = item["hex"] | "UNKNOWN";
    const char *operatorName = item["ownOp"] | "";
    snprintf(a.label, sizeof(a.label), "%s", flight[0] ? flight : hex);
    for (uint8_t c = 0; a.label[c]; c++) if (a.label[c] == ' ') { a.label[c] = '\0'; break; }
    if (operatorName[0]) {
      snprintf(a.operatorCode, sizeof(a.operatorCode), "%s", operatorName);
    } else if (strlen(a.label) >= 3 && isalpha((unsigned char)a.label[0]) &&
               isalpha((unsigned char)a.label[1]) && isalpha((unsigned char)a.label[2])) {
      snprintf(a.operatorCode, sizeof(a.operatorCode), "%.3s", a.label);
    } else {
      snprintf(a.operatorCode, sizeof(a.operatorCode), "n/a");
    }
  }
  statusLine = "Updated: " + String(aircraftCount) + " aircraft within 15 mi";
  setRearLed(false, true, false);  // Green: request completed successfully.
  return true;
}

void connectWiFi() {
  setRearLed(false, false, true);  // Blue: connecting to Wi-Fi.
  if (String(WIFI_SSID) == "YOUR_WIFI_NAME") {
    statusLine = "Edit Wi-Fi name and password first";
    setRearLed(true, false, false);
    return;
  }
  WiFi.mode(WIFI_STA);
  WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
  const uint32_t start = millis();
  while (WiFi.status() != WL_CONNECTED && millis() - start < 15000) delay(250);
  if (WiFi.status() == WL_CONNECTED) {
    statusLine = "Wi-Fi connected";
  } else {
    statusLine = "Wi-Fi connection failed";
    setRearLed(true, false, false);
  }
}

void setup() {
  pinMode(PIN_TFT_BACKLIGHT, OUTPUT);
  digitalWrite(PIN_TFT_BACKLIGHT, HIGH);
  pinMode(PIN_LED_RED, OUTPUT);
  pinMode(PIN_LED_GREEN, OUTPUT);
  pinMode(PIN_LED_BLUE, OUTPUT);
  setRearLed(false, false, false);
  gfx->begin();
  gfx->setRotation(1);
  drawRadar();
  connectWiFi();
  if (WiFi.status() == WL_CONNECTED) {
    fetchAircraft();
    lastPoll = millis();
  }
  drawRadar();
}

void loop() {
  if (WiFi.status() != WL_CONNECTED) {
    static uint32_t lastReconnect = 0;
    if (millis() - lastReconnect >= 15000) {
      lastReconnect = millis();
      connectWiFi();
      drawRadar();
    }
    return;
  }
  if (millis() - lastPoll >= POLL_INTERVAL_MS) {
    lastPoll = millis();
    fetchAircraft();
    drawRadar();
  }

  if (millis() - lastSweep >= SWEEP_INTERVAL_MS) {
    lastSweep = millis();
    // Restore the previous beam to the radar-grid colour, then restore any
    // aircraft it crossed before drawing the next bright-green beam.
    drawSweepLine(sweepAngleDeg, C_DARK_GREEN);
    drawAircraftPlots();
    sweepAngleDeg += SWEEP_DEGREES_PER_FRAME;
    if (sweepAngleDeg >= 360.0f) sweepAngleDeg -= 360.0f;
    drawSweepLine(sweepAngleDeg, C_GREEN);
  }
}
