ESP32 GIF Display

Tom Gorman

Published July 28, 2026

ESP321 component5 assembly steps
Remix this project

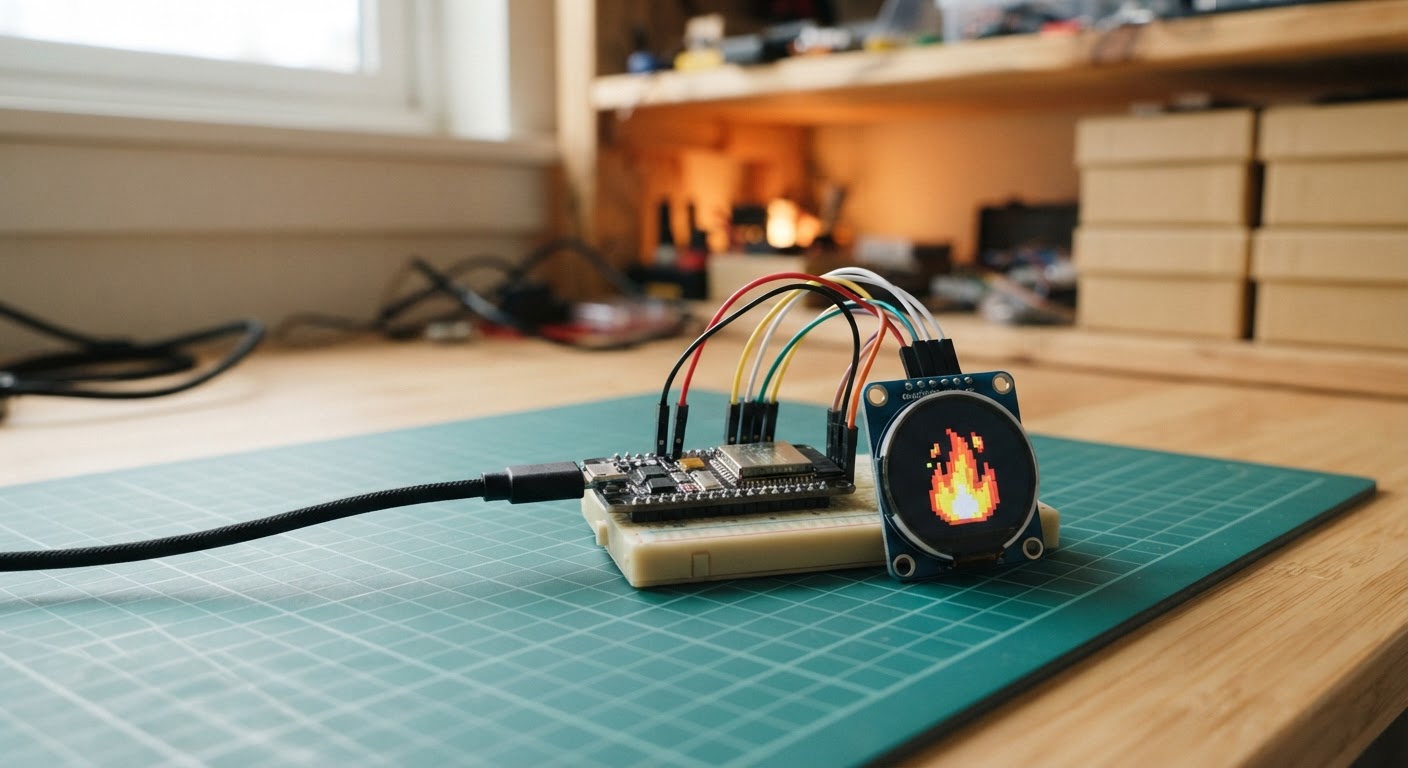

Photo of ESP32 GIF Display

Build a playable dinosaur game on a compact 1.28-inch round display powered by an ESP32. This project combines the GC9A01 circular TFT LCD with SPI communication to render smooth animations and interactive gameplay, complete with score tracking and increasing difficulty.

The guide provides a complete wiring diagram showing how to connect the display's control lines (CS, DC, RST) and SPI data lines (MOSI, SCK) to the ESP32, a full parts list, ready-to-run firmware with game logic, and step-by-step assembly instructions to get the dinosaur jumping and dodging cacti.

Wiring diagram

Interactive · read-only
Wiring diagram for ESP32 GIF Display

Pan and zoom to explore the wiring. Remix the project to edit it in your own workspace.

Parts list

Bill of materials
ComponentQtyNotes
GC9A01 Round TFT LCD 1.28 inch 240x2401.28 in / 240×24011.28 inch round IPS TFT LCD display module with GC9A01/GC9A01A driver IC. 240x240 RGB resolution, 4-wire SPI interface, and 3.3V/5V module input. Module-side labels are VCC, GND, DIN, CLK, CS, DC, RST, and BL/BLK. The display is write-only over SPI, so no MISO line is required for the LCD. Supported by Adafruit GC9A01A and TFT_eSPI libraries in Arduino-compatible firmware projects.

Assembly

5 steps

  1. Keep the display unpowered while checking the connections

    Disconnect USB power from the ESP32-C3. Confirm that the GC9A01 module is a 3.3 V logic display and identify its labels; some modules label SPI data as DIN or SDA, and clock as CLK or SCL.

    • Tip: The display SDA/DIN label means SPI data (MOSI), not I2C SDA.
    • Tip: Use short wires where possible to keep the high-speed display signal clean.
    • ⚠ Never connect the display VCC to 5 V for this project.

  2. Connect display power

    Connect GC9A01 VCC to the ESP32-C3 3V3 pin, and GC9A01 GND to an ESP32-C3 GND pin.

    • Tip: Power and ground must both be connected before the SPI signals can work.
    • ⚠ Check VCC and GND polarity carefully before plugging USB power back in.

  3. Connect the control lines

    Wire GC9A01 RST to GPIO0, CS to GPIO1, and DC to GPIO10, matching the existing wiring shown in your photo.

    • Tip: Follow the screen pin labels rather than wire colours.
    • Tip: GPIO0 is used only as the display reset line in this build.
    • ⚠ If the C3 will not enter its normal boot/upload mode, temporarily disconnect the RST-to-GPIO0 wire; moving that reset line to a free GPIO is the longer-term fix.

  4. Connect the SPI data lines

    Wire GC9A01 SDA/DIN/MOSI to GPIO3 and GC9A01 SCL/CLK/SCK to GPIO4. Leave MISO disconnected because this display does not send data back to the ESP32.

    • Tip: Keep these two wires as short as practical.
    • Tip: The firmware explicitly assigns these pins to SPI, so it follows your wiring rather than a board default.
    • ⚠ Do not swap GPIO3 and GPIO4: data and clock are different signals.

  5. Power and run the waterfall animation

    Recheck all seven connections, then connect the ESP32-C3 through USB. Use Schematik's Deploy button to compile and flash the included firmware. The display should show a landscape with a continuously animated blue waterfall.

    • Tip: The animation is built into the firmware, so no GIF file, SD card, or filesystem upload is required.
    • ⚠ If the screen is blank, immediately remove power and recheck VCC, GND, CS, DC, RST, and the DIN/CLK labels.

Pin assignments

Board wiring reference
PinConnectionType
3V3gc9a01_display VCCpower
GNDgc9a01_display GNDground
GPIO 0gc9a01_display RSTdigital
GPIO 1gc9a01_display CSspi
GPIO 10gc9a01_display DCdigital
GPIO 3gc9a01_display MOSIspi
GPIO 4gc9a01_display SCKspi

Firmware

ESP32
main.cppDeploy to device
#include <Arduino.h>
#include <SPI.h>
#include <Adafruit_GFX.h>
#include <Adafruit_GC9A01A.h>
#include <Preferences.h>


// Forward declarations

// Forward declarations

// Forward declarations

// Forward declarations
void printPaddedScore(uint16_t value);

int cactusSpeed();
void drawGround();
void drawScore();
void updateMovingSprites();
void drawGameOver();

void resetGame();

void drawDino(int x, int y, bool legForward);
void drawCactus(int x);
void drawFrame();

constexpr int TFT_RST = 0;
constexpr int TFT_CS = 1;
constexpr int TFT_DC = 10;
constexpr int TFT_MOSI = 3;
constexpr int TFT_SCK = 4;
constexpr int BUTTON_PIN = 9;  // BOOT button: pressed = LOW
constexpr uint32_t FRAME_INTERVAL_MS = 50;
constexpr uint32_t BUTTON_DEBOUNCE_MS = 35;
constexpr int GAME_LEFT = 12;
constexpr int GAME_TOP = 48;
constexpr int GAME_W = 216;
constexpr int GAME_H = 154;
constexpr int GROUND_Y = 176;
constexpr uint16_t SKY = 0xFFFF;
constexpr uint16_t INK = 0x18C3;

Adafruit_GC9A01A tft(TFT_CS, TFT_DC, TFT_RST);
uint32_t lastFrameMs = 0;
int dinoY = GROUND_Y - 32;
int jumpVelocity = 0;
bool jumping = false;
int cactusX = 222;
uint16_t score = 0;
uint16_t highScore = 0;
Preferences preferences;
bool runLeg = false;
bool gameOver = false;
bool lastButtonReading = HIGH;
bool stableButtonState = HIGH;
uint32_t lastButtonChangeMs = 0;
int previousDinoY = GROUND_Y - 32;
int previousCactusX = 222;

int cactusSpeed() {
  // Add one pixel per frame every five points, capped to keep the game playable.
  return 5 + min(5, static_cast<int>(score / 5));
}

void drawGround() {
  tft.drawFastHLine(GAME_LEFT, GROUND_Y, GAME_W, INK);
  for (int x = GAME_LEFT + 4; x < GAME_LEFT + GAME_W; x += 27) {
    tft.drawFastHLine(x, GROUND_Y + 7, 11, INK);
  }
}

void printPaddedScore(uint16_t value) {
  if (value < 1000) tft.print('0');
  if (value < 100) tft.print('0');
  if (value < 10) tft.print('0');
  tft.print(value);
}

void drawScore() {
  // Keep the current score and the saved all-time high score together.
  tft.fillRect(103, 54, 121, 34, SKY);
  tft.setTextColor(INK, SKY);
  tft.setTextSize(1);
  tft.setCursor(106, 57);
  tft.print("SCORE ");
  printPaddedScore(score);
  tft.setCursor(106, 73);
  tft.print("HIGH  ");
  printPaddedScore(highScore);
}

void drawDino(int x, int y, bool legForward) {
  tft.fillRect(x + 12, y, 19, 17, INK);
  tft.fillRect(x + 8, y + 12, 18, 18, INK);
  tft.fillRect(x + 3, y + 23, 23, 9, INK);
  tft.fillRect(x, y + 25, 8, 5, INK);
  tft.fillRect(x + 22, y + 17, 9, 5, SKY);
  tft.fillRect(x + 24, y + 4, 3, 3, SKY);
  tft.fillRect(x + 7, y + 30, 5, 7, INK);
  tft.fillRect(x + 17, y + 30, 5, 7, INK);
  if (legForward) {
    tft.fillRect(x + 4, y + 36, 10, 4, INK);
    tft.fillRect(x + 17, y + 36, 5, 4, INK);
  } else {
    tft.fillRect(x + 7, y + 36, 5, 4, INK);
    tft.fillRect(x + 15, y + 36, 10, 4, INK);
  }
}

void drawCactus(int x) {
  tft.fillRect(x + 6, GROUND_Y - 35, 7, 35, INK);
  tft.fillRect(x, GROUND_Y - 23, 7, 6, INK);
  tft.fillRect(x, GROUND_Y - 29, 5, 8, INK);
  tft.fillRect(x + 12, GROUND_Y - 18, 8, 6, INK);
  tft.fillRect(x + 16, GROUND_Y - 25, 5, 10, INK);
}

void drawFrame() {
  // Used only for the initial screen and restart, never for the animation loop.
  tft.fillRect(GAME_LEFT, GAME_TOP, GAME_W, GAME_H, SKY);
  drawGround();
  drawDino(38, dinoY, runLeg);
  drawCactus(cactusX);
  drawScore();
  previousDinoY = dinoY;
  previousCactusX = cactusX;
}

void updateMovingSprites() {
  // Clear just the old sprite footprints instead of blanking the whole playfield.
  const int dinoClearTop = min(previousDinoY, dinoY) - 1;
  const int dinoClearBottom = max(previousDinoY, dinoY) + 41;
  tft.fillRect(36, dinoClearTop, 38, dinoClearBottom - dinoClearTop, SKY);

  const int cactusClearLeft = min(previousCactusX, cactusX) - 1;
  const int cactusClearRight = max(previousCactusX, cactusX) + 22;
  tft.fillRect(cactusClearLeft, GROUND_Y - 37,
               cactusClearRight - cactusClearLeft, 39, SKY);

  // The small erased areas may cross the ground, so restore only those thin lines.
  drawGround();
  drawDino(38, dinoY, runLeg);
  drawCactus(cactusX);
  previousDinoY = dinoY;
  previousCactusX = cactusX;
}

void drawGameOver() {
  tft.fillRect(38, 101, 164, 34, SKY);
  tft.setTextColor(INK, SKY);
  tft.setTextSize(2);
  tft.setCursor(61, 103);
  tft.print("GAME OVER");
  tft.setTextSize(1);
  tft.setCursor(55, 122);
  tft.print("PRESS BOOT TO RESTART");
}

void resetGame() {
  dinoY = GROUND_Y - 32;
  jumpVelocity = 0;
  jumping = false;
  cactusX = 222;
  score = 0;
  runLeg = false;
  gameOver = false;
  previousDinoY = dinoY;
  previousCactusX = cactusX;
}

void setup() {
  pinMode(BUTTON_PIN, INPUT_PULLUP);
  preferences.begin("dino-run", false);
  highScore = preferences.getUShort("high", 0);
  SPI.begin(TFT_SCK, -1, TFT_MOSI, TFT_CS);
  tft.begin(40000000);
  tft.setRotation(0);
  tft.fillScreen(SKY);
  tft.setTextColor(INK, SKY);
  tft.setTextSize(2);
  // "DINO RUN" is 96 pixels wide at text size 2; place it centrally.
  tft.setCursor(72, 22);
  tft.print("DINO RUN");
  drawFrame();
}

void loop() {
  const uint32_t now = millis();

  // Debounce the active-low BOOT button and act once per press.
  const bool buttonReading = digitalRead(BUTTON_PIN);
  if (buttonReading != lastButtonReading) lastButtonChangeMs = now;
  if (now - lastButtonChangeMs >= BUTTON_DEBOUNCE_MS &&
      buttonReading != stableButtonState) {
    stableButtonState = buttonReading;
    if (stableButtonState == LOW) {
      if (gameOver) {
        resetGame();
        drawFrame();
      } else if (!jumping) {
        // Higher launch speed gives enough clearance over the 35-pixel cactus.
        jumpVelocity = -12;
        jumping = true;
      }
    }
  }
  lastButtonReading = buttonReading;

  if (now - lastFrameMs < FRAME_INTERVAL_MS) return;
  lastFrameMs = now;
  if (gameOver) return;

  if (jumping) {
    dinoY += jumpVelocity;
    jumpVelocity += 1;
    if (dinoY >= GROUND_Y - 32) {
      dinoY = GROUND_Y - 32;
      jumpVelocity = 0;
      jumping = false;
    }
  }

  cactusX -= cactusSpeed();
  // Dinosaur body spans x=38..69; cactus spans cactusX..cactusX+20.
  // A collision is only possible while the dinosaur is close to the ground.
  if (cactusX + 20 >= 38 && cactusX <= 69 && dinoY + 40 >= GROUND_Y - 35) {
    gameOver = true;
    updateMovingSprites();
    drawGameOver();
    return;
  }
  if (cactusX < GAME_LEFT - 22) {
    cactusX = GAME_LEFT + GAME_W - 6;
    ++score;
    if (score > highScore) {
      highScore = score;
      preferences.putUShort("high", highScore);
    }
    drawScore();
  }
  runLeg = !runLeg;
  updateMovingSprites();
}

“Deploy to device” opens this project in Schematik, where you can flash it to your board over USB.
