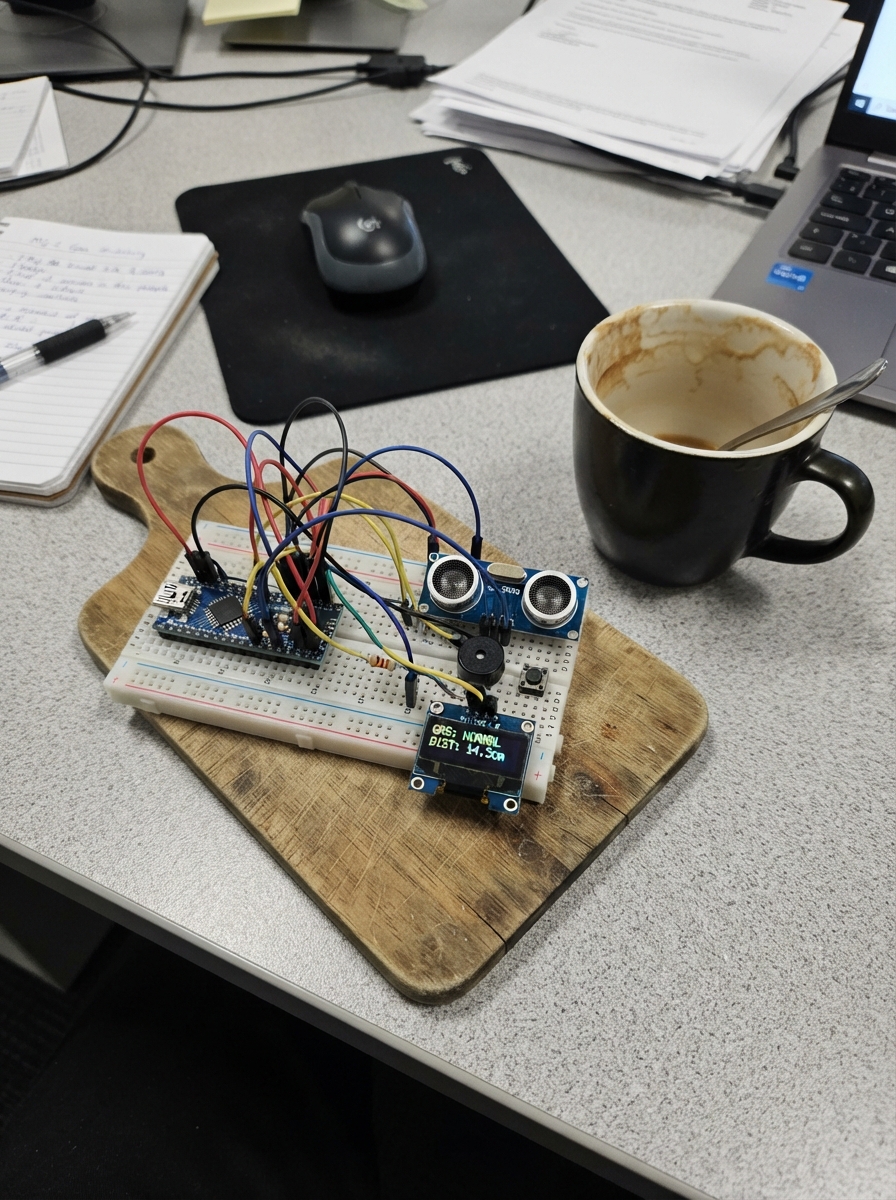

Gas And Proximity

#include <Arduino.h>
#include <Wire.h>
#include <U8g2lib.h>


// Forward declarations
float readDistanceCm();
void updateGraph();
void drawHeader(const char *title);
void drawStartup();
void drawSafeDashboard();
void drawGraph(int x, int y, int width, const int *values, int maximum);
void drawGraphScreen();
void drawAlarmScreen();
void drawMutedScreen();
void updateDisplay();
void updateButton(uint32_t now);

constexpr uint8_t GAS_ADC_PIN = 32;
constexpr uint8_t ULTRASONIC_TRIG_PIN = 27;
constexpr uint8_t ULTRASONIC_ECHO_PIN = 26;
constexpr uint8_t BUZZER_PIN = 25;
constexpr uint8_t SILENCE_BUTTON_PIN = 33;
constexpr uint8_t OLED_SDA_PIN = 21;
constexpr uint8_t OLED_SCL_PIN = 22;

constexpr int GAS_ALARM_THRESHOLD = 1800;  // Adjust after testing clean-air readings.
constexpr float DISTANCE_ALARM_CM = 50.0f;
constexpr uint32_t SENSOR_INTERVAL_MS = 250;
constexpr uint32_t DISPLAY_INTERVAL_MS = 50;
constexpr uint32_t SCREEN_CHANGE_MS = 5000;
constexpr uint32_t SILENCE_TIME_MS = 30000;
constexpr uint32_t MQ2_WARMUP_MS = 30000;
constexpr uint32_t BUTTON_DEBOUNCE_MS = 40;
constexpr int GRAPH_POINTS = 60;

U8G2_SH1106_128X64_NONAME_F_HW_I2C u8g2(U8G2_R0, U8X8_PIN_NONE);

int gasReading = 0;
float distanceCm = -1.0f;
bool gasAlarm = false;
bool proximityAlarm = false;
bool alarmActive = false;
bool lastButtonRaw = HIGH;
bool stableButtonState = HIGH;
uint32_t buttonChangedAt = 0;
uint32_t silenceUntil = 0;
uint32_t startedAt = 0;
uint32_t lastSensorUpdate = 0;
uint32_t lastDisplayUpdate = 0;
uint32_t lastScreenChange = 0;
uint32_t animationFrame = 0;
uint8_t currentScreen = 0;
int gasHistory[GRAPH_POINTS] = {};
int distanceHistory[GRAPH_POINTS] = {};
int graphIndex = 0;

float readDistanceCm() {
  digitalWrite(ULTRASONIC_TRIG_PIN, LOW);
  delayMicroseconds(2);
  digitalWrite(ULTRASONIC_TRIG_PIN, HIGH);
  delayMicroseconds(10);
  digitalWrite(ULTRASONIC_TRIG_PIN, LOW);
  const uint32_t duration = pulseIn(ULTRASONIC_ECHO_PIN, HIGH, 30000);
  return duration == 0 ? -1.0f : (duration * 0.0343f) / 2.0f;
}

void updateGraph() {
  gasHistory[graphIndex] = gasReading;
  distanceHistory[graphIndex] = distanceCm < 0 ? 0 : constrain((int)distanceCm, 0, 200);
  graphIndex = (graphIndex + 1) % GRAPH_POINTS;
}

void drawHeader(const char *title) {
  u8g2.setFont(u8g2_font_6x10_tf);
  u8g2.drawStr(0, 9, title);
  u8g2.drawHLine(0, 12, 128);
}

void drawStartup() {
  for (int progress = 0; progress <= 116; progress += 4) {
    u8g2.clearBuffer();
    u8g2.setFont(u8g2_font_helvB12_tf);
    u8g2.drawStr(8, 20, "SMART SAFETY");
    u8g2.setFont(u8g2_font_6x10_tf);
    u8g2.drawStr(35, 32, "SYSTEM");
    u8g2.drawFrame(4, 42, 120, 10);
    u8g2.drawBox(6, 44, progress, 6);
    u8g2.sendBuffer();
    delay(15);
  }
}

void drawSafeDashboard() {
  u8g2.clearBuffer();
  drawHeader("SMART SAFETY");
  for (int i = 0; i < 8; ++i) u8g2.drawPixel((animationFrame * (i + 1) / 3 + i * 23) % 128, 14 + ((i * 17) % 45));

  u8g2.drawStr(0, 23, "GAS");
  char text[22];
  snprintf(text, sizeof(text), "%d", gasReading);
  u8g2.drawStr(27, 23, text);
  const int percent = constrain((gasReading * 100) / 4095, 0, 100);
  snprintf(text, sizeof(text), "%d%%", percent);
  u8g2.drawStr(102, 23, text);
  u8g2.drawFrame(27, 27, 101, 6);
  u8g2.drawBox(29, 29, constrain(map(gasReading, 0, 4095, 0, 97), 0, 97), 2);

  u8g2.drawStr(0, 41, "DIST");
  if (distanceCm < 0) u8g2.drawStr(27, 41, "NO DATA");
  else { snprintf(text, sizeof(text), "%.1f cm", distanceCm); u8g2.drawStr(27, 41, text); }
  u8g2.drawFrame(91, 36, 37, 6);
  if (distanceCm > 0) u8g2.drawBox(93, 38, constrain((int)(distanceCm * 33.0f / 200.0f), 0, 33), 2);

  u8g2.drawFrame(0, 46, 128, 18);
  u8g2.setFont(u8g2_font_helvB10_tf);
  if (millis() - startedAt < MQ2_WARMUP_MS) {
    const uint32_t left = (MQ2_WARMUP_MS - (millis() - startedAt) + 999) / 1000;
    snprintf(text, sizeof(text), "WARM UP %lus", (unsigned long)left);
    u8g2.drawStr(27, 59, text);
  } else {
    u8g2.drawStr(27, 59, "SYSTEM SAFE");
  }
  u8g2.sendBuffer();
}

void drawGraph(int x, int y, int width, const int *values, int maximum) {
  u8g2.drawFrame(x, y, width, 18);
  for (int i = 1; i < GRAPH_POINTS; ++i) {
    const int a = (graphIndex + i - 1) % GRAPH_POINTS;
    const int b = (graphIndex + i) % GRAPH_POINTS;
    const int x1 = x + 2 + ((i - 1) * (width - 4)) / (GRAPH_POINTS - 1);
    const int x2 = x + 2 + (i * (width - 4)) / (GRAPH_POINTS - 1);
    const int y1 = y + 16 - map(constrain(values[a], 0, maximum), 0, maximum, 0, 14);
    const int y2 = y + 16 - map(constrain(values[b], 0, maximum), 0, maximum, 0, 14);
    u8g2.drawLine(x1, y1, x2, y2);
  }
}

void drawGraphScreen() {
  u8g2.clearBuffer();
  drawHeader("LIVE SENSOR GRAPH");
  char text[24];
  snprintf(text, sizeof(text), "GAS %d", gasReading);
  u8g2.drawStr(0, 22, text);
  drawGraph(28, 15, 100, gasHistory, 4095);
  if (distanceCm < 0) u8g2.drawStr(0, 43, "DIST ---");
  else { snprintf(text, sizeof(text), "DIST %.1fcm", distanceCm); u8g2.drawStr(0, 43, text); }
  drawGraph(45, 36, 83, distanceHistory, 200);
  if ((animationFrame / 5) % 2 == 0) u8g2.drawDisc(5, 59, 2);
  u8g2.drawStr(11, 62, "LIVE");
  u8g2.sendBuffer();
}

void drawAlarmScreen() {
  u8g2.clearBuffer();
  const bool flash = ((animationFrame / 5) % 2) == 0;
  if (flash) { u8g2.drawFrame(0, 0, 128, 64); u8g2.drawFrame(2, 2, 124, 60); }
  u8g2.setFont(u8g2_font_helvB14_tf);
  u8g2.drawStr(31, 20, "ALARM!");
  u8g2.setFont(u8g2_font_6x10_tf);
  if (gasAlarm && proximityAlarm) u8g2.drawStr(4, 32, "GAS + OBJECT DETECTED");
  else if (gasAlarm) u8g2.drawStr(4, 32, "GAS LEVEL HIGH!");
  else u8g2.drawStr(4, 32, "OBJECT TOO CLOSE!");
  char text[22];
  snprintf(text, sizeof(text), "GAS:%d", gasReading); u8g2.drawStr(4, 44, text);
  snprintf(text, sizeof(text), distanceCm < 0 ? "DIST:---" : "DIST:%.1f", distanceCm); u8g2.drawStr(72, 44, text);
  if (flash) { u8g2.drawBox(4, 51, 120, 11); u8g2.setDrawColor(0); }
  else u8g2.drawFrame(4, 51, 120, 11);
  u8g2.drawStr(37, 60, "!! DANGER !!");
  u8g2.setDrawColor(1);
  u8g2.sendBuffer();
}

void drawMutedScreen() {
  u8g2.clearBuffer();
  drawHeader("SMART SAFETY");
  u8g2.setFont(u8g2_font_helvB10_tf);
  u8g2.drawStr(24, 30, "ALARM MUTED");
  const uint32_t remaining = silenceUntil > millis() ? (silenceUntil - millis() + 999) / 1000 : 0;
  char text[20]; snprintf(text, sizeof(text), "%lu seconds", (unsigned long)remaining);
  u8g2.setFont(u8g2_font_6x10_tf); u8g2.drawStr(35, 43, text);
  u8g2.drawFrame(4, 50, 120, 10);
  u8g2.drawBox(6, 52, constrain((int)(remaining * 116UL / 30UL), 0, 116), 6);
  u8g2.sendBuffer();
}

void updateDisplay() {
  ++animationFrame;
  if (millis() < silenceUntil) drawMutedScreen();
  else if (alarmActive) drawAlarmScreen();
  else if (currentScreen == 0) drawSafeDashboard();
  else drawGraphScreen();
}

void updateButton(uint32_t now) {
  const bool raw = digitalRead(SILENCE_BUTTON_PIN);
  if (raw != lastButtonRaw) { lastButtonRaw = raw; buttonChangedAt = now; }
  if (now - buttonChangedAt >= BUTTON_DEBOUNCE_MS && raw != stableButtonState) {
    stableButtonState = raw;
    if (stableButtonState == LOW) {
      silenceUntil = now + SILENCE_TIME_MS;
      Serial.println("Alarm muted for 30 seconds");
    }
  }
}

void setup() {
  Serial.begin(115200);
  pinMode(ULTRASONIC_TRIG_PIN, OUTPUT);
  pinMode(ULTRASONIC_ECHO_PIN, INPUT);
  pinMode(BUZZER_PIN, OUTPUT);
  digitalWrite(BUZZER_PIN, LOW);
  pinMode(SILENCE_BUTTON_PIN, INPUT_PULLUP);
  analogReadResolution(12);
  Wire.begin(OLED_SDA_PIN, OLED_SCL_PIN);
  Wire.setClock(100000);
  u8g2.begin();
  drawStartup();
  startedAt = millis();
  lastScreenChange = startedAt;
  Serial.println("Smart Safety System ready; MQ-2 warming for 30 seconds.");
}

void loop() {
  const uint32_t now = millis();
  updateButton(now);
  if (now - lastSensorUpdate >= SENSOR_INTERVAL_MS) {
    lastSensorUpdate = now;
    gasReading = analogRead(GAS_ADC_PIN);
    distanceCm = readDistanceCm();
    const bool gasReady = now - startedAt >= MQ2_WARMUP_MS;
    gasAlarm = gasReady && gasReading >= GAS_ALARM_THRESHOLD;
    proximityAlarm = distanceCm > 0 && distanceCm <= DISTANCE_ALARM_CM;
    alarmActive = (gasAlarm || proximityAlarm) && now >= silenceUntil;
    digitalWrite(BUZZER_PIN, alarmActive ? HIGH : LOW);
    updateGraph();
    Serial.printf("Gas: %d | Distance: %.1f cm | Status: %s\n", gasReading, distanceCm, alarmActive ? "ALARM" : "SAFE");
  }
  if (!alarmActive && now >= silenceUntil && now - lastScreenChange >= SCREEN_CHANGE_MS) {
    lastScreenChange = now;
    currentScreen = (currentScreen + 1) % 2;
  }
  if (now - lastDisplayUpdate >= DISPLAY_INTERVAL_MS) {
    lastDisplayUpdate = now;
    updateDisplay();
  }
}
