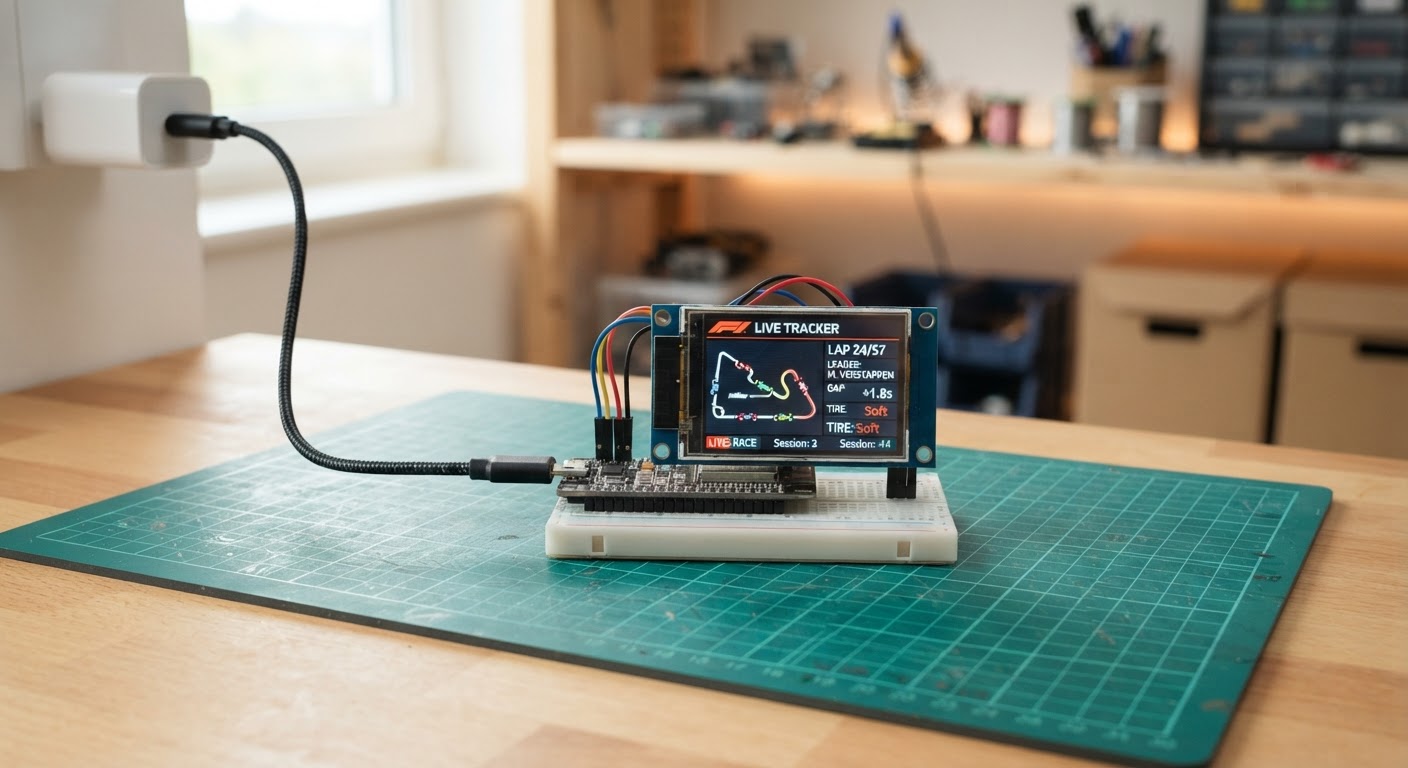

Live F1 Race Tracker

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <stdbool.h>
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"
#include "esp_err.h"
#include "esp_http_client.h"
#include "esp_lcd_panel_ops.h"
#include "esp_lcd_panel_rgb.h"
#include "driver/gpio.h"
#include "driver/i2c_master.h"
#include "nvs_flash.h"
#include "esp_wifi.h"
#include "esp_event.h"
#include "esp_netif.h"
#include "cJSON.h"

#define WIFI_SSID "YOUR_WIFI_NAME"
#define WIFI_PASSWORD "YOUR_WIFI_PASSWORD"
#define SCREEN_W 800
#define SCREEN_H 480
#define MAX_CARS 20
#define OPENF1_URL "https://api.openf1.org"

typedef enum { TYRE_UNKNOWN, TYRE_HARD, TYRE_MEDIUM, TYRE_SOFT } tyre_t;
typedef struct { int number; int position; float x; float y; bool selected; char code[5]; char gap[16]; uint16_t team_color; tyre_t tyre; } car_t;
static int current_lap = 0;
static car_t cars[MAX_CARS];
static int car_count = 0;
static int selected_count = 0;
static uint16_t *framebuffer = NULL;
static i2c_master_dev_handle_t touch_handle = NULL;

static uint16_t color565(uint8_t r, uint8_t g, uint8_t b) { return ((r & 0xF8) << 8) | ((g & 0xFC) << 3) | (b >> 3); }
static void pixel(int x, int y, uint16_t c) { if (x >= 0 && x < SCREEN_W && y >= 0 && y < SCREEN_H) framebuffer[y * SCREEN_W + x] = c; }
static void fill(int x, int y, int w, int h, uint16_t c) { for (int yy = y; yy < y + h; yy++) for (int xx = x; xx < x + w; xx++) pixel(xx, yy, c); }
/* Compact seven-segment numerals keep the 20-car tower readable without a font asset. */
static void digit(int x, int y, int n, int s, uint16_t c) {
    static const uint8_t segs[10] = {0x3f,0x06,0x5b,0x4f,0x66,0x6d,0x7d,0x07,0x7f,0x6f};
    if (n < 0 || n > 9) return; uint8_t m = segs[n]; int l = 4 * s, t = s;
    if (m & 0x01) fill(x+s,y,l,t,c); if (m & 0x02) fill(x+l+s,y+s,t,l,c);
    if (m & 0x04) fill(x+l+s,y+l+2*s,t,l,c); if (m & 0x08) fill(x+s,y+2*l+2*s,l,t,c);
    if (m & 0x10) fill(x,y+l+2*s,t,l,c); if (m & 0x20) fill(x,y+s,t,l,c);
    if (m & 0x40) fill(x+s,y+l+s,l,t,c);
}
static void number2(int x, int y, int value, int s, uint16_t c) { digit(x, y, (value / 10) % 10, s, c); digit(x + 7*s, y, value % 10, s, c); }
static void marker(int x, int y, uint16_t team, bool selected) {
    /* Team colour identifies every car; a red centre distinguishes a user selection. */
    fill(x - 7, y - 7, 15, 15, color565(8, 12, 16));
    fill(x - 6, y - 6, 13, 13, team);
    fill(x - 3, y - 3, 7, 7, selected ? color565(255, 48, 76) : color565(10, 15, 20));
}

static car_t *find_car(int number) { for (int i = 0; i < car_count; i++) if (cars[i].number == number) return &cars[i]; return NULL; }
static uint16_t team_colour_from_hex(const char *hex) {
    unsigned int rgb = 0;
    if (hex && sscanf(hex, "%x", &rgb) == 1) return color565((rgb >> 16) & 0xFF, (rgb >> 8) & 0xFF, rgb & 0xFF);
    return color565(240, 245, 248);
}
static char *http_get(const char *path) {
    char url[200]; snprintf(url, sizeof(url), "%s%s", OPENF1_URL, path);
    esp_http_client_config_t cfg = {.url = url, .timeout_ms = 12000, .transport_type = HTTP_TRANSPORT_OVER_SSL, .skip_cert_common_name_check = true};
    esp_http_client_handle_t client = esp_http_client_init(&cfg);
    if (!client || esp_http_client_open(client, 0) != ESP_OK) { if (client) esp_http_client_cleanup(client); return NULL; }
    int length = esp_http_client_fetch_headers(client);
    if (length < 1 || length > 150000) { esp_http_client_close(client); esp_http_client_cleanup(client); return NULL; }
    char *body = calloc(1, length + 1);
    if (!body || esp_http_client_read_response(client, body, length) < 1) { free(body); body = NULL; }
    esp_http_client_close(client); esp_http_client_cleanup(client); return body;
}
static int race_order(const void *a, const void *b) { const car_t *aa = a, *bb = b; return aa->position - bb->position; }
static tyre_t tyre_from_compound(const char *compound) {
    if (!compound) return TYRE_UNKNOWN;
    if (strcasecmp(compound, "HARD") == 0) return TYRE_HARD;
    if (strcasecmp(compound, "MEDIUM") == 0) return TYRE_MEDIUM;
    if (strcasecmp(compound, "SOFT") == 0) return TYRE_SOFT;
    return TYRE_UNKNOWN;
}
static uint16_t tyre_colour(tyre_t tyre) {
    if (tyre == TYRE_HARD) return color565(245, 245, 245);
    if (tyre == TYRE_MEDIUM) return color565(255, 210, 0);
    if (tyre == TYRE_SOFT) return color565(235, 36, 42);
    return color565(82, 96, 108);
}
static void update_openf1(void) {
    char *body = http_get("/v1/drivers?session_key=latest");
    if (!body) return;
    cJSON *list = cJSON_Parse(body); free(body); if (!list) return;
    car_t previous[MAX_CARS]; int previous_count = car_count; memcpy(previous, cars, sizeof(cars));
    int n = cJSON_GetArraySize(list); car_count = n > MAX_CARS ? MAX_CARS : n;
    for (int i = 0; i < car_count; i++) { cJSON *row = cJSON_GetArrayItem(list, i); cJSON *num = cJSON_GetObjectItem(row, "driver_number"); cJSON *name = cJSON_GetObjectItem(row, "name_acronym"); cJSON *team = cJSON_GetObjectItem(row, "team_colour"); int number = num ? num->valueint : 0; bool chosen = false; for (int j = 0; j < previous_count; j++) if (previous[j].number == number) chosen = previous[j].selected; cars[i] = (car_t){.number = number, .position = i + 1, .selected = chosen}; snprintf(cars[i].code, sizeof(cars[i].code), "%s", cJSON_IsString(name) ? name->valuestring : "UNK"); cars[i].team_color = team_colour_from_hex(cJSON_IsString(team) ? team->valuestring : NULL); }
    cJSON_Delete(list);
    body = http_get("/v1/position?session_key=latest");
    if (body) { list = cJSON_Parse(body); free(body); if (list) { for (int i = 0; i < cJSON_GetArraySize(list); i++) { cJSON *row = cJSON_GetArrayItem(list, i); cJSON *num = cJSON_GetObjectItem(row, "driver_number"); cJSON *pos = cJSON_GetObjectItem(row, "position"); car_t *car = num ? find_car(num->valueint) : NULL; if (car && cJSON_IsNumber(pos)) car->position = pos->valueint; } cJSON_Delete(list); } }
    body = http_get("/v1/laps?session_key=latest");
    if (body) { list = cJSON_Parse(body); free(body); if (list) { current_lap = 0; for (int i = 0; i < cJSON_GetArraySize(list); i++) { cJSON *lap = cJSON_GetObjectItem(cJSON_GetArrayItem(list, i), "lap_number"); if (cJSON_IsNumber(lap) && lap->valueint > current_lap) current_lap = lap->valueint; } cJSON_Delete(list); } }
    body = http_get("/v1/location?session_key=latest");
    if (body) { list = cJSON_Parse(body); free(body); if (list) { for (int i = 0; i < cJSON_GetArraySize(list); i++) { cJSON *row = cJSON_GetArrayItem(list, i); cJSON *num = cJSON_GetObjectItem(row, "driver_number"); cJSON *x = cJSON_GetObjectItem(row, "x"); cJSON *y = cJSON_GetObjectItem(row, "y"); car_t *car = num ? find_car(num->valueint) : NULL; if (car && cJSON_IsNumber(x) && cJSON_IsNumber(y)) { car->x = x->valuedouble; car->y = y->valuedouble; } } cJSON_Delete(list); } }
    /* The final/latest stint returned for each driver identifies the compound currently fitted. */
    body = http_get("/v1/stints?session_key=latest");
    if (body) { list = cJSON_Parse(body); free(body); if (list) { for (int i = 0; i < car_count; i++) cars[i].tyre = TYRE_UNKNOWN; for (int i = 0; i < cJSON_GetArraySize(list); i++) { cJSON *row = cJSON_GetArrayItem(list, i); cJSON *num = cJSON_GetObjectItem(row, "driver_number"); cJSON *compound = cJSON_GetObjectItem(row, "compound"); car_t *car = num ? find_car(num->valueint) : NULL; if (car && cJSON_IsString(compound)) car->tyre = tyre_from_compound(compound->valuestring); } cJSON_Delete(list); } }
    qsort(cars, car_count, sizeof(car_t), race_order);
}
static void draw_dashboard(void) {
    uint16_t bg = color565(9, 14, 20), panel = color565(22, 33, 43), line = color565(69, 86, 98), white = color565(240, 245, 248), red = color565(255, 48, 76);
    /* Tower is 120 pixels (15%); the remaining 680 pixels are reserved for the track. */
    fill(0, 0, SCREEN_W, SCREEN_H, bg); fill(0, 0, 120, SCREEN_H, panel); fill(124, 0, 676, SCREEN_H, panel);
    fill(0, 0, 120, 32, color565(34, 47, 60)); number2(48, 6, current_lap, 2, white);
    /* Twenty 21-pixel rows: order comes from the latest live position feed. */
    for (int i = 0; i < car_count && i < MAX_CARS; i++) {
        int row_y = 38 + i * 21; fill(4, row_y, 112, 18, color565(15, 23, 30));
        fill(5, row_y + 2, 7, 14, cars[i].team_color); number2(17, row_y + 3, cars[i].position, 1, white);
        number2(42, row_y + 3, cars[i].number, 1, white);
        /* Tyre swatch follows the driver identifier: hard=white, medium=yellow, soft=red. */
        fill(91, row_y + 4, 11, 10, color565(5, 8, 11));
        fill(93, row_y + 6, 7, 6, tyre_colour(cars[i].tyre));
        if (cars[i].selected) { fill(108, row_y + 2, 5, 14, red); }
    }
    /* Fallback centreline makes an empty feed visibly distinct from a stalled display. */
    for (int i = 0; i < 620; i++) { int y = 240 + ((i % 180) - 90) * ((i % 2) ? 1 : 0) / 4; pixel(150 + i, y, line); pixel(150 + i, y + 1, line); }
    float min_x = 1e9f, max_x = -1e9f, min_y = 1e9f, max_y = -1e9f;
    for (int i = 0; i < car_count; i++) if (cars[i].x != 0 || cars[i].y != 0) { if (cars[i].x < min_x) min_x = cars[i].x; if (cars[i].x > max_x) max_x = cars[i].x; if (cars[i].y < min_y) min_y = cars[i].y; if (cars[i].y > max_y) max_y = cars[i].y; }
    for (int i = 0; i < car_count; i++) if (min_x < max_x && min_y < max_y) { int x = 145 + (int)((cars[i].x - min_x) * 625.0f / (max_x - min_x)); int y = 55 + (int)((max_y - cars[i].y) * 370.0f / (max_y - min_y)); marker(x, y, cars[i].team_color, cars[i].selected); }
}
static bool read_touch(int *x, int *y) {
    uint8_t reg[2] = {0x81, 0x4E}; uint8_t data[6] = {0};
    if (i2c_master_transmit_receive(touch_handle, reg, 2, data, 6, 20) != ESP_OK || !(data[0] & 0x80) || !(data[0] & 0x0F)) return false;
    *x = data[2] | (data[3] << 8); *y = data[4] | (data[5] << 8); uint8_t clear[3] = {0x81, 0x4E, 0}; i2c_master_transmit(touch_handle, clear, 3, 20); return true;
}
static void wifi_event(void *arg, esp_event_base_t base, int32_t event, void *data) { if (base == WIFI_EVENT && (event == WIFI_EVENT_STA_START || event == WIFI_EVENT_STA_DISCONNECTED)) esp_wifi_connect(); }
static void start_wifi(void) { esp_netif_init(); esp_event_loop_create_default(); esp_netif_create_default_wifi_sta(); wifi_init_config_t init = WIFI_INIT_CONFIG_DEFAULT(); esp_wifi_init(&init); esp_event_handler_register(WIFI_EVENT, ESP_EVENT_ANY_ID, wifi_event, NULL); wifi_config_t config = {0}; strncpy((char *)config.sta.ssid, WIFI_SSID, sizeof(config.sta.ssid)); strncpy((char *)config.sta.password, WIFI_PASSWORD, sizeof(config.sta.password)); esp_wifi_set_mode(WIFI_MODE_STA); esp_wifi_set_config(WIFI_IF_STA, &config); esp_wifi_start(); }
void app_main(void) {
    ESP_ERROR_CHECK(nvs_flash_init());
    gpio_config_t backlight = {.pin_bit_mask = 1ULL << 6, .mode = GPIO_MODE_OUTPUT}; gpio_config(&backlight); gpio_set_level(6, 1);
    esp_lcd_rgb_panel_config_t rgb = {.data_width = 16, .bits_per_pixel = 16, .num_fbs = 1, .pclk_gpio_num = 7, .vsync_gpio_num = 3, .hsync_gpio_num = 46, .de_gpio_num = 5, .data_gpio_nums = {14,38,18,17,10,39,0,45,48,47,21,1,2,42,41,40}, .timings = {.pclk_hz = 14000000, .h_res = SCREEN_W, .v_res = SCREEN_H, .hsync_pulse_width = 10, .hsync_back_porch = 43, .hsync_front_porch = 8, .vsync_pulse_width = 8, .vsync_back_porch = 12, .vsync_front_porch = 8}, .flags = {.fb_in_psram = 1, .pclk_active_neg = 1}};
    esp_lcd_panel_handle_t lcd; ESP_ERROR_CHECK(esp_lcd_new_rgb_panel(&rgb, &lcd)); ESP_ERROR_CHECK(esp_lcd_panel_reset(lcd)); ESP_ERROR_CHECK(esp_lcd_panel_init(lcd)); ESP_ERROR_CHECK(esp_lcd_rgb_panel_get_frame_buffer(lcd, 1, (void **)&framebuffer));
    i2c_master_bus_handle_t bus; i2c_master_bus_config_t bus_config = {.i2c_port = I2C_NUM_0, .sda_io_num = 8, .scl_io_num = 9, .clk_source = I2C_CLK_SRC_DEFAULT}; ESP_ERROR_CHECK(i2c_new_master_bus(&bus_config, &bus)); i2c_device_config_t touch_config = {.device_address = 0x5D, .scl_speed_hz = 400000}; ESP_ERROR_CHECK(i2c_master_bus_add_device(bus, &touch_config, &touch_handle));
    start_wifi(); draw_dashboard(); int refresh_ticks = 0;
    while (true) { int x, y; if (read_touch(&x, &y) && x < 120 && y >= 38 && y < 458) { int row = (y - 38) / 21; if (row < car_count && row < MAX_CARS) { if (cars[row].selected) { cars[row].selected = false; selected_count--; } else if (selected_count < 6) { cars[row].selected = true; selected_count++; } draw_dashboard(); } } if (++refresh_ticks >= 30) { update_openf1(); draw_dashboard(); refresh_ticks = 0; } vTaskDelay(pdMS_TO_TICKS(100)); }
}
