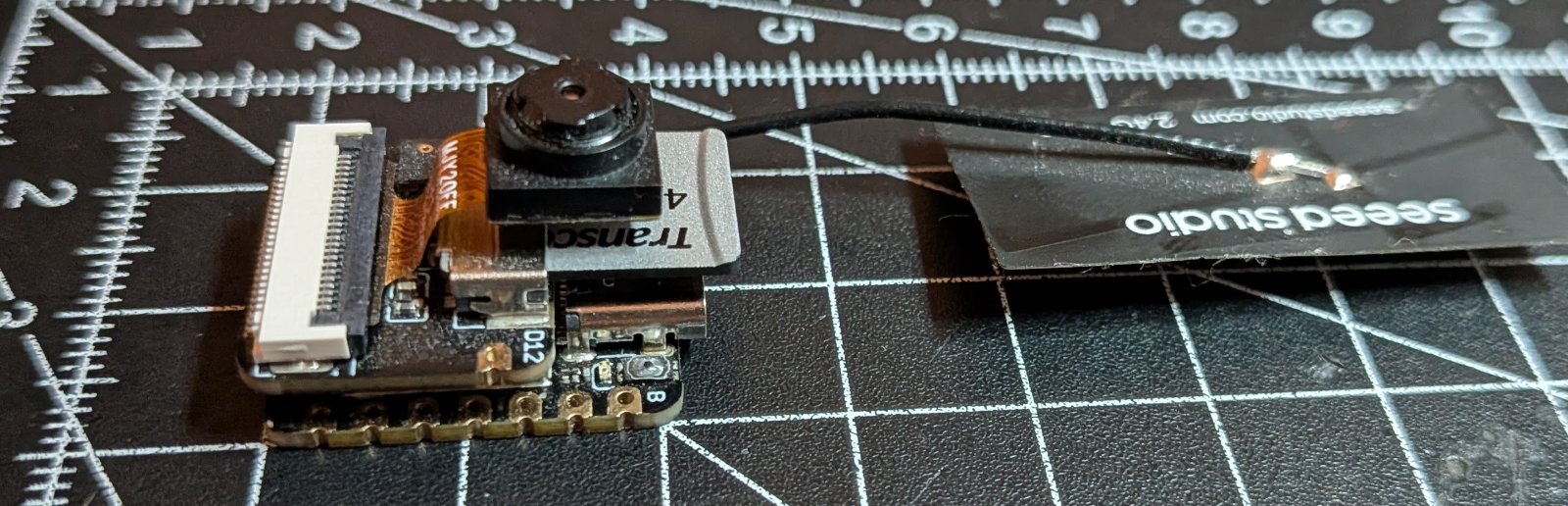

Motion-Triggered Telegram Camera Alerts

#include <Arduino.h>
#include <WiFi.h>
#include <WiFiClientSecure.h>
#include <WebServer.h>
#include <SPI.h>
#include <SD.h>
#include "esp_camera.h"
#include "esp_heap_caps.h"
#include "img_converters.h"

// Program code stays on the ESP32. Edit /config.txt on a FAT32 microSD card.
struct Settings {
  String wifiSsid, wifiPassword, telegramToken, telegramChatId;
  bool telegramEnabled = true;
  bool emailEnabled = false;
  String smtpHost, smtpUser, smtpPassword, emailFrom, emailTo;
  uint16_t smtpPort = 465;
  bool whatsappEnabled = false;
  String whatsappAccessToken, whatsappPhoneNumberId, whatsappRecipient;
  uint16_t pixelChangeThreshold = 28, changedSamplesToTrigger = 550, sampleIntervalMs = 250;
  uint8_t confirmationFrames = 5, maxImagesPerSend = 10;
  uint16_t maxWaitBeforeSendMs = 3000;
  framesize_t photoSize = FRAMESIZE_VGA;
  int jpegQuality = 12;
  uint16_t cameraRotation = 0;
  bool alarmArmed = true;
};
struct StoredPhoto { uint8_t *data = nullptr; size_t length = 0; };


// Forward declarations
String trimValue(String v);
bool boolValue(const String &v);
bool applySetting(const String &key, const String &value);
void createConfigTemplate();
bool loadSettingsFromSd();
bool textSet(const String &v,const char *placeholder);
bool anyDeliveryConfigured();
bool connectWiFi();
void configureCamera(camera_config_t &c);
bool motionDetected(camera_fb_t *f);
void applyCameraRotation();
bool rotateJpegQuarterTurn(uint8_t *&data,size_t &length);
bool captureJpegCopy(uint8_t*&data,size_t&length);
void clearQueuedPhotos();
bool queuePhotoCopy(uint8_t *&data, size_t length);
String base64(const uint8_t *data,size_t len);
String urlEncode(const String &text);
bool httpStatus200(WiFiClientSecure &c);
bool sendTelegramAlbum(uint8_t n);
bool sendTelegramPhotosIndividually(uint8_t n);
bool sendTelegramMessage(const String &text);
bool installTelegramControls();
void pollTelegramCommands();
bool telegramResponseOk(WiFiClientSecure &c);
bool smtpReply(WiFiClientSecure &c,int wanted);
bool sendEmailAlbum(uint8_t n);
String jsonEscape(String v);
bool sendWhatsAppPhoto(const StoredPhoto &p,uint8_t index);
bool sendWhatsAppAlbum(uint8_t n);
bool deliverAlbum(uint8_t n);
void removeSentPhotos(uint8_t n);
void sendQueuedAlbumIfDue(bool force);
void startWebInterface();
void handleWebRoot();
void handleWebSave();
void handleWebReboot();
void handleWebDeleteConfig();
void handleWebRawConfig();
void handleWebTerminal();
void protokoll(const String &text);

void writeCurrentSettings(File &f);
String htmlEscape(const String &value);
String htmlInput(const char *name, const String &value, bool secret=false, bool neustartNoetig=false);
String htmlBooleanSelect(const char *name, bool value);

const int SD_CS_PIN=21, SD_SCK_PIN=7, SD_MISO_PIN=8, SD_MOSI_PIN=9;
SPIClass sdSpi(FSPI);
Settings settings;
bool sdReady=false, cameraReady=false;
uint32_t lastStatusMs=0;
uint8_t *previousFrame=nullptr;
size_t previousFrameLength=0;
const uint8_t QUEUE_CAPACITY=20;
StoredPhoto photoQueue[QUEUE_CAPACITY];
uint8_t queuedPhotoCount=0, motionFrameStreak=0;
bool motionConfirmed=false;
uint32_t oldestQueuedPhotoMs=0, lastSampleMs=0, lastTelegramPollMs=0;
long telegramUpdateOffset=0;
WebServer webServer(80);
bool rebootRequested=false;
uint32_t rebootRequestedMs=0;
bool alteKonfigurationsnamenGefunden=false;
// Die letzten Meldungen werden zusätzlich zur USB-Seriellschnittstelle für die lokale Webansicht gepuffert.
String webProtokoll;
const size_t WEB_PROTOKOLL_MAX_ZEICHEN=7000;

void protokoll(const String &text){
  // Eigene Programmmeldungen gehen immer gleichzeitig an USB und ins Web-Protokoll.
  Serial.print(text);
  Serial.write('\n');
  webProtokoll += String(millis()/1000) + " s  " + text + "\n";
  if(webProtokoll.length()>WEB_PROTOKOLL_MAX_ZEICHEN) webProtokoll.remove(0,webProtokoll.length()-WEB_PROTOKOLL_MAX_ZEICHEN);
}

String trimValue(String v) { v.trim(); return v; }
bool boolValue(const String &v) { return v=="1" || v.equalsIgnoreCase("true") || v.equalsIgnoreCase("yes") || v.equalsIgnoreCase("on"); }

bool applySetting(const String &key, const String &value) {
  // Ältere englische Dateien werden einmalig übernommen und danach als deutsche
  // config.txt gespeichert. So bleiben vorhandene Zugangsdaten erhalten.
  if(key=="WIFI_SSID") { alteKonfigurationsnamenGefunden=true; return applySetting("WLAN_NAME",value); }
  if(key=="WIFI_PASSWORD") { alteKonfigurationsnamenGefunden=true; return applySetting("WLAN_PASSWORT",value); }
  if(key=="TELEGRAM_ENABLED") { alteKonfigurationsnamenGefunden=true; return applySetting("TELEGRAM_AKTIV",value); }
  if(key=="TELEGRAM_BOT_TOKEN") { alteKonfigurationsnamenGefunden=true; return applySetting("TELEGRAM_BOT_SCHLUESSEL",value); }
  if(key=="TELEGRAM_CHAT_ID") { alteKonfigurationsnamenGefunden=true; return applySetting("TELEGRAM_CHAT_NUMMER",value); }
  if(key=="EMAIL_ENABLED") { alteKonfigurationsnamenGefunden=true; return applySetting("E_MAIL_AKTIV",value); }
  if(key=="SMTP_HOST") { alteKonfigurationsnamenGefunden=true; return applySetting("E_MAIL_SERVER",value); }
  if(key=="SMTP_PORT") { alteKonfigurationsnamenGefunden=true; return applySetting("E_MAIL_PORT",value); }
  if(key=="SMTP_USER") { alteKonfigurationsnamenGefunden=true; return applySetting("E_MAIL_BENUTZERNAME",value); }
  if(key=="SMTP_PASSWORD") { alteKonfigurationsnamenGefunden=true; return applySetting("E_MAIL_PASSWORT",value); }
  if(key=="EMAIL_FROM") { alteKonfigurationsnamenGefunden=true; return applySetting("E_MAIL_ABSENDER",value); }
  if(key=="EMAIL_TO") { alteKonfigurationsnamenGefunden=true; return applySetting("E_MAIL_EMPFÄNGER",value); }
  if(key=="WHATSAPP_ENABLED") { alteKonfigurationsnamenGefunden=true; return applySetting("WHATSAPP_AKTIV",value); }
  if(key=="WHATSAPP_ACCESS_TOKEN") { alteKonfigurationsnamenGefunden=true; return applySetting("WHATSAPP_ZUGANGSSCHLUESSEL",value); }
  if(key=="WHATSAPP_PHONE_NUMBER_ID") { alteKonfigurationsnamenGefunden=true; return applySetting("WHATSAPP_TELEFON_NUMMER_ID",value); }
  if(key=="WHATSAPP_RECIPIENT") { alteKonfigurationsnamenGefunden=true; return applySetting("WHATSAPP_EMPFÄNGER",value); }
  if(key=="PIXEL_CHANGE_THRESHOLD") { alteKonfigurationsnamenGefunden=true; return applySetting("MINDEST_HELLIGKEITSAENDERUNG",value); }
  if(key=="CHANGED_SAMPLES_TO_TRIGGER") { alteKonfigurationsnamenGefunden=true; return applySetting("MINDEST_ANZAHL_VERAENDERTER_BILDPUNKTE",value); }
  if(key=="SAMPLE_INTERVAL_MS") { alteKonfigurationsnamenGefunden=true; return applySetting("BILDVERGLEICH_ABSTAND_MS",value); }
  if(key=="CONFIRMATION_FRAMES") { alteKonfigurationsnamenGefunden=true; return applySetting("BILDER_BIS_BEWEGUNGSBESTAETIGUNG",value); }
  if(key=="ALBUM_SIZE") { alteKonfigurationsnamenGefunden=true; return applySetting("MAXIMALE_BILDER_PRO_VERSAND",value); }
  if(key=="ALBUM_WAIT_MS") { alteKonfigurationsnamenGefunden=true; return applySetting("MAXIMALE_WARTEZEIT_BIS_VERSAND_MS",value); }
  if(key=="PHOTO_SIZE") { alteKonfigurationsnamenGefunden=true; return applySetting("FOTOGROESSE",value); }
  if(key=="JPEG_QUALITY") { alteKonfigurationsnamenGefunden=true; return applySetting("JPEG_QUALITAET",value); }
  if(key=="CAMERA_ROTATION") { alteKonfigurationsnamenGefunden=true; return applySetting("KAMERA_DREHUNG",value); }
  if(key=="ALARM_ARMED") { alteKonfigurationsnamenGefunden=true; return applySetting("ALARM_AKTIV",value); }

  if(key=="WLAN_NAME") settings.wifiSsid=value; else if(key=="WLAN_PASSWORT") settings.wifiPassword=value;
  else if(key=="TELEGRAM_AKTIV") settings.telegramEnabled=boolValue(value);
  else if(key=="TELEGRAM_BOT_SCHLUESSEL") settings.telegramToken=value; else if(key=="TELEGRAM_CHAT_NUMMER") settings.telegramChatId=value;
  else if(key=="E_MAIL_AKTIV") settings.emailEnabled=boolValue(value); else if(key=="E_MAIL_SERVER") settings.smtpHost=value;
  else if(key=="E_MAIL_PORT") settings.smtpPort=constrain(value.toInt(),1,65535); else if(key=="E_MAIL_BENUTZERNAME") settings.smtpUser=value;
  else if(key=="E_MAIL_PASSWORT") settings.smtpPassword=value; else if(key=="E_MAIL_ABSENDER") settings.emailFrom=value; else if(key=="E_MAIL_EMPFÄNGER") settings.emailTo=value;
  else if(key=="WHATSAPP_AKTIV") settings.whatsappEnabled=boolValue(value); else if(key=="WHATSAPP_ZUGANGSSCHLUESSEL") settings.whatsappAccessToken=value;
  else if(key=="WHATSAPP_TELEFON_NUMMER_ID") settings.whatsappPhoneNumberId=value; else if(key=="WHATSAPP_EMPFÄNGER") settings.whatsappRecipient=value;
  else if(key=="MINDEST_HELLIGKEITSAENDERUNG") settings.pixelChangeThreshold=value.toInt(); else if(key=="MINDEST_ANZAHL_VERAENDERTER_BILDPUNKTE") settings.changedSamplesToTrigger=value.toInt();
  else if(key=="BILDVERGLEICH_ABSTAND_MS") settings.sampleIntervalMs=max((long)50,value.toInt()); else if(key=="BILDER_BIS_BEWEGUNGSBESTAETIGUNG") settings.confirmationFrames=constrain(value.toInt(),1,20);
  else if(key=="MAXIMALE_BILDER_PRO_VERSAND") settings.maxImagesPerSend=constrain(value.toInt(),2,10); else if(key=="MAXIMALE_WARTEZEIT_BIS_VERSAND_MS") settings.maxWaitBeforeSendMs=max((long)250,value.toInt());
  else if(key=="FOTOGROESSE") { if(value=="QVGA") settings.photoSize=FRAMESIZE_QVGA; else if(value=="VGA") settings.photoSize=FRAMESIZE_VGA; else if(value=="SVGA") settings.photoSize=FRAMESIZE_SVGA; else return false; }
  else if(key=="JPEG_QUALITAET") settings.jpegQuality=constrain(value.toInt(),4,63);
  else if(key=="KAMERA_DREHUNG") { int r=value.toInt(); if(r!=0&&r!=90&&r!=180&&r!=270&&r!=360)return false; settings.cameraRotation=(r==360?0:r); }
  else if(key=="ALARM_AKTIV") settings.alarmArmed=boolValue(value);
  else return false; return true;
}

void createConfigTemplate() {
  File f=SD.open("/config.txt",FILE_WRITE);
  if(!f) return;
  // One literal makes every separating blank line unambiguous on the SD card.
  f.print(
    "# WLAN\n"
    "WLAN_NAME=YOUR_WIFI_NAME\n"
    "WLAN_PASSWORT=YOUR_WLAN_PASSWORT\n"
    "\n"
    "# Telegram\n"
    "TELEGRAM_AKTIV=true\n"
    "TELEGRAM_BOT_SCHLUESSEL=123456789:REPLACE_WITH_BOT_TOKEN\n"
    "TELEGRAM_CHAT_NUMMER=REPLACE_WITH_NUMERIC_CHAT_ID\n"
    "\n"
    "# E-Mail: Bei manchen Anbietern brauchst du ein App-Passwort statt deines normalen Passworts.\n"
    "E_MAIL_AKTIV=false\n"
    "E_MAIL_SERVER=smtp.example.com\n"
    "E_MAIL_PORT=465\n"
    "E_MAIL_BENUTZERNAME=camera@example.com\n"
    "E_MAIL_PASSWORT=REPLACE_WITH_E_MAIL_PASSWORT\n"
    "E_MAIL_ABSENDER=camera@example.com\n"
    "E_MAIL_EMPFÄNGER=recipient@example.com\n"
    "\n"
    "# WhatsApp benötigt einen Zugangsschlüssel der offiziellen Meta WhatsApp Business Cloud API.\n"
    "WHATSAPP_AKTIV=false\n"
    "WHATSAPP_ZUGANGSSCHLUESSEL=REPLACE_WITH_META_ACCESS_TOKEN\n"
    "WHATSAPP_TELEFON_NUMMER_ID=REPLACE_WITH_PHONE_NUMBER_ID\n"
    "WHATSAPP_EMPFÄNGER=15551234567\n"
    "\n"
    "# Kamera und Bewegung\n"
    "MINDEST_HELLIGKEITSAENDERUNG=28\n"
    "MINDEST_ANZAHL_VERAENDERTER_BILDPUNKTE=550\n"
    "BILDVERGLEICH_ABSTAND_MS=250\n"
    "BILDER_BIS_BEWEGUNGSBESTAETIGUNG=5\n"
    "MAXIMALE_BILDER_PRO_VERSAND=10\n"
    "MAXIMALE_WARTEZEIT_BIS_VERSAND_MS=3000\n"
    "FOTOGROESSE=VGA\n"
    "JPEG_QUALITAET=12\n"
    "KAMERA_DREHUNG=0\n"
    "\n"
    "# Zustand nach jedem Neustart. Telegram-Befehle: /arm, /disarm, /status.\n"
    "ALARM_AKTIV=true\n"
  );
  f.close();
}
bool loadSettingsFromSd() {
  alteKonfigurationsnamenGefunden=false;
  File f=SD.open("/config.txt",FILE_READ);
  if(!f){createConfigTemplate();return false;}
  while(f.available()){
    String l=trimValue(f.readStringUntil('\n'));
    if(!l.length()||l.startsWith("#"))continue;
    int p=l.indexOf('=');
    if(p>0&&!applySetting(trimValue(l.substring(0,p)),trimValue(l.substring(p+1))))protokoll("[Config] Unbekannter Eintrag ignoriert: "+l.substring(0,p));
  }
  f.close();
  if(!alteKonfigurationsnamenGefunden)return true;

  File neu=SD.open("/config.neu",FILE_WRITE);
  if(!neu){protokoll("[Config] Alte Namen erkannt, aber neue Datei konnte nicht erstellt werden.");return true;}
  writeCurrentSettings(neu);
  neu.close();
  SD.remove("/config.txt.bak");
  if(!SD.rename("/config.txt","/config.txt.bak")||!SD.rename("/config.neu","/config.txt")){
    protokoll("[Config] Automatische Umstellung fehlgeschlagen; die alte Datei bleibt als config.txt.bak erhalten.");
    if(!SD.exists("/config.txt")&&SD.exists("/config.txt.bak"))SD.rename("/config.txt.bak","/config.txt");
    return true;
  }
  protokoll("[Config] Englische Namen automatisch umgestellt. Sicherung: /config.txt.bak");
  return true;
}
bool textSet(const String &v,const char *placeholder) { return v.length()>0 && v!=placeholder && !v.startsWith("REPLACE_"); }
bool anyDeliveryConfigured() { bool tg=!settings.telegramEnabled || (settings.telegramToken.length()>12&&!settings.telegramToken.startsWith("123456789:")&&textSet(settings.telegramChatId,"REPLACE_WITH_NUMERIC_CHAT_ID")); bool em=!settings.emailEnabled || (settings.smtpHost.length()&&settings.smtpUser.length()&&textSet(settings.smtpPassword,"REPLACE_WITH_E_MAIL_PASSWORT")&&settings.emailFrom.length()&&settings.emailTo.length()); bool wa=!settings.whatsappEnabled || (textSet(settings.whatsappAccessToken,"REPLACE_WITH_META_ACCESS_TOKEN")&&textSet(settings.whatsappPhoneNumberId,"REPLACE_WITH_PHONE_NUMBER_ID")&&settings.whatsappRecipient.length()); return tg&&em&&wa&&(settings.telegramEnabled||settings.emailEnabled||settings.whatsappEnabled); }
bool connectWiFi(){
  if(WiFi.status()==WL_CONNECTED)return true;
  protokoll("[WiFi] Connecting to configured network...");
  WiFi.mode(WIFI_STA);
  WiFi.begin(settings.wifiSsid.c_str(),settings.wifiPassword.c_str());
  uint32_t t=millis();
  while(WiFi.status()!=WL_CONNECTED&&millis()-t<20000)delay(250);
  if(WiFi.status()==WL_CONNECTED){
    protokoll("[WiFi] Connected. IP address: "+WiFi.localIP().toString());
    return true;
  }
  protokoll("[WiFi] Connection failed; will retry in 5 seconds.");
  return false;
}

void configureCamera(camera_config_t &c){c.ledc_channel=LEDC_CHANNEL_0;c.ledc_timer=LEDC_TIMER_0;c.pin_d0=15;c.pin_d1=17;c.pin_d2=18;c.pin_d3=16;c.pin_d4=14;c.pin_d5=12;c.pin_d6=11;c.pin_d7=48;c.pin_xclk=10;c.pin_pclk=13;c.pin_vsync=38;c.pin_href=47;c.pin_sccb_sda=40;c.pin_sccb_scl=39;c.pin_pwdn=-1;c.pin_reset=-1;c.xclk_freq_hz=20000000;c.pixel_format=PIXFORMAT_JPEG;c.frame_size=settings.photoSize;c.jpeg_quality=settings.jpegQuality;c.fb_count=1;c.fb_location=CAMERA_FB_IN_PSRAM;c.grab_mode=CAMERA_GRAB_WHEN_EMPTY;}
bool motionDetected(camera_fb_t *f){
  // OV3660 JPEG frames are stable on the XIAO; decode a small image for motion comparison.
  if(!f||f->format!=PIXFORMAT_JPEG)return false;
  const size_t samples=(size_t)f->width*f->height;
  const size_t rgbBytes=samples*3UL;
  uint8_t *rgb=(uint8_t*)heap_caps_malloc(rgbBytes,MALLOC_CAP_SPIRAM|MALLOC_CAP_8BIT);
  if(!rgb||!fmt2rgb888(f->buf,f->len,PIXFORMAT_JPEG,rgb)){free(rgb);return false;}
  if(!previousFrame||previousFrameLength!=samples){free(previousFrame);previousFrame=(uint8_t*)heap_caps_malloc(samples,MALLOC_CAP_SPIRAM|MALLOC_CAP_8BIT);if(!previousFrame){free(rgb);return false;}previousFrameLength=samples;for(size_t i=0;i<samples;i++)previousFrame[i]=(uint8_t)(((uint16_t)rgb[i*3]*30+(uint16_t)rgb[i*3+1]*59+(uint16_t)rgb[i*3+2]*11)/100);free(rgb);return false;}
  uint32_t changed=0;
  for(size_t i=0;i<samples;i+=4){uint8_t gray=(uint8_t)(((uint16_t)rgb[i*3]*30+(uint16_t)rgb[i*3+1]*59+(uint16_t)rgb[i*3+2]*11)/100);if(abs((int)gray-(int)previousFrame[i])>=settings.pixelChangeThreshold)++changed;previousFrame[i]=gray;}
  // Refresh unsampled pixels too, so a stationary scene becomes the new reference.
  for(size_t i=1;i<samples;i+=4)previousFrame[i]=(uint8_t)(((uint16_t)rgb[i*3]*30+(uint16_t)rgb[i*3+1]*59+(uint16_t)rgb[i*3+2]*11)/100);
  for(size_t i=2;i<samples;i+=4)previousFrame[i]=(uint8_t)(((uint16_t)rgb[i*3]*30+(uint16_t)rgb[i*3+1]*59+(uint16_t)rgb[i*3+2]*11)/100);
  for(size_t i=3;i<samples;i+=4)previousFrame[i]=(uint8_t)(((uint16_t)rgb[i*3]*30+(uint16_t)rgb[i*3+1]*59+(uint16_t)rgb[i*3+2]*11)/100);
  free(rgb);return changed>=settings.changedSamplesToTrigger;
}
void applyCameraRotation(){sensor_t*s=esp_camera_sensor_get();if(s){s->set_hmirror(s,settings.cameraRotation==180);s->set_vflip(s,settings.cameraRotation==180);}}
bool rotateJpegQuarterTurn(uint8_t *&data,size_t &length){if(settings.cameraRotation!=90&&settings.cameraRotation!=270)return true;uint16_t w=640,h=480;if(settings.photoSize==FRAMESIZE_QVGA){w=320;h=240;}else if(settings.photoSize==FRAMESIZE_SVGA){w=800;h=600;}size_t n=(size_t)w*h*3;uint8_t*a=(uint8_t*)heap_caps_malloc(n,MALLOC_CAP_SPIRAM|MALLOC_CAP_8BIT),*b=(uint8_t*)heap_caps_malloc(n,MALLOC_CAP_SPIRAM|MALLOC_CAP_8BIT);if(!a||!b||!fmt2rgb888(data,length,PIXFORMAT_JPEG,a)){free(a);free(b);return false;}for(uint16_t y=0;y<h;y++)for(uint16_t x=0;x<w;x++){size_t src=((size_t)y*w+x)*3;uint16_t dx=settings.cameraRotation==90?h-1-y:y,dy=settings.cameraRotation==90?x:w-1-x;memcpy(b+((size_t)dy*h+dx)*3,a+src,3);}uint8_t*j=nullptr;size_t l=0;bool ok=fmt2jpg(b,n,h,w,PIXFORMAT_RGB888,settings.jpegQuality,&j,&l);free(a);free(b);if(!ok||!j)return false;free(data);data=j;length=l;return true;}
bool captureJpegCopy(uint8_t*&data,size_t&length){data=nullptr;length=0;sensor_t*s=esp_camera_sensor_get();if(!s)return false;s->set_framesize(s,settings.photoSize);s->set_quality(s,settings.jpegQuality);applyCameraRotation();delay(180);camera_fb_t*p=esp_camera_fb_get();if(p){data=(uint8_t*)heap_caps_malloc(p->len,MALLOC_CAP_SPIRAM|MALLOC_CAP_8BIT);if(data){memcpy(data,p->buf,p->len);length=p->len;}esp_camera_fb_return(p);}if(data&&!rotateJpegQuarterTurn(data,length)){free(data);data=nullptr;length=0;}s->set_hmirror(s,false);s->set_vflip(s,false);s->set_framesize(s,FRAMESIZE_QVGA);delay(120);return data!=nullptr;}
void clearQueuedPhotos(){for(uint8_t i=0;i<queuedPhotoCount;i++){free(photoQueue[i].data);photoQueue[i]={};}queuedPhotoCount=0;oldestQueuedPhotoMs=0;}
bool queuePhotoCopy(uint8_t *&data, size_t length){if(queuedPhotoCount>=QUEUE_CAPACITY||!data||!length)return false;photoQueue[queuedPhotoCount++]={data,length};data=nullptr;if(!oldestQueuedPhotoMs)oldestQueuedPhotoMs=millis();return true;}

String base64(const uint8_t *data,size_t len){static const char t[]="ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/";String out;out.reserve(((len+2)/3)*4);for(size_t i=0;i<len;i+=3){uint32_t n=(uint32_t)data[i]<<16;if(i+1<len)n|=(uint32_t)data[i+1]<<8;if(i+2<len)n|=data[i+2];out+=t[(n>>18)&63];out+=t[(n>>12)&63];out+=(i+1<len?t[(n>>6)&63]:'=');out+=(i+2<len?t[n&63]:'=');}return out;}
String urlEncode(const String &text){static const char hex[]="0123456789ABCDEF";String out;out.reserve(text.length()*3);for(size_t i=0;i<text.length();i++){uint8_t c=(uint8_t)text[i];if((c>='a'&&c<='z')||(c>='A'&&c<='Z')||(c>='0'&&c<='9')||c=='-'||c=='_'||c=='.'||c=='~')out+=(char)c;else{out+='%';out+=hex[c>>4];out+=hex[c&15];}}return out;}
bool httpStatus200(WiFiClientSecure &c){uint32_t t=millis();while(!c.available()&&millis()-t<20000)delay(10);String status=c.readStringUntil('\n');c.stop();return status.indexOf(" 200 ")>=0||status.indexOf(" 201 ")>=0;}
bool telegramResponseOk(WiFiClientSecure &c){
  // Do not use Stream::readString() here. On this ESP32-S3 core it keeps
  // querying a TLS socket after Telegram has closed it, producing errno 9.
  uint32_t deadline=millis()+20000;
  while(!c.available()&&millis()<deadline)delay(5);
  if(!c.available()){c.stop();return false;}
  String status=c.readStringUntil('\n');
  bool ok=status.indexOf(" 200 ")>=0||status.indexOf(" 201 ")>=0;
  int contentLength=-1;
  bool headersDone=false;
  deadline=millis()+3000;
  while(millis()<deadline&&!headersDone){
    if(!c.available()){delay(2);continue;}
    String line=c.readStringUntil('\n');
    if(line.startsWith("Content-Length:")||line.startsWith("content-length:"))contentLength=line.substring(line.indexOf(':')+1).toInt();
    if(line=="\r"||line.length()==0)headersDone=true;
  }
  String response;
  if(headersDone){
    if(contentLength>0)response.reserve(contentLength);
    uint32_t idleDeadline=millis()+500;
    while((contentLength<0||response.length()<(size_t)contentLength)&&millis()<idleDeadline){
      while(c.available()&&(contentLength<0||response.length()<(size_t)contentLength)){
        response+=(char)c.read();
        idleDeadline=millis()+150;
      }
      delay(2);
    }
  }
  c.stop();
  return ok;
}
bool sendTelegramAlbum(uint8_t n){if(!settings.telegramEnabled)return true;WiFiClientSecure c;c.setInsecure();if(!c.connect("api.telegram.org",443))return false;String b="----XIAOBoundary",media="[";for(uint8_t i=0;i<n;i++){if(i)media+=',';media+="{\"type\":\"photo\",\"media\":\"attach://motion"+String(i)+"\"";if(!i)media+=",\"caption\":\"Confirmed camera movement: "+String(n)+" images\"";media+="}";}media+=']';String start="--"+b+"\r\nContent-Disposition: form-data; name=\"chat_id\"\r\n\r\n"+settings.telegramChatId+"\r\n--"+b+"\r\nContent-Disposition: form-data; name=\"media\"\r\n\r\n"+media+"\r\n";size_t len=start.length();for(uint8_t i=0;i<n;i++){String h="--"+b+"\r\nContent-Disposition: form-data; name=\"motion"+String(i)+"\"; filename=\"motion.jpg\"\r\nContent-Type: image/jpeg\r\n\r\n";len+=h.length()+photoQueue[i].length+2;}String tail="--"+b+"--\r\n";len+=tail.length();c.printf("POST /bot%s/sendMediaGroup HTTP/1.1\r\n",settings.telegramToken.c_str());c.println("Host: api.telegram.org");c.println("Connection: close");c.println("Content-Type: multipart/form-data; boundary="+b);c.println("Content-Length: "+String(len));c.println();c.print(start);for(uint8_t i=0;i<n;i++){c.print("--"+b+"\r\nContent-Disposition: form-data; name=\"motion"+String(i)+"\"; filename=\"motion.jpg\"\r\nContent-Type: image/jpeg\r\n\r\n");c.write(photoQueue[i].data,photoQueue[i].length);c.print("\r\n");}c.print(tail);return telegramResponseOk(c);}

bool sendTelegramPhotosIndividually(uint8_t n){
  if(!settings.telegramEnabled)return true;
  bool allSent=true;
  for(uint8_t i=0;i<n;i++){
    WiFiClientSecure c;
    c.setInsecure();
    if(!c.connect("api.telegram.org",443)){
      protokoll("[Telegram] Could not connect for image "+String(i+1)+" of "+String(n)+".");
      allSent=false;
      break;
    }
    String boundary="----XIAOSinglePhoto";
    String caption="Confirmed camera movement: image "+String(i+1)+" of "+String(n);
    String head="--"+boundary+"\r\nContent-Disposition: form-data; name=\"chat_id\"\r\n\r\n"+settings.telegramChatId+
      "\r\n--"+boundary+"\r\nContent-Disposition: form-data; name=\"caption\"\r\n\r\n"+caption+
      "\r\n--"+boundary+"\r\nContent-Disposition: form-data; name=\"photo\"; filename=\"motion.jpg\"\r\nContent-Type: image/jpeg\r\n\r\n";
    String tail="\r\n--"+boundary+"--\r\n";
    size_t bodyLength=head.length()+photoQueue[i].length+tail.length();
    c.printf("POST /bot%s/sendPhoto HTTP/1.1\r\n",settings.telegramToken.c_str());
    c.println("Host: api.telegram.org");
    c.println("Connection: close");
    c.println("Content-Type: multipart/form-data; boundary="+boundary);
    c.println("Content-Length: "+String(bodyLength));
    c.println();
    c.print(head);
    c.write(photoQueue[i].data,photoQueue[i].length);
    c.print(tail);
    if(!telegramResponseOk(c)){
      protokoll("[Telegram] Image "+String(i+1)+" of "+String(n)+" failed; remaining images stay queued.");
      allSent=false;
      break;
    }
    protokoll("[Telegram] Image "+String(i+1)+" of "+String(n)+" sent.");
    delay(150);
  }
  return allSent;
}

bool sendTelegramMessage(const String &text){
  if(!settings.telegramEnabled)return false;
  WiFiClientSecure c;c.setInsecure();
  if(!c.connect("api.telegram.org",443))return false;
  // This is Telegram's on-screen reply keyboard: the three labels are tappable.
  String keyboard="{\"keyboard\":[[{\"text\":\"/arm\"},{\"text\":\"/disarm\"}],[{\"text\":\"/status\"}]],\"resize_keyboard\":true,\"is_persistent\":true}";
  String body="chat_id="+urlEncode(settings.telegramChatId)+"&text="+urlEncode(text)+"&reply_markup="+urlEncode(keyboard);
  c.printf("POST /bot%s/sendMessage HTTP/1.1\r\n",settings.telegramToken.c_str());
  c.println("Host: api.telegram.org");c.println("Connection: close");c.println("Content-Type: application/x-www-form-urlencoded");c.println("Content-Length: "+String(body.length()));c.println();c.print(body);
  return telegramResponseOk(c);
}

bool installTelegramControls(){
  if(!settings.telegramEnabled)return false;
  WiFiClientSecure c;c.setInsecure();
  if(!c.connect("api.telegram.org",443))return false;
  String commands="{\"commands\":[{\"command\":\"arm\",\"description\":\"Alarmanlage aktivieren\"},{\"command\":\"disarm\",\"description\":\"Alarmanlage deaktivieren\"},{\"command\":\"status\",\"description\":\"Alarmstatus abfragen\"}]}";
  c.printf("POST /bot%s/setMyCommands HTTP/1.1\r\n",settings.telegramToken.c_str());
  c.println("Host: api.telegram.org");c.println("Connection: close");c.println("Content-Type: application/json");c.println("Content-Length: "+String(commands.length()));c.println();c.print(commands);
  bool menuOk=httpStatus200(c);
  bool keyboardOk=sendTelegramMessage("Alarmsteuerung bereit. Mit /arm, /disarm und /status kannst du die Anlage steuern.");
  protokoll(menuOk&&keyboardOk?"[Telegram] Control buttons installed.":"[Telegram] Could not install control buttons; check bot token and chat ID.");
  return menuOk&&keyboardOk;
}

void pollTelegramCommands(){
  if(!settings.telegramEnabled||millis()-lastTelegramPollMs<2000)return;
  lastTelegramPollMs=millis();
  WiFiClientSecure c;c.setInsecure();
  if(!c.connect("api.telegram.org",443))return;
  String path="/bot"+settings.telegramToken+"/getUpdates?timeout=0&offset="+String(telegramUpdateOffset);
  c.println("GET "+path+" HTTP/1.1");c.println("Host: api.telegram.org");c.println("Connection: close");c.println();
  uint32_t start=millis();
  while(!c.available()&&millis()-start<10000)delay(10);
  if(!c.available()){protokoll("[Telegram] No response to command check; retrying later.");c.stop();return;}
  String header=c.readStringUntil('\n');
  if(header.indexOf(" 200 ")<0){protokoll("[Telegram] Command check was rejected.");c.stop();return;}
  // Telegram may close TLS before connected() is queried on this ESP32-S3 core.
  // Avoid connected(): it can repeatedly call setsockopt on the closed socket.
  bool headersDone=false;
  uint32_t headerDeadline=millis()+3000;
  while(millis()<headerDeadline&&!headersDone){
    if(!c.available()){delay(5);continue;}
    String line=c.readStringUntil('\n');
    if(line=="\r"||line.length()==0)headersDone=true;
  }
  if(!headersDone){protokoll("[Telegram] Incomplete command response headers.");c.stop();return;}
  String body="";
  uint32_t bodyDeadline=millis()+5000;
  uint32_t lastByteMs=millis();
  while(millis()<bodyDeadline){
    while(c.available()){body+=(char)c.read();lastByteMs=millis();}
    if(body.length()&&millis()-lastByteMs>150)break;
    delay(5);
  }
  c.stop();
  int scan=0;
  while(true){
    int updateAt=body.indexOf("\"update_id\":",scan);if(updateAt<0)break;
    int idStart=updateAt+12,idEnd=idStart;while(idEnd<(int)body.length()&&isDigit(body[idEnd]))idEnd++;
    long updateId=body.substring(idStart,idEnd).toInt();
    int nextUpdate=body.indexOf("\"update_id\":",idEnd);
    String one=body.substring(updateAt,nextUpdate<0?(int)body.length():nextUpdate);
    telegramUpdateOffset=updateId+1;
    int chatAt=one.indexOf("\"chat\":{\"id\":");
    int textAt=one.indexOf("\"text\":\"");
    if(chatAt<0||textAt<0){scan=idEnd;continue;}
    int chatStart=chatAt+13,chatEnd=chatStart;while(chatEnd<(int)one.length()&&(isDigit(one[chatEnd])||one[chatEnd]=='-'))chatEnd++;
    String chatId=one.substring(chatStart,chatEnd);
    int commandStart=textAt+8,commandEnd=one.indexOf('"',commandStart);
    if(chatId!=settings.telegramChatId||commandEnd<0){scan=idEnd;continue;}
    String command=one.substring(commandStart,commandEnd);command.toLowerCase();
    // The reply-keyboard labels and typed slash commands are both accepted.
    if(command=="/arm"||command=="arm"||command.startsWith("/arm@")){
      settings.alarmArmed=true;motionFrameStreak=0;motionConfirmed=false;clearQueuedPhotos();
      protokoll("[Alarm] Armed by Telegram.");sendTelegramMessage("Alarm armed. Camera movement is being monitored.");
    }else if(command=="/disarm"||command=="disarm"||command.startsWith("/disarm@")){
      settings.alarmArmed=false;motionFrameStreak=0;motionConfirmed=false;clearQueuedPhotos();
      protokoll("[Alarm] Disarmed by Telegram.");sendTelegramMessage("Alarm disarmed. No movement photos will be sent.");
    }else if(command=="/status"||command=="status"||command.startsWith("/status@")){
      String state=settings.alarmArmed?"ARMED":"DISARMED";
      String reply="Alarm status: "+state+". WiFi: "+String(WiFi.status()==WL_CONNECTED?"connected":"offline")+". Queued images: "+String(queuedPhotoCount)+".";
      protokoll("[Alarm] Status requested by Telegram.");sendTelegramMessage(reply);
    }
    scan=idEnd;
  }
}

bool smtpReply(WiFiClientSecure &c,int wanted){uint32_t t=millis();while(!c.available()&&millis()-t<15000)delay(10);String r=c.readStringUntil('\n');return r.startsWith(String(wanted));}
bool sendEmailAlbum(uint8_t n){if(!settings.emailEnabled)return true;WiFiClientSecure c;c.setInsecure();if(!c.connect(settings.smtpHost.c_str(),settings.smtpPort))return false;if(!smtpReply(c,220))return false;c.println("EHLO xiao-camera");if(!smtpReply(c,250))return false;c.println("AUTH LOGIN");if(!smtpReply(c,334))return false;c.println(base64((const uint8_t*)settings.smtpUser.c_str(),settings.smtpUser.length()));if(!smtpReply(c,334))return false;c.println(base64((const uint8_t*)settings.smtpPassword.c_str(),settings.smtpPassword.length()));if(!smtpReply(c,235))return false;c.println("MAIL FROM:<"+settings.emailFrom+">");if(!smtpReply(c,250))return false;c.println("RCPT TO:<"+settings.emailTo+">");if(!smtpReply(c,250))return false;c.println("DATA");if(!smtpReply(c,354))return false;String b="----XIAOEmailBoundary";c.println("From: <"+settings.emailFrom+">");c.println("To: <"+settings.emailTo+">");c.println("Subject: Confirmed camera movement");c.println("MIME-Version: 1.0");c.println("Content-Type: multipart/mixed; boundary="+b);c.println();c.println("--"+b);c.println("Content-Type: text/plain; charset=utf-8\r\n");c.println("Confirmed camera movement: "+String(n)+" image(s).");for(uint8_t i=0;i<n;i++){c.println("--"+b);c.println("Content-Type: image/jpeg; name=\"motion"+String(i+1)+".jpg\"");c.println("Content-Transfer-Encoding: base64");c.println("Content-Disposition: attachment; filename=\"motion"+String(i+1)+".jpg\"\r\n");String enc=base64(photoQueue[i].data,photoQueue[i].length);for(size_t p=0;p<enc.length();p+=76)c.println(enc.substring(p,p+76));}c.println("--"+b+"--");c.println(".");bool ok=smtpReply(c,250);c.println("QUIT");c.stop();return ok;}

String jsonEscape(String v){v.replace("\\","\\\\");v.replace("\"","\\\"");return v;}
bool sendWhatsAppPhoto(const StoredPhoto &p,uint8_t index){if(!settings.whatsappEnabled)return true;WiFiClientSecure c;c.setInsecure();if(!c.connect("graph.facebook.com",443))return false;String b="----XIAOWABoundary";String head="--"+b+"\r\nContent-Disposition: form-data; name=\"messaging_product\"\r\n\r\nwhatsapp\r\n--"+b+"\r\nContent-Disposition: form-data; name=\"type\"\r\n\r\nimage/jpeg\r\n--"+b+"\r\nContent-Disposition: form-data; name=\"file\"; filename=\"motion.jpg\"\r\nContent-Type: image/jpeg\r\n\r\n",tail="\r\n--"+b+"--\r\n";c.printf("POST /v22.0/%s/media HTTP/1.1\r\n",settings.whatsappPhoneNumberId.c_str());c.println("Host: graph.facebook.com");c.println("Authorization: Bearer "+settings.whatsappAccessToken);c.println("Connection: close");c.println("Content-Type: multipart/form-data; boundary="+b);c.println("Content-Length: "+String(head.length()+p.length+tail.length()));c.println();c.print(head);c.write(p.data,p.length);c.print(tail);uint32_t t=millis();while(!c.available()&&millis()-t<20000)delay(10);String status=c.readStringUntil('\n');String body=c.readString();c.stop();if(status.indexOf(" 200 ")<0)return false;int a=body.indexOf("\"id\":\"");if(a<0)return false;a+=6;int z=body.indexOf('"',a);if(z<0)return false;String mediaId=body.substring(a,z);WiFiClientSecure m;m.setInsecure();if(!m.connect("graph.facebook.com",443))return false;String caption="Confirmed camera movement, image "+String(index+1);String json="{\"messaging_product\":\"whatsapp\",\"recipient_type\":\"individual\",\"to\":\""+jsonEscape(settings.whatsappRecipient)+"\",\"type\":\"image\",\"image\":{\"id\":\""+mediaId+"\",\"caption\":\""+caption+"\"}}";m.printf("POST /v22.0/%s/messages HTTP/1.1\r\n",settings.whatsappPhoneNumberId.c_str());m.println("Host: graph.facebook.com");m.println("Authorization: Bearer "+settings.whatsappAccessToken);m.println("Connection: close");m.println("Content-Type: application/json");m.println("Content-Length: "+String(json.length()));m.println();m.print(json);return httpStatus200(m);}
bool sendWhatsAppAlbum(uint8_t n){for(uint8_t i=0;i<n;i++)if(!sendWhatsAppPhoto(photoQueue[i],i))return false;return true;}
bool deliverAlbum(uint8_t n){
  protokoll("[Send] Sending "+String(n)+" confirmed motion image(s)...");
  bool ok=true;
  if(settings.telegramEnabled){ bool sent=sendTelegramPhotosIndividually(n); protokoll(sent?"[Telegram] Individual images sent.":"[Telegram] Sending failed; images remain queued."); ok=sent&&ok; }
  if(settings.emailEnabled){ bool sent=sendEmailAlbum(n); protokoll(sent?"[Email] Images sent.":"[Email] Sending failed; images remain queued."); ok=sent&&ok; }
  if(settings.whatsappEnabled){ bool sent=sendWhatsAppAlbum(n); protokoll(sent?"[WhatsApp] Images sent.":"[WhatsApp] Sending failed; images remain queued."); ok=sent&&ok; }
  return ok;
}
void removeSentPhotos(uint8_t n){for(uint8_t i=0;i<n;i++)free(photoQueue[i].data);for(uint8_t i=n;i<queuedPhotoCount;i++)photoQueue[i-n]=photoQueue[i];queuedPhotoCount-=n;for(uint8_t i=queuedPhotoCount;i<QUEUE_CAPACITY;i++)photoQueue[i]={};oldestQueuedPhotoMs=queuedPhotoCount?millis():0;}
void sendQueuedAlbumIfDue(bool force){if(!motionConfirmed||!queuedPhotoCount)return;bool full=queuedPhotoCount>=settings.maxImagesPerSend,due=oldestQueuedPhotoMs&&millis()-oldestQueuedPhotoMs>=settings.maxWaitBeforeSendMs;if(!force&&!full&&!due)return;uint8_t n=min(queuedPhotoCount,settings.maxImagesPerSend);if(deliverAlbum(n))removeSentPhotos(n);}

String htmlEscape(const String &value){
  String r=value; r.replace("&","&amp;"); r.replace("<","&lt;"); r.replace(">","&gt;"); r.replace("\"","&quot;"); return r;
}
String sternchen(bool neustartNoetig){
  return String(" <span class='")+(neustartNoetig?"stern-neustart":"stern-sofort")+"' title='"+(neustartNoetig?"Wird erst nach einem Neustart der Kamera vollständig übernommen.":"Wird nach dem Speichern ohne Neustart übernommen.")+"'>*</span>";
}
String htmlInput(const char *name,const String &value,bool secret,bool neustartNoetig){
  return "<label>"+String(name)+sternchen(neustartNoetig)+"<input type='"+(secret?"password":"text")+"' name='"+name+"' value='"+htmlEscape(value)+"'></label>";
}
String htmlMotionInput(const char *name,const String &value,const char *help,bool neustartNoetig=false){
  return "<label>"+String(name)+" <button class='help-icon' type='button' aria-expanded='false'>?</button>"+sternchen(neustartNoetig)+"<span class='help-text' hidden>"+htmlEscape(String(help))+"</span><input type='text' name='"+name+"' value='"+htmlEscape(value)+"'></label>";
}
String htmlBooleanSelect(const char *name,bool value){
  String selectedTrue=value?" selected":"";
  String selectedFalse=value?"":" selected";
  return "<label>"+String(name)+sternchen(false)+"<select name='"+name+"'><option value='true'"+selectedTrue+">true</option><option value='false'"+selectedFalse+">false</option></select></label>";
}
void writeCurrentSettings(File &f){
  f.print("# WLAN\nWLAN_NAME="+settings.wifiSsid+"\nWLAN_PASSWORT="+settings.wifiPassword+"\n\n");
  f.print("# Telegram\nTELEGRAM_AKTIV="+String(settings.telegramEnabled?"true":"false")+"\nTELEGRAM_BOT_SCHLUESSEL="+settings.telegramToken+"\nTELEGRAM_CHAT_NUMMER="+settings.telegramChatId+"\n\n");
  f.print("# E-Mail: Bei manchen Anbietern brauchst du ein App-Passwort statt deines normalen Passworts.\nE_MAIL_AKTIV="+String(settings.emailEnabled?"true":"false")+"\nE_MAIL_SERVER="+settings.smtpHost+"\nE_MAIL_PORT="+String(settings.smtpPort)+"\nE_MAIL_BENUTZERNAME="+settings.smtpUser+"\nE_MAIL_PASSWORT="+settings.smtpPassword+"\nE_MAIL_ABSENDER="+settings.emailFrom+"\nE_MAIL_EMPFÄNGER="+settings.emailTo+"\n\n");
  f.print("# WhatsApp benötigt einen Zugangsschlüssel der offiziellen Meta WhatsApp Business Cloud API.\nWHATSAPP_AKTIV="+String(settings.whatsappEnabled?"true":"false")+"\nWHATSAPP_ZUGANGSSCHLUESSEL="+settings.whatsappAccessToken+"\nWHATSAPP_TELEFON_NUMMER_ID="+settings.whatsappPhoneNumberId+"\nWHATSAPP_EMPFÄNGER="+settings.whatsappRecipient+"\n\n");
  f.print("# Kamera und Bewegung\nMINDEST_HELLIGKEITSAENDERUNG="+String(settings.pixelChangeThreshold)+"\nMINDEST_ANZAHL_VERAENDERTER_BILDPUNKTE="+String(settings.changedSamplesToTrigger)+"\nBILDVERGLEICH_ABSTAND_MS="+String(settings.sampleIntervalMs)+"\nBILDER_BIS_BEWEGUNGSBESTAETIGUNG="+String(settings.confirmationFrames)+"\nMAXIMALE_BILDER_PRO_VERSAND="+String(settings.maxImagesPerSend)+"\nMAXIMALE_WARTEZEIT_BIS_VERSAND_MS="+String(settings.maxWaitBeforeSendMs)+"\nFOTOGROESSE="+String(settings.photoSize==FRAMESIZE_QVGA?"QVGA":settings.photoSize==FRAMESIZE_SVGA?"SVGA":"VGA")+"\nJPEG_QUALITAET="+String(settings.jpegQuality)+"\nKAMERA_DREHUNG="+String(settings.cameraRotation)+"\n\n");
  f.print("# Zustand nach jedem Neustart. Telegram-Befehle: /arm, /disarm, /status.\nALARM_AKTIV="+String(settings.alarmArmed?"true":"false")+"\n");
}
void handleWebRoot(){
  String p="<!doctype html><html><head><meta name='viewport' content='width=device-width,initial-scale=1'><style>*{box-sizing:border-box}html{background:#f4f6f8}body{font-family:Arial,sans-serif;margin:0;padding:clamp(10px,2vw,24px);max-width:1600px;margin-inline:auto;color:#17212b}h1{font-size:clamp(20px,2vw,26px);margin:0 0 4px}p{margin:4px 0 14px;font-size:14px;line-height:1.35}form[action='/save']{display:block}.layout-row,.delivery-grid{display:block;margin:0}.layout-row>.card,.delivery-grid>.card,.camera-card{margin-bottom:14px}.card{background:#fff;border:1px solid #ccd4dc;border-radius:8px;padding:12px;min-width:0;box-shadow:0 1px 2px #0000000d}.card h2{font-size:16px;margin:0 0 10px;padding-bottom:7px;border-bottom:1px solid #dbe2e8}.fields{display:grid;grid-template-columns:1fr;gap:12px}.alarm-card .fields{grid-template-columns:1fr;max-width:none}label{display:block;margin:0;font-size:12px;font-weight:bold;min-width:0;line-height:1.25;white-space:nowrap;overflow-x:auto;overflow-y:visible;padding-bottom:1px}input,select{display:block;box-sizing:border-box;width:100%;max-width:100%;height:34px;padding:6px 8px;margin-top:4px;font-size:14px;border:1px solid #9aa7b3;border-radius:4px;background:#fff;min-width:0}.versand-felder-inaktiv{opacity:.42}.versand-felder-inaktiv input:disabled{background:#e8ecef;color:#68737c;cursor:not-allowed}.actions{display:flex;flex-wrap:wrap;align-items:stretch;gap:8px}.actions form{margin:0}.actions button,.raw-link{width:220px;height:42px;padding:9px 14px;margin:0;font-size:14px;border:0;border-radius:4px;background:#1769aa;color:#fff;cursor:pointer;text-align:center;text-decoration:none;display:inline-flex;align-items:center;justify-content:center}.actions form[action='/reboot'] button{background:#9b3131}.raw-link{margin-left:auto;background:#566573}.terminal-link{background:#273746}.help-icon{display:inline-flex;justify-content:center;align-items:center;width:20px;height:20px;padding:0;margin-left:3px;border:0;border-radius:50%;background:#1769aa;color:#fff;font-size:13px;font-weight:bold;line-height:1;cursor:pointer;vertical-align:middle}.help-text{display:block;max-width:100ch;margin:5px 0 3px;padding:7px 8px;border-left:3px solid #1769aa;border-radius:3px;background:#eaf3fb;color:#20313e;font-size:12px;font-weight:normal;line-height:1.35;white-space:normal;overflow-wrap:break-word}.help-text[hidden]{display:none!important}.stern-neustart,.stern-sofort{font-size:21px;font-weight:bold;cursor:help;vertical-align:middle;line-height:0}.stern-neustart{color:#c62828}.stern-sofort{color:#17823b}small{font-weight:normal}@media(max-width:640px){body{padding:10px}.layout-row>.card,.delivery-grid>.card,.camera-card{margin-bottom:10px}.fields,.alarm-card .fields{grid-template-columns:1fr}.card{padding:10px}input,select{width:100%}.actions{display:grid;grid-template-columns:1fr}.actions button,.raw-link{width:100%;margin-left:0}}</style></head><body><h1>Kamera-Einstellungen</h1><p>Diese Seite ist nur im lokalen WLAN erreichbar. Speichern schreibt die Werte nach <code>/config.txt</code> auf die SD-Karte.</p><form id='settings-form' method='post' action='/save'>";
  p+="<div class='layout-row'><section class='card'><h2>1. WLAN</h2><div class='fields'>"+htmlInput("WLAN_NAME",settings.wifiSsid,false,true)+htmlInput("WLAN_PASSWORT",settings.wifiPassword,true,true)+"</div></section>";
  p+="<section class='card alarm-card'><h2>2. Alarm</h2><div class='fields'>"+htmlBooleanSelect("ALARM_AKTIV",settings.alarmArmed)+"</div></section></div>";
  p+="<section class='card camera-card'><h2>3. Kamera und Bewegung</h2><div class='fields'>"+htmlMotionInput("MINDEST_HELLIGKEITSAENDERUNG",String(settings.pixelChangeThreshold),"Wie stark sich ein Bildpunkt in der Helligkeit ändern muss. Kleinere Werte reagieren empfindlicher, aber auch auf Rauschen. Sinnvoll: 20 bis 60; Startwert: 28.")+htmlMotionInput("MINDEST_ANZAHL_VERAENDERTER_BILDPUNKTE",String(settings.changedSamplesToTrigger),"Wie viele geprüfte Bildpunkte sich ändern müssen, bevor ein Bild als Bewegung zählt. Kleinere Werte lösen leichter aus. Sinnvoll: 300 bis 1200; Startwert: 550.")+htmlMotionInput("BILDVERGLEICH_ABSTAND_MS",String(settings.sampleIntervalMs),"Wartezeit zwischen zwei Bildvergleichen in Millisekunden. Kleinere Werte reagieren schneller, brauchen aber mehr Rechenleistung. Sinnvoll: 150 bis 1000 ms; Startwert: 250 ms.")+htmlMotionInput("BILDER_BIS_BEWEGUNGSBESTAETIGUNG",String(settings.confirmationFrames),"So viele direkt aufeinanderfolgende Bewegungsbilder sind nötig, bevor der Alarm bestätigt ist. Sinnvoll: 3 bis 8; Startwert: 5.")+htmlMotionInput("MAXIMALE_BILDER_PRO_VERSAND",String(settings.maxImagesPerSend),"Höchstens so viele wartende Bilder werden in einer Versandrunde einzeln gesendet. Erlaubt: 2 bis 10; Startwert: 10.")+htmlMotionInput("MAXIMALE_WARTEZEIT_BIS_VERSAND_MS",String(settings.maxWaitBeforeSendMs),"Spätestens nach dieser Zeit wird das älteste wartende Bild gesendet, auch wenn die Versandrunde noch nicht voll ist. Sinnvoll: 500 bis 10000 ms; Startwert: 3000 ms.")+htmlMotionInput("FOTOGROESSE",settings.photoSize==FRAMESIZE_QVGA?"QVGA":settings.photoSize==FRAMESIZE_SVGA?"SVGA":"VGA","Größe der gespeicherten und gesendeten Fotos. Erlaubt: QVGA für kleine Dateien, VGA als guter Standard oder SVGA für mehr Details und größere Dateien. Startwert: VGA.",true)+htmlMotionInput("JPEG_QUALITAET",String(settings.jpegQuality),"JPEG-Komprimierung: kleinere Zahl bedeutet bessere Bildqualität und größere Dateien. Erlaubt: 4 bis 63. Sinnvoll: 10 bis 20; Startwert: 12.",true)+htmlMotionInput("KAMERA_DREHUNG",String(settings.cameraRotation),"Dreht das Kamerabild. Erlaubt: 0, 90, 180 oder 270 Grad. Nutze 180 Grad, wenn die Kamera kopfüber eingebaut ist.",true)+"</div></section>";
  p+="<div class='delivery-grid'><section class='card'><h2>4. Telegram</h2><div class='fields'>"+htmlBooleanSelect("TELEGRAM_AKTIV",settings.telegramEnabled)+"</div><div class='fields versand-felder' data-aktiv-feld='TELEGRAM_AKTIV'>"+htmlInput("TELEGRAM_BOT_SCHLUESSEL",settings.telegramToken,true)+htmlInput("TELEGRAM_CHAT_NUMMER",settings.telegramChatId)+"</div></section>";
  p+="<section class='card'><h2>5. E-Mail</h2><div class='fields'>"+htmlBooleanSelect("E_MAIL_AKTIV",settings.emailEnabled)+"</div><div class='fields versand-felder' data-aktiv-feld='E_MAIL_AKTIV'>"+htmlInput("E_MAIL_SERVER",settings.smtpHost)+htmlInput("E_MAIL_PORT",String(settings.smtpPort))+htmlInput("E_MAIL_BENUTZERNAME",settings.smtpUser)+htmlInput("E_MAIL_PASSWORT",settings.smtpPassword,true)+htmlInput("E_MAIL_ABSENDER",settings.emailFrom)+htmlInput("E_MAIL_EMPFÄNGER",settings.emailTo)+"</div></section>";
  p+="<section class='card'><h2>6. WhatsApp Cloud API</h2><div class='fields'>"+htmlBooleanSelect("WHATSAPP_AKTIV",settings.whatsappEnabled)+"</div><div class='fields versand-felder' data-aktiv-feld='WHATSAPP_AKTIV'>"+htmlInput("WHATSAPP_ZUGANGSSCHLUESSEL",settings.whatsappAccessToken,true)+htmlInput("WHATSAPP_TELEFON_NUMMER_ID",settings.whatsappPhoneNumberId)+htmlInput("WHATSAPP_EMPFÄNGER",settings.whatsappRecipient)+"</div></section></div>";
  p+="</form><div class='actions'><button type='submit' form='settings-form'>Auf SD-Karte speichern</button><form method='post' action='/reboot'><button type='submit'>Kamera neu starten</button></form><form method='post' action='/delete-config' onsubmit=\"return confirm('Soll die aktuelle config.txt auf der SD-Karte wirklich gelöscht werden? Nach einem Neustart wird eine Beispiel-Datei erstellt.');\"><button class='delete-button' type='submit'>Aktuelle config.txt löschen</button></form><a class='raw-link' href='/config-raw' target='_blank' rel='noopener'>config.txt roh anzeigen</a><a class='raw-link terminal-link' href='/terminal' target='_blank' rel='noopener'>Serielles Protokoll öffnen</a></div><p><small><span class='stern-neustart'>*</span> rot: erst nach einem Neustart vollständig aktiv. <span class='stern-sofort'>*</span> grün: nach „Auf SD-Karte speichern“ ohne Neustart aktiv. Die Schalter haben Auswahllisten für <code>true</code> und <code>false</code>. Steht ein Versand-Schalter auf <code>false</code>, sind die Felder dieser Versandart grau und gesperrt. Zugangsdaten werden als verdeckte Felder angezeigt; den vorhandenen Wert nicht löschen, wenn er bleiben soll.</small></p><script>function aktualisiereVersandfelder(){document.querySelectorAll('.versand-felder').forEach(function(bereich){var schalter=document.getElementsByName(bereich.dataset.aktivFeld)[0];var aktiv=schalter&&schalter.value==='true';bereich.classList.toggle('versand-felder-inaktiv',!aktiv);bereich.querySelectorAll('input,select').forEach(function(feld){feld.disabled=!aktiv;});});}document.querySelectorAll('select').forEach(function(schalter){if(schalter.name.endsWith('_AKTIV'))schalter.addEventListener('change',aktualisiereVersandfelder);});document.querySelectorAll('.help-icon').forEach(function(zeichen){zeichen.addEventListener('click',function(ereignis){ereignis.preventDefault();ereignis.stopPropagation();var text=this.parentElement.querySelector('.help-text');var offen=this.getAttribute('aria-expanded')==='true';text.hidden=offen;this.setAttribute('aria-expanded',offen?'false':'true');});});aktualisiereVersandfelder();</script></body></html>";
  webServer.send(200,"text/html; charset=utf-8",p);
}
void handleWebSave(){
  const char *keys[]={"WLAN_NAME","WLAN_PASSWORT","TELEGRAM_AKTIV","TELEGRAM_BOT_SCHLUESSEL","TELEGRAM_CHAT_NUMMER","E_MAIL_AKTIV","E_MAIL_SERVER","E_MAIL_PORT","E_MAIL_BENUTZERNAME","E_MAIL_PASSWORT","E_MAIL_ABSENDER","E_MAIL_EMPFÄNGER","WHATSAPP_AKTIV","WHATSAPP_ZUGANGSSCHLUESSEL","WHATSAPP_TELEFON_NUMMER_ID","WHATSAPP_EMPFÄNGER","MINDEST_HELLIGKEITSAENDERUNG","MINDEST_ANZAHL_VERAENDERTER_BILDPUNKTE","BILDVERGLEICH_ABSTAND_MS","BILDER_BIS_BEWEGUNGSBESTAETIGUNG","MAXIMALE_BILDER_PRO_VERSAND","MAXIMALE_WARTEZEIT_BIS_VERSAND_MS","FOTOGROESSE","JPEG_QUALITAET","KAMERA_DREHUNG","ALARM_AKTIV"};
  for(const char *key:keys) if(webServer.hasArg(key)) applySetting(key,trimValue(webServer.arg(key)));
  File f=SD.open("/config.new",FILE_WRITE);
  if(!f){webServer.send(500,"text/plain","SD card error: settings were not saved.");return;}
  writeCurrentSettings(f); f.close(); SD.remove("/config.txt");
  if(!SD.rename("/config.new","/config.txt")){webServer.send(500,"text/plain","Could not replace config.txt on the SD card.");return;}
  protokoll("[Web] Settings saved to /config.txt.");
  webServer.send(200,"text/html; charset=utf-8","<h1>Gespeichert</h1><p>Die Einstellungen stehen jetzt in <code>/config.txt</code>. Grün markierte Werte gelten sofort; bei rot markierten Werten starte die Kamera neu.</p><p><a href='/'>Zurück</a></p>");
}
void handleWebReboot(){webServer.send(200,"text/html; charset=utf-8","<h1>Neustart wird ausgeführt</h1><p>Die Kamera startet in zwei Sekunden neu.</p>");rebootRequested=true;rebootRequestedMs=millis();}
void handleWebTerminal(){
  String page="<!doctype html><html><head><meta name='viewport' content='width=device-width,initial-scale=1'><meta http-equiv='refresh' content='1'><style>body{margin:0;padding:12px;background:#111;color:#d7ffd7;font:14px monospace}h1{font:700 18px Arial,sans-serif;color:#fff;margin:0 0 8px}p{font:13px Arial,sans-serif;color:#cbd5e1}pre{white-space:pre-wrap;word-break:break-word;margin:0}</style></head><body><h1>Serielles Protokoll</h1><p>Diese Ansicht aktualisiert sich jede Sekunde und zeigt die letzten Meldungen der Kamera. Die USB-Seriellschnittstelle bleibt weiterhin nutzbar.</p><pre>"+htmlEscape(webProtokoll)+"</pre></body></html>";
  webServer.send(200,"text/html; charset=utf-8",page);
}
void handleWebRawConfig(){
  File f=SD.open("/config.txt",FILE_READ);
  if(!f){webServer.send(404,"text/plain; charset=utf-8","/config.txt wurde auf der SD-Karte nicht gefunden.");return;}
  webServer.streamFile(f,"text/plain; charset=utf-8");
  f.close();
}
void handleWebDeleteConfig(){
  if(!SD.exists("/config.txt")){webServer.send(404,"text/html; charset=utf-8","<h1>Nichts gelöscht</h1><p>Auf der SD-Karte gibt es keine <code>/config.txt</code>.</p><p><a href='/'>Zurück</a></p>");return;}
  if(!SD.remove("/config.txt")){webServer.send(500,"text/html; charset=utf-8","<h1>Löschen fehlgeschlagen</h1><p>Die <code>/config.txt</code> konnte nicht von der SD-Karte gelöscht werden.</p><p><a href='/'>Zurück</a></p>");return;}
  protokoll("[Web] /config.txt was deleted from the SD card.");
  webServer.send(200,"text/html; charset=utf-8","<h1>config.txt gelöscht</h1><p>Die aktuelle Datei wurde von der SD-Karte gelöscht. Starte die Kamera neu: Sie legt dann eine Beispiel-Datei <code>/config.txt</code> an und hält an, damit du sie bearbeiten kannst.</p><form method='post' action='/reboot'><button type='submit'>Jetzt neu starten</button></form>");
}
void startWebInterface(){
  webServer.on("/",HTTP_GET,handleWebRoot); webServer.on("/save",HTTP_POST,handleWebSave); webServer.on("/reboot",HTTP_POST,handleWebReboot); webServer.on("/delete-config",HTTP_POST,handleWebDeleteConfig); webServer.on("/config-raw",HTTP_GET,handleWebRawConfig); webServer.on("/terminal",HTTP_GET,handleWebTerminal);
  webServer.onNotFound([](){webServer.send(404,"text/plain","Not found");}); webServer.begin();
  protokoll("[Web] Settings page: http://"+WiFi.localIP().toString());
}

void setup(){
  Serial.begin(115200);
  delay(1000);
  protokoll("[XIAO Camera] Starting motion camera...");
  protokoll("[SD] Looking for FAT32 microSD card...");
  sdSpi.begin(SD_SCK_PIN,SD_MISO_PIN,SD_MOSI_PIN,SD_CS_PIN);
  sdReady=SD.begin(SD_CS_PIN,sdSpi,40000000);
  if(!sdReady){protokoll("[SD] Card not found. Insert a FAT32 card and restart.");return;}
  protokoll("[SD] Card ready. Reading /config.txt...");
  if(!loadSettingsFromSd()||settings.wifiSsid.length()==0||settings.wifiSsid=="YOUR_WIFI_NAME"||!anyDeliveryConfigured()){protokoll("[Config] Edit /config.txt on the microSD card, then restart.");return;}
  protokoll("[Config] Motion: "+String(settings.confirmationFrames)+" frames; up to "+String(settings.maxImagesPerSend)+" queued images; wait: "+String(settings.maxWaitBeforeSendMs)+" ms. Telegram sends each image separately.");
  protokoll("[Config] Delivery enabled - Telegram: "+String(settings.telegramEnabled?"yes":"no")+", Email: "+String(settings.emailEnabled?"yes":"no")+", WhatsApp: "+String(settings.whatsappEnabled?"yes":"no")+".");
  protokoll("[Alarm] Starts "+String(settings.alarmArmed?"ARMED":"DISARMED")+". Telegram commands: /arm, /disarm, /status.");
  protokoll("[Camera] Initializing OV3660 in JPEG mode...");
  camera_config_t c={};
  configureCamera(c);
  esp_err_t cameraResult=esp_camera_init(&c);
  cameraReady=cameraResult==ESP_OK;
  if(!cameraReady){protokoll("[Camera] Initialization failed, error 0x"+String((unsigned int)cameraResult,HEX)+". Check that the Sense expansion board and camera ribbon are fully seated.");return;}
  // The normal motion-capture path reads directly from the camera driver.
  // Apply 180° here, once after initialization, so every captured frame is flipped.
  applyCameraRotation();
  protokoll("[Camera] Ready. Camera rotation: "+String(settings.cameraRotation)+" degrees. Waiting for a stable reference image...");
  if(connectWiFi()){
    startWebInterface();
    if(settings.telegramEnabled)installTelegramControls();
  }
}
void loop(){
  if(!sdReady||!cameraReady){delay(1000);return;}
  if(!connectWiFi()){delay(5000);return;}
  webServer.handleClient();
  if(rebootRequested&&millis()-rebootRequestedMs>2000)ESP.restart();
  pollTelegramCommands();
  if(millis()-lastStatusMs>=10000){
    protokoll("[Status] Alarm: "+String(settings.alarmArmed?"armed":"disarmed")+", WiFi "+String(WiFi.status()==WL_CONNECTED?"connected":"offline")+", queued: "+String(queuedPhotoCount)+", movement streak: "+String(motionFrameStreak)+"/"+String(settings.confirmationFrames)+", confirmed: "+String(motionConfirmed?"yes":"no")+".");
    lastStatusMs=millis();
  }
  if(!settings.alarmArmed){
    if(motionFrameStreak||motionConfirmed||queuedPhotoCount){motionFrameStreak=0;motionConfirmed=false;clearQueuedPhotos();}
    delay(20);
    return;
  }
  sendQueuedAlbumIfDue(false);
  if(millis()-lastSampleMs<settings.sampleIntervalMs)return;
  lastSampleMs=millis();

  // Return the driver-owned frame immediately. JPEG decoding is slower than a
  // camera frame period; keeping this buffer during decoding causes FB-OVF.
  camera_fb_t *f=esp_camera_fb_get();
  if(!f){protokoll("[Camera] No frame received; trying again.");return;}
  uint8_t *jpegCopy=(uint8_t*)heap_caps_malloc(f->len,MALLOC_CAP_SPIRAM|MALLOC_CAP_8BIT);
  size_t jpegLength=f->len;
  uint16_t frameWidth=f->width, frameHeight=f->height;
  pixformat_t frameFormat=f->format;
  if(jpegCopy)memcpy(jpegCopy,f->buf,jpegLength);
  esp_camera_fb_return(f);
  if(!jpegCopy){protokoll("[Camera] No PSRAM available for motion check.");return;}
  camera_fb_t copiedFrame={};
  copiedFrame.buf=jpegCopy;
  copiedFrame.len=jpegLength;
  copiedFrame.width=frameWidth;
  copiedFrame.height=frameHeight;
  copiedFrame.format=frameFormat;
  bool movement=motionDetected(&copiedFrame);

  if(!movement){
    free(jpegCopy);
    if(motionFrameStreak||motionConfirmed)protokoll("[Motion] Scene is still; motion count reset.");
    if(!motionConfirmed)clearQueuedPhotos();
    motionFrameStreak=0;
    motionConfirmed=false;
    return;
  }
  if(motionFrameStreak<settings.confirmationFrames){
    ++motionFrameStreak;
    protokoll("[Motion] Change detected: "+String(motionFrameStreak)+" of "+String(settings.confirmationFrames)+" confirmation images.");
  }
  // This exact frame both confirmed movement and becomes an album image.
  // No second camera capture is started, so the driver has no backlog to overflow.
  if(!queuePhotoCopy(jpegCopy,jpegLength)){
    protokoll("[Camera] Image queue full; sending current album.");
    sendQueuedAlbumIfDue(true);
    if(!queuePhotoCopy(jpegCopy,jpegLength)){
      protokoll("[Camera] Could not queue the current image.");
      free(jpegCopy);
    }
  }
  if(motionFrameStreak>=settings.confirmationFrames&&!motionConfirmed){
    motionConfirmed=true;
    protokoll("[Motion] Confirmed. Motion images will be sent individually.");
  }
  sendQueuedAlbumIfDue(false);
}
