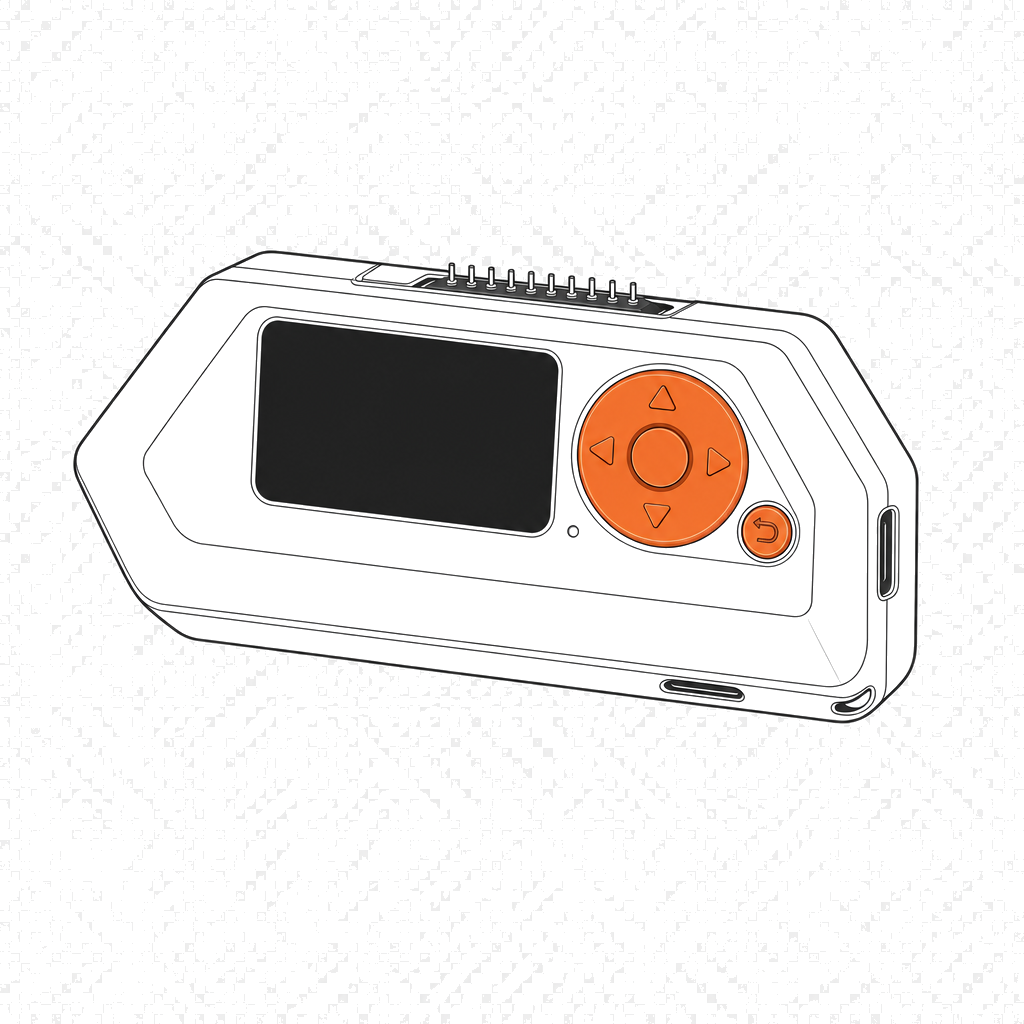

Flipper Zero

OverviewAlternates
Flipper Zero - Flipper Devices - flipper-zero
Availability
In stock

Pocket multi-tool for hardware exploration with sub-GHz radio, NFC, RFID, infrared, iButton, Bluetooth LE, USB-C, microSD, and an 18-pin 2.54 mm GPIO expansion header.

Parts tray full · 5 max · remove a part to add another
STEPSTL

Offers

  • ?Flipper Devices€219.00

Offers

  • ?Flipper Devices€219.00

Pinout

Logical pinout · physical placement not verified
FLIPPER ZERO5VPA14SWCLKPA7GNDPA6PA13SWDIOPA4PB6USART1.TXPB3PB7USART1.RXPB2PC1I2C3.SDAPC3PC0I2C3.SCLGNDPB14iButton3.3VGND
  • 5V1

    External module power; USB-fed when connected, battery output must be enabled in GPIO menu; up to 1.2 A fused

    Type · PowerVoltage · +5 V
  • PA72

    EXTI7, TIM1.1N/TIM17.1, ADC1.12, COMP2_OUT, I2C3.SCL, SPI1.MOSI

    Type · GPIOVoltage · 3.3 V logic
  • PA63

    EXTI6, TIM1.BKIN/TIM16.1, ADC1.11, LPUART1.CTS, SPI1.MISO

    Type · GPIOVoltage · 3.3 V logic
  • PA44

    EXTI4, LPTIM2.OUT, ADC1.9, COMP1_IN-/COMP2_IN-, SPI1.CS

    Type · GPIOVoltage · 3.3 V logic
  • PB35

    EXTI3, TIM2.2, COMP2_IN-, USART1.DE/RTS, SPI1.SCK, SWO

    Type · GPIOVoltage · 3.3 V logic
  • PB26

    EXTI2, LPTIM1.OUT, COMP1_IN+, I2C3.SMBA, SPI1.CS

    Type · GPIOVoltage · 3.3 V logic
  • PC37

    EXTI3, LPTIM1.ETR/LPTIM2.ETR, ADC1.4

    Type · GPIOVoltage · 3.3 V logic
  • GND8

    Common ground reference

    Type · Ground
  • 3.3V9

    External module power, enabled by default; up to 1.2 A, temporarily disabled during firmware updates and microSD mounting

    Type · PowerVoltage · +3.3 V
  • PA14SWCLK10

    SWD clock, EXTI14, LPTIM1.OUT

    Type · UnknownVoltage · 3.3 V logic
  • GND11

    Common ground reference

    Type · Ground
  • PA13SWDIO12

    SWD data I/O, EXTI13

    Type · UnknownVoltage · 3.3 V logic
  • PB6USART1.TX13

    USART1 transmit, LPTIM1.ETR, COMP2_IN+, MCO

    Type · UARTVoltage · 3.3 V logic
  • PB7USART1.RX14

    USART1 receive, EXTI7, LPTIM1.IN2/TIM1.BKIN, COMP2_IN-

    Type · UARTVoltage · 3.3 V logic
  • PC1I2C3.SDA15

    I2C3.SDA, LPUART1.TX, ADC1.2, LPTIM1.OUT, EXTI1; shared with Sub-GHz

    Type · GPIOVoltage · 3.3 V logic
  • PC0I2C3.SCL16

    I2C3.SCL, LPUART1.RX, ADC1.1, LPTIM1.IN1/LPTIM2.IN1, EXTI0

    Type · GPIOVoltage · 3.3 V logic
  • PB14iButton17

    iButton one-wire, I2C3.SDA with 5 V pull-up, EXTI14, TIM1.2N

    Type · UnknownVoltage · 5 V pull-up
  • GND18

    Common ground reference

    Type · Ground
PinPositionTypeFunctionVoltage
5V1PowerExternal module power; USB-fed when connected, battery output must be enabled in GPIO menu; up to 1.2 A fused+5 V
PA72GPIOEXTI7, TIM1.1N/TIM17.1, ADC1.12, COMP2_OUT, I2C3.SCL, SPI1.MOSI3.3 V logic
PA63GPIOEXTI6, TIM1.BKIN/TIM16.1, ADC1.11, LPUART1.CTS, SPI1.MISO3.3 V logic
PA44GPIOEXTI4, LPTIM2.OUT, ADC1.9, COMP1_IN-/COMP2_IN-, SPI1.CS3.3 V logic
PB35GPIOEXTI3, TIM2.2, COMP2_IN-, USART1.DE/RTS, SPI1.SCK, SWO3.3 V logic
PB26GPIOEXTI2, LPTIM1.OUT, COMP1_IN+, I2C3.SMBA, SPI1.CS3.3 V logic
PC37GPIOEXTI3, LPTIM1.ETR/LPTIM2.ETR, ADC1.43.3 V logic
GND8GroundCommon ground reference
3.3V9PowerExternal module power, enabled by default; up to 1.2 A, temporarily disabled during firmware updates and microSD mounting+3.3 V
PA14SWCLK10UnknownSWD clock, EXTI14, LPTIM1.OUT3.3 V logic
GND11GroundCommon ground reference
PA13SWDIO12UnknownSWD data I/O, EXTI133.3 V logic
PB6USART1.TX13UARTUSART1 transmit, LPTIM1.ETR, COMP2_IN+, MCO3.3 V logic
PB7USART1.RX14UARTUSART1 receive, EXTI7, LPTIM1.IN2/TIM1.BKIN, COMP2_IN-3.3 V logic
PC1I2C3.SDA15GPIOI2C3.SDA, LPUART1.TX, ADC1.2, LPTIM1.OUT, EXTI1; shared with Sub-GHz3.3 V logic
PC0I2C3.SCL16GPIOI2C3.SCL, LPUART1.RX, ADC1.1, LPTIM1.IN1/LPTIM2.IN1, EXTI03.3 V logic
PB14iButton17UnknowniButton one-wire, I2C3.SDA with 5 V pull-up, EXTI14, TIM1.2N5 V pull-up
GND18GroundCommon ground reference
Logical pinout · physical placement not verified
FLIPPER ZERO5VPA14SWCLKPA7GNDPA6PA13SWDIOPA4PB6USART1.TXPB3PB7USART1.RXPB2PC1I2C3.SDAPC3PC0I2C3.SCLGNDPB14iButton3.3VGND

Pin details

18 connections
  1. 5V

    External module power; USB-fed when connected, battery output must be enabled in GPIO menu; up to 1.2 A fused

    PowerVoltage · +5 V
    1
  2. PA7

    EXTI7, TIM1.1N/TIM17.1, ADC1.12, COMP2_OUT, I2C3.SCL, SPI1.MOSI

    GPIOVoltage · 3.3 V logic
    2
  3. PA6

    EXTI6, TIM1.BKIN/TIM16.1, ADC1.11, LPUART1.CTS, SPI1.MISO

    GPIOVoltage · 3.3 V logic
    3
  4. PA4

    EXTI4, LPTIM2.OUT, ADC1.9, COMP1_IN-/COMP2_IN-, SPI1.CS

    GPIOVoltage · 3.3 V logic
    4
  5. PB3

    EXTI3, TIM2.2, COMP2_IN-, USART1.DE/RTS, SPI1.SCK, SWO

    GPIOVoltage · 3.3 V logic
    5
  6. PB2

    EXTI2, LPTIM1.OUT, COMP1_IN+, I2C3.SMBA, SPI1.CS

    GPIOVoltage · 3.3 V logic
    6
  7. PC3

    EXTI3, LPTIM1.ETR/LPTIM2.ETR, ADC1.4

    GPIOVoltage · 3.3 V logic
    7
  8. GND

    Common ground reference

    Ground
    8
  9. 3.3V

    External module power, enabled by default; up to 1.2 A, temporarily disabled during firmware updates and microSD mounting

    PowerVoltage · +3.3 V
    9
  10. PA14SWCLK

    SWD clock, EXTI14, LPTIM1.OUT

    UnknownVoltage · 3.3 V logic
    10
  11. GND

    Common ground reference

    Ground
    11
  12. PA13SWDIO

    SWD data I/O, EXTI13

    UnknownVoltage · 3.3 V logic
    12
  13. PB6USART1.TX

    USART1 transmit, LPTIM1.ETR, COMP2_IN+, MCO

    UARTVoltage · 3.3 V logic
    13
  14. PB7USART1.RX

    USART1 receive, EXTI7, LPTIM1.IN2/TIM1.BKIN, COMP2_IN-

    UARTVoltage · 3.3 V logic
    14
  15. PC1I2C3.SDA

    I2C3.SDA, LPUART1.TX, ADC1.2, LPTIM1.OUT, EXTI1; shared with Sub-GHz

    GPIOVoltage · 3.3 V logic
    15
  16. PC0I2C3.SCL

    I2C3.SCL, LPUART1.RX, ADC1.1, LPTIM1.IN1/LPTIM2.IN1, EXTI0

    GPIOVoltage · 3.3 V logic
    16
  17. PB14iButton

    iButton one-wire, I2C3.SDA with 5 V pull-up, EXTI14, TIM1.2N

    UnknownVoltage · 5 V pull-up
    17
  18. GND

    Common ground reference

    Ground
    18
