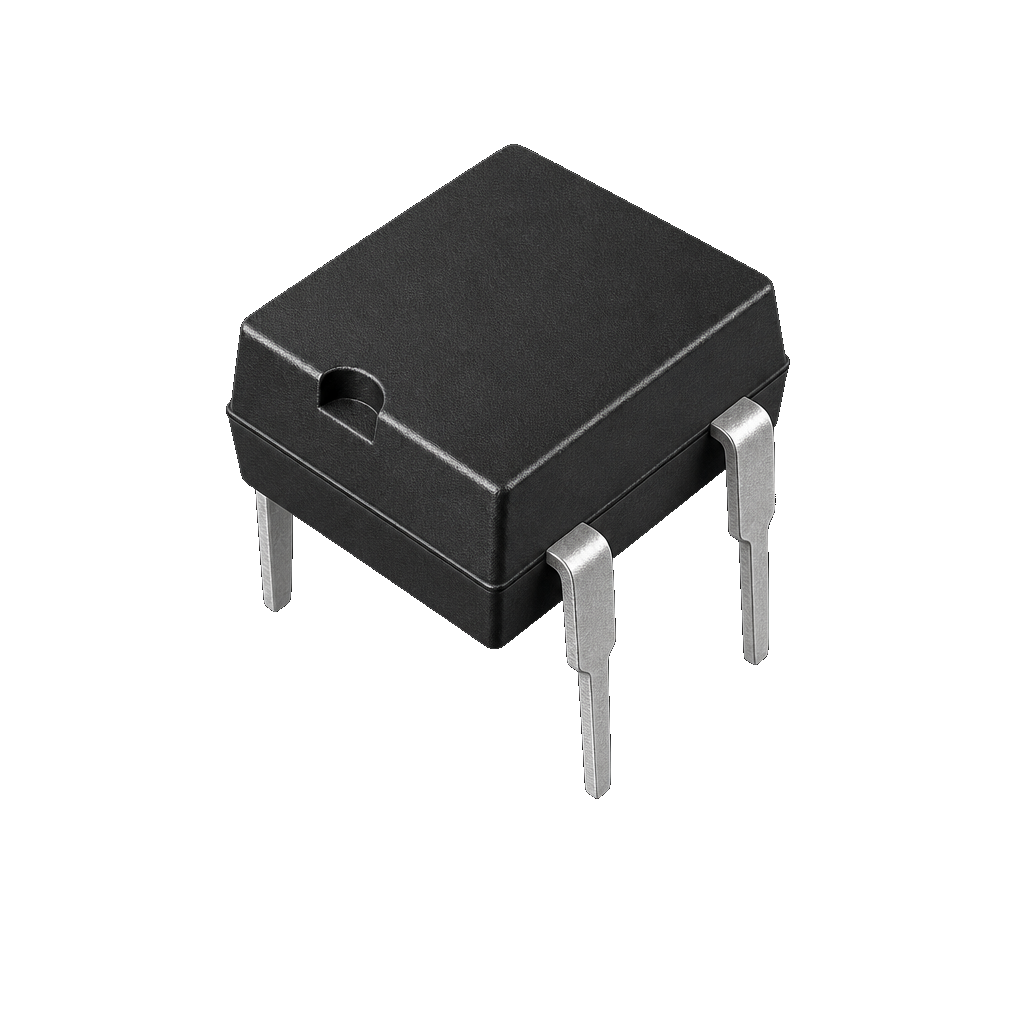

LTV-817 DIP-4
Pinout
- A1Type · Signal
- K2Type · Signal
- E3Type · Signal
- C4Type · Signal
| Pin | Position | Type |
|---|---|---|
| A | 1 | Signal |
| K | 2 | Signal |
| E | 3 | Signal |
| C | 4 | Signal |
Pin details
4 connections- A1Signal
- K2Signal
- E3Signal
- C4Signal
