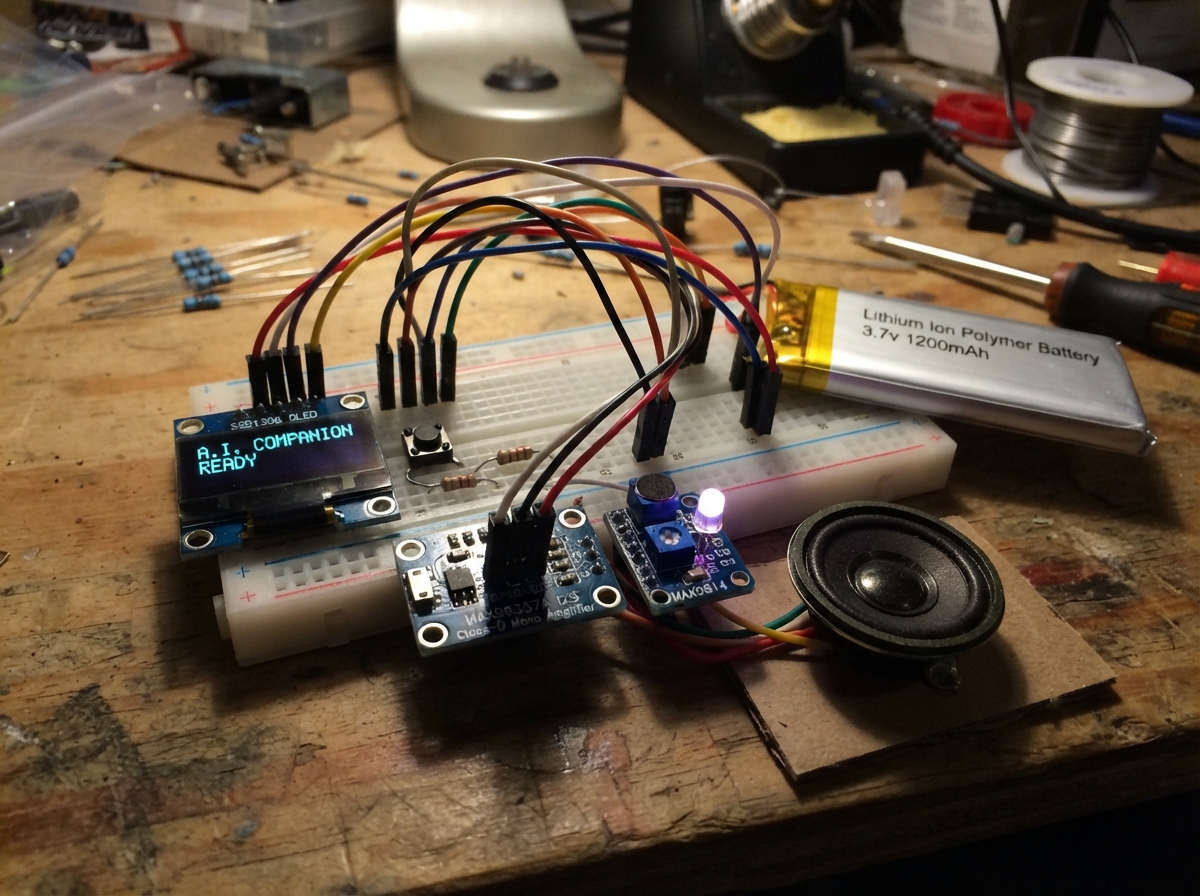

AI Desk Companion Approval Console

#include <Arduino.h>
#include <Wire.h>
#include <WiFi.h>
#include <HTTPClient.h>
#include <ArduinoJson.h>
#include <U8g2lib.h>
#include <MPU6050.h>
#include <driver/i2s.h>
#include <math.h>

#define OLED_SCL 9
#define BUTTON_B 17
#define BUTTON_C 18
#define TOUCH_PIN 21
#define I2S_LRC 11
#define I2S_DIN 10
#define LED_R 4
#define LED_G 13
#define LED_B 14

// Fill these three lines in before pressing Deploy.

enum Expression { HAPPY, THINKING, WORKING, ALARMED, SAD, SLEEPY };

struct Button { uint8_t pin; bool stable = HIGH, raw = HIGH; uint32_t changed = 0; };


// Forward declarations
void lamp(uint8_t r, uint8_t g, uint8_t b);
void audioTone(uint16_t hz, uint16_t ms, uint8_t volume);
void twoTone(uint16_t a, uint16_t b);
void newMessageSound();
void approvedSound();
void deniedSound();
void wakeSound();
bool buttonPressed(uint8_t number);
String shortText(String text, uint8_t maximum);
void startTyping(const String &text);
void postEvent(const char* event, const String &text);
void sendApproval(bool approved);
Expression parseExpression(const String &value);
void pollGateway();
void drawEyes(bool closed);
void drawFace(uint32_t t);
void drawWrapped(const String &text, uint8_t y, uint8_t lines);
void render(uint32_t t);
void updateLight(uint32_t t);
void checkMotion(uint32_t t);
void checkMic(uint32_t t);

const char* WIFI_SSID = "YOUR_WIFI_SSID";
const char* WIFI_PASS = "YOUR_WIFI_PASSWORD";
const char* SERVER = "http://192.168.1.XXX:3491";

constexpr uint8_t OLED_SDA = 8, OLED_SCL = 9;
constexpr uint8_t BUTTON_A = 16, BUTTON_B = 17, BUTTON_C = 18, TOUCH_PIN = 21;
constexpr uint8_t I2S_BCLK = 12, I2S_LRC = 11, I2S_DIN = 10;
constexpr uint8_t MIC_PIN = 1, LED_R = 4, LED_G = 13, LED_B = 14;
constexpr uint32_t AUDIO_RATE = 16000;




U8G2_SSD1306_128X64_NONAME_F_HW_I2C oled(U8G2_R0, U8X8_PIN_NONE);
MPU6050 mpu;
Button buttons[] = {{BUTTON_A}, {BUTTON_B}, {BUTTON_C}};

Expression expression = HAPPY;
String message = "Starting MAUS...";
String approvalText;
String lastReply;
bool pendingApproval = false, imuOK = false, touchWas = false, asleep = false;
bool typing = false, inverted = false;
String typingText;
uint16_t typedChars = 0;
uint8_t menuIndex = 0;
const char* quickReplies[] = {"What's new?", "Any tasks for me?", "Check my email", "How's everything?"};
bool quickMenu = false;
uint32_t cDownAt = 0;
uint32_t lastFrame = 0, lastPoll = 0, lastInput = 0, lastNewMessage = 0;
uint32_t lastBlink = 0, blinkUntil = 0, lastMotion = 0, lastEvent = 0;
uint32_t lastClap = 0, lastInvert = 0, sadUntil = 0, lastWorkingFrame = 0;
uint8_t workingFrame = 0;

void lamp(uint8_t r, uint8_t g, uint8_t b) {
  ledcWrite(LED_R, r); ledcWrite(LED_G, g); ledcWrite(LED_B, b);
}

void audioTone(uint16_t hz, uint16_t ms, uint8_t volume = 10) {
  uint32_t frames = (uint32_t)AUDIO_RATE * ms / 1000;
  uint32_t phase = 0;
  int16_t samples[256];
  while (frames) {
    uint16_t n = min((uint32_t)128, frames);
    for (uint16_t i = 0; i < n; i++) {
      int16_t sample = (((phase + i) * hz * 2 / AUDIO_RATE) & 1) ? volume * 900 : -volume * 900;
      samples[i * 2] = sample; samples[i * 2 + 1] = sample;
    }
    size_t written;
    i2s_write(I2S_NUM_0, samples, n * 2 * sizeof(int16_t), &written, portMAX_DELAY);
    phase += n; frames -= n;
  }
}
void twoTone(uint16_t a, uint16_t b) { audioTone(a, 80); delay(20); audioTone(b, 80); }
void newMessageSound() { audioTone(1000, 70); delay(80); audioTone(1000, 70); }
void approvedSound() { audioTone(800, 60); audioTone(1000, 60); audioTone(1200, 60); }
void deniedSound() { audioTone(400, 200); }
void wakeSound() { twoTone(800, 1000); }

bool buttonPressed(uint8_t number) {
  Button &b = buttons[number]; bool now = digitalRead(b.pin); uint32_t t = millis();
  if (now != b.raw) { b.raw = now; b.changed = t; }
  if (t - b.changed > 28 && now != b.stable) { b.stable = now; return now == LOW; }
  return false;
}

String shortText(String text, uint8_t maximum) {
  text.replace("\n", " "); text.replace("\r", " ");
  if (text.length() > maximum) return text.substring(0, maximum - 3) + "...";
  return text;
}

void startTyping(const String &text) {
  typingText = shortText(text, 105); typedChars = 0; typing = true;
}

void postEvent(const char* event, const String &text = "") {
  if (WiFi.status() != WL_CONNECTED) return;
  HTTPClient http; http.begin(String(SERVER) + "/message");
  http.addHeader("Content-Type", "application/json");
  JsonDocument payload;
  payload["device"] = "MAUS"; payload["event"] = event; payload["text"] = text;
  String body; serializeJson(payload, body);
  http.POST(body); http.end();
}

void sendApproval(bool approved) {
  if (WiFi.status() != WL_CONNECTED) return;
  HTTPClient http; http.begin(String(SERVER) + "/approve");
  http.addHeader("Content-Type", "application/json");
  http.POST(approved ? "{\"approved\":true}" : "{\"approved\":false}");
  http.end();
}

Expression parseExpression(const String &value) {
  if (value == "THINKING") return THINKING;
  if (value == "WORKING") return WORKING;
  if (value == "ALARMED") return ALARMED;
  if (value == "SAD") return SAD;
  if (value == "SLEEPY") return SLEEPY;
  return HAPPY;
}

void pollGateway() {
  if (WiFi.status() != WL_CONNECTED) return;
  HTTPClient http; http.setTimeout(2500); http.begin(String(SERVER) + "/status");
  int code = http.GET();
  if (code == HTTP_CODE_OK) {
    JsonDocument doc;
    DeserializationError error = deserializeJson(doc, http.getString());
    if (!error) {
      String reply = doc["reply"] | "";
      bool newPending = doc["pending_approval"] | false;
      approvalText = shortText(String(doc["approval_text"] | ""), 84);
      Expression received = parseExpression(String(doc["expression"] | "HAPPY"));
      if (newPending) { pendingApproval = true; expression = ALARMED; typing = false; }
      else { pendingApproval = false; expression = received; }
      if (reply.length() && reply != lastReply) {
        lastReply = reply; startTyping(reply); newMessageSound(); lastNewMessage = millis();
        if (asleep) { asleep = false; wakeSound(); oled.setContrast(255); }
      }
    }
  }
  http.end();
}

void drawEyes(bool closed) {
  if (closed) { oled.drawHLine(38, 15, 10); oled.drawHLine(80, 15, 10); }
  else { oled.drawDisc(43, 14, 3); oled.drawDisc(85, 14, 3); }
}
void drawFace(uint32_t t) {
  bool closed = t < blinkUntil;
  if (expression == ALARMED) {
    oled.drawCircle(43, 14, 6); oled.drawCircle(85, 14, 6);
    oled.drawLine(51, 25, 57, 21); oled.drawLine(57, 21, 63, 26); oled.drawLine(63, 26, 69, 21); oled.drawLine(69, 21, 76, 25);
  } else if (expression == SAD) {
    oled.drawTriangle(38, 10, 48, 10, 43, 18); oled.drawTriangle(80, 10, 90, 10, 85, 18); oled.drawHLine(56, 26, 16);
  } else if (expression == SLEEPY) {
    oled.drawHLine(37, 15, 12); oled.drawHLine(79, 15, 12); oled.drawCircle(64, 24, 3);
  } else if (expression == THINKING) {
    oled.drawDisc(43, 14, 3); oled.drawBox(81, 13, 9, 2);
    uint8_t dots = (t / 450) % 4; for (uint8_t i = 0; i < dots; i++) oled.drawDisc(101 + i * 6, 27, 1);
    oled.drawHLine(57, 25, 14);
  } else if (expression == WORKING) {
    const int offsets[4][2] = {{0,-4},{4,0},{0,4},{-4,0}};
    for (uint8_t i = 0; i < 4; i++) { int p = (i + workingFrame) % 4; oled.drawFrame(43 + offsets[p][0] - 3, 14 + offsets[p][1] - 3, 7, 7); }
    for (uint8_t i = 0; i < 4; i++) { int p = (i + workingFrame + 2) % 4; oled.drawFrame(85 + offsets[p][0] - 3, 14 + offsets[p][1] - 3, 7, 7); }
    oled.drawHLine(57, 25, 14);
  } else {
    drawEyes(closed); oled.drawLine(55, 21, 60, 25); oled.drawLine(60, 25, 68, 26); oled.drawLine(68, 26, 76, 25); oled.drawLine(76, 25, 81, 21);
  }
}
void drawWrapped(const String &text, uint8_t y, uint8_t lines) {
  oled.setFont(u8g2_font_5x7_tf); String line; uint8_t row = 0;
  for (uint16_t i = 0; i <= text.length() && row < lines; i++) {
    char c = i < text.length() ? text[i] : ' ';
    if (c == ' ' || i == text.length()) {
      String candidate = line.length() ? line + " " + String(c) : String(c);
      if (candidate.length() > 25 || i == text.length()) { oled.drawStr(2, y + row * 8, line.c_str()); line = String(c); row++; }
      else line = candidate;
    }
  }
  if (row < lines && line.length()) oled.drawStr(2, y + row * 8, line.c_str());
}
void render(uint32_t t) {
  oled.clearBuffer();
  if (quickMenu) {
    oled.setFont(u8g2_font_6x12_tf); oled.drawStr(3, 12, "QUICK REPLY");
    for (uint8_t i = 0; i < 4; i++) { oled.setFont(u8g2_font_5x7_tf); if (i == menuIndex) oled.drawBox(0, 16 + i * 9, 128, 9); oled.setDrawColor(i == menuIndex ? 0 : 1); oled.drawStr(4, 23 + i * 9, quickReplies[i]); oled.setDrawColor(1); }
    oled.drawStr(2, 62, "A/B choose  C send");
  } else if (pendingApproval) {
    drawFace(t); drawWrapped(approvalText, 37, 2); oled.setFont(u8g2_font_5x7_tf); oled.drawStr(2, 62, "A=YES   B=NO");
  } else {
    drawFace(t);
    String shown = typing ? typingText.substring(0, typedChars) : message;
    drawWrapped(shown, 39, 3);
    if (WiFi.status() != WL_CONNECTED) { oled.setFont(u8g2_font_5x7_tf); oled.drawStr(2, 62, "connecting..."); }
  }
  oled.sendBuffer();
}

void updateLight(uint32_t t) {
  uint8_t breathe = 18 + (uint8_t)((sinf(t / 320.0f) + 1.0f) * 45.0f);
  if (expression == ALARMED) { if ((t / 200) % 2) lamp(100, 0, 0); else lamp(0, 0, 0); }
  else if (expression == THINKING) lamp(0, 0, breathe);
  else if (expression == WORKING) { uint8_t phase = (t / 180) % 3; lamp(phase == 0 ? 70 : 10, 0, phase == 2 ? 70 : 10); }
  else if (expression == SAD) lamp(0, 0, 12);
  else if (expression == SLEEPY) lamp(0, breathe / 8, breathe / 8);
  else lamp(70, 25, 0);
}

void checkMotion(uint32_t t) {
  if (!imuOK || t - lastMotion < 70) return; lastMotion = t;
  int16_t ax, ay, az, gx, gy, gz; mpu.getMotion6(&ax, &ay, &az, &gx, &gy, &gz);
  float force = sqrtf(sq(ax / 16384.0f) + sq(ay / 16384.0f) + sq(az / 16384.0f));
  if (force > 2.15f && t - lastEvent > 900) { lastEvent = t; postEvent("shake"); message = "Whoa! That was a shake."; expression = THINKING; }
  else if (fabs(ax / 16384.0f) > 0.48f && t - lastEvent > 700) { lastEvent = t; postEvent(ax > 0 ? "tilt_right" : "tilt_left"); }
}
void checkMic(uint32_t t) {
  long sum = 0; for (uint8_t i = 0; i < 12; i++) { sum += analogRead(MIC_PIN); delayMicroseconds(50); }
  static int middle = 2048; int value = sum / 12; middle = (middle * 15 + value) / 16;
  if (abs(value - middle) > 500 && t - lastClap > 1400) { lastClap = t; postEvent("clap"); message = "I heard that!"; expression = HAPPY; }
}

void setup() {
  pinMode(BUTTON_A, INPUT); pinMode(BUTTON_B, INPUT); pinMode(BUTTON_C, INPUT); pinMode(TOUCH_PIN, INPUT);
  ledcAttach(LED_R, 5000, 8); ledcAttach(LED_G, 5000, 8); ledcAttach(LED_B, 5000, 8); lamp(0, 0, 0);
  Wire.begin(OLED_SDA, OLED_SCL); oled.begin(); oled.setContrast(255);
  mpu.initialize(); imuOK = mpu.testConnection();
  i2s_config_t config = {}; config.mode = (i2s_mode_t)(I2S_MODE_MASTER | I2S_MODE_TX); config.sample_rate = AUDIO_RATE; config.bits_per_sample = I2S_BITS_PER_SAMPLE_16BIT; config.channel_format = I2S_CHANNEL_FMT_RIGHT_LEFT; config.communication_format = I2S_COMM_FORMAT_I2S_MSB; config.dma_buf_count = 8; config.dma_buf_len = 128; config.tx_desc_auto_clear = true;
  i2s_driver_install(I2S_NUM_0, &config, 0, nullptr);
  i2s_pin_config_t pins = {}; pins.bck_io_num = I2S_BCLK; pins.ws_io_num = I2S_LRC; pins.data_out_num = I2S_DIN; pins.data_in_num = I2S_PIN_NO_CHANGE; i2s_set_pin(I2S_NUM_0, &pins);
  WiFi.mode(WIFI_STA); WiFi.begin(WIFI_SSID, WIFI_PASS);
  lastInput = lastNewMessage = millis(); lastBlink = millis() + random(3000, 8000);
}

void loop() {
  uint32_t t = millis();
  bool a = buttonPressed(0), b = buttonPressed(1), c = buttonPressed(2);
  bool touch = digitalRead(TOUCH_PIN) == HIGH;
  if (!c && digitalRead(BUTTON_C) == LOW && !cDownAt) cDownAt = t;
  if (digitalRead(BUTTON_C) == HIGH) cDownAt = 0;
  if (cDownAt && t - cDownAt >= 800 && !quickMenu && !pendingApproval) { quickMenu = true; cDownAt = 0; message = "Choose a message"; audioTone(850, 45); }
  if (a || b || c || (touch && !touchWas)) { lastInput = t; if (asleep) { asleep = false; expression = HAPPY; oled.setContrast(255); wakeSound(); } }
  if (pendingApproval) {
    if (a) { sendApproval(true); pendingApproval = false; expression = HAPPY; message = "Approved and sent."; approvedSound(); }
    if (b) { sendApproval(false); pendingApproval = false; expression = SAD; sadUntil = t + 3000; message = "Denied. I understand."; deniedSound(); }
  } else if (quickMenu) {
    if (a) { menuIndex = (menuIndex + 1) % 4; audioTone(800, 25); }
    if (b) { menuIndex = (menuIndex + 3) % 4; audioTone(650, 25); }
    if (c) { postEvent("quick_reply", quickReplies[menuIndex]); quickMenu = false; message = "Sent: " + String(quickReplies[menuIndex]); audioTone(1100, 50); delay(35); audioTone(1100, 50); }
  } else {
    if (a) postEvent("button_a"); if (b) postEvent("button_b"); if (c) postEvent("button_c");
    if (touch && !touchWas) { postEvent("touch"); message = "Touch received."; expression = HAPPY; }
  }
  touchWas = touch;
  if (sadUntil && t >= sadUntil) { sadUntil = 0; expression = HAPPY; }
  checkMotion(t); checkMic(t);
  uint32_t pollEvery = asleep ? 20000 : 4000;
  if (t - lastPoll >= pollEvery) { lastPoll = t; pollGateway(); }
  if (typing && t - lastNewMessage >= typedChars * 35UL) { if (typedChars < typingText.length()) typedChars++; else { typing = false; message = typingText; } }
  if (!asleep && t - max(lastInput, lastNewMessage) > 600000UL) { asleep = true; expression = SLEEPY; oled.setContrast(38); }
  if ((expression == HAPPY || expression == THINKING) && t >= lastBlink) { blinkUntil = t + 150; lastBlink = t + random(3000, 8000); }
  bool shouldInvert = expression == ALARMED && ((t / 600UL) % 2UL == 1UL);
  if (shouldInvert != inverted) { oled.getU8x8()->sendF("c", shouldInvert ? 0xA7 : 0xA6); inverted = shouldInvert; }
  if (expression == WORKING && t - lastWorkingFrame >= 125) { lastWorkingFrame = t; workingFrame = (workingFrame + 1) % 4; }
  updateLight(t);
  if (t - lastFrame >= 50) { lastFrame = t; render(t); }
}
