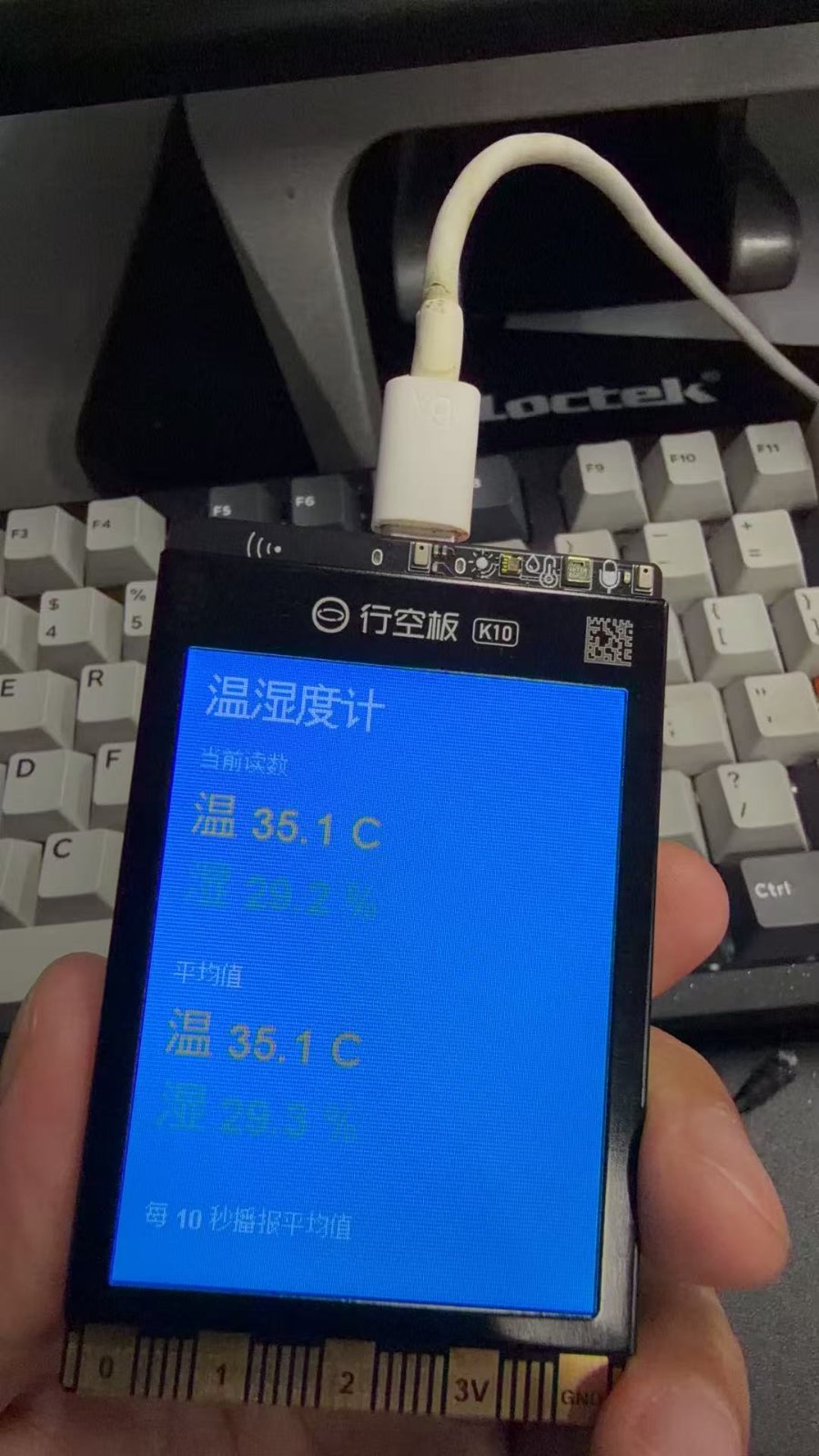

Average Temperature Humidity Announcer

#include <Arduino.h>
#include "unihiker_k10.h"
#include "asr.h"
#include <math.h>


// Forward declarations

// Forward declarations
static void drawLargeText(const String &text, int x, int y, uint32_t color, uint16_t width);

static void drawText(const String &text, int x, int y, uint32_t color, uint16_t width);
static void redrawScreen();
static void speakAverage(float averageTemperature, float averageHumidity);

UNIHIKER_K10 k10;
AHT20 aht20;
ASR asr;

static constexpr uint8_t SCREEN_DIRECTION = 2;
static constexpr unsigned long SAMPLE_INTERVAL_MS = 1000;
static constexpr unsigned long ANNOUNCE_INTERVAL_MS = 10000;

// One uniform canvas background. Text is rendered transparently on top of it.
static constexpr uint32_t BG_COLOR = 0x00BFFF;
static constexpr uint32_t TITLE_COLOR = 0xFFFFFF;
static constexpr uint32_t LABEL_COLOR = 0xE6F6FF;
static constexpr uint32_t TEMP_COLOR = 0xFFD166;
static constexpr uint32_t HUMI_COLOR = 0x70E1C1;
static constexpr uint32_t STATUS_COLOR = 0xE6F6FF;

static unsigned long lastSampleMs = 0;
static unsigned long lastAnnounceMs = 0;
static float temperatureSum = 0.0f;
static float humiditySum = 0.0f;
static uint32_t validSamples = 0;
static float currentTemperature = NAN;
static float currentHumidity = NAN;
static bool displayDirty = true;
static bool justAnnounced = false;

// This is K10's coordinate-based Canvas API.  The final false is essential:
// it draws glyphs without the opaque automatic text-row background.
static void drawText(const String &text, int x, int y, uint32_t color,
                     uint16_t width = 232) {
  k10.canvas->canvasText(text, x, y, color,
                         k10.canvas->eCNAndENFont16, width, false);
}

// Larger 24-pixel glyphs for the values that must be readable at a glance.
static void drawLargeText(const String &text, int x, int y, uint32_t color,
                          uint16_t width = 232) {
  k10.canvas->canvasText(text, x, y, color,
                         k10.canvas->eCNAndENFont24, width, false);
}

static void redrawScreen() {
  // The K10 Arduino Canvas API exposes only a whole-canvas submit.  Build a
  // complete, uniform frame in RAM and submit it once, never once per line.
  k10.canvas->canvasRectangle(0, 0, 240, 320, BG_COLOR, BG_COLOR, true);

  // Compact labels plus 24-pixel readings: the important numbers are now
  // legible from normal desk distance while the whole layout remains on 240x320.
  drawLargeText("温湿度计", 12, 12, TITLE_COLOR, 216);
  drawText("当前读数", 12, 52, LABEL_COLOR);

  if (validSamples == 0) {
    drawLargeText("读取中...", 12, 82, STATUS_COLOR);
  } else {
    const float averageTemperature = temperatureSum / validSamples;
    const float averageHumidity = humiditySum / validSamples;

    drawLargeText(String("温 ") + String(currentTemperature, 1) + " C",
                  12, 76, TEMP_COLOR);
    drawLargeText(String("湿 ") + String(currentHumidity, 1) + " %",
                  12, 112, HUMI_COLOR);

    drawText("平均值", 12, 164, LABEL_COLOR);
    drawLargeText(String("温 ") + String(averageTemperature, 1) + " C",
                  12, 188, TEMP_COLOR);
    drawLargeText(String("湿 ") + String(averageHumidity, 1) + " %",
                  12, 224, HUMI_COLOR);
    drawText(justAnnounced ? "已播报平均值" : "每 10 秒播报平均值",
             12, 282, STATUS_COLOR);
  }

  k10.canvas->updateCanvas();
  displayDirty = false;
}

static void speakAverage(float averageTemperature, float averageHumidity) {
  String speech = String("当前平均温度") + String(averageTemperature, 1) +
                  String("摄氏度，平均湿度") + String(averageHumidity, 1) +
                  String("百分比");
  asr.speak(speech);
}

void setup() {
  k10.begin();
  k10.initScreen(SCREEN_DIRECTION);
  k10.creatCanvas();

  asr.asrInit(CONTINUOUS, CN_MODE, 6000);
  while (asr._asrState == 0) {
    delay(100);
  }
  asr.setAsrSpeed(2);
  redrawScreen();
}

void loop() {
  const unsigned long now = millis();

  if (now - lastSampleMs >= SAMPLE_INTERVAL_MS) {
    lastSampleMs = now;
    const float temperature = aht20.getData(AHT20::eAHT20TempC);
    const float humidity = aht20.getData(AHT20::eAHT20HumiRH);

    if (isfinite(temperature) && isfinite(humidity) &&
        humidity >= 0.0f && humidity <= 100.0f) {
      currentTemperature = temperature;
      currentHumidity = humidity;
      temperatureSum += temperature;
      humiditySum += humidity;
      ++validSamples;
      justAnnounced = false;
      displayDirty = true;
    }
  }

  if (validSamples > 0 && now - lastAnnounceMs >= ANNOUNCE_INTERVAL_MS) {
    lastAnnounceMs = now;
    speakAverage(temperatureSum / validSamples, humiditySum / validSamples);
    justAnnounced = true;
    displayDirty = true;
  }

  if (displayDirty) {
    redrawScreen();
  }

  delay(5);
}
