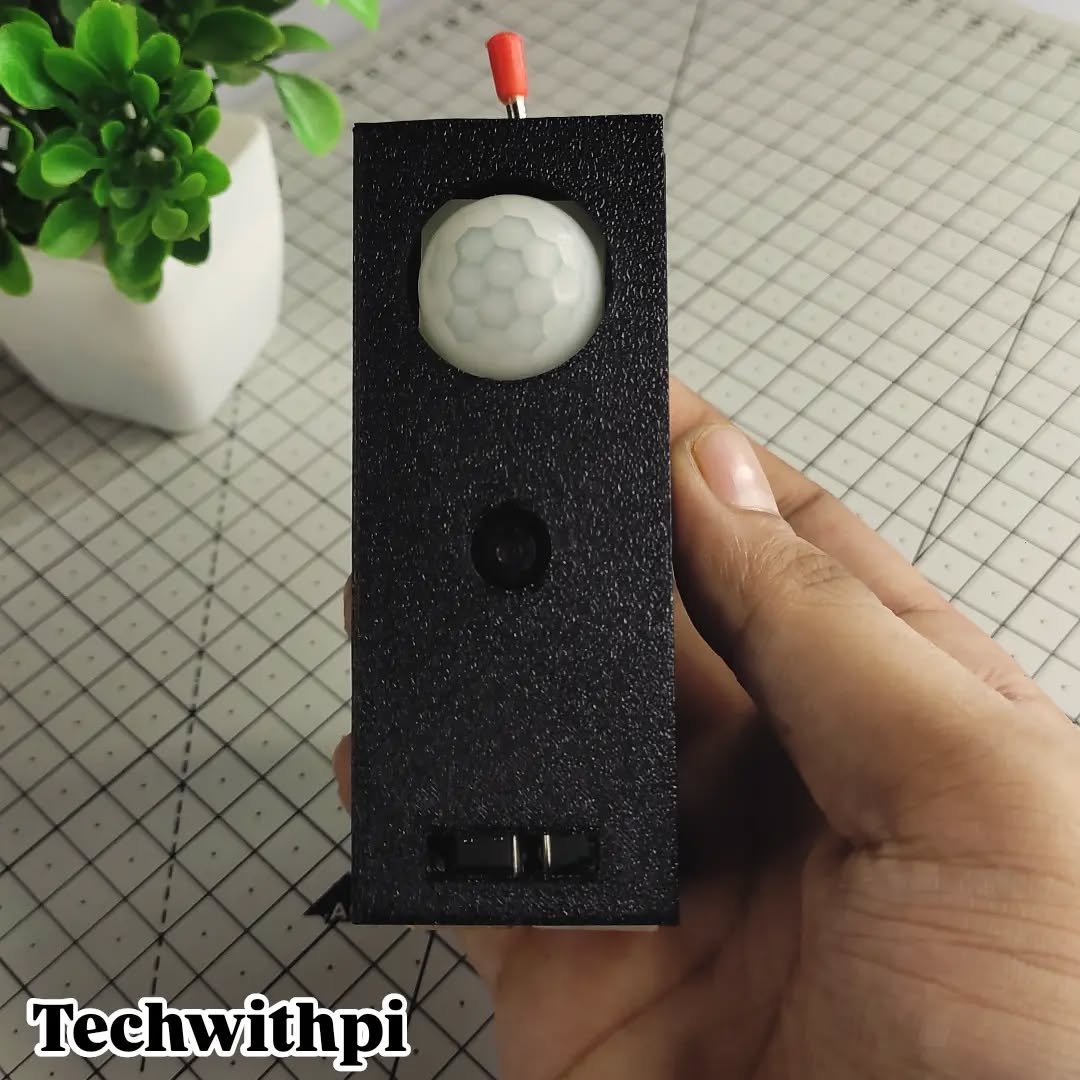

Motion-Triggered Telegram Camera

#include <Arduino.h>
#include <WiFi.h>
#include <WiFiClientSecure.h>
#include "esp_camera.h"

// Replace these placeholders before deploying. PIR OUT is wired directly to GPIO1 (verified free and separate from the built-in OV3660 camera pin map).

// Forward declarations
bool secretsConfigured();
String urlEncode(const String &text);
bool readHttpStatus(WiFiClientSecure &client, const char *operation);
bool telegramMessage(const String &message);
bool telegramPhoto(camera_fb_t *frame);
bool connectWiFi();
bool startCamera();
void captureAndSendMotionPhoto();

const char *WIFI_SSID = "YOUR_WIFI_NAME";
const char *WIFI_PASSWORD = "YOUR_WIFI_PASSWORD";
const char *TELEGRAM_BOT_TOKEN = "123456789:REPLACE_WITH_YOUR_BOT_TOKEN";
const char *TELEGRAM_CHAT_ID = "REPLACE_WITH_YOUR_CHAT_ID";

constexpr int PIR_PIN = 1;
constexpr unsigned long PIR_WARMUP_MS = 60000UL;
constexpr unsigned long PHOTO_COOLDOWN_MS = 15000UL;
constexpr unsigned long WIFI_TIMEOUT_MS = 20000UL;

// OV3660 DVP wiring supplied for this generic ESP32-S3-CAM board.
constexpr int CAM_PIN_PWDN = -1;
constexpr int CAM_PIN_RESET = -1;
constexpr int CAM_PIN_XCLK = 15;
constexpr int CAM_PIN_SIOD = 4;
constexpr int CAM_PIN_SIOC = 5;
constexpr int CAM_PIN_D7 = 16;  // Y9
constexpr int CAM_PIN_D6 = 17;  // Y8
constexpr int CAM_PIN_D5 = 18;  // Y7
constexpr int CAM_PIN_D4 = 12;  // Y6
constexpr int CAM_PIN_D3 = 10;  // Y5
constexpr int CAM_PIN_D2 = 8;   // Y4
constexpr int CAM_PIN_D1 = 9;   // Y3
constexpr int CAM_PIN_D0 = 11;  // Y2
constexpr int CAM_PIN_VSYNC = 6;
constexpr int CAM_PIN_HREF = 7;
constexpr int CAM_PIN_PCLK = 13;

bool pirWasHigh = false;
bool monitoringArmed = false;
unsigned long bootMillis = 0;
unsigned long lastPhotoMillis = 0;

bool secretsConfigured() {
  return String(WIFI_SSID) != "YOUR_WIFI_NAME" &&
         String(WIFI_PASSWORD) != "YOUR_WIFI_PASSWORD" &&
         String(TELEGRAM_BOT_TOKEN).indexOf("REPLACE") == -1 &&
         String(TELEGRAM_CHAT_ID).indexOf("REPLACE") == -1;
}

String urlEncode(const String &text) {
  const char *hex = "0123456789ABCDEF";
  String encoded;
  encoded.reserve(text.length() * 3);
  for (size_t i = 0; i < text.length(); ++i) {
    const uint8_t c = static_cast<uint8_t>(text[i]);
    if ((c >= 'a' && c <= 'z') || (c >= 'A' && c <= 'Z') ||
        (c >= '0' && c <= '9') || c == '-' || c == '_' || c == '.' || c == '~') {
      encoded += static_cast<char>(c);
    } else {
      encoded += '%';
      encoded += hex[c >> 4];
      encoded += hex[c & 0x0F];
    }
  }
  return encoded;
}

bool readHttpStatus(WiFiClientSecure &client, const char *operation) {
  const unsigned long start = millis();
  while (!client.available() && millis() - start < 10000UL) {
    delay(10);
  }
  if (!client.available()) {
    Serial.printf("Telegram %s: no HTTP response\n", operation);
    return false;
  }

  const String statusLine = client.readStringUntil('\n');
  Serial.printf("Telegram %s: %s\n", operation, statusLine.c_str());
  while (client.available()) {
    client.read();
  }
  return statusLine.indexOf(" 200 ") >= 0;
}

bool telegramMessage(const String &message) {
  WiFiClientSecure client;
  client.setInsecure();  // TLS encryption without a pinned certificate; suitable for Telegram API access.
  if (!client.connect("api.telegram.org", 443)) {
    Serial.println("Telegram message: connection failed");
    return false;
  }

  const String path = "/bot" + String(TELEGRAM_BOT_TOKEN) +
                      "/sendMessage?chat_id=" + urlEncode(TELEGRAM_CHAT_ID) +
                      "&text=" + urlEncode(message);
  client.print("GET " + path + " HTTP/1.1\r\nHost: api.telegram.org\r\nConnection: close\r\n\r\n");
  const bool ok = readHttpStatus(client, "message");
  client.stop();
  return ok;
}

bool telegramPhoto(camera_fb_t *frame) {
  WiFiClientSecure client;
  client.setInsecure();
  if (!client.connect("api.telegram.org", 443)) {
    Serial.println("Telegram photo: connection failed");
    return false;
  }

  const String boundary = "----ESP32S3CamBoundary";
  const String preamble = "--" + boundary + "\r\n"
      "Content-Disposition: form-data; name=\"chat_id\"\r\n\r\n" +
      String(TELEGRAM_CHAT_ID) + "\r\n--" + boundary + "\r\n"
      "Content-Disposition: form-data; name=\"caption\"\r\n\r\nMotion detected\r\n" +
      "--" + boundary + "\r\n"
      "Content-Disposition: form-data; name=\"photo\"; filename=\"motion.jpg\"\r\n"
      "Content-Type: image/jpeg\r\n\r\n";
  const String ending = "\r\n--" + boundary + "--\r\n";
  const size_t contentLength = preamble.length() + frame->len + ending.length();
  const String path = "/bot" + String(TELEGRAM_BOT_TOKEN) + "/sendPhoto";

  client.print("POST " + path + " HTTP/1.1\r\n");
  client.print("Host: api.telegram.org\r\n");
  client.print("Connection: close\r\n");
  client.print("Content-Type: multipart/form-data; boundary=" + boundary + "\r\n");
  client.print("Content-Length: " + String(contentLength) + "\r\n\r\n");
  client.print(preamble);
  client.write(frame->buf, frame->len);
  client.print(ending);

  const bool ok = readHttpStatus(client, "photo");
  client.stop();
  return ok;
}

bool connectWiFi() {
  if (WiFi.status() == WL_CONNECTED) {
    return true;
  }

  Serial.printf("Connecting to Wi-Fi: %s\n", WIFI_SSID);
  WiFi.mode(WIFI_STA);
  WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
  const unsigned long started = millis();
  while (WiFi.status() != WL_CONNECTED && millis() - started < WIFI_TIMEOUT_MS) {
    delay(250);
  }

  if (WiFi.status() == WL_CONNECTED) {
    Serial.print("Wi-Fi connected, IP: ");
    Serial.println(WiFi.localIP());
    return true;
  }
  Serial.println("Wi-Fi connection timed out");
  return false;
}

bool startCamera() {
  camera_config_t config = {};
  config.ledc_channel = LEDC_CHANNEL_0;
  config.ledc_timer = LEDC_TIMER_0;
  config.pin_d0 = CAM_PIN_D0;
  config.pin_d1 = CAM_PIN_D1;
  config.pin_d2 = CAM_PIN_D2;
  config.pin_d3 = CAM_PIN_D3;
  config.pin_d4 = CAM_PIN_D4;
  config.pin_d5 = CAM_PIN_D5;
  config.pin_d6 = CAM_PIN_D6;
  config.pin_d7 = CAM_PIN_D7;
  config.pin_xclk = CAM_PIN_XCLK;
  config.pin_pclk = CAM_PIN_PCLK;
  config.pin_vsync = CAM_PIN_VSYNC;
  config.pin_href = CAM_PIN_HREF;
  config.pin_sccb_sda = CAM_PIN_SIOD;
  config.pin_sccb_scl = CAM_PIN_SIOC;
  config.pin_pwdn = CAM_PIN_PWDN;
  config.pin_reset = CAM_PIN_RESET;
  config.xclk_freq_hz = 20000000;
  config.pixel_format = PIXFORMAT_JPEG;
  // QVGA and one frame buffer keep this compatible with boards lacking PSRAM.
  config.frame_size = FRAMESIZE_QVGA;
  config.jpeg_quality = 12;
  config.fb_count = 1;
  config.grab_mode = CAMERA_GRAB_WHEN_EMPTY;
  config.fb_location = CAMERA_FB_IN_DRAM;

  const esp_err_t result = esp_camera_init(&config);
  if (result != ESP_OK) {
    Serial.printf("Camera initialization failed: 0x%lx\n", static_cast<unsigned long>(result));
    return false;
  }
  return true;
}

void captureAndSendMotionPhoto() {
  if (!connectWiFi()) {
    Serial.println("Motion seen, but Wi-Fi is unavailable; photo was not sent.");
    return;
  }

  Serial.println("Motion confirmed: capturing photo.");
  camera_fb_t *frame = esp_camera_fb_get();
  if (frame == nullptr) {
    Serial.println("Camera capture failed");
    telegramMessage("Motion detected, but the camera capture failed.");
    return;
  }

  const bool sent = telegramPhoto(frame);
  esp_camera_fb_return(frame);
  if (!sent) {
    Serial.println("Photo delivery failed");
  }
}

void setup() {
  Serial.begin(115200);
  delay(300);
  pinMode(PIR_PIN, INPUT);
  bootMillis = millis();
  pirWasHigh = digitalRead(PIR_PIN) == HIGH;

  if (!startCamera()) {
    Serial.println("Camera unavailable; the device will not send photos.");
  }

  if (!secretsConfigured()) {
    Serial.println("Enter Wi-Fi and Telegram credentials in the four constants before deploying.");
    return;
  }

  if (connectWiFi()) {
    telegramMessage("ESP32-S3-CAM is online.");
  }
  Serial.println("PIR warm-up started; motion monitoring will arm in 60 seconds.");
}

void loop() {
  if (!secretsConfigured()) {
    delay(1000);
    return;
  }

  const bool pirHigh = digitalRead(PIR_PIN) == HIGH;
  if (!monitoringArmed && millis() - bootMillis >= PIR_WARMUP_MS) {
    monitoringArmed = true;
    pirWasHigh = pirHigh;
    Serial.println("PIR monitoring armed.");
  }

  if (monitoringArmed && pirHigh && !pirWasHigh && millis() - lastPhotoMillis >= PHOTO_COOLDOWN_MS) {
    lastPhotoMillis = millis();
    captureAndSendMotionPhoto();
  }
  pirWasHigh = pirHigh;
  delay(20);
}
