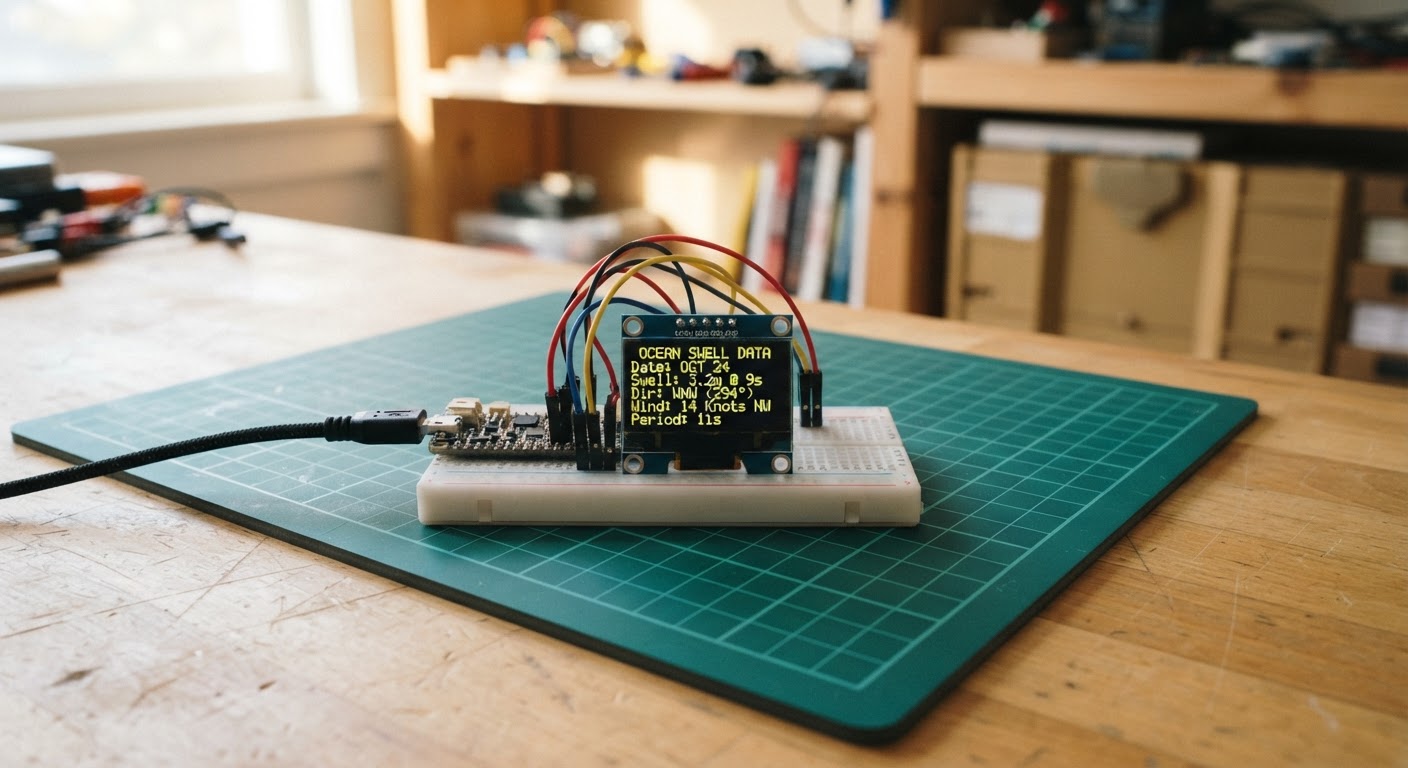

Ocean Swell Forecast Display

#include <Arduino.h>
/*
 * Ocean Swell Forecast Display
 * ESP32 DevKit V1 + SSD1306 128×64 OLED
 * Data: Open-Meteo Marine API (free, no API key)
 *
 * ── CONFIGURE THESE ──────────────────────────────────────────────────────── */
#define WIFI_SSID       "YOUR_WIFI_SSID"
#define WIFI_PASSWORD   "YOUR_WIFI_PASSWORD"

// Surf spot coordinates — change to your favourite break
#define SPOT_LAT        34.0195    // Pipeline, Oahu as default
#define SPOT_LON       -118.4912   // (replace with your coordinates)
#define SPOT_NAME       "Your Spot"

// How often to refresh data (milliseconds) — 15 minutes
#define REFRESH_INTERVAL_MS  (15UL * 60UL * 1000UL)
/* ─────────────────────────────────────────────────────────────────────────── */

#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#include <WiFi.h>
#include <HTTPClient.h>
#include <ArduinoJson.h>

#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET   -1
#define I2C_ADDR     0x3C

#define SDA_PIN 21
#define SCL_PIN 22


// Hoisted type definitions
struct SwellSlot {
  int    hour;          // hour of day (0-23)
  float  swellHeight;   // m
  float  swellPeriod;   // s
  int    swellDir;      // degrees
};


// Forward declarations
const char* bearingLabel(int deg);
void drawConnecting(const char* msg);
void drawError(const char* msg);
bool fetchForecast();
void drawSummary();
void drawBarChart();
void drawDetailScroll();

Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

// ── Forecast data for up to 8 hourly slots ───────────────────────────────────
static const int MAX_SLOTS = 8;

SwellSlot slots[MAX_SLOTS];
int  validSlots   = 0;
bool dataFresh    = false;
unsigned long lastFetch = 0;

// ── Helpers ───────────────────────────────────────────────────────────────────
const char* bearingLabel(int deg) {
  // 8-point compass from degrees
  static const char* labels[] = {"N","NE","E","SE","S","SW","W","NW"};
  int idx = ((deg + 22) % 360) / 45;
  return labels[idx];
}

void drawConnecting(const char* msg) {
  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(0, 24);
  display.println(msg);
  display.display();
}

void drawError(const char* msg) {
  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(0, 0);
  display.println(F("! Fetch failed"));
  display.setCursor(0, 16);
  display.println(msg);
  display.display();
}

// ── Fetch & parse ─────────────────────────────────────────────────────────────
bool fetchForecast() {
  char url[320];
  snprintf(url, sizeof(url),
    "https://marine-api.open-meteo.com/v1/marine"
    "?latitude=%.4f&longitude=%.4f"
    "&hourly=swell_wave_height,swell_wave_period,swell_wave_direction"
    "&forecast_days=2"
    "&timezone=auto",
    (double)SPOT_LAT, (double)SPOT_LON);

  HTTPClient http;
  http.begin(url);
  http.setTimeout(10000);
  int code = http.GET();

  if (code != HTTP_CODE_OK) {
    Serial.printf("[HTTP] GET failed, code=%d\n", code);
    http.end();
    return false;
  }

  // Stream-parse with ArduinoJson filter to save RAM
  JsonDocument filter;
  filter["hourly"]["time"]                  = true;
  filter["hourly"]["swell_wave_height"]     = true;
  filter["hourly"]["swell_wave_period"]     = true;
  filter["hourly"]["swell_wave_direction"]  = true;

  JsonDocument doc;
  DeserializationError err = deserializeJson(doc, http.getStream(),
                               DeserializationOption::Filter(filter));
  http.end();

  if (err) {
    Serial.print(F("[JSON] parse error: "));
    Serial.println(err.c_str());
    return false;
  }

  JsonArray times  = doc["hourly"]["time"].as<JsonArray>();
  JsonArray heights= doc["hourly"]["swell_wave_height"].as<JsonArray>();
  JsonArray periods= doc["hourly"]["swell_wave_period"].as<JsonArray>();
  JsonArray dirs   = doc["hourly"]["swell_wave_direction"].as<JsonArray>();

  if (!times || !heights) {
    Serial.println(F("[JSON] missing arrays"));
    return false;
  }

  // Find next MAX_SLOTS hours starting NOW (skip past hours, take daytime)
  validSlots = 0;
  for (int i = 0; i < (int)times.size() && validSlots < MAX_SLOTS; i++) {
    // time string: "2026-07-19T06:00"
    const char* t = times[i].as<const char*>();
    if (!t) continue;
    // Extract hour from position 11-12
    int h = (t[11]-'0')*10 + (t[12]-'0');
    slots[validSlots].hour        = h;
    slots[validSlots].swellHeight = heights[i].as<float>();
    slots[validSlots].swellPeriod = periods[i].as<float>();
    slots[validSlots].swellDir    = dirs[i].as<int>();
    validSlots++;
  }

  Serial.printf("[FETCH] got %d slots\n", validSlots);
  return validSlots > 0;
}

// ── Display pages ─────────────────────────────────────────────────────────────
static int  currentPage = 0;
static const int PAGES  = 3;    // 0=summary, 1=bar chart, 2=detail scroll
static unsigned long lastPageFlip = 0;
static const unsigned long PAGE_DWELL_MS = 5000;

// Page 0: Summary — next 3 slots in one glance
void drawSummary() {
  display.clearDisplay();

  // Header
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(0, 0);
  display.print(F(SPOT_NAME));
  display.setCursor(90, 0);
  display.print(F("SWELL"));

  // Divider
  display.drawFastHLine(0, 9, 128, SSD1306_WHITE);

  int show = min(validSlots, 3);
  for (int i = 0; i < show; i++) {
    int y = 13 + i * 17;
    char buf[32];
    // Time column
    display.setCursor(0, y);
    snprintf(buf, sizeof(buf), "%02d:00", slots[i].hour);
    display.print(buf);

    // Height
    display.setCursor(42, y);
    snprintf(buf, sizeof(buf), "%.1fm", slots[i].swellHeight);
    display.print(buf);

    // Period
    display.setCursor(78, y);
    snprintf(buf, sizeof(buf), "%.0fs", slots[i].swellPeriod);
    display.print(buf);

    // Direction
    display.setCursor(105, y);
    display.print(bearingLabel(slots[i].swellDir));
  }
  display.display();
}

// Page 1: Bar chart of swell heights for all slots
void drawBarChart() {
  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(0, 0);
  display.print(F("Swell Height (m)"));
  display.drawFastHLine(0, 9, 128, SSD1306_WHITE);

  if (validSlots == 0) {
    display.setCursor(20, 30);
    display.print(F("No data"));
    display.display();
    return;
  }

  // Find max for scaling
  float maxH = 0.1f;
  for (int i = 0; i < validSlots; i++)
    if (slots[i].swellHeight > maxH) maxH = slots[i].swellHeight;

  const int chartTop    = 11;
  const int chartBottom = 62;
  const int chartHeight = chartBottom - chartTop; // 51 px

  int barWidth  = (128 / validSlots) - 1;
  if (barWidth < 2) barWidth = 2;

  for (int i = 0; i < validSlots; i++) {
    int barH = (int)((slots[i].swellHeight / maxH) * chartHeight);
    if (barH < 1) barH = 1;
    int x = i * (barWidth + 1);
    int y = chartBottom - barH;
    display.fillRect(x, y, barWidth, barH, SSD1306_WHITE);
  }

  // Y-axis label max
  char maxBuf[8];
  snprintf(maxBuf, sizeof(maxBuf), "%.1f", maxH);
  display.setCursor(108, 11);
  display.print(maxBuf);
  display.print('m');

  display.display();
}

// Page 2: Detailed text scroll through all slots
void drawDetailScroll() {
  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(0, 0);
  display.print(F("Detail"));
  display.drawFastHLine(0, 9, 128, SSD1306_WHITE);

  // Show 3 slots per page, cycle through them
  static int detailOffset = 0;
  static unsigned long lastScroll = 0;
  if (millis() - lastScroll > PAGE_DWELL_MS) {
    detailOffset = (detailOffset + 3) % (validSlots > 0 ? validSlots : 1);
    lastScroll = millis();
  }

  int show = min(validSlots - detailOffset, 3);
  for (int i = 0; i < show; i++) {
    int idx = detailOffset + i;
    int y = 13 + i * 17;
    char buf[32];
    display.setCursor(0, y);
    snprintf(buf, sizeof(buf), "%02d:00 %.1fm %.0fs %s",
      slots[idx].hour,
      slots[idx].swellHeight,
      slots[idx].swellPeriod,
      bearingLabel(slots[idx].swellDir));
    display.print(buf);
  }
  display.display();
}

// ── Setup & loop ──────────────────────────────────────────────────────────────
void setup() {
  Serial.begin(115200);

  Wire.begin(SDA_PIN, SCL_PIN);
  if (!display.begin(SSD1306_SWITCHCAPVCC, I2C_ADDR)) {
    Serial.println(F("[OLED] init failed"));
    for (;;) {}
  }
  display.clearDisplay();
  display.setTextColor(SSD1306_WHITE);

  // ── Connect WiFi ──────────────────────────────────────────────────────────
  drawConnecting("Connecting WiFi...");
  WiFi.mode(WIFI_STA);
  WiFi.begin(WIFI_SSID, WIFI_PASSWORD);

  unsigned long wStart = millis();
  while (WiFi.status() != WL_CONNECTED) {
    if (millis() - wStart > 20000) {
      drawError("WiFi timeout");
      // retry every 30 s
      delay(30000);
      ESP.restart();
    }
    delay(500);
    Serial.print('.');
  }
  Serial.println();
  Serial.print(F("[WiFi] connected, IP: "));
  Serial.println(WiFi.localIP());

  drawConnecting("Fetching swell...");
  dataFresh = fetchForecast();
  lastFetch = millis();

  if (!dataFresh) drawError("Fetch failed");

  lastPageFlip = millis();
}

void loop() {
  unsigned long now = millis();

  // ── Periodic refresh ─────────────────────────────────────────────────────
  if (now - lastFetch >= REFRESH_INTERVAL_MS) {
    dataFresh = fetchForecast();
    lastFetch = now;
    if (!dataFresh) {
      drawError("Refresh failed");
      return;
    }
  }

  if (!dataFresh) return;

  // ── Page flip ────────────────────────────────────────────────────────────
  if (now - lastPageFlip >= PAGE_DWELL_MS) {
    currentPage = (currentPage + 1) % PAGES;
    lastPageFlip = now;

    switch (currentPage) {
      case 0: drawSummary();     break;
      case 1: drawBarChart();    break;
      case 2: drawDetailScroll(); break;
    }
  }
}
