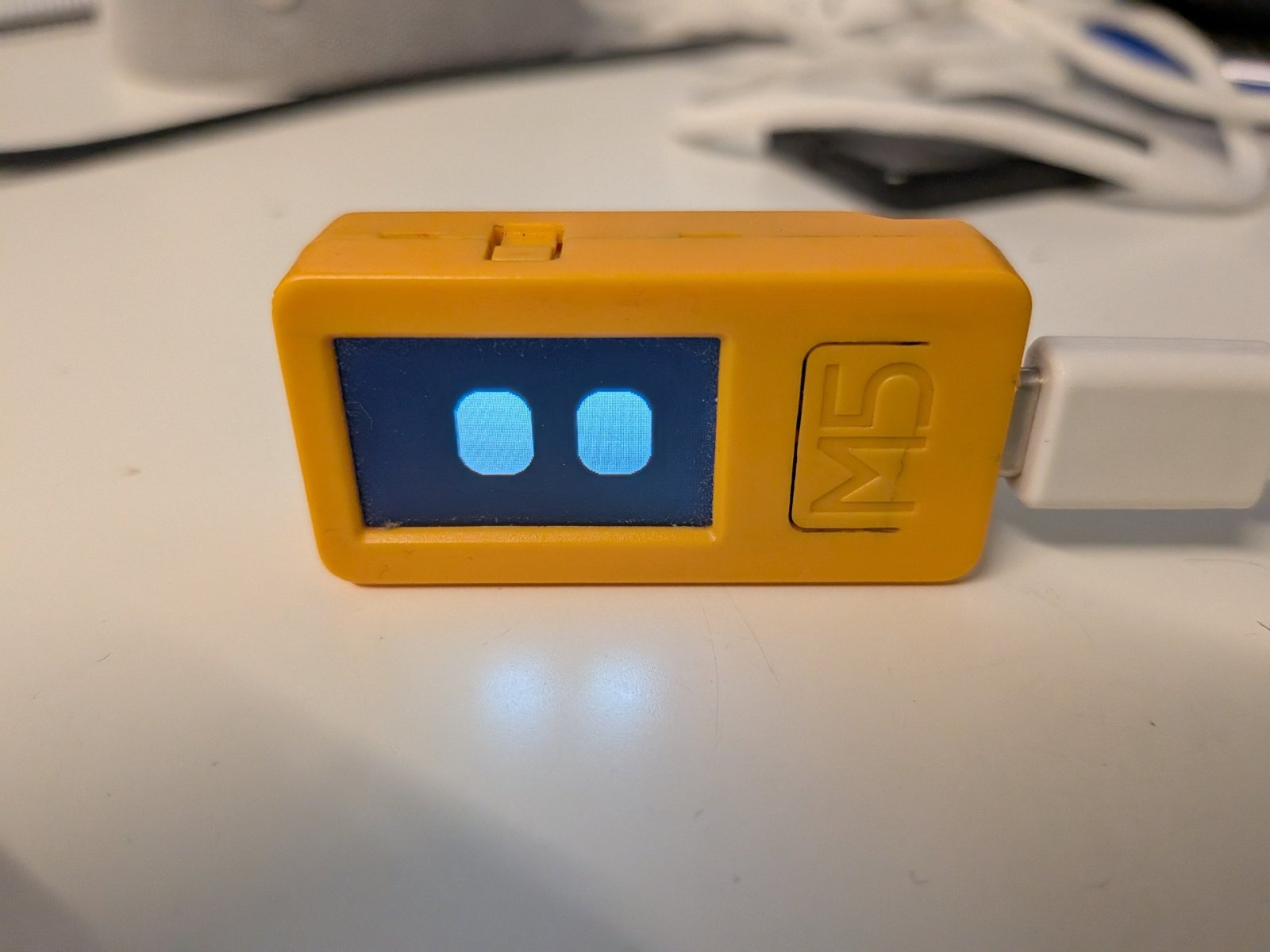

M5Stickc plus2 DeskBuddy

#include <Arduino.h>
#include <M5Unified.h>
#include <WiFi.h>
#include <WebServer.h>
#include <Preferences.h>
#include <HTTPClient.h>
#include <WiFiClientSecure.h>
#include <ArduinoJson.h>
#include <time.h>
#include <math.h>
#include "secrets.h"

// DeskBuddy for M5StickC PLUS2: ST7789V2 240x135 LCD in landscape, built-in buttons, IMU, Wi-Fi and battery sensing.

// Button B pages: Face → Clock & Weather → Forecast → Daylight → World Clock → Air Quality → System Status.
enum Page : uint8_t { FACE_PAGE, CLOCK_PAGE, FORECAST_PAGE, DAYLIGHT_PAGE, WORLD_PAGE, AIR_PAGE, STATUS_PAGE, PAGE_COUNT };
enum Mood : uint8_t { NORMAL, HAPPY, SURPRISED, SLEEPY, ANGRY, SAD, EXCITED, LOVE, SUSPICIOUS, MOOD_COUNT };
enum PetState : uint8_t { BOOT_LOOK, AWAKE, FALLING_ASLEEP, ASLEEP, BRIEF_WAKE, ASKING_FOR_PET, PETTED_HAPPY };


// Forward declarations
void drawClockDigit(int x, int y, int digit, float scale = 1.0f);

void setBrightness();
void loadWiFi();
void saveWiFi(const String& ssid, const String& pass);
void portalHome();
void portalSave();
void startConfigPortal();
bool connectWiFi();
String weatherName(int code);
void fetchWeather();
void fetchAirQuality();
void drawWeatherIcon(int x, int y, int code, float scale = 1.0f);
void drawEyes(int dx, int dy, bool closed);
void drawPixelSmile(int centerX, int y, uint8_t style);
void drawAirQualityFace(int centerX, int centerY, uint8_t band);
void drawFace(bool force);
void pageTitle(const char* label);
void drawClock();
void drawWeather();
void drawForecast();
void drawDaylight();
void drawWorldClock();
void drawAirQuality();
void drawSystemStatus();
void drawCurrentPage();
void setPage(Page newPage);
void scheduleSleepEvent(uint32_t now);
void enterAwake(uint32_t now, bool happy);
void updatePetState(uint32_t now);
void playBootAnimation();
bool restoreTimeFromRtc();
void saveTimeToRtc();
void waitForNtpAndSaveRtc();
void queueThought(const char* message, uint8_t priority);
uint8_t usAqiBand(float aqi);
void loadCachedData();
void saveCachedData();
String savedAgeLabel();

constexpr uint16_t BG = TFT_BLACK;
constexpr uint16_t FG = TFT_WHITE;
constexpr uint16_t DIM_FG = TFT_LIGHTGREY;
constexpr uint32_t FACE_FRAME_MS = 50;
constexpr uint32_t WEATHER_REFRESH_MS = 4UL * 60UL * 1000UL;
constexpr uint32_t LONG_PRESS_MS = 900;
constexpr uint32_t INACTIVITY_MS = 60UL * 1000UL;
constexpr uint32_t SHAKE_COOLDOWN_MS = 3000;
// These deliberately exclude ordinary table vibration and gentle handling.
constexpr float ACTIVITY_SPIN_DPS = 55.0f;
constexpr float ACTIVITY_ACCEL_DELTA_G = 0.24f;
constexpr float WAKE_SPIN_DPS = 150.0f;
constexpr float WAKE_ACCEL_DELTA_G = 0.55f;
constexpr float SHAKE_SPIN_DPS = 620.0f;
constexpr float SHAKE_ACCEL_G = 3.2f;

Preferences prefs;
WebServer portal(80);
String wifiSsid, wifiPass;
bool configMode = false;
bool bright = true;
Page page = FACE_PAGE;
Mood mood = NORMAL;
PetState petState = BOOT_LOOK;

uint32_t stateSince = 0;
uint32_t lastFrame = 0;
uint32_t lastWeatherFetch = 0;
uint32_t lastTapA = 0;
uint32_t buttonBDownAt = 0;
uint32_t powerButtonDownAt = 0;
uint32_t lastShakeAt = 0;
uint32_t lastMeaningfulActivity = 0;
uint32_t motionStartedAt = 0;
uint32_t nextSleepEventAt = 0;
uint32_t attentionUntil = 0;
uint32_t petHoldStartedAt = 0;
uint32_t angryUntil = 0;
uint32_t nextBlinkAt = 0;
uint32_t blinkUntil = 0;
uint32_t nextIdleGlanceAt = 0;
uint32_t nextIdleGestureAt = 0;
uint32_t idleGestureUntil = 0;
uint32_t wakeLookStartedAt = 0;
uint32_t wakeLookUntil = 0;
// Chosen once for each real wake from sleep: 0 calm stretch, 1 curious check-in, 2 happy settle.
uint8_t wakeAnimation = 0;
uint32_t nextIdleThoughtAt = 0;
uint32_t idleThoughtUntil = 0;
String idleThought;
String pendingThought;
uint8_t pendingThoughtPriority = 0;
bool offlineWakeThoughtPending = false;
bool usbStateKnown = false;
bool usbConnected = false;
bool usbWasCharging = false;
bool lowBatteryReminderArmed = true;
bool sleepInteractionUsed = false;
uint32_t nextUsbCheckAt = 0;
time_t lastSavedDataAt = 0;
int lastClockSecond = -1;
bool longBHandled = false;
bool powerTimeSaved = false;
bool petHoldHandled = false;

float gazeX = 0.0f, gazeY = 0.0f;
float idleGlanceX = 0.0f, idleGlanceY = 0.0f;
int shownX = 999, shownY = 999;
bool lastClosed = false;

float tempC = NAN;
float windKph = NAN;
int humidity = -1;
int weatherCode = -1;
float forecastHigh[3] = { NAN, NAN, NAN };
float forecastLow[3] = { NAN, NAN, NAN };
int forecastCode[3] = { -1, -1, -1 };
String forecastDay[3] = { "Day 1", "Day 2", "Day 3" };
String weatherStatus = "Waiting for Wi-Fi";
String sunriseText = "--:--";
String sunsetText = "--:--";
int sunriseMinutes = -1;
int sunsetMinutes = -1;
float usAqi = NAN;
float pm25 = NAN;
float pm10 = NAN;
float nitrogenDioxide = NAN;
String airStatus = "Waiting for Wi-Fi";

String savedAgeLabel() {
  const time_t now = time(nullptr);
  if (lastSavedDataAt < 1704067200 || now < 1704067200) return "SAVED DATA";
  const long age = max(0L, (long)(now - lastSavedDataAt));
  if (age < 60) return "SAVED JUST NOW";
  if (age < 3600) return String("SAVED ") + String((age + 30) / 60) + " MIN AGO";
  if (age < 24L * 3600L) return String("SAVED ") + String((age + 1800) / 3600) + "H AGO";
  if (age < 48L * 3600L) return "SAVED YESTERDAY";
  return String("SAVED ") + String(age / 86400L) + "D AGO";
}

void loadCachedData() {
  prefs.begin("deskcache", true);
  lastSavedDataAt = prefs.getLong64("updated", 0);
  tempC = prefs.getFloat("temp", NAN); windKph = prefs.getFloat("wind", NAN);
  humidity = prefs.getInt("humid", -1); weatherCode = prefs.getInt("wcode", -1);
  for (int i = 0; i < 3; ++i) {
    const String index = String(i);
    forecastHigh[i] = prefs.getFloat(("high" + index).c_str(), NAN);
    forecastLow[i] = prefs.getFloat(("low" + index).c_str(), NAN);
    forecastCode[i] = prefs.getInt(("fcode" + index).c_str(), -1);
    forecastDay[i] = prefs.getString(("fday" + index).c_str(), String("Day ") + String(i + 1));
  }
  sunriseMinutes = prefs.getInt("sunrise", -1); sunsetMinutes = prefs.getInt("sunset", -1);
  sunriseText = prefs.getString("sunriseTx", "--:--"); sunsetText = prefs.getString("sunsetTx", "--:--");
  usAqi = prefs.getFloat("aqi", NAN); pm25 = prefs.getFloat("pm25", NAN);
  pm10 = prefs.getFloat("pm10", NAN); nitrogenDioxide = prefs.getFloat("no2", NAN);
  prefs.end();
  if (!isnan(tempC)) weatherStatus = savedAgeLabel();
  if (!isnan(usAqi)) airStatus = savedAgeLabel();
}

void saveCachedData() {
  const time_t now = time(nullptr);
  if (now >= 1704067200) lastSavedDataAt = now;
  prefs.begin("deskcache", false);
  prefs.putLong64("updated", lastSavedDataAt);
  prefs.putFloat("temp", tempC); prefs.putFloat("wind", windKph);
  prefs.putInt("humid", humidity); prefs.putInt("wcode", weatherCode);
  for (int i = 0; i < 3; ++i) {
    const String index = String(i);
    prefs.putFloat(("high" + index).c_str(), forecastHigh[i]); prefs.putFloat(("low" + index).c_str(), forecastLow[i]);
    prefs.putInt(("fcode" + index).c_str(), forecastCode[i]); prefs.putString(("fday" + index).c_str(), forecastDay[i]);
  }
  prefs.putInt("sunrise", sunriseMinutes); prefs.putInt("sunset", sunsetMinutes);
  prefs.putString("sunriseTx", sunriseText); prefs.putString("sunsetTx", sunsetText);
  prefs.putFloat("aqi", usAqi); prefs.putFloat("pm25", pm25); prefs.putFloat("pm10", pm10); prefs.putFloat("no2", nitrogenDioxide);
  prefs.end();
}

void queueThought(const char* message, uint8_t priority) {
  // Keep only the most useful observation; lower-priority notices never create a backlog.
  if (priority >= pendingThoughtPriority) {
    pendingThought = message;
    pendingThoughtPriority = priority;
  }
}

uint8_t usAqiBand(float aqi) {
  if (isnan(aqi)) return 255;
  if (aqi <= 50) return 0;       // Good
  if (aqi <= 100) return 1;      // Moderate
  if (aqi <= 150) return 2;      // Unhealthy for Sensitive People
  if (aqi <= 200) return 3;      // Unhealthy
  if (aqi <= 300) return 4;      // Very Unhealthy
  return 5;                      // Hazardous
}

void setBrightness() {
  const bool sleeping = petState == ASLEEP || petState == FALLING_ASLEEP;
  M5.Display.setBrightness(sleeping ? 18 : (bright ? 180 : 35));
}

void loadWiFi() {
  prefs.begin("deskbuddy", true);
  wifiSsid = prefs.getString("ssid", DESKBUDDY_WIFI_SSID);
  wifiPass = prefs.getString("pass", DESKBUDDY_WIFI_PASSWORD);
  prefs.end();
}

void saveWiFi(const String& ssid, const String& pass) {
  prefs.begin("deskbuddy", false);
  prefs.putString("ssid", ssid);
  prefs.putString("pass", pass);
  prefs.end();
}

void portalHome() {
  String html = "<!doctype html><html><meta name='viewport' content='width=device-width,initial-scale=1'><body style='font-family:Arial;max-width:420px;margin:30px auto;padding:12px'><h2>DeskBuddy Wi-Fi</h2><p>Enter the Wi-Fi network the M5StickC should join.</p><form method='post' action='/save'><label>Wi-Fi name</label><br><input name='ssid' value='" + wifiSsid + "' style='width:100%;padding:10px;box-sizing:border-box'><br><br><label>Password</label><br><input type='password' name='pass' style='width:100%;padding:10px;box-sizing:border-box'><br><br><button style='padding:10px 16px'>Save and restart</button></form></body></html>";
  portal.send(200, "text/html", html);
}

void portalSave() {
  if (!portal.hasArg("ssid") || portal.arg("ssid").isEmpty()) {
    portal.send(400, "text/plain", "Wi-Fi name is required.");
    return;
  }
  saveWiFi(portal.arg("ssid"), portal.arg("pass"));
  portal.send(200, "text/html", "Saved. DeskBuddy is restarting.");
  delay(700);
  ESP.restart();
}

void startConfigPortal() {
  configMode = true;
  WiFi.disconnect(true, true);
  WiFi.mode(WIFI_AP);
  WiFi.softAP("DeskBuddy-Setup", "deskbuddy");
  portal.on("/", HTTP_GET, portalHome);
  portal.on("/save", HTTP_POST, portalSave);
  portal.begin();
  M5.Display.fillScreen(BG);
  M5.Display.setTextColor(FG, BG);
  M5.Display.setTextSize(1);
  M5.Display.setCursor(7, 8);
  M5.Display.println("Wi-Fi setup");
  M5.Display.println();
  M5.Display.println("Phone network:");
  M5.Display.println("DeskBuddy-Setup");
  M5.Display.println("Password: deskbuddy");
  M5.Display.println();
  M5.Display.println("Open 192.168.4.1");
}

bool connectWiFi() {
  WiFi.mode(WIFI_STA);

  auto tryNetwork = [](const String& ssid, const String& pass) {
    if (ssid.isEmpty()) return false;
    WiFi.disconnect(false, false);
    delay(150);
    WiFi.begin(ssid.c_str(), pass.c_str());
    const uint32_t started = millis();
    while (WiFi.status() != WL_CONNECTED && millis() - started < 12000) {
      M5.update();
      delay(50);
    }
    return WiFi.status() == WL_CONNECTED;
  };

  // Keep the configured/main network first. Use the backup only if it is not reachable.
  if (tryNetwork(wifiSsid, wifiPass)) return true;
  return tryNetwork(DESKBUDDY_WIFI_BACKUP_SSID, DESKBUDDY_WIFI_BACKUP_PASSWORD);
}

String weatherName(int code) {
  // Open-Meteo uses WMO weather interpretation codes.
  switch (code) {
    case 0: return "Clear";
    case 1: return "Mostly clear";
    case 2: return "Partly cloudy";
    case 3: return "Overcast";
    case 45: return "Fog";
    case 48: return "Rime fog";
    case 51: return "Light drizzle";
    case 53: return "Drizzle";
    case 55: return "Heavy drizzle";
    case 56: return "Freezing drizzle";
    case 57: return "Heavy freezing drizzle";
    case 61: return "Light rain";
    case 63: return "Rain";
    case 65: return "Heavy rain";
    case 66: return "Freezing rain";
    case 67: return "Heavy freezing rain";
    case 71: return "Light snow";
    case 73: return "Snow";
    case 75: return "Heavy snow";
    case 77: return "Snow grains";
    case 80: return "Light showers";
    case 81: return "Showers";
    case 82: return "Heavy showers";
    case 85: return "Snow showers";
    case 86: return "Heavy snow showers";
    case 95: return "Thunderstorm";
    case 96: return "Storm with hail";
    case 99: return "Heavy hailstorm";
    default: return "Weather unknown";
  }
}

void fetchWeather() {
  lastWeatherFetch = millis();
  if (WiFi.status() != WL_CONNECTED) { weatherStatus = "No Wi-Fi"; return; }
  WiFiClientSecure client;
  client.setInsecure();
  HTTPClient http;
  http.setTimeout(12000);
  http.setFollowRedirects(HTTPC_STRICT_FOLLOW_REDIRECTS);
  const String url = String("https://api.open-meteo.com/v1/forecast?latitude=") + DESKBUDDY_LATITUDE +
    "&longitude=" + DESKBUDDY_LONGITUDE +
    "&current=temperature_2m,relative_humidity_2m,weather_code,wind_speed_10m"
    "&daily=temperature_2m_max,temperature_2m_min,weather_code,sunrise,sunset"
    "&timezone=Europe%2FMoscow&forecast_days=3";
  if (!http.begin(client, url)) { weatherStatus = "Weather connection failed"; return; }
  const int status = http.GET();
  if (status != HTTP_CODE_OK) {
    weatherStatus = String("Weather error ") + status;
    http.end();
    return;
  }
  JsonDocument doc;
  const DeserializationError err = deserializeJson(doc, http.getString());
  http.end();
  if (err) { weatherStatus = "Weather data error"; return; }
  tempC = doc["current"]["temperature_2m"] | NAN;
  humidity = doc["current"]["relative_humidity_2m"] | -1;
  weatherCode = doc["current"]["weather_code"] | -1;
  windKph = doc["current"]["wind_speed_10m"] | NAN;
  JsonArray highs = doc["daily"]["temperature_2m_max"].as<JsonArray>();
  JsonArray lows = doc["daily"]["temperature_2m_min"].as<JsonArray>();
  JsonArray codes = doc["daily"]["weather_code"].as<JsonArray>();
  JsonArray dates = doc["daily"]["time"].as<JsonArray>();
  JsonArray sunrises = doc["daily"]["sunrise"].as<JsonArray>();
  JsonArray sunsets = doc["daily"]["sunset"].as<JsonArray>();
  if (highs.size() < 3 || lows.size() < 3 || codes.size() < 3 || dates.size() < 3 || sunrises.size() < 1 || sunsets.size() < 1) {
    weatherStatus = "Forecast data missing";
    return;
  }
  for (int i = 0; i < 3; ++i) {
    forecastHigh[i] = highs[i] | NAN;
    forecastLow[i] = lows[i] | NAN;
    forecastCode[i] = codes[i] | -1;
    const char* date = dates[i] | "";
    forecastDay[i] = String(date).substring(5);
  }
  const String sunriseIso = String((const char*)(sunrises[0] | ""));
  const String sunsetIso = String((const char*)(sunsets[0] | ""));
  if (sunriseIso.length() >= 16 && sunsetIso.length() >= 16) {
    sunriseText = sunriseIso.substring(11, 16);
    sunsetText = sunsetIso.substring(11, 16);
    sunriseMinutes = sunriseText.substring(0, 2).toInt() * 60 + sunriseText.substring(3, 5).toInt();
    sunsetMinutes = sunsetText.substring(0, 2).toInt() * 60 + sunsetText.substring(3, 5).toInt();
  }
  weatherStatus = "OK";
  saveCachedData();
}

void fetchAirQuality() {
  // WAQI's geo feed selects a real reporting station near Moscow, rather than a forecast-model cell.
  if (WiFi.status() != WL_CONNECTED) { airStatus = isnan(usAqi) ? "No Wi-Fi" : savedAgeLabel(); return; }
  WiFiClientSecure client;
  client.setInsecure();
  HTTPClient http;
  http.setTimeout(12000);
  http.setFollowRedirects(HTTPC_STRICT_FOLLOW_REDIRECTS);
  const String url = String("https://api.waqi.info/feed/geo:") + DESKBUDDY_LATITUDE + ";" +
    DESKBUDDY_LONGITUDE + "/?token=" + DESKBUDDY_WAQI_TOKEN;
  if (!http.begin(client, url)) { airStatus = isnan(usAqi) ? "Air connection failed" : savedAgeLabel(); return; }
  const int status = http.GET();
  if (status != HTTP_CODE_OK) {
    airStatus = isnan(usAqi) ? String("Air error ") + status : savedAgeLabel();
    http.end();
    return;
  }
  JsonDocument doc;
  const DeserializationError err = deserializeJson(doc, http.getString());
  http.end();
  if (err || String((const char*)(doc["status"] | "")) != "ok") {
    airStatus = isnan(usAqi) ? "Station data unavailable" : savedAgeLabel();
    return;
  }
  const float stationAqi = doc["data"]["aqi"] | NAN;
  if (isnan(stationAqi)) { airStatus = isnan(usAqi) ? "Station data missing" : savedAgeLabel(); return; }
  const float previousAqi = usAqi;
  const uint8_t previousBand = usAqiBand(previousAqi);
  usAqi = stationAqi;
  // WAQI may omit a pollutant when that station does not report it; keep a prior valid value in that case.
  if (!doc["data"]["iaqi"]["pm25"]["v"].isNull()) pm25 = doc["data"]["iaqi"]["pm25"]["v"].as<float>();
  if (!doc["data"]["iaqi"]["pm10"]["v"].isNull()) pm10 = doc["data"]["iaqi"]["pm10"]["v"].as<float>();
  if (!doc["data"]["iaqi"]["no2"]["v"].isNull()) nitrogenDioxide = doc["data"]["iaqi"]["no2"]["v"].as<float>();
  airStatus = "WAQI STATION LIVE";
  saveCachedData();
  // Speak only after a meaningful live change, never for the first baseline reading.
  const uint8_t newBand = usAqiBand(usAqi);
  if (!isnan(previousAqi) && (newBand != previousBand || fabsf(usAqi - previousAqi) >= 25.0f)) {
    if (newBand >= 2 && newBand > previousBand) queueThought("Maybe keep the window closed.", 3);
    else if (newBand < previousBand || usAqi + 25.0f <= previousAqi) queueThought("Air is better now.", 2);
    else if (newBand > previousBand) queueThought("Air got worse.", 2);
  }
}

void drawWeatherIcon(int x, int y, int code, float scale) {
  // x/y are the icon's visual centre. Scaling keeps the same WMO symbols
  // usable on the large current-weather page and the three forecast columns.
  auto sx = [&](float value) { return x + (int)lroundf(value * scale); };
  auto sy = [&](float value) { return y + (int)lroundf(value * scale); };
  auto ss = [&](float value) { return max(1, (int)lroundf(value * scale)); };
  auto sun = [&]() {
    M5.Display.drawCircle(sx(-5), sy(-3), ss(8), FG);
    for (int a = 0; a < 8; ++a) {
      const float angle = a * PI / 4.0f;
      M5.Display.drawLine(sx(-5 + cosf(angle) * 12), sy(-3 + sinf(angle) * 12),
                          sx(-5 + cosf(angle) * 17), sy(-3 + sinf(angle) * 17), FG);
    }
  };
  auto cloud = [&]() {
    M5.Display.fillCircle(sx(-8), sy(3), ss(7), FG);
    M5.Display.fillCircle(sx(1), sy(-2), ss(10), FG);
    M5.Display.fillCircle(sx(12), sy(4), ss(6), FG);
    M5.Display.fillRect(sx(-14), sy(3), ss(32), ss(8), FG);
  };
  auto snowflake = [&](float ox, float oy) {
    const int px = sx(ox), py = sy(oy), arm = ss(3);
    M5.Display.drawFastHLine(px - arm, py, arm * 2 + 1, FG);
    M5.Display.drawLine(px - arm, py - arm, px + arm, py + arm, FG);
    M5.Display.drawLine(px - arm, py + arm, px + arm, py - arm, FG);
  };
  auto rain = [&](int drops, bool longDrops) {
    for (int i = 0; i < drops; ++i) {
      const float ox = -10 + i * 8;
      M5.Display.drawLine(sx(ox), sy(14), sx(ox - (longDrops ? 3 : 2)), sy(longDrops ? 23 : 21), FG);
    }
  };

  if (code == 0) { sun(); }
  else if (code == 1 || code == 2) { sun(); cloud(); }
  else if (code == 3) { cloud(); M5.Display.drawFastHLine(sx(-14), sy(13), ss(32), FG); }
  else if (code == 45 || code == 48) {
    cloud(); M5.Display.drawFastHLine(sx(-15), sy(15), ss(37), FG); M5.Display.drawFastHLine(sx(-10), sy(20), ss(28), FG);
    if (code == 48) M5.Display.drawPixel(sx(20), sy(18), FG);
  } else if (code >= 51 && code <= 55) {
    cloud(); M5.Display.drawPixel(sx(-8), sy(17), FG); M5.Display.drawPixel(sx(1), sy(20), FG); M5.Display.drawPixel(sx(10), sy(17), FG);
  } else if (code == 56 || code == 57 || code == 66 || code == 67) {
    cloud(); M5.Display.drawLine(sx(-8), sy(14), sx(-10), sy(20), FG); snowflake(1, 18); M5.Display.drawLine(sx(10), sy(14), sx(8), sy(20), FG);
  } else if (code >= 61 && code <= 65) { cloud(); rain(code == 61 ? 2 : (code == 63 ? 3 : 4), false); }
  else if (code >= 71 && code <= 77) {
    cloud(); snowflake(-8, 18); snowflake(2, 20); if (code != 71) snowflake(11, 17); if (code == 77) M5.Display.drawPixel(sx(15), sy(22), FG);
  } else if (code >= 80 && code <= 82) { cloud(); rain(code == 80 ? 2 : (code == 81 ? 3 : 4), true); }
  else if (code == 85 || code == 86) { cloud(); snowflake(-7, 18); snowflake(5, 20); if (code == 86) snowflake(14, 17); }
  else if (code == 95 || code == 96 || code == 99) {
    cloud(); M5.Display.drawLine(sx(1), sy(13), sx(-4), sy(21), FG); M5.Display.drawLine(sx(-4), sy(21), sx(2), sy(21), FG); M5.Display.drawLine(sx(2), sy(21), sx(-1), sy(27), FG);
    if (code == 96 || code == 99) { M5.Display.drawCircle(sx(11), sy(19), ss(2), FG); if (code == 99) M5.Display.drawCircle(sx(18), sy(22), ss(2), FG); }
  } else {
    M5.Display.drawCircle(x, sy(3), ss(14), FG); M5.Display.setTextColor(FG, BG); M5.Display.setTextSize(max(1, (int)lroundf(2 * scale))); M5.Display.setCursor(sx(-5), sy(-5)); M5.Display.print("?");
  }
}

void drawEyes(int dx, int dy, bool closed) {
  const int width = M5.Display.width();
  const int height = M5.Display.height();
  // Larger soft-cornered eyes match the supplied reference face.
  const int eyeW = 48, normalH = 58;
  int eyeH = normalH;
  int leftY = (height - normalH) / 2 + 4 + dy;
  int rightY = leftY;
  int leftX = width / 2 - 63 + dx;
  int rightX = width / 2 + 15 + dx;
  if (closed || mood == SLEEPY) { eyeH = 9; leftY += 25; rightY += 25; }
  else if (mood == SURPRISED) { eyeH = 64; leftY -= 3; rightY -= 3; }
  else if (mood == SUSPICIOUS) { eyeH = 43; leftY += 11; rightY += 6; }
  else if (mood == SAD) { eyeH = 51; leftY += 5; rightY += 5; }
  const int radius = closed || mood == SLEEPY ? 5 : min(17, eyeH / 3);
  M5.Display.fillRoundRect(leftX, leftY + (normalH - eyeH) / 2, eyeW, eyeH, radius, FG);
  M5.Display.fillRoundRect(rightX, rightY + (normalH - eyeH) / 2, eyeW, eyeH, radius, FG);
  if (!closed && mood == SUSPICIOUS) {
    // The curious double-take gets raised brows and a small question mark.
    M5.Display.fillRoundRect(leftX + 2, leftY - 13, eyeW - 5, 6, 3, FG);
    M5.Display.fillRoundRect(rightX + 4, rightY - 20, eyeW - 7, 6, 3, FG);
    M5.Display.setTextColor(FG, BG);
    M5.Display.setTextSize(2);
    M5.Display.setCursor(width - 28, 9);
    M5.Display.print("?");
  } else if (!closed && mood == HAPPY) {
    M5.Display.fillCircle(leftX + eyeW / 2, leftY + eyeH + 8, eyeW / 2 + 3, BG);
    M5.Display.fillCircle(rightX + eyeW / 2, rightY + eyeH + 8, eyeW / 2 + 3, BG);
  } else if (!closed && mood == ANGRY) {
    M5.Display.fillTriangle(leftX, leftY, leftX + eyeW, leftY, leftX + eyeW, leftY + 16, BG);
    M5.Display.fillTriangle(rightX, rightY, rightX + eyeW, rightY, rightX, rightY + 16, BG);
  } else if (!closed && mood == SAD) {
    M5.Display.fillTriangle(leftX, leftY, leftX + eyeW, leftY, leftX, leftY + 15, BG);
    M5.Display.fillTriangle(rightX, rightY, rightX + eyeW, rightY, rightX + eyeW, rightY + 15, BG);
  } else if (!closed && mood == LOVE) {
    M5.Display.fillCircle(width / 2 - 4, 8, 4, FG);
    M5.Display.fillCircle(width / 2 + 4, 8, 4, FG);
    M5.Display.fillTriangle(width / 2 - 8, 9, width / 2 + 8, 9, width / 2, 18, FG);
  } else if (!closed && mood == EXCITED) {
    M5.Display.drawString("!", 4, 4, 2);
    M5.Display.drawString("!", width - 16, 4, 2);
  }
}

// Small stepped mouths in the same crisp monochrome style as the supplied faces.
// They appear only for friendly moods, leaving DeskBuddy's normal eye-only face intact.
void drawPixelSmile(int centerX, int y, uint8_t style) {
  const int halfWidth = style == 2 ? 17 : 14;
  const int cornerDrop = style == 2 ? 5 : 3;
  const int midDrop = style == 2 ? 8 : 6;
  // A three-step U-shaped line reads clearly on the small display without a full face redraw design change.
  M5.Display.drawFastHLine(centerX - halfWidth, y, 7, FG);
  M5.Display.drawFastHLine(centerX + halfWidth - 6, y, 7, FG);
  M5.Display.drawFastVLine(centerX - halfWidth + 6, y, cornerDrop, FG);
  M5.Display.drawFastVLine(centerX + halfWidth - 7, y, cornerDrop, FG);
  M5.Display.drawFastHLine(centerX - halfWidth + 6, y + cornerDrop, 6, FG);
  M5.Display.drawFastHLine(centerX + halfWidth - 12, y + cornerDrop, 6, FG);
  M5.Display.drawFastVLine(centerX - 6, y + cornerDrop, midDrop - cornerDrop, FG);
  M5.Display.drawFastVLine(centerX + 5, y + cornerDrop, midDrop - cornerDrop, FG);
  M5.Display.drawFastHLine(centerX - 5, y + midDrop, 11, FG);
}

// A self-contained data-page icon. It deliberately does not use DeskBuddy's
// main-face eyes, gaze, or mood state.
void drawAirQualityFace(int centerX, int centerY, uint8_t band) {
  M5.Display.drawCircle(centerX, centerY, 25, FG);
  // Clean through moderate air: open eyes. Poorer air: tired/worried eyes.
  if (band < 3) {
    M5.Display.fillRect(centerX - 12, centerY - 9, 5, 8, FG);
    M5.Display.fillRect(centerX + 7, centerY - 9, 5, 8, FG);
  } else if (band < 5) {
    M5.Display.drawFastHLine(centerX - 13, centerY - 6, 10, FG);
    M5.Display.drawFastHLine(centerX + 3, centerY - 6, 10, FG);
  } else {
    M5.Display.drawFastHLine(centerX - 13, centerY - 8, 10, FG);
    M5.Display.drawFastHLine(centerX + 3, centerY - 8, 10, FG);
    M5.Display.drawFastHLine(centerX - 8, centerY - 4, 6, FG);
    M5.Display.drawFastHLine(centerX + 2, centerY - 4, 6, FG);
  }
  // Six US-AQI bands: broad smile, smile, straight mouth, concern, frown, alarmed frown.
  if (band == 0) {
    M5.Display.drawLine(centerX - 14, centerY + 7, centerX - 8, centerY + 13, FG);
    M5.Display.drawFastHLine(centerX - 8, centerY + 13, 17, FG);
    M5.Display.drawLine(centerX + 8, centerY + 13, centerX + 14, centerY + 7, FG);
  } else if (band == 1) {
    M5.Display.drawLine(centerX - 11, centerY + 9, centerX - 6, centerY + 13, FG);
    M5.Display.drawFastHLine(centerX - 6, centerY + 13, 13, FG);
    M5.Display.drawLine(centerX + 6, centerY + 13, centerX + 11, centerY + 9, FG);
  } else if (band == 2) {
    M5.Display.drawFastHLine(centerX - 11, centerY + 12, 23, FG);
  } else if (band == 3) {
    M5.Display.drawFastHLine(centerX - 11, centerY + 14, 23, FG);
    M5.Display.drawFastHLine(centerX - 8, centerY + 10, 17, FG);
  } else {
    M5.Display.drawLine(centerX - 13, centerY + 17, centerX - 8, centerY + 11, FG);
    M5.Display.drawFastHLine(centerX - 8, centerY + 11, 17, FG);
    M5.Display.drawLine(centerX + 8, centerY + 11, centerX + 13, centerY + 17, FG);
  }
}

void drawFace(bool force) {
  const uint32_t now = millis();
  if (petState == ASLEEP) {
    mood = SLEEPY;
    const int dx = 0, dy = 7;
    if (!force && dx == shownX && dy == shownY && lastClosed) return;
    M5.Display.fillScreen(BG);
    drawEyes(dx, dy, true);
    shownX = dx; shownY = dy; lastClosed = true;
    return;
  }
  if (now >= nextBlinkAt && petState != FALLING_ASLEEP) {
    blinkUntil = now + 110;
    nextBlinkAt = now + random(2200, 6000);
    if (random(0, 5) == 0) nextBlinkAt = now + random(260, 420);
  }
  bool closed = now < blinkUntil;
  if (petState == FALLING_ASLEEP) closed = (now - stateSince > 400);
  // A real wake starts with one unhurried eye-open moment, not an abrupt jump
  // from sleeping eyes to normal tracking.
  if (wakeLookStartedAt && now - wakeLookStartedAt < 260) closed = true;
  float wiggle = mood == EXCITED ? sinf(now / 65.0f) * 3.0f : 0.0f;
  float bob = (petState == PETTED_HAPPY || mood == LOVE || mood == EXCITED) ? sinf(now / 95.0f) * 2.0f : 0.0f;
  // A slightly larger gaze range makes looking around visible without changing eye shape or placement.
  int dx = constrain((int)lroundf(gazeX * 13.0f + wiggle), -15, 15);
  int dy = constrain((int)lroundf(gazeY * 10.0f + bob), -12, 12);
  if (petState == FALLING_ASLEEP) dy = 8;
  const bool showIdleThought = petState == AWAKE && mood == NORMAL && now < idleThoughtUntil;
  static bool lastThoughtVisible = false;
  if (!force && dx == shownX && dy == shownY && closed == lastClosed && petState != ASKING_FOR_PET && showIdleThought == lastThoughtVisible) return;
  M5.Display.fillScreen(BG);
  drawEyes(dx, dy, closed);
  // The main face is mouth-free in every state. Friendly moments use soft lids and motion.
  if (showIdleThought) {
    M5.Display.setTextColor(FG, BG);
    M5.Display.setTextSize(1);
    M5.Display.setCursor((M5.Display.width() - M5.Display.textWidth(idleThought)) / 2, 7);
    M5.Display.print(idleThought);
  }
  lastThoughtVisible = showIdleThought;
  if (petState == ASKING_FOR_PET) {
    M5.Display.setTextColor(FG, BG);
    M5.Display.setTextSize(1);
    M5.Display.setCursor(68, 2);
    M5.Display.print("...");
    M5.Display.setCursor(48, 69);
    M5.Display.print("hold A");
  }
  shownX = dx; shownY = dy; lastClosed = closed;
}

void pageTitle(const char* label) {
  const int width = M5.Display.width();
  M5.Display.fillScreen(BG);
  M5.Display.setTextColor(FG, BG);
  M5.Display.setTextSize(1);
  M5.Display.setCursor((width - M5.Display.textWidth(label)) / 2, 5);
  M5.Display.print(label);
  M5.Display.drawFastHLine(4, 20, width - 8, FG);
}

// Large seven-segment digits for the 240x135 landscape dashboard.
void drawClockDigit(int x, int y, int digit, float scale) {
  static const uint8_t segments[10] = { 0b0111111, 0b0000110, 0b1011011, 0b1001111, 0b1100110, 0b1101101, 0b1111101, 0b0000111, 0b1111111, 0b1101111 };
  // The clock uses the same seven-segment style for all digits. Scale lets the
  // minute pair be trimmed very slightly without changing the hours or face page.
  const int w = max(1, (int)lroundf(36.0f * scale));
  const int h = max(1, (int)lroundf(60.0f * scale));
  const int t = max(1, (int)lroundf(7.0f * scale));
  const uint8_t on = segments[constrain(digit, 0, 9)];
  if (on & 0b0000001) M5.Display.fillRect(x + t, y, w - 2 * t, t, FG);
  if (on & 0b0000010) M5.Display.fillRect(x + w - t, y + t, t, h / 2 - t, FG);
  if (on & 0b0000100) M5.Display.fillRect(x + w - t, y + h / 2, t, h / 2 - t, FG);
  if (on & 0b0001000) M5.Display.fillRect(x + t, y + h - t, w - 2 * t, t, FG);
  if (on & 0b0010000) M5.Display.fillRect(x, y + h / 2, t, h / 2 - t, FG);
  if (on & 0b0100000) M5.Display.fillRect(x, y + t, t, h / 2 - t, FG);
  if (on & 0b1000000) M5.Display.fillRect(x + t, y + h / 2 - t / 2, w - 2 * t, t, FG);
}

void drawClock() {
  // Combined Moscow dashboard: time stays prominent on the left, with the live
  // weather reading permanently visible on the right instead of a separate page.
  const int width = M5.Display.width();
  constexpr int splitX = 137;
  M5.Display.fillScreen(BG);
  M5.Display.drawRoundRect(2, 2, width - 4, 131, 4, FG);
  M5.Display.drawFastVLine(splitX, 3, 129, FG);

  struct tm localTime;
  if (!getLocalTime(&localTime, 100)) {
    M5.Display.setTextColor(FG, BG); M5.Display.setTextSize(2);
    M5.Display.setCursor(14, 57); M5.Display.print("Syncing time");
  } else {
    char dateText[20];
    strftime(dateText, sizeof(dateText), "%a %d %b", &localTime);
    M5.Display.setTextColor(FG, BG); M5.Display.setTextSize(1);
    M5.Display.setCursor((splitX - M5.Display.textWidth(dateText)) / 2, 10);
    M5.Display.print(dateText);

    constexpr float digitScale = 0.70f;
    constexpr int digitY = 34;
    drawClockDigit(7, digitY, localTime.tm_hour / 10, digitScale);
    drawClockDigit(35, digitY, localTime.tm_hour % 10, digitScale);
    if ((localTime.tm_sec & 1) == 0) {
      M5.Display.fillRect(64, digitY + 12, 4, 4, FG);
      M5.Display.fillRect(64, digitY + 29, 4, 4, FG);
    }
    drawClockDigit(75, digitY, localTime.tm_min / 10, digitScale);
    drawClockDigit(103, digitY, localTime.tm_min % 10, digitScale);
    M5.Display.setTextSize(1);
    M5.Display.setCursor(47, 104); M5.Display.print("MOSCOW");
  }

  M5.Display.setTextSize(1);
  M5.Display.setCursor(splitX + 8, 10); M5.Display.print("MOSCOW WEATHER");
  M5.Display.drawFastHLine(splitX + 5, 22, width - splitX - 10, DIM_FG);
  if (isnan(tempC)) {
    M5.Display.setCursor(splitX + 10, 55); M5.Display.print(weatherStatus);
  } else {
    M5.Display.setTextSize(3);
    M5.Display.setCursor(splitX + 8, 31); M5.Display.printf("%.0fC", tempC);
    drawWeatherIcon(207, 57, weatherCode, 1.15f);
    String condition = weatherName(weatherCode);
    M5.Display.setTextSize(1);
    M5.Display.setCursor(splitX + (width - splitX - M5.Display.textWidth(condition)) / 2, 84);
    M5.Display.print(condition);
    M5.Display.drawFastHLine(splitX + 5, 96, width - splitX - 10, DIM_FG);
    M5.Display.setCursor(splitX + 9, 105);
    if (humidity >= 0) M5.Display.printf("RH %d%%", humidity); else M5.Display.print("RH --");
    M5.Display.setCursor(splitX + 9, 118);
    if (!isnan(windKph)) M5.Display.printf("WIND %.0f", windKph); else M5.Display.print("WIND --");
  }
}

void drawWeather() {
  const int width = M5.Display.width(), height = M5.Display.height();
  M5.Display.fillScreen(BG); M5.Display.setTextColor(FG, BG); M5.Display.setTextSize(1);
  M5.Display.setCursor(6, 5); M5.Display.print(DESKBUDDY_CITY);
  struct tm localTime;
  if (getLocalTime(&localTime, 0)) { char timeText[6]; strftime(timeText, sizeof(timeText), "%H:%M", &localTime); M5.Display.setCursor(width - 30, 5); M5.Display.print(timeText); }
  M5.Display.drawFastHLine(4, 20, width - 8, FG);
  if (isnan(tempC)) { M5.Display.setTextSize(2); M5.Display.setCursor((width - M5.Display.textWidth(weatherStatus)) / 2, 60); M5.Display.print(weatherStatus); return; }
  M5.Display.setTextSize(7); M5.Display.setCursor(14, 30); M5.Display.printf("%.0f", tempC);
  M5.Display.setTextSize(3); M5.Display.setCursor(104, 38); M5.Display.print("C");
  drawWeatherIcon(184, 48, weatherCode, 2.15f);
  String condition = weatherName(weatherCode); M5.Display.setTextSize(2);
  M5.Display.setCursor((width - M5.Display.textWidth(condition)) / 2, 84); M5.Display.print(condition);
  M5.Display.drawFastHLine(8, 105, width - 16, DIM_FG);
  M5.Display.setTextSize(1);
  // Small wind symbol: three moving-air strokes, placed before the wind reading.
  M5.Display.drawFastHLine(12, 115, 10, FG);
  M5.Display.drawFastHLine(15, 119, 11, FG);
  M5.Display.drawFastHLine(12, 123, 8, FG);
  M5.Display.drawPixel(22, 114, FG);
  M5.Display.drawPixel(26, 118, FG);
  M5.Display.setCursor(30, 116);
  if (!isnan(windKph)) M5.Display.printf("WIND %.0f km/h", windKph); else M5.Display.print("WIND --");
  if (weatherStatus != "OK") { M5.Display.setCursor(8, 128); M5.Display.print(weatherStatus); }
  char humidityText[16]; snprintf(humidityText, sizeof(humidityText), "RH %d%%", humidity);
  const int humidityTextX = width - 12 - M5.Display.textWidth(humidityText);
  // Small droplet symbol: outline and pointed top, placed before the humidity reading.
  const int dropX = humidityTextX - 12, dropY = 120;
  M5.Display.drawCircle(dropX, dropY + 2, 5, FG);
  M5.Display.fillTriangle(dropX, dropY - 7, dropX - 4, dropY, dropX + 4, dropY, FG);
  M5.Display.fillCircle(dropX, dropY + 2, 3, BG);
  M5.Display.setCursor(humidityTextX, 116); M5.Display.print(humidityText);
}

void drawForecast() {
  const int width = M5.Display.width(), height = M5.Display.height(), columnW = width / 3;
  pageTitle("3-DAY FORECAST");
  if (isnan(forecastHigh[0])) { M5.Display.setTextSize(2); M5.Display.setCursor((width - M5.Display.textWidth(weatherStatus)) / 2, 62); M5.Display.print(weatherStatus); return; }
  for (int i = 0; i < 3; ++i) {
    const int center = i * columnW + columnW / 2;
    M5.Display.setTextSize(1); M5.Display.setCursor(center - M5.Display.textWidth(forecastDay[i]) / 2, 31); M5.Display.print(forecastDay[i]);
    drawWeatherIcon(center, 59, forecastCode[i], 1.65f);
    char temperatures[14]; snprintf(temperatures, sizeof(temperatures), "%.0f/%.0f", forecastHigh[i], forecastLow[i]);
    M5.Display.setTextSize(2); M5.Display.setCursor(center - M5.Display.textWidth(temperatures) / 2, 108); M5.Display.print(temperatures);
    if (i < 2) M5.Display.drawFastVLine((i + 1) * columnW, 26, height - 30, DIM_FG);
  }
}

void drawDaylight() {
  const int width = M5.Display.width(), height = M5.Display.height();
  pageTitle("MOSCOW DAYLIGHT");
  if (sunriseMinutes < 0 || sunsetMinutes <= sunriseMinutes) { const String message = weatherStatus == "OK" ? "Waiting for sun data" : weatherStatus; M5.Display.setTextSize(2); M5.Display.setCursor((width - M5.Display.textWidth(message)) / 2, 62); M5.Display.print(message); return; }
  struct tm localTime; int nowMinutes = -1; if (getLocalTime(&localTime, 0)) nowMinutes = localTime.tm_hour * 60 + localTime.tm_min;
  const int noonMinutes = (sunriseMinutes + sunsetMinutes) / 2, dayMinutes = sunsetMinutes - sunriseMinutes;
  const float fraction = nowMinutes < 0 ? 0.0f : constrain((nowMinutes - sunriseMinutes) / (float)dayMinutes, 0.0f, 1.0f);
  const int centers[3] = { width / 6, width / 2, width * 5 / 6 };
  const char* labels[3] = { "SUNRISE", "NOON", "SUNSET" };
  char noonText[6], dayLength[12], remaining[12]; snprintf(noonText, sizeof(noonText), "%02d:%02d", noonMinutes / 60, noonMinutes % 60); snprintf(dayLength, sizeof(dayLength), "%dh%02dm", dayMinutes / 60, dayMinutes % 60); snprintf(remaining, sizeof(remaining), "%d%%", (int)lroundf(fraction * 100.0f));
  const char* times[3] = { sunriseText.c_str(), noonText, sunsetText.c_str() };
  for (int i = 0; i < 3; ++i) { M5.Display.setTextSize(1); M5.Display.setCursor(centers[i] - M5.Display.textWidth(labels[i]) / 2, 29); M5.Display.print(labels[i]); }
  // Sunrise / noon / sunset symbols have independent 80-pixel columns.
  for (int i = 0; i < 3; ++i) { const int cx = centers[i]; M5.Display.drawFastHLine(cx - 22, 62, 45, FG); M5.Display.drawCircle(cx, 58, 11, FG); M5.Display.fillRect(cx - 12, 58, 25, 12, BG); M5.Display.drawFastVLine(cx, 39, 8, FG); M5.Display.drawFastHLine(cx - 27, 53, 7, FG); M5.Display.drawFastHLine(cx + 21, 53, 7, FG); if (i == 0) M5.Display.fillTriangle(cx, 38, cx - 5, 45, cx + 5, 45, FG); else if (i == 2) M5.Display.fillTriangle(cx, 46, cx - 5, 39, cx + 5, 39, FG); else { for (int a = 0; a < 8; ++a) { const float angle = a * PI / 4.0f; M5.Display.drawLine(cx + cosf(angle) * 15, 54 + sinf(angle) * 15, cx + cosf(angle) * 20, 54 + sinf(angle) * 20, FG); } } }
  for (int i = 0; i < 3; ++i) { M5.Display.setTextSize(2); M5.Display.setCursor(centers[i] - M5.Display.textWidth(times[i]) / 2, 76); M5.Display.print(times[i]); }
  M5.Display.setTextSize(1); M5.Display.setCursor(centers[0] - M5.Display.textWidth(dayLength) / 2, 102); M5.Display.print(dayLength); M5.Display.setCursor(centers[1] - M5.Display.textWidth(remaining) / 2, 102); M5.Display.print(remaining);
  const int untilSunset = max(0, sunsetMinutes - max(nowMinutes, sunriseMinutes)); snprintf(remaining, sizeof(remaining), "%dh%02dm", untilSunset / 60, untilSunset % 60); M5.Display.setCursor(centers[2] - M5.Display.textWidth(remaining) / 2, 102); M5.Display.print(remaining);
  const int barX = 9, barY = height - 18, barW = width - 18, barH = 9; M5.Display.drawRect(barX, barY, barW, barH, FG); M5.Display.fillRect(barX + 2, barY + 2, (int)lroundf((barW - 4) * fraction), barH - 4, FG);
}

void drawWorldClock() {
  const int width = M5.Display.width(); pageTitle("WORLD CLOCK");
  time_t now; time(&now);
  if (now < 100000) { M5.Display.setTextSize(2); M5.Display.setCursor((width - M5.Display.textWidth("Syncing time")) / 2, 62); M5.Display.print("Syncing time"); return; }
  struct tm utcTime, moscowTime; gmtime_r(&now, &utcTime); const time_t moscowEpoch = now + 3 * 3600; gmtime_r(&moscowEpoch, &moscowTime);
  char utcText[6], moscowText[6]; strftime(utcText, sizeof(utcText), "%H:%M", &utcTime); strftime(moscowText, sizeof(moscowText), "%H:%M", &moscowTime);
  const int leftCenter = width / 4, rightCenter = width * 3 / 4;
  M5.Display.setTextSize(2); M5.Display.setCursor(leftCenter - M5.Display.textWidth("UTC") / 2, 42); M5.Display.print("UTC"); M5.Display.setCursor(rightCenter - M5.Display.textWidth("MOSCOW") / 2, 42); M5.Display.print("MOSCOW");
  M5.Display.drawFastVLine(width / 2, 36, 68, DIM_FG); M5.Display.setTextSize(4); M5.Display.setCursor(leftCenter - M5.Display.textWidth(utcText) / 2, 73); M5.Display.print(utcText); M5.Display.setCursor(rightCenter - M5.Display.textWidth(moscowText) / 2, 73); M5.Display.print(moscowText);
}

void drawAirQuality() {
  const int width = M5.Display.width(), height = M5.Display.height();
  pageTitle("MOSCOW US AQI");
  if (isnan(usAqi)) {
    M5.Display.setTextColor(FG, BG); M5.Display.setTextSize(2);
    M5.Display.setCursor((width - M5.Display.textWidth(airStatus)) / 2, 62);
    M5.Display.print(airStatus);
    return;
  }
  const char* rating = "GOOD";
  if (usAqi > 300) rating = "HAZARDOUS";
  else if (usAqi > 200) rating = "VERY UNHEALTHY";
  else if (usAqi > 150) rating = "UNHEALTHY";
  else if (usAqi > 100) rating = "SENSITIVE";
  else if (usAqi > 50) rating = "MODERATE";

  // Large AQI reading, then a simple friendly face to make this data page fit DeskBuddy.
  M5.Display.setTextSize(6); M5.Display.setCursor(12, 34); M5.Display.printf("%.0f", usAqi);
  M5.Display.setTextSize(2); M5.Display.setCursor(104, 48); M5.Display.print("US");
  const int faceX = 188, faceY = 58;
  drawAirQualityFace(faceX, faceY, usAqiBand(usAqi));
  M5.Display.setTextSize(2); M5.Display.setCursor(faceX - M5.Display.textWidth(rating) / 2, 88); M5.Display.print(rating);
  M5.Display.drawFastHLine(8, 108, width - 16, DIM_FG);
  M5.Display.setTextSize(1);
  char pm25Text[18], pm10Text[18], no2Text[18];
  snprintf(pm25Text, sizeof(pm25Text), "PM2.5 %.0f", pm25);
  snprintf(pm10Text, sizeof(pm10Text), "PM10 %.0f", pm10);
  snprintf(no2Text, sizeof(no2Text), "NO2 %.0f", nitrogenDioxide);
  M5.Display.setCursor(8, 118); M5.Display.print(pm25Text);
  M5.Display.setCursor((width - M5.Display.textWidth(pm10Text)) / 2, 118); M5.Display.print(pm10Text);
  M5.Display.setCursor(width - 8 - M5.Display.textWidth(no2Text), 118); M5.Display.print(no2Text);
}

void drawSystemStatus() {
  const int width = M5.Display.width();
  pageTitle("SYSTEM STATUS");
  const int battery = M5.Power.getBatteryLevel();
  const int batteryMv = M5.Power.getBatteryVoltage();
  M5.Display.setTextSize(2);
  M5.Display.setCursor(12, 30); M5.Display.printf("BATTERY  %d%%", battery);
  M5.Display.setTextSize(1);
  M5.Display.setCursor(14, 52);
  M5.Display.printf("BATTERY  %d mV", batteryMv);
  M5.Display.drawFastHLine(8, 67, width - 16, DIM_FG);
  M5.Display.setCursor(14, 77); M5.Display.print("WI-FI: ");
  M5.Display.print(WiFi.status() == WL_CONNECTED ? "CONNECTED" : "OFFLINE");
  M5.Display.setCursor(14, 92); M5.Display.print("WEATHER: "); M5.Display.print(weatherStatus);
  M5.Display.setCursor(14, 107); M5.Display.print("AIR: "); M5.Display.print(airStatus);
  // The Plus2's discrete power circuit has no reliable USB-present or charge-state signal.
  // Do not infer charging from battery voltage: it can rise or fall for unrelated reasons.
  M5.Display.setCursor(14, 122); M5.Display.print("USB/CHG: NOT AVAILABLE");
}

void drawCurrentPage() {
  shownX = 999;
  if (page == FACE_PAGE) drawFace(true);
  else if (page == CLOCK_PAGE) drawClock();
  else if (page == FORECAST_PAGE) drawForecast();
  else if (page == DAYLIGHT_PAGE) drawDaylight();
  else if (page == WORLD_PAGE) drawWorldClock();
  else if (page == AIR_PAGE) drawAirQuality();
  else drawSystemStatus();
}

void setPage(Page newPage) { page = newPage; drawCurrentPage(); }

void scheduleSleepEvent(uint32_t now) { nextSleepEventAt = now + random(20000, 45001); }

void enterAwake(uint32_t now, bool happy) {
  const bool wasSleeping = petState == ASLEEP || petState == BRIEF_WAKE || petState == ASKING_FOR_PET || petState == FALLING_ASLEEP;
  petState = happy ? PETTED_HAPPY : AWAKE;
  stateSince = now;
  // Every real wake-up starts with a short deliberate scan before normal tilt gaze resumes.
  if (wasSleeping && !happy) {
    wakeLookStartedAt = now;
    // Pick one friendly variation for this wake. All variants still look left,
    // right, slightly upward, and back to centre before tilt gaze resumes.
    wakeAnimation = random(0, 3);
    wakeLookUntil = now + 3300;
    gazeX = 0.0f;
    gazeY = 0.0f;
  }
  mood = happy ? HAPPY : NORMAL;
  // If this wake has no network but weather readings are already in memory,
  // let DeskBuddy mention that once after its look-around finishes.
  offlineWakeThoughtPending = wasSleeping && !happy && WiFi.status() != WL_CONNECTED &&
    (!isnan(tempC) || !isnan(usAqi));
  lastMeaningfulActivity = now;
  setBrightness();
  if (page == FACE_PAGE) drawFace(true);
}

void updatePetState(uint32_t now) {
  // HAPPY is used only for the final beat of the wake routine, then normal
  // behaviour resumes without leaving DeskBuddy in a special mood.
  if (petState == AWAKE && wakeLookUntil && now >= wakeLookUntil && mood == HAPPY) mood = NORMAL;
  if (petState == BOOT_LOOK && now - stateSince >= 2800) enterAwake(now, false);
  else if (petState == FALLING_ASLEEP && now - stateSince >= 1000) {
    petState = ASLEEP;
    stateSince = now;
    mood = SLEEPY;
    scheduleSleepEvent(now);
    setBrightness();
    if (page == FACE_PAGE) drawFace(true);
  } else if (petState == BRIEF_WAKE && now - stateSince >= 3500) {
    petState = ASLEEP;
    stateSince = now;
    mood = SLEEPY;
    scheduleSleepEvent(now);
    setBrightness();
  } else if (petState == ASKING_FOR_PET && now >= attentionUntil) {
    petState = ASLEEP;
    stateSince = now;
    mood = SLEEPY;
    scheduleSleepEvent(now);
    setBrightness();
  } else if (petState == PETTED_HAPPY && now - stateSince >= 2200) {
    enterAwake(now, false);
  } else if (petState == AWAKE && now - lastMeaningfulActivity >= INACTIVITY_MS) {
    petState = FALLING_ASLEEP;
    stateSince = now;
    mood = SLEEPY;
    if (page == FACE_PAGE) drawFace(true);
  } else if (petState == ASLEEP && !sleepInteractionUsed && now >= nextSleepEventAt) {
    sleepInteractionUsed = true;
    stateSince = now;
    mood = NORMAL;
    if (random(0, 2) == 0) {
      petState = BRIEF_WAKE;
    } else {
      petState = ASKING_FOR_PET;
      attentionUntil = now + 8000;
      petHoldStartedAt = 0;
      petHoldHandled = false;
    }
    setBrightness();
    if (page == FACE_PAGE) drawFace(true);
  }
}

// The RTC is kept alive by the Stick's power system while the ESP32 is off.
// It stores UTC; local Moscow time is still supplied by DESKBUDDY_TZ.
bool restoreTimeFromRtc() {
  const auto rtc = M5.Rtc.getDateTime();
  if (rtc.date.year < 2024 || rtc.date.year > 2099 || rtc.date.month < 1 || rtc.date.month > 12 ||
      rtc.date.date < 1 || rtc.date.date > 31 || rtc.time.hours > 23 || rtc.time.minutes > 59 || rtc.time.seconds > 59) {
    return false;
  }
  M5.Rtc.setSystemTimeFromRtc();
  return time(nullptr) >= 1704067200;
}

void saveTimeToRtc() {
  const time_t now = time(nullptr);
  if (now < 1704067200) return;
  struct tm utcTime;
  gmtime_r(&now, &utcTime);
  M5.Rtc.setDateTime(&utcTime);
}

void waitForNtpAndSaveRtc() {
  const uint32_t started = millis();
  while (millis() - started < 5000) {
    if (time(nullptr) >= 1704067200) {
      saveTimeToRtc();
      return;
    }
    M5.update();
    delay(50);
  }
}

void playBootAnimation() {
  // A quiet, one-time startup scene: DeskBuddy is asleep, wakes up, looks around,
  // then gives a brief friendly hello. It uses the normal face drawing unchanged.
  auto showBootFace = [](float lookX, float lookY, Mood bootMood, bool closed, const char* message) {
    mood = bootMood;
    gazeX = lookX;
    gazeY = lookY;
    M5.Display.fillScreen(BG);
    drawEyes((int)lroundf(gazeX * 13.0f), (int)lroundf(gazeY * 10.0f), closed);
    if (message != nullptr) {
      M5.Display.setTextColor(FG, BG);
      M5.Display.setTextSize(1);
      M5.Display.setCursor((M5.Display.width() - M5.Display.textWidth(message)) / 2, 7);
      M5.Display.print(message);
    }
  };

  showBootFace(0.0f, 0.7f, SLEEPY, true, nullptr);
  delay(650);
  showBootFace(-0.82f, 0.0f, NORMAL, false, nullptr);
  delay(420);
  showBootFace(0.82f, 0.0f, NORMAL, false, nullptr);
  delay(420);
  showBootFace(0.0f, -0.68f, NORMAL, false, nullptr);
  delay(360);
  showBootFace(0.0f, 0.0f, HAPPY, false, "Hello, friend.");
  delay(1050);
  M5.Display.fillScreen(BG);
}

void setup() {
  auto cfg = M5.config();
  M5.begin(cfg);
  // Plus2 power latching: keep GPIO4 high after button or RTC wake.
  pinMode(4, OUTPUT);
  digitalWrite(4, HIGH);
  M5.Display.setRotation(1);
  M5.Display.setTextColor(FG, BG);
  randomSeed((uint32_t)esp_random());
  setenv("TZ", DESKBUDDY_TZ, 1);
  tzset();
  // A previous clean power-button hold supplies time here when Wi-Fi is absent.
  restoreTimeFromRtc();
  stateSince = millis();
  lastMeaningfulActivity = stateSince;
  nextBlinkAt = stateSince + 1800;
  nextIdleThoughtAt = stateSince + random(20UL * 60UL * 1000UL, 45UL * 60UL * 1000UL);
  // Small curiosity moments are deliberately less frequent than blinks and do not interrupt sleep or messages.
  nextIdleGestureAt = stateSince + random(45UL * 1000UL, 90UL * 1000UL);
  loadWiFi();
  loadCachedData();
  setBrightness();
  const uint32_t checkStarted = millis();
  while (millis() - checkStarted < 1500) {
    M5.update();
    if (!M5.BtnB.isPressed()) break;
    delay(20);
  }
  if (M5.BtnB.isPressed()) { startConfigPortal(); return; }
  playBootAnimation();
  // The startup scene has completed; begin ordinary awake behaviour without
  // replaying the separate BOOT_LOOK scan after Wi-Fi setup finishes.
  petState = AWAKE;
  stateSince = millis();
  lastMeaningfulActivity = stateSince;
  mood = NORMAL;
  if (connectWiFi()) {
    configTzTime(DESKBUDDY_TZ, "pool.ntp.org", "time.nist.gov");
    waitForNtpAndSaveRtc();
    fetchWeather();
    fetchAirQuality();
  }
  drawCurrentPage();
}

void loop() {
  M5.update();
  if (configMode) { portal.handleClient(); return; }
  const uint32_t now = millis();

  // BtnPWR is the mechanical side/power button on M5StickC Plus. Hardware
  // power-off follows at about two seconds, so save at one second instead.
  if (M5.BtnPWR.wasPressed()) {
    powerButtonDownAt = now;
    powerTimeSaved = false;
  }
  if (M5.BtnPWR.isPressed() && !powerTimeSaved && powerButtonDownAt && now - powerButtonDownAt >= 1000) {
    saveTimeToRtc();
    powerTimeSaved = true;
  }
  if (M5.BtnPWR.wasReleased()) {
    powerButtonDownAt = 0;
    powerTimeSaved = false;
  }

  // Button A no longer changes DeskBuddy's mood. During an attention request,
  // hold it to pet DeskBuddy; otherwise a tap only changes screen brightness.
  if (petState == ASKING_FOR_PET) {
    if (M5.BtnA.isPressed()) {
      if (!petHoldStartedAt) petHoldStartedAt = now;
      if (!petHoldHandled && now - petHoldStartedAt >= LONG_PRESS_MS) {
        petHoldHandled = true;
        enterAwake(now, true);
      }
    } else {
      petHoldStartedAt = 0;
    }
  } else if (petState == AWAKE || petState == PETTED_HAPPY) {
    if (M5.BtnA.wasClicked()) {
      bright = !bright;
      setBrightness();
      lastMeaningfulActivity = now;
    }
  }

  // B wakes a sleeping pet first. Only an awake pet advances the dashboard page.
  if (M5.BtnB.wasPressed()) { buttonBDownAt = now; longBHandled = false; }
  if (M5.BtnB.isPressed() && !longBHandled && now - buttonBDownAt >= LONG_PRESS_MS) {
    longBHandled = true;
    startConfigPortal();
    return;
  }
  if (M5.BtnB.wasReleased() && !longBHandled) {
    if (petState == ASLEEP || petState == BRIEF_WAKE || petState == ASKING_FOR_PET || petState == FALLING_ASLEEP) {
      enterAwake(now, false);
      setPage(FACE_PAGE);
    } else {
      setPage((Page)((page + 1) % PAGE_COUNT));
      lastMeaningfulActivity = now;
    }
  }

  // StickC Plus2 uses discrete battery sensing, not the legacy AXP192 PMIC.
  // Its reviewed profile provides battery level/voltage but not reliable USB or active-charge state.
  if (now >= nextUsbCheckAt) {
    nextUsbCheckAt = now + 1000;
    // One gentle reminder per recharge cycle. A recovered level above 25% arms it again.
    const int batteryLevel = M5.Power.getBatteryLevel();
    if (batteryLevel > 25) lowBatteryReminderArmed = true;
    if (lowBatteryReminderArmed && batteryLevel >= 0 && batteryLevel <= 20) {
      queueThought("I may need a charge soon.", 2);
      lowBatteryReminderArmed = false;
    }
    if (page == STATUS_PAGE) drawSystemStatus();
  }

  if (WiFi.status() == WL_CONNECTED && now - lastWeatherFetch >= WEATHER_REFRESH_MS) {
    fetchWeather();
    fetchAirQuality();
    if (page == CLOCK_PAGE || page == FORECAST_PAGE || page == DAYLIGHT_PAGE || page == AIR_PAGE || page == STATUS_PAGE) drawCurrentPage();
  }

  if (M5.Imu.update()) {
    const auto data = M5.Imu.getImuData();
    const float spin = sqrtf(data.gyro.x * data.gyro.x + data.gyro.y * data.gyro.y + data.gyro.z * data.gyro.z);
    const float acceleration = sqrtf(data.accel.x * data.accel.x + data.accel.y * data.accel.y + data.accel.z * data.accel.z);
    const float accelDelta = fabsf(acceleration - 1.0f);
    const bool meaningfulSample = spin > ACTIVITY_SPIN_DPS || accelDelta > ACTIVITY_ACCEL_DELTA_G;
    if (meaningfulSample) {
      if (!motionStartedAt) motionStartedAt = now;
      if (now - motionStartedAt >= 160 && (petState == AWAKE || petState == PETTED_HAPPY)) lastMeaningfulActivity = now;
    } else motionStartedAt = 0;

    const bool forcefulWake = spin > WAKE_SPIN_DPS || accelDelta > WAKE_ACCEL_DELTA_G;
    if ((petState == ASLEEP || petState == BRIEF_WAKE || petState == ASKING_FOR_PET) && forcefulWake) {
      enterAwake(now, false);
      setPage(FACE_PAGE);
    }

    const bool deliberateShake = (spin > SHAKE_SPIN_DPS && acceleration > 1.65f) || acceleration > SHAKE_ACCEL_G;
    if ((petState == AWAKE || petState == PETTED_HAPPY) && deliberateShake && now - lastShakeAt >= SHAKE_COOLDOWN_MS) {
      lastShakeAt = now;
      mood = ANGRY;
      angryUntil = now + 1800;
      lastMeaningfulActivity = now;
      setPage(FACE_PAGE);
    }

    if (page == FACE_PAGE && petState != ASLEEP) {
      if (now >= nextIdleGlanceAt) {
        idleGlanceX = random(-35, 36) / 100.0f;
        idleGlanceY = random(-22, 23) / 100.0f;
        nextIdleGlanceAt = now + random(1800, 4200);
      }
      // Startup keeps its established scan. A wake from sleep gets a longer,
      // friendlier sequence: slow open, left/right/up, a small downward stretch,
      // centre, then a short happy look at the user.
      if (petState == BOOT_LOOK || now < wakeLookUntil) {
        if (petState == BOOT_LOOK) {
          const uint32_t phase = (now - stateSince) / 520;
          static const float lookX[] = { -0.82f, 0.82f, 0.0f, 0.0f, 0.0f };
          static const float lookY[] = { 0.0f, 0.0f, -0.68f, 0.0f, 0.0f };
          gazeX = lookX[min<uint32_t>(phase, 4)];
          gazeY = lookY[min<uint32_t>(phase, 4)];
        } else {
          const uint32_t phase = (now - wakeLookStartedAt) / 430;
          // Every version is a recognisable wake-up, not random face movement:
          // a sleepy pause, left/right/up scan, then its own small finishing gesture.
          static const float calmX[] =    { 0.0f, -0.88f, 0.88f, 0.0f, 0.0f, 0.0f, 0.0f, 0.0f };
          static const float calmY[] =    { 0.0f,  0.00f, 0.00f,-0.72f, 0.48f, 0.0f, 0.0f, 0.0f };
          static const float curiousX[] = { 0.0f, -0.78f, 0.88f, 0.0f,-0.35f, 0.20f, 0.0f, 0.0f };
          static const float curiousY[] = { 0.0f,  0.00f, 0.00f,-0.68f,-0.20f,-0.10f,0.0f, 0.0f };
          static const float happyX[] =   { 0.0f, -0.88f, 0.88f, 0.0f, 0.0f, 0.0f, 0.0f, 0.0f };
          static const float happyY[] =   { 0.0f,  0.00f, 0.00f,-0.74f, 0.00f,-0.12f,0.0f, 0.0f };
          const uint32_t index = min<uint32_t>(phase, 7);
          if (wakeAnimation == 1) {
            gazeX = curiousX[index];
            gazeY = curiousY[index];
          } else if (wakeAnimation == 2) {
            gazeX = happyX[index];
            gazeY = happyY[index];
          } else {
            gazeX = calmX[index];
            gazeY = calmY[index];
          }
          // The calm routine finishes with a small stretch; the other two end
          // with a friendly happy look. Normal face tracking takes over next.
          mood = (phase >= 6 || (wakeAnimation == 2 && phase >= 5)) ? HAPPY : NORMAL;
        }
      } else if (now < idleGestureUntil) {
        // A short double-take: glance aside, look the other way, then settle at centre.
        const uint32_t phase = (now - (idleGestureUntil - 1350)) / 340;
        static const float lookX[] = { -0.58f, 0.62f, 0.0f, 0.0f };
        static const float lookY[] = { -0.10f, 0.04f, -0.18f, 0.0f };
        gazeX = lookX[min<uint32_t>(phase, 3)];
        gazeY = lookY[min<uint32_t>(phase, 3)];
      } else {
        const float targetX = constrain(data.accel.y * 0.85f + data.gyro.z * 0.012f + idleGlanceX, -1.0f, 1.0f);
        const float targetY = constrain(-data.accel.x * 0.85f - data.gyro.x * 0.012f + idleGlanceY, -1.0f, 1.0f);
        gazeX = gazeX * 0.84f + targetX * 0.16f;
        gazeY = gazeY * 0.84f + targetY * 0.16f;
      }
    }
  }

  if (angryUntil && now >= angryUntil) { angryUntil = 0; mood = NORMAL; }

  // Occasionally DeskBuddy does a small curious double-take while calmly idle.
  // It never runs while a thought, pet interaction, wake scan, or sleep transition is active.
  if (idleGestureUntil && now >= idleGestureUntil) {
    idleGestureUntil = 0;
    if (mood == SUSPICIOUS) mood = NORMAL;
  }
  if (!idleGestureUntil && petState == AWAKE && mood == NORMAL && page == FACE_PAGE &&
      now >= wakeLookUntil && now >= idleThoughtUntil && pendingThought.isEmpty() && now >= nextIdleGestureAt) {
    mood = SUSPICIOUS;
    idleGestureUntil = now + 1350;
    nextIdleGestureAt = now + random(45UL * 1000UL, 90UL * 1000UL);
  }

  // An offline wake gets one confidence message, only after the wake scan.
  // It takes priority over the ordinary rare-thought timer and is then cleared.
  if (offlineWakeThoughtPending && petState == AWAKE && mood == NORMAL && page == FACE_PAGE &&
      now >= wakeLookUntil && now >= idleThoughtUntil) {
    idleThought = "I remember the weather.";
    idleThoughtUntil = now + 4500;
    offlineWakeThoughtPending = false;
  }

  // A stored conclusion waits for calm face-page idle time and is shown once.
  if (!offlineWakeThoughtPending && !pendingThought.isEmpty() && petState == AWAKE && mood == NORMAL &&
      page == FACE_PAGE && now >= wakeLookUntil && now >= idleThoughtUntil) {
    idleThought = pendingThought;
    idleThoughtUntil = now + 4500;
    pendingThought = "";
    pendingThoughtPriority = 0;
  }

  // Thoughts are rare, brief, and only belong to a calm normal idle face.
  if (!offlineWakeThoughtPending && pendingThought.isEmpty() && petState == AWAKE && mood == NORMAL && page == FACE_PAGE &&
      now >= nextIdleThoughtAt && now >= idleThoughtUntil) {
    static const char* thoughts[] = {
      "Thinking...", "Watching clouds...", "Nice to see you.",
      "What are you building?", "Quiet day.", "How's it going?"
    };
    idleThought = thoughts[random(0, sizeof(thoughts) / sizeof(thoughts[0]))];
    idleThoughtUntil = now + random(3500, 6001);
    nextIdleThoughtAt = now + random(20UL * 60UL * 1000UL, 45UL * 60UL * 1000UL);
  }
  updatePetState(now);
  if (page == FACE_PAGE && now - lastFrame >= FACE_FRAME_MS) { drawFace(false); lastFrame = now; }
  if (page == CLOCK_PAGE || page == DAYLIGHT_PAGE) {
    struct tm localTime;
    if (getLocalTime(&localTime, 0) && localTime.tm_sec != lastClockSecond) {
      lastClockSecond = localTime.tm_sec;
      if (page == CLOCK_PAGE) drawClock();
      else drawDaylight();
    }
  } else lastClockSecond = -1;
}
