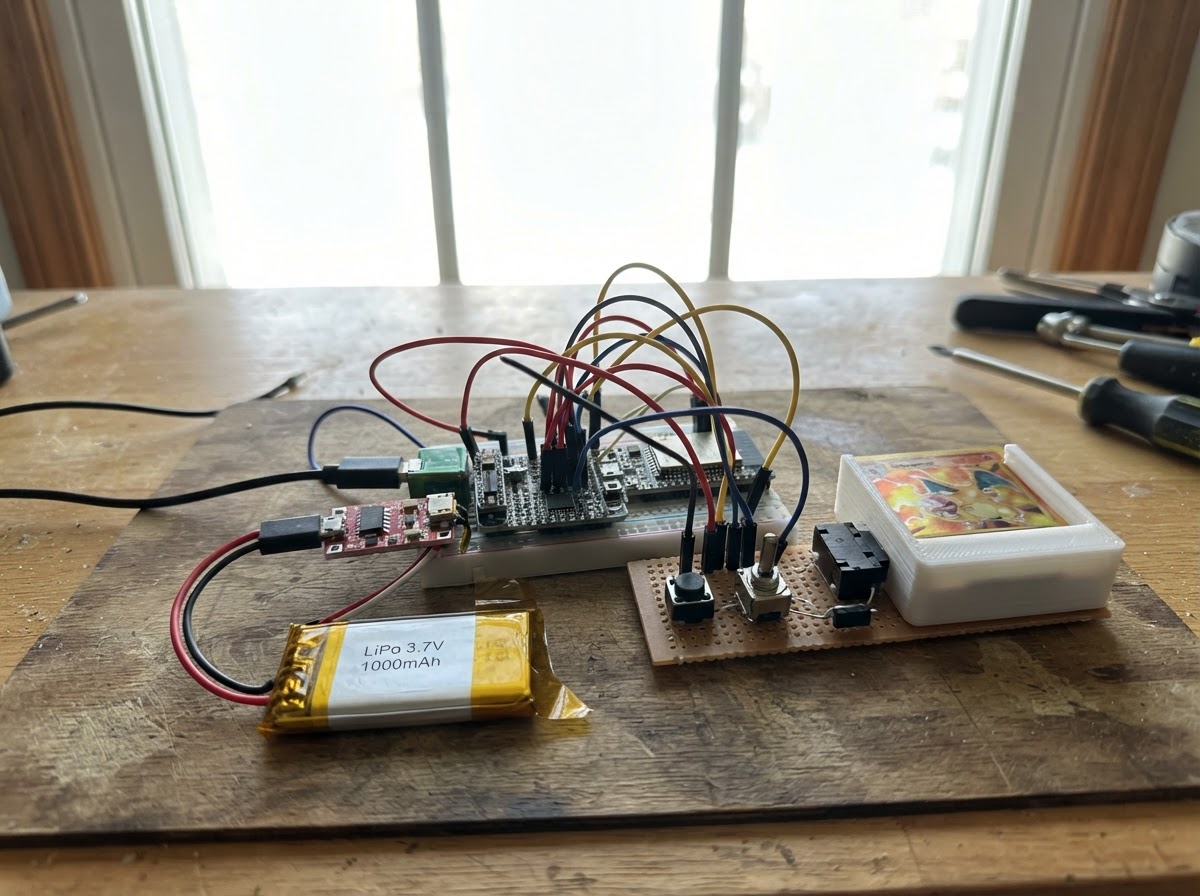

Secure Pokémon Card Trading Device

#include <Arduino.h>
#include <Wire.h>
#include <SPI.h>
#include <SD.h>
#include <WiFi.h>
#include <esp_now.h>
#include <Preferences.h>
#include <RTClib.h>
#include <Arduino_GFX_Library.h>

#define PIN_DOWN 2
#define PIN_R 3
#define PIN_T 4
#define PIN_A 5
#define PIN_B 6
#define PIN_CLASS_OPEN 7
#define I2C_SCL 9
#define TFT_SCK 12
#define SD_CS 17
#define PIN_PLATE_PRESENT 18
#define TFT_DC 14
#define TFT_RST 15
#define TFT_BL 16

// Generic prototype UI only. Do not ship third-party character names/art without permission.
enum class UiState : uint8_t { HOME, TRADE_SELECT, TRADE_WAIT, TRADE_ANIMATION, CLASS_WARNING, CLASS_FINAL, CLASS_LOCKED, PLATE_ERROR, TAMPER_LOCKED, TERMINAL };

// Forward declarations
uint32_t nowEpoch();
bool isPressed(int pin);
void center(const String &s, int y, uint16_t color, uint8_t size);
void drawScreen();
bool authenticatePokePlate();
bool forbiddenFastkey(const String &macro);
bool mapFastkey(char key,const String &macro);
void appendInput(char key);
void handleClassOpenAttempt();
void onPeerMessage(const esp_now_recv_info_t*, const uint8_t *data, int len);
void startWirelessTrading();
void sendTradeOffer();
void pollButtons();

constexpr int TFT_CS=10, TFT_DC=14, TFT_RST=15, TFT_BL=16;
constexpr int TFT_MOSI=11, TFT_SCK=12, TFT_MISO=13, SD_CS=17;
constexpr int PIN_UP=1, PIN_DOWN=2, PIN_R=3, PIN_T=4, PIN_A=5, PIN_B=6, PIN_CLASS_OPEN=7, PIN_PLATE_PRESENT=18;
constexpr int I2C_SDA=8, I2C_SCL=9;
constexpr uint32_t CLASS_BAN_SECONDS=7200UL, TAMPER_LOCK_SECONDS=360000UL;
constexpr uint8_t CLASS_ATTEMPT_LIMIT=25;
constexpr char DEV_SEQUENCE[]="RTUUDDTRDRRUPTTRUDTTTTRRUDR";
constexpr size_t DEV_SEQUENCE_LEN=sizeof(DEV_SEQUENCE)-1;
constexpr uint8_t ATECC608A_ADDRESS=0x60;

Arduino_DataBus *displayBus = new Arduino_ESP32SPI(TFT_DC, TFT_CS, TFT_SCK, TFT_MOSI, GFX_NOT_DEFINED, VSPI);
Arduino_GFX *gfx = new Arduino_ILI9488(displayBus, TFT_RST, 1, false);
RTC_DS3231 rtc;
Preferences prefs;
UiState uiState=UiState::HOME;
uint8_t classOpenAttempts=0;
uint32_t classBanUntil=0, invalidPlateSeconds=0, lastSecond=0;
String inputHistory, fastkeyA, fastkeyB;
bool plateAuthenticated=false, previousClassSwitch=false, previousPlatePresent=false;
volatile bool peerOfferReceived=false;

uint32_t nowEpoch(){ return rtc.now().unixtime(); }
bool isPressed(int pin){ return digitalRead(pin)==LOW; }
void center(const String &s, int y, uint16_t color, uint8_t size=2){
  gfx->setTextSize(size); gfx->setTextColor(color, BLACK); int16_t x1,y1; uint16_t w,h;
  gfx->getTextBounds(s,0,y,&x1,&y1,&w,&h); gfx->setCursor((gfx->width()-w)/2,y); gfx->print(s);
}
void drawScreen(){
  gfx->fillScreen(BLACK);
  switch(uiState){
    case UiState::HOME: center("E-TRADER V1",30,YELLOW,3); center(plateAuthenticated?"PokePlate verified":"Insert verified PokePlate",95,plateAuthenticated?GREEN:RED,2); center("Wi-Fi / Bluetooth trading ready",150,WHITE,1); center("T: trade    A/B: fastkey",205,WHITE,1); break;
    case UiState::TRADE_SELECT: center("Choose a card",35,CYAN,3); center("Press UP to offer",115,WHITE,2); center("R cancels",195,WHITE,1); break;
    case UiState::TRADE_WAIT: center("Offer sent",45,YELLOW,3); center("Looking for nearby peer",120,WHITE,2); break;
    case UiState::TRADE_ANIMATION: center("Trade complete",30,GREEN,3); gfx->fillRoundRect(180,90,120,150,10,RED); center("Your card moves up",270,WHITE,2); break;
    case UiState::CLASS_WARNING: center("Complete lesson first.",140,WHITE,2); break;
    case UiState::CLASS_FINAL: center("I SAID COMPLETE",75,MAGENTA,3); center("LESSON",120,MAGENTA,3); center("Class usage 2 hour ban",210,YELLOW,2); break;
    case UiState::CLASS_LOCKED: center("Good night",115,CYAN,4); center("Class lock active",185,WHITE,2); break;
    case UiState::PLATE_ERROR: center("Unverified PokePlate",100,RED,3); center("Remove it and use a provisioned plate.",165,RED,1); break;
    case UiState::TAMPER_LOCKED: center("Profile protected",100,RED,3); center("Service recovery required",165,YELLOW,2); break;
    case UiState::TERMINAL: center("Developer terminal",55,GREEN,3); center("Restricted service mode",115,WHITE,2); break;
  }
}

// Fails closed. Replace this presence/manifest probe with ATECC608A nonce-signature
// verification and a manufacturer public key before a production release.
bool authenticatePokePlate(){
  if(!isPressed(PIN_PLATE_PRESENT)||!SD.begin(SD_CS)) return false;
  Wire.beginTransmission(ATECC608A_ADDRESS); if(Wire.endTransmission()!=0) return false;
  File manifest=SD.open("/collection.manifest",FILE_READ); if(!manifest) return false;
  String header=manifest.readStringUntil('\n'); manifest.close(); return header=="ETRADER-PLATE-V1";
}
bool forbiddenFastkey(const String &macro){ return macro.indexOf(DEV_SEQUENCE)>=0; }
bool mapFastkey(char key,const String &macro){
  if(!macro.length()||macro.length()>64||forbiddenFastkey(macro)) return false;
  if(key=='A'){fastkeyA=macro; prefs.putString("fastA",macro); return true;}
  if(key=='B'){fastkeyB=macro; prefs.putString("fastB",macro); return true;} return false;
}
void appendInput(char key){
  inputHistory+=key; if(inputHistory.length()>DEV_SEQUENCE_LEN) inputHistory.remove(0,inputHistory.length()-DEV_SEQUENCE_LEN);
  if(inputHistory==DEV_SEQUENCE){uiState=UiState::TERMINAL; inputHistory=""; drawScreen();}
}
void handleClassOpenAttempt(){
  if(nowEpoch()<classBanUntil){uiState=UiState::CLASS_LOCKED; drawScreen(); return;}
  prefs.putUChar("classN",++classOpenAttempts);
  if(classOpenAttempts>=CLASS_ATTEMPT_LIMIT){classBanUntil=nowEpoch()+CLASS_BAN_SECONDS; prefs.putULong("banUntil",classBanUntil); classOpenAttempts=0; prefs.putUChar("classN",0); uiState=UiState::CLASS_FINAL; drawScreen(); delay(1800); uiState=UiState::CLASS_LOCKED;}
  else uiState=UiState::CLASS_WARNING;
  drawScreen();
}

// ESP-NOW uses the ESP32-S3's onboard 2.4 GHz Wi-Fi radio for nearby offers.
// Production trading must add mutual plate attestation and signed atomic updates.
void onPeerMessage(const esp_now_recv_info_t*, const uint8_t *data, int len){
  if(len==5 && memcmp(data,"OFFER",5)==0) peerOfferReceived=true;
}
void startWirelessTrading(){
  WiFi.mode(WIFI_STA);
  if(esp_now_init()==ESP_OK) esp_now_register_recv_cb(onPeerMessage);
}
void sendTradeOffer(){
  const uint8_t offer[]={'O','F','F','E','R'};
  const uint8_t broadcast[]={0xFF,0xFF,0xFF,0xFF,0xFF,0xFF};
  esp_now_peer_info_t peer={}; memcpy(peer.peer_addr,broadcast,6); peer.channel=0; peer.encrypt=false;
  if(!esp_now_is_peer_exist(broadcast)) esp_now_add_peer(&peer);
  esp_now_send(broadcast,offer,sizeof(offer));
}
void pollButtons(){
  static uint32_t lastButton=0; if(millis()-lastButton<160) return; char key=0;
  if(isPressed(PIN_R))key='R'; else if(isPressed(PIN_T))key='T'; else if(isPressed(PIN_UP))key='U'; else if(isPressed(PIN_DOWN))key='D'; else if(isPressed(PIN_A))key='A'; else if(isPressed(PIN_B))key='B';
  if(!key)return; lastButton=millis(); if(key=='R'||key=='T'||key=='U'||key=='D')appendInput(key);
  if(uiState==UiState::TERMINAL||uiState==UiState::CLASS_LOCKED||uiState==UiState::TAMPER_LOCKED)return;
  if(key=='T'&&plateAuthenticated){uiState=UiState::TRADE_SELECT;drawScreen();}
  else if(key=='U'&&uiState==UiState::TRADE_SELECT){sendTradeOffer();uiState=UiState::TRADE_WAIT;drawScreen();}
  else if(key=='R'){uiState=UiState::HOME;drawScreen();}
}
void setup(){
  pinMode(TFT_BL,OUTPUT); digitalWrite(TFT_BL,HIGH);
  for(int pin:{PIN_UP,PIN_DOWN,PIN_R,PIN_T,PIN_A,PIN_B,PIN_CLASS_OPEN,PIN_PLATE_PRESENT})pinMode(pin,INPUT_PULLUP);
  SPI.begin(TFT_SCK,TFT_MISO,TFT_MOSI,SD_CS); Wire.begin(I2C_SDA,I2C_SCL); rtc.begin();
  gfx->begin(); gfx->setRotation(1); prefs.begin("etrader",false); startWirelessTrading();
  classOpenAttempts=prefs.getUChar("classN",0); classBanUntil=prefs.getULong("banUntil",0); invalidPlateSeconds=prefs.getULong("badSecs",0);
  fastkeyA=prefs.getString("fastA",""); fastkeyB=prefs.getString("fastB",""); plateAuthenticated=authenticatePokePlate();
  uiState=invalidPlateSeconds>=TAMPER_LOCK_SECONDS?UiState::TAMPER_LOCKED:(nowEpoch()<classBanUntil?UiState::CLASS_LOCKED:(plateAuthenticated?UiState::HOME:UiState::PLATE_ERROR));
  previousClassSwitch=isPressed(PIN_CLASS_OPEN); previousPlatePresent=isPressed(PIN_PLATE_PRESENT); lastSecond=millis(); drawScreen();
}
void loop(){
  bool classSwitch=isPressed(PIN_CLASS_OPEN); if(classSwitch&&!previousClassSwitch)handleClassOpenAttempt(); previousClassSwitch=classSwitch;
  bool platePresent=isPressed(PIN_PLATE_PRESENT); if(platePresent!=previousPlatePresent){plateAuthenticated=authenticatePokePlate(); if(uiState!=UiState::TAMPER_LOCKED&&nowEpoch()>=classBanUntil){uiState=plateAuthenticated?UiState::HOME:UiState::PLATE_ERROR;drawScreen();}} previousPlatePresent=platePresent;
  if(millis()-lastSecond>=1000){lastSecond+=1000; if(!plateAuthenticated&&platePresent&&uiState!=UiState::TAMPER_LOCKED){invalidPlateSeconds++;if(invalidPlateSeconds%60==0)prefs.putULong("badSecs",invalidPlateSeconds);if(invalidPlateSeconds>=TAMPER_LOCK_SECONDS){prefs.putULong("badSecs",invalidPlateSeconds);uiState=UiState::TAMPER_LOCKED;drawScreen();}} if(uiState==UiState::CLASS_LOCKED&&nowEpoch()>=classBanUntil){uiState=plateAuthenticated?UiState::HOME:UiState::PLATE_ERROR;drawScreen();}}
  if(peerOfferReceived&&uiState==UiState::TRADE_WAIT){peerOfferReceived=false;uiState=UiState::TRADE_ANIMATION;drawScreen();}
  pollButtons();
}
