Ultrasonic Parking Sensor

bore4k

Published August 3, 2026 · Updated August 11, 2026

ESP327 components4 assembly steps
Remix this project

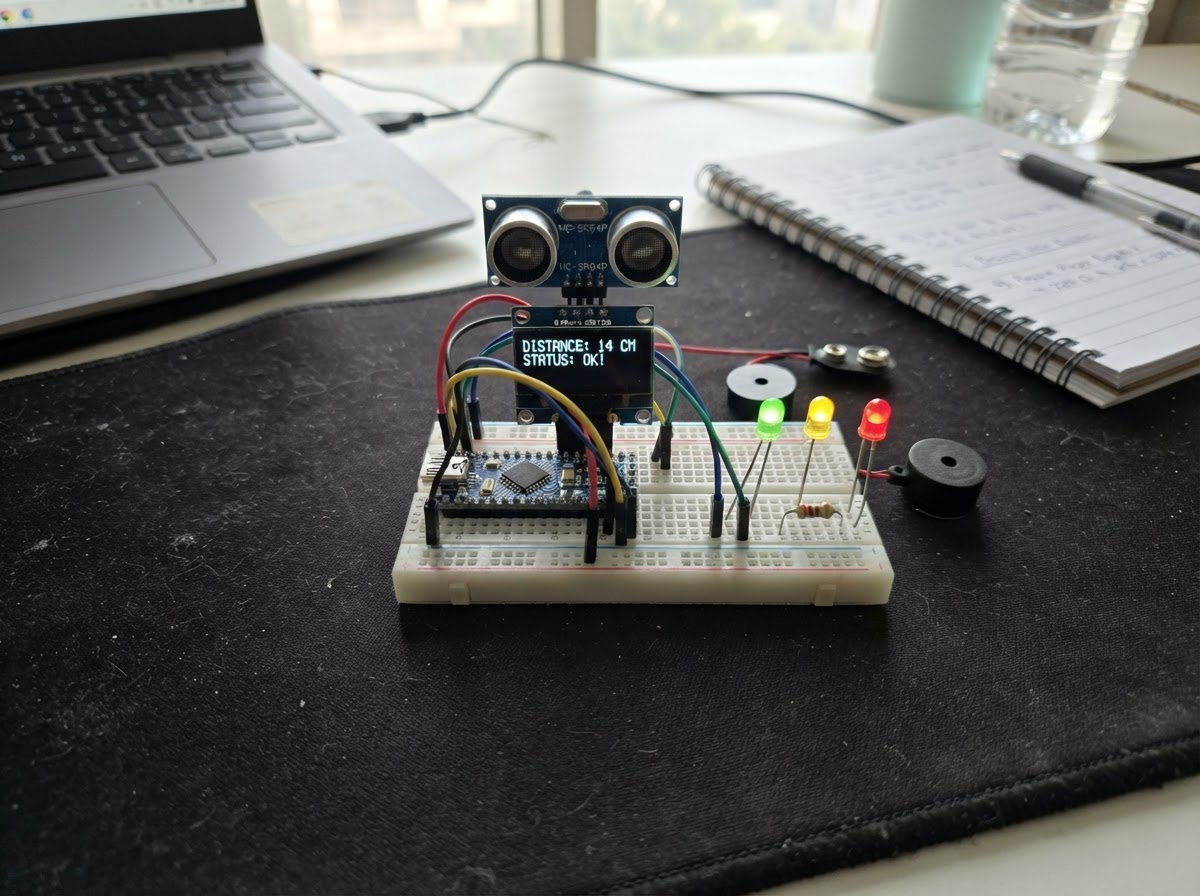

Photo of Ultrasonic Parking SensorGenerated with AI

This ultrasonic parking sensor uses an HC-SR04P distance sensor to detect how close an object is and provides real-time visual and audio feedback. The ESP32 processes distance measurements and drives a tri-color LED indicator (green for safe, yellow for caution, red for stop) along with a piezo buzzer that accelerates its beeping as the object approaches.

Builders will receive a complete wiring diagram showing how to connect the distance sensor, OLED display, LEDs with current-limiting resistors, and buzzer to the ESP32. The guide includes a full parts list, step-by-step assembly instructions, and tested firmware that smooths sensor readings and manages the warning outputs. Testing is performed against a wall to verify distance thresholds and alert behavior.

Wiring diagram

Interactive · read-only
Wiring diagram for Ultrasonic Parking Sensor

Pan and zoom to explore the wiring. Remix the project to edit it in your own workspace.

Parts list

Bill of materials
ComponentQtyNotes
HC-SR04P Ultrasonic Distance Sensor13.3V-compatible ultrasonic distance sensor for measuring the gap to an object.
0.96 inch SSD1306 OLED Display1Small I2C display for the live distance reading and warning state.
Green LED1Clear-zone indicator. Use a current-limiting resistor in series.
Yellow LED1Caution-zone indicator. Use a current-limiting resistor in series.
Red LED1Stop-zone indicator. Use a current-limiting resistor in series.
Passive Piezo Buzzer1Audible warning that beeps faster in the stop zone.
220 Ω resistor1Current limiting or transistor-base resistor required by the wiring.

Assembly

4 steps
  1. Wire the distance sensor

    Connect the HC-SR04P VCC and GND to the ESP32 3V3 and GND rails, then connect TRIG to GPIO27 and ECHO to GPIO26.

    • Tip: Use the HC-SR04P 3.3V-compatible module, not a 5V-only HC-SR04, unless you add proper level shifting.
    • Do not connect a 5V echo signal directly to an ESP32 GPIO.
  2. Add the display

    Connect the SSD1306 OLED to the same 3V3 and GND rails, with SDA on GPIO21 and SCL on GPIO22.

    • Tip: If the OLED stays blank, check whether your module uses address 0x3C or 0x3D.
  3. Add the warning outputs

    Connect the green LED to GPIO14, yellow LED to GPIO12, red LED to GPIO13, and the passive buzzer signal pin to GPIO25. Each LED should use a current-limiting resistor.

    • Tip: Place the LEDs left to right as green, yellow, red so the warning pattern reads naturally.
    • Do not drive bare LEDs directly from GPIO without resistors.
  4. Upload and test against a wall

    Upload the sketch, aim the sensor at a flat surface, and move it from about one metre away to the stop zone. The OLED, LEDs, and buzzer should change together.

    • Tip: Cardboard, foam board, or a book makes a better test target than a thin chair leg.
    • This is a learning aid, not a safety-rated vehicle parking system.

Pin assignments

Board wiring reference
PinConnectionType
3V3hc-sr04p-ultrasonic-sensor_0 VCCpower
GNDhc-sr04p-ultrasonic-sensor_0 GNDground
GPIO 27hc-sr04p-ultrasonic-sensor_0 TRIGdigital
GPIO 26hc-sr04p-ultrasonic-sensor_0 ECHOdigital
3V3ssd1306-oled_0 VCCpower
GNDssd1306-oled_0 GNDground
GPIO 21ssd1306-oled_0 SDAi2c
GPIO 22ssd1306-oled_0 SCLi2c
GPIO 14green-led_0 ANODEdigital
GNDgreen-led_0 CATHODEground
GPIO 12yellow-led_0 ANODEdigital
GNDyellow-led_0 CATHODEground
GPIO 13red-led_0 ANODEdigital
GNDred-led_0 CATHODEground
GPIO 25passive-buzzer_0 SIGdigital
GNDpassive-buzzer_0 GNDground
GPIO 14esp32-ultrasonic-parking-sensor-220-ohm-resistor-1 green-led:ANODEcurrent-limit
EXTesp32-ultrasonic-parking-sensor-220-ohm-resistor-1 green-led:ANODEcurrent-limit
GPIO 12esp32-ultrasonic-parking-sensor-220-ohm-resistor-1 yellow-led:ANODEcurrent-limit
EXTesp32-ultrasonic-parking-sensor-220-ohm-resistor-1 yellow-led:ANODEcurrent-limit
GPIO 13esp32-ultrasonic-parking-sensor-220-ohm-resistor-1 red-led:ANODEcurrent-limit
EXTesp32-ultrasonic-parking-sensor-220-ohm-resistor-1 red-led:ANODEcurrent-limit

Firmware

ESP32
schematik_esp32.inoDeploy to device
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

#define TRIG_PIN 27
#define ECHO_PIN 26
#define GREEN_LED_PIN 14
#define YELLOW_LED_PIN 12
#define RED_LED_PIN 13
#define BUZZER_PIN 25
#define SDA_PIN 21
#define SCL_PIN 22
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64

const int SAFE_DISTANCE_CM = 70;
const int CAUTION_DISTANCE_CM = 35;
const int STOP_DISTANCE_CM = 18;

Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);
float smoothedDistance = 100;
unsigned long lastBeepMs = 0;
bool buzzerOn = false;

float readDistanceCm() {
  digitalWrite(TRIG_PIN, LOW);
  delayMicroseconds(2);
  digitalWrite(TRIG_PIN, HIGH);
  delayMicroseconds(10);
  digitalWrite(TRIG_PIN, LOW);

  unsigned long duration = pulseIn(ECHO_PIN, HIGH, 30000);
  if (duration == 0) return smoothedDistance;
  return duration / 58.0;
}

void setOutputs(float distanceCm) {
  bool safe = distanceCm > SAFE_DISTANCE_CM;
  bool caution = distanceCm <= SAFE_DISTANCE_CM && distanceCm > CAUTION_DISTANCE_CM;
  bool warning = distanceCm <= CAUTION_DISTANCE_CM;

  digitalWrite(GREEN_LED_PIN, safe ? HIGH : LOW);
  digitalWrite(YELLOW_LED_PIN, caution ? HIGH : LOW);
  digitalWrite(RED_LED_PIN, warning ? HIGH : LOW);

  if (!warning) {
    noTone(BUZZER_PIN);
    buzzerOn = false;
    return;
  }

  int interval = distanceCm <= STOP_DISTANCE_CM ? 120 : 320;
  if (millis() - lastBeepMs > interval) {
    lastBeepMs = millis();
    buzzerOn = !buzzerOn;
    if (buzzerOn) tone(BUZZER_PIN, distanceCm <= STOP_DISTANCE_CM ? 1800 : 1200);
    else noTone(BUZZER_PIN);
  }
}

void drawDisplay(float distanceCm) {
  display.clearDisplay();
  display.setTextColor(SSD1306_WHITE);
  display.setTextSize(1);
  display.setCursor(0, 0);
  display.println("Parking sensor");
  display.setTextSize(2);
  display.setCursor(0, 18);
  display.print(distanceCm, 0);
  display.println(" cm");
  display.setTextSize(1);
  display.setCursor(0, 48);
  if (distanceCm <= STOP_DISTANCE_CM) display.println("STOP");
  else if (distanceCm <= CAUTION_DISTANCE_CM) display.println("Slow down");
  else if (distanceCm <= SAFE_DISTANCE_CM) display.println("Getting close");
  else display.println("Clear");
  display.display();
}

void setup() {
  pinMode(TRIG_PIN, OUTPUT);
  pinMode(ECHO_PIN, INPUT);
  pinMode(GREEN_LED_PIN, OUTPUT);
  pinMode(YELLOW_LED_PIN, OUTPUT);
  pinMode(RED_LED_PIN, OUTPUT);
  pinMode(BUZZER_PIN, OUTPUT);

  Wire.begin(SDA_PIN, SCL_PIN);
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
  display.clearDisplay();
  display.display();
}

void loop() {
  float reading = readDistanceCm();
  smoothedDistance = (smoothedDistance * 0.75) + (reading * 0.25);
  setOutputs(smoothedDistance);
  drawDisplay(smoothedDistance);
  delay(80);
}

“Deploy to device” opens this project in Schematik, where you can flash it to your board over USB.
