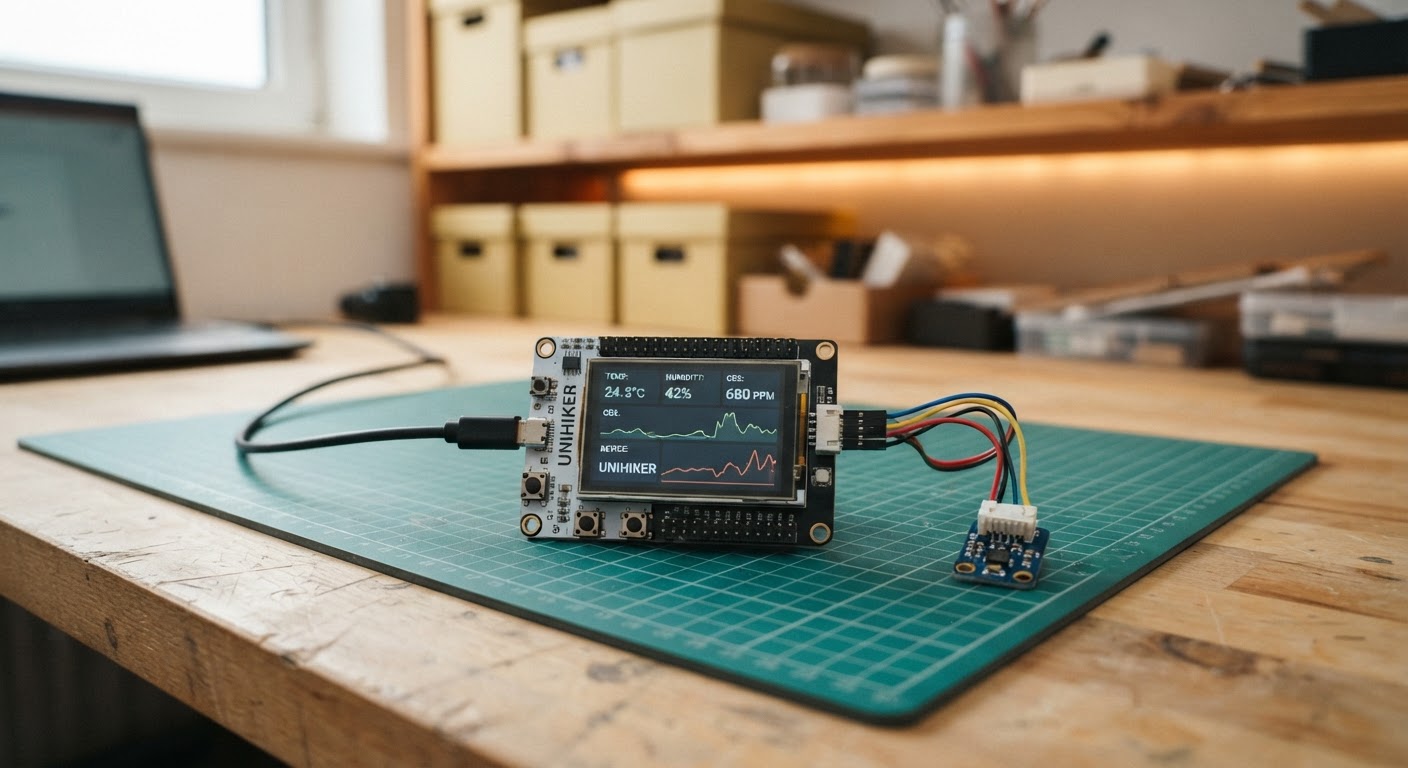

UNIHIKER Sensor Dashboard

#include <Arduino.h>
#include <math.h>
#include <stdio.h>
#include <string.h>
#include <lvgl.h>
#include "unihiker_k10.h"

// K10 companion pet: every displayed reaction is tied to a board sensor.

// Forward declarations
static uint32_t toK10Rgb888(lv_color_t color);
static void k10LvglFlush(lv_disp_drv_t *displayDriver, const lv_area_t *area, lv_color_t *colorPixels);
static void setTextIfChanged(lv_obj_t *label, char *cache, size_t cacheSize, const char *text);
static void createPetScreen();
static void setPetLed(uint32_t color, uint8_t brightness);
static void playCue(int frequency);
static void constrainStats();
static void updatePet();

static constexpr int16_t SCREEN_W = 240;
static constexpr int16_t SCREEN_H = 320;
static constexpr uint16_t DRAW_LINES = 20;
static constexpr uint32_t SAMPLE_INTERVAL_MS = 600;
static constexpr uint32_t PLAY_COOLDOWN_MS = 3500;
static constexpr uint32_t VOICE_COOLDOWN_MS = 2500;

UNIHIKER_K10 k10;
AHT20 aht20;
Music music;

static lv_color_t drawBuffer[SCREEN_W * DRAW_LINES];
static lv_disp_draw_buf_t lvDrawBuffer;
static lv_disp_drv_t lvDisplayDriver;

static lv_obj_t *faceLabel;
static lv_obj_t *stateLabel;
static lv_obj_t *moodLabel;
static lv_obj_t *energyLabel;
static lv_obj_t *bondLabel;
static lv_obj_t *environmentLabel;
static lv_obj_t *sensorLabel;
static lv_obj_t *tipLabel;

static char faceCache[32] = "";
static char stateCache[48] = "";
static char moodCache[32] = "";
static char energyCache[32] = "";
static char bondCache[32] = "";
static char environmentCache[64] = "";
static char sensorCache[96] = "";
static char tipCache[96] = "";

static int mood = 70;
static int energy = 76;
static int bond = 54;
static float micNoiseFloor = -1.0f;
static uint32_t lastSampleMs = 0;
static uint32_t lastLvTickMs = 0;
static uint32_t lastPlayMs = 0;
static uint32_t lastVoiceMs = 0;
static uint32_t lastSlowChangeMs = 0;
static uint32_t lastLedColor = 0xFFFFFFFF;
static uint8_t lastLedBrightness = 255;

static uint32_t toK10Rgb888(lv_color_t color) {
  lv_color32_t rgb;
  rgb.full = lv_color_to32(color);
  return ((uint32_t)rgb.ch.red << 16) |
         ((uint32_t)rgb.ch.green << 8) |
         (uint32_t)rgb.ch.blue;
}

static void k10LvglFlush(lv_disp_drv_t *displayDriver,
                         const lv_area_t *area,
                         lv_color_t *colorPixels) {
  const int16_t width = area->x2 - area->x1 + 1;
  const int16_t height = area->y2 - area->y1 + 1;
  for (int16_t row = 0; row < height; ++row) {
    for (int16_t column = 0; column < width; ++column) {
      k10.canvas->canvasPoint(area->x1 + column, area->y1 + row,
                               toK10Rgb888(colorPixels[row * width + column]));
    }
  }
  k10.canvas->updateCanvas();
  lv_disp_flush_ready(displayDriver);
}

static void setTextIfChanged(lv_obj_t *label, char *cache, size_t cacheSize,
                             const char *text) {
  if (strncmp(cache, text, cacheSize) != 0) {
    strncpy(cache, text, cacheSize - 1);
    cache[cacheSize - 1] = '\0';
    lv_label_set_text(label, cache);
  }
}

static lv_obj_t *makeLabel(lv_obj_t *parent, int16_t y, uint32_t color,
                           const lv_font_t *font = &lv_font_montserrat_14) {
  lv_obj_t *label = lv_label_create(parent);
  lv_obj_set_width(label, 228);
  lv_obj_set_pos(label, 6, y);
  lv_label_set_long_mode(label, LV_LABEL_LONG_CLIP);
  lv_obj_set_style_text_font(label, font, LV_PART_MAIN);
  lv_obj_set_style_text_color(label, lv_color_hex(color), LV_PART_MAIN);
  return label;
}

static void createPetScreen() {
  lv_obj_t *screen = lv_scr_act();
  lv_obj_set_style_bg_color(screen, lv_color_hex(0x161227), LV_PART_MAIN);
  lv_obj_set_style_bg_opa(screen, LV_OPA_COVER, LV_PART_MAIN);

  lv_obj_t *title = makeLabel(screen, 5, 0xFFD6E8);
  lv_label_set_text(title, "LUMI  |  companion pet");

  faceLabel = makeLabel(screen, 31, 0xFFB5D4);
  lv_obj_set_style_text_font(faceLabel, &lv_font_montserrat_14, LV_PART_MAIN);
  stateLabel = makeLabel(screen, 57, 0xFFF1A6);

  moodLabel = makeLabel(screen, 88, 0xFFB5D4);
  energyLabel = makeLabel(screen, 111, 0x9DDCFF);
  bondLabel = makeLabel(screen, 134, 0xA9F6C5);

  environmentLabel = makeLabel(screen, 168, 0xFFFFFF);
  sensorLabel = makeLabel(screen, 193, 0xCFC8FF);
  tipLabel = makeLabel(screen, 244, 0xFFE49B);

  lv_label_set_text(faceLabel, "(^_^)");
  lv_label_set_text(stateLabel, "Waking up...");
  lv_label_set_text(moodLabel, "Mood: --");
  lv_label_set_text(energyLabel, "Energy: --");
  lv_label_set_text(bondLabel, "Bond: --");
  lv_label_set_text(environmentLabel, "Environment: reading sensors...");
  lv_label_set_text(sensorLabel, "Sensors: --");
  lv_label_set_text(tipLabel, "Try talking or gently shaking K10.");
}

static void setPetLed(uint32_t color, uint8_t brightness) {
  if (color == lastLedColor && brightness == lastLedBrightness) return;
  lastLedColor = color;
  lastLedBrightness = brightness;
  k10.rgb->brightness(brightness);
  k10.rgb->write(-1, (uint8_t)(color >> 16), (uint8_t)(color >> 8),
                 (uint8_t)color);
}

static void playCue(int frequency) {
  music.stopPlayTone();
  music.playTone(frequency, 900);
}

static void constrainStats() {
  mood = constrain(mood, 0, 100);
  energy = constrain(energy, 0, 100);
  bond = constrain(bond, 0, 100);
}

static void updatePet() {
  const uint32_t now = millis();
  const float temperatureC = aht20.getData(AHT20::eAHT20TempC);
  const float humidityRH = aht20.getData(AHT20::eAHT20HumiRH);
  const uint16_t ambientLight = k10.readALS();
  const float accelX = k10.getAccelerometerX();
  const float accelY = k10.getAccelerometerY();
  const float accelZ = k10.getAccelerometerZ();
  const float acceleration = sqrtf(accelX * accelX + accelY * accelY + accelZ * accelZ);
  const int32_t micRaw = k10.readMICData();
  const float micLevel = fabsf((float)micRaw);

  // Quiet readings establish a moving sound baseline for the current room.
  if (micNoiseFloor < 0.0f) micNoiseFloor = micLevel;
  const bool voiceHeard = micLevel > (micNoiseFloor + 140.0f);
  if (!voiceHeard) micNoiseFloor = micNoiseFloor * 0.92f + micLevel * 0.08f;

  const bool temperatureComfortable = temperatureC >= 18.0f && temperatureC <= 28.0f;
  const bool humidityComfortable = humidityRH >= 35.0f && humidityRH <= 70.0f;
  const bool dark = ambientLight < 45;
  const bool veryBright = ambientLight > 1400;
  const bool comfortable = temperatureComfortable && humidityComfortable;
  const bool playfulShake = acceleration > 1.55f;

  if (playfulShake && now - lastPlayMs >= PLAY_COOLDOWN_MS) {
    lastPlayMs = now;
    mood += 5;
    bond += 4;
    energy -= 3;
    playCue(784);
  }
  if (voiceHeard && now - lastVoiceMs >= VOICE_COOLDOWN_MS) {
    lastVoiceMs = now;
    mood += 3;
    bond += 3;
    playCue(659);
  }

  // Slow changes make care visible without punishing the player quickly.
  if (now - lastSlowChangeMs >= 10000) {
    lastSlowChangeMs = now;
    if (comfortable) mood += 1;
    else mood -= 2;
    if (dark) energy += 2;
    else energy -= 1;
    if (veryBright) mood -= 1;
    if (mood < 35) bond -= 1;
  }
  constrainStats();

  const char *face = "(^_^)";
  const char *emotion = "calm and curious";
  const char *tip = "Tip: light sensor tells Lumi day or night.";
  uint32_t ledColor = 0x54A8FF;
  uint8_t ledBrightness = 2;

  if (dark && energy < 70) {
    face = "(-_-) zZ";
    emotion = "sleepy - keep me company quietly";
    tip = "Darkness means rest time. Light sensor -> sleep mode.";
    ledColor = 0x3B58C8;
    ledBrightness = 1;
  } else if (mood < 35) {
    face = "(T_T)";
    emotion = "a little uncomfortable";
    tip = "Check temperature/humidity, then talk or play gently.";
    ledColor = 0xFF5B69;
    ledBrightness = 3;
  } else if (mood >= 76 && bond >= 65) {
    face = "(^o^)";
    emotion = "happy to be with you!";
    tip = "Voice sensor: your sound helped our friendship grow.";
    ledColor = 0xFF77C8;
    ledBrightness = 3;
  } else if (energy < 30) {
    face = "(u_u)";
    emotion = "tired - a darker, quiet place helps";
    tip = "Energy rises in dim light: a simple sensor rule.";
    ledColor = 0x7896FF;
    ledBrightness = 1;
  }
  setPetLed(ledColor, ledBrightness);

  char text[96];
  setTextIfChanged(faceLabel, faceCache, sizeof(faceCache), face);
  snprintf(text, sizeof(text), "Lumi feels %s", emotion);
  setTextIfChanged(stateLabel, stateCache, sizeof(stateCache), text);
  snprintf(text, sizeof(text), "Mood: %3d / 100", mood);
  setTextIfChanged(moodLabel, moodCache, sizeof(moodCache), text);
  snprintf(text, sizeof(text), "Energy: %3d / 100", energy);
  setTextIfChanged(energyLabel, energyCache, sizeof(energyCache), text);
  snprintf(text, sizeof(text), "Friendship: %3d / 100", bond);
  setTextIfChanged(bondLabel, bondCache, sizeof(bondCache), text);

  snprintf(text, sizeof(text), "Room: %.1f C | %.0f %% | light %u", temperatureC,
           humidityRH, ambientLight);
  setTextIfChanged(environmentLabel, environmentCache, sizeof(environmentCache), text);
  snprintf(text, sizeof(text), "Move %.2f g | sound %.0f", acceleration, micLevel);
  setTextIfChanged(sensorLabel, sensorCache, sizeof(sensorCache), text);
  setTextIfChanged(tipLabel, tipCache, sizeof(tipCache), tip);
}

void setup() {
  k10.begin();
  k10.initScreen(2);
  k10.creatCanvas();
  k10.rgb->brightness(0);
  k10.rgb->write(-1, 0, 0, 0);

  lv_init();
  lv_disp_draw_buf_init(&lvDrawBuffer, drawBuffer, nullptr, SCREEN_W * DRAW_LINES);
  lv_disp_drv_init(&lvDisplayDriver);
  lvDisplayDriver.hor_res = SCREEN_W;
  lvDisplayDriver.ver_res = SCREEN_H;
  lvDisplayDriver.draw_buf = &lvDrawBuffer;
  lvDisplayDriver.flush_cb = k10LvglFlush;
  lv_disp_drv_register(&lvDisplayDriver);

  createPetScreen();
  lastLvTickMs = millis();
  lastSlowChangeMs = lastLvTickMs;
  updatePet();
}

void loop() {
  const uint32_t now = millis();
  const uint32_t elapsed = now - lastLvTickMs;
  lastLvTickMs = now;
  lv_tick_inc(elapsed);
  lv_timer_handler();

  if (now - lastSampleMs >= SAMPLE_INTERVAL_MS) {
    lastSampleMs = now;
    updatePet();
  }
  delay(5);
}
