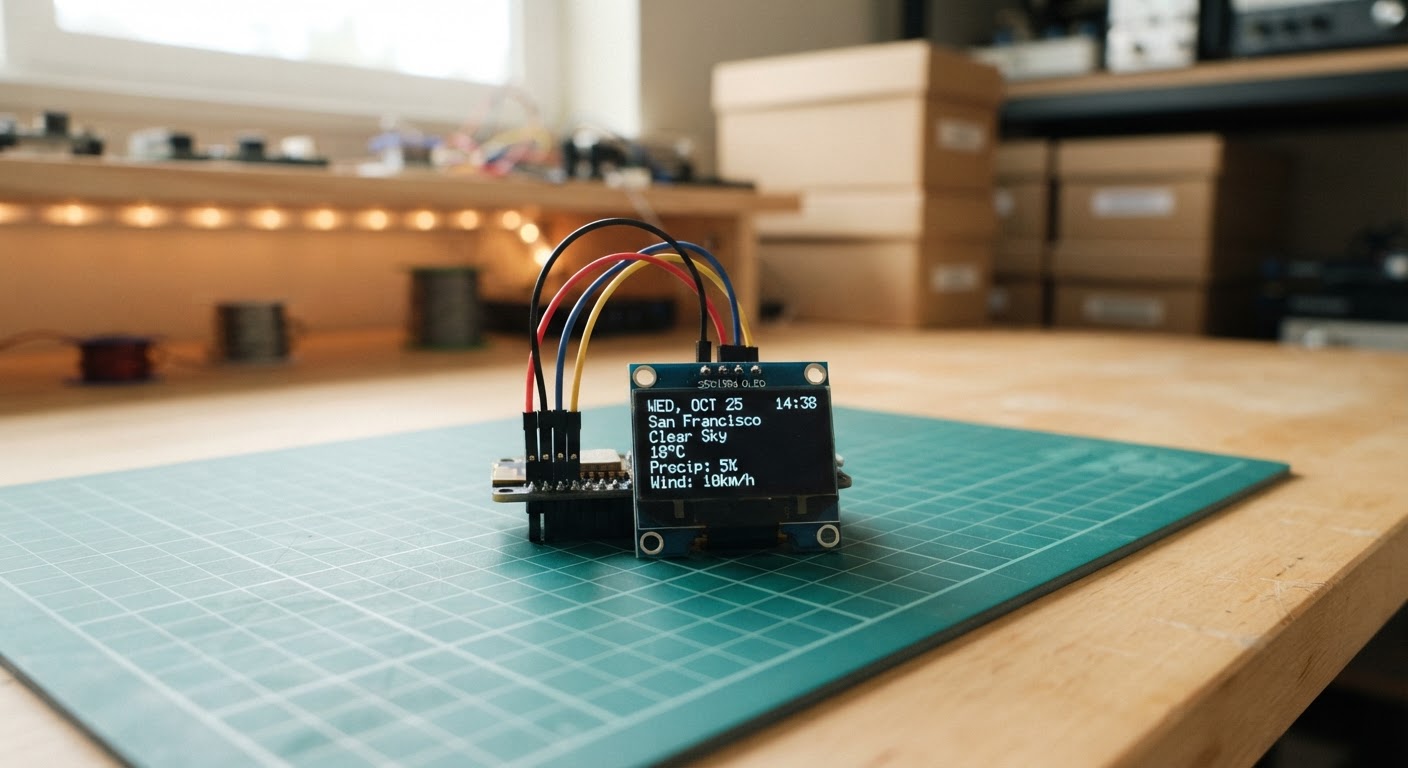

WiFi Weather Forecast Display

#include <Arduino.h>
#include <WiFi.h>
#include <HTTPClient.h>
#include <WiFiClientSecure.h>
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#include <ArduinoJson.h>
#include <Preferences.h>
#include <time.h>

#define OLED_SDA 21
#define OLED_SCL 22
#define OLED_ADDRESS 0x3C
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64


struct ForecastDay {
  String date;
  int code;
  int high;
  int low;
};


// Forward declarations
String shortCondition(int code);
String dayLabel(uint8_t index);
String clockText();
void printNetworkDetails();
void drawWifiBars();
void drawHeader();
void drawDots(uint8_t active);
void drawCurrentPage();
void drawDailyPage();
void drawWeeklyPage();
void drawStatusPage();
void drawScreen();
bool loadSavedLocation();
void saveLocation();
bool getJson(const String &url, JsonDocument &doc, const char *label);
bool locateFromNetwork();
bool fetchWeather();
void startWifi(const char *reason);

const char *WIFI_SSID = "DLink";
const char *WIFI_PASSWORD = "fafafa2019";
const char *NTP_SERVER_1 = "pool.ntp.org";
const char *NTP_SERVER_2 = "time.nist.gov";
const unsigned long WEATHER_INTERVAL_MS = 15UL * 60UL * 1000UL;
const unsigned long RETRY_INTERVAL_MS = 60UL * 1000UL;
const unsigned long WIFI_RETRY_MS = 15UL * 1000UL;
const unsigned long SCREEN_INTERVAL_MS = 8000UL;



Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);
Preferences preferences;

String city = "LOCAL";
String fetchStatus = "STARTING";
float latitude = 0.0f;
float longitude = 0.0f;
long utcOffsetSeconds = 0;
int currentTemp = 0;
int feelsTemp = 0;
int currentCode = -1;
ForecastDay forecast[7];
bool hasLocation = false;
bool hasWeather = false;
uint8_t page = 0;
unsigned long lastWeatherAttempt = 0;
unsigned long lastLocationAttempt = 0;
unsigned long lastWifiAttempt = 0;
unsigned long lastPageChange = 0;
unsigned long lastDraw = 0;
wl_status_t lastWifiStatus = WL_IDLE_STATUS;

String shortCondition(int code) {
  if (code == 0) return "CLEAR";
  if (code == 1) return "FAIR";
  if (code == 2) return "CLOUDY";
  if (code == 3) return "OVERCAST";
  if (code == 45 || code == 48) return "FOG";
  if (code >= 51 && code <= 57) return "DRIZZLE";
  if (code >= 61 && code <= 67) return "RAIN";
  if (code >= 71 && code <= 77) return "SNOW";
  if (code >= 80 && code <= 82) return "SHOWERS";
  if (code >= 85 && code <= 86) return "SNOW";
  if (code >= 95) return "STORM";
  return "UNKNOWN";
}

String dayLabel(uint8_t index) {
  if (index == 0) return "TODAY";
  if (index == 1) return "TOMORROW";
  if (forecast[index].date.length() >= 10) return forecast[index].date.substring(5, 10);
  return "DAY";
}

String clockText() {
  struct tm timeInfo;
  if (!getLocalTime(&timeInfo, 10)) return "--:--";
  char buffer[6];
  strftime(buffer, sizeof(buffer), "%H:%M", &timeInfo);
  return String(buffer);
}

const char *wifiStateName(wl_status_t status) {
  switch (status) {
    case WL_NO_SHIELD: return "NO SHIELD";
    case WL_IDLE_STATUS: return "IDLE";
    case WL_NO_SSID_AVAIL: return "SSID NOT FOUND";
    case WL_SCAN_COMPLETED: return "SCAN COMPLETE";
    case WL_CONNECTED: return "CONNECTED";
    case WL_CONNECT_FAILED: return "AUTH FAILED";
    case WL_CONNECTION_LOST: return "CONNECTION LOST";
    case WL_DISCONNECTED: return "DISCONNECTED";
    default: return "UNKNOWN";
  }
}

void printNetworkDetails() {
  Serial.printf("WiFi: SSID=%s RSSI=%d dBm\n", WiFi.SSID().c_str(), WiFi.RSSI());
  Serial.printf("WiFi: IP=%s gateway=%s DNS=%s\n", WiFi.localIP().toString().c_str(),
                WiFi.gatewayIP().toString().c_str(), WiFi.dnsIP().toString().c_str());
}

void drawWifiBars() {
  int bars = 0;
  if (WiFi.status() == WL_CONNECTED) {
    int rssi = WiFi.RSSI();
    if (rssi >= -55) bars = 4;
    else if (rssi >= -67) bars = 3;
    else if (rssi >= -75) bars = 2;
    else bars = 1;
  }
  for (int i = 0; i < 4; i++) {
    int height = i + 1;
    int x = 91 + i * 2;
    int y = 10 - height;
    if (i < bars) display.fillRect(x, y, 1, height, SSD1306_WHITE);
    else display.drawPixel(x, y + height - 1, SSD1306_WHITE);
  }
}

void drawHeader() {
  // Header has three fixed zones: city (0-83), Wi-Fi (88-95), clock (98-127).
  display.setTextColor(SSD1306_WHITE);
  display.setTextSize(1);
  display.setCursor(3, 2);
  String label = city;
  label.toUpperCase();
  if (label.length() > 13) label = label.substring(0, 13);
  display.print(label);
  drawWifiBars();
  display.setCursor(98, 2);
  display.print(clockText());
  display.drawFastHLine(0, 12, 128, SSD1306_WHITE);
}

void drawDots(uint8_t active) {
  for (uint8_t i = 0; i < 3; i++) {
    int x = 57 + i * 7;
    if (i == active) display.fillCircle(x, 60, 2, SSD1306_WHITE);
    else display.drawCircle(x, 60, 1, SSD1306_WHITE);
  }
}

void drawCurrentPage() {
  // One spacious card: condition, large temperature, then a short feels-like label.
  display.drawRoundRect(3, 16, 122, 39, 5, SSD1306_WHITE);
  display.setTextSize(1);
  display.setCursor(10, 21);
  String condition = shortCondition(currentCode);
  if (condition.length() > 10) condition = condition.substring(0, 10);
  display.print(condition);
  display.setTextSize(2);
  display.setCursor(10, 34);
  display.print(currentTemp);
  display.print("C");
  display.setTextSize(1);
  display.setCursor(72, 43);
  display.print("FEELS ");
  display.print(feelsTemp);
  display.print("C");
}

void drawDailyPage() {
  // Three fixed cards. H/L labels make the values readable without crowding.
  const char *labels[3] = {"TODAY", "TMRW", "DAY 3"};
  for (uint8_t i = 0; i < 3; i++) {
    int x = 3 + i * 42;
    display.drawRoundRect(x, 16, 39, 39, 5, SSD1306_WHITE);
    display.setTextSize(1);
    display.setCursor(x + 4, 21);
    display.print(labels[i]);
    display.setCursor(x + 6, 34);
    display.print("H ");
    display.print(forecast[i].high);
    display.setCursor(x + 6, 45);
    display.print("L ");
    display.print(forecast[i].low);
  }
}

void drawWeeklyPage() {
  // Three rows only: fixed day, high, and low columns cannot collide.
  display.setTextSize(1);
  display.setCursor(5, 16);
  display.print("DAY");
  display.setCursor(76, 16);
  display.print("HIGH");
  display.setCursor(105, 16);
  display.print("LOW");
  display.drawFastHLine(4, 25, 120, SSD1306_WHITE);
  for (uint8_t i = 0; i < 3; i++) {
    int y = 30 + i * 9;
    display.setCursor(5, y);
    String label = dayLabel(i);
    if (label.length() > 8) label = label.substring(0, 8);
    display.print(label);
    display.setCursor(78, y);
    display.print(forecast[i].high);
    display.setCursor(108, y);
    display.print(forecast[i].low);
  }
}

void drawStatusPage() {
  display.drawRoundRect(4, 19, 120, 31, 5, SSD1306_WHITE);
  display.setTextSize(1);
  display.setCursor(12, 25);
  if (WiFi.status() != WL_CONNECTED) {
    display.print("WIFI: ");
    display.print(wifiStateName(WiFi.status()));
    display.setCursor(12, 38);
    display.print("RETRYING / CHECK SSID");
  } else {
    display.print(fetchStatus);
    display.setCursor(12, 38);
    display.print("SEE SERIAL FOR DETAILS");
  }
}

void drawScreen() {
  display.clearDisplay();
  drawHeader();
  if (!hasWeather) drawStatusPage();
  else if (page == 0) drawCurrentPage();
  else if (page == 1) drawDailyPage();
  else drawWeeklyPage();
  drawDots(page);
  display.display();
}

bool loadSavedLocation() {
  preferences.begin("weather", true);
  bool saved = preferences.getBool("valid", false);
  if (saved) {
    city = preferences.getString("city", "LOCAL");
    latitude = preferences.getFloat("lat", 0.0f);
    longitude = preferences.getFloat("lon", 0.0f);
    utcOffsetSeconds = preferences.getLong("offset", 0);
  }
  preferences.end();
  Serial.printf("Location cache: %s\n", saved ? "loaded" : "empty");
  return saved;
}

void saveLocation() {
  preferences.begin("weather", false);
  preferences.putBool("valid", true);
  preferences.putString("city", city);
  preferences.putFloat("lat", latitude);
  preferences.putFloat("lon", longitude);
  preferences.putLong("offset", utcOffsetSeconds);
  preferences.end();
}

bool getJson(const String &url, JsonDocument &doc, const char *label) {
  WiFiClientSecure client;
  client.setInsecure();
  client.setHandshakeTimeout(20);
  HTTPClient request;
  request.setConnectTimeout(15000);
  request.setTimeout(20000);
  request.setReuse(false);
  request.setUserAgent("ESP32-NothingWeather/2.0");

  Serial.printf("%s: starting HTTPS request\n", label);
  Serial.printf("%s: URL %s\n", label, url.c_str());
  if (!request.begin(client, url)) {
    Serial.printf("%s: HTTP client setup failed\n", label);
    return false;
  }
  int httpCode = request.GET();
  if (httpCode != HTTP_CODE_OK) {
    Serial.printf("%s: HTTPS/HTTP failed, code=%d, error=%s\n", label, httpCode,
                  request.errorToString(httpCode).c_str());
    request.end();
    return false;
  }
  String payload = request.getString();
  request.end();
  Serial.printf("%s: HTTP 200, payload=%u bytes\n", label, (unsigned int)payload.length());
  if (payload.length() == 0) {
    Serial.printf("%s: empty payload; JSON parsing skipped\n", label);
    return false;
  }
  DeserializationError error = deserializeJson(doc, payload);
  if (error) {
    Serial.printf("%s: JSON error: %s\n", label, error.c_str());
    return false;
  }
  return true;
}

bool locateFromNetwork() {
  JsonDocument doc;
  if (!getJson("https://ipwho.is/?fields=success,city,latitude,longitude,timezone", doc, "Location")) return false;
  if (!(doc["success"] | false)) {
    Serial.println("Location: API reported failure");
    return false;
  }
  city = String(doc["city"] | "LOCAL");
  latitude = doc["latitude"] | 0.0f;
  longitude = doc["longitude"] | 0.0f;
  utcOffsetSeconds = doc["timezone"]["offset"] | 0L;
  if (latitude == 0.0f && longitude == 0.0f) {
    Serial.println("Location: no coordinates returned");
    return false;
  }
  saveLocation();
  return true;
}

bool fetchWeather() {
  if (!hasLocation) return false;
  String url = "https://api.open-meteo.com/v1/forecast?latitude=" + String(latitude, 4) +
               "&longitude=" + String(longitude, 4) +
               "&current=temperature_2m,apparent_temperature,weather_code"
               "&daily=weather_code,temperature_2m_max,temperature_2m_min"
               "&timezone=auto&forecast_days=7";
  JsonDocument doc;
  if (!getJson(url, doc, "Weather")) return false;

  JsonArray dates = doc["daily"]["time"].as<JsonArray>();
  JsonArray codes = doc["daily"]["weather_code"].as<JsonArray>();
  JsonArray highs = doc["daily"]["temperature_2m_max"].as<JsonArray>();
  JsonArray lows = doc["daily"]["temperature_2m_min"].as<JsonArray>();
  if (doc["current"].isNull() || dates.size() < 7 || codes.size() < 7 || highs.size() < 7 || lows.size() < 7) {
    Serial.printf("Weather: incomplete API data (days=%u/%u/%u/%u)\n", (unsigned int)dates.size(),
                  (unsigned int)codes.size(), (unsigned int)highs.size(), (unsigned int)lows.size());
    return false;
  }
  currentTemp = (int)round(doc["current"]["temperature_2m"] | 0.0f);
  feelsTemp = (int)round(doc["current"]["apparent_temperature"] | 0.0f);
  currentCode = doc["current"]["weather_code"] | -1;
  for (uint8_t i = 0; i < 7; i++) {
    forecast[i].date = String(dates[i] | "");
    forecast[i].code = codes[i] | -1;
    forecast[i].high = (int)round(highs[i] | 0.0f);
    forecast[i].low = (int)round(lows[i] | 0.0f);
  }
  hasWeather = true;
  fetchStatus = "WEATHER READY";
  Serial.printf("Weather: updated for %s, now %dC feels %dC\n", city.c_str(), currentTemp, feelsTemp);
  return true;
}

void startWifi(const char *reason) {
  Serial.printf("WiFi: starting connection (%s)\n", reason);
  Serial.printf("WiFi: requested SSID='%s', password length=%u\n", WIFI_SSID, (unsigned int)strlen(WIFI_PASSWORD));
  WiFi.disconnect(false, false);
  delay(100);
  WiFi.mode(WIFI_STA);
  WiFi.setAutoReconnect(true);
  WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
  lastWifiAttempt = millis();
}

void setup() {
  Serial.begin(115200);
  delay(300);
  Serial.println("\n--- NOTHING WEATHER BOOT ---");
  Serial.printf("Chip: ESP32, free heap: %u bytes\n", ESP.getFreeHeap());

  Wire.begin(OLED_SDA, OLED_SCL);
  if (!display.begin(SSD1306_SWITCHCAPVCC, OLED_ADDRESS)) {
    Serial.println("OLED: SSD1306 not found at 0x3C");
    while (true) delay(1000);
  }
  display.setTextColor(SSD1306_WHITE);
  hasLocation = loadSavedLocation();
  configTime(utcOffsetSeconds, 0, NTP_SERVER_1, NTP_SERVER_2);
  startWifi("boot");
  lastPageChange = millis();
}

void loop() {
  unsigned long now = millis();
  wl_status_t wifiStatus = WiFi.status();
  if (wifiStatus != lastWifiStatus) {
    Serial.printf("WiFi: state changed to %s (%d)\n", wifiStateName(wifiStatus), (int)wifiStatus);
    if (wifiStatus == WL_CONNECTED) printNetworkDetails();
    lastWifiStatus = wifiStatus;
    lastDraw = 0;
  }

  if (wifiStatus != WL_CONNECTED) {
    if (now - lastWifiAttempt >= WIFI_RETRY_MS) startWifi("retry timeout");
  } else {
    if (!hasLocation && (lastLocationAttempt == 0 || now - lastLocationAttempt >= RETRY_INTERVAL_MS)) {
      lastLocationAttempt = now;
      fetchStatus = "LOCATING";
      Serial.println("Location: lookup requested");
      hasLocation = locateFromNetwork();
      if (hasLocation) {
        Serial.printf("Location: %s (%.4f, %.4f), UTC offset %ld\n", city.c_str(), latitude, longitude, utcOffsetSeconds);
        configTime(utcOffsetSeconds, 0, NTP_SERVER_1, NTP_SERVER_2);
      } else {
        fetchStatus = "LOCATION FAILED";
      }
      lastDraw = 0;
    }

    unsigned long weatherDelay = hasWeather ? WEATHER_INTERVAL_MS : RETRY_INTERVAL_MS;
    if (hasLocation && (lastWeatherAttempt == 0 || now - lastWeatherAttempt >= weatherDelay)) {
      lastWeatherAttempt = now;
      fetchStatus = "FETCHING WEATHER";
      Serial.println("Weather: update requested");
      if (!fetchWeather()) fetchStatus = "WEATHER FAILED";
      lastDraw = 0;
    }
  }

  if (hasWeather && now - lastPageChange >= SCREEN_INTERVAL_MS) {
    page = (page + 1) % 3;
    lastPageChange = now;
    lastDraw = 0;
  }
  if (lastDraw == 0 || now - lastDraw >= 1000UL) {
    drawScreen();
    lastDraw = now;
  }
  delay(20);
}
