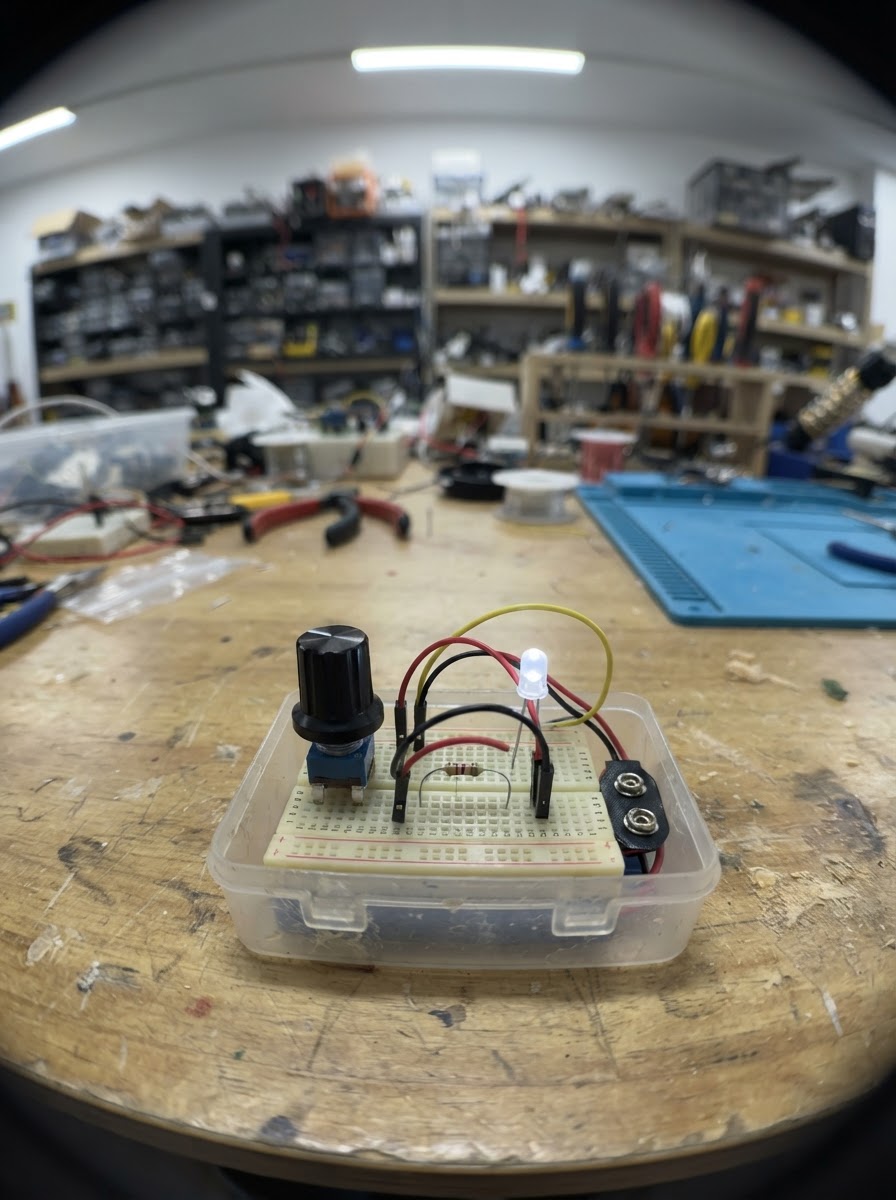

旋钮调光灯

#include <Arduino.h>
#include <Wire.h>
#include <unihiker_k10.h>
#include <lvgl.h>
#include <DFRobot_VisualRotaryEncoder.h>


// Forward declarations
void setLabelText(lv_obj_t *label, const char *format, ...);
void styleLabel(lv_obj_t *label, const lv_font_t *font, uint32_t color, int width, lv_text_align_t align);
void addHorizontalDivider(int y);
void initialiseEncoderA();
void connectEncoders();
void updateEncoderA();
void updateEncoderB();
void updateEncoderC();
lv_obj_t *createRow(int row, const char *title, const char *mode, uint32_t color);
uint8_t ringLedCount(uint16_t value);

constexpr int I2C_SDA_PIN = 47;
constexpr int I2C_SCL_PIN = 48;
constexpr uint8_t ADDRESS_A = 0x54;
constexpr uint8_t ADDRESS_B = 0x55;
constexpr uint8_t ADDRESS_C = 0x56;
constexpr uint16_t ONE_TURN_VALUE = 1023;
constexpr uint8_t B_STEP_COUNT = 5;
constexpr uint8_t C_STEP_COUNT = 1;
constexpr uint8_t RING_LED_COUNT = 20;
// One complete 20-LED fill represents these mechanical turns.
constexpr uint8_t A_TURNS_PER_FULL_RING = 1;
constexpr uint8_t B_TURNS_PER_FULL_RING = 10;
constexpr uint8_t C_TURNS_PER_FULL_RING = 50;
constexpr unsigned long READ_INTERVAL_MS = 20;
constexpr unsigned long RETRY_INTERVAL_MS = 1000;
constexpr int SCREEN_WIDTH = 320;
constexpr int SCREEN_HEIGHT = 240;
constexpr int ROW_HEIGHT = 80;

UNIHIKER_K10 k10;
DFRobot_VisualRotaryEncoder_I2C encoderA(ADDRESS_A, &Wire);
DFRobot_VisualRotaryEncoder_I2C encoderB(ADDRESS_B, &Wire);
DFRobot_VisualRotaryEncoder_I2C encoderC(ADDRESS_C, &Wire);

lv_obj_t *countALabel;
lv_obj_t *countBLabel;
lv_obj_t *countCLabel;
lv_obj_t *valueALabel;
lv_obj_t *valueBLabel;
lv_obj_t *valueCLabel;
lv_obj_t *barA;
lv_obj_t *barB;
lv_obj_t *barC;
// Right-side heading labels show each encoder's live raw position out of 1023.
lv_obj_t *modeALabel;
lv_obj_t *modeBLabel;
lv_obj_t *modeCLabel;

bool encoderAReady = false;
bool encoderBReady = false;
bool encoderCReady = false;
uint16_t lastA = 65535;
uint16_t lastB = 65535;
uint16_t lastC = 65535;
// Turns completed before the most recent encoder reset.
float storedTurnsA = 0.0f;
float storedTurnsB = 0.0f;
float storedTurnsC = 0.0f;
unsigned long lastReadTime = 0;
unsigned long lastRetryTime = 0;

void setLabelText(lv_obj_t *label, const char *format, ...) {
  char text[48];
  va_list args;
  va_start(args, format);
  vsnprintf(text, sizeof(text), format, args);
  va_end(args);
  lv_label_set_text(label, text);
}

void styleLabel(lv_obj_t *label, const lv_font_t *font, uint32_t color, int width, lv_text_align_t align) {
  lv_obj_set_style_text_font(label, font, 0);
  lv_obj_set_style_text_color(label, lv_color_hex(color), 0);
  lv_obj_set_style_text_align(label, align, 0);
  lv_obj_set_width(label, width);
}

void addHorizontalDivider(int y) {
  lv_obj_t *line = lv_obj_create(lv_scr_act());
  lv_obj_set_size(line, SCREEN_WIDTH, 1);
  lv_obj_set_pos(line, 0, y);
  lv_obj_set_style_bg_color(line, lv_color_hex(0xA0A0A0), 0);
  lv_obj_set_style_border_width(line, 0, 0);
  lv_obj_clear_flag(line, LV_OBJ_FLAG_SCROLLABLE);
}

lv_obj_t *createProgressBar(int y, uint32_t color) {
  lv_obj_t *bar = lv_bar_create(lv_scr_act());
  lv_obj_set_size(bar, 124, 14);
  lv_obj_set_pos(bar, 184, y);
  lv_bar_set_range(bar, 0, ONE_TURN_VALUE);
  lv_bar_set_value(bar, 0, LV_ANIM_OFF);
  lv_obj_set_style_bg_color(bar, lv_color_hex(0xE4E4E4), LV_PART_MAIN);
  lv_obj_set_style_bg_opa(bar, LV_OPA_COVER, LV_PART_MAIN);
  lv_obj_set_style_bg_color(bar, lv_color_hex(color), LV_PART_INDICATOR);
  lv_obj_set_style_border_color(bar, lv_color_hex(0x303030), LV_PART_MAIN);
  lv_obj_set_style_border_width(bar, 1, LV_PART_MAIN);
  return bar;
}

void initialiseEncoderA() {
  encoderAReady = (encoderA.begin() == NO_ERR);
  if (encoderAReady) {
    encoderA.setGainCoefficient(51);
    lastA = 65535;
  }
}

void connectEncoders() {
  if (!encoderAReady) initialiseEncoderA();
  if (!encoderBReady) {
    encoderBReady = (encoderB.begin() == NO_ERR);
    if (encoderBReady) encoderB.setGainCoefficient(5);
  }
  if (!encoderCReady) {
    encoderCReady = (encoderC.begin() == NO_ERR);
    if (encoderCReady) encoderC.setGainCoefficient(1);
  }
}

void updateEncoderA() {
  uint16_t value = encoderA.getEncoderValue();
  if (encoderA.detectButtonDown()) {
    // Keep the part already travelled, then start the next measurement at zero.
    storedTurnsA += (static_cast<float>(value) / ONE_TURN_VALUE) * A_TURNS_PER_FULL_RING;
    encoderA.setEncoderValue(0);
    value = 0;
    lastA = 65535;
  }

  const float turns = storedTurnsA +
                      (static_cast<float>(value) / ONE_TURN_VALUE) * A_TURNS_PER_FULL_RING;
  if (value != lastA) {
    lastA = value;
    lv_bar_set_value(barA, value, LV_ANIM_OFF);
    setLabelText(modeALabel, "%u / 1023", value);
  }
  setLabelText(countALabel, "Turns: %.2f", turns);
}

void updateEncoderB() {
  uint16_t value = encoderB.getEncoderValue();
  if (encoderB.detectButtonDown()) {
    // Preserve partial turns as well as completed turns when resetting B.
    storedTurnsB += (static_cast<float>(value) / ONE_TURN_VALUE) * B_TURNS_PER_FULL_RING;
    encoderB.setEncoderValue(0);
    value = 0;
    lastB = 65535;
  }

  const float turns = storedTurnsB +
                      (static_cast<float>(value) / ONE_TURN_VALUE) * B_TURNS_PER_FULL_RING;
  if (value != lastB) {
    lastB = value;
    lv_bar_set_value(barB, value, LV_ANIM_OFF);
    setLabelText(modeBLabel, "%u / 1023", value);
  }
  setLabelText(countBLabel, "Turns: %.1f", turns);
}

void updateEncoderC() {
  uint16_t value = encoderC.getEncoderValue();
  if (encoderC.detectButtonDown()) {
    // Preserve partial turns as well as completed turns when resetting C.
    storedTurnsC += (static_cast<float>(value) / ONE_TURN_VALUE) * C_TURNS_PER_FULL_RING;
    encoderC.setEncoderValue(0);
    value = 0;
    lastC = 65535;
  }

  const float turns = storedTurnsC +
                      (static_cast<float>(value) / ONE_TURN_VALUE) * C_TURNS_PER_FULL_RING;
  if (value != lastC) {
    lastC = value;
    lv_bar_set_value(barC, value, LV_ANIM_OFF);
    setLabelText(modeCLabel, "%u / 1023", value);
  }
  setLabelText(countCLabel, "Turns: %.1f", turns);
}

lv_obj_t *createRow(int row, const char *title, const char *mode, uint32_t color) {
  const int y = row * ROW_HEIGHT;

  lv_obj_t *titleLabel = lv_label_create(lv_scr_act());
  lv_obj_t *modeLabel = lv_label_create(lv_scr_act());
  styleLabel(titleLabel, &lv_font_montserrat_14, color, 166, LV_TEXT_ALIGN_LEFT);
  lv_label_set_text(titleLabel, title);
  lv_label_set_text(modeLabel, mode);
  // Place the encoder heading lower within the top area of each row.
  lv_obj_set_pos(titleLabel, 10, y + 20);

  // Centre the live raw reading directly over this row's progress bar.
  styleLabel(modeLabel, &lv_font_montserrat_14, 0x101010, 124, LV_TEXT_ALIGN_CENTER);
  lv_obj_set_pos(modeLabel, 184, y + 48);
  return modeLabel;
}

uint8_t ringLedCount(uint16_t value) {
  return (uint8_t)((uint32_t)value * RING_LED_COUNT / ONE_TURN_VALUE);
}

void setup() {
  k10.begin();
  // Rotation 3 is the 180-degree counterpart of landscape rotation 1.
  k10.initScreen(3);
  Wire.begin(I2C_SDA_PIN, I2C_SCL_PIN);

  lv_obj_set_style_bg_color(lv_scr_act(), lv_color_hex(0xFFFFFF), 0);
  lv_obj_set_style_bg_opa(lv_scr_act(), LV_OPA_COVER, 0);

  addHorizontalDivider(ROW_HEIGHT);
  addHorizontalDivider(ROW_HEIGHT * 2);
  modeALabel = createRow(0, "A Encoder", "-- / 1023", 0xEA7B17);
  modeBLabel = createRow(1, "B Encoder", "-- / 1023", 0x3978C6);
  modeCLabel = createRow(2, "C Encoder", "-- / 1023", 0x588E5C);

  countALabel = lv_label_create(lv_scr_act());
  countBLabel = lv_label_create(lv_scr_act());
  countCLabel = lv_label_create(lv_scr_act());
  valueALabel = lv_label_create(lv_scr_act());
  valueBLabel = lv_label_create(lv_scr_act());
  valueCLabel = lv_label_create(lv_scr_act());

  lv_obj_t *countLabels[] = {countALabel, countBLabel, countCLabel};
  lv_obj_t *valueLabels[] = {valueALabel, valueBLabel, valueCLabel};
  for (lv_obj_t *label : countLabels) styleLabel(label, &lv_font_montserrat_14, 0x101010, 155, LV_TEXT_ALIGN_LEFT);
  for (lv_obj_t *label : valueLabels) styleLabel(label, &lv_font_montserrat_14, 0x101010, 155, LV_TEXT_ALIGN_LEFT);

  // Align each Turns label vertically with its row's progress bar.
  lv_obj_set_pos(countALabel, 10, 48);
  lv_obj_set_pos(valueALabel, 10, 69);
  lv_obj_set_pos(countBLabel, 10, 128);
  lv_obj_set_pos(valueBLabel, 10, 149);
  lv_obj_set_pos(countCLabel, 10, 208);
  lv_obj_set_pos(valueCLabel, 10, 229);

  barA = createProgressBar(48, 0xEA7B17);
  barB = createProgressBar(128, 0x3978C6);
  barC = createProgressBar(208, 0x588E5C);

  // Bars are created after the labels, so explicitly keep the live readings visible above them.
  lv_obj_move_foreground(modeALabel);
  lv_obj_move_foreground(modeBLabel);
  lv_obj_move_foreground(modeCLabel);

  lv_label_set_text(countALabel, "Turns: 0");
  lv_label_set_text(countBLabel, "Turns: 0");
  lv_label_set_text(countCLabel, "Turns: 0");
  lv_label_set_text(valueALabel, "");
  lv_label_set_text(valueBLabel, "");
  lv_label_set_text(valueCLabel, "");

  connectEncoders();
}

void loop() {
  lv_timer_handler();
  const unsigned long now = millis();

  if (now - lastRetryTime >= RETRY_INTERVAL_MS) {
    lastRetryTime = now;
    connectEncoders();
  }
  if (now - lastReadTime < READ_INTERVAL_MS) return;
  lastReadTime = now;

  if (encoderAReady) updateEncoderA();
  if (encoderBReady) updateEncoderB();
  if (encoderCReady) updateEncoderC();
}
