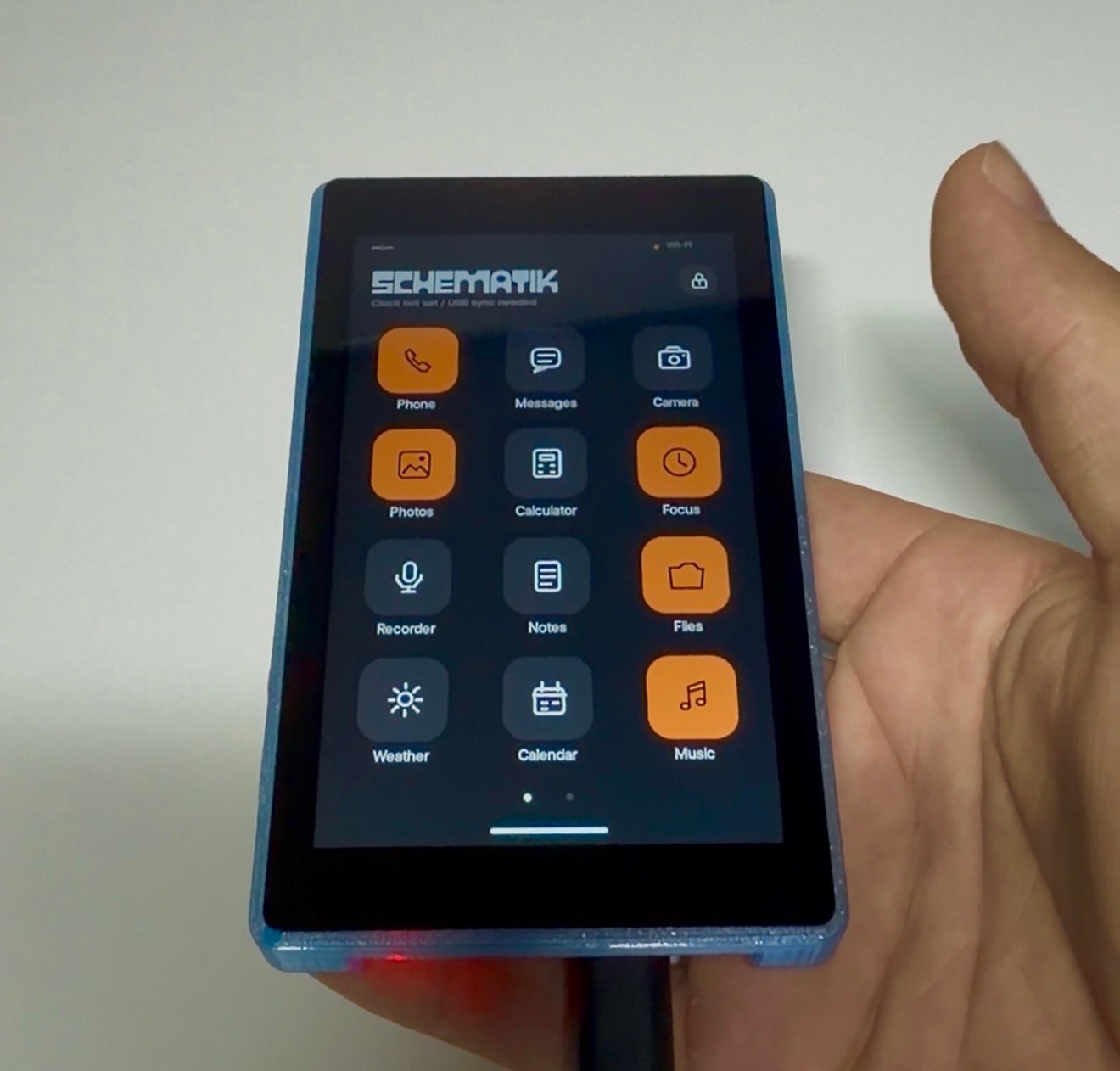

DIY ESP Phone

#include <Arduino.h>
#include <lvgl.h>
#include "schematik_display.h"
#include <WiFi.h>
#include "clock_app.h"
#include "internet_apps.h"
#include "metro_run.h"
#include <math.h>
#include <string.h>

// The Waveshare BSP owns the ST7701/DSI panel, GPIO26 backlight, GT911 touch,
// LVGL ticks, and its GUI task. This sketch creates only the UI.

enum AppId {
  PHONE, MESSAGES, CAMERA, PHOTOS, CALCULATOR, CLOCK, NOTES, FILES, WEATHER,
  CALENDAR, SETTINGS, MAPS, CONTACTS, MAIL, BROWSER, TASKS, REMINDERS, HEALTH,
  WALLET, COMPASS, BOOKS, NEWS, HELP, ABOUT, METRO_RUN
};

struct AppInfo { const char *name; const char *icon; bool orange; const char *description; };


// Forward declarations

// Forward declarations
static void showClock();
static void showWeather();
static void showNews();
static void showMetroRun();

static void homeEvent(lv_event_t *event);
static void backEvent(lv_event_t *event);
static void appEvent(lv_event_t *event);
static void pageEvent(lv_event_t *event);
static void homeSwipeEvent(lv_event_t *event);

// Wi-Fi uses the board's factory-programmed ESP32-C6 helper. Credentials stay
// in RAM for this session only; this project never updates the helper or saves
// a network profile to flash.
// ESP32-C6 ESP-Hosted SDIO wiring on this Waveshare ESP32-P4 board.
// It must be supplied to Arduino before the first Wi-Fi operation.
static constexpr int HOSTED_CLK = 18;
static constexpr int HOSTED_CMD = 19;
static constexpr int HOSTED_D0 = 14;
static constexpr int HOSTED_D1 = 15;
static constexpr int HOSTED_D2 = 16;
static constexpr int HOSTED_D3 = 17;
static constexpr int HOSTED_RESET = 54;
static bool hostedPinsConfigured = false;
static bool settingsVisible = false;
static bool scanPending = false;
static bool wifiConnecting = false;
static uint32_t wifiConnectStartedAt = 0;
static int scanResultCount = -2;
static String selectedNetwork;
static lv_obj_t *wifiStatusLabel = nullptr;
static lv_obj_t *wifiList = nullptr;
static lv_obj_t *passwordBox = nullptr;
static lv_obj_t *keyboard = nullptr;

static void configureHostedWifi();
static void startWifiScan();
static void pollWifi();
static void wifiScanEvent(lv_event_t *event);
static void wifiNetworkEvent(lv_event_t *event);
static void wifiConnectEvent(lv_event_t *event);
static void wifiPasswordEvent(lv_event_t *event);
static void wifiPasswordFocusEvent(lv_event_t *event);

namespace Theme {
const lv_color_t BG = lv_color_hex(0x181818);
const lv_color_t TILE = lv_color_hex(0x2C2B2C);
const lv_color_t TEXT = lv_color_hex(0xF1ECE3);
const lv_color_t MUTED = lv_color_hex(0x858081);
const lv_color_t ACCENT = lv_color_hex(0xFB7040);
const lv_color_t DIVIDER = lv_color_hex(0x373635);
}

const AppInfo APPS[] = {
  {"Phone", "()", true, "Phone will be available in a future version."},
  {"Messages", "[]", false, "Messages will be available in a future version."},
  {"Camera", "O", false, "Camera will be available in a future version."},
  {"Photos", "o", true, "Photos will be available in a future version."},
  {"Calculator", "+", false, ""},
  {"Clock", "@", true, "Clock will be available in a future version."},
  {"Notes", "=", false, "Notes will be available in a future version."},
  {"Files", "#", false, "Files will be available in a future version."},
  {"Weather", "~", false, "Weather will be available in a future version."},
  {"Calendar", "7", false, "Calendar will be available in a future version."},
  {"Settings", "*", false, "Wi-Fi setup is not available on this firmware target yet."},
  {"Maps", "><", false, "Maps will be available in a future version."},
  {"Contacts", "@", false, "Contacts will be available in a future version."},
  {"Mail", "[]", false, "Mail will be available in a future version."},
  {"Browser", "o", false, "Browser will be available in a future version."},
  {"Tasks", "+", false, "Tasks will be available in a future version."},
  {"Reminders", "!", true, "Reminders will be available in a future version."},
  {"Health", "+", false, "Health will be available in a future version."},
  {"Wallet", "$", false, "Wallet will be available in a future version."},
  {"Compass", "N", false, "Compass will be available in a future version."},
  {"Books", "=", false, "Books will be available in a future version."},
  {"News", "i", false, "News will be available in a future version."},
  {"Help", "?", false, "Help will be available in a future version."},
  {"About", "i", false, "About will be available in a future version."},
  {"Metro Run", ">", true, ""}
};
static constexpr int APP_COUNT = sizeof(APPS) / sizeof(APPS[0]);
static constexpr int HOME_PAGE_COUNT = (APP_COUNT + 11) / 12;

static lv_obj_t *calcDisplay = nullptr;
static String entry = "0";
static double accumulator = 0.0;
static char pendingOp = 0;
static bool freshEntry = true;
static bool calcError = false;
static uint8_t homePage = 0;

static void showHome();
static void openApp(AppId app);
static void baseScreen();
static void styleLabel(lv_obj_t *label, lv_color_t color, const lv_font_t *font);
static void buttonStyle(lv_obj_t *button, lv_color_t normal, lv_color_t pressed, int radius);
static void makeHomeIndicator();
static void makeHeader(const char *title);
static void showPlaceholder(AppId app);
static void showSettings();
static void showWifiPasswordScreen();
static void makeWifiNetworkList();
static String formatNumber(double value);
static void updateCalcDisplay();
static void setError();
static bool applyPending();
static void calculatorEvent(lv_event_t *event);
static void calcKey(const char *text, int x, int y, int w, bool accent);
static void showCalculator();

static void baseScreen() {
  clockAppDeactivate();
  weatherAppDeactivate();
  newsAppDeactivate();
  metroRunDeactivate();
  settingsVisible = false;
  wifiStatusLabel = nullptr;
  wifiList = nullptr;
  passwordBox = nullptr;
  keyboard = nullptr;
  lv_obj_t *screen = lv_scr_act();
  while (lv_obj_remove_event_cb(screen, homeSwipeEvent)) {}
  lv_obj_clean(screen);
  lv_obj_set_style_bg_color(screen, Theme::BG, 0);
  lv_obj_set_style_bg_opa(screen, LV_OPA_COVER, 0);
  lv_obj_clear_flag(screen, LV_OBJ_FLAG_SCROLLABLE);
}

static void styleLabel(lv_obj_t *label, lv_color_t color, const lv_font_t *font) {
  lv_obj_set_style_text_color(label, color, 0);
  lv_obj_set_style_text_font(label, font, 0);
  lv_obj_clear_flag(label, LV_OBJ_FLAG_CLICKABLE);
}

static void buttonStyle(lv_obj_t *button, lv_color_t normal, lv_color_t pressed, int radius) {
  lv_obj_set_style_bg_color(button, normal, LV_PART_MAIN | LV_STATE_DEFAULT);
  lv_obj_set_style_bg_opa(button, LV_OPA_COVER, LV_PART_MAIN | LV_STATE_DEFAULT);
  lv_obj_set_style_bg_color(button, pressed, LV_PART_MAIN | LV_STATE_PRESSED);
  lv_obj_set_style_radius(button, radius, 0);
  lv_obj_set_style_border_width(button, 0, 0);
  lv_obj_set_style_shadow_width(button, 0, 0);
  lv_obj_clear_flag(button, LV_OBJ_FLAG_SCROLLABLE);
}

static void homeEvent(lv_event_t *event) { homePage = 0; showHome(); }
static void backEvent(lv_event_t *event) { homePage = 0; showHome(); }
static void appEvent(lv_event_t *event) { openApp((AppId)(uintptr_t)lv_event_get_user_data(event)); }
static void pageEvent(lv_event_t *event) { homePage = (homePage + 1) % HOME_PAGE_COUNT; showHome(); }

// LVGL recognizes the GT911 finger movement as a gesture. Page changes happen
// only for horizontal swipes, so ordinary taps still open the selected app.
static void homeSwipeEvent(lv_event_t *event) {
  lv_indev_t *indev = lv_indev_get_act();
  if (!indev) return;
  lv_dir_t direction = lv_indev_get_gesture_dir(indev);
  if (direction == LV_DIR_LEFT && homePage + 1 < HOME_PAGE_COUNT) {
    homePage++;
    showHome();
  } else if (direction == LV_DIR_RIGHT && homePage > 0) {
    homePage--;
    showHome();
  }
}

static void makeHomeIndicator() {
  lv_obj_t *hit = lv_btn_create(lv_scr_act());
  lv_obj_set_size(hit, 160, 48);
  lv_obj_set_pos(hit, 160, 738);
  lv_obj_set_style_bg_opa(hit, LV_OPA_TRANSP, 0);
  lv_obj_set_style_border_width(hit, 0, 0);
  lv_obj_set_style_shadow_width(hit, 0, 0);
  lv_obj_add_event_cb(hit, homeEvent, LV_EVENT_CLICKED, nullptr);
  lv_obj_t *bar = lv_obj_create(hit);
  lv_obj_set_size(bar, 86, 5);
  lv_obj_center(bar);
  lv_obj_set_style_bg_color(bar, Theme::TEXT, 0);
  lv_obj_set_style_bg_opa(bar, LV_OPA_COVER, 0);
  lv_obj_set_style_radius(bar, 4, 0);
  lv_obj_set_style_border_width(bar, 0, 0);
  lv_obj_clear_flag(bar, LV_OBJ_FLAG_CLICKABLE);
}

static void makeHeader(const char *title) {
  lv_obj_t *back = lv_btn_create(lv_scr_act());
  lv_obj_set_size(back, 96, 52);
  lv_obj_set_pos(back, 18, 20);
  buttonStyle(back, Theme::TILE, lv_color_hex(0x454345), 16);
  lv_obj_add_event_cb(back, backEvent, LV_EVENT_CLICKED, nullptr);
  lv_obj_t *backText = lv_label_create(back);
  lv_label_set_text(backText, "< Back");
  styleLabel(backText, Theme::TEXT, &lv_font_montserrat_16);
  lv_obj_center(backText);
  lv_obj_t *heading = lv_label_create(lv_scr_act());
  lv_label_set_text(heading, title);
  styleLabel(heading, Theme::TEXT, &lv_font_montserrat_24);
  lv_obj_align(heading, LV_ALIGN_TOP_MID, 0, 33);
  lv_obj_t *line = lv_obj_create(lv_scr_act());
  lv_obj_set_size(line, 444, 1);
  lv_obj_set_pos(line, 18, 84);
  lv_obj_set_style_bg_color(line, Theme::DIVIDER, 0);
  lv_obj_set_style_border_width(line, 0, 0);
}

static void showHome() {
  baseScreen();
  // Receive swipes from empty Home-screen space and from the app tiles below.
  lv_obj_add_event_cb(lv_scr_act(), homeSwipeEvent, LV_EVENT_GESTURE, nullptr);
  lv_obj_t *title = lv_label_create(lv_scr_act());
  lv_label_set_text(title, "Home");
  styleLabel(title, Theme::TEXT, &lv_font_montserrat_28);
  lv_obj_set_pos(title, 24, 27);

  lv_obj_t *pageButton = lv_btn_create(lv_scr_act());
  lv_obj_set_size(pageButton, 98, 46);
  lv_obj_set_pos(pageButton, 358, 21);
  buttonStyle(pageButton, Theme::TILE, lv_color_hex(0x454345), 16);
  lv_obj_add_event_cb(pageButton, pageEvent, LV_EVENT_CLICKED, nullptr);
  lv_obj_t *pageText = lv_label_create(pageButton);
  lv_label_set_text_fmt(pageText, "%d / %d  >", homePage + 1, HOME_PAGE_COUNT);
  styleLabel(pageText, Theme::TEXT, &lv_font_montserrat_14);
  lv_obj_center(pageText);

  lv_obj_t *line = lv_obj_create(lv_scr_act());
  lv_obj_set_size(line, 432, 1);
  lv_obj_set_pos(line, 24, 78);
  lv_obj_set_style_bg_color(line, Theme::DIVIDER, 0);
  lv_obj_set_style_border_width(line, 0, 0);

  const int xs[3] = {50, 192, 334};
  const int ys[4] = {104, 260, 416, 572};
  const int firstApp = homePage * 12;
  for (int i = 0; i < 12 && firstApp + i < APP_COUNT; ++i) {
    int col = i % 3;
    int row = i / 3;
    const AppInfo &app = APPS[firstApp + i];
    lv_color_t tileColor = app.orange ? Theme::ACCENT : Theme::TILE;
    lv_color_t ink = app.orange ? Theme::BG : Theme::TEXT;
    lv_obj_t *tile = lv_btn_create(lv_scr_act());
    lv_obj_set_size(tile, 96, 96);
    lv_obj_set_pos(tile, xs[col], ys[row]);
    buttonStyle(tile, tileColor, app.orange ? lv_color_hex(0xD95D34) : lv_color_hex(0x454345), 26);
    lv_obj_add_event_cb(tile, appEvent, LV_EVENT_CLICKED, (void *)(uintptr_t)(firstApp + i));
    lv_obj_add_flag(tile, LV_OBJ_FLAG_GESTURE_BUBBLE);
    lv_obj_t *glyph = lv_label_create(tile);
    lv_label_set_text(glyph, app.icon);
    styleLabel(glyph, ink, &lv_font_montserrat_40);
    lv_obj_center(glyph);
    lv_obj_t *label = lv_label_create(lv_scr_act());
    lv_label_set_text(label, app.name);
    styleLabel(label, Theme::TEXT, &lv_font_montserrat_14);
    lv_obj_set_width(label, 128);
    lv_obj_set_style_text_align(label, LV_TEXT_ALIGN_CENTER, 0);
    lv_obj_set_pos(label, xs[col] - 16, ys[row] + 106);
  }
  makeHomeIndicator();
}

static void showClock() {
  baseScreen();
  makeHeader("Clock");
  showClockApp();
  makeHomeIndicator();
}

static void showWeather() {
  baseScreen();
  makeHeader("Weather");
  showWeatherApp();
  makeHomeIndicator();
}

static void showNews() {
  baseScreen();
  makeHeader("News");
  showNewsApp();
  makeHomeIndicator();
}

static void showMetroRun() {
  baseScreen();
  makeHeader("Metro Run");
  showMetroRunApp();
  makeHomeIndicator();
}

static void showPlaceholder(AppId app) {
  baseScreen();
  makeHeader(APPS[app].name);
  lv_obj_t *icon = lv_label_create(lv_scr_act());
  lv_label_set_text(icon, APPS[app].icon);
  styleLabel(icon, APPS[app].orange ? Theme::ACCENT : Theme::TEXT, &lv_font_montserrat_48);
  lv_obj_align(icon, LV_ALIGN_TOP_MID, 0, 210);
  lv_obj_t *soon = lv_label_create(lv_scr_act());
  lv_label_set_text(soon, "Coming soon");
  styleLabel(soon, Theme::TEXT, &lv_font_montserrat_28);
  lv_obj_align(soon, LV_ALIGN_TOP_MID, 0, 302);
  lv_obj_t *desc = lv_label_create(lv_scr_act());
  lv_label_set_text(desc, APPS[app].description);
  styleLabel(desc, Theme::MUTED, &lv_font_montserrat_16);
  lv_obj_set_width(desc, 370);
  lv_obj_set_style_text_align(desc, LV_TEXT_ALIGN_CENTER, 0);
  lv_obj_align(desc, LV_ALIGN_TOP_MID, 0, 354);
  makeHomeIndicator();
}

static void makeWifiNetworkList() {
  if (!wifiList) return;
  lv_obj_clean(wifiList);
  if (scanResultCount <= 0) {
    lv_obj_t *empty = lv_label_create(wifiList);
    lv_label_set_text(empty, scanResultCount == 0 ? "No networks found" : "Looking for nearby networks...");
    styleLabel(empty, Theme::MUTED, &lv_font_montserrat_16);
    lv_obj_center(empty);
    return;
  }
  for (int i = 0; i < scanResultCount && i < 5; ++i) {
    String ssid = WiFi.SSID(i);
    if (!ssid.length()) continue;
    lv_obj_t *network = lv_btn_create(wifiList);
    lv_obj_set_size(network, 396, 45);
    lv_obj_set_pos(network, 0, i * 51);
    buttonStyle(network, Theme::TILE, lv_color_hex(0x454345), 12);
    lv_obj_add_event_cb(network, wifiNetworkEvent, LV_EVENT_CLICKED, (void *)(intptr_t)i);
    lv_obj_t *text = lv_label_create(network);
    lv_label_set_text(text, ssid.c_str());
    styleLabel(text, Theme::TEXT, &lv_font_montserrat_16);
    lv_obj_align(text, LV_ALIGN_LEFT_MID, 14, 0);
  }
}

static void configureHostedWifi() {
  if (hostedPinsConfigured) return;
  WiFi.setPins(HOSTED_CLK, HOSTED_CMD, HOSTED_D0, HOSTED_D1, HOSTED_D2, HOSTED_D3, HOSTED_RESET);
  hostedPinsConfigured = true;
}

static void startWifiScan() {
  configureHostedWifi();
  wifiConnecting = false;
  WiFi.mode(WIFI_STA);
  WiFi.disconnect(false, false);
  WiFi.scanDelete();
  scanResultCount = -1;
  scanPending = WiFi.scanNetworks(true, true) == -1;
  if (wifiStatusLabel) lv_label_set_text(wifiStatusLabel, "Searching nearby networks...");
  makeWifiNetworkList();
}

static void wifiScanEvent(lv_event_t *event) { startWifiScan(); }

static void wifiNetworkEvent(lv_event_t *event) {
  int index = (int)(intptr_t)lv_event_get_user_data(event);
  selectedNetwork = WiFi.SSID(index);
  showWifiPasswordScreen();
}

static void wifiPasswordEvent(lv_event_t *event) {
  const lv_event_code_t code = lv_event_get_code(event);
  if (code != LV_EVENT_READY && code != LV_EVENT_CANCEL) return;

  if (keyboard) lv_obj_add_flag(keyboard, LV_OBJ_FLAG_HIDDEN);
  if (code == LV_EVENT_READY) wifiConnectEvent(event);
}

// Tapping the password box must always reveal the on-screen keyboard, even
// after a scan result has been selected or the keyboard was dismissed.
static void wifiPasswordFocusEvent(lv_event_t *event) {
  if (!keyboard || !passwordBox) return;
  lv_keyboard_set_textarea(keyboard, passwordBox);
  lv_obj_clear_flag(keyboard, LV_OBJ_FLAG_HIDDEN);
}

static void wifiConnectEvent(lv_event_t *event) {
  if (!selectedNetwork.length()) {
    if (wifiStatusLabel) lv_label_set_text(wifiStatusLabel, "Choose a network first");
    return;
  }
  if (wifiConnecting) return;  // One connection attempt at a time.
  configureHostedWifi();
  const char *password = passwordBox ? lv_textarea_get_text(passwordBox) : "";
  if (wifiStatusLabel) {
    lv_label_set_text_fmt(wifiStatusLabel,
                          "Connection request sent for %s\nWaiting for the router (up to 20 seconds)...",
                          selectedNetwork.c_str());
  }
  WiFi.disconnect(false, false);
  WiFi.begin(selectedNetwork.c_str(), password);
  wifiConnecting = true;
  wifiConnectStartedAt = millis();
}

static void pollWifi() {
  if (wifiConnecting && millis() - wifiConnectStartedAt > 20000) {
    wifiConnecting = false;
    if (settingsVisible && schematikDisplayLock()) {
      if (wifiStatusLabel) {
        lv_label_set_text(wifiStatusLabel,
                          "Connection report: timed out after 20 seconds.\n"
                          "The board did not join the router. Check that this is a 2.4 GHz WPA2/WPA3 network, then try again.");
      }
      schematikDisplayUnlock();
    }
  }
  if (scanPending) {
    int result = WiFi.scanComplete();
    if (result >= 0) {
      scanPending = false;
      scanResultCount = result;
      if (schematikDisplayLock()) {
        if (settingsVisible && wifiStatusLabel) lv_label_set_text_fmt(wifiStatusLabel, "%d network%s found", result, result == 1 ? "" : "s");
        if (settingsVisible) makeWifiNetworkList();
        schematikDisplayUnlock();
      }
    }
  }
  static wl_status_t lastStatus = WL_IDLE_STATUS;
  wl_status_t status = WiFi.status();
  if (status != lastStatus) {
    lastStatus = status;
    if (settingsVisible && schematikDisplayLock()) {
      if (wifiStatusLabel) {
        if (status == WL_CONNECTED) {
          wifiConnecting = false;
          lv_label_set_text_fmt(wifiStatusLabel, "Connected: %s", WiFi.localIP().toString().c_str());
        } else if (status == WL_CONNECT_FAILED) {
          wifiConnecting = false;
          lv_label_set_text(wifiStatusLabel,
                            "Connection report: the router rejected the join request.\n"
                            "Check the password and router security mode.");
        } else if (status == WL_NO_SSID_AVAIL) {
          wifiConnecting = false;
          lv_label_set_text(wifiStatusLabel,
                            "Connection report: this network is no longer visible.\n"
                            "Move closer to the router, scan again, then retry.");
        }
      }
      schematikDisplayUnlock();
    }
  }
}

static void showSettings() {
  baseScreen();
  settingsVisible = true;
  makeHeader("Settings");
  lv_obj_t *section = lv_label_create(lv_scr_act());
  lv_label_set_text(section, "Wi-Fi");
  styleLabel(section, Theme::TEXT, &lv_font_montserrat_24);
  lv_obj_set_pos(section, 28, 108);
  wifiStatusLabel = lv_label_create(lv_scr_act());
  lv_label_set_text(wifiStatusLabel, "Preparing Wi-Fi...");
  styleLabel(wifiStatusLabel, Theme::MUTED, &lv_font_montserrat_16);
  lv_obj_set_width(wifiStatusLabel, 400);
  lv_obj_set_pos(wifiStatusLabel, 28, 145);
  lv_obj_t *scan = lv_btn_create(lv_scr_act());
  lv_obj_set_size(scan, 130, 42);
  lv_obj_set_pos(scan, 326, 108);
  buttonStyle(scan, Theme::ACCENT, lv_color_hex(0xD95D34), 14);
  lv_obj_add_event_cb(scan, wifiScanEvent, LV_EVENT_CLICKED, nullptr);
  lv_obj_t *scanText = lv_label_create(scan);
  lv_label_set_text(scanText, "Scan");
  styleLabel(scanText, Theme::BG, &lv_font_montserrat_16);
  lv_obj_center(scanText);
  wifiList = lv_obj_create(lv_scr_act());
  lv_obj_set_size(wifiList, 412, 255);
  lv_obj_set_pos(wifiList, 34, 178);
  lv_obj_set_style_bg_color(wifiList, Theme::BG, 0);
  lv_obj_set_style_border_width(wifiList, 0, 0);
  lv_obj_set_style_pad_all(wifiList, 0, 0);
  lv_obj_clear_flag(wifiList, LV_OBJ_FLAG_SCROLLABLE);
  lv_obj_t *hint = lv_label_create(lv_scr_act());
  lv_label_set_text(hint, "Tap a network, then enter its password.");
  styleLabel(hint, Theme::MUTED, &lv_font_montserrat_16);
  lv_obj_set_pos(hint, 28, 454);
  makeHomeIndicator();
  startWifiScan();
}

// A selected network gets its own screen. This avoids placing a small password
// field below a changing scan list and guarantees that both the field and the
// keyboard are visible on the 480 x 800 portrait panel.
static void showWifiPasswordScreen() {
  baseScreen();
  settingsVisible = true;
  makeHeader("Wi-Fi password");

  lv_obj_t *network = lv_label_create(lv_scr_act());
  lv_label_set_text(network, selectedNetwork.c_str());
  styleLabel(network, Theme::TEXT, &lv_font_montserrat_24);
  lv_obj_set_width(network, 420);
  lv_obj_set_style_text_align(network, LV_TEXT_ALIGN_CENTER, 0);
  lv_obj_set_pos(network, 30, 112);

  lv_obj_t *instruction = lv_label_create(lv_scr_act());
  lv_label_set_text(instruction, "Enter the password for this network");
  styleLabel(instruction, Theme::MUTED, &lv_font_montserrat_16);
  lv_obj_set_width(instruction, 420);
  lv_obj_set_style_text_align(instruction, LV_TEXT_ALIGN_CENTER, 0);
  lv_obj_set_pos(instruction, 30, 154);

  passwordBox = lv_textarea_create(lv_scr_act());
  lv_obj_set_size(passwordBox, 432, 62);
  lv_obj_set_pos(passwordBox, 24, 194);
  lv_textarea_set_one_line(passwordBox, true);
  lv_textarea_set_password_mode(passwordBox, true);
  lv_textarea_set_placeholder_text(passwordBox, "Password");
  lv_obj_set_style_bg_color(passwordBox, Theme::TILE, 0);
  lv_obj_set_style_text_color(passwordBox, Theme::TEXT, 0);
  lv_obj_set_style_text_font(passwordBox, &lv_font_montserrat_18, 0);
  lv_obj_set_style_radius(passwordBox, 16, 0);
  lv_obj_set_style_border_width(passwordBox, 2, 0);
  lv_obj_set_style_border_color(passwordBox, Theme::ACCENT, LV_STATE_FOCUSED);
  lv_obj_add_event_cb(passwordBox, wifiPasswordFocusEvent, LV_EVENT_FOCUSED, nullptr);
  lv_obj_add_event_cb(passwordBox, wifiPasswordFocusEvent, LV_EVENT_CLICKED, nullptr);

  lv_obj_t *connect = lv_btn_create(lv_scr_act());
  lv_obj_set_size(connect, 432, 54);
  lv_obj_set_pos(connect, 24, 272);
  buttonStyle(connect, Theme::ACCENT, lv_color_hex(0xD95D34), 16);
  lv_obj_add_event_cb(connect, wifiConnectEvent, LV_EVENT_CLICKED, nullptr);
  lv_obj_t *connectText = lv_label_create(connect);
  lv_label_set_text(connectText, "Connect");
  styleLabel(connectText, Theme::BG, &lv_font_montserrat_18);
  lv_obj_center(connectText);

  // This report stays on the password screen so pressing Connect always gives
  // a visible result instead of silently returning to the scan page.
  wifiStatusLabel = lv_label_create(lv_scr_act());
  lv_label_set_text(wifiStatusLabel, "Enter the password, then tap Connect.");
  styleLabel(wifiStatusLabel, Theme::MUTED, &lv_font_montserrat_14);
  lv_obj_set_width(wifiStatusLabel, 432);
  lv_obj_set_style_text_align(wifiStatusLabel, LV_TEXT_ALIGN_CENTER, 0);
  lv_obj_set_pos(wifiStatusLabel, 24, 338);

  keyboard = lv_keyboard_create(lv_scr_act());
  lv_obj_set_size(keyboard, 480, 392);
  lv_obj_align(keyboard, LV_ALIGN_TOP_LEFT, 0, 398);
  lv_keyboard_set_textarea(keyboard, passwordBox);
  lv_obj_add_event_cb(keyboard, wifiPasswordEvent, LV_EVENT_READY, nullptr);
  lv_obj_add_event_cb(keyboard, wifiPasswordEvent, LV_EVENT_CANCEL, nullptr);
  lv_obj_add_state(passwordBox, LV_STATE_FOCUSED);
}

static String formatNumber(double value) {
  if (!isfinite(value)) return "Error";
  if (fabs(value) < 0.000000001) value = 0;
  char out[24];
  snprintf(out, sizeof(out), "%.10g", value);
  return String(out);
}

static void updateCalcDisplay() {
  if (calcDisplay) lv_label_set_text(calcDisplay, calcError ? "Error" : entry.c_str());
}

static void setError() {
  calcError = true;
  entry = "Error";
  pendingOp = 0;
  freshEntry = true;
  updateCalcDisplay();
}

static bool applyPending() {
  double right = entry.toDouble();
  if (pendingOp == '+') accumulator += right;
  else if (pendingOp == '-') accumulator -= right;
  else if (pendingOp == '*') accumulator *= right;
  else if (pendingOp == '/') {
    if (right == 0.0) { setError(); return false; }
    accumulator /= right;
  }
  if (!isfinite(accumulator)) { setError(); return false; }
  entry = formatNumber(accumulator);
  return true;
}

static void calculatorEvent(lv_event_t *event) {
  const char *key = (const char *)lv_event_get_user_data(event);
  if (!strcmp(key, "C")) {
    entry = "0"; accumulator = 0; pendingOp = 0; freshEntry = true; calcError = false;
  } else if (calcError) {
    return;
  } else if (!strcmp(key, "BS")) {
    if (!freshEntry && entry.length() > 1) entry.remove(entry.length() - 1);
    else { entry = "0"; freshEntry = true; }
  } else if (!strcmp(key, "+/-")) {
    if (entry != "0") entry = entry.startsWith("-") ? entry.substring(1) : "-" + entry;
  } else if (!strcmp(key, "%")) {
    entry = formatNumber(entry.toDouble() / 100.0); freshEntry = true;
  } else if (!strcmp(key, ".")) {
    if (freshEntry) { entry = "0."; freshEntry = false; }
    else if (entry.indexOf('.') < 0 && entry.length() < 14) entry += ".";
  } else if (!strcmp(key, "=")) {
    if (pendingOp) { if (!applyPending()) return; pendingOp = 0; freshEntry = true; }
  } else if (!strcmp(key, "+") || !strcmp(key, "-") || !strcmp(key, "*") || !strcmp(key, "/")) {
    char next = key[0];
    if (pendingOp && !freshEntry) { if (!applyPending()) return; }
    else if (!pendingOp) accumulator = entry.toDouble();
    pendingOp = next; freshEntry = true;
  } else {
    if (freshEntry) { entry = key; freshEntry = false; }
    else if (entry == "0") entry = key;
    else if (entry == "-0") entry = "-" + String(key);
    else if (entry.length() < 14) entry += key;
  }
  updateCalcDisplay();
}

static void calcKey(const char *text, int x, int y, int w, bool accent) {
  lv_obj_t *key = lv_btn_create(lv_scr_act());
  lv_obj_set_size(key, w, 82);
  lv_obj_set_pos(key, x, y);
  buttonStyle(key, accent ? Theme::ACCENT : Theme::TILE,
              accent ? lv_color_hex(0xD95D34) : lv_color_hex(0x454345), 20);
  lv_obj_add_event_cb(key, calculatorEvent, LV_EVENT_CLICKED, (void *)text);
  lv_obj_t *label = lv_label_create(key);
  lv_label_set_text(label, !strcmp(text, "BS") ? "<" :
                     (!strcmp(text, "*") ? "x" : (!strcmp(text, "/") ? "/" : text)));
  styleLabel(label, accent ? Theme::BG : Theme::TEXT, &lv_font_montserrat_24);
  lv_obj_center(label);
}

static void showCalculator() {
  baseScreen();
  makeHeader("Calculator");
  calcDisplay = lv_label_create(lv_scr_act());
  lv_obj_set_size(calcDisplay, 432, 86);
  lv_obj_set_pos(calcDisplay, 24, 100);
  styleLabel(calcDisplay, Theme::TEXT, &lv_font_montserrat_36);
  lv_obj_set_style_text_align(calcDisplay, LV_TEXT_ALIGN_RIGHT, 0);
  lv_obj_set_style_bg_color(calcDisplay, Theme::TILE, 0);
  lv_obj_set_style_bg_opa(calcDisplay, LV_OPA_COVER, 0);
  lv_obj_set_style_radius(calcDisplay, 18, 0);
  lv_obj_set_style_pad_all(calcDisplay, 18, 0);
  updateCalcDisplay();
  const char *keys[5][4] = {
    {"C", "+/-", "%", "/"}, {"7", "8", "9", "*"}, {"4", "5", "6", "-"},
    {"1", "2", "3", "+"}, {"BS", "0", ".", "="}
  };
  const int xs[4] = {16, 131, 246, 361};
  for (int r = 0; r < 5; r++)
    for (int c = 0; c < 4; c++) calcKey(keys[r][c], xs[c], 206 + r * 94, 103, c == 3 || (r == 4 && c == 3));
  makeHomeIndicator();
}

static void openApp(AppId app) {
  if (app == CALCULATOR) showCalculator();
  else if (app == CLOCK) showClock();
  else if (app == WEATHER) showWeather();
  else if (app == NEWS) showNews();
  else if (app == METRO_RUN) showMetroRun();
  else if (app == SETTINGS) showSettings();
  else showPlaceholder(app);
}

void setup() {
  Serial.begin(115200);
  schematikDisplayBegin();
  if (schematikDisplayLock()) {
    showHome();
    schematikDisplayUnlock();
  }
}

void loop() {
  pollWifi();
  clockAppPoll();
  weatherAppPoll();
  newsAppPoll();
  delay(10);
}
